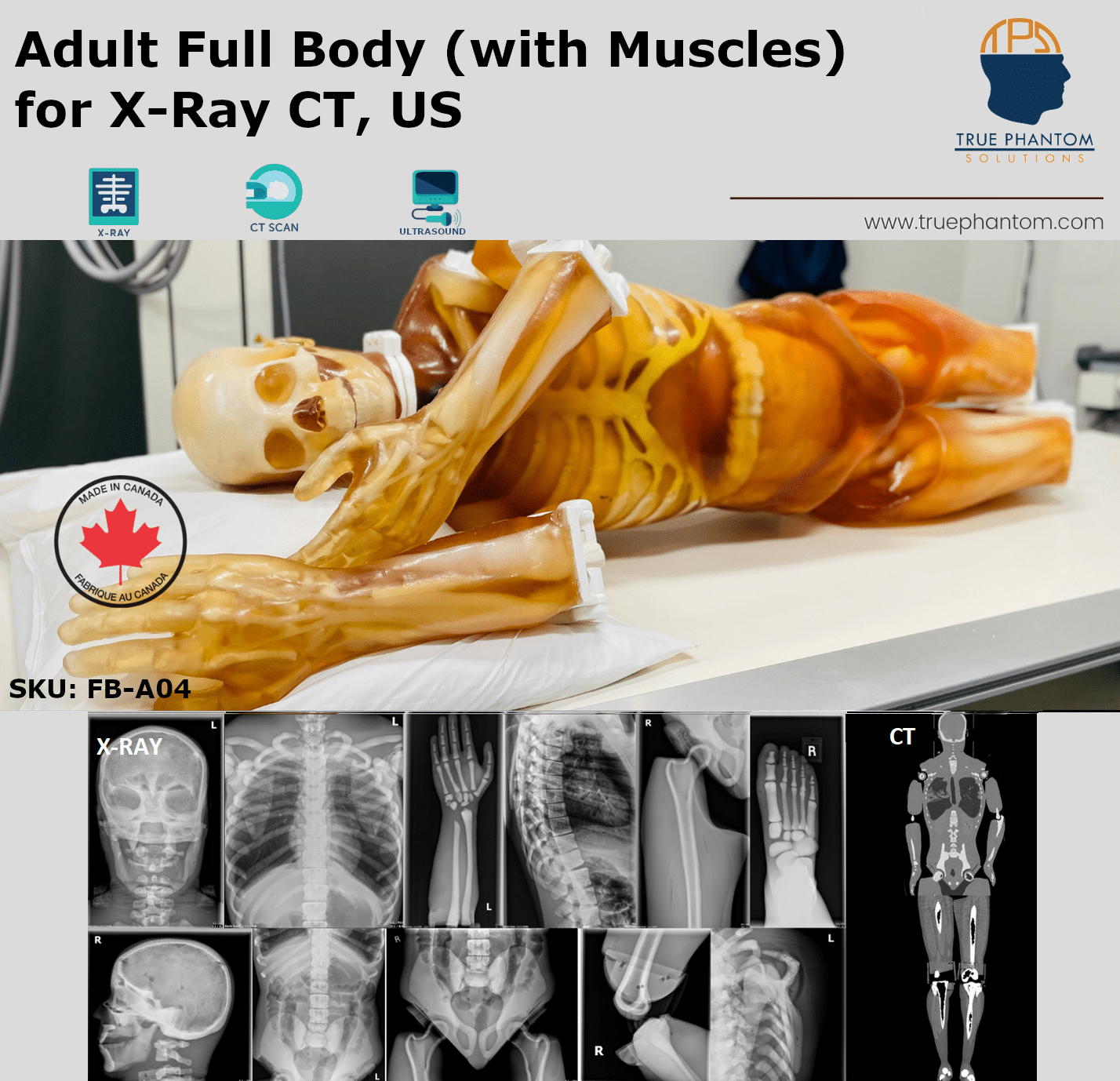

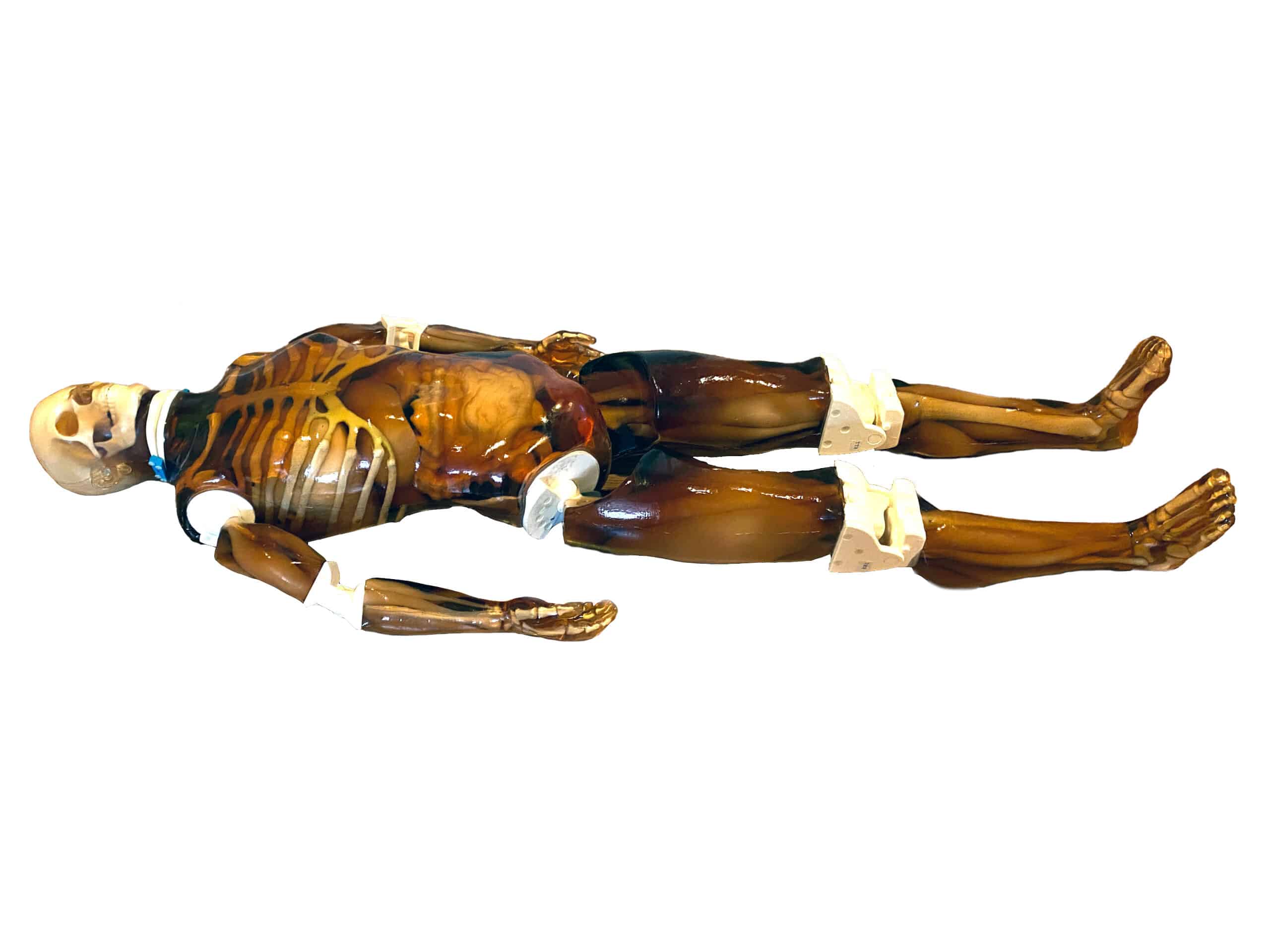

The Adult Full Body Phantom with Muscles is an X-Ray CT and US-compatible training product. Above other functionality listed below, this phantom was specifically enhanced to mimic the major muscle structure of arms and legs. The primary application of this phantom is to train and demonstrate various patient positioning techniques in radiology. Other uses include hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.
The model of this phantom is based on an adult male body that weighs about 70 kg (154 lb) and measures 175 cm (69 in) in height.
The skeleton is built from individually cast bones made from a patented synthetic material that has a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request. This positioning phantom can be ordered in a translucent or skin-colored version.
Anatomy:
Full Human Body (10 Parts)
Realistic Body and Muscle Tissue-Mimicking Material
Rotatable Shoulders (360° Around and 180° Sideways)
Movable Hip, Knee, and Elbow Joints
Detachable Head, Torso, and Limbs
Adult Head
– Skull
– Brain
– Brain Tissue
– Grey and White Matter
– Air Cavities
– Frontal Sinus with Air Gaps
– Alignment Markings
Adult Torso
– Spine
– Ribcage
– Shoulders
– Clavicles
– Pelvis
– Trachea
– Heart
– Lungs
– Diaphragm
– Liver
– Gallbladder
– Stomach
– Kidneys
– Spleen
– Pancreas
– Large and Small Intestines
– Bladder
– Prostate

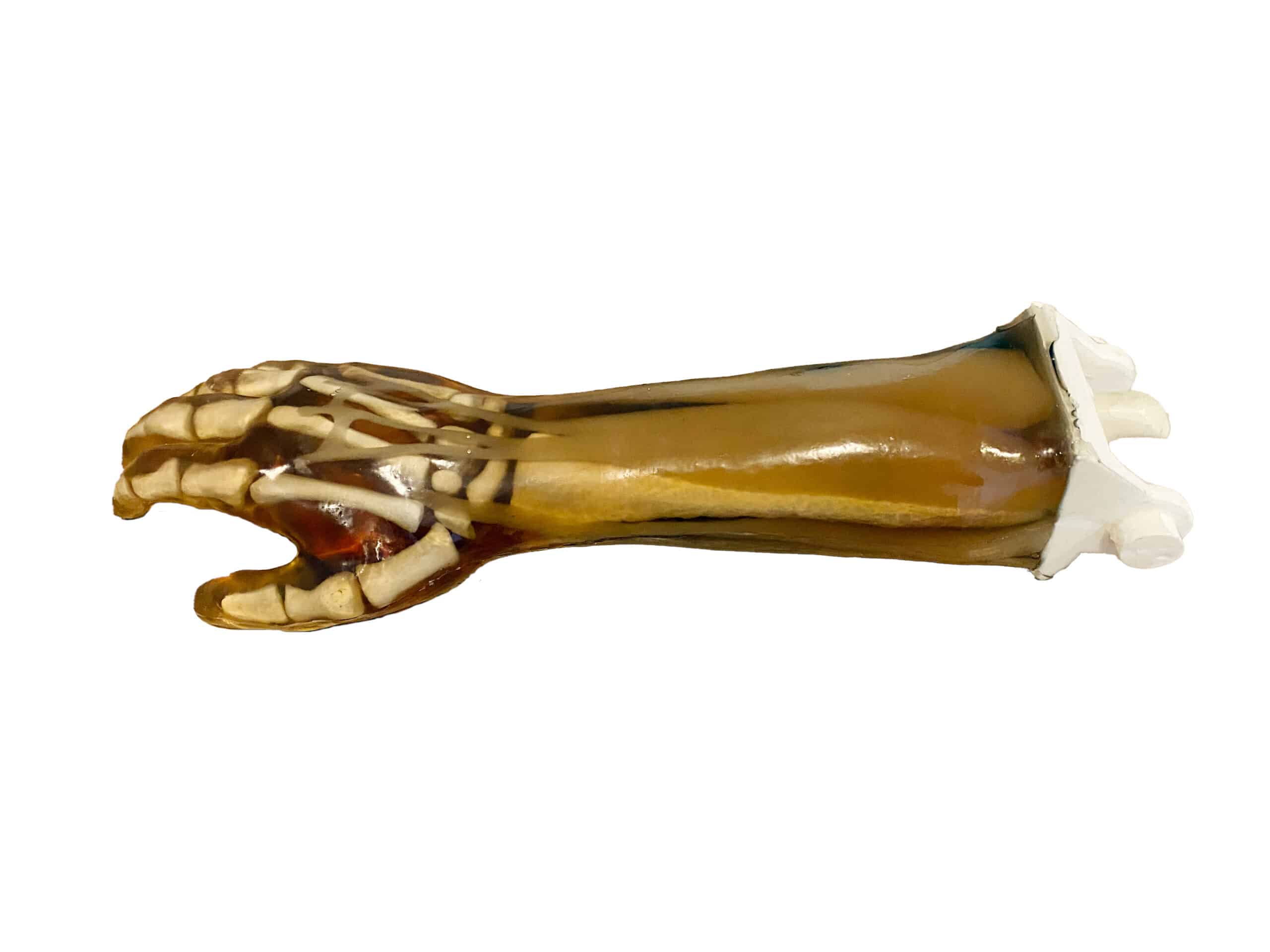

Adult Arms
– Major Muscles
– Humerus
– Elbow Joints
– Radius
– Ulna
– Wrist
– Fingers

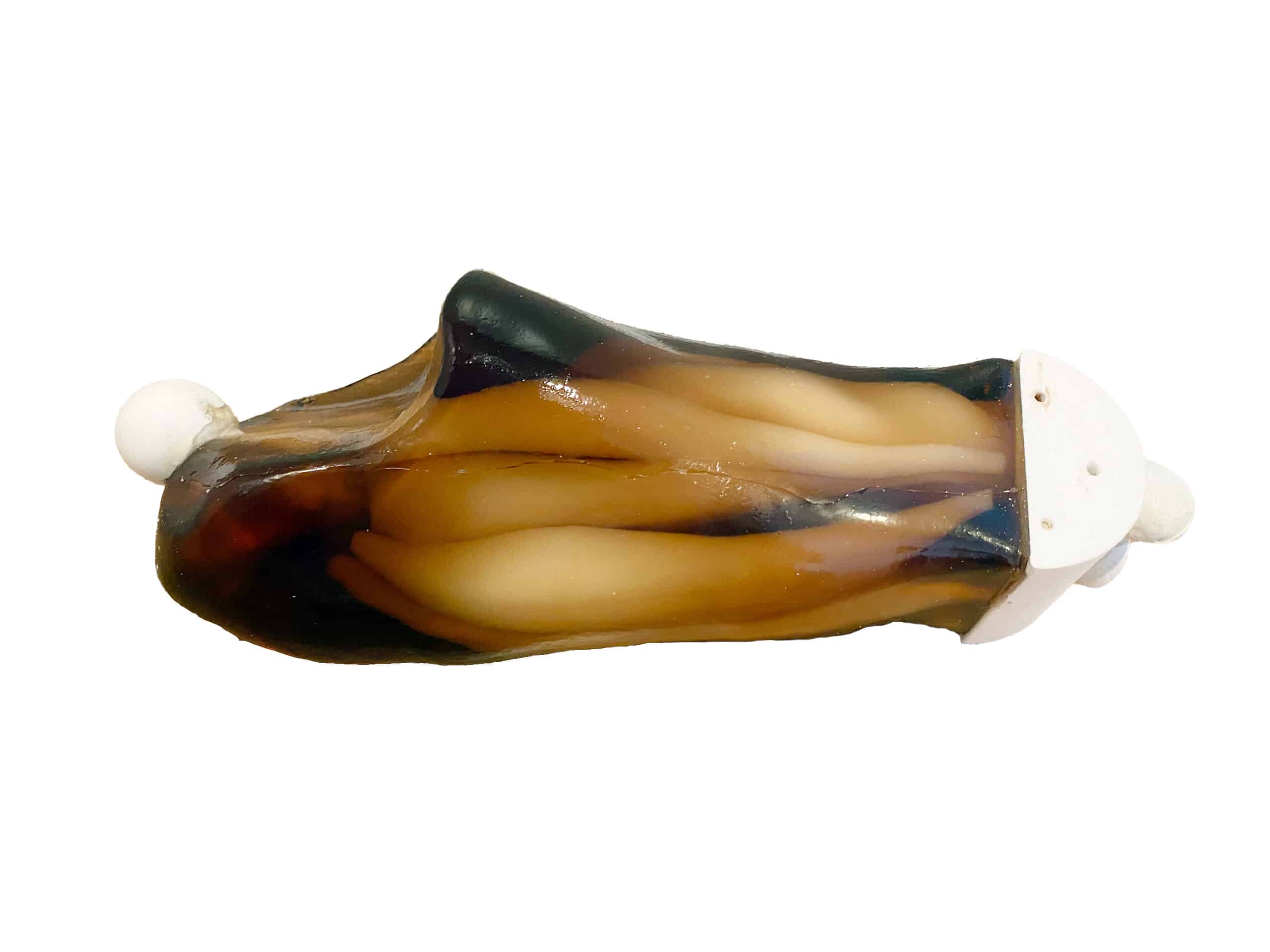

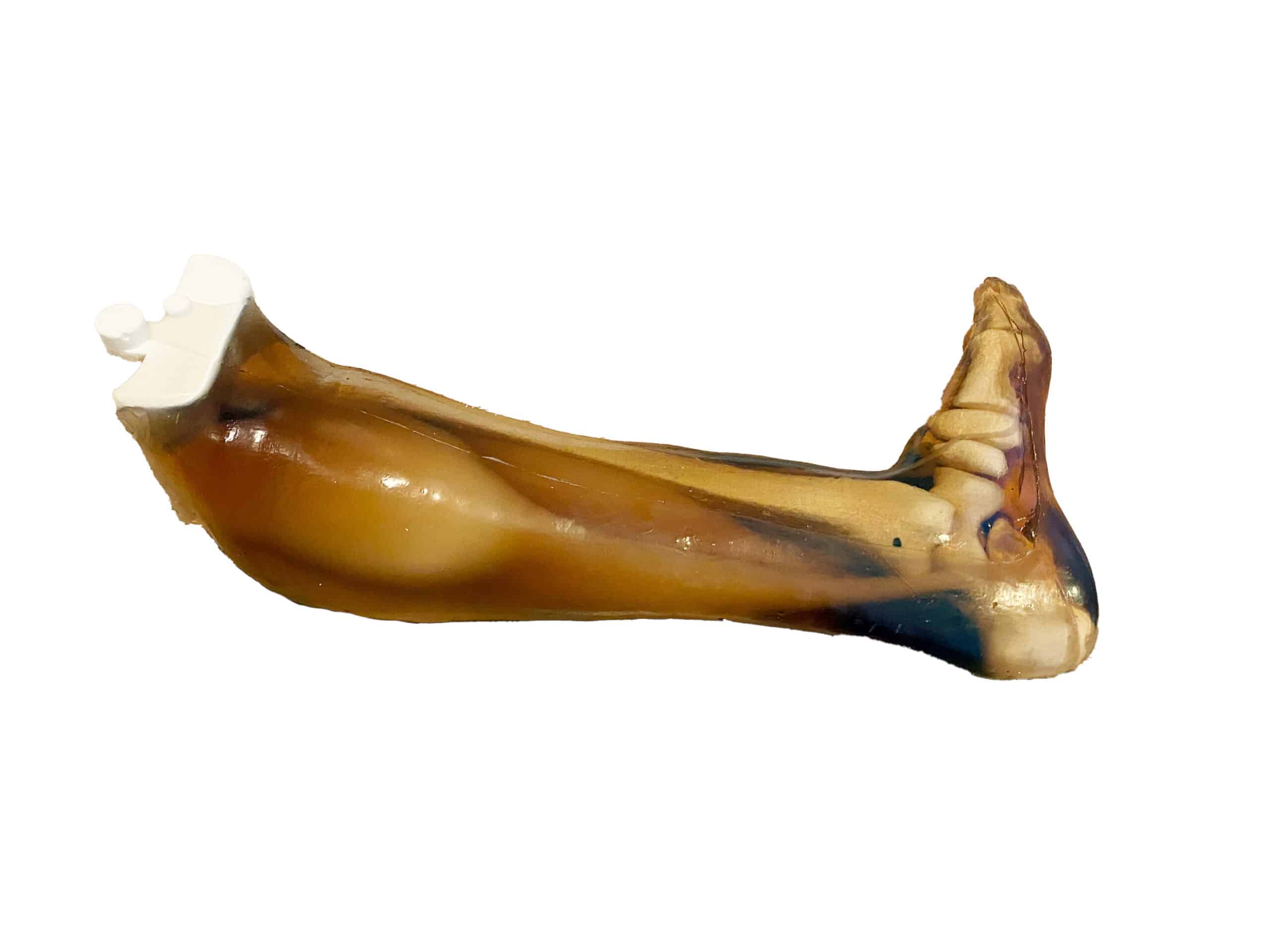

Adult Legs
– Major Muscles
– Femur
– Knee Joints
– Tibia
– Fibula
– Foot
– Toes
Transparent or Skin-Mimicking Appearance
Ultrasound Scans:
*/ These scans were obtained from the Adult Torso for X-Ray CT, US SKU: US-A02 and were taken using a GE device. These images are used only for reference. The abdominal probe of 3.0 MHz -5.0 MHz. If you have any questions related to these, please write us at info@truephantom.com /*

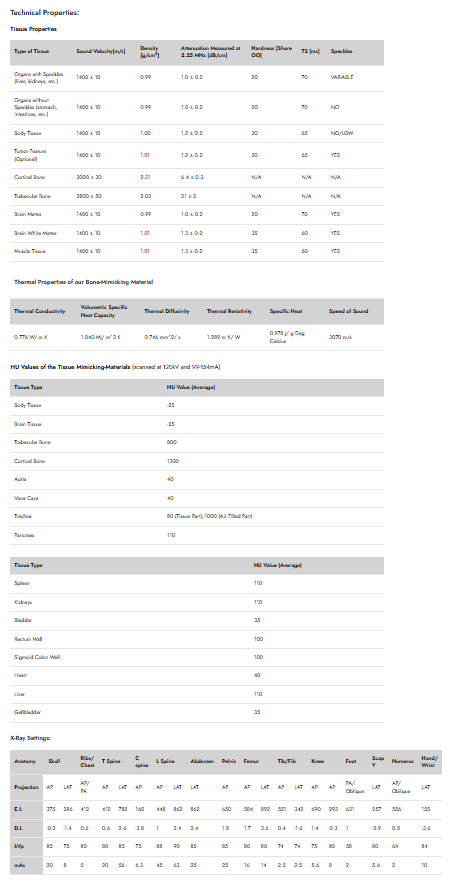

Technical Properties:
Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
Muscle Tissue | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
Thermal Properties of our Bone-Mimicking Material | |||||
Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials | ||
S.No. | Tissue Type | HU Value (Average) |
1 | Body Tissue | -25 |
2 | Brain Tissue | -25 |
3 | Trabecular Bone | 800 |
4 | Cortical Bone | 1300 |
5 | Aorta | 40 |
6 | Vena Cava | 40 |
7 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
8 | Pancreas | 110 |
9 | Spleen | 110 |
10 | Kidneys | 110 |
11 | Bladder | 35 |
12 | Rectum Wall | 100 |
13 | Sigmoid Colon Wall | 100 |
14 | Heart | 40 |
15 | Liver | 110 |
16 | Gallbladder | 35 |
Included In Order:
Adult Full Body Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 69 Inches, Weight: 154.4 Lbs (approx.).
Shipment:
Size: 47 x 26 x 18 Inches, Weight: 198.5 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
