The Adult Breast for X-Ray CT, MRI is a realistic phantom that is designed based on the average anatomy of a female breast, and it contains all the essential bones and organs. This phantom is compatible with X-Ray/CT and MRI imaging, which makes it an ideal tool to study, research, and test medical imaging devices.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods.
The phantom can be still imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
This phantom is a life-size female breast phantom with all bony and major organ structures. BT-A01 can be used to study several diagnostic procedures under X-Ray/CT & MRI in different orientation and positioning techniques.
Upon request, this product can be customized to different pathologies as well as for specific training applications.
Anatomy:
Partial Ribs and Cartilage One Lung Major Fat Tissues Major Muscles Axillary Lymph Nodes Subcutaneous Adipose Retromammary Adipose Mammary Glands Two Spherical Tumors
Design:
-

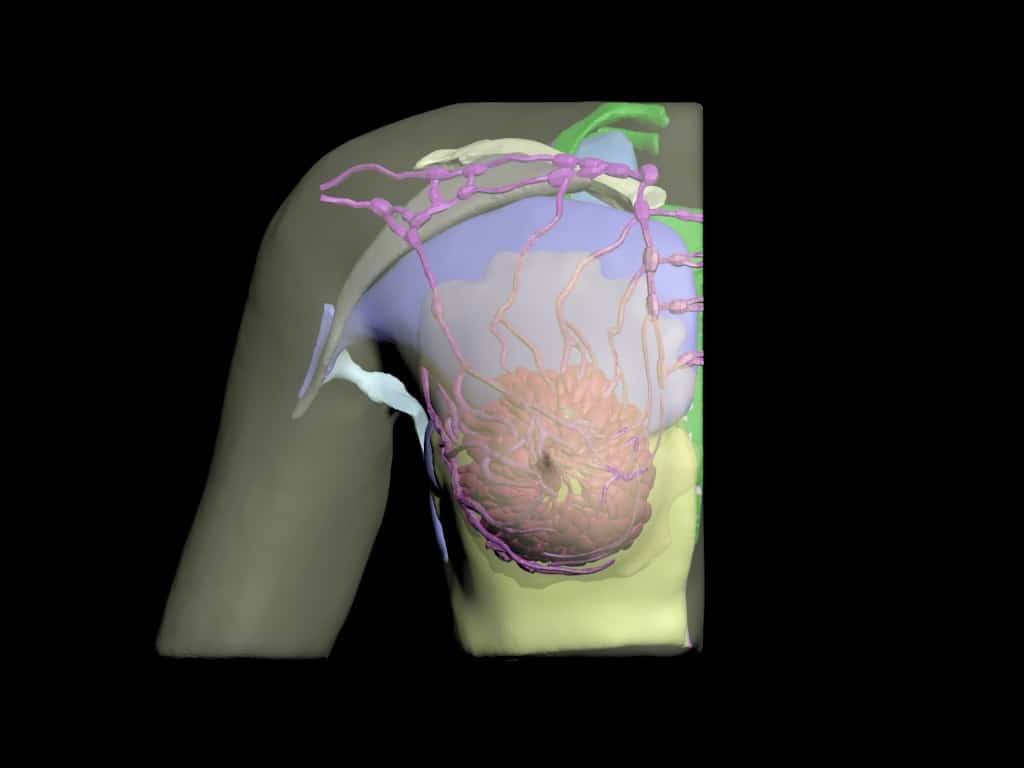

- Front View
-

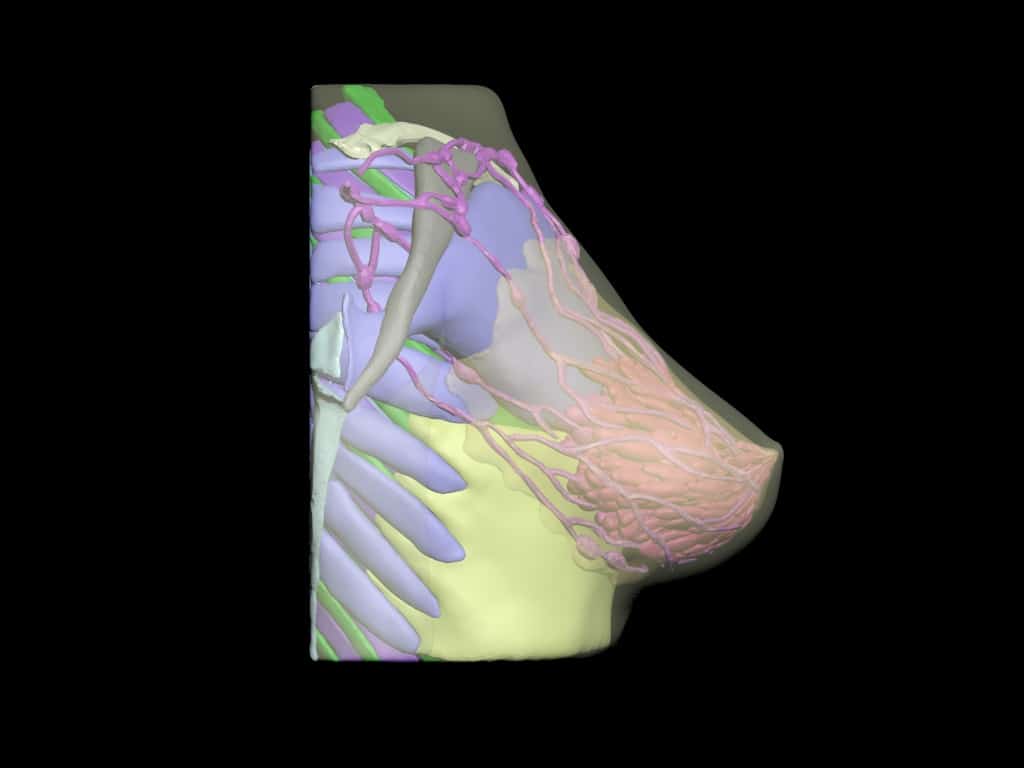

- Lateral View
-

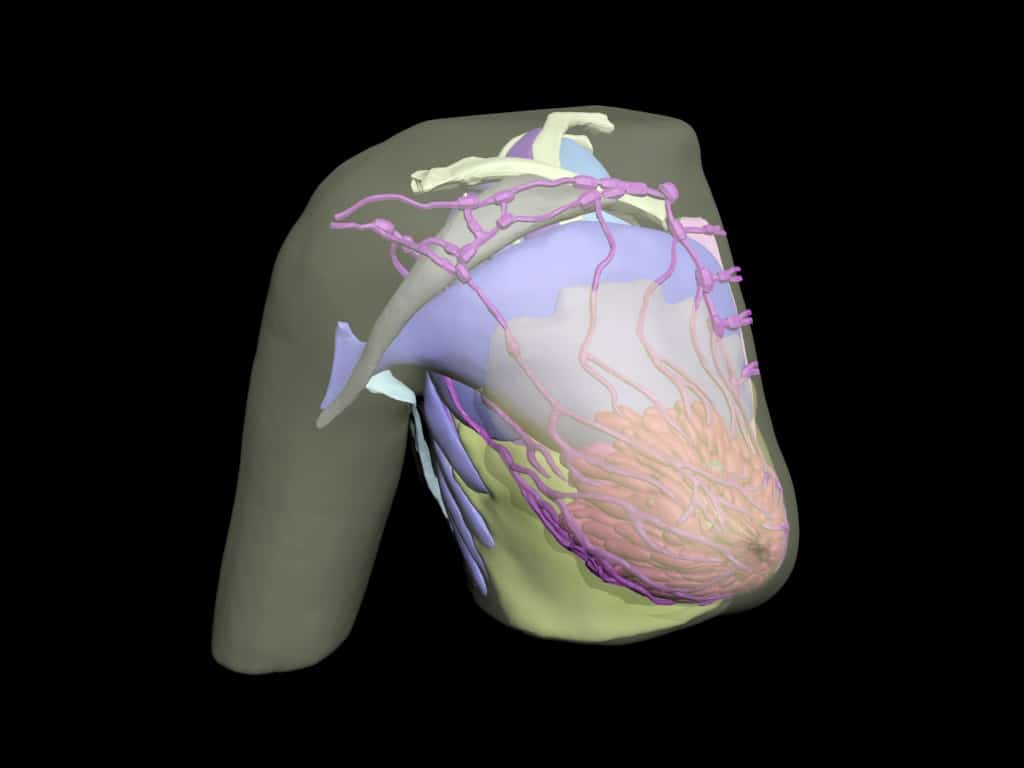

- Perspective View
-

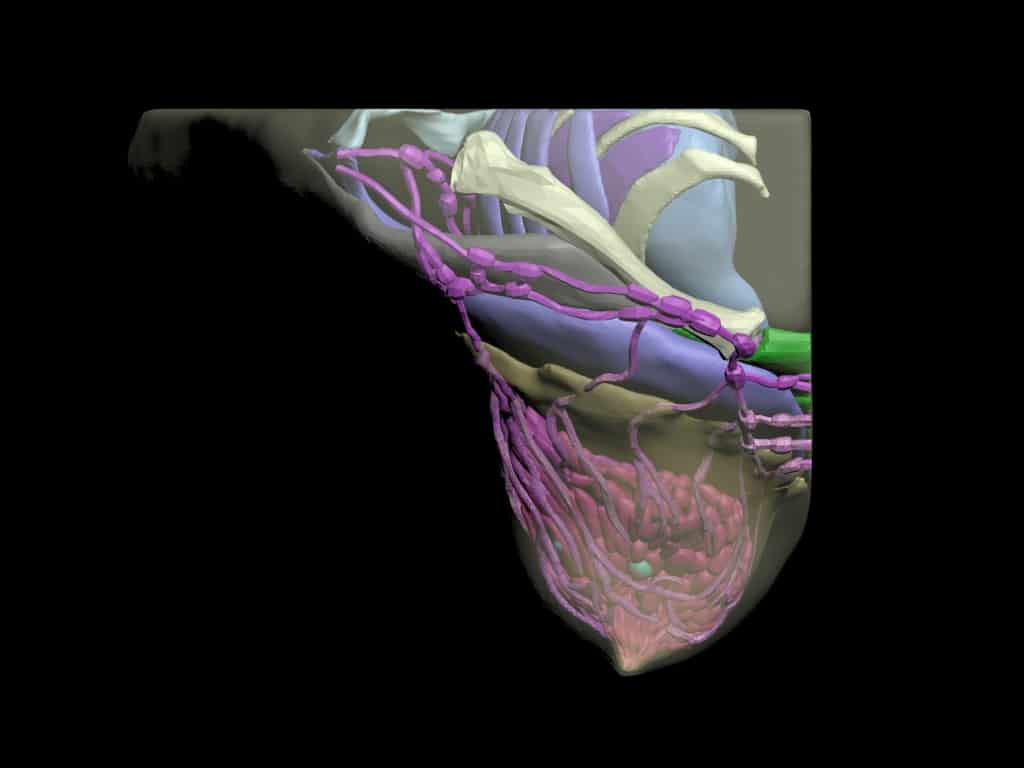

- Top View

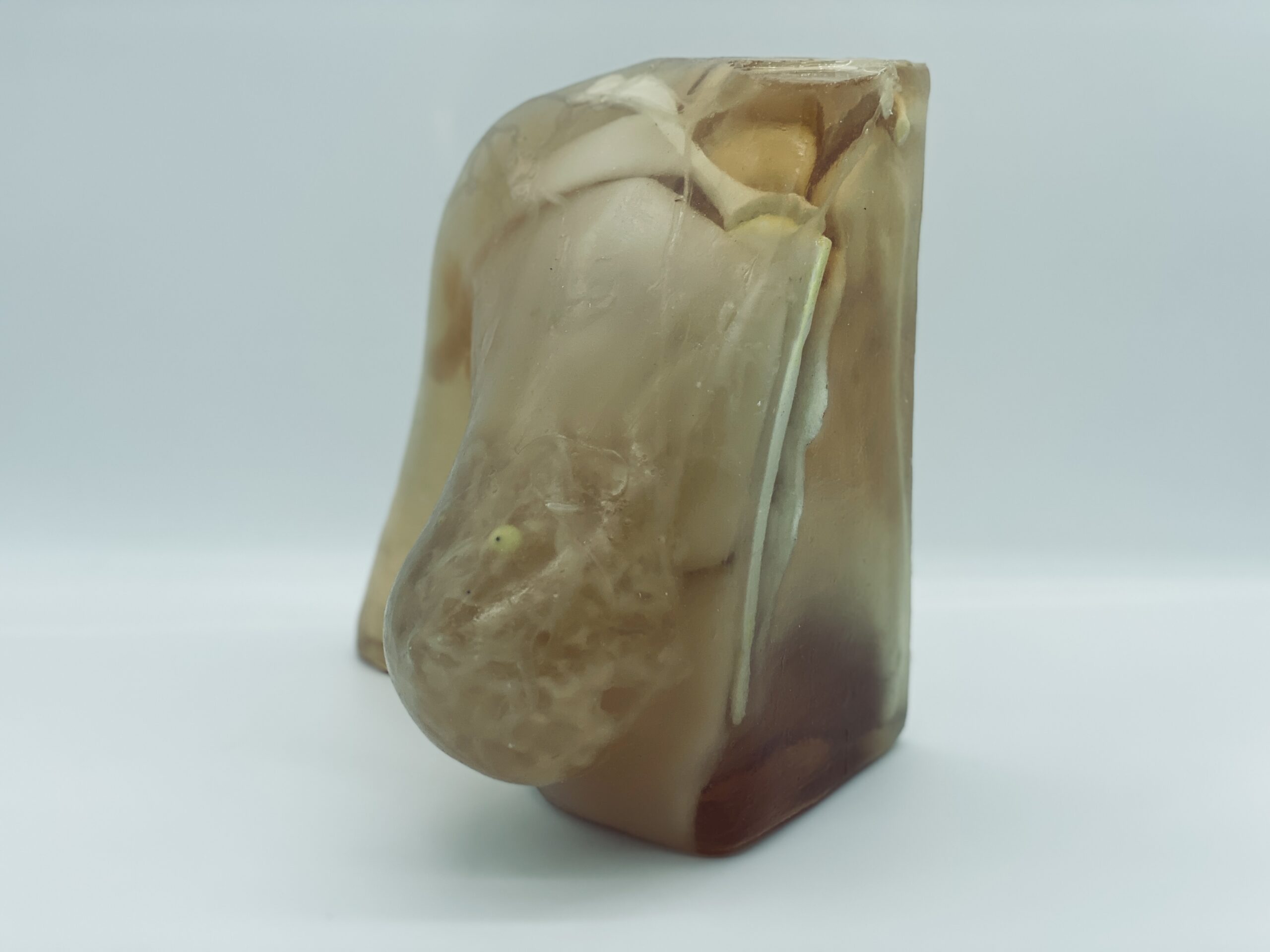

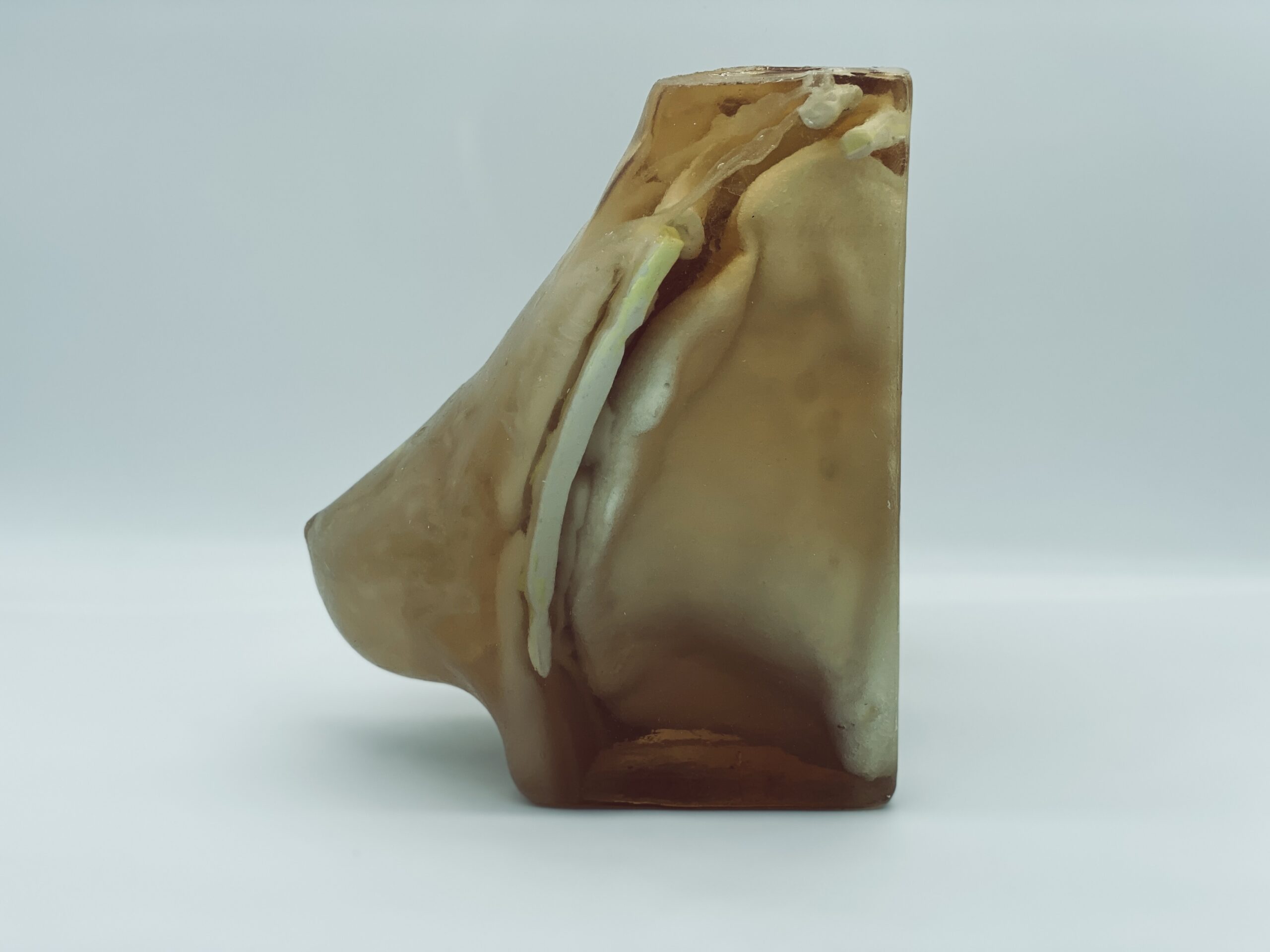

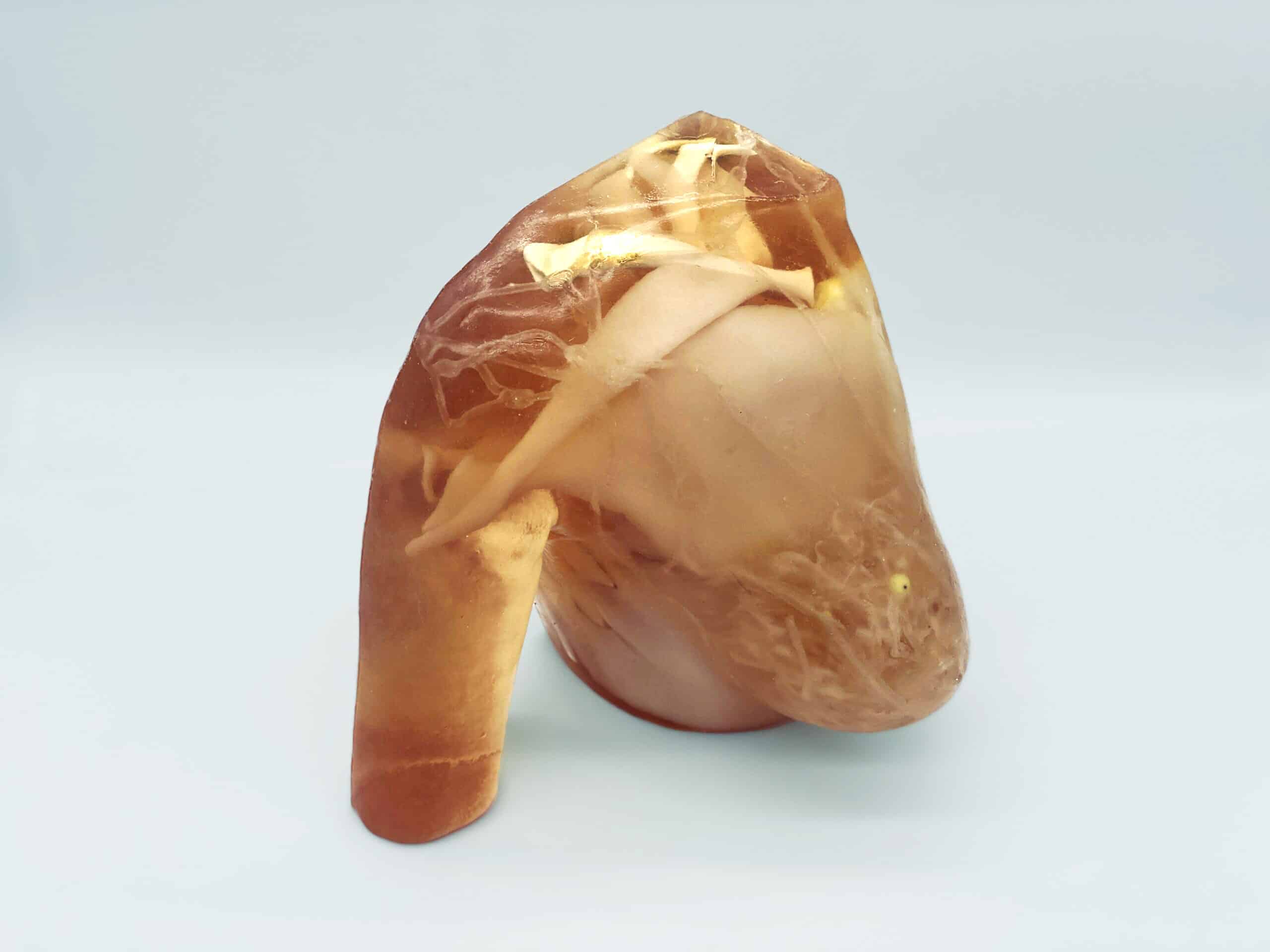

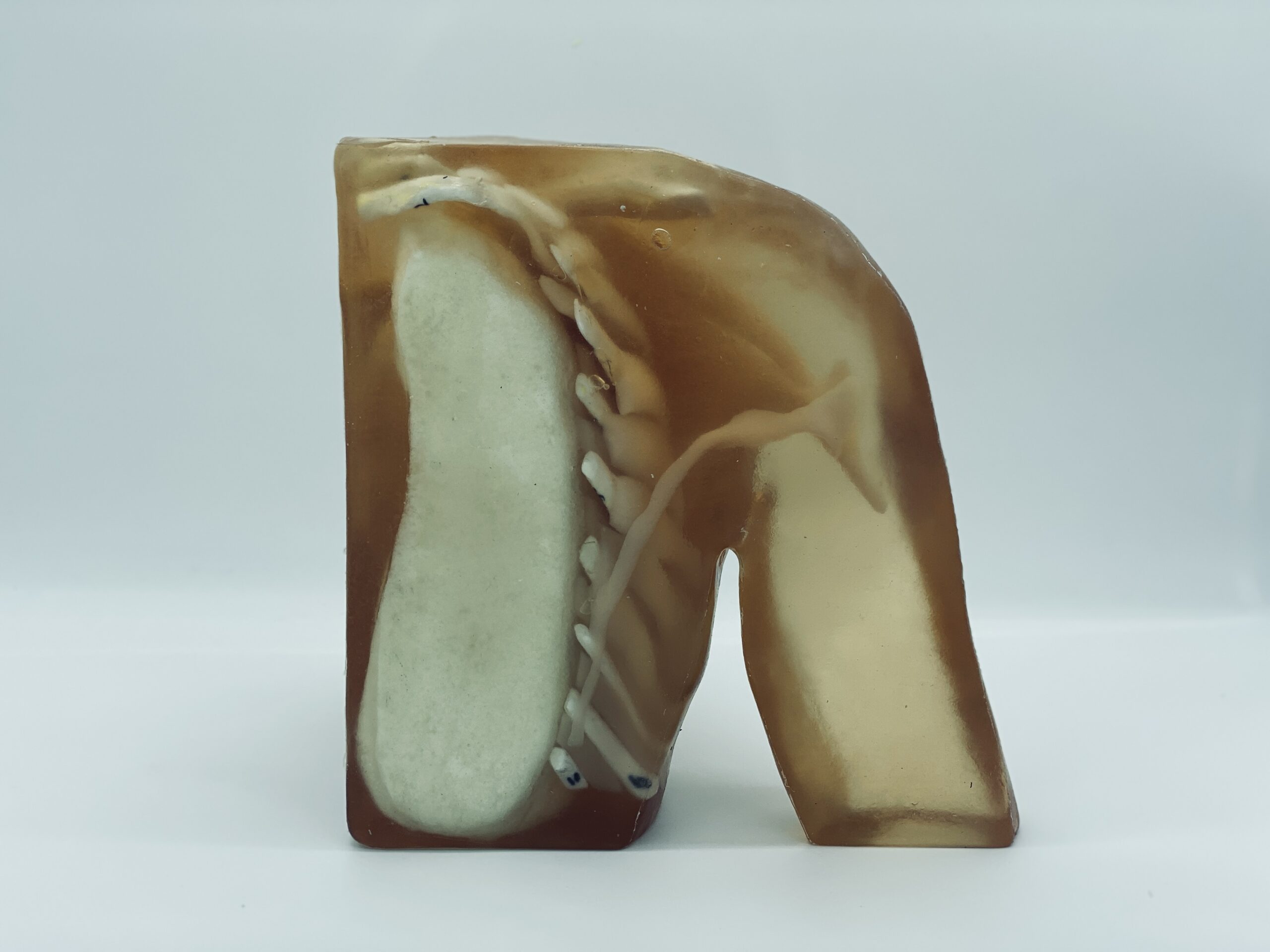

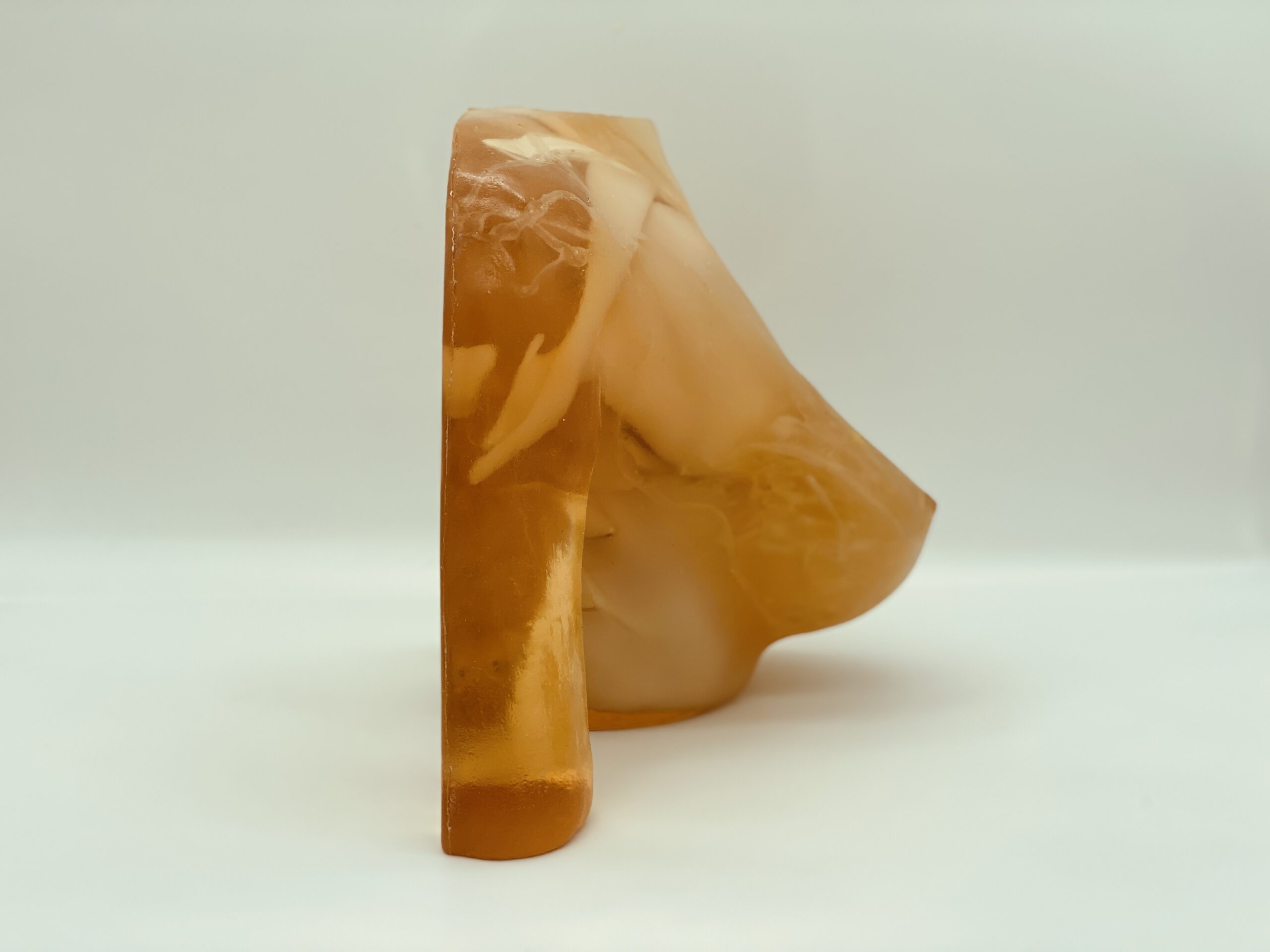

Product Images:

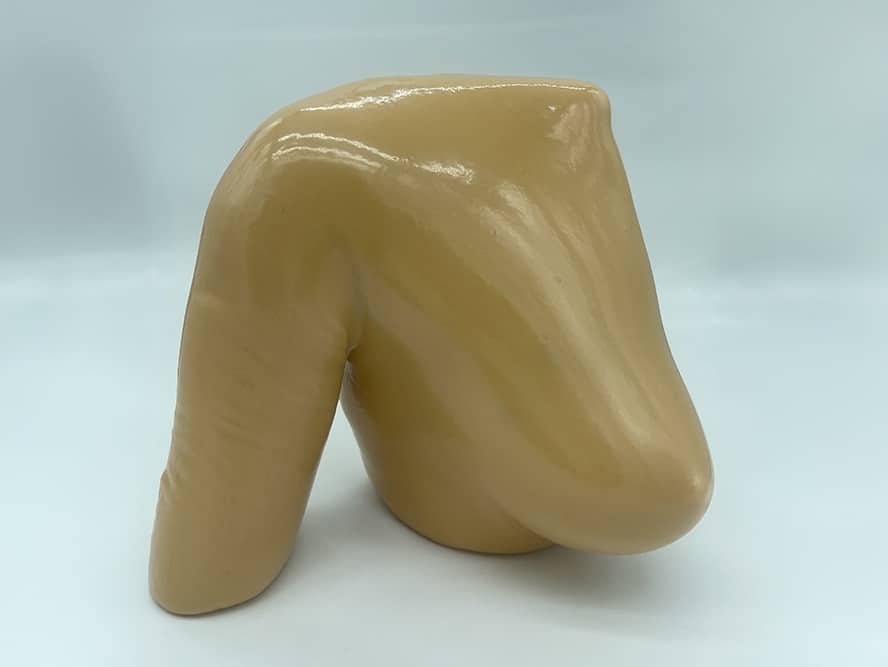

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
X-Ray Scans:

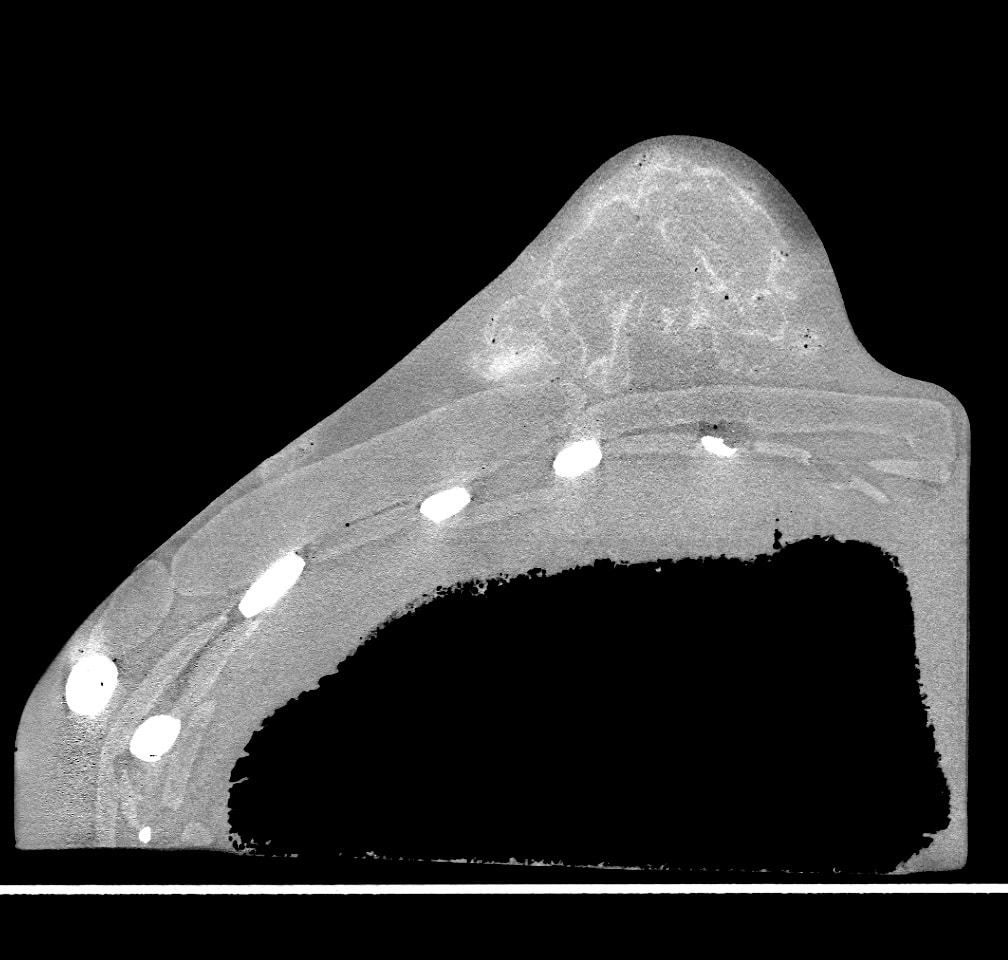

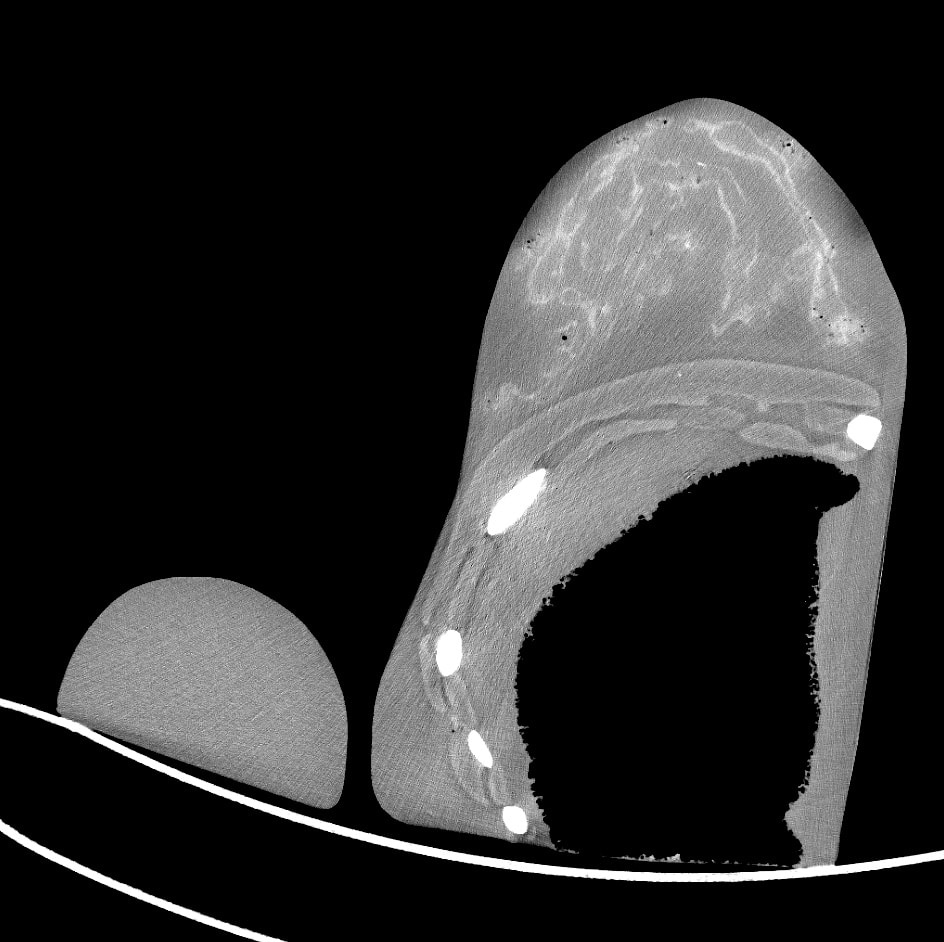

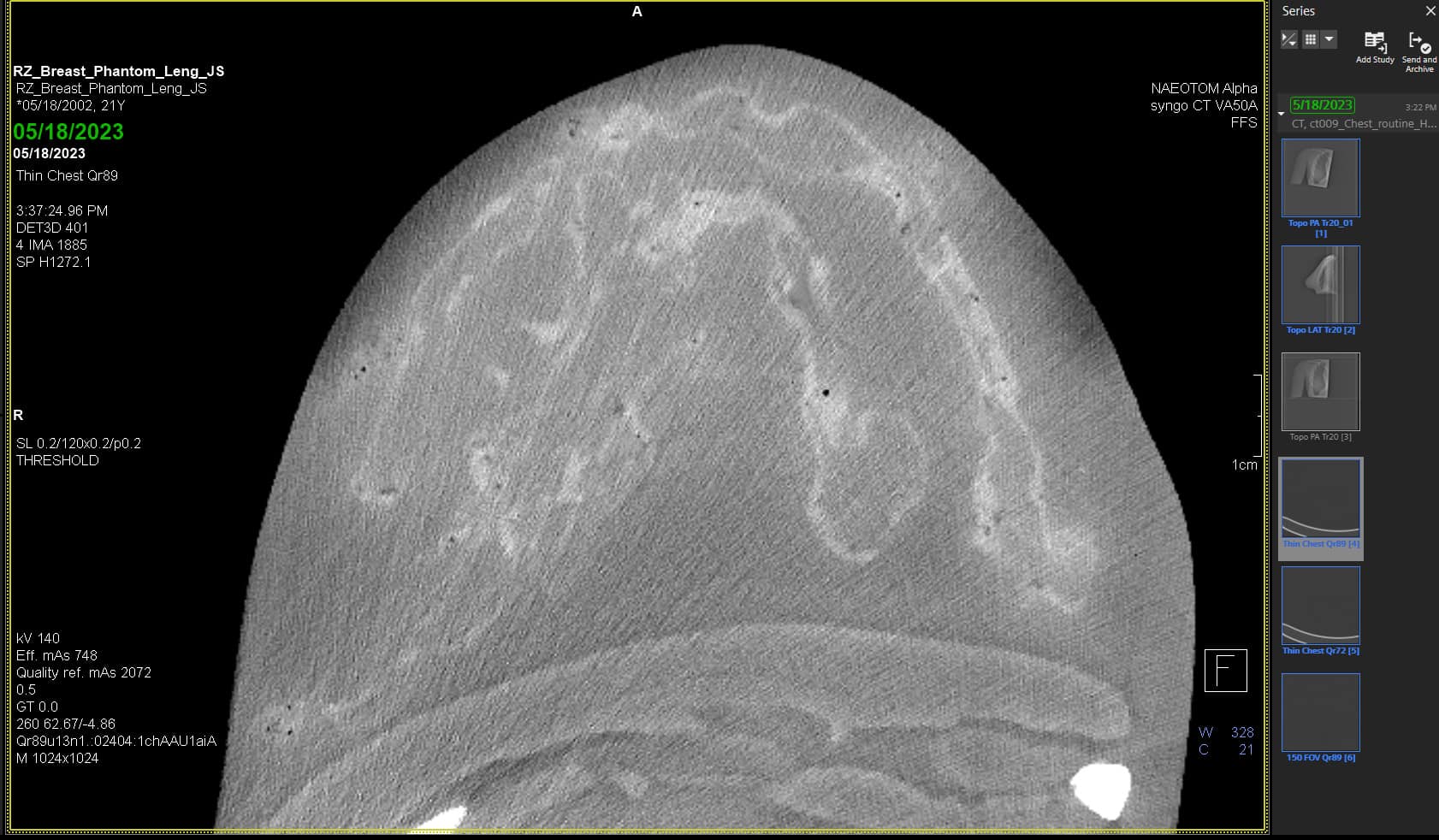

CT Scans:

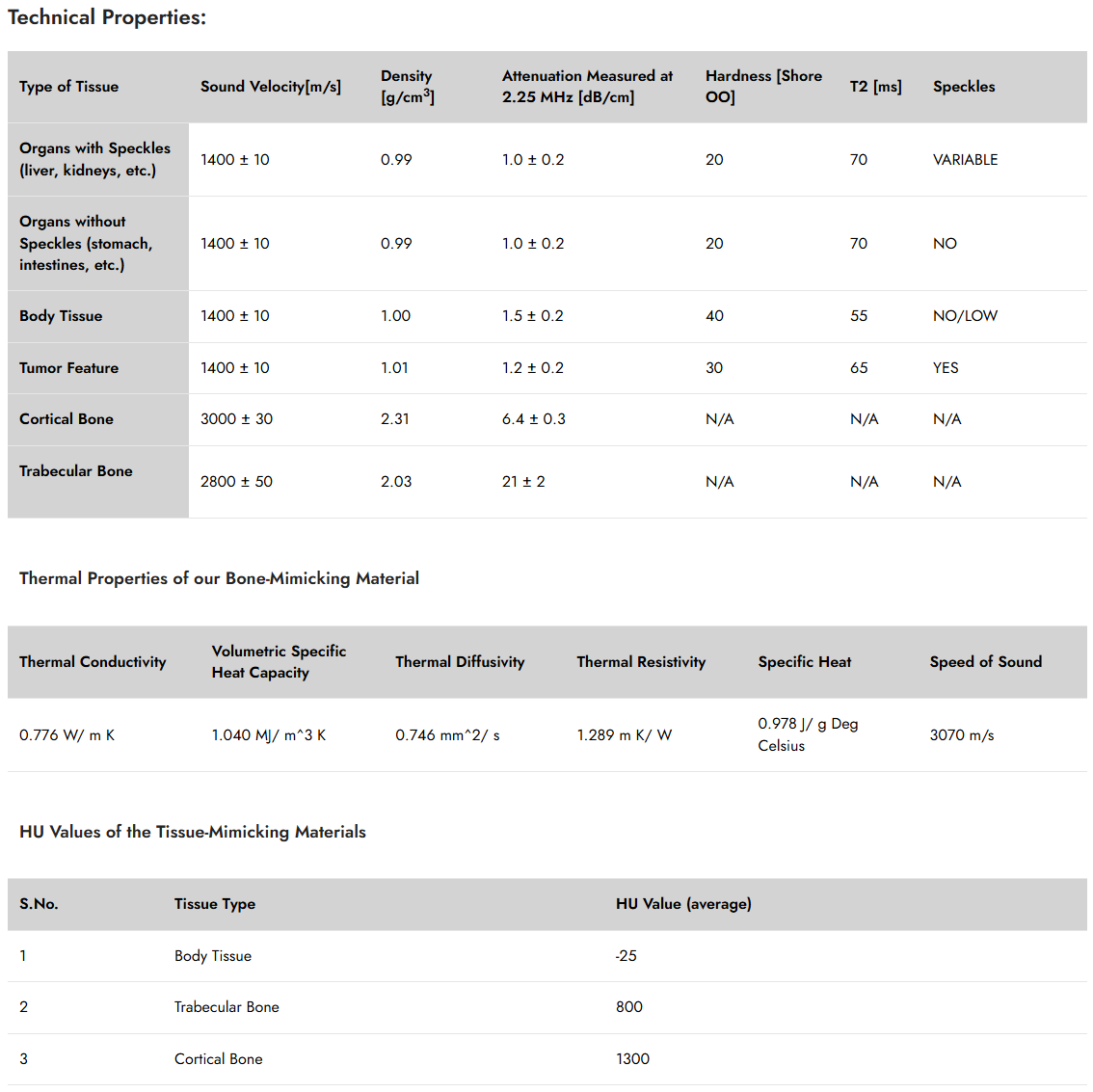

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of our Bone-Mimicking Material |
|||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue-Mimicking Materials |
||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
Included In Order:
Adult Breast Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 10 x 9 x 10 Inches, Weight: 11 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 45 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
