The Tumor is a perfect example of a feature which can be implemented to any location of the brain or simply submerged in a brain mimicking material used to fill the skull or head phantom. The features shown on the images are made out of homogenous tissue mimicking material with realistic acoustical and MRI properties.

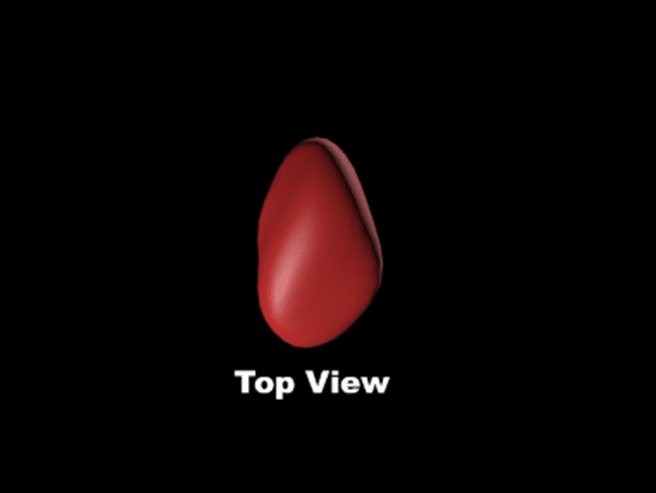

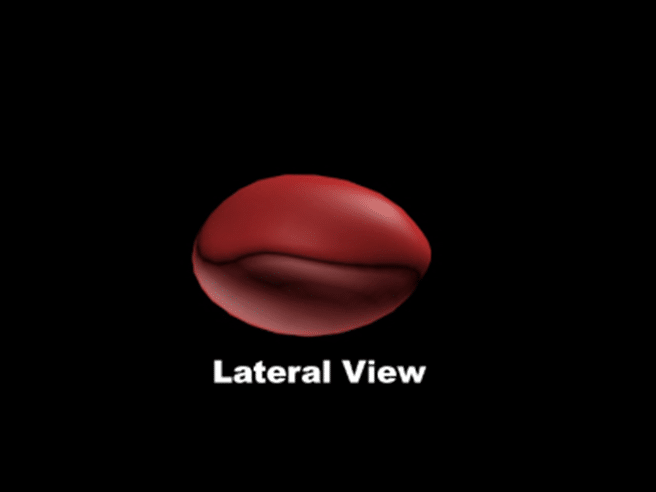

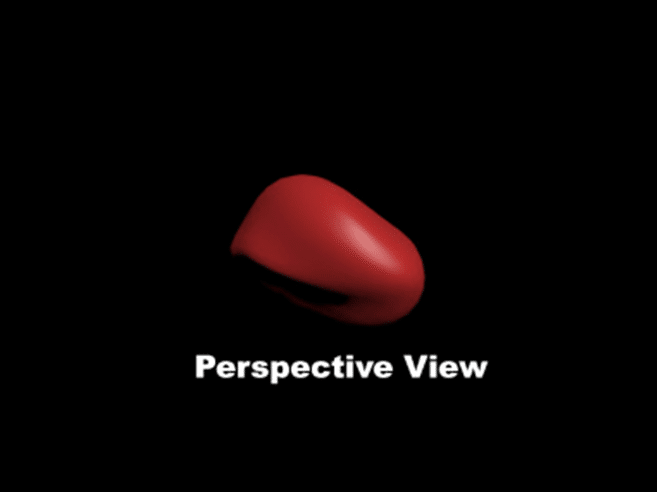

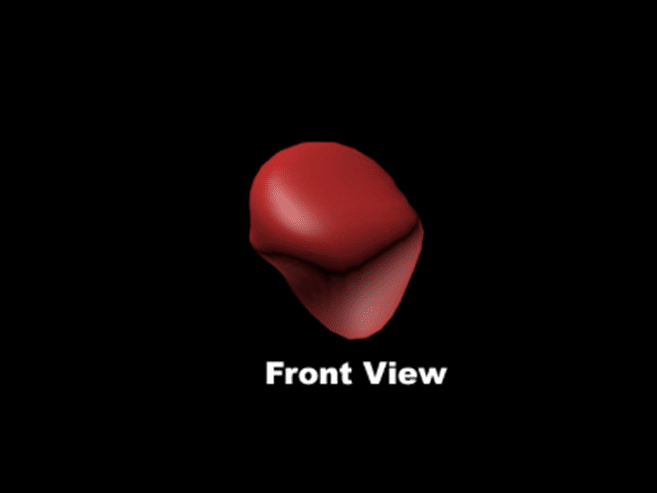

Design:
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Tumor | 1400 ± 10 | 1.01 | 30 | 65 | YES | 1.2 ± 0.2 |
Materials Used:
Soft tissue and organs: Composition of urethane base soft resin
FAQ:
Contact us for any questions you may have.
