Sectional Rat Phantom for X-Ray/CT is designed based on the average anatomy of a rat, and it is sliced into four 5 mm thick segments. The phantom can be used for medical imaging research and development, testing, and calibration-related work. It can be customized in terms of size, shape, internal features, and properties to fit the needs of a wide variety of biomedical research projects.
Anatomy:
Full Skeleton Heart Lungs Diaphragm Liver Kidneys Pancreas Stomach
Design:
-

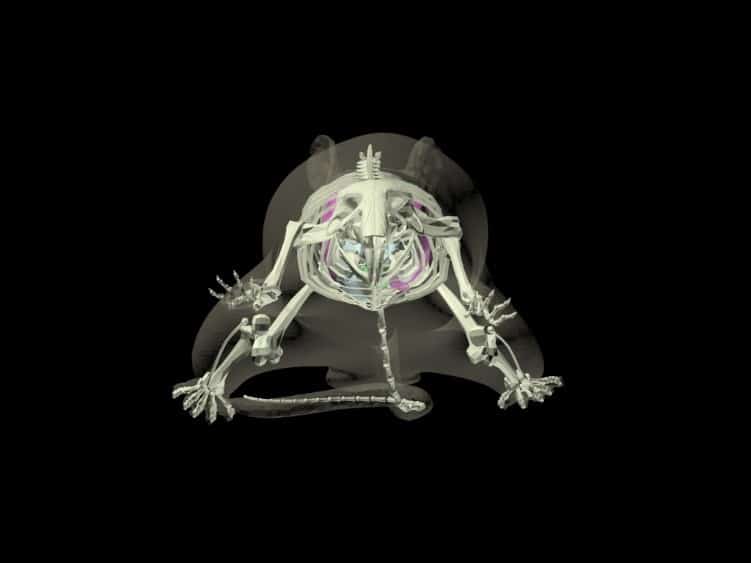

- Front View
-

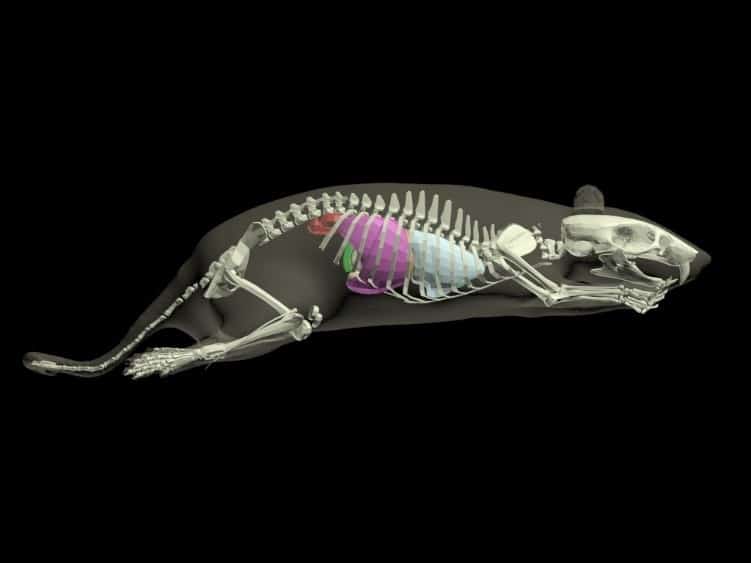

- Lateral View
-

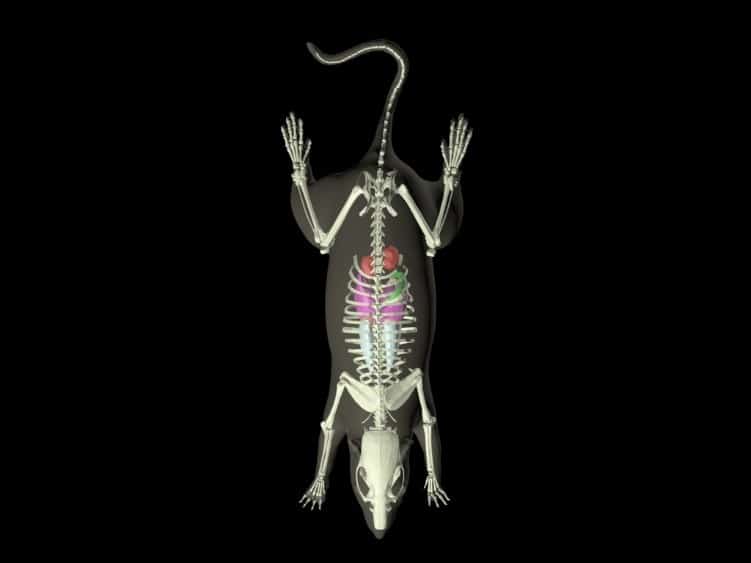

- Top View

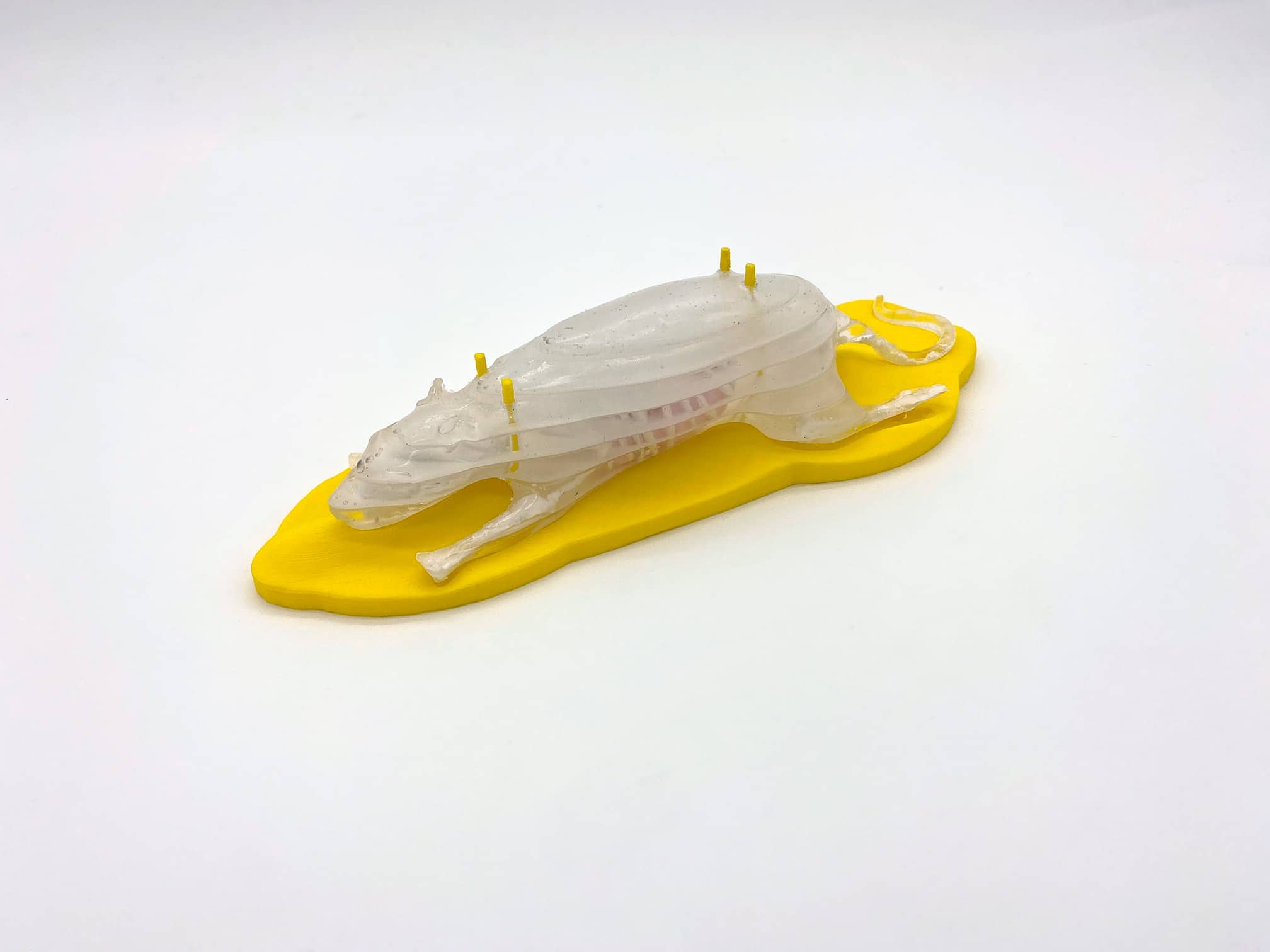

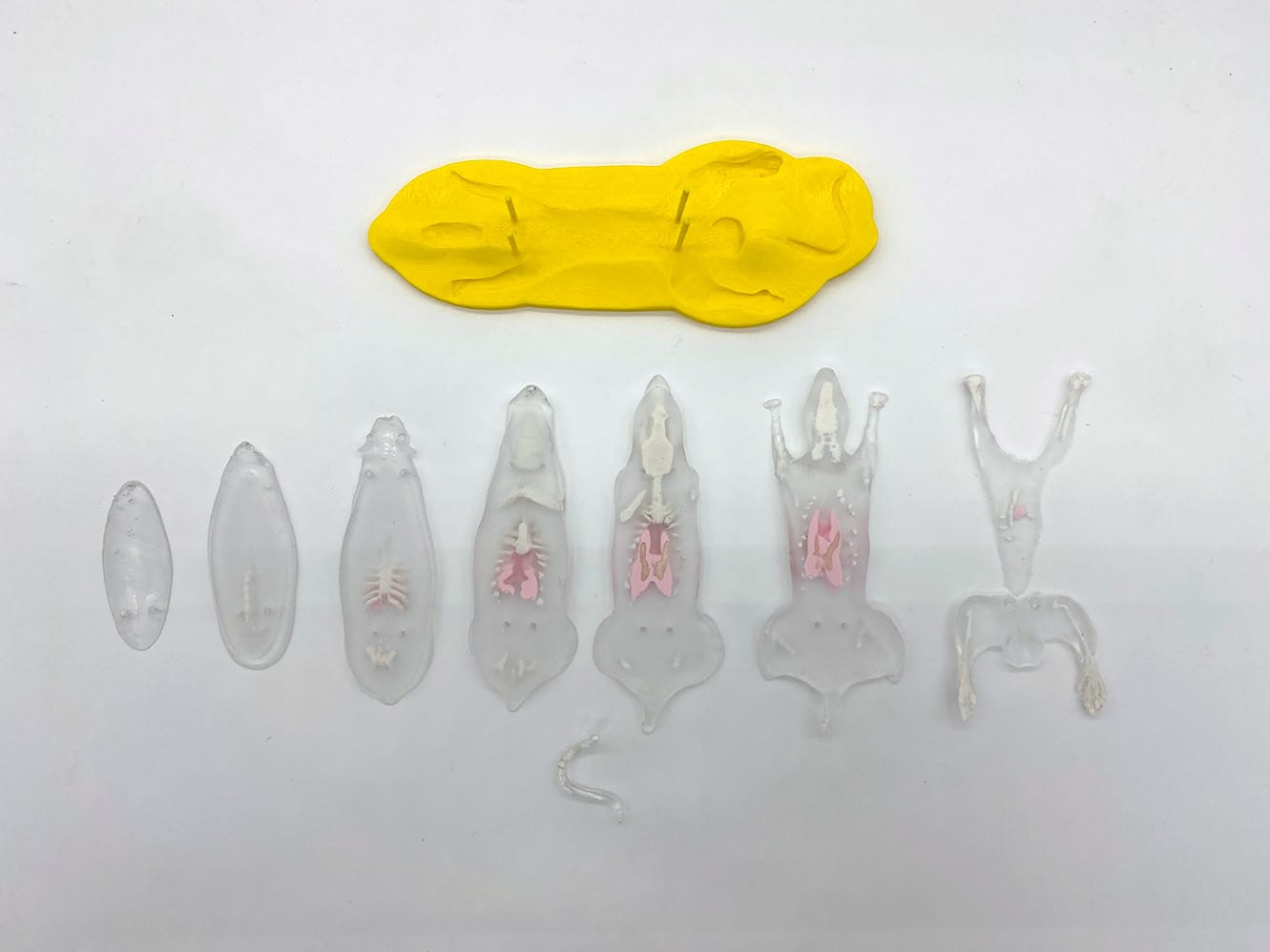

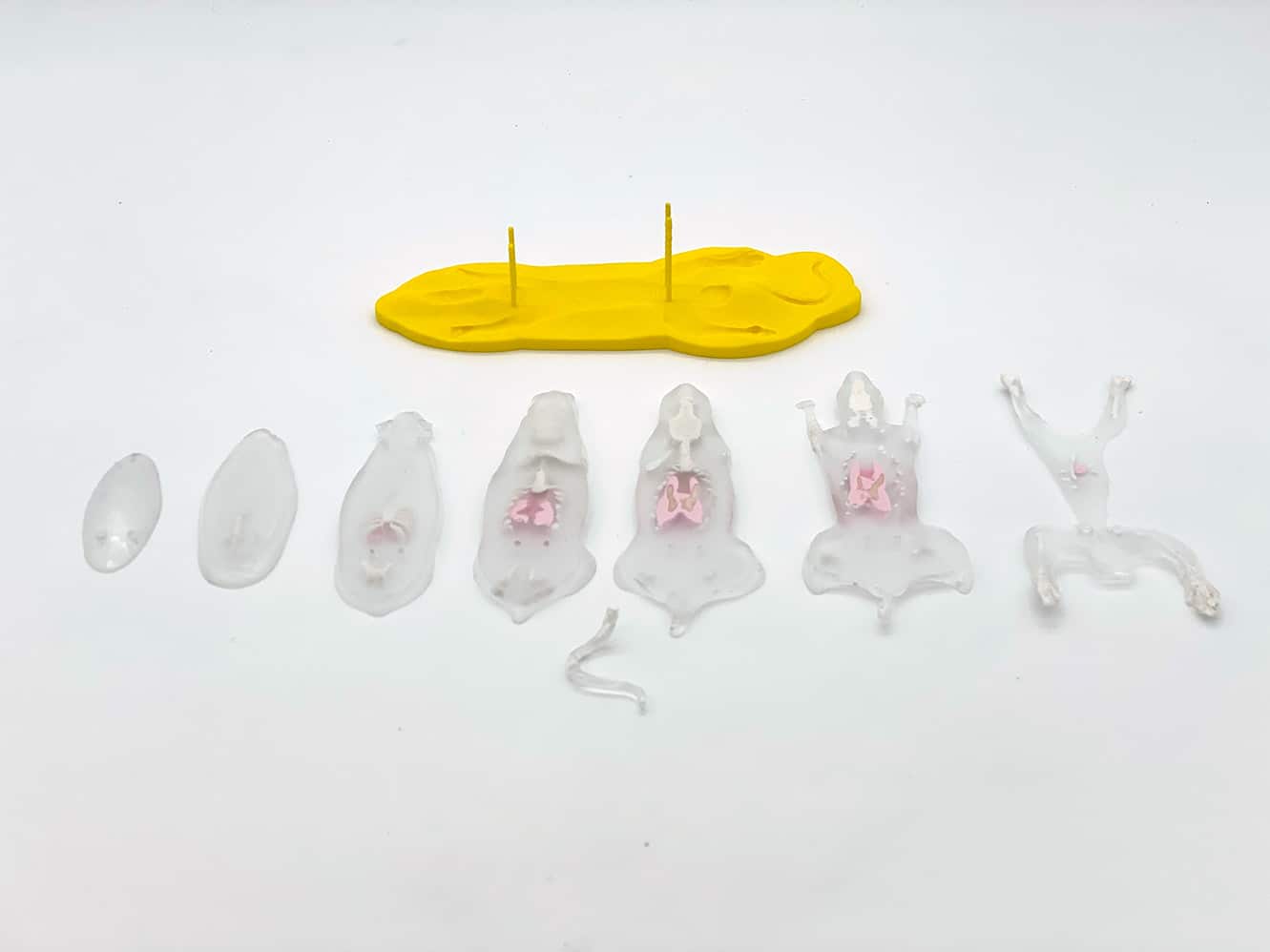

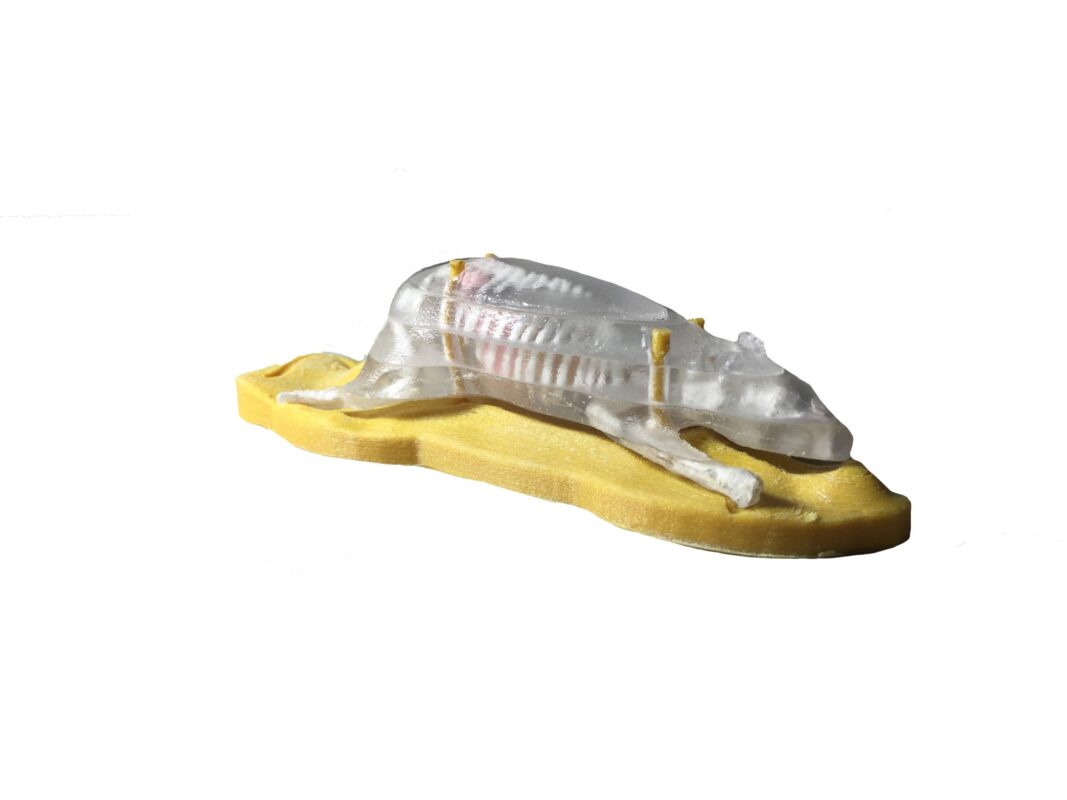

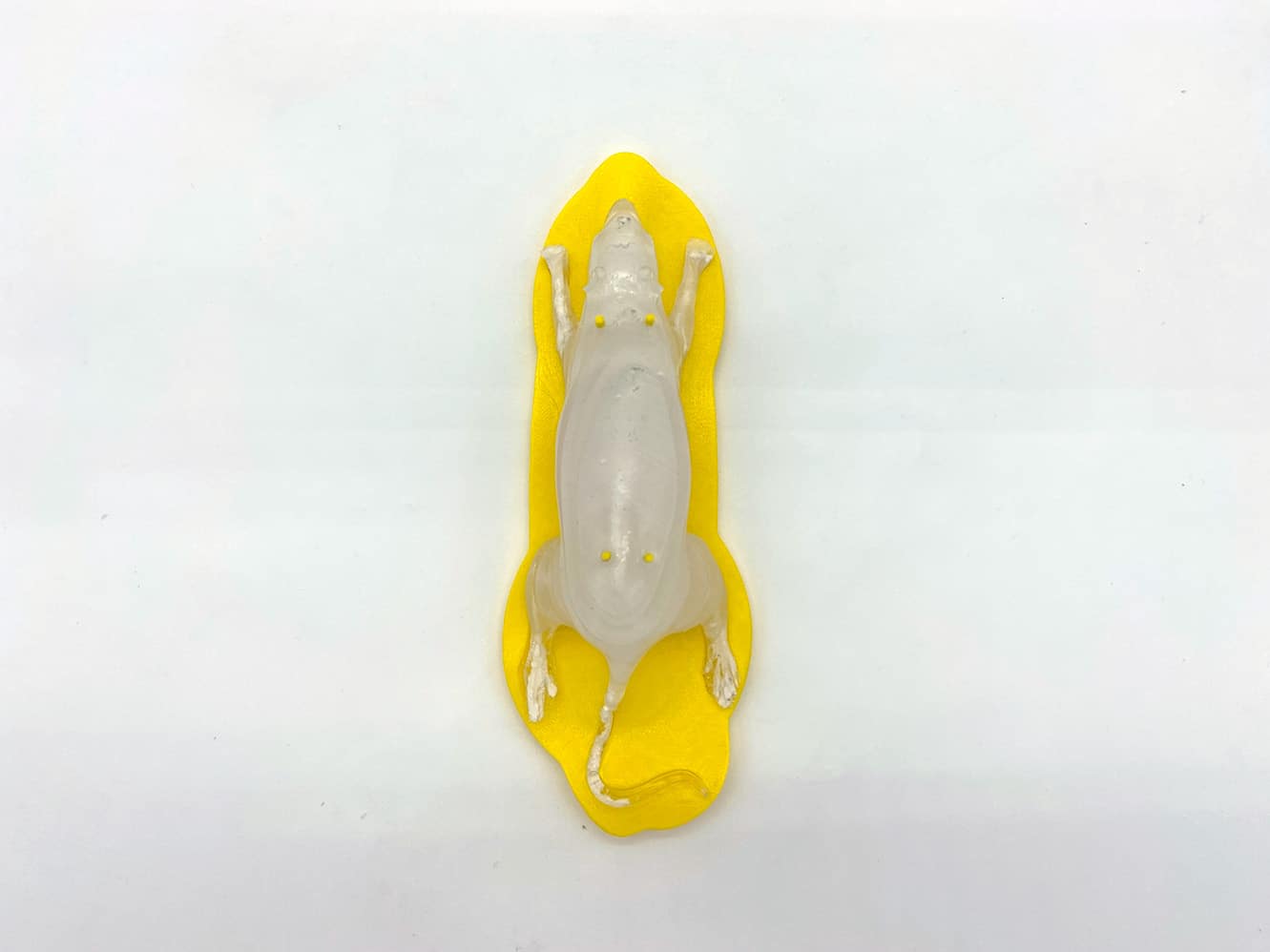

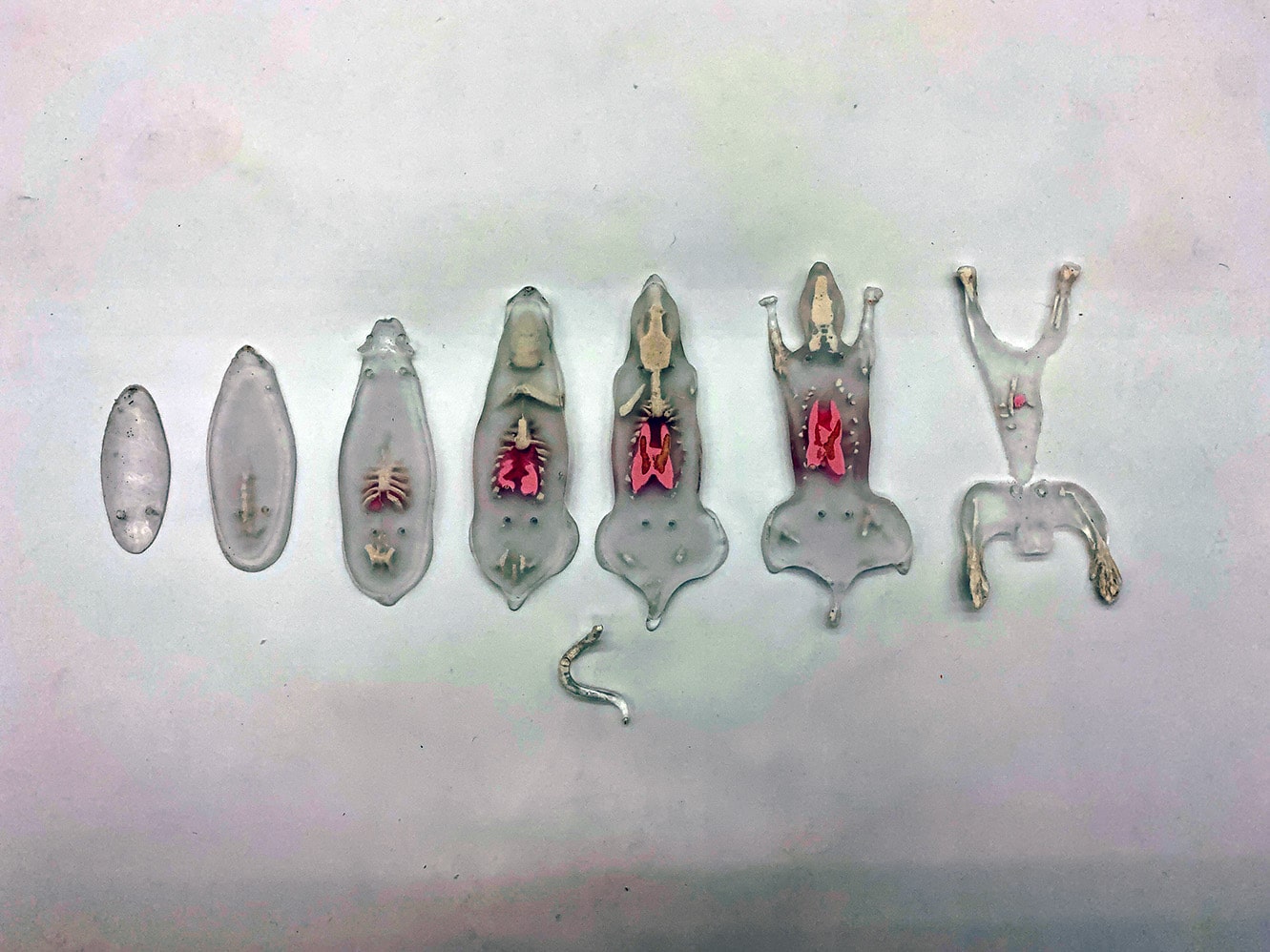

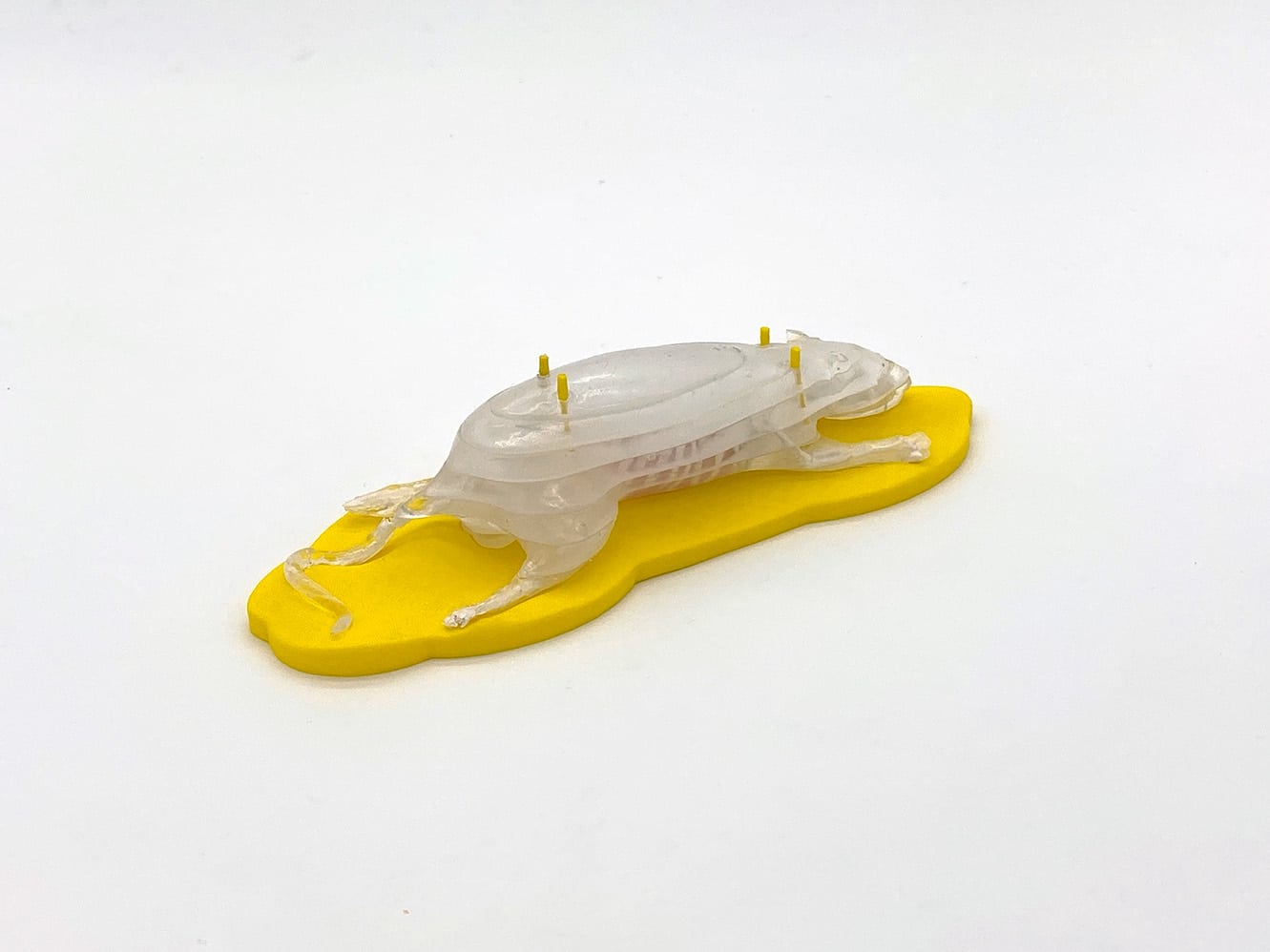

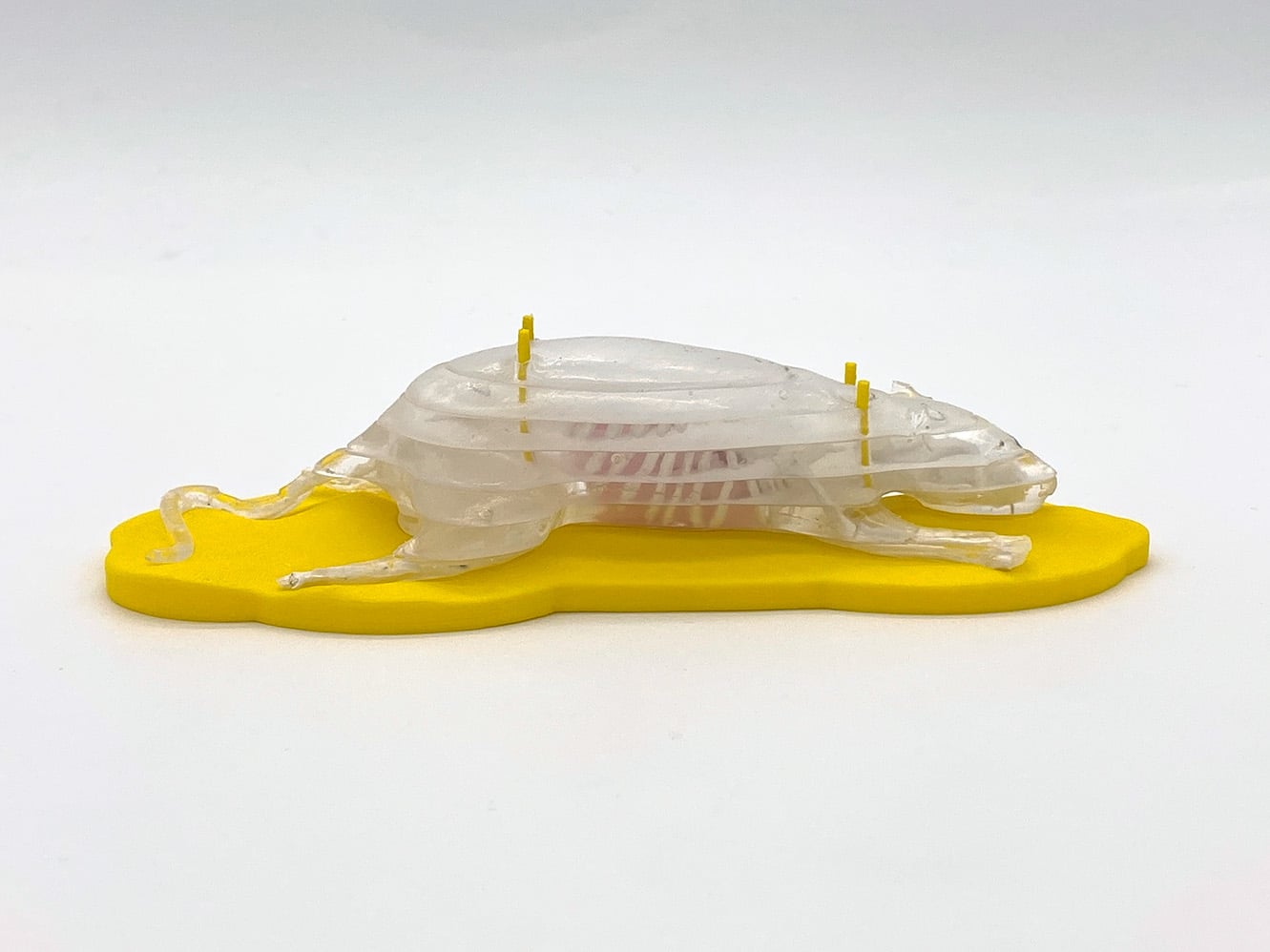

Product Images:

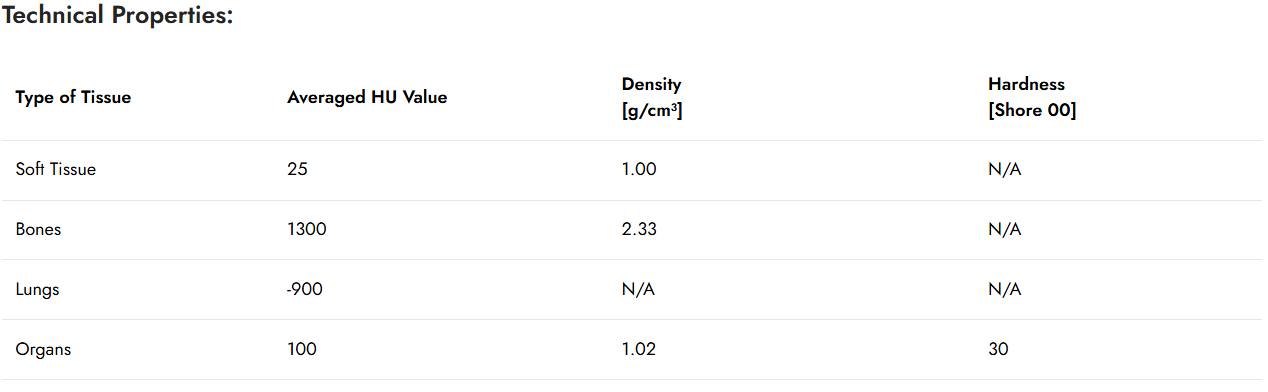

Technical Properties:
| Type of Tissue | Averaged HU Value | Density [g/cm³] | Hardness [Shore 00] |
| Soft Tissue | 25 | 1.00 | N/A |
| Bones | 1300 | 2.33 | N/A |
| Lungs | -900 | N/A | N/A |
| Organs | 100 | 1.02 | 30 |
Included In Order:
Sectional Rat Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 2 x 4 x 1 Inches, Weight: 0.5 Lbs (approx.).
Shipment:
Size: 10 x 8 x 6 Inches, Weight: 3 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based hard resin
Synthetic bones: Ceramic-reinforced urethane-based composite material
FAQ:
Contact us for any questions you may have.
