Rat Phantom (anatomical) is built based on an average anatomy of a rat (mouse) and it is suitable for X-Ray, CT and Ultrasound imaging methods. Furthermore, the phantom can be additionally customized with extra chambers and/or other features to excel in a selected application. The size, shape, and internal features can also be modified in terms of shape and properties to fit the needs of any particular bio-medical research project.
The Rat/Mouse phantom is a powerful tool that can be used for testing and calibration-related work of various medical imaging devices.
We also have a model available which is compatible with X-Ray, CT and MRI here.
Anatomy:
Complete Rat Skeleton Heart Lungs Diaphragm Liver Kidneys Pancreas Spleen
Design of a Rat Phantom:
-

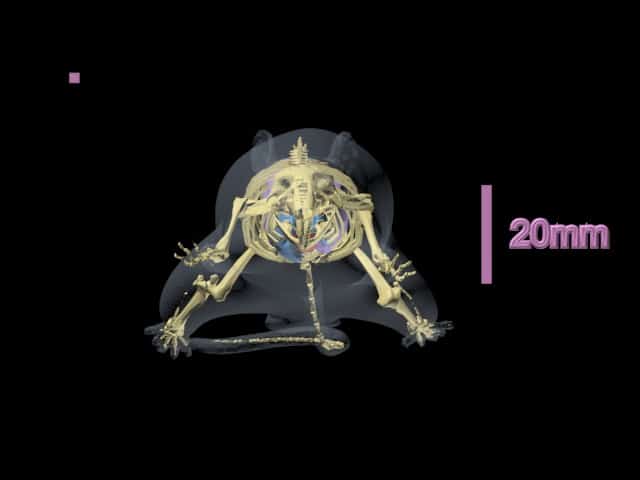

- Front View
-

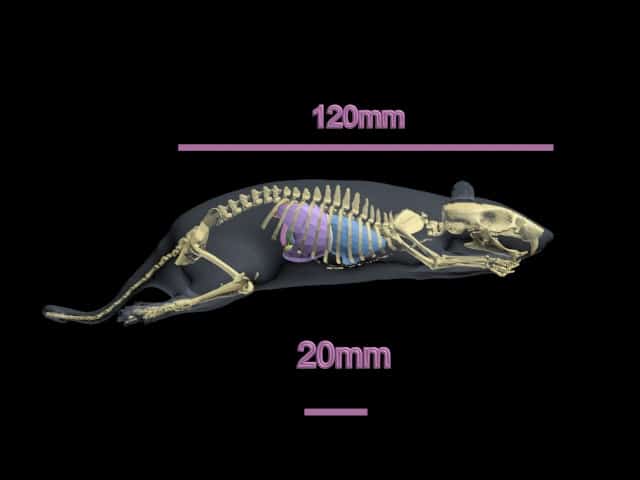

- Lateral View
-

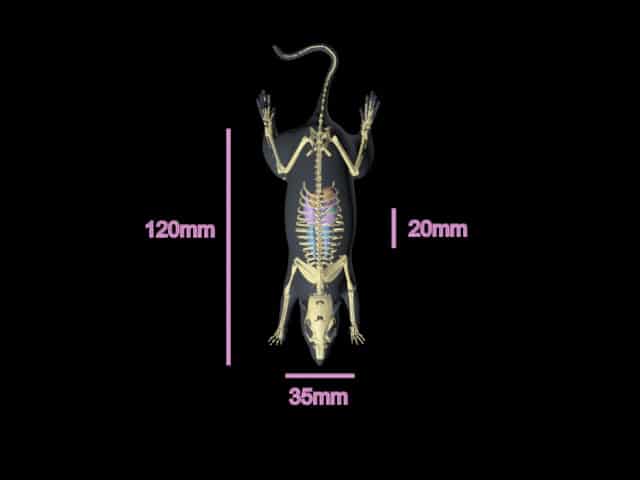

- Top View
Product Images:
-

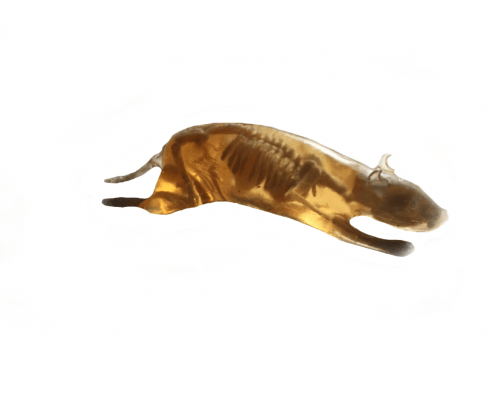

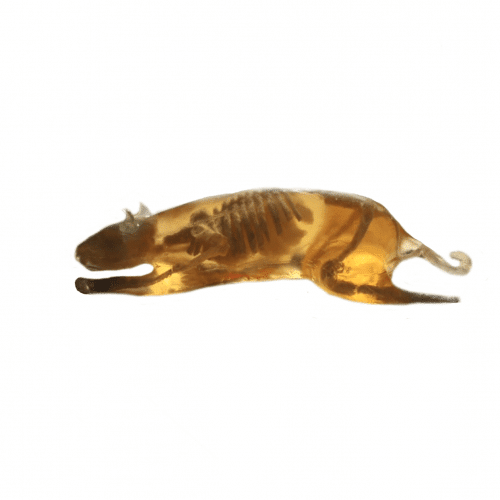

- Translucent Amber Version
-

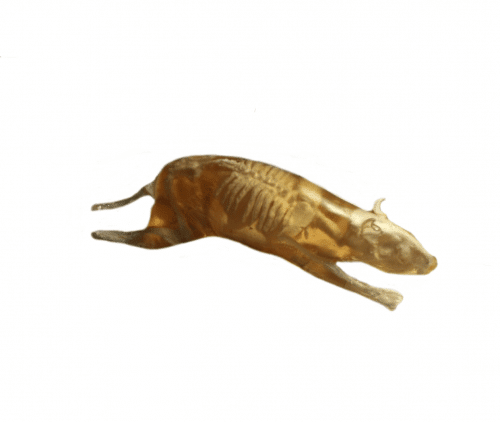

- Translucent Amber Version
-
- Translucent Amber Version
-

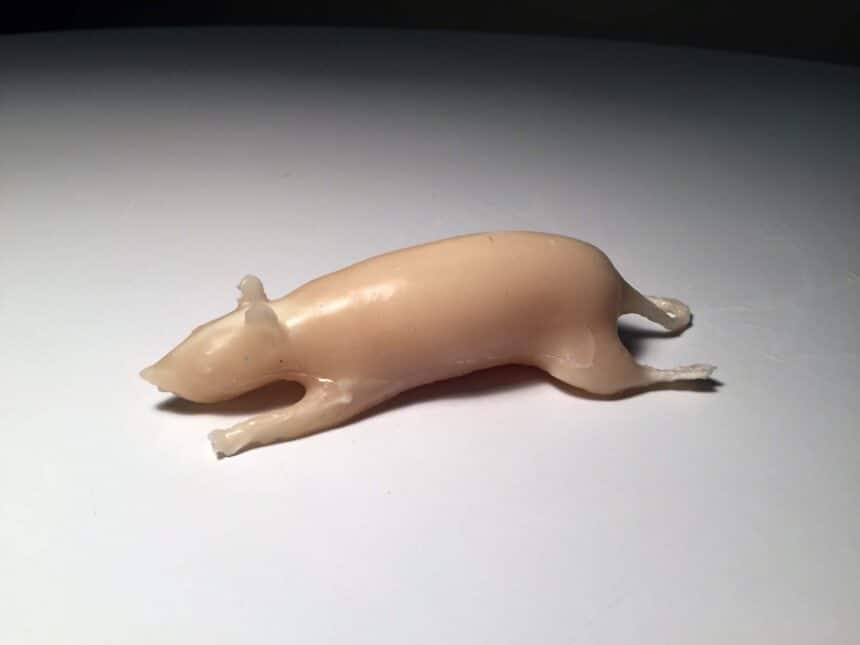

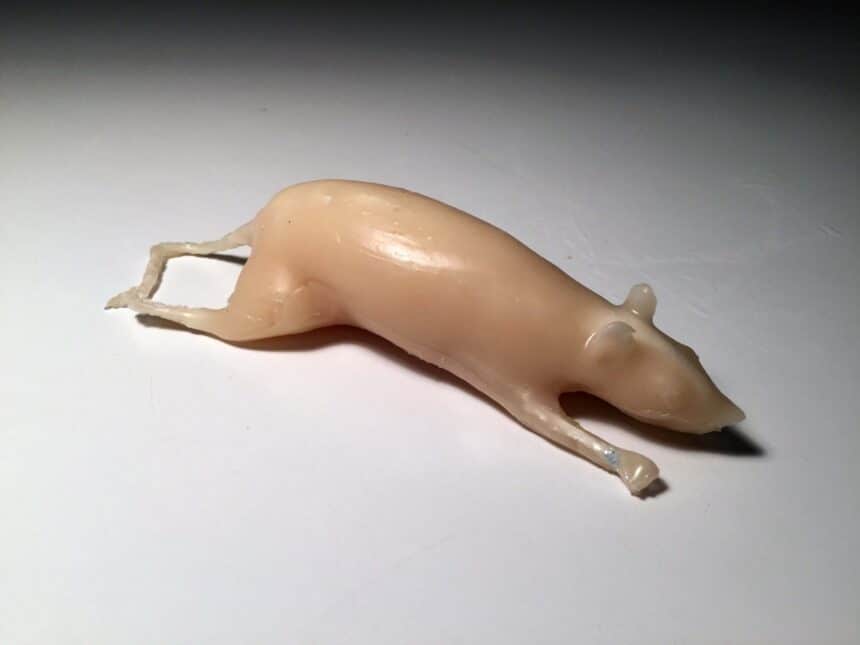

- Opaque Version
-
- Opaque Version
-

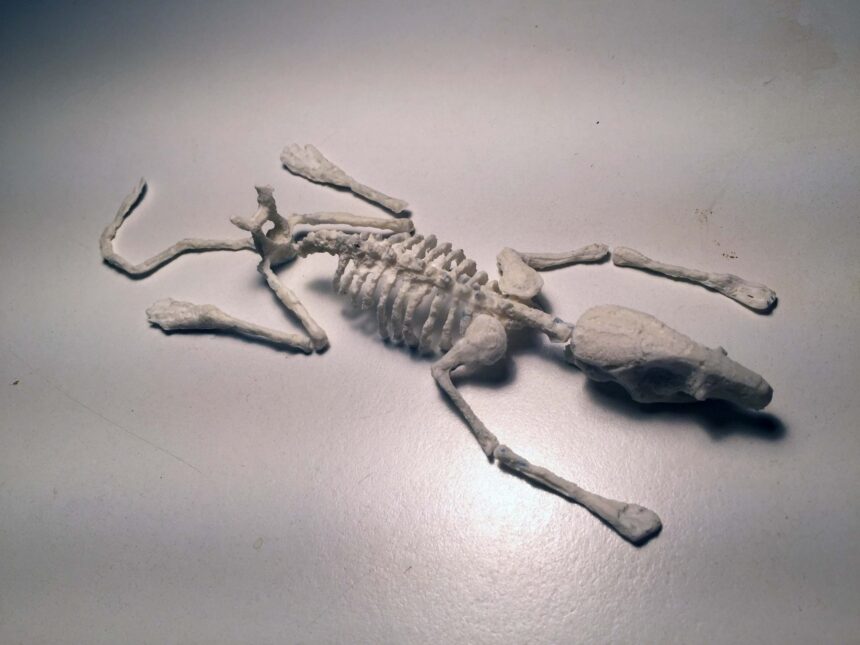

- Internal Skeleton
Scan Results:
Coming Soon...
In the meantime, please refer to our Radiographs page for imaging quality of our phantoms.

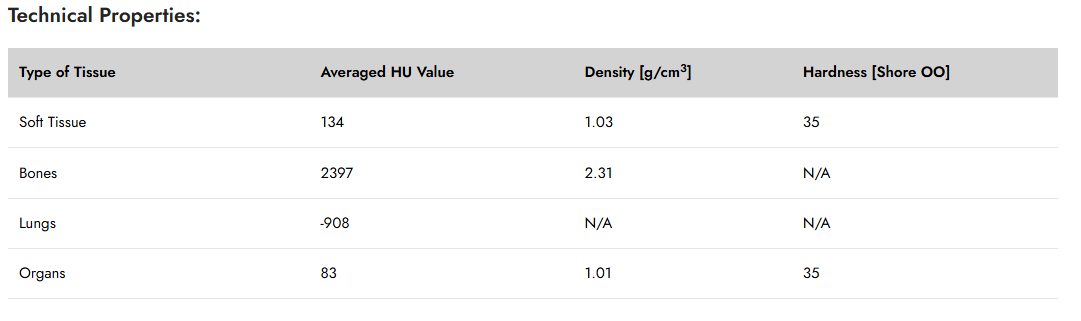

Technical Properties:
| Type of Tissue | Averaged HU Value | Density [g/cm3] | Hardness [Shore OO] |
| Soft Tissue | 134 | 1.03 | 35 |
| Bones | 2397 | 2.31 | N/A |
| Lungs | -908 | N/A | N/A |
| Organs | 83 | 1.01 | 35 |
Included In Order:
Rat (Anatomical) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 7 x 3 x 2 Inches, Weight: 1 Lb (approx.).
Shipment:
Size: 10 x 8 x 6 Inches, Weight: 3 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced urethane-based composite material
