Planar Skull Bone Phantoms are an ideal tool that can be used for medical imaging research. Each bone plate has a realistic three-layered structure with the inner diploe layer. True Phantom Solutions are pioneers in developing these phantoms and hold strength in customizing them.
The Skull Bones are cast out of our realistic patented epoxy-based bone material that is suitable for Ultrasound, MRI, and X-Ray/CT applications.
Anatomy:
Planar Skull Bones (3):
1) 3/8 x 3 x 5 inch (0.95 x 7.6 x 12.7 cm)
2) 5/16 x 3 x 5 inch (0.8 x 7.6 x 12.7 cm)
3) 3/16 x 3 x 5 inch (0.5 x 7.6 x 12.7 cm) Cortical Bone Trabecular Bone

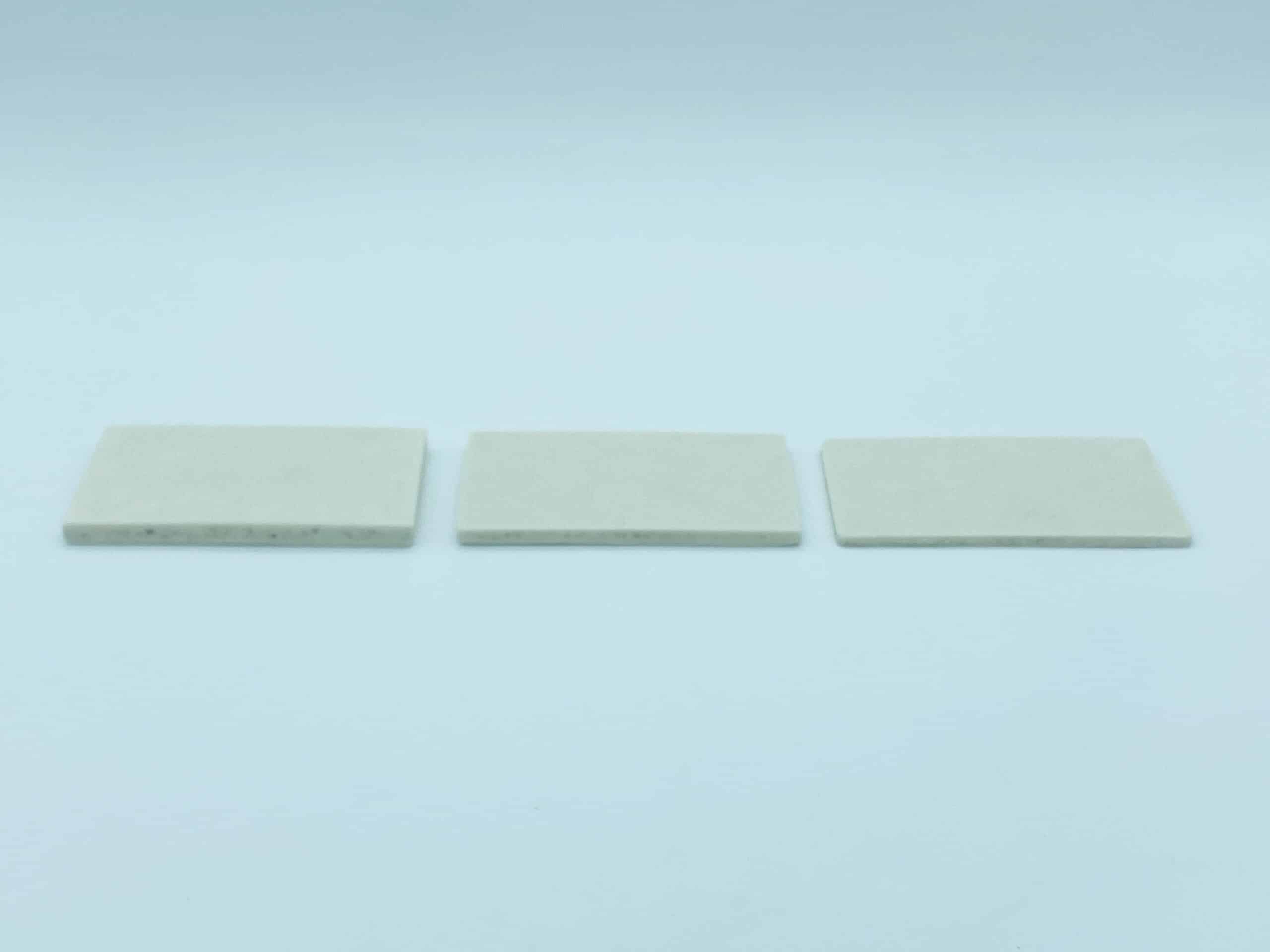

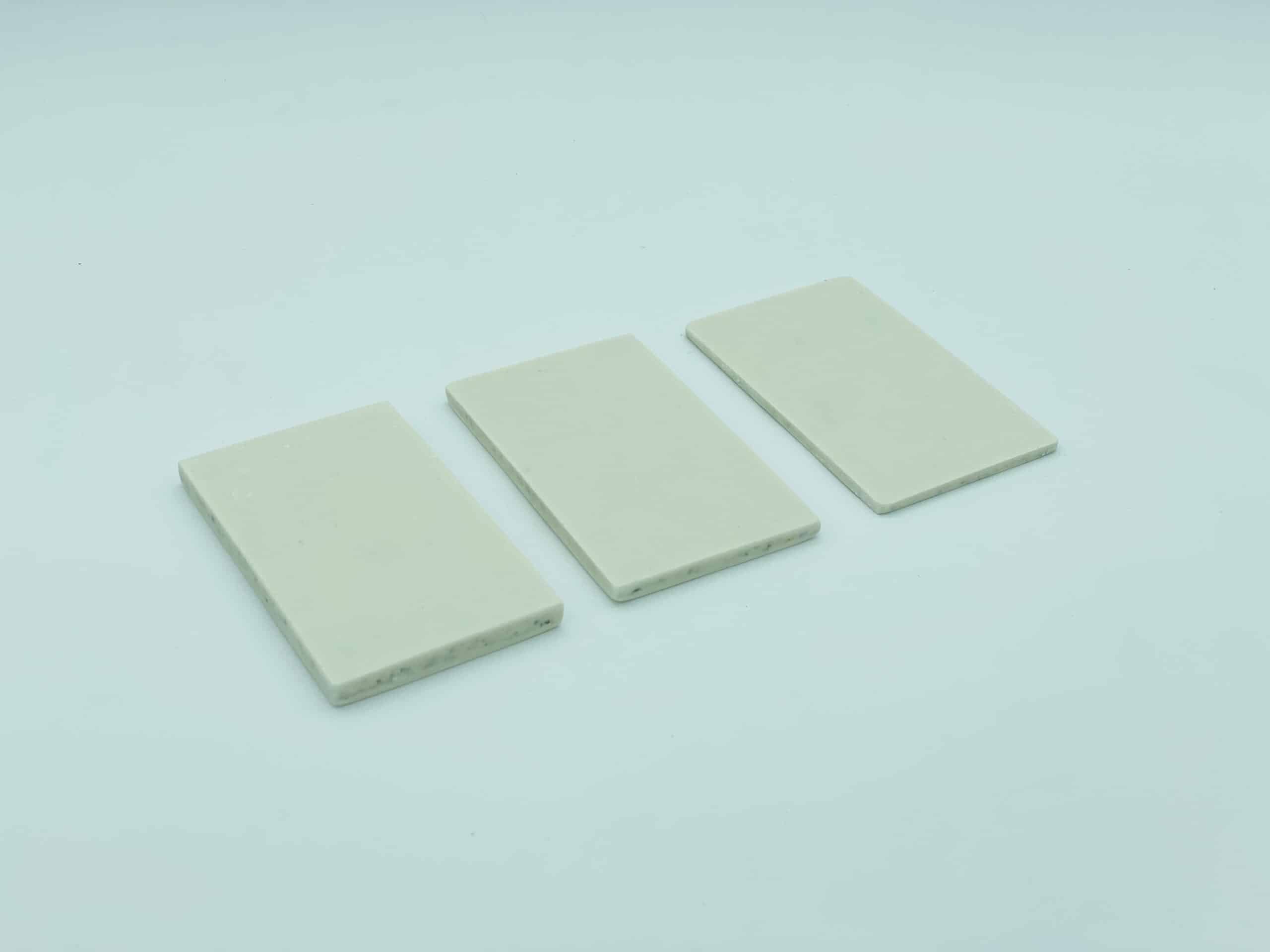

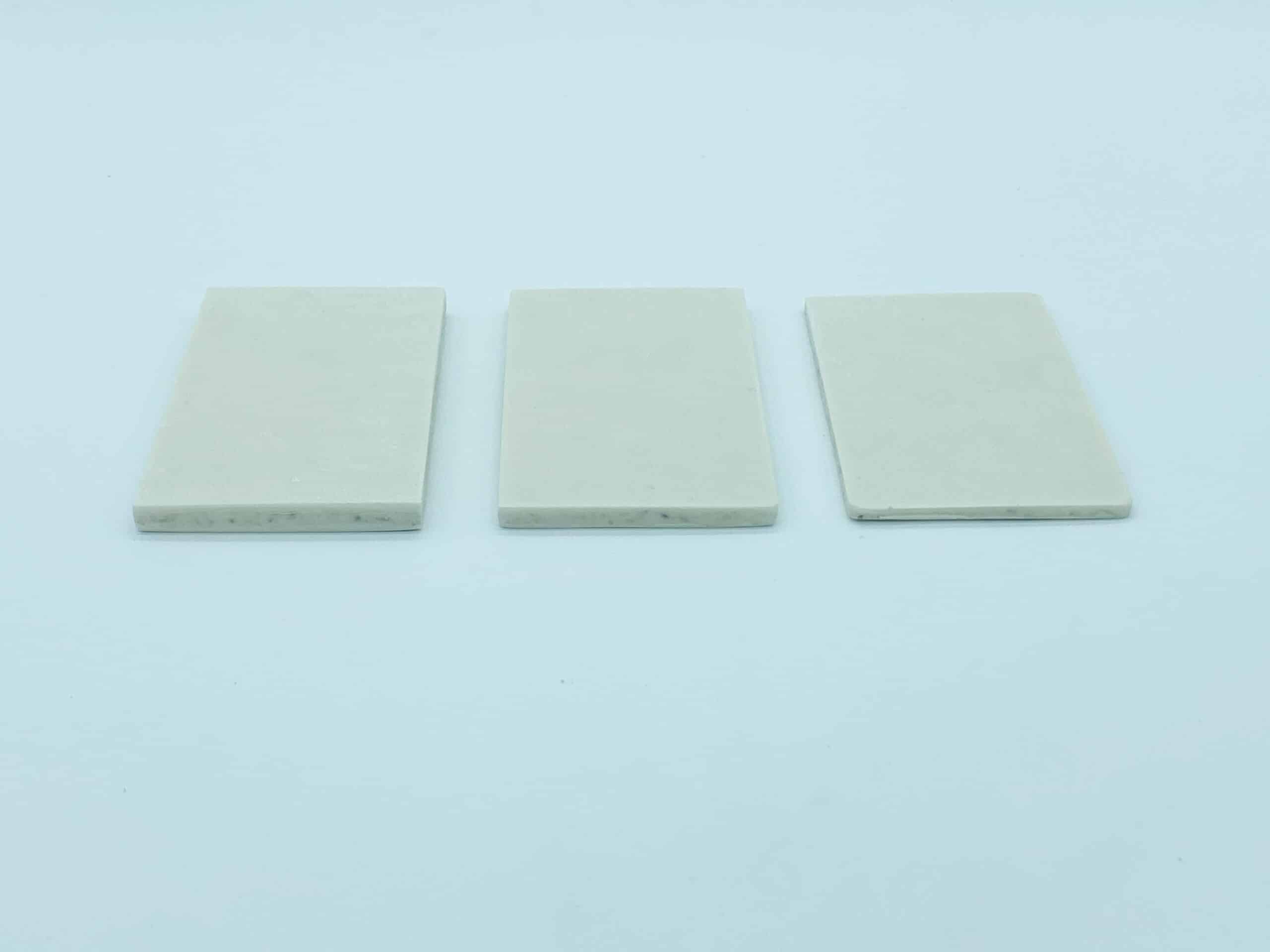

Product Images:

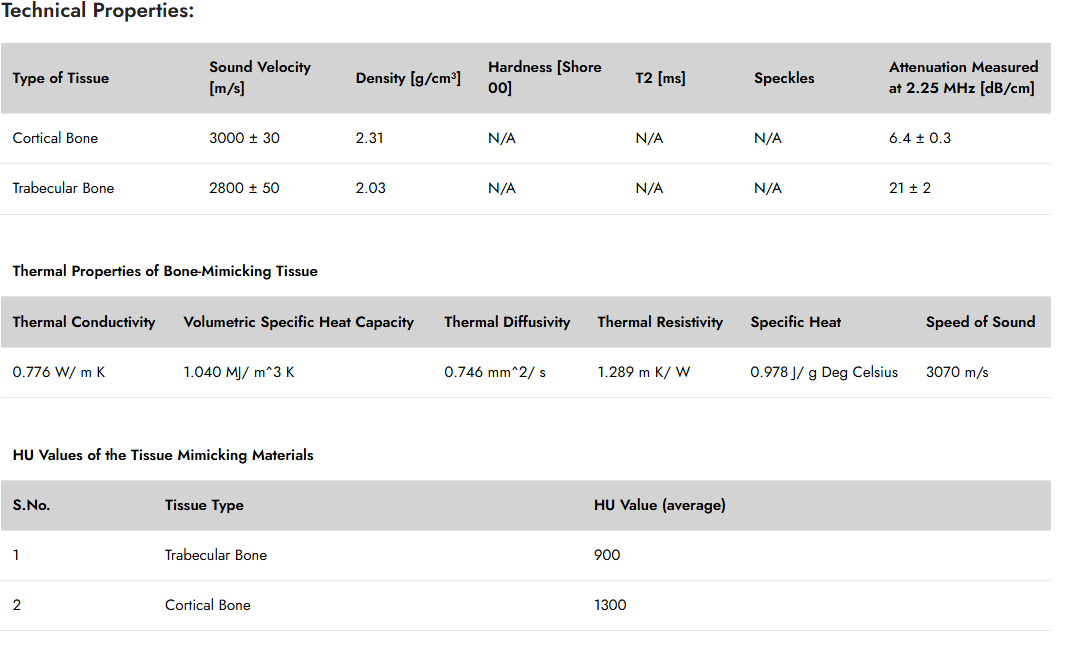

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 900 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Planar Skull Bone Phantoms
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 3/8 x 3 x 5 | 5/16 x 3 x 5 | 3/16 x 3 x 5 Inches, Weight: 0.7 Lbs (approx.).
Shipment:
Size: 12 x 10 x 10 Inches, Weight: 6 Lbs (approx.)
Materials Used:
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
