The Pediatric Hand Phantom is designed specifically for X-Ray, CT, and MRI applications. This innovative medical training tool is essential for radiologists, technicians, and educators dedicated to advancing pediatric imaging techniques and improving diagnostic accuracy.
The Pediatric Hand Phantom accurately replicates the intricate anatomy of a 4-year-old child’s hand, including bones, joints, and soft tissues. This precision ensures a lifelike representation that aids in detailed anatomical studies and practice.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can be also achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods but the T1 values are less realistic and they are within the range of about 100 ms.
Anatomy:
Wrist Bones Finger Bones Partial Ulna Partial Radius Soft tissue mimicking material
Design:
-

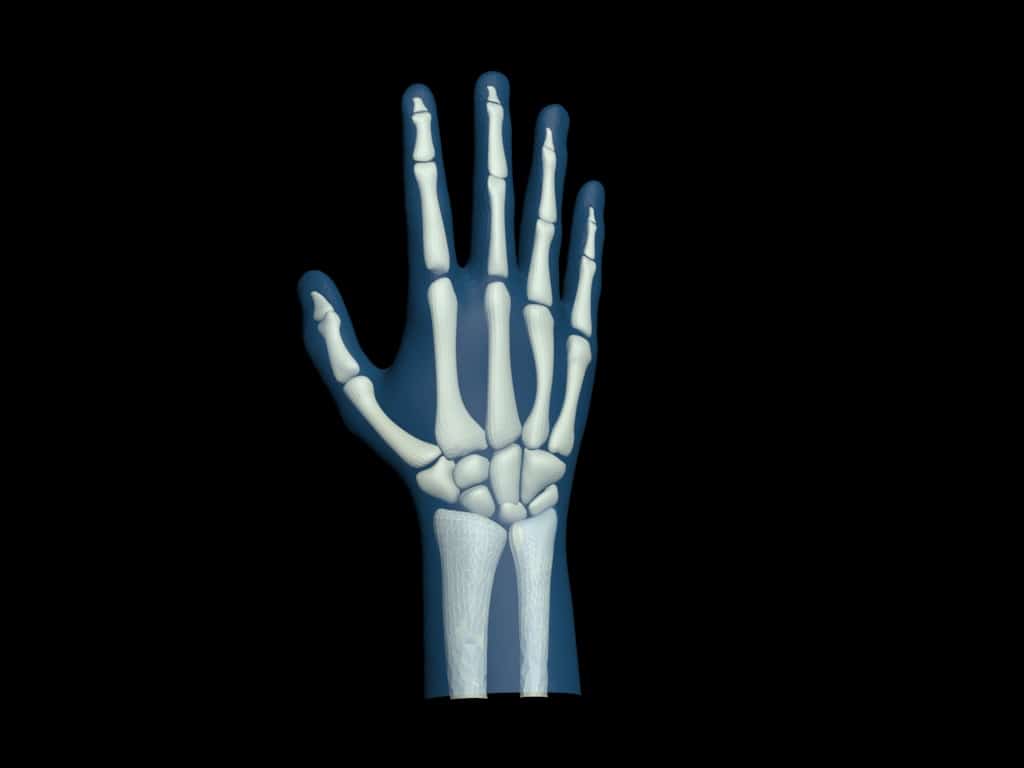

- Front View
-

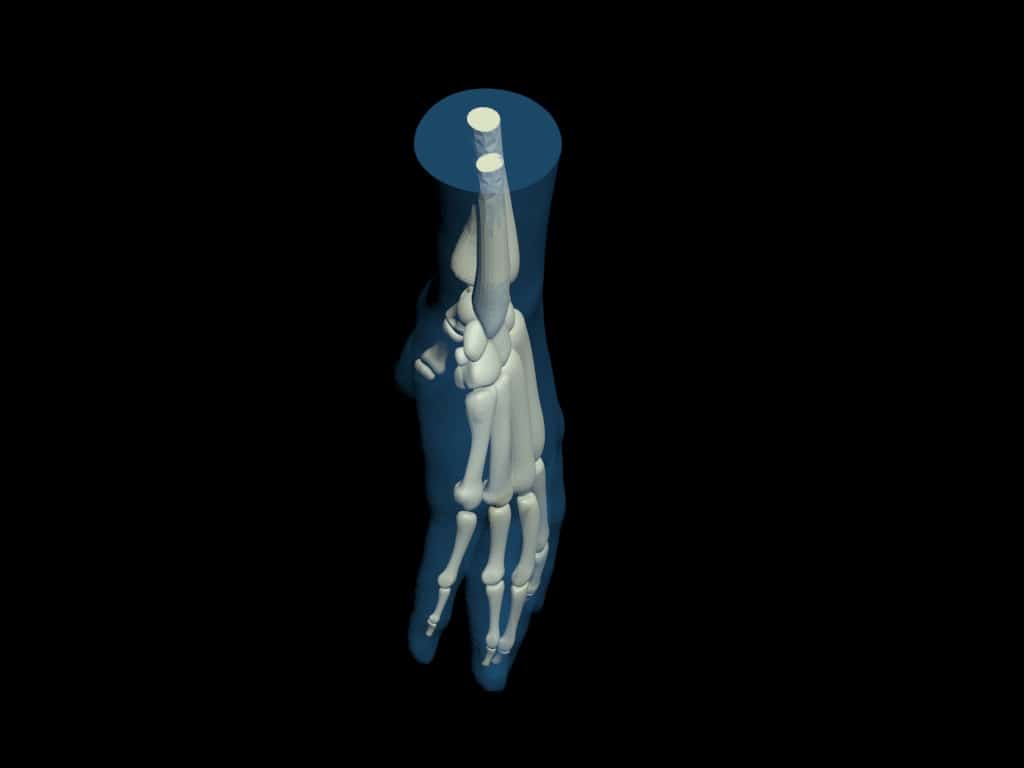

- Lateral View
-

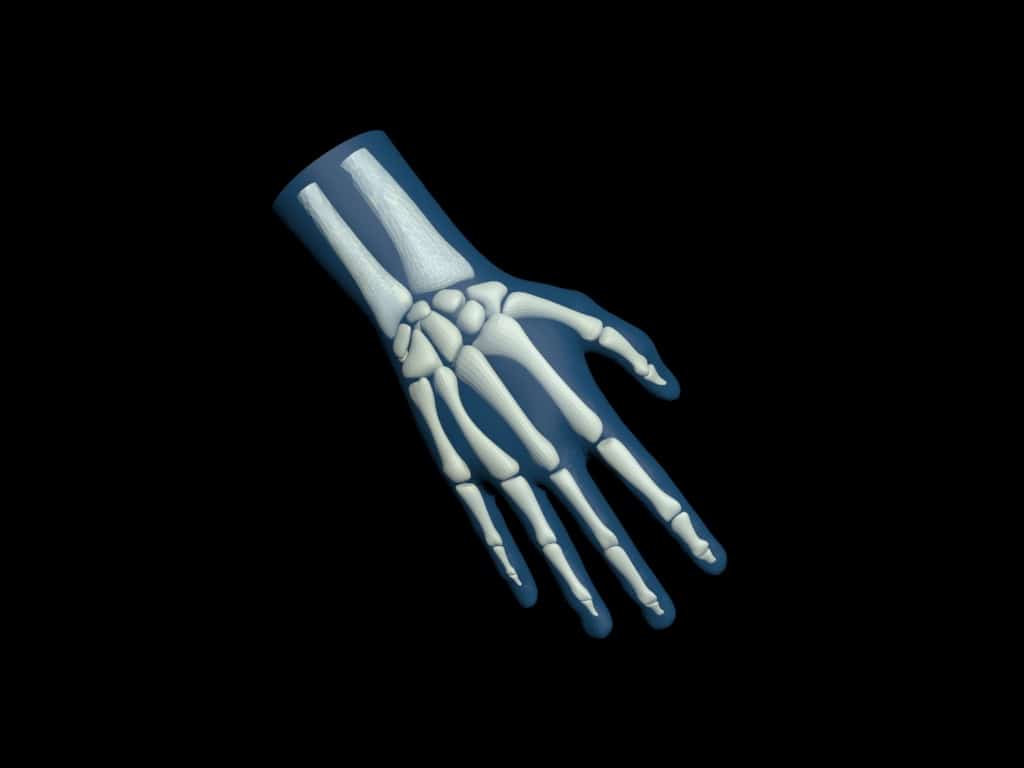

- Perspective View
-

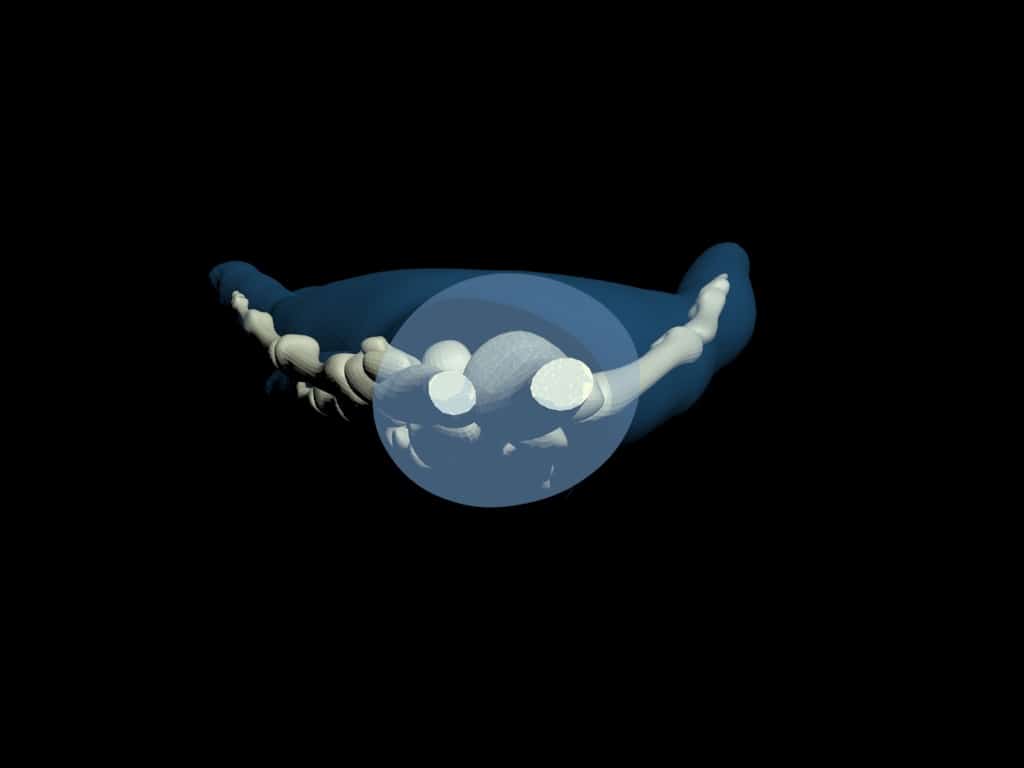

- Top View

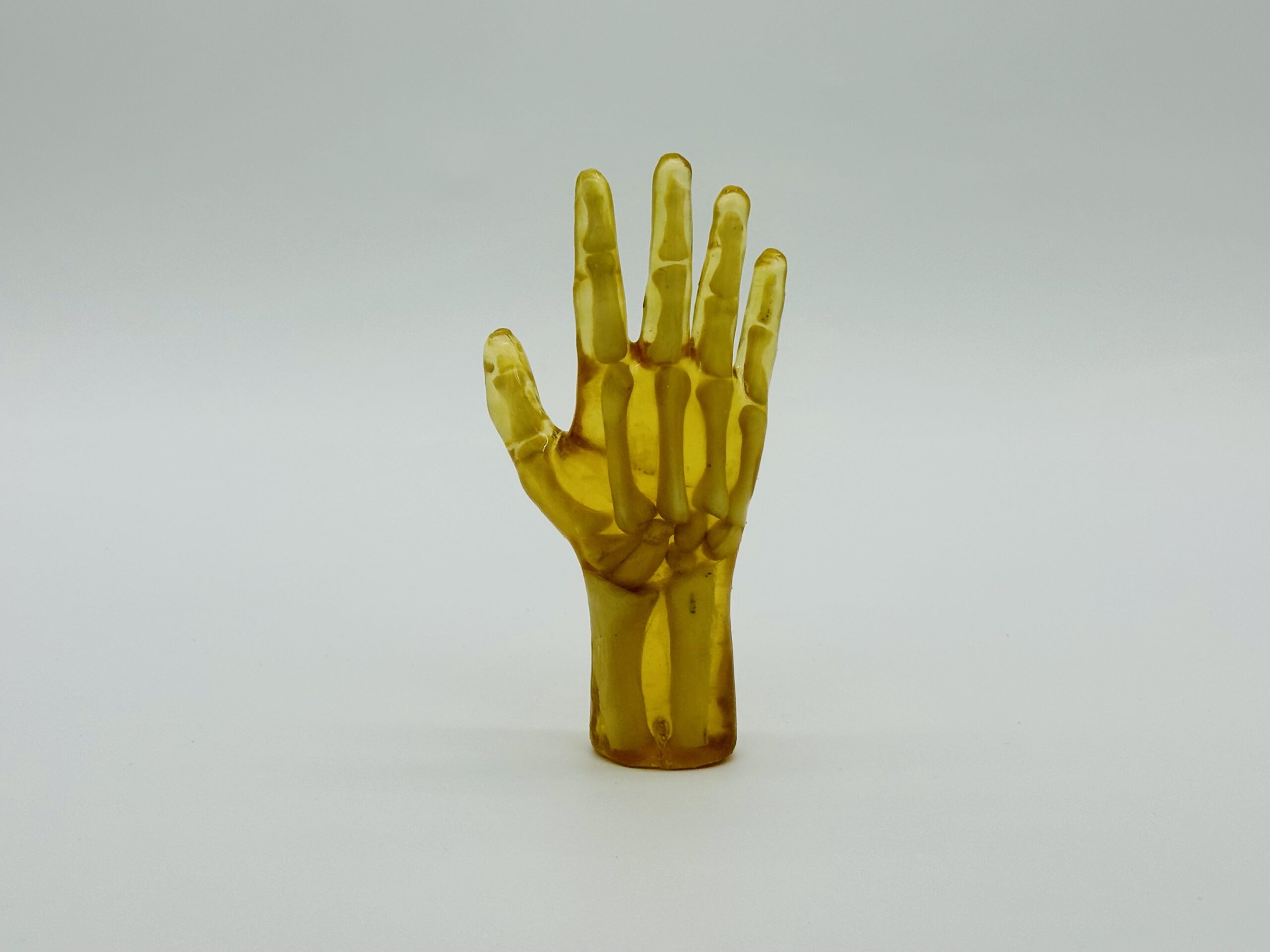

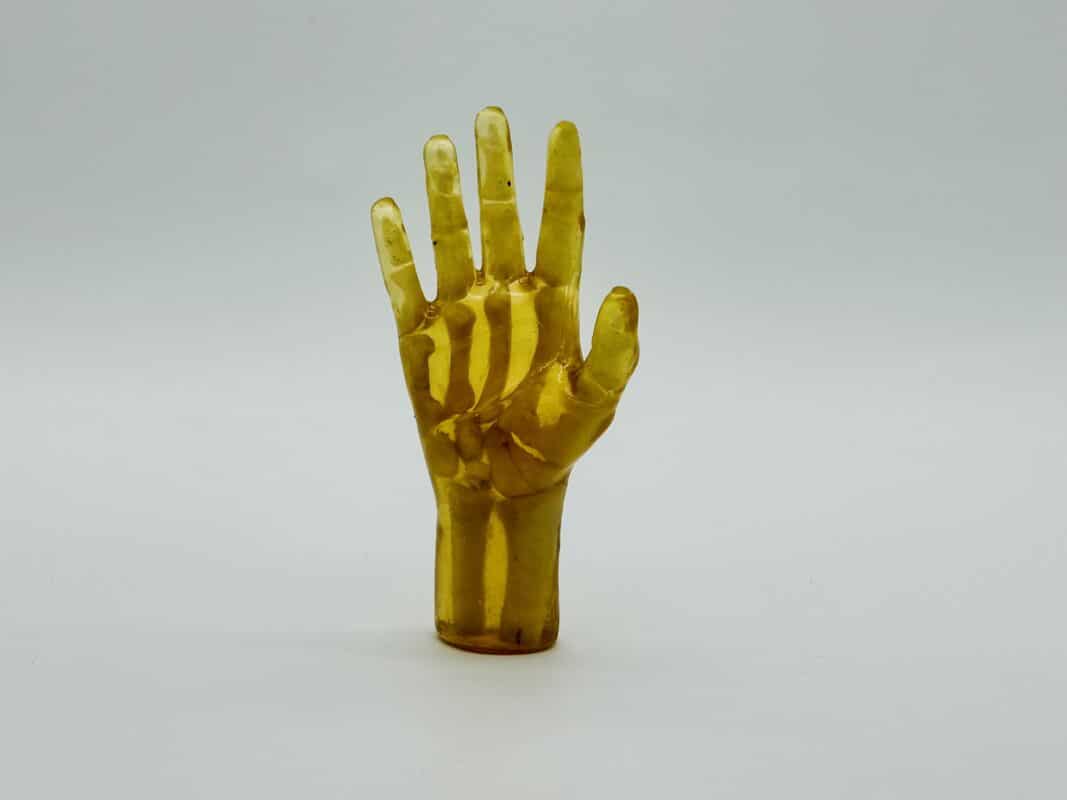

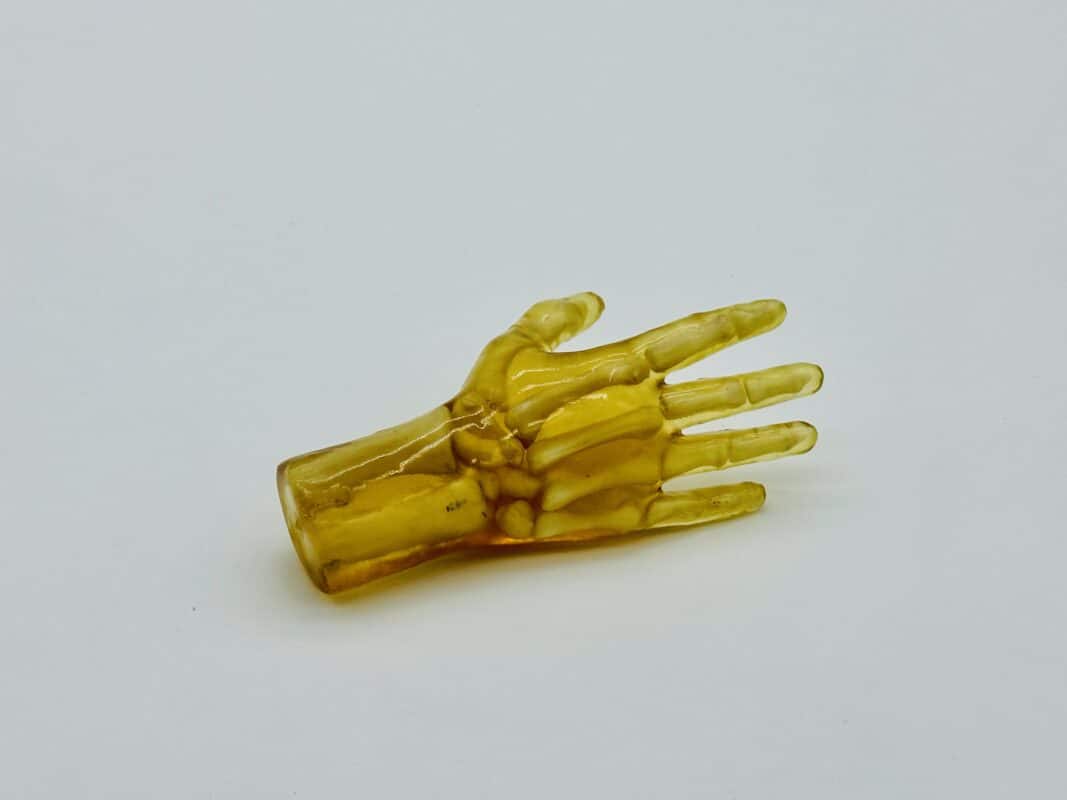

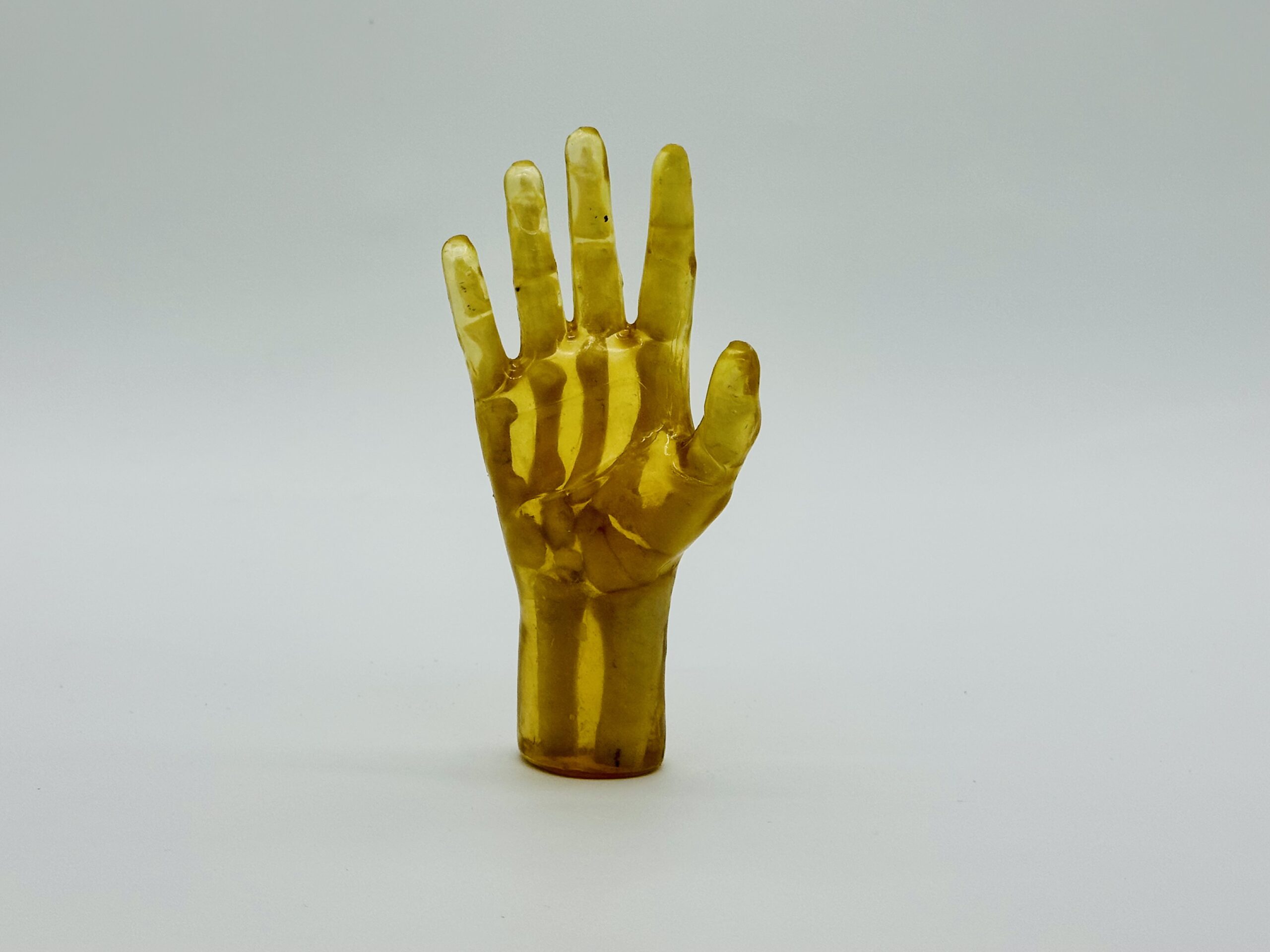

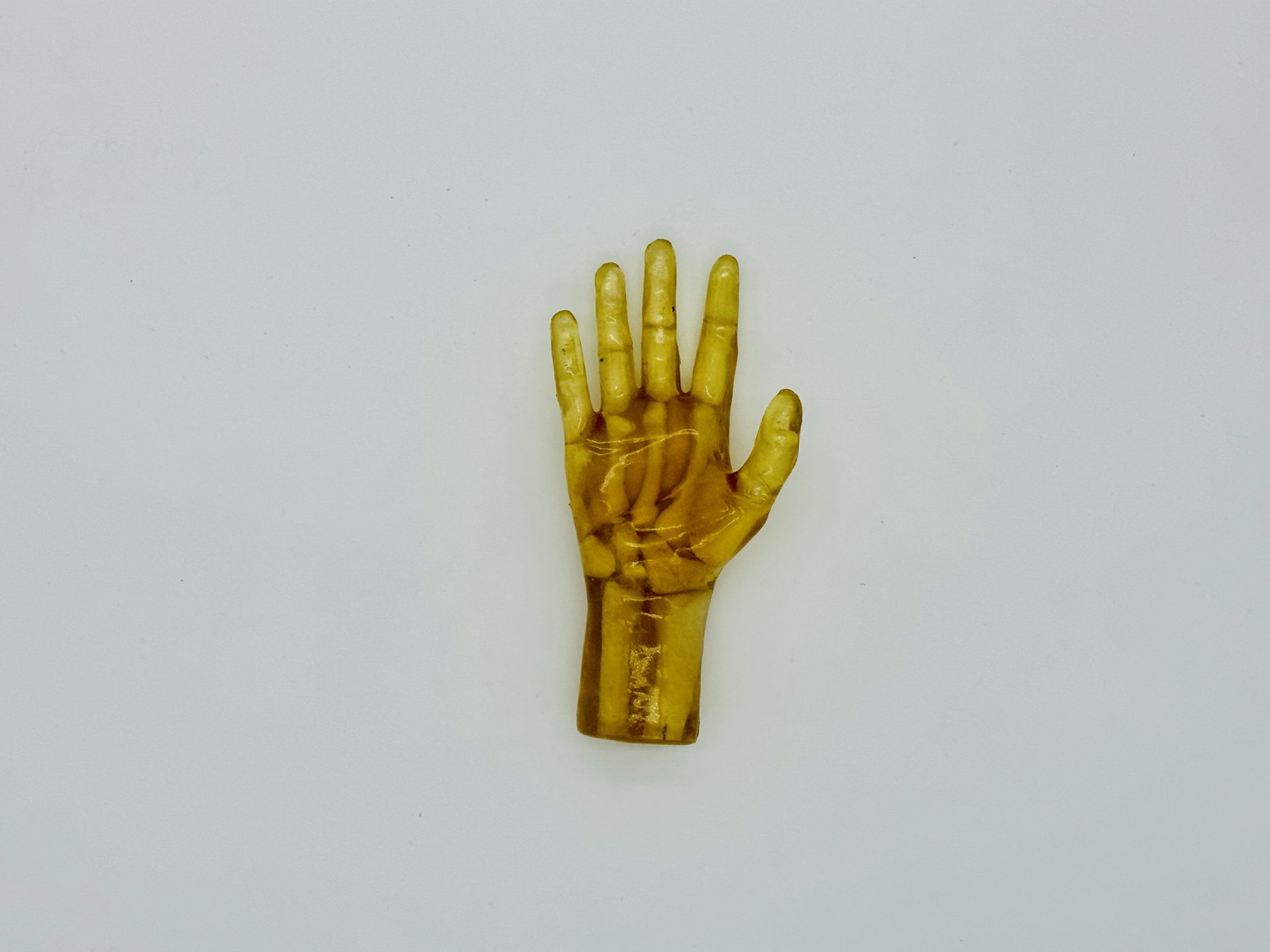

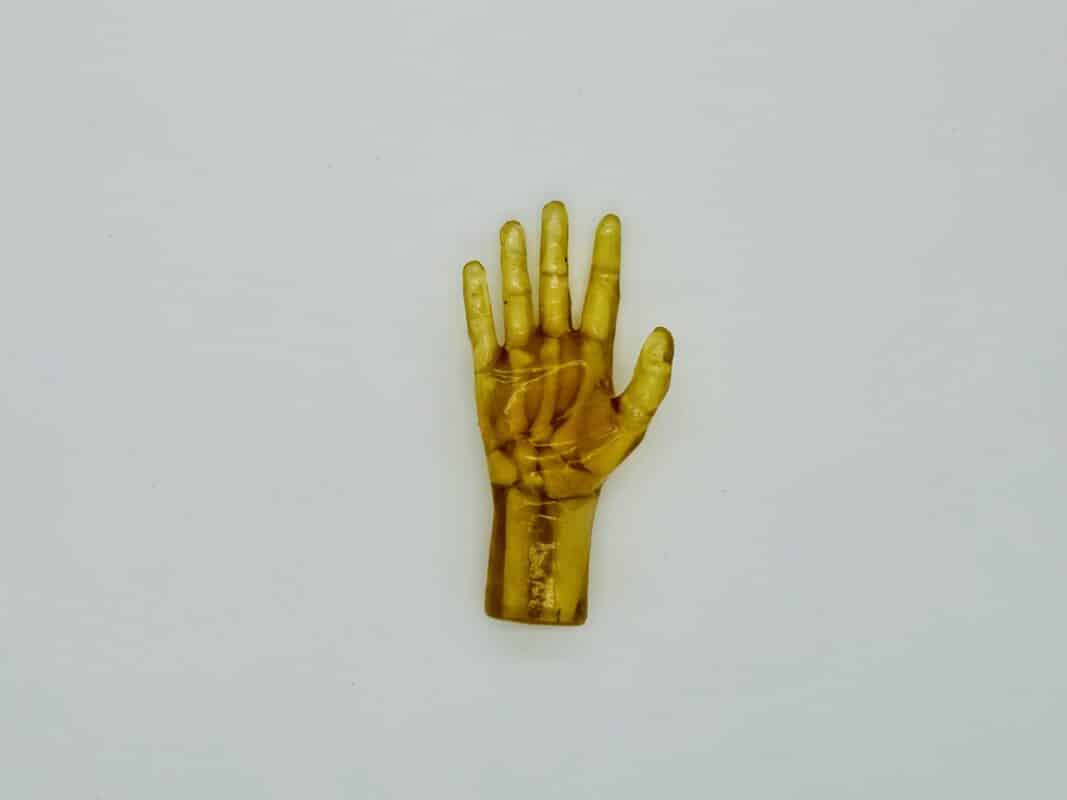

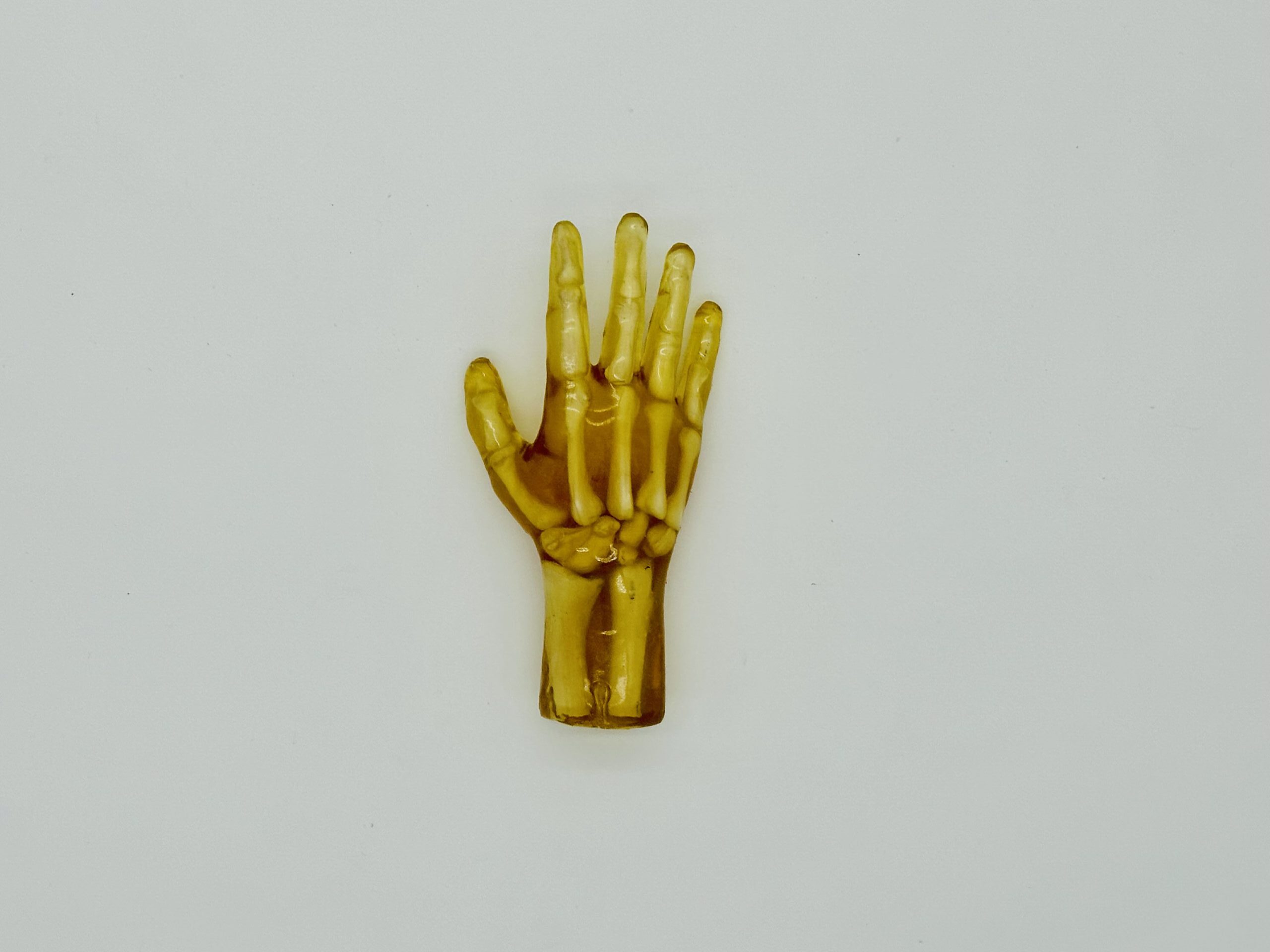

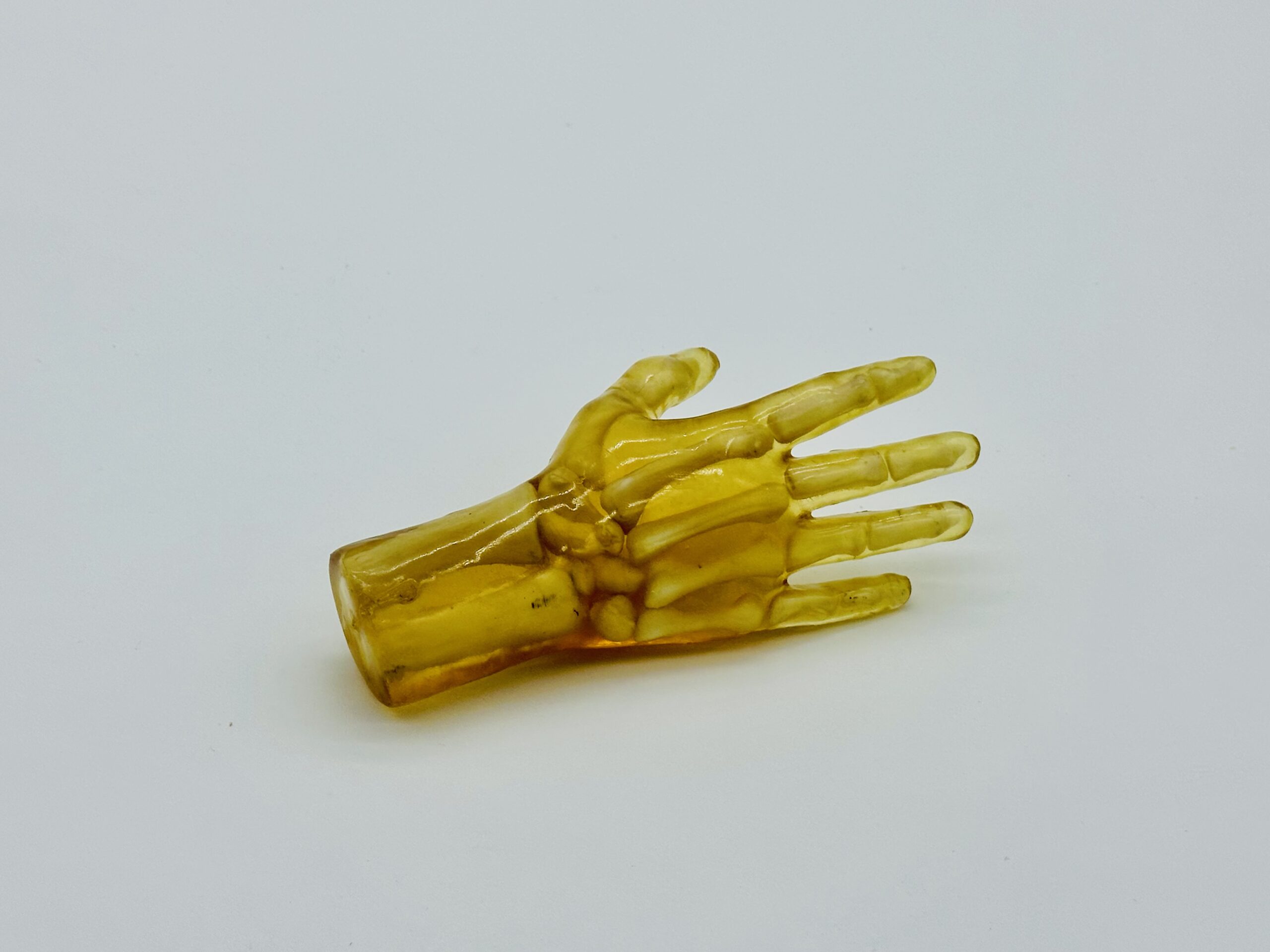

Product Images:

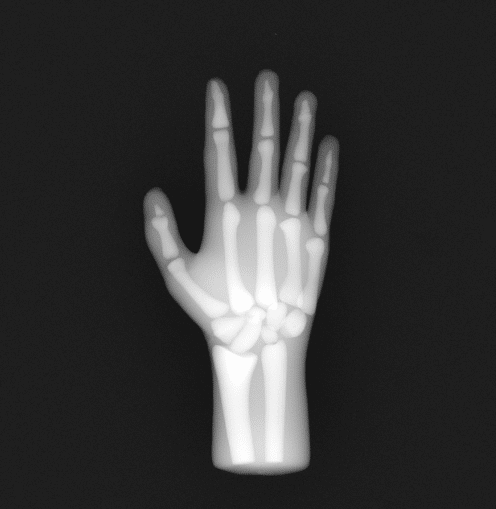

X-Ray Scans:

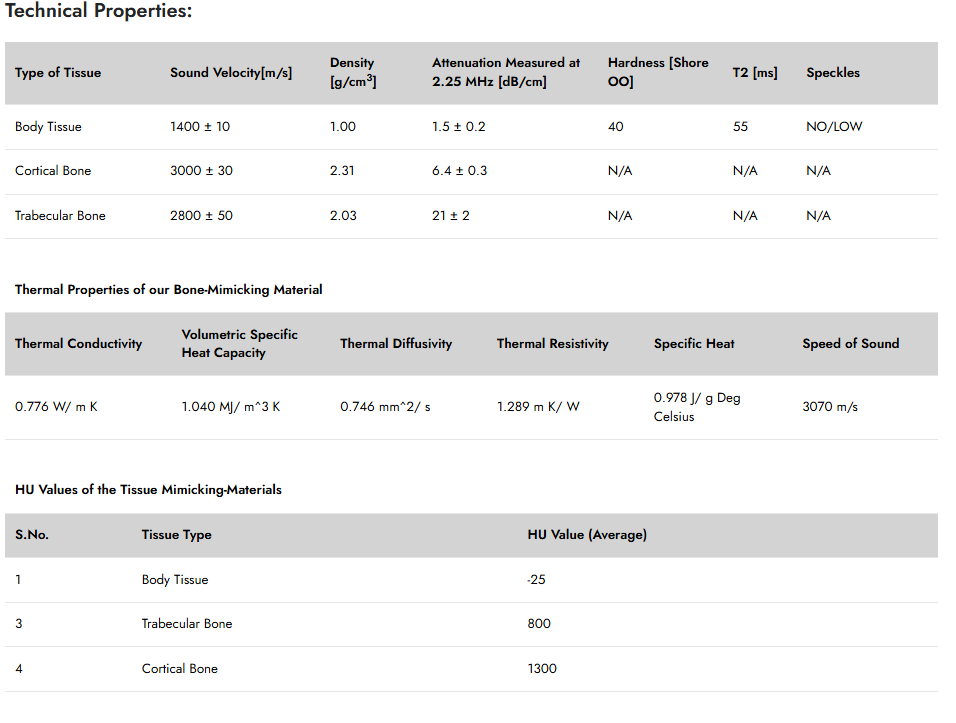

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Body Tissue | -25 |
| 3 | Trabecular Bone | 800 |
| 4 | Cortical Bone | 1300 |
Included In Order:
Pediatric Hand Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 6 x 3 x 1 Inches, Weight: 1 Lbs (approx.).
Shipment:
Size: 10 x 7 x 5 Inches, Weight: 3 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane base soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
