4-Year-old Pediatric Full Body Phantom is an X-Ray/CT and MRI-compatible training product. It is primarily used to train various patient positioning techniques. Often purchased by medical schools and teaching hospitals to train their radiology students and other medical professionals.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The design of this phantom is based on the model of a 4-year-old child 40″ (102 cm) in height. This phantom is a life-size, full-body anthropomorphic phantom with anatomically realistic organs and bones constituted in 10 body parts. The phantom weighs about 20 kg and can be used for visual evaluation in finding out optimal scanning conditions. The skeleton is built from individually cast bones made from a patented epoxy-based composite material.
Anatomy:
The following anatomical features are included in the standard version of this phantom. Should you require additional organs or components, please reach out to us and we can customize the model to suit your specific needs.
Pediatric Full Body Realistic Body Tissue Shoulders Rotatable 360 Degrees Around and 180 Degrees Sideways Moveable Hip Joints, Knees, and Elbows Detachable Head, Torso, and Limbs Customizable with Different Pathologies (Lesion, Tumor, Infection, etc.) Transparent or Skin-Colored Appearance Pediatric Human Head
– Skull
– Brain
– Gray Matter Pediatric Human Torso
– Spine
– Ribcage
– Shoulders
– Clavicles
– Pelvis Torso Organs
– Trachea
– Heart
– Lungs
– Diaphragm
– Liver (with Ligaments & Bile Ducts)
– Gallbladder
– Stomach
– Kidneys
– Spleen
– Pancreas
– Large and Small Intestines
– Bladder
– Prostate Pediatric Human Arms
– Humerus
– Elbow Joints
– Radius
– Ulna
– Wrist
– Fingers Pediatric Human Legs
– Femur
– Knee Joints
– Tibia
– Fibula
– Foot
– Toes
Design:
-

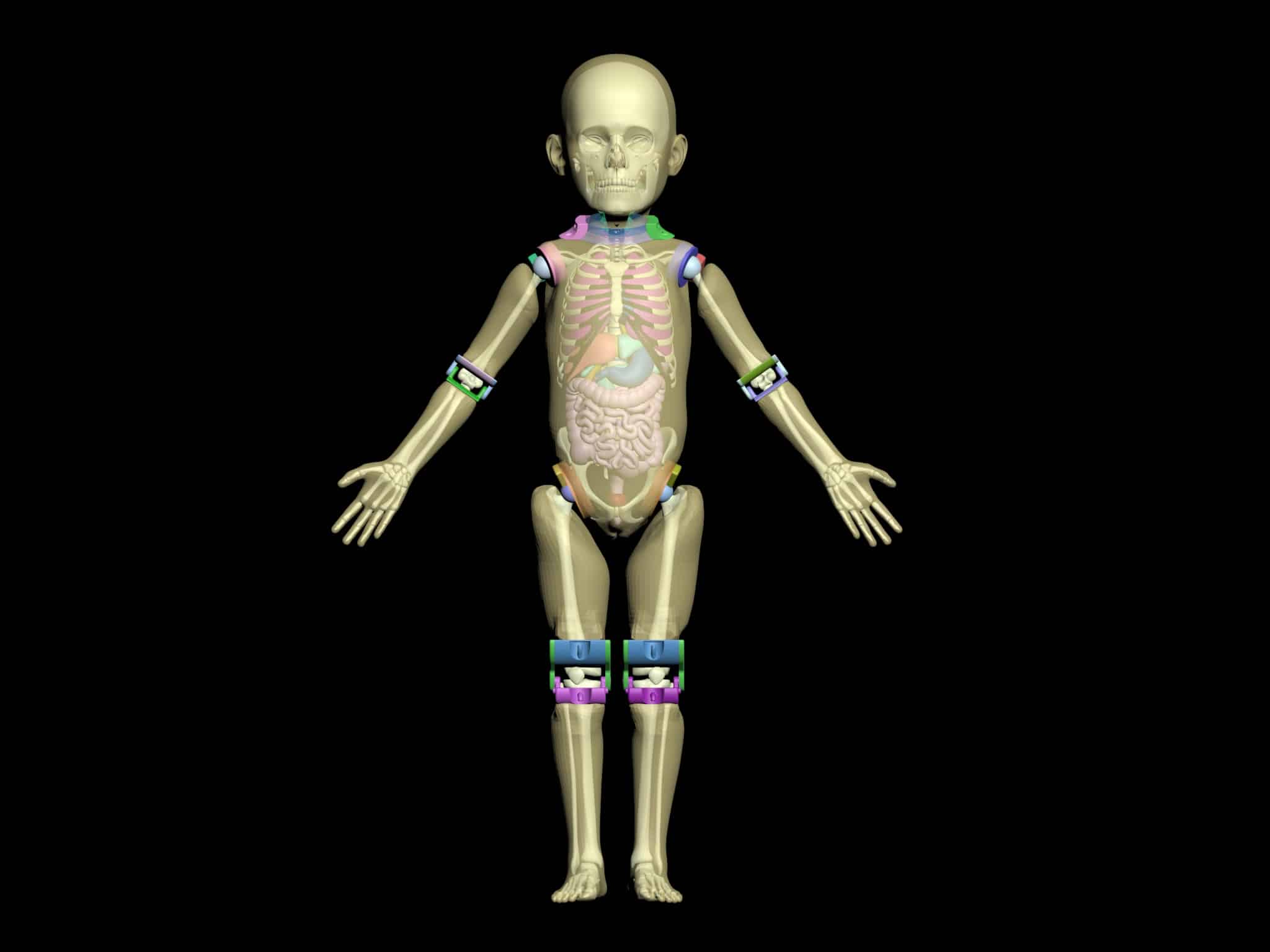

- Front View
-

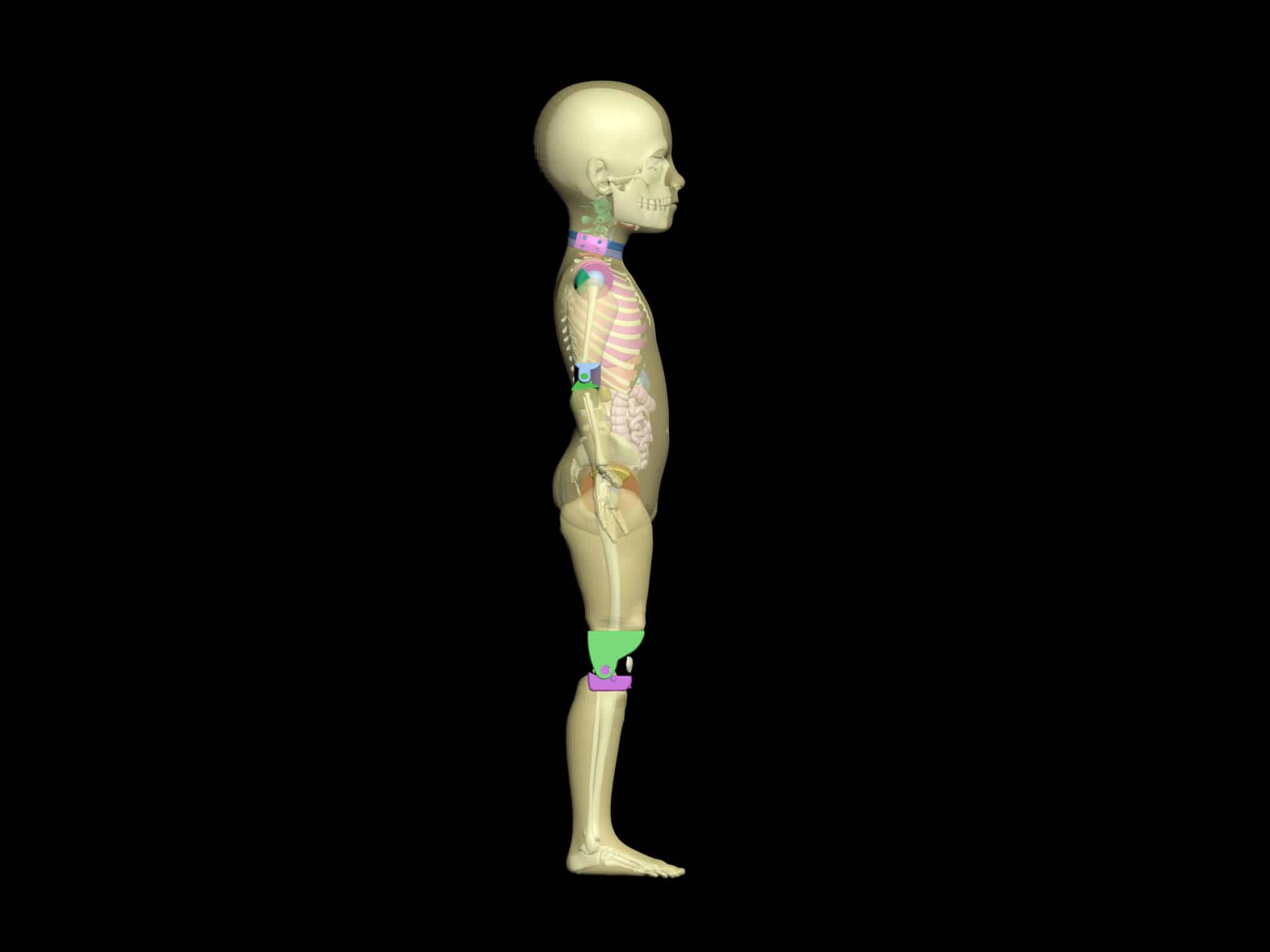

- Lateral View
-

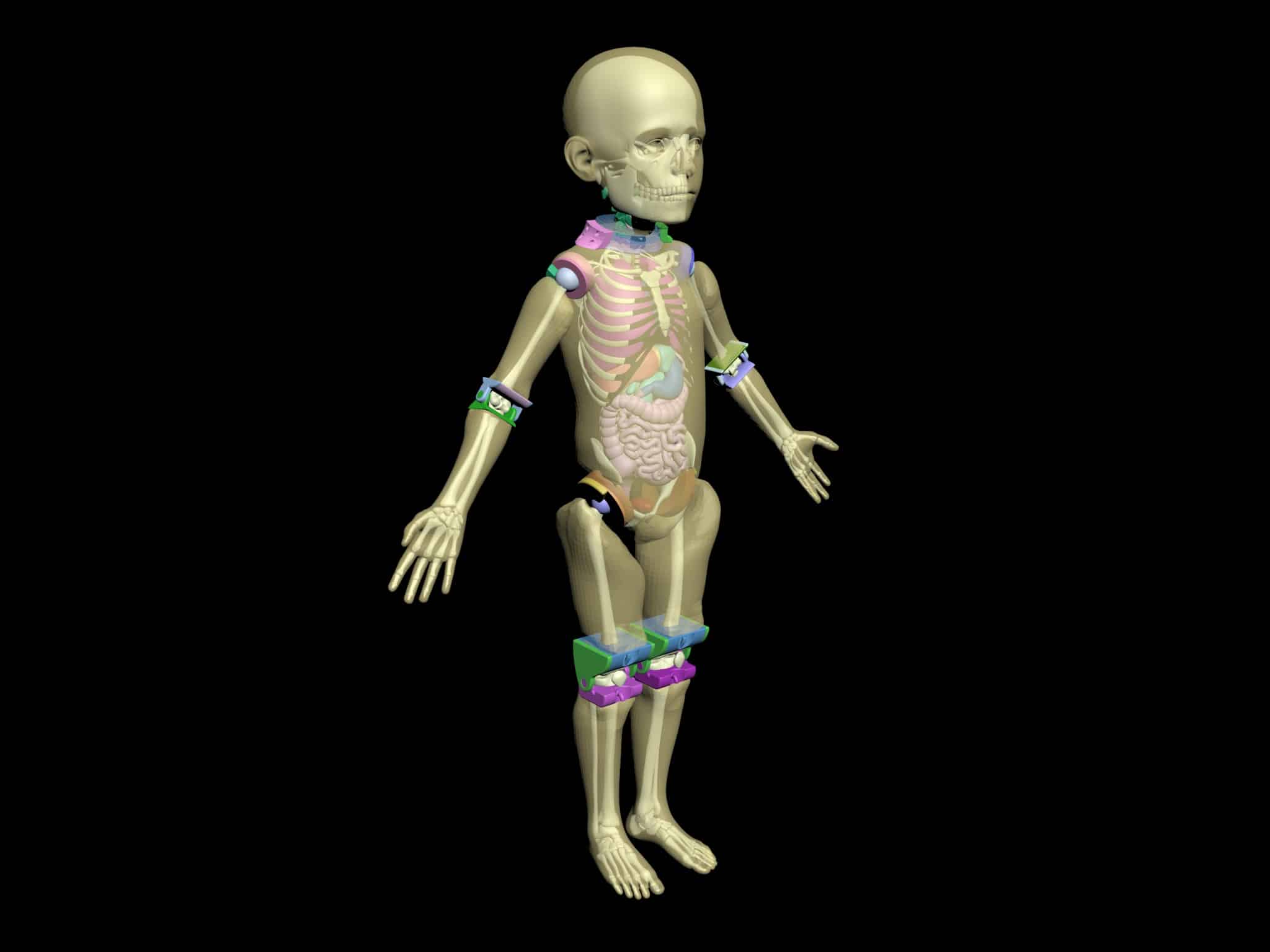

- Persepctive View
-

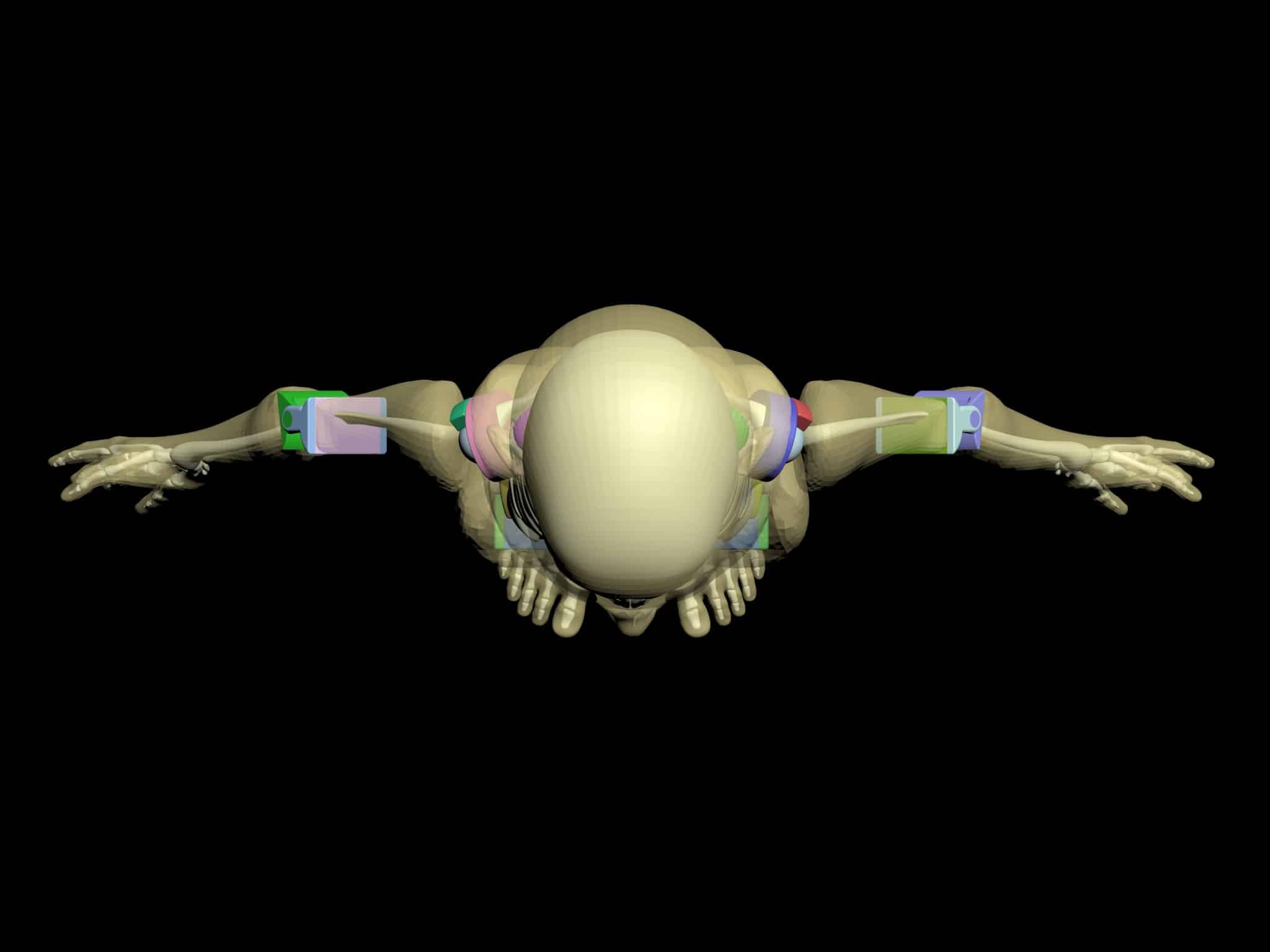

- Top View
Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of a 4-year old child for medical imaging, it is not meant to replace a live child and may have certain limitations in its capabilities.
Unlike an actual human however, the phantom will not be harmed or deteriorated due to repeated radiation. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents a safe alternative to using cadavers or volunteers. This makes it a sustainable, ethical choice for the early stages of research and education.
Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, please refer to our Warranty Policy and Return Policy. For any specific questions or concerns, please contact our technical team here.

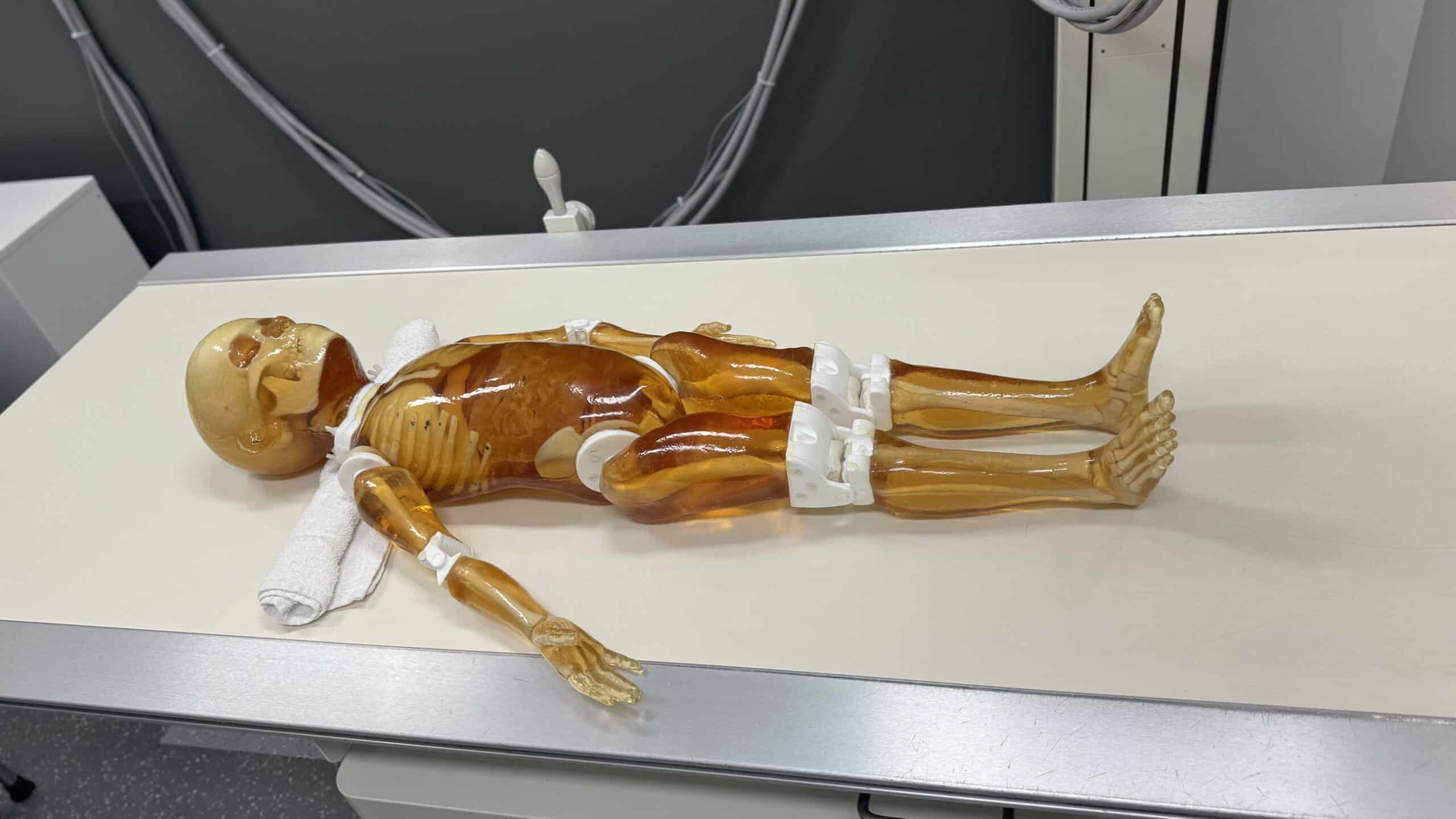

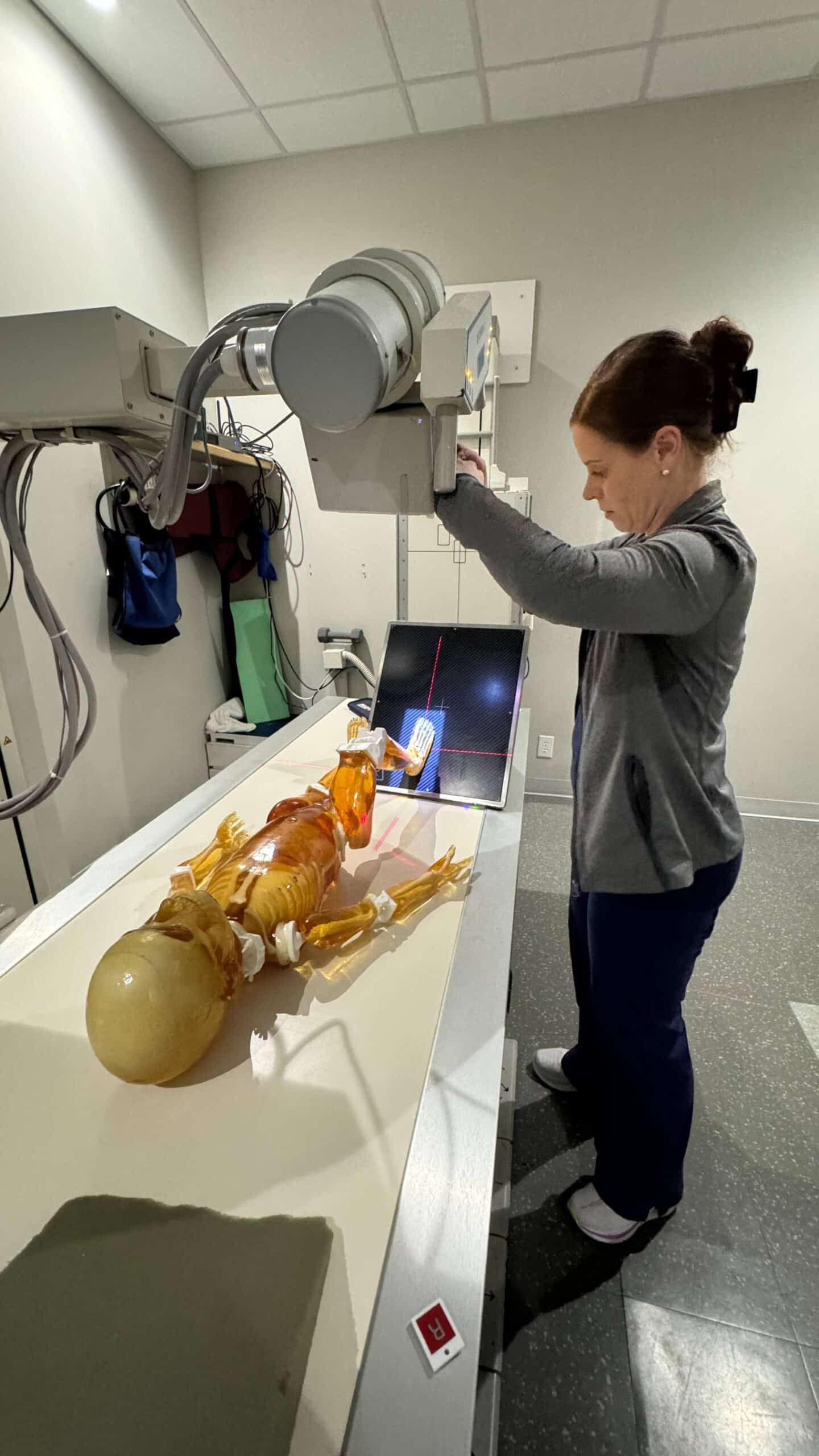

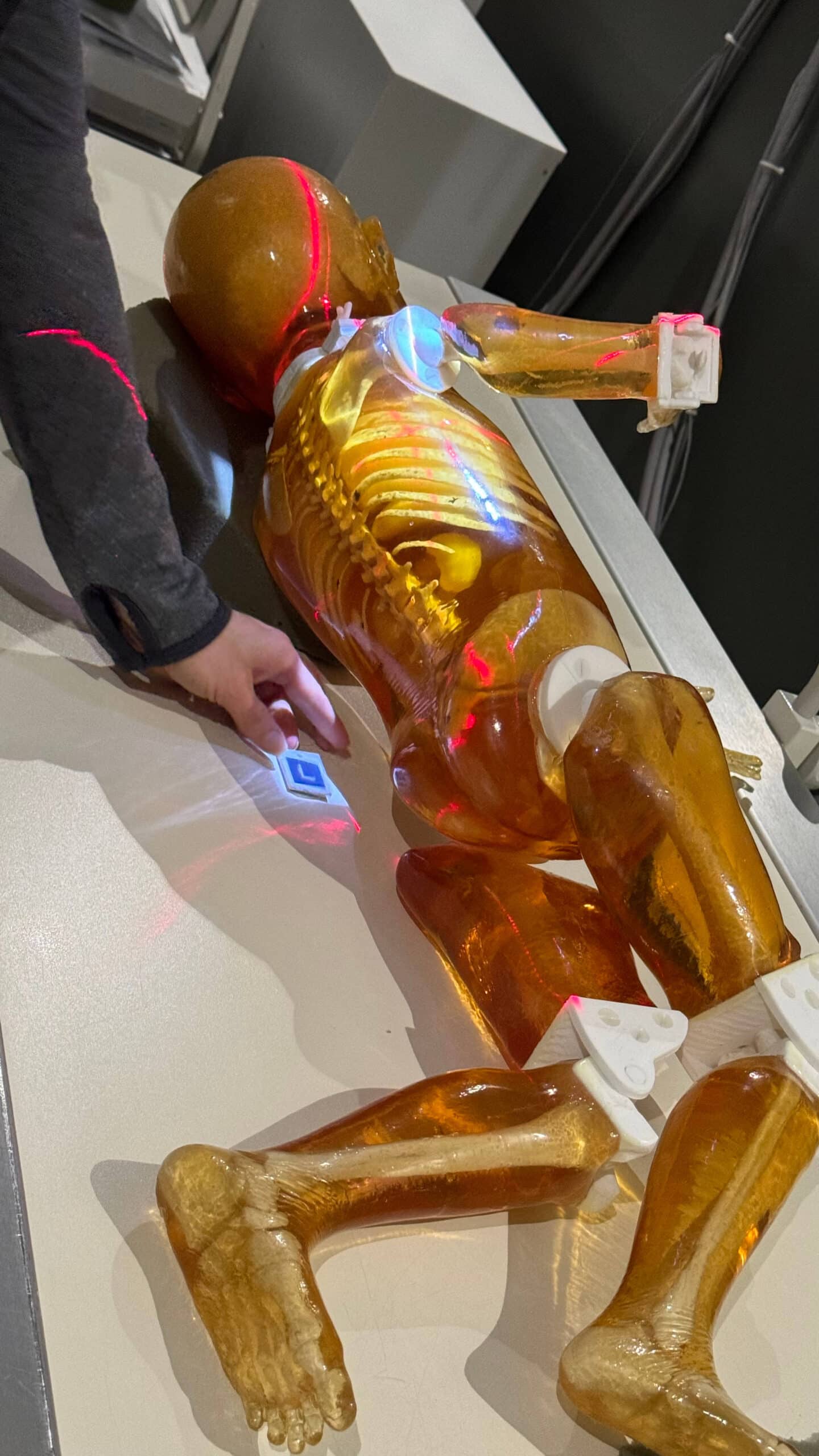

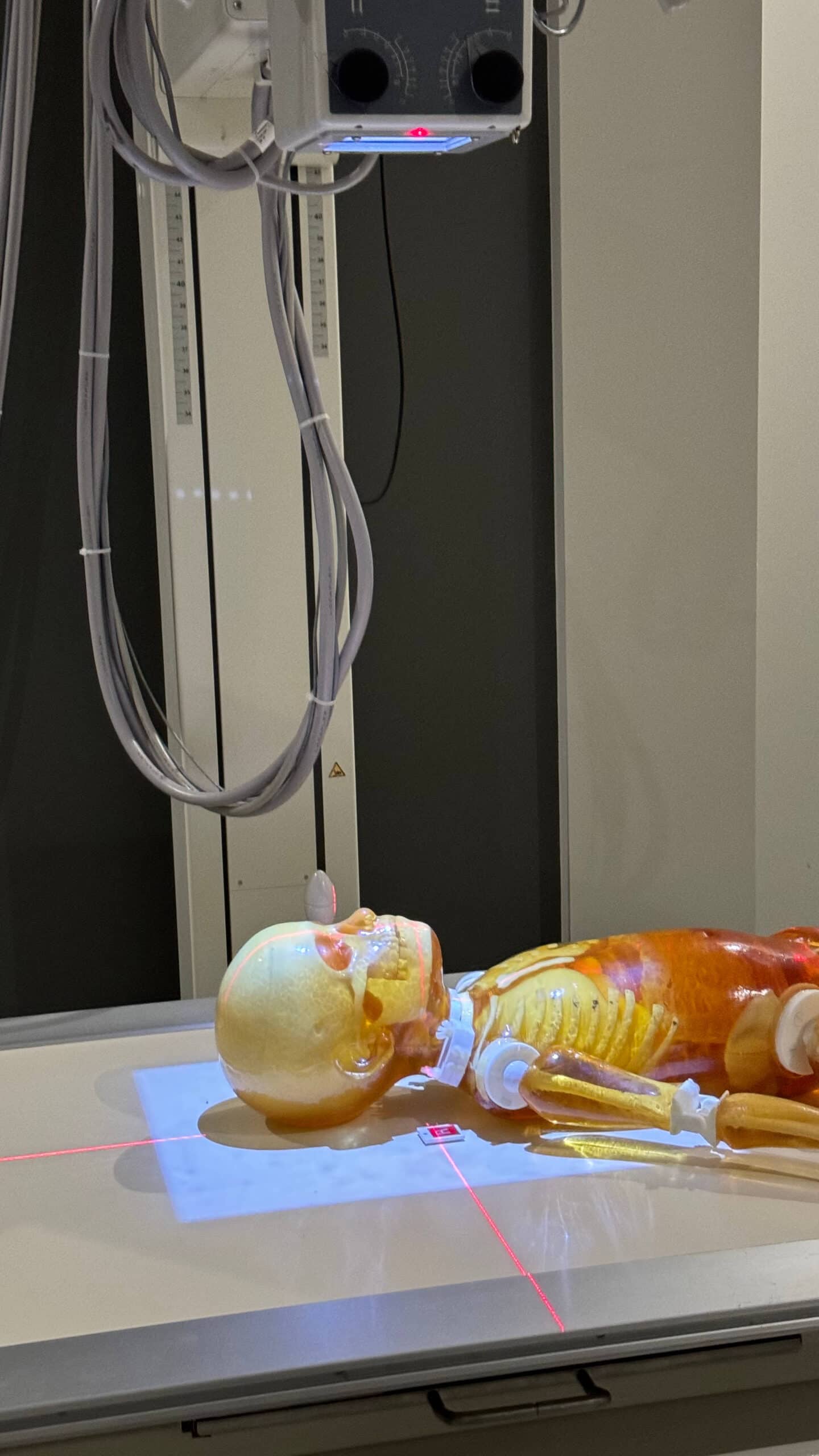

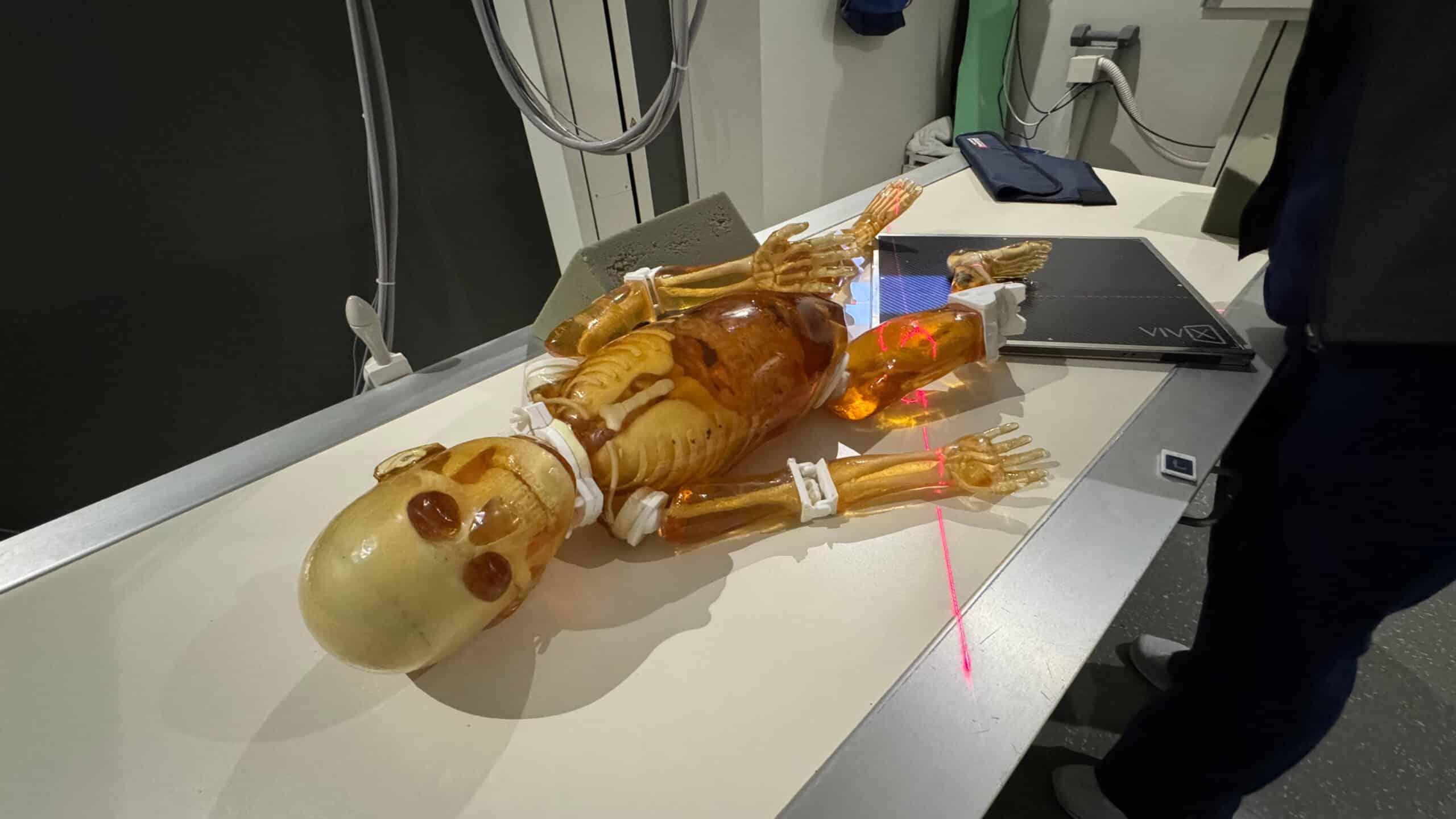

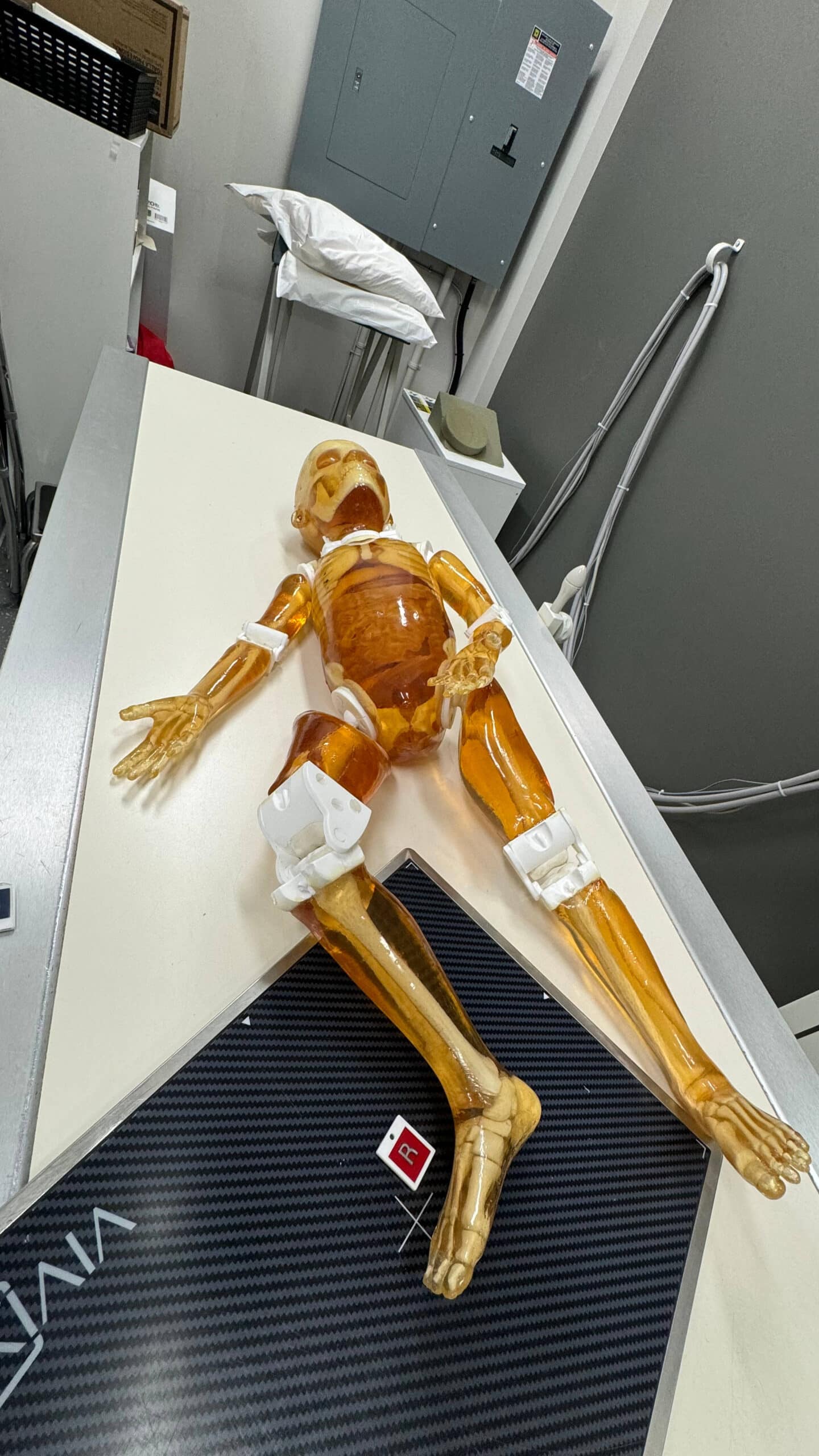

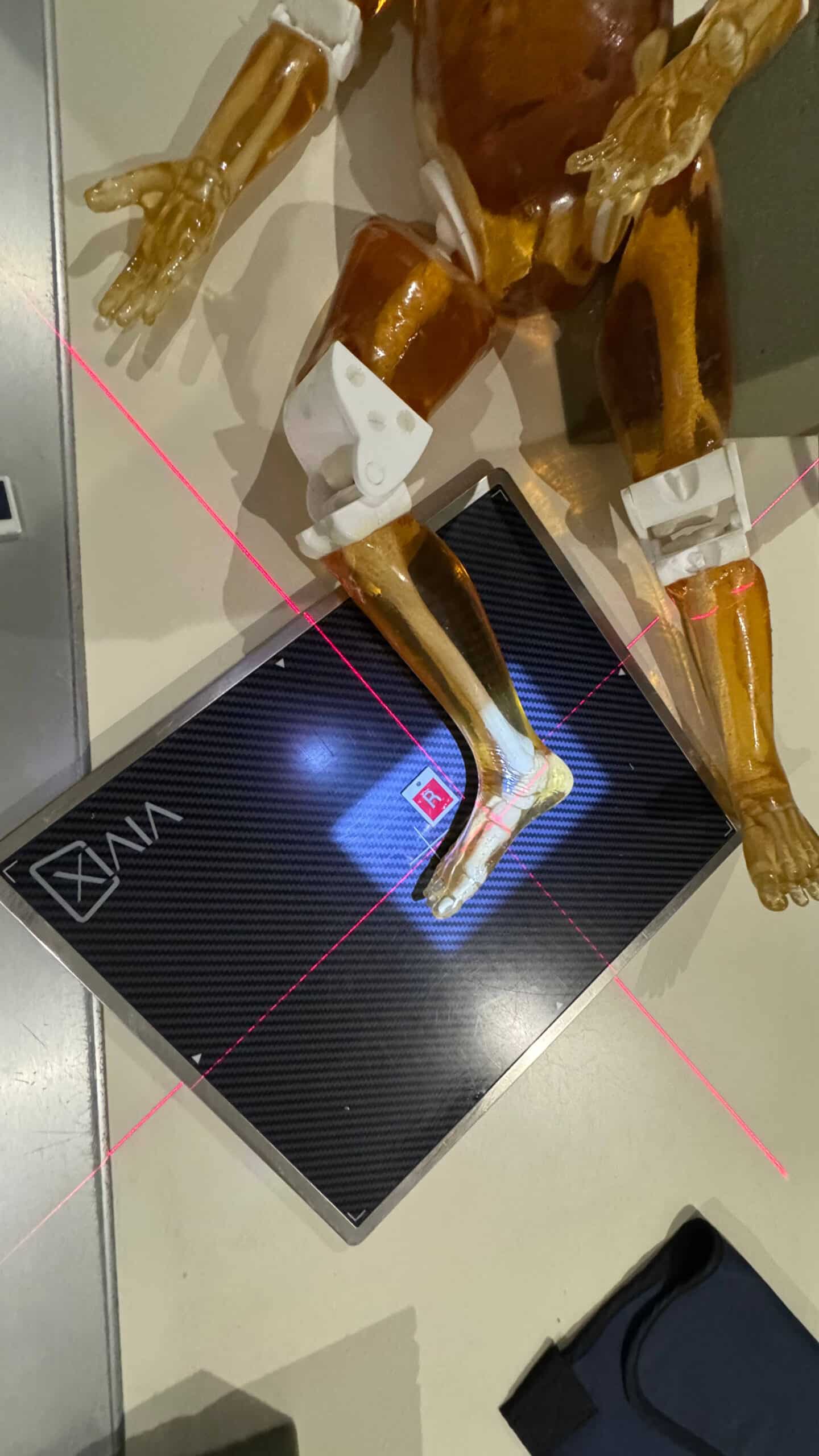

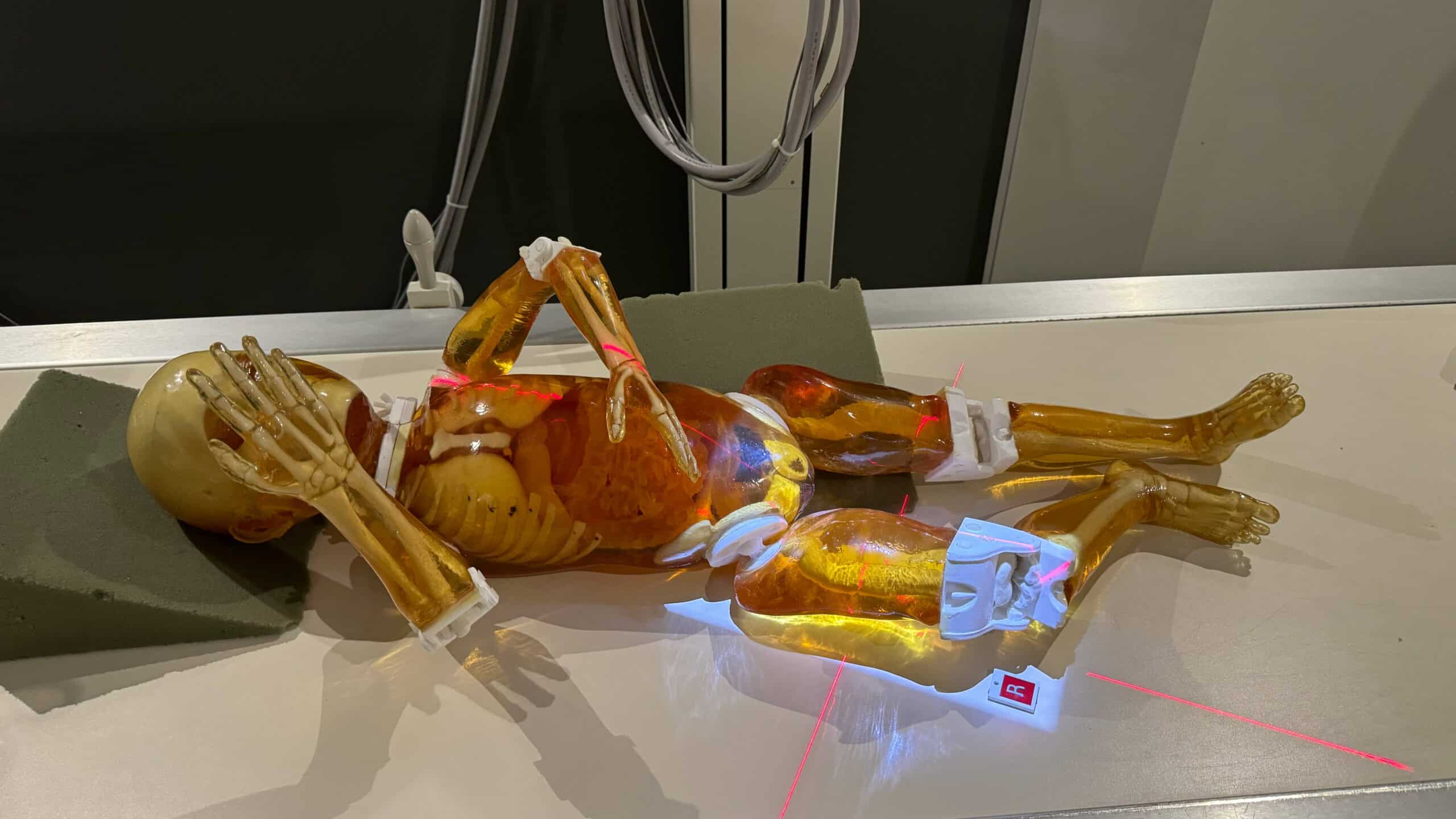

Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

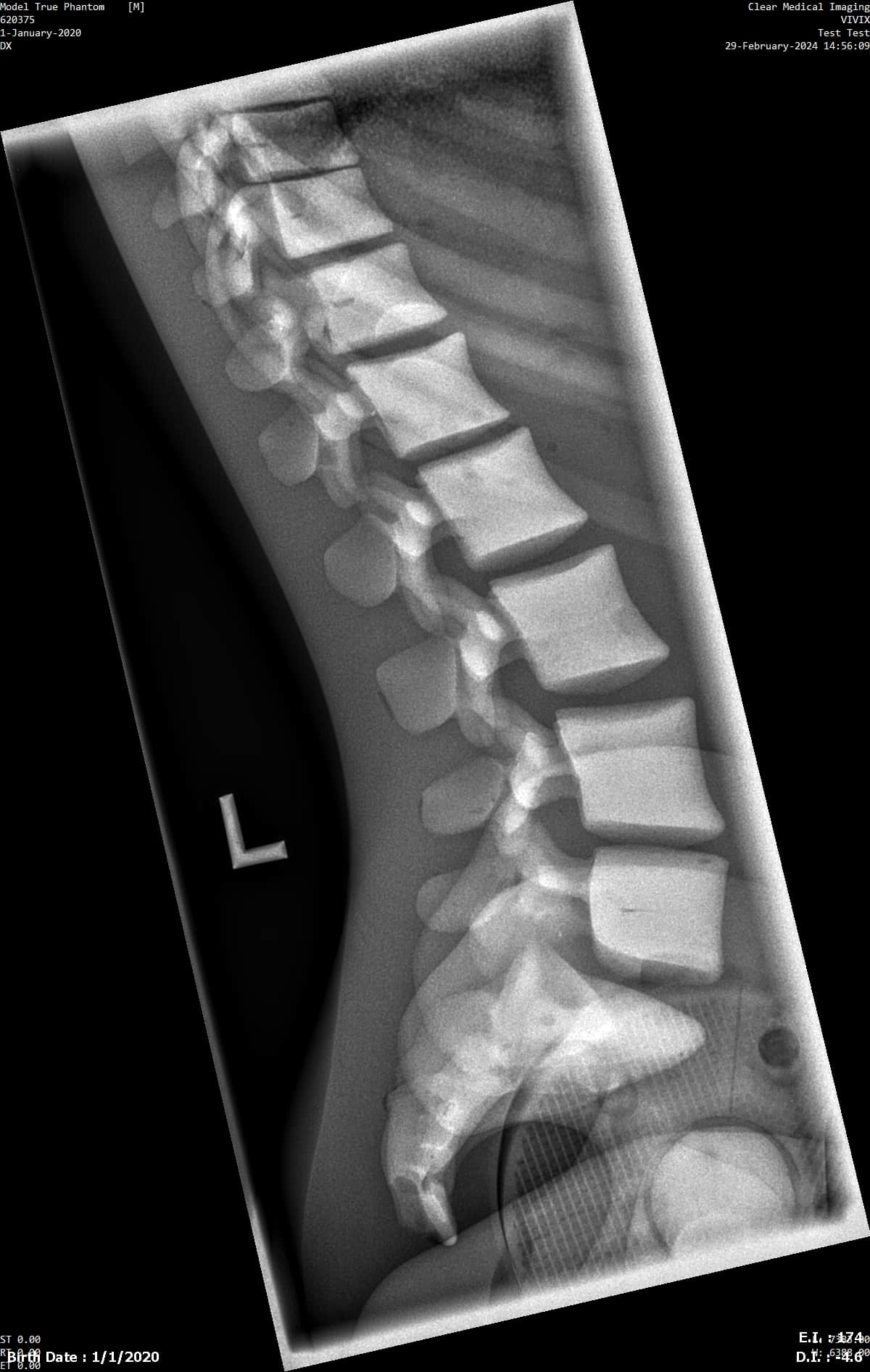

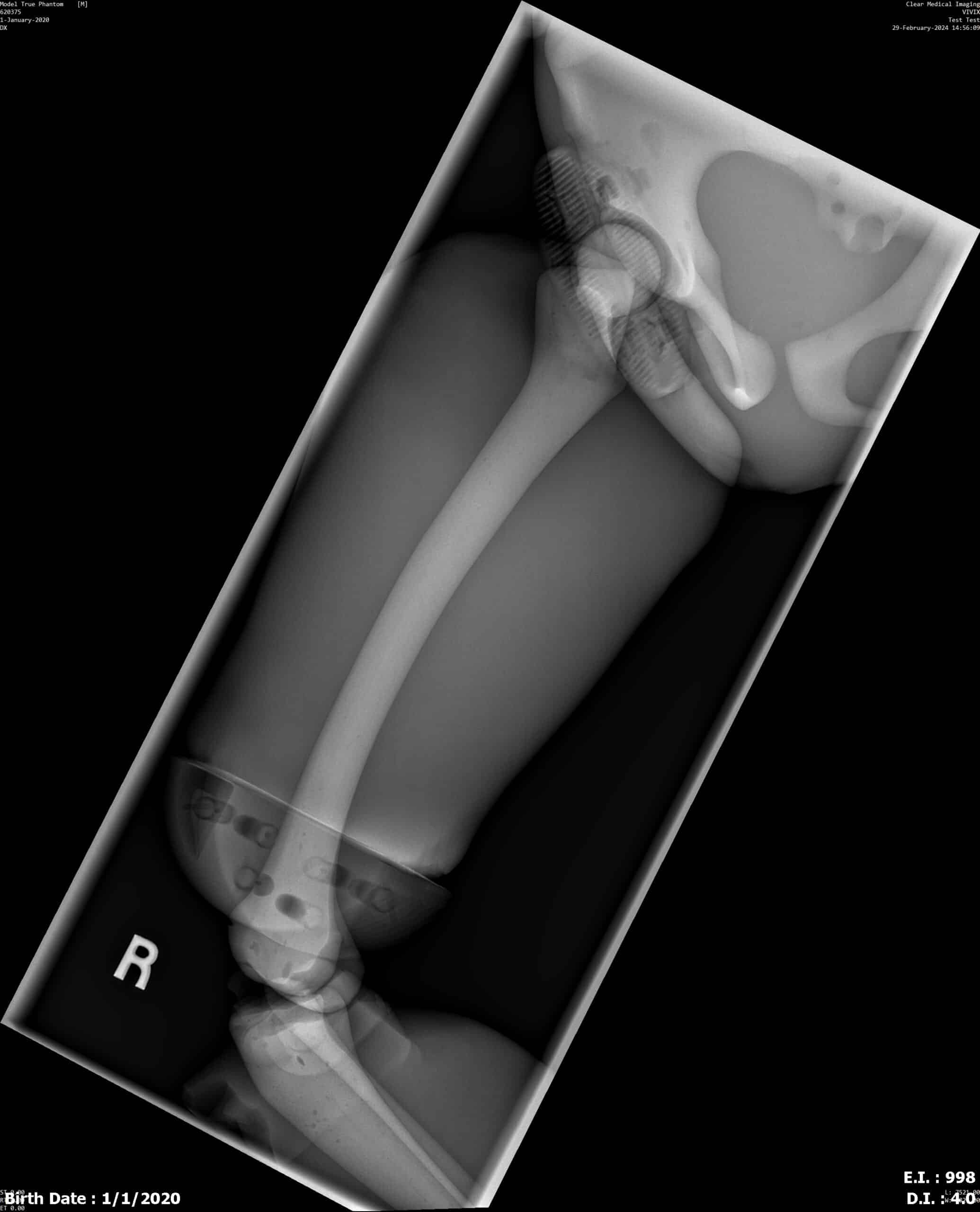

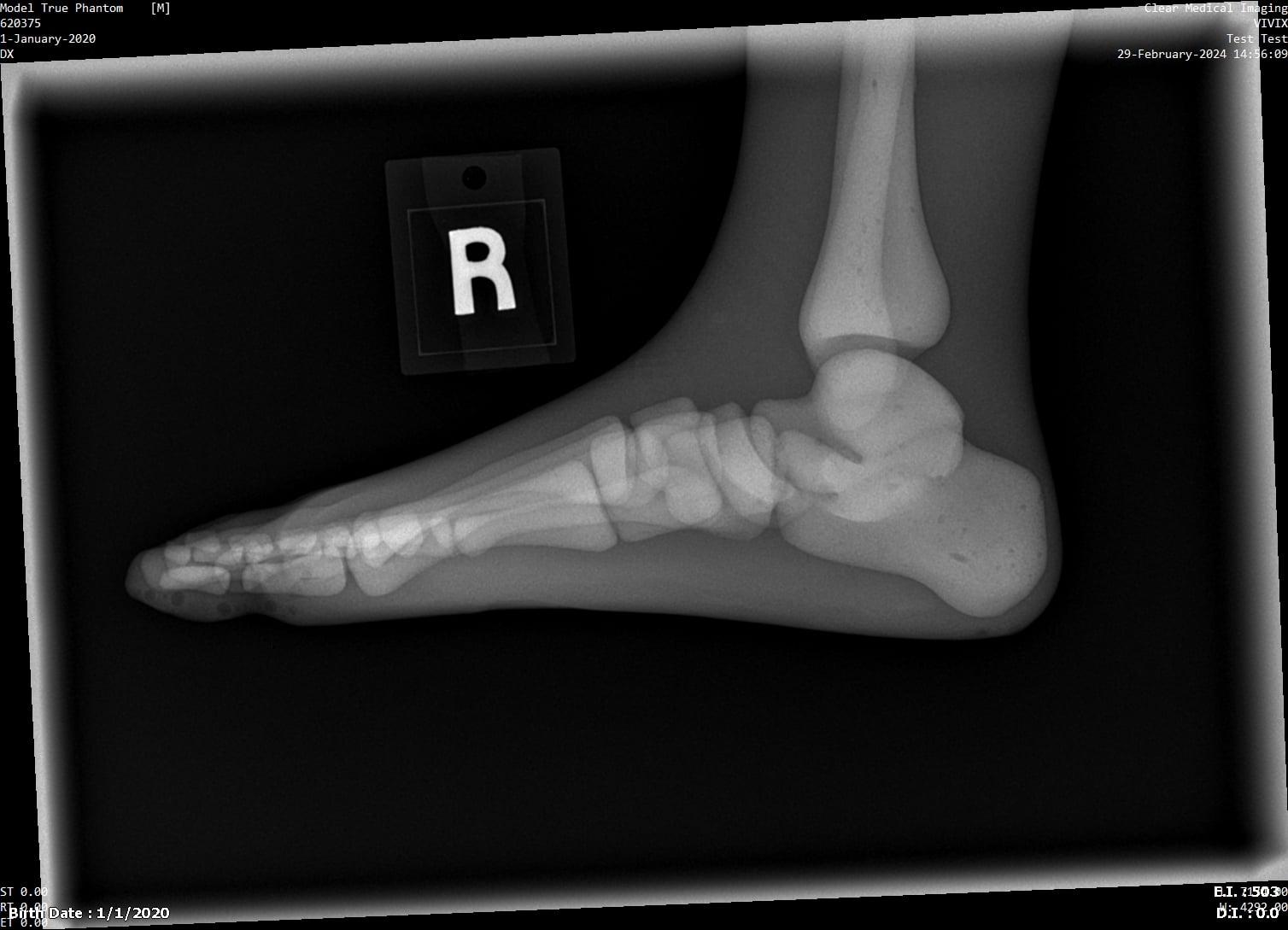

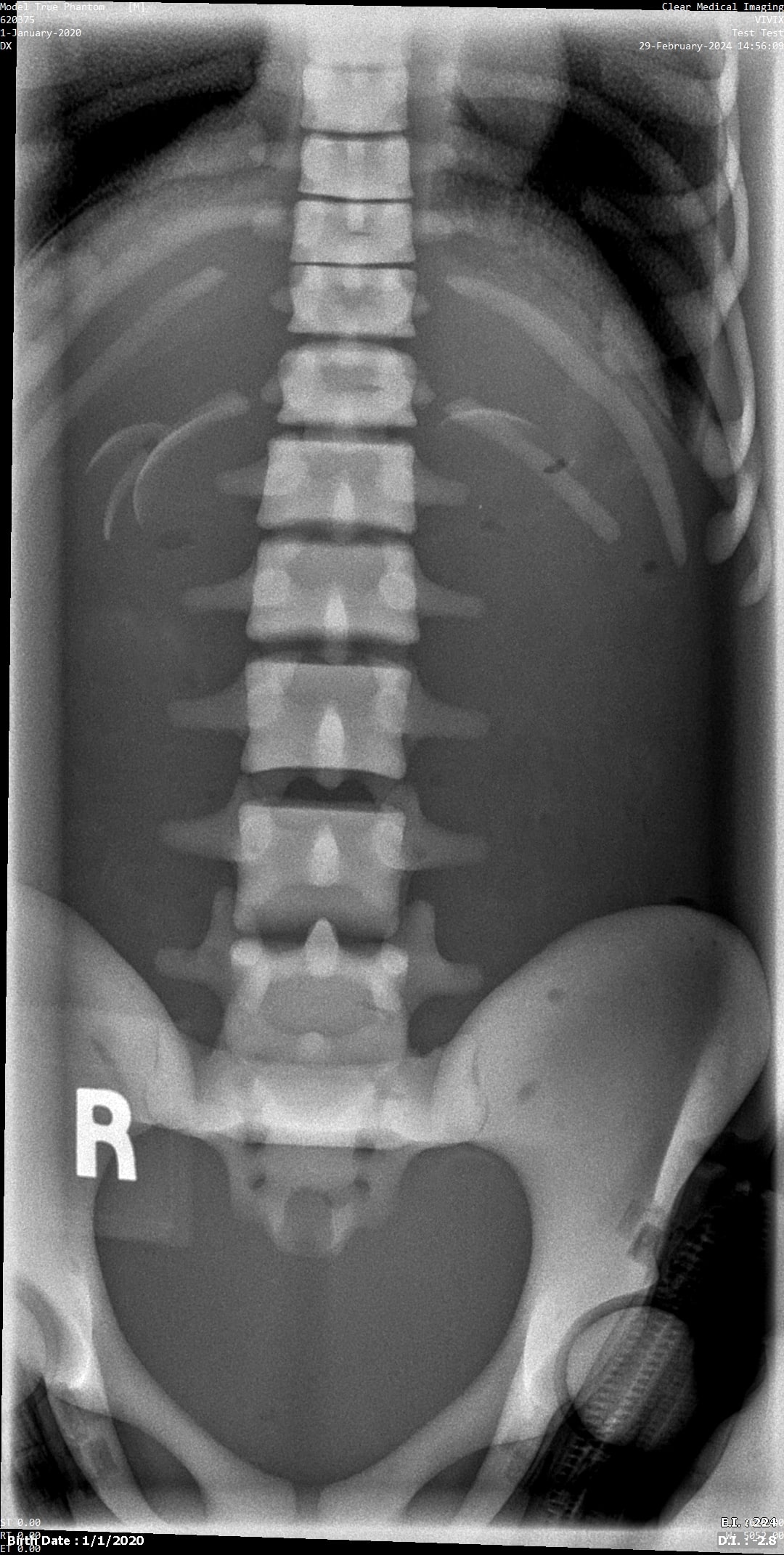

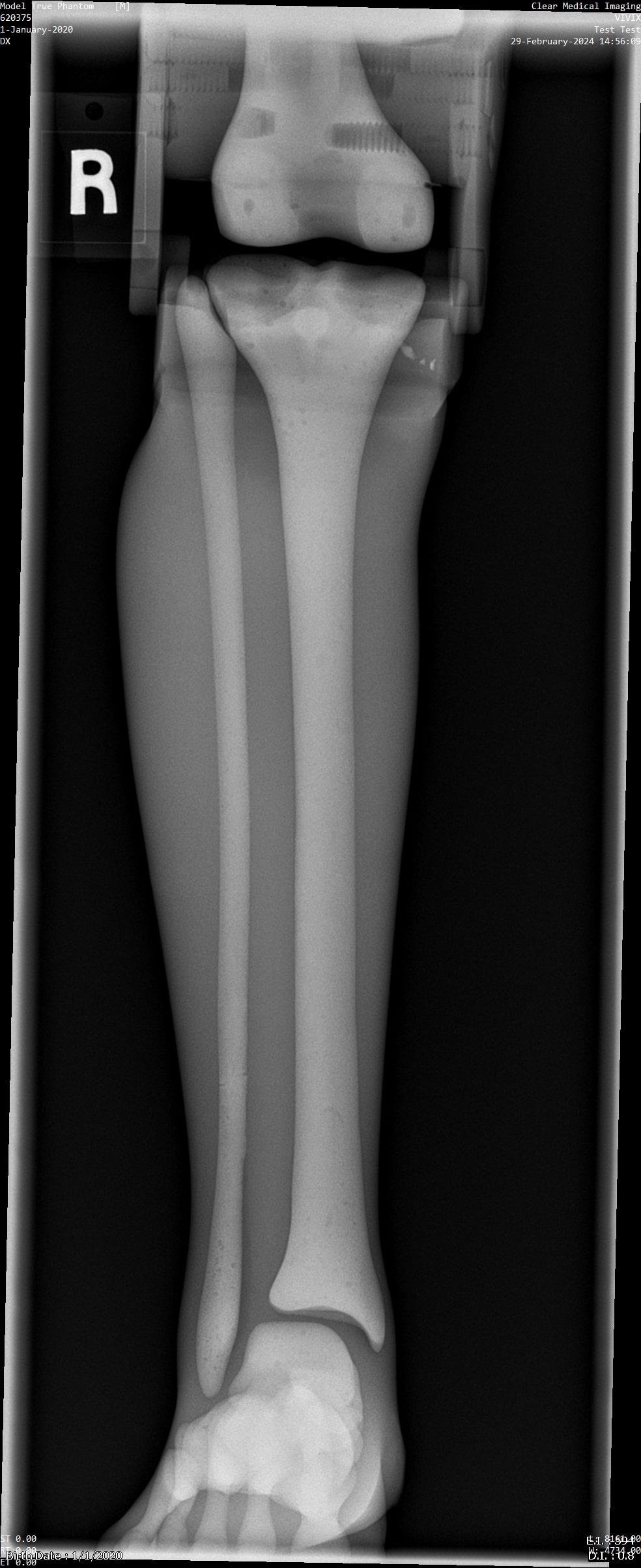

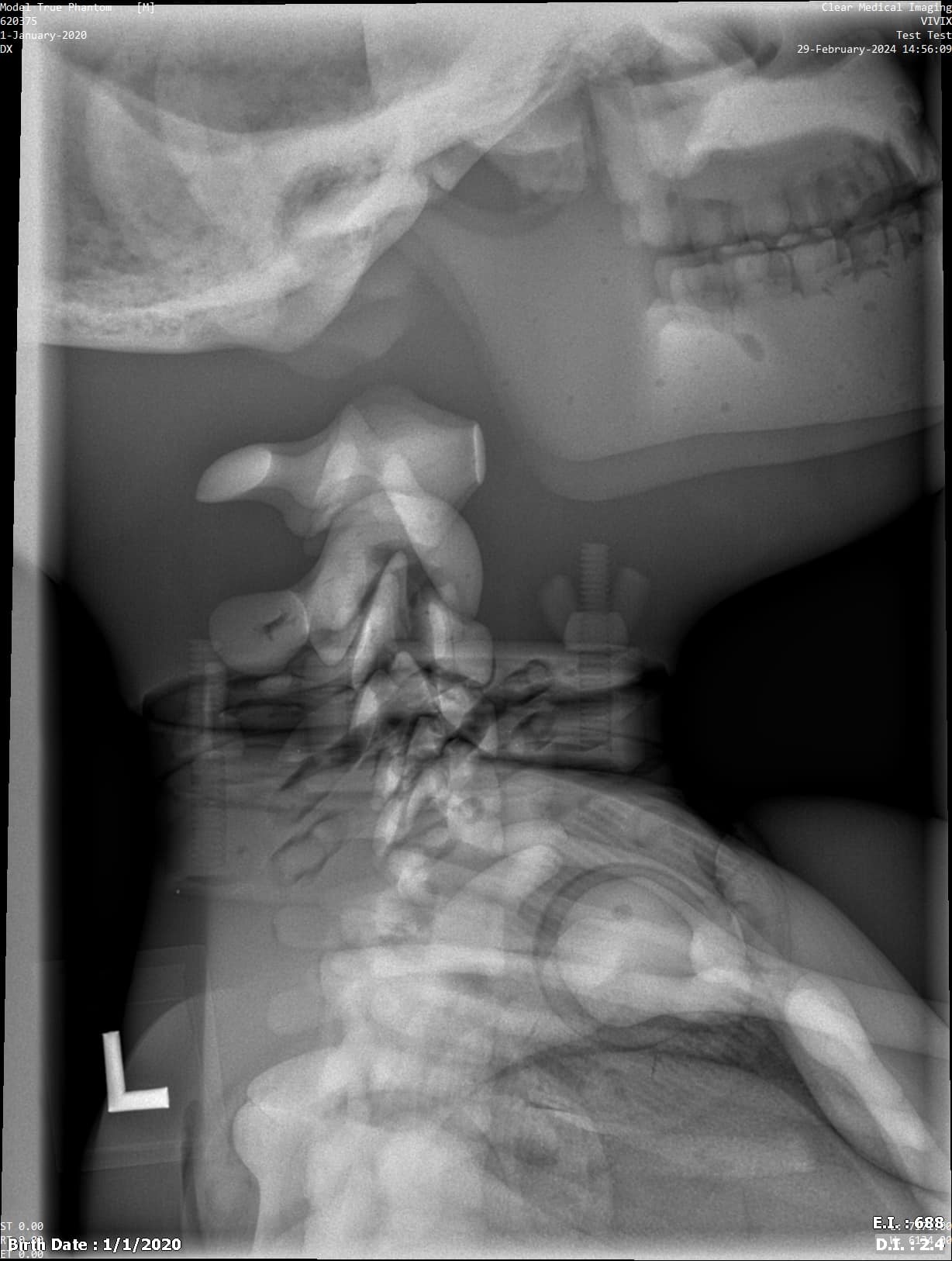

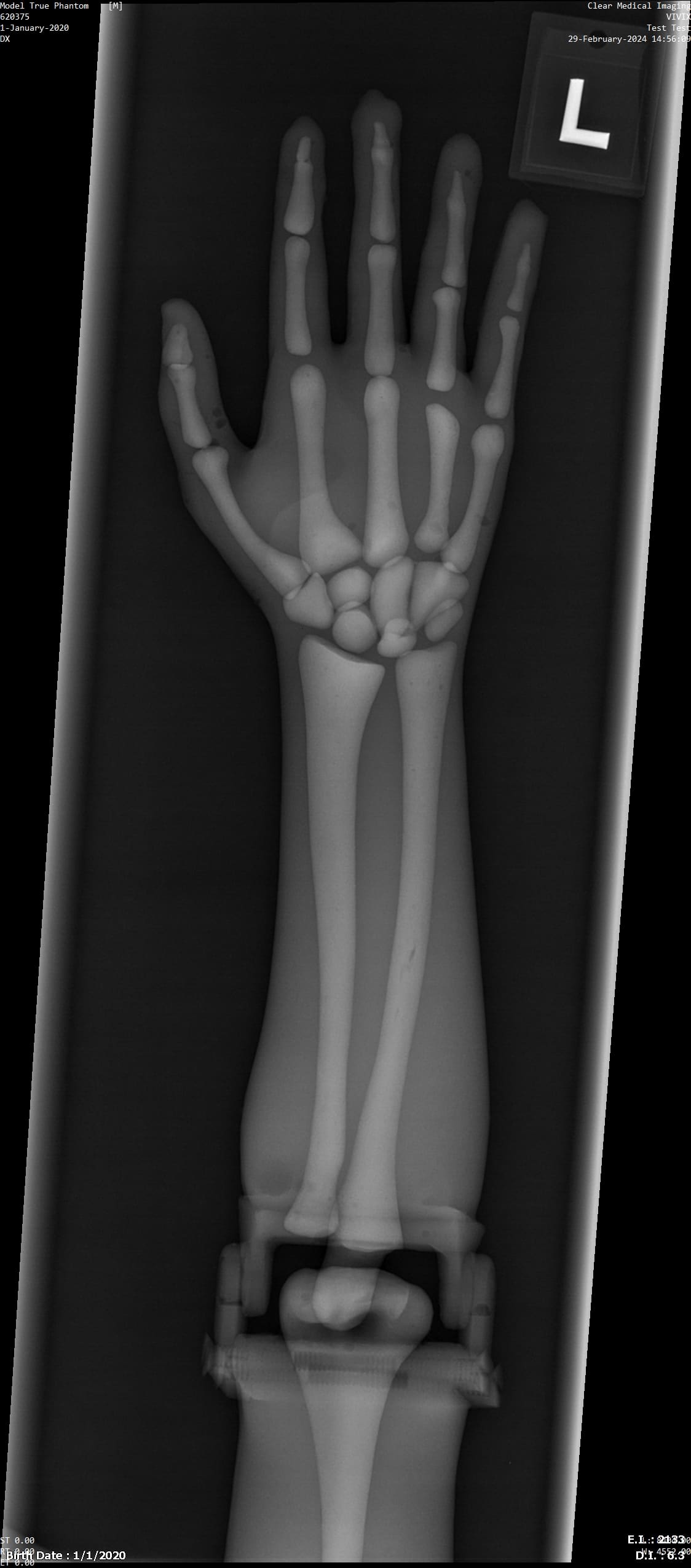

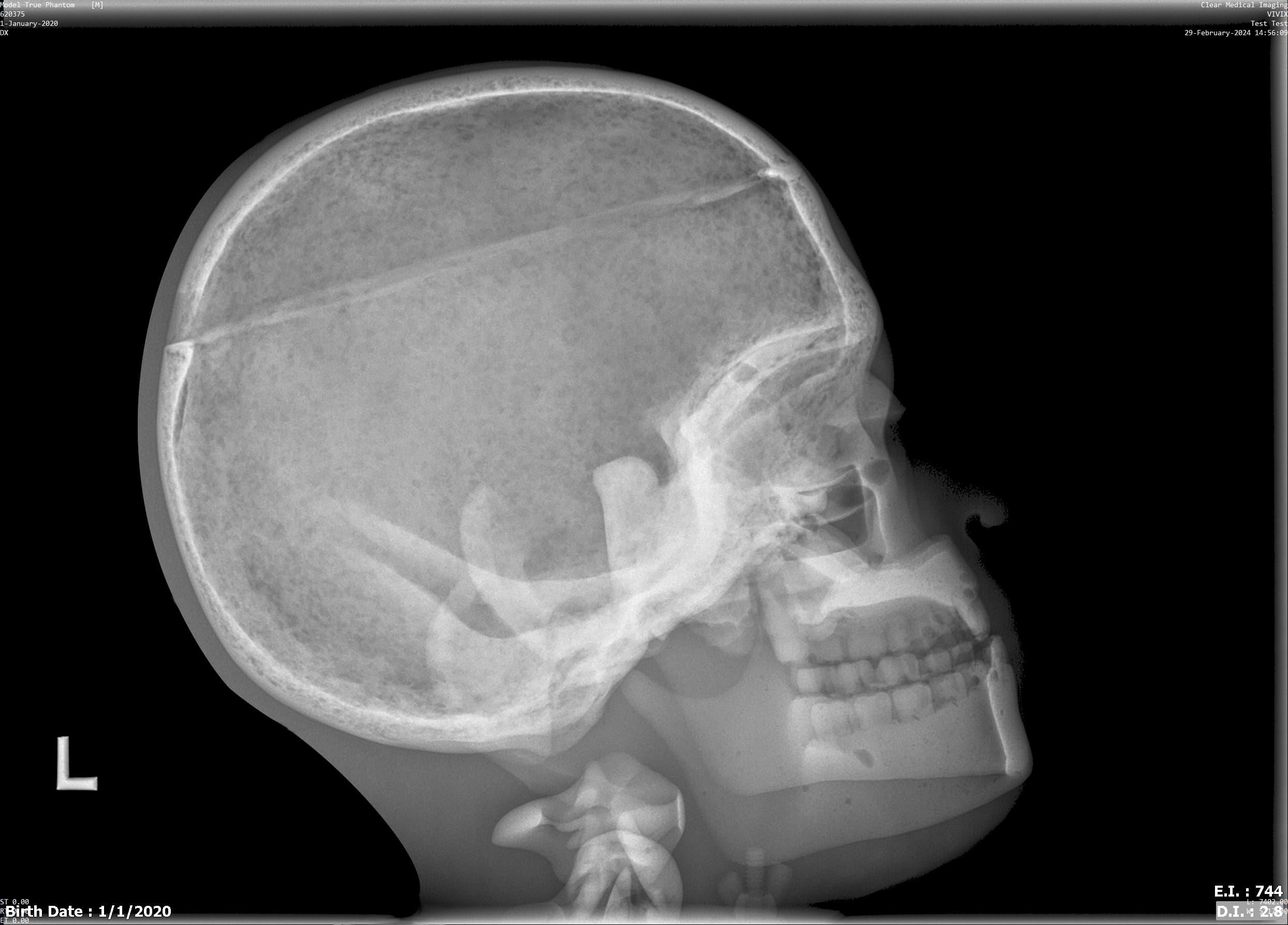

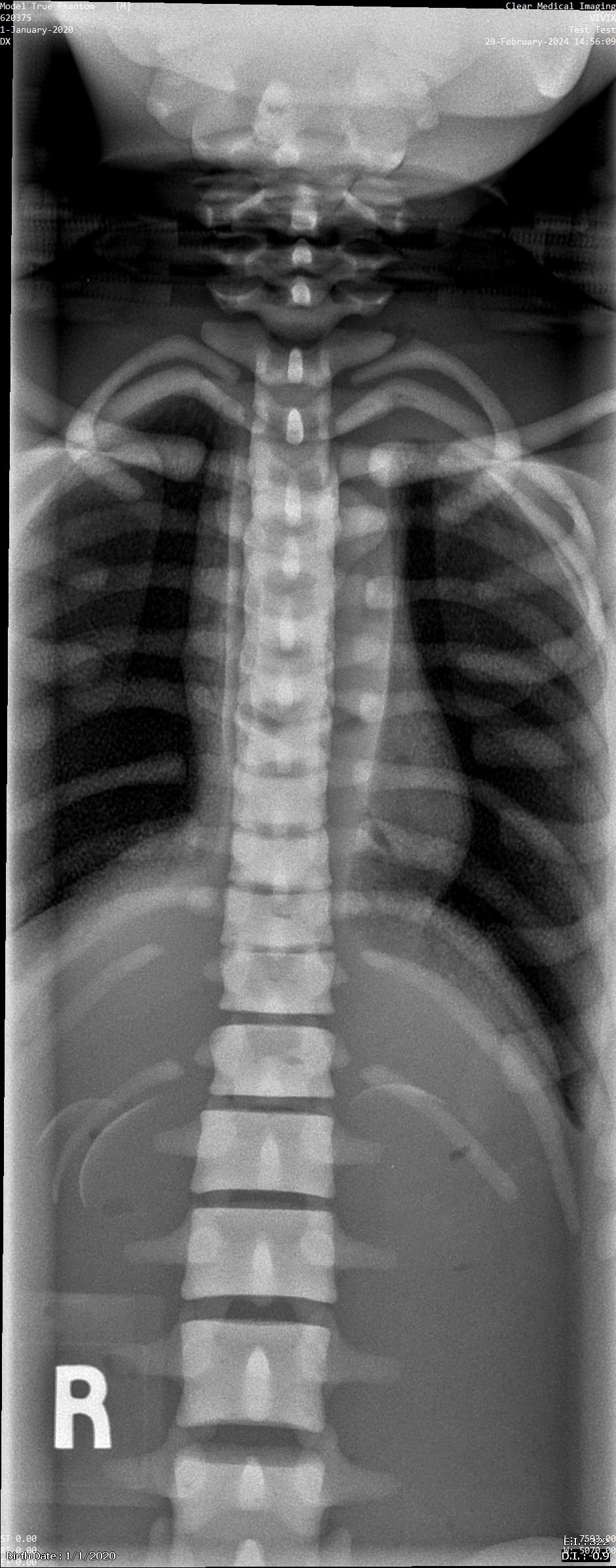

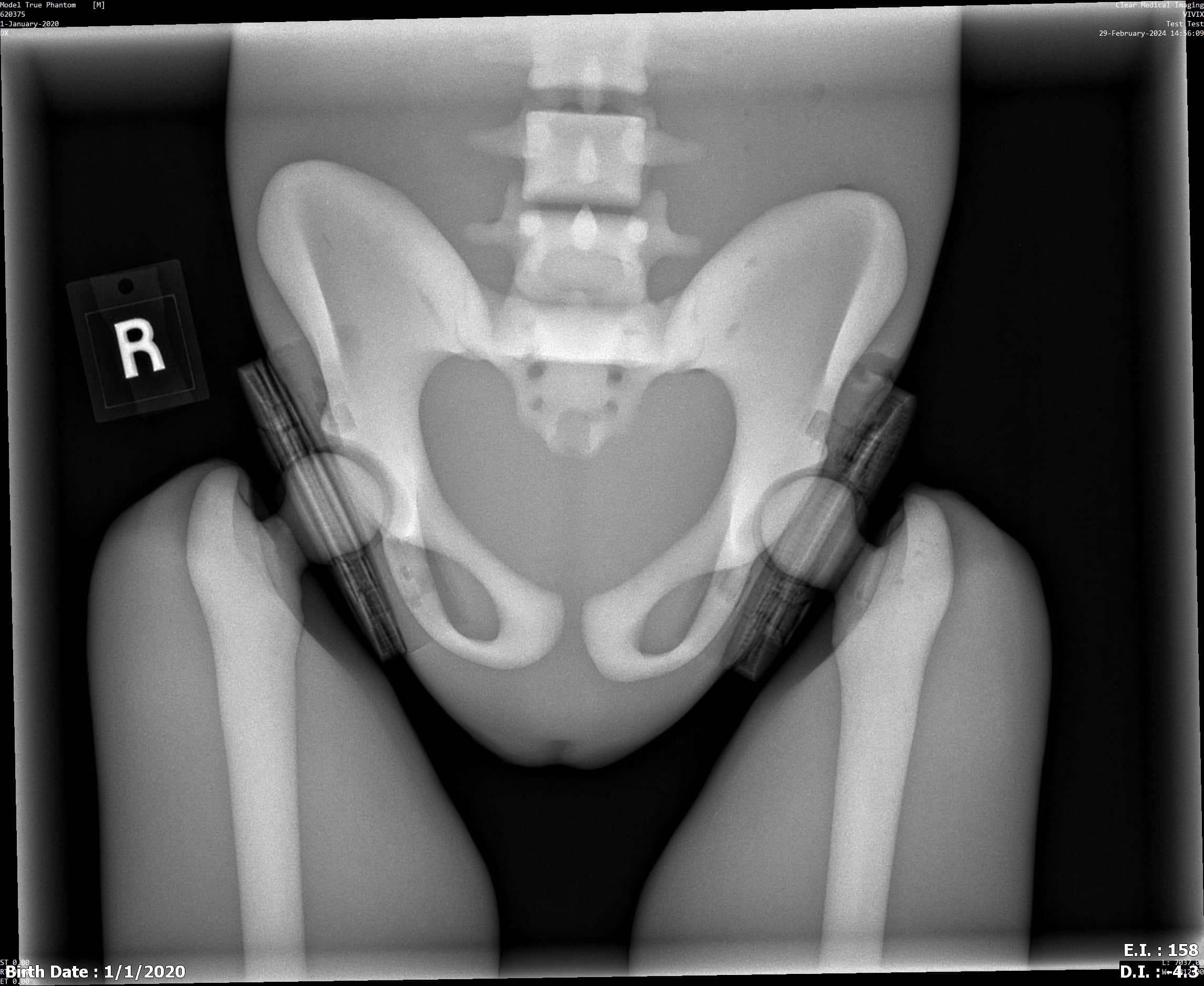

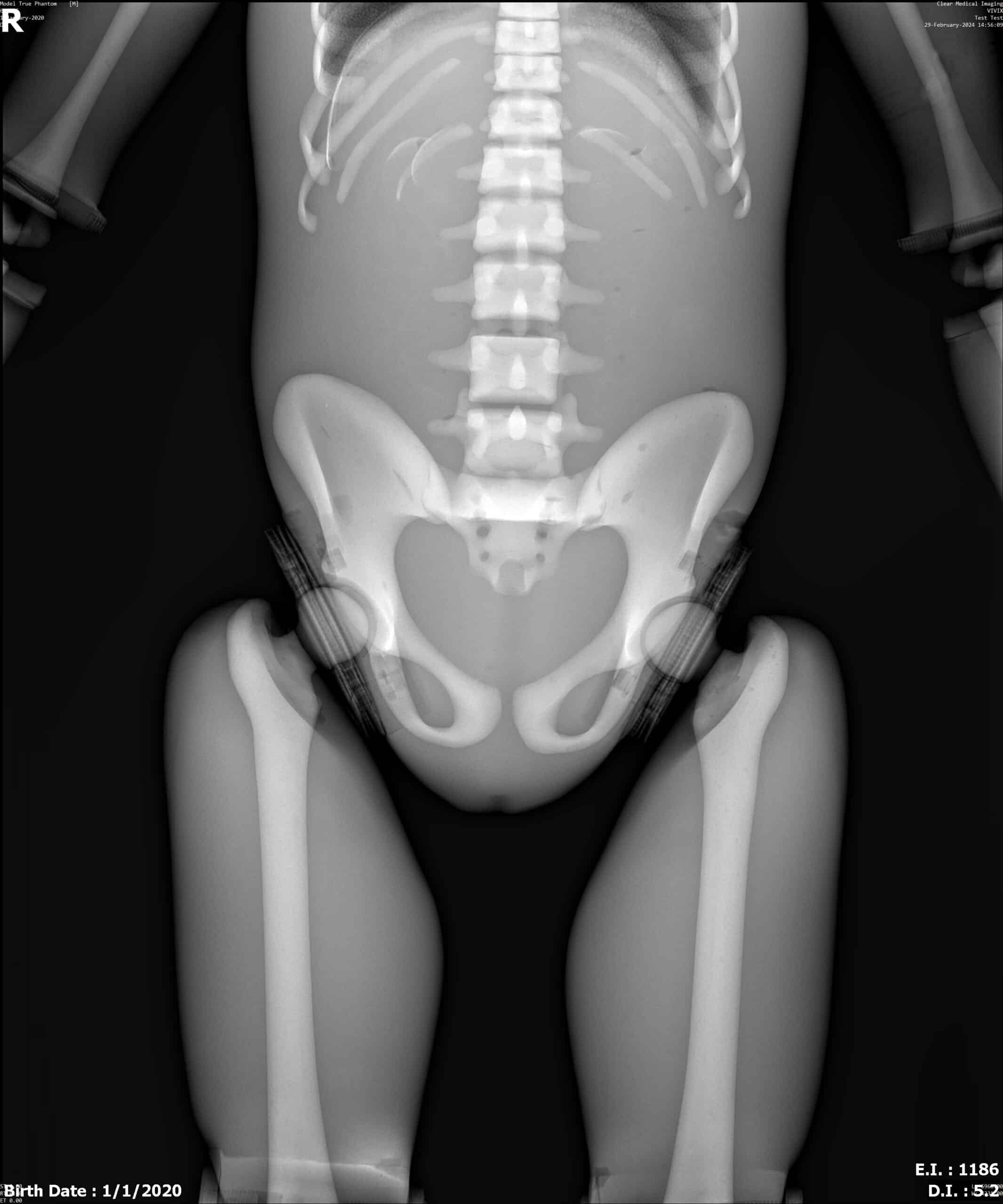

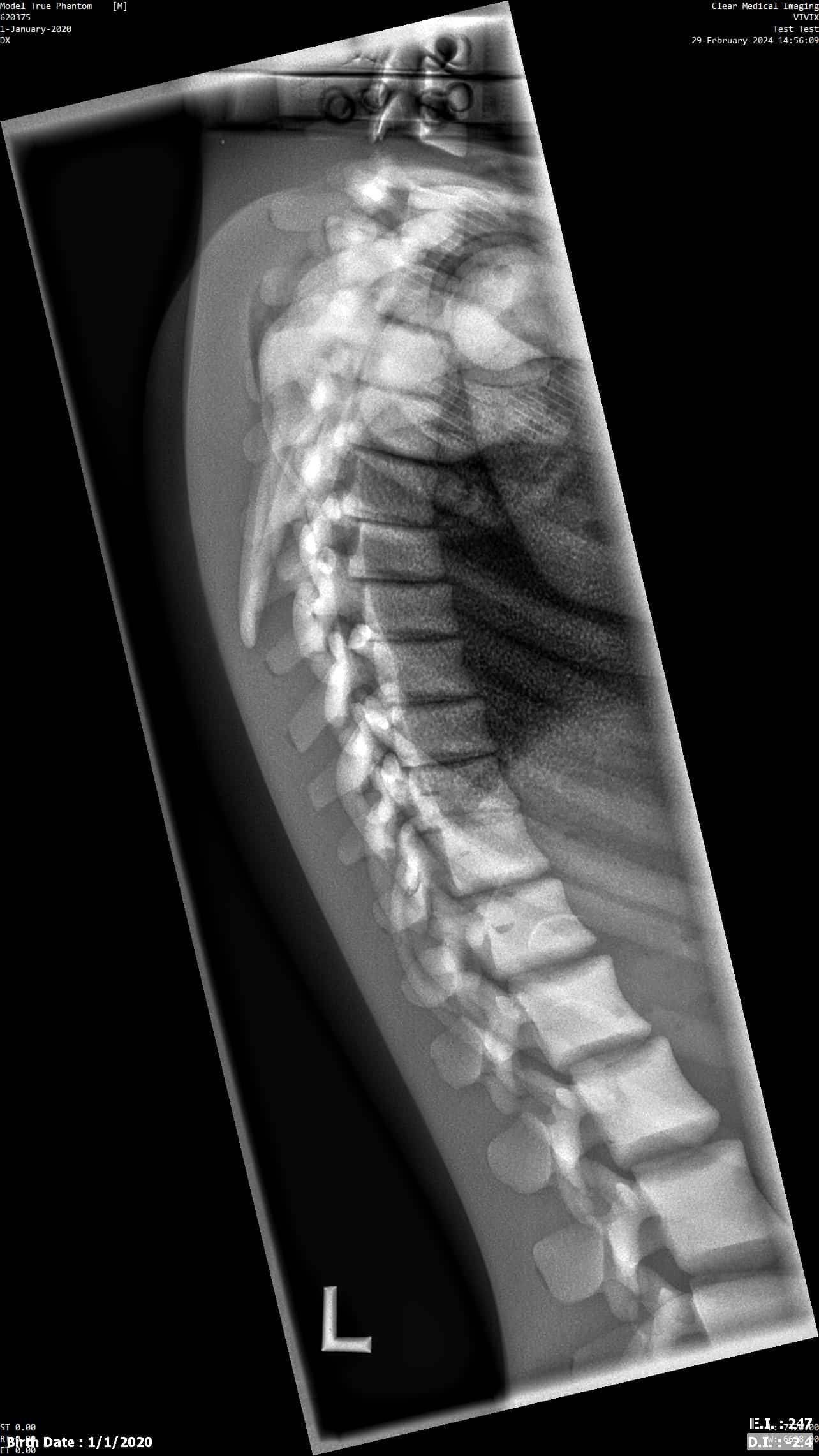

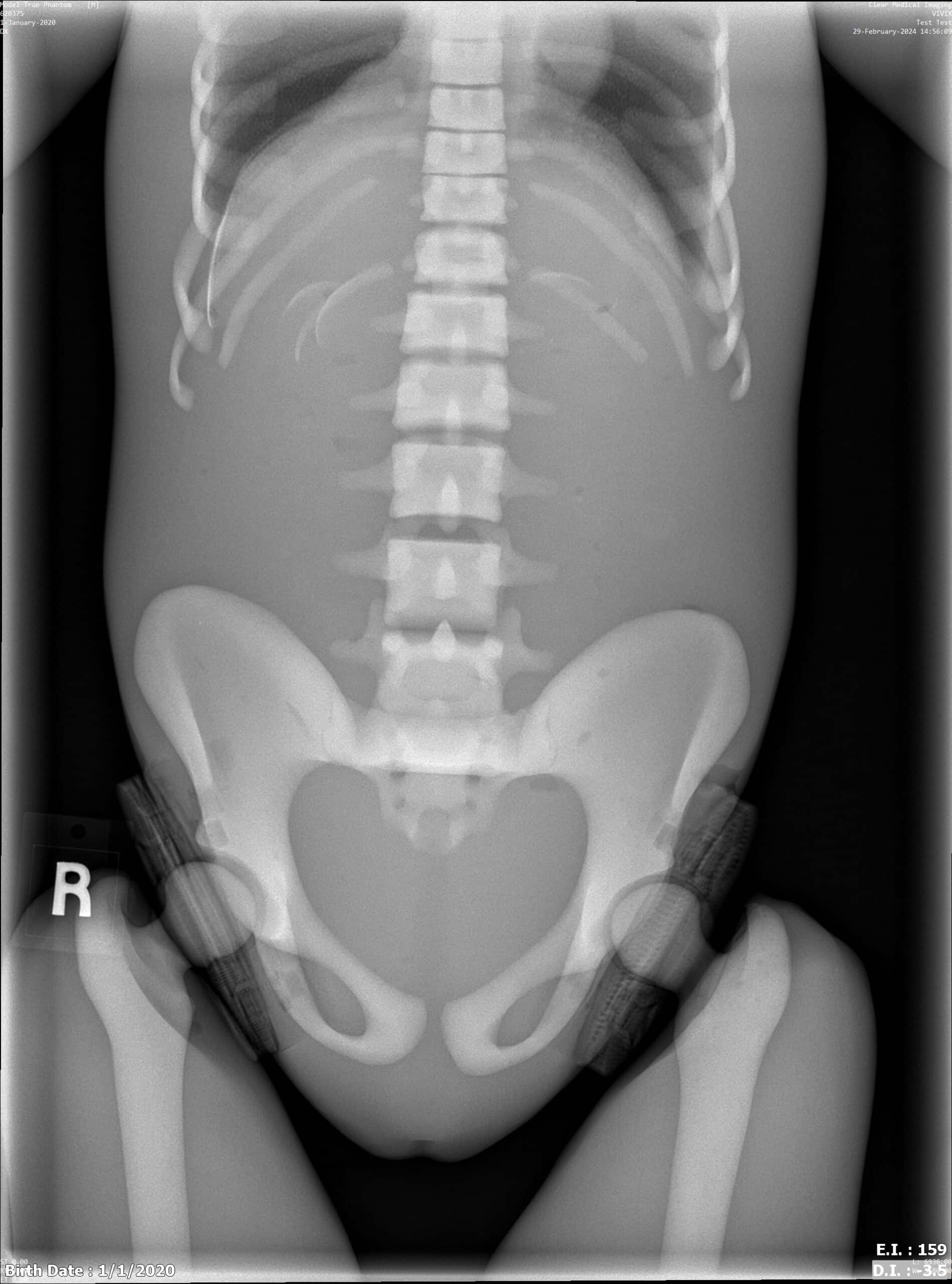

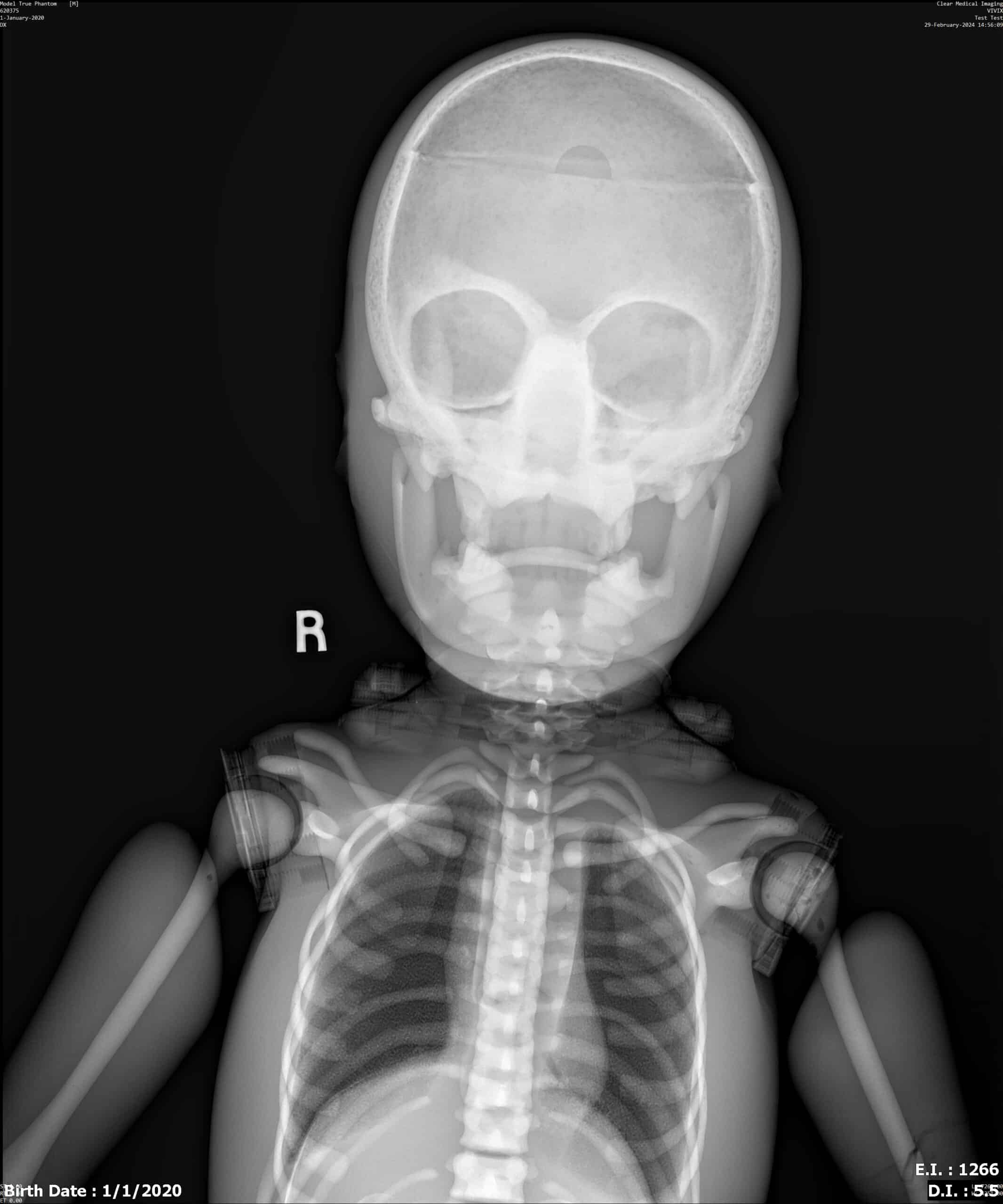

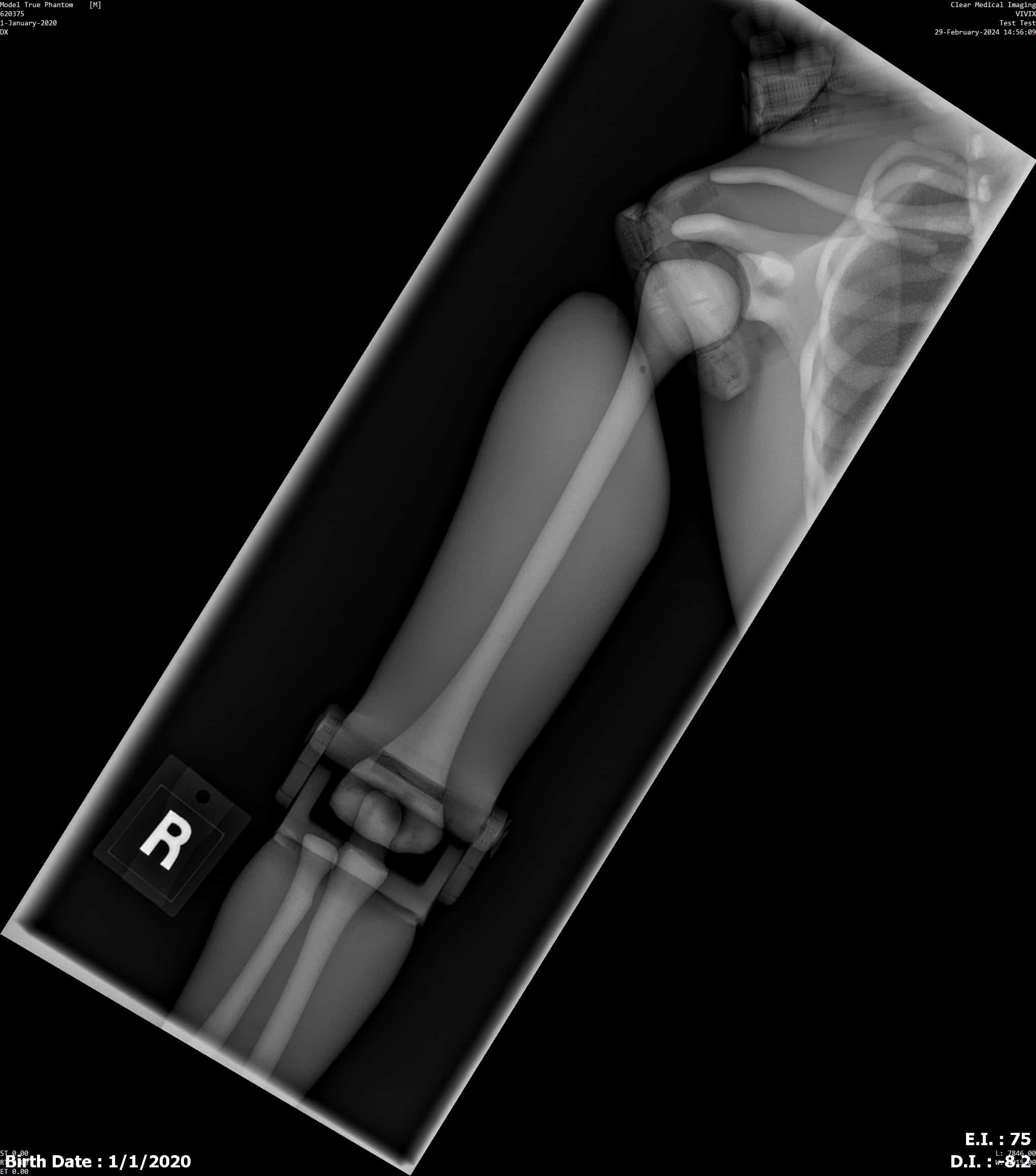

X-Ray Scans:
Note: These X-Ray images were taken from our Pediatric Full Body for X-Ray CT, US [FB-P02].They were taken using a Control-X machine and a VXvue (DR plate). See the full parameters here.
X-Ray Settings:
| Anatomy | Ribs/ Chest | Full view/ Abdomen | Cervical Spine | Thoracic Spine | Lumbar Spine | Femur | Tib/Fib | Foot | Humerus | Hand/ Wrist | Skull | |||||
| Projection | AP/PA | AP | Lateral | AP/ Oblique | AP | Lateral | AP | Lateral | Proximal AP/ Lateral | AP/Lateral | AP/ Oblique | Lateral | AP | PA/ Oblique | AP | Lateral |
| kVp | 80 | 78 | 80 | 78 | 74 | 80 | 78 | 80 | 76 | 68 | 58 | 60 | 80 | 60 | 88 | 78 |
| mAs | 8 | 18 | 8 | 6.3 | 12.5 | 20 | 8 | 10 | 6.3 | 2 | 1.6 | 1.6 | 6.3 | 1.8 | 16 | 12.5 |

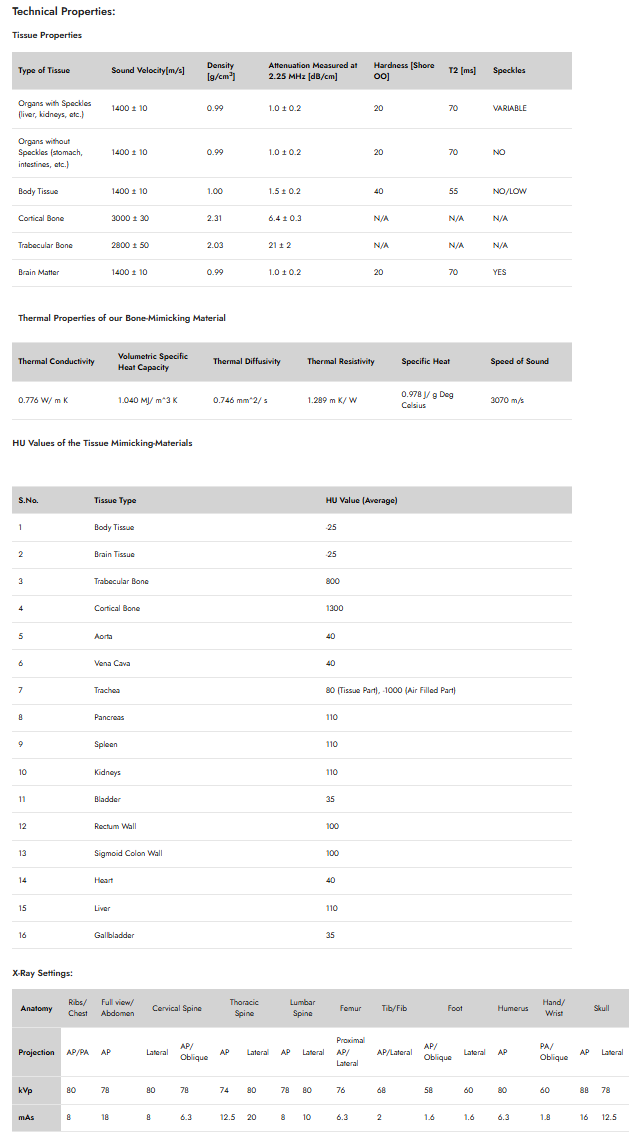

Technical Properties:
Tissue Properties
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
Thermal Properties of our Bone-Mimicking Material |
|||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Body Tissue | -25 |
| 2 | Brain Tissue | -25 |
| 3 | Trabecular Bone | 800 |
| 4 | Cortical Bone | 1300 |
| 5 | Aorta | 40 |
| 6 | Vena Cava | 40 |
| 7 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 8 | Pancreas | 110 |
| 9 | Spleen | 110 |
| 10 | Kidneys | 110 |
| 11 | Bladder | 35 |
| 12 | Rectum Wall | 100 |
| 13 | Sigmoid Colon Wall | 100 |
| 14 | Heart | 40 |
| 15 | Liver | 110 |
| 16 | Gallbladder | 35 |
Included In Order:
Pediatric Full Body Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 40 x 8 x 27 Inches, Weight: 40 Lbs (approx.).
Shipment:
Size with Hard Carry Case: 32 x 23 x 13 Inches, Weight: 99 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
