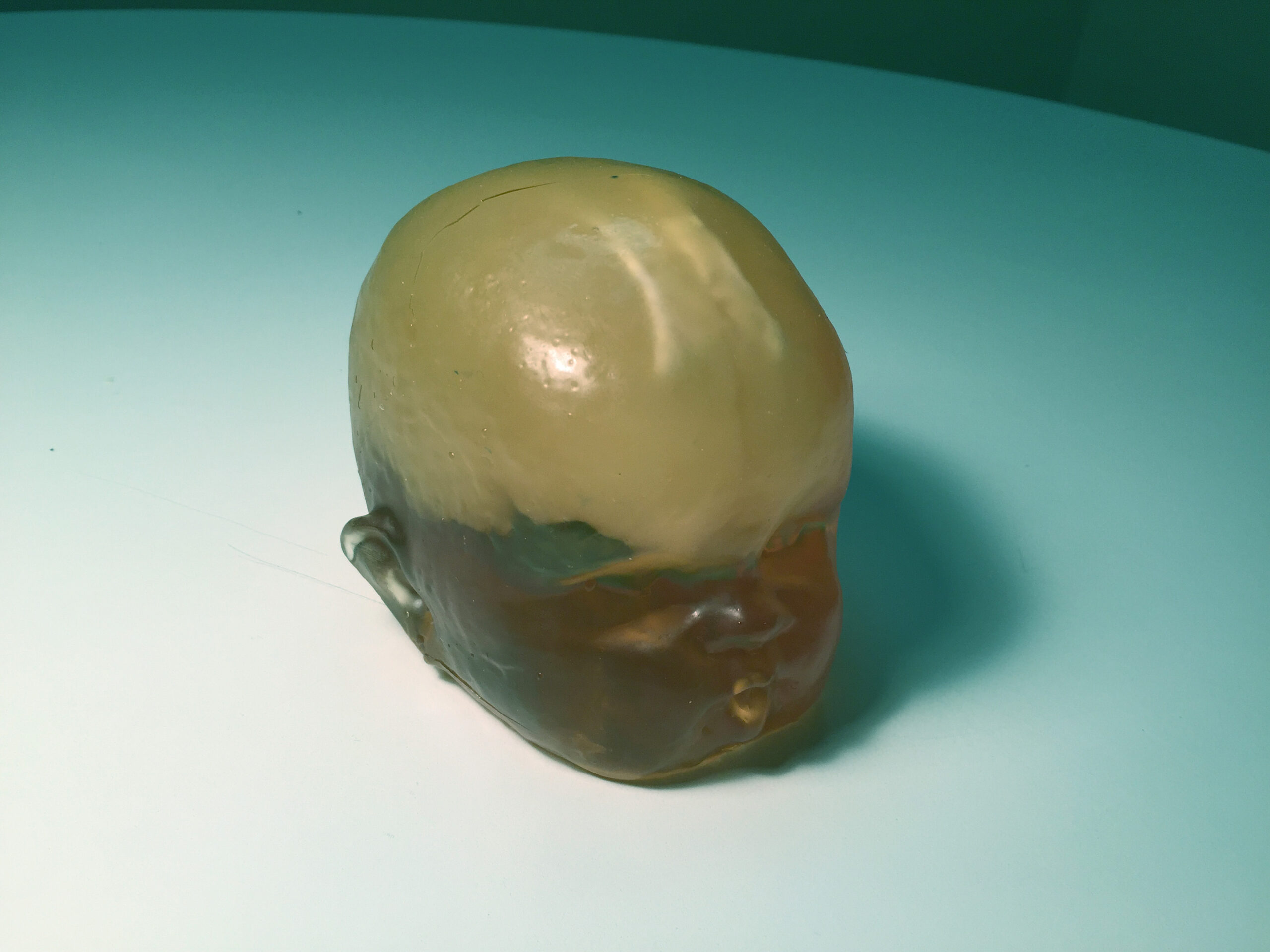

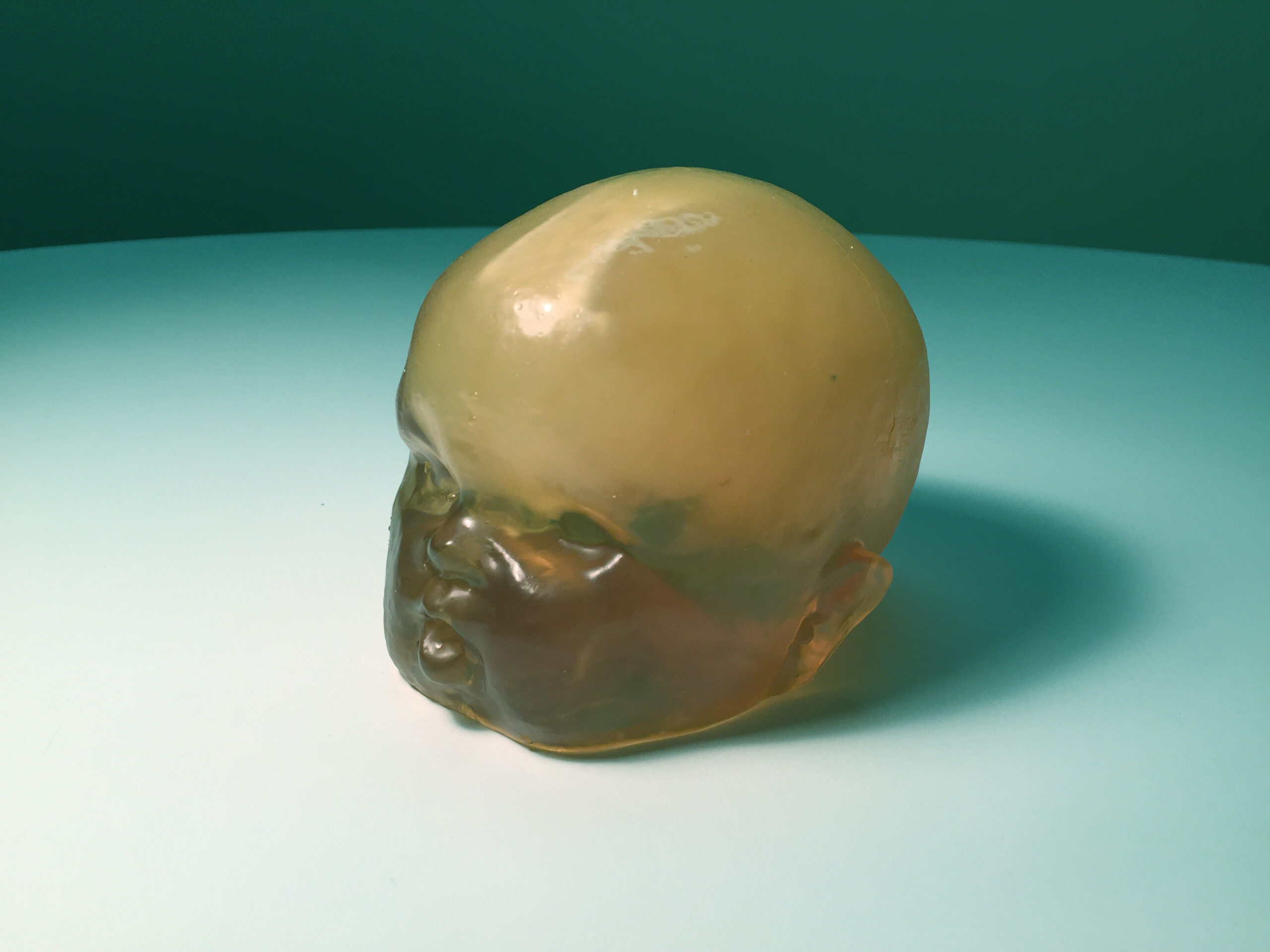

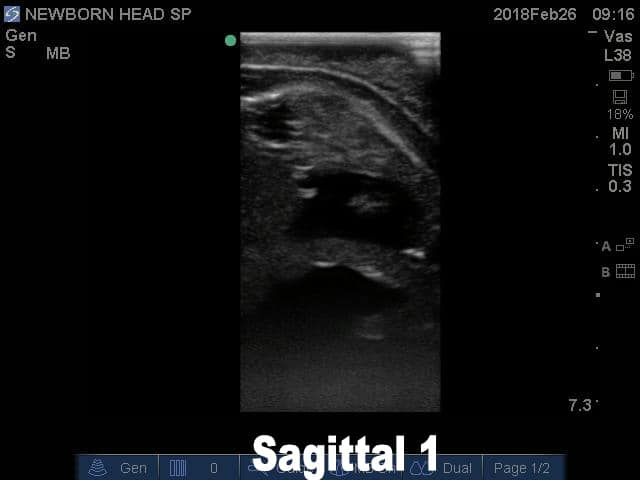

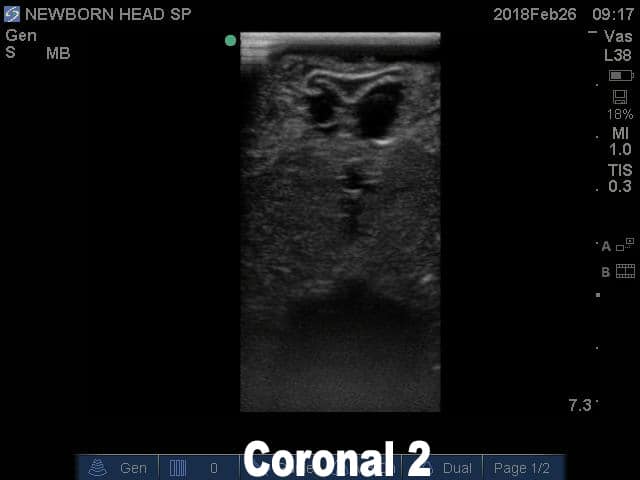

The phantom is designed based on an average newborn head and is made out of realistic tissue-mimicking materials suitable for Ultrasound imaging. The brain in this model has been specifically simplified to achieve the most cost-efficient training solution. This phantom can be used with Barium-sulfate, Iodine-based, and Microbubble contrast mediums.
The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program program at the University of Calgary (Department of Pediatrics).

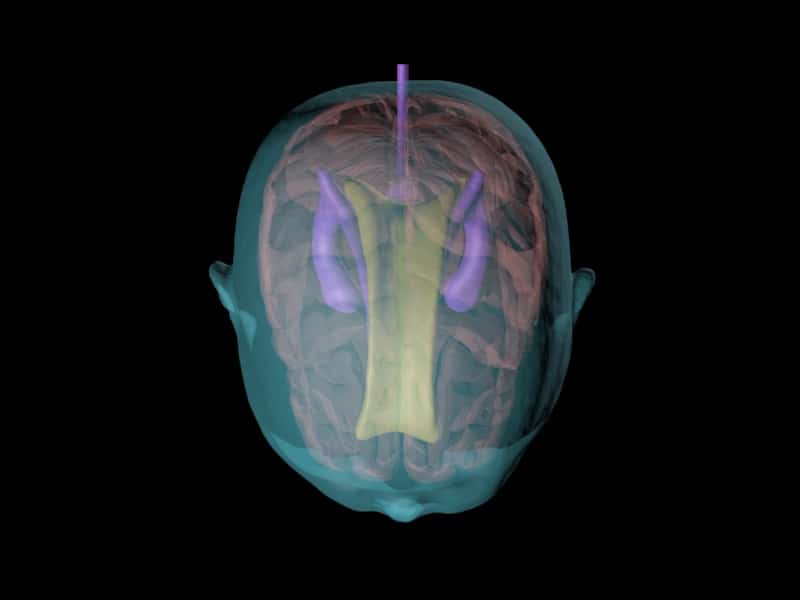

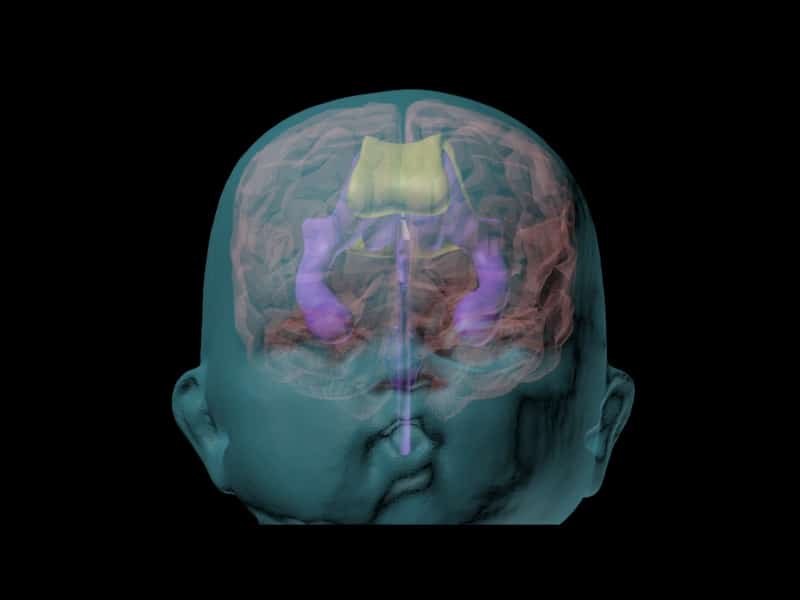

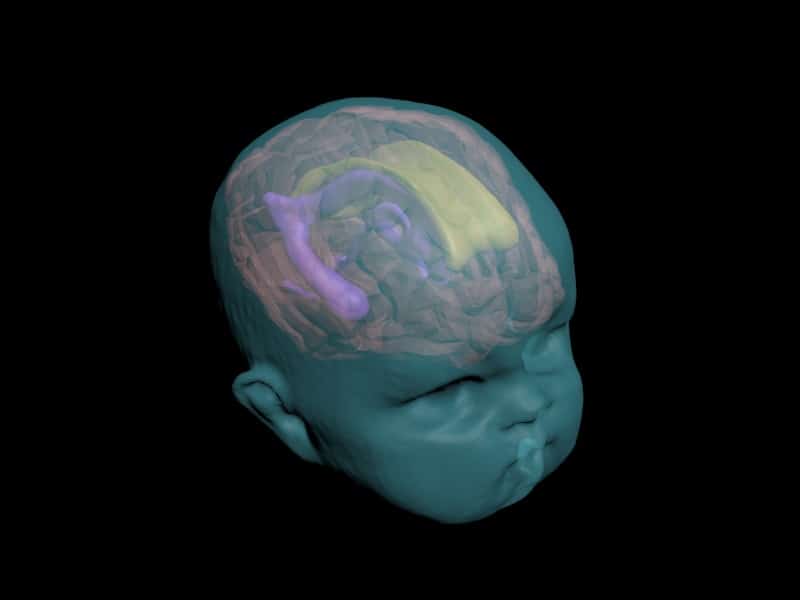

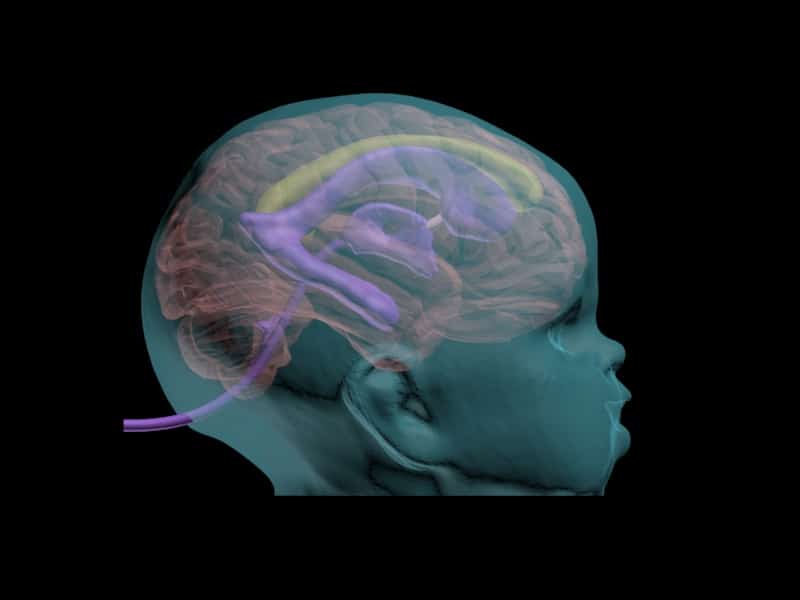

Anatomy:
Newborn Brain
Corpus Callosum
Brain Ventricles

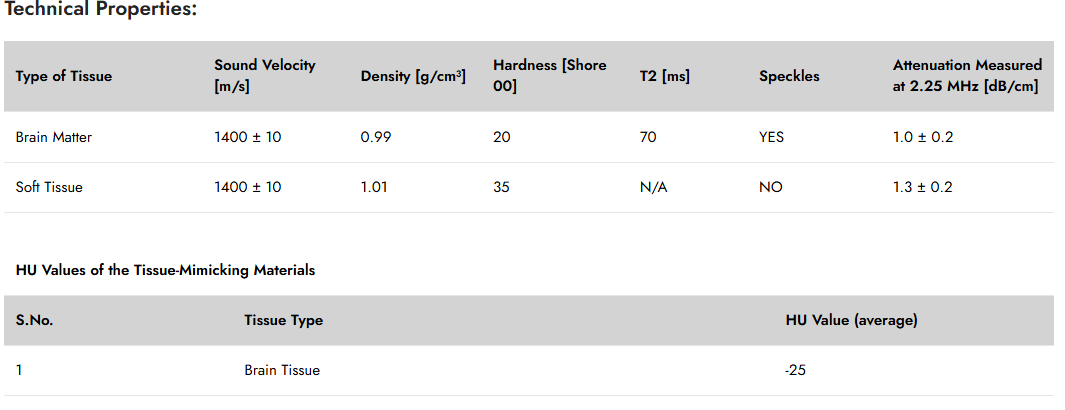

Technical Properties:
Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
HU Values of the Tissue-Mimicking Materials | ||
S.No. | Tissue Type | HU Value (average) |
1 | Brain Tissue | -25 |
Included In Order:
Newborn Head (Simple) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 5 x 6 x 5 Inches, Weight: 4 Lbs (approx.).
Shipment:
Size: 12 x 10 x 10 Inches, Weight: 6 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Contact us for any questions you may have.
