Newborn Arm Phantom is designed based on the anatomy of an average healthy newborn baby, and it is made from highly realistic materials that make it suitable for ultrasound-guided IV training for nurses and physicians.
The phantom is an ideal investment for learning the skills of giving an intravenous injection on a baby’s arm under ultrasound guidance, and it is made from durable and long-lasting materials. The blood vessels are permanently prefilled with an ultra-soft rubber-like material so the phantom will never leak or require any extra blood-mimicking fluid.
The baby arm phantom is specifically designed for ultrasound-guided needle placement without involving the blood drawing procedure.
Anatomy:
Blood Vessels IV Training Feature Arm Bones (Ulna & Radius) Skin-Mimicking Material
Design:
-

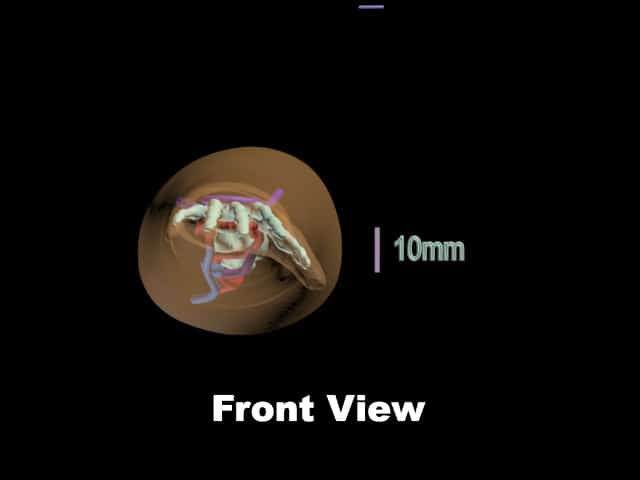

- Front View
-

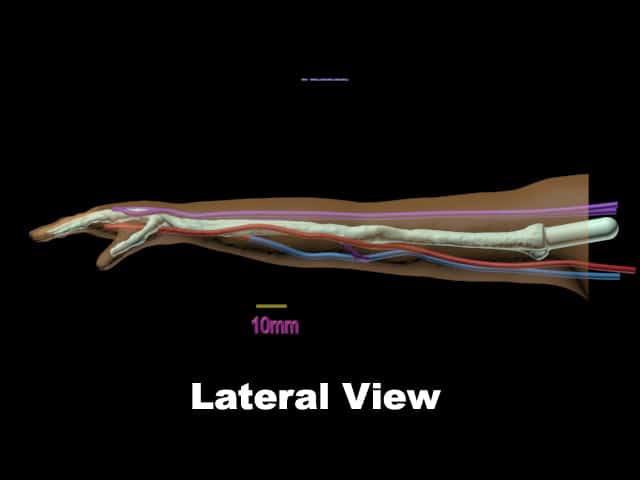

- Lateral View
-

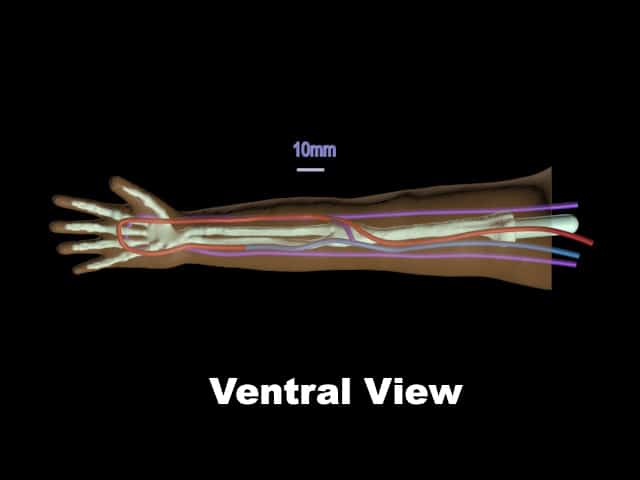

- Ventral View
-

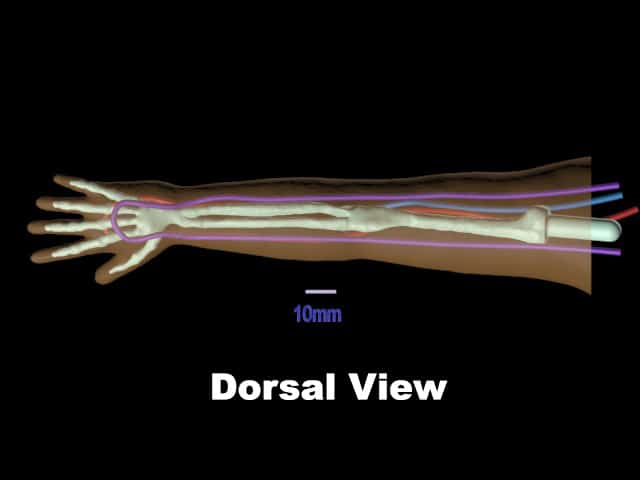

- Dorsal View

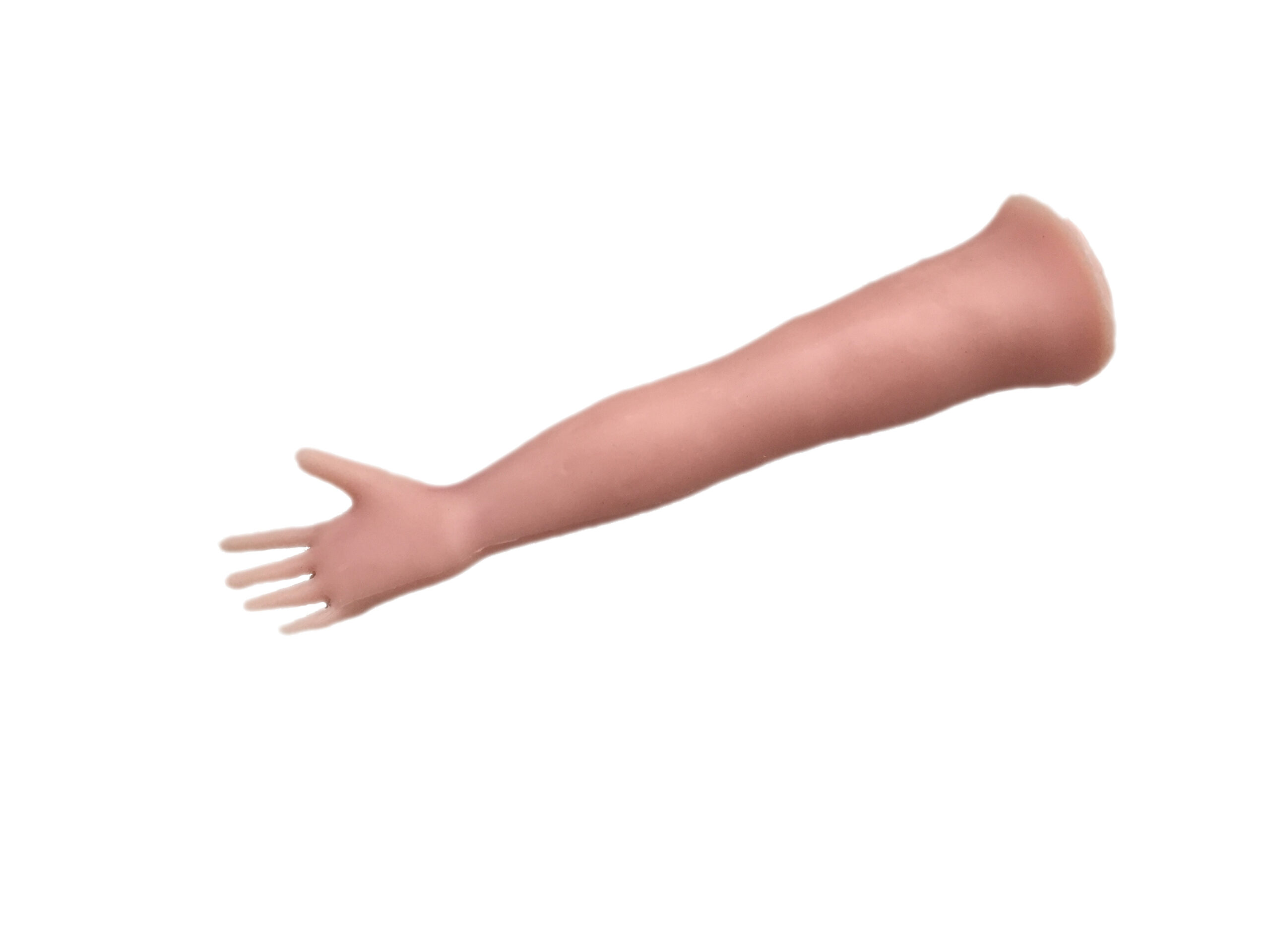

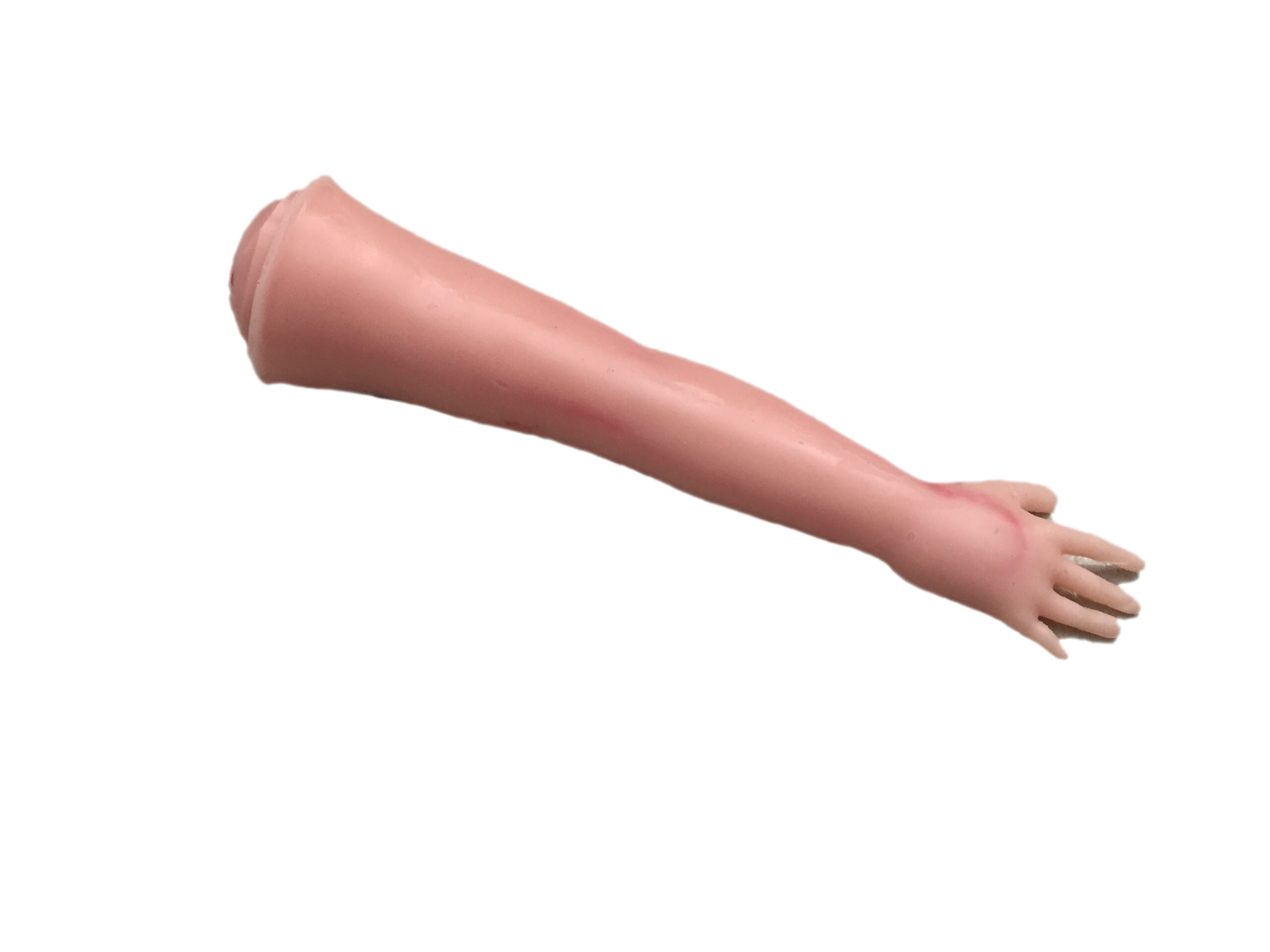

Product Images:

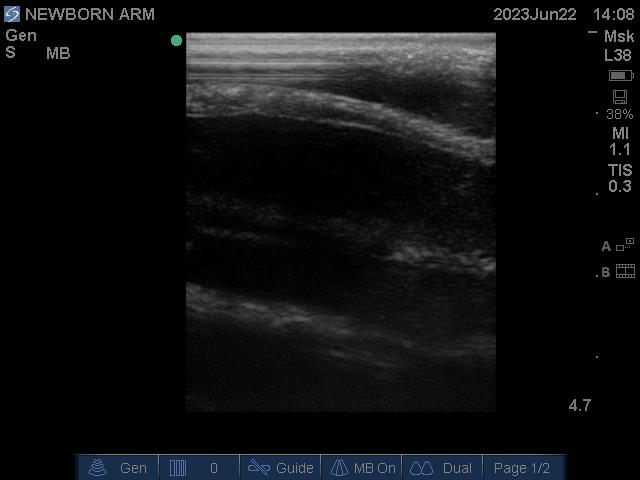

Ultrasound Scans:

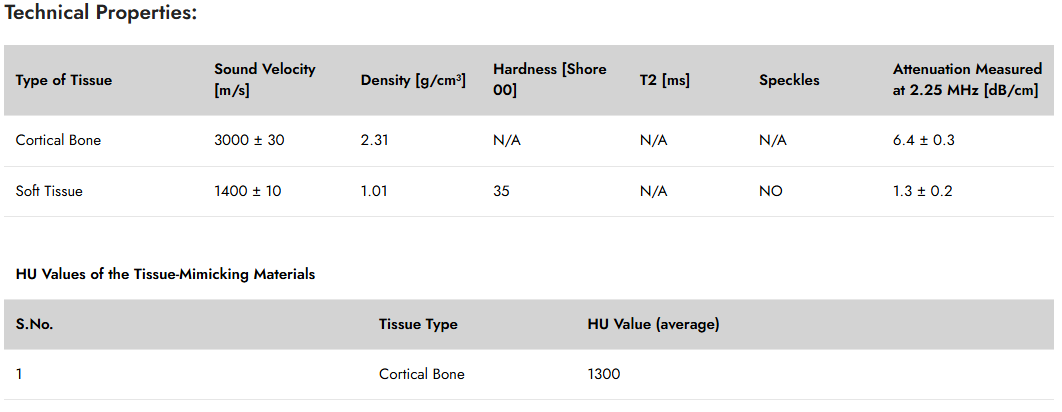

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Cortical Bone | 1300 |
Included In Order:
Newborn Arm Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 8 x 2 x 2 Inches, Weight: 1 Lbs (approx.).
Shipment:
Size: 10 x 8 x 6 Inches, Weight: 3 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Ceramic-reinforced urethane-based composite material
FAQ:
Contact us for any questions you may have.
