The Adult Knee (Extended) phantom is compatible with X-Ray CT and Ultrasound applications. This product features the anatomy of a right human knee with the addition of a thigh and calf. The synthetic bones in this phantom are made from our patented material. The soft tissues, tendons, ligaments, and cartilage are made from realistic urethane-based tissue-mimicking materials.
The phantom can be used to conduct medical imaging research, radiology training, testing, and calibration-related work. This product can be further customized to match various project requirements.
Anatomy:
Upper Leg Lower Leg Patella Meniscus:
– Lateral Meniscus
– Medial Meniscus Bursa:
– Subtendinous Bursa (3)
– Semimembranosus Bursa
– Pes anserine Bursa
– Infrapatellar Bursa
– Prepatellar Bursa
– Iliotibial Band Bursa
Condyle:
– Lateral Condyle Femoral
– Medial Condyle Femoral Ligaments and Tendons:
– Quadriceps Femoris Tendon
– Patellar Ligament
– Lateral Patellar Retinaculum
– Medial Patellar Retinaculum
– Anterior Cruciate Ligament
– Posterior Cruciate Ligament
– Arcuate Popliteal Ligament
– Oblique popliteal Ligament
Design:
-
- Front View
-
- Lateral View
-
- Perspective View
-
- Top View

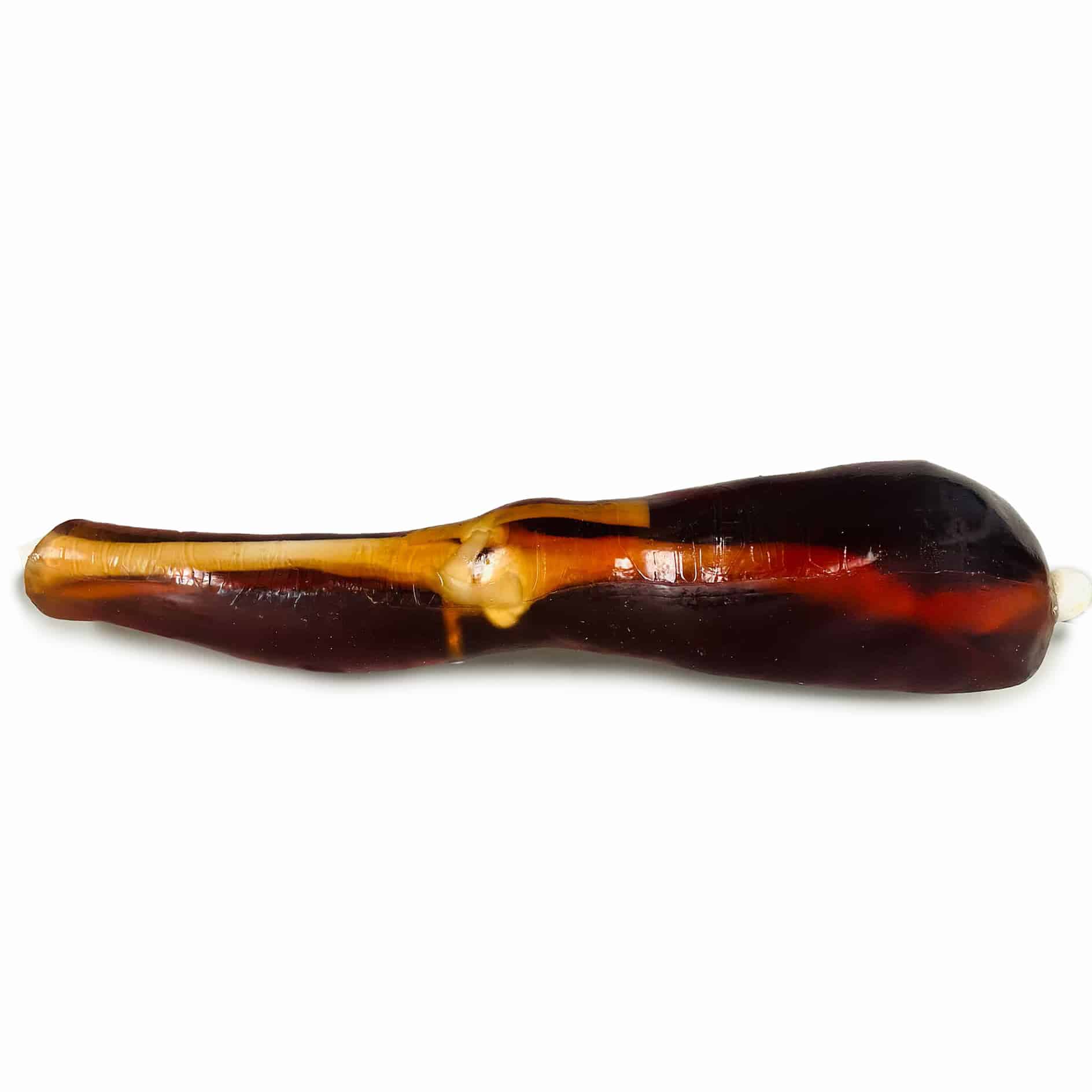

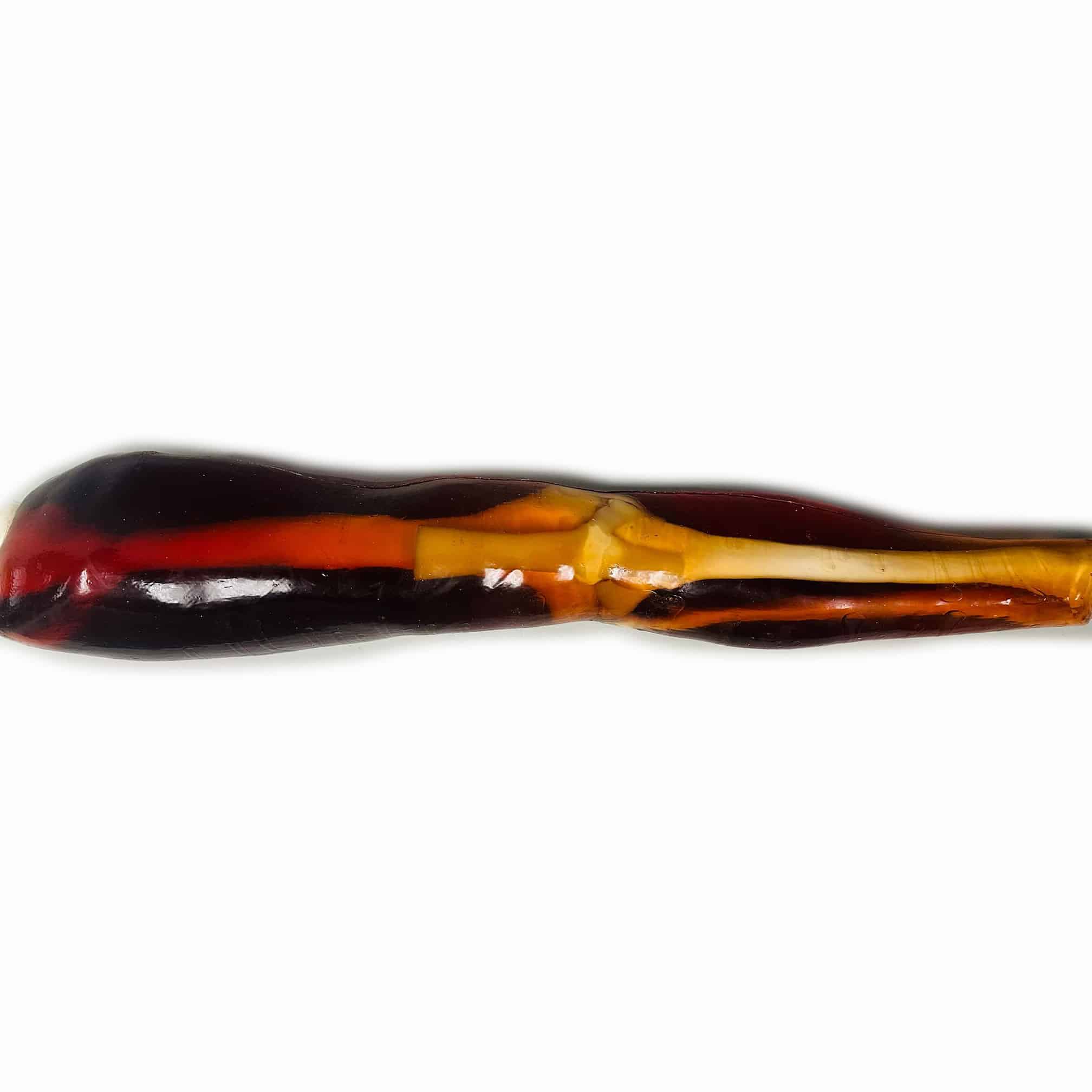

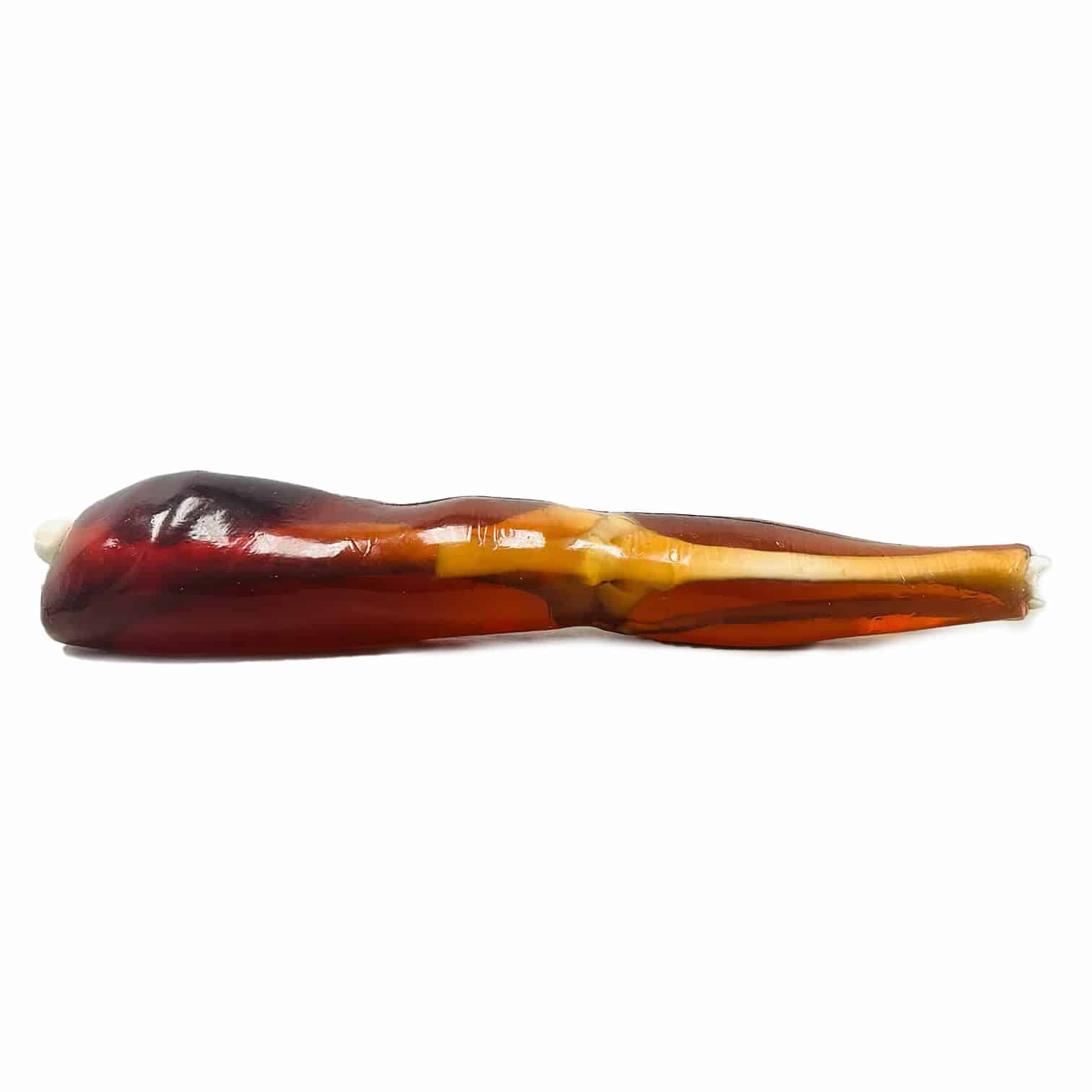

Product Images:

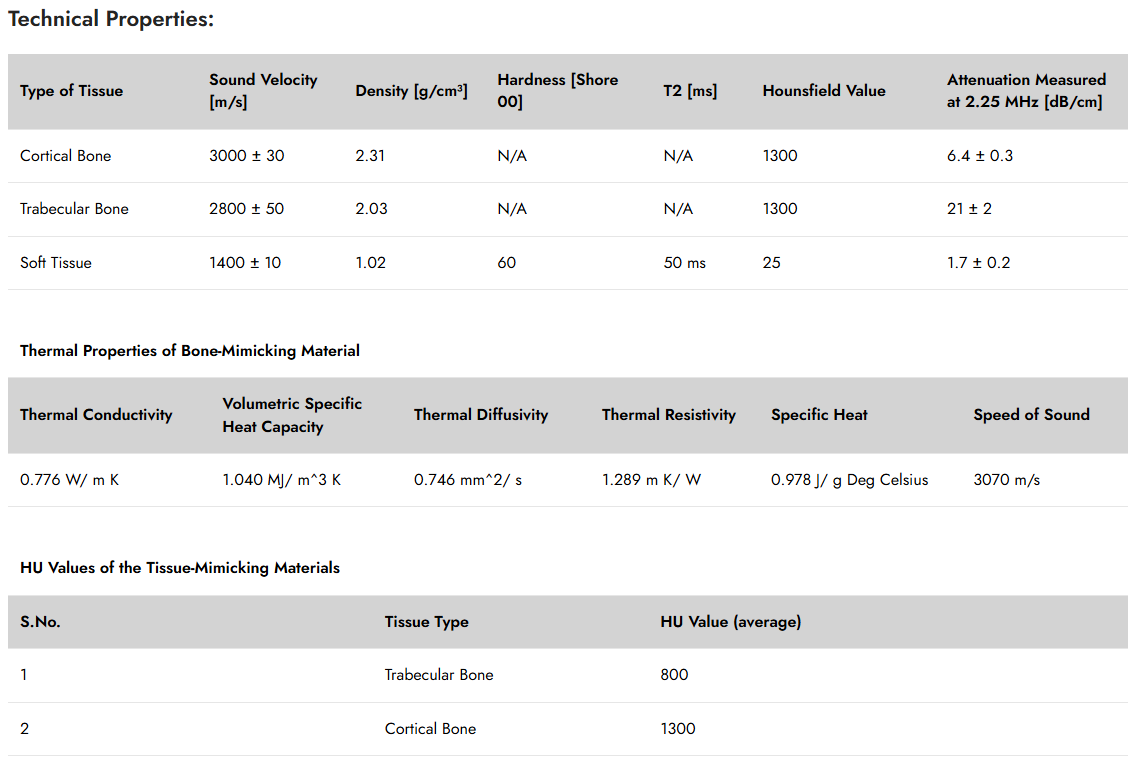

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Knee (Extended) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 7 x 8 x 35 Inches, Weight: 26 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 50 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane base soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
