Newborn Head (Complex) Phantom for diagnostic medical imaging training and POCUS. The phantom is designed based on an average newborn head and is made out of realistic tissue-mimicking materials suitable for Ultrasound and X-Ray CT imaging. This phantom can be used with Barium-sulfate, Iodine-based, and Microbubble contrast mediums.
The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program program at the University of Calgary (Department of Pediatrics).
Anatomy:
Newborn Brain Corpus Callosum Falx Brain Ventricles Septum Pellucidum Caudate Putamen Thalamus Choroid Plexus Cerebellum & Pons

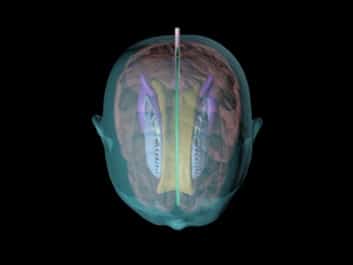

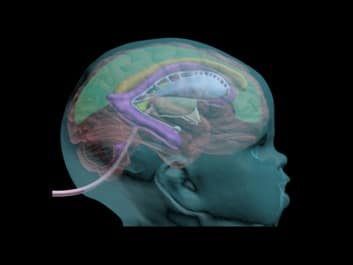

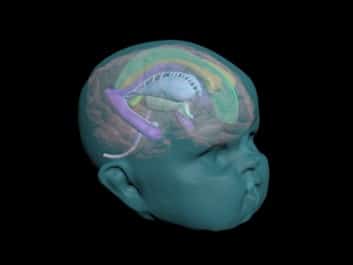

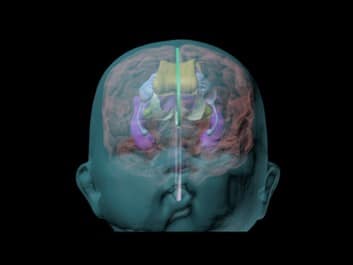

Design:
-
- Front View
-
- Lateral View
-
- Perspective View
-
- Top View

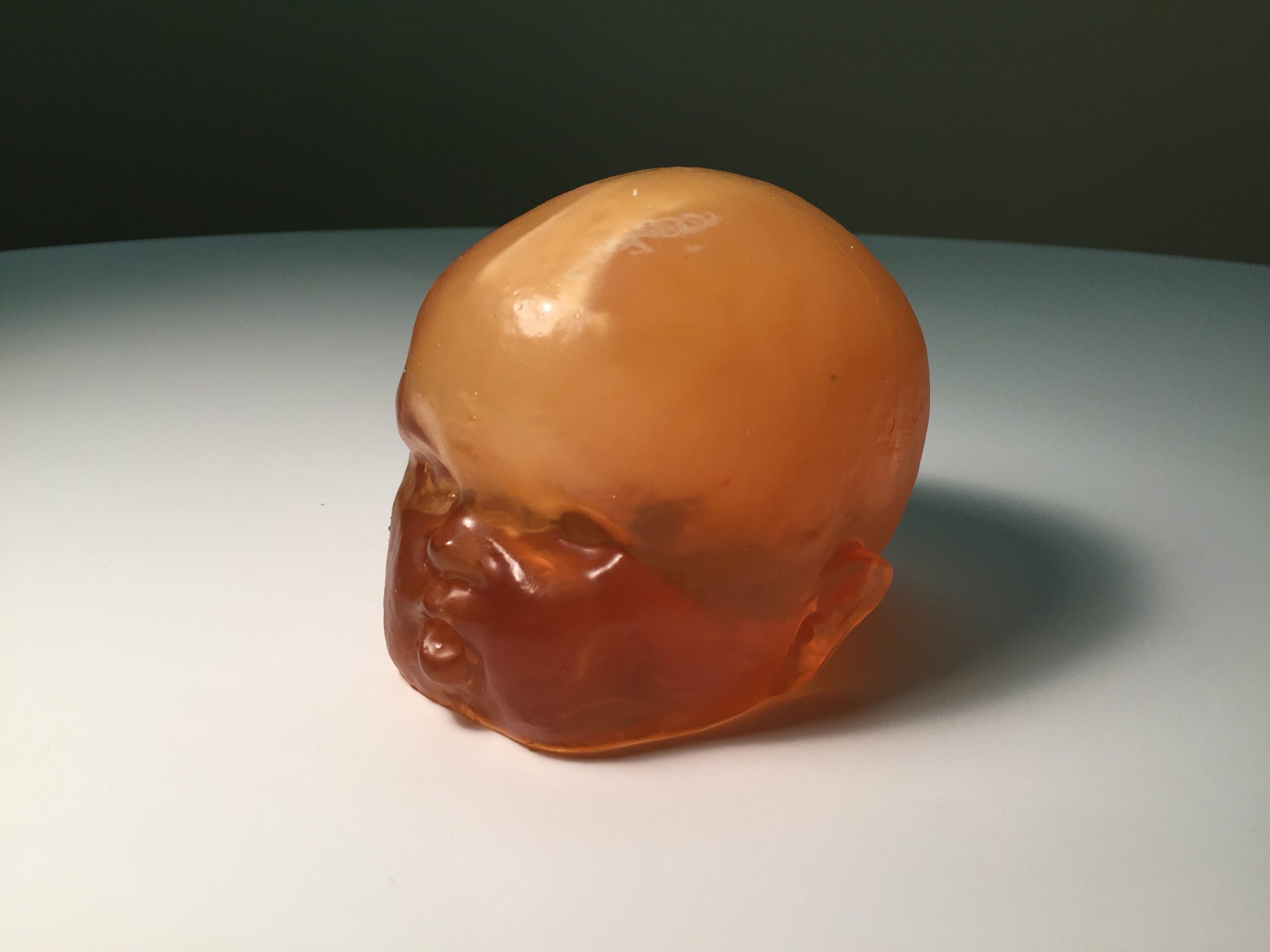

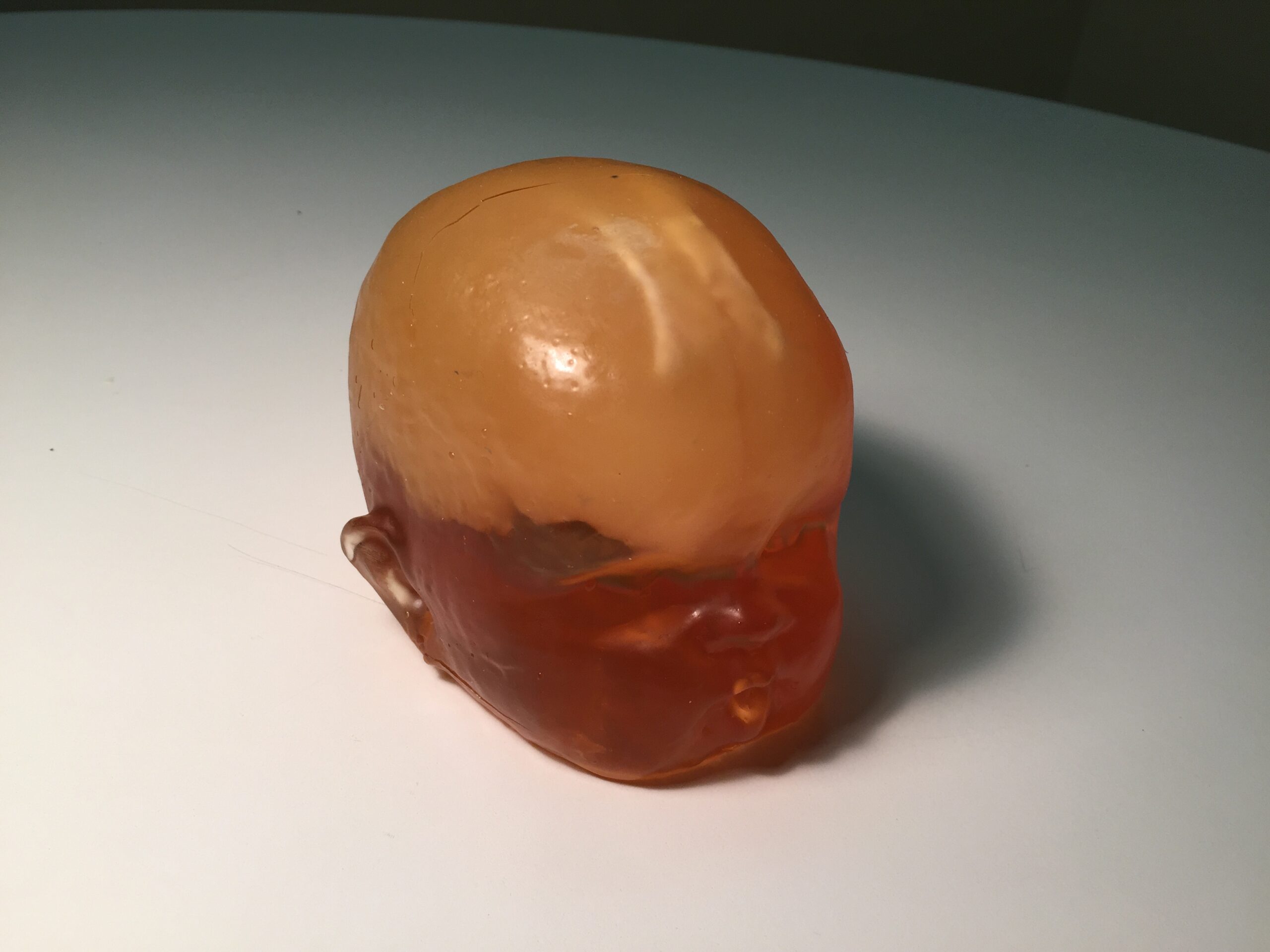

Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

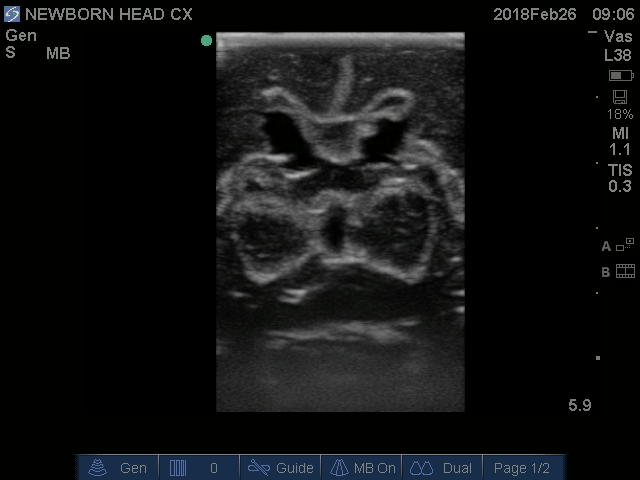

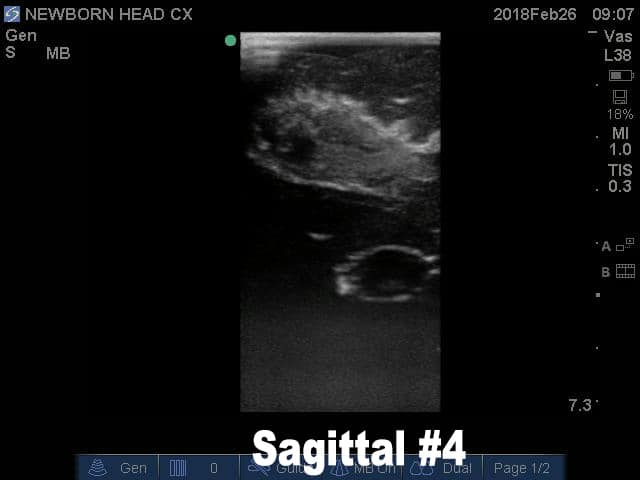

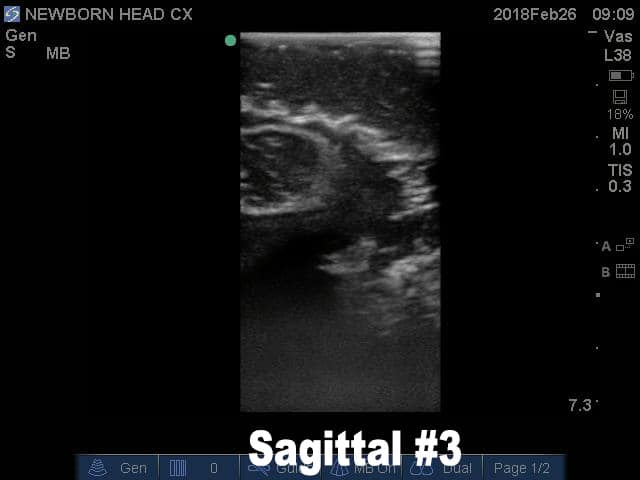

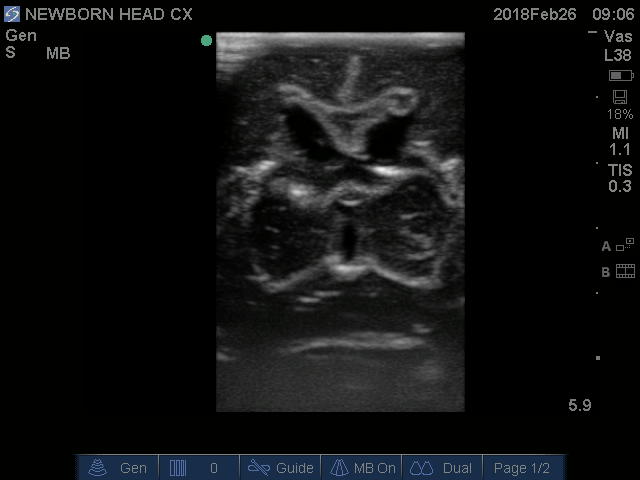

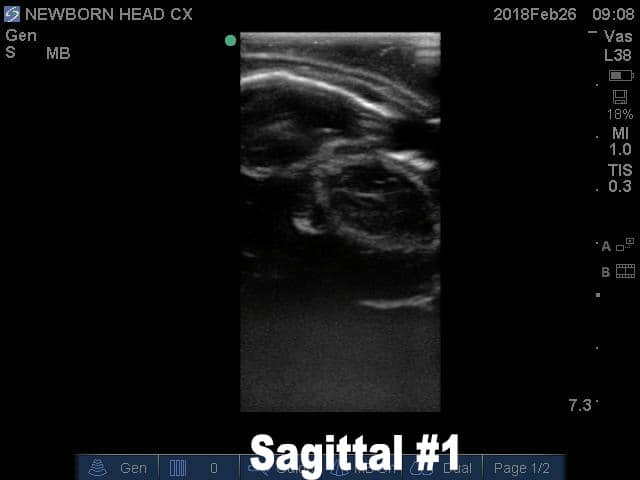

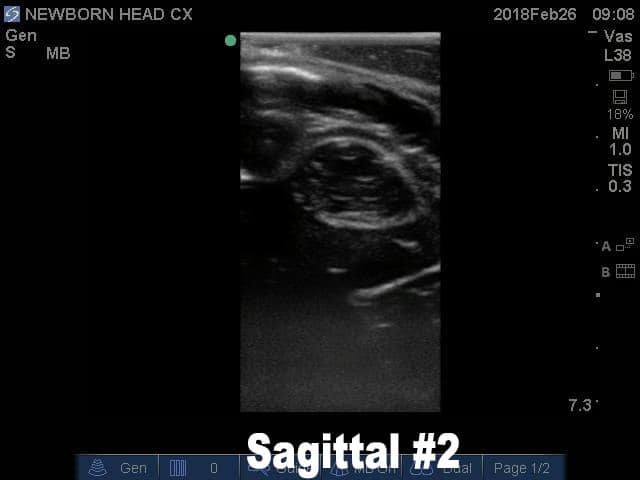

Ultrasound Scans:

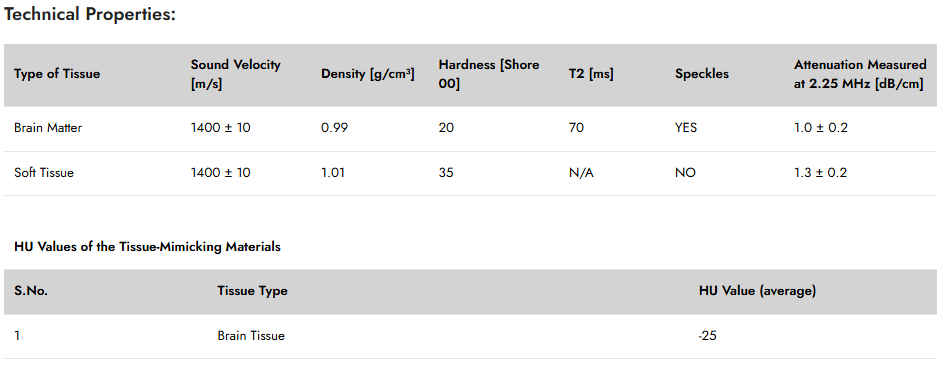

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
Included In Order:
Newborn Head (Complex) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 5 x 6 x 5 Inches, Weight: 4 Lbs (approx.).
Shipment:
Size: 12 x 10 x 10 Inches, Weight: 6 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
