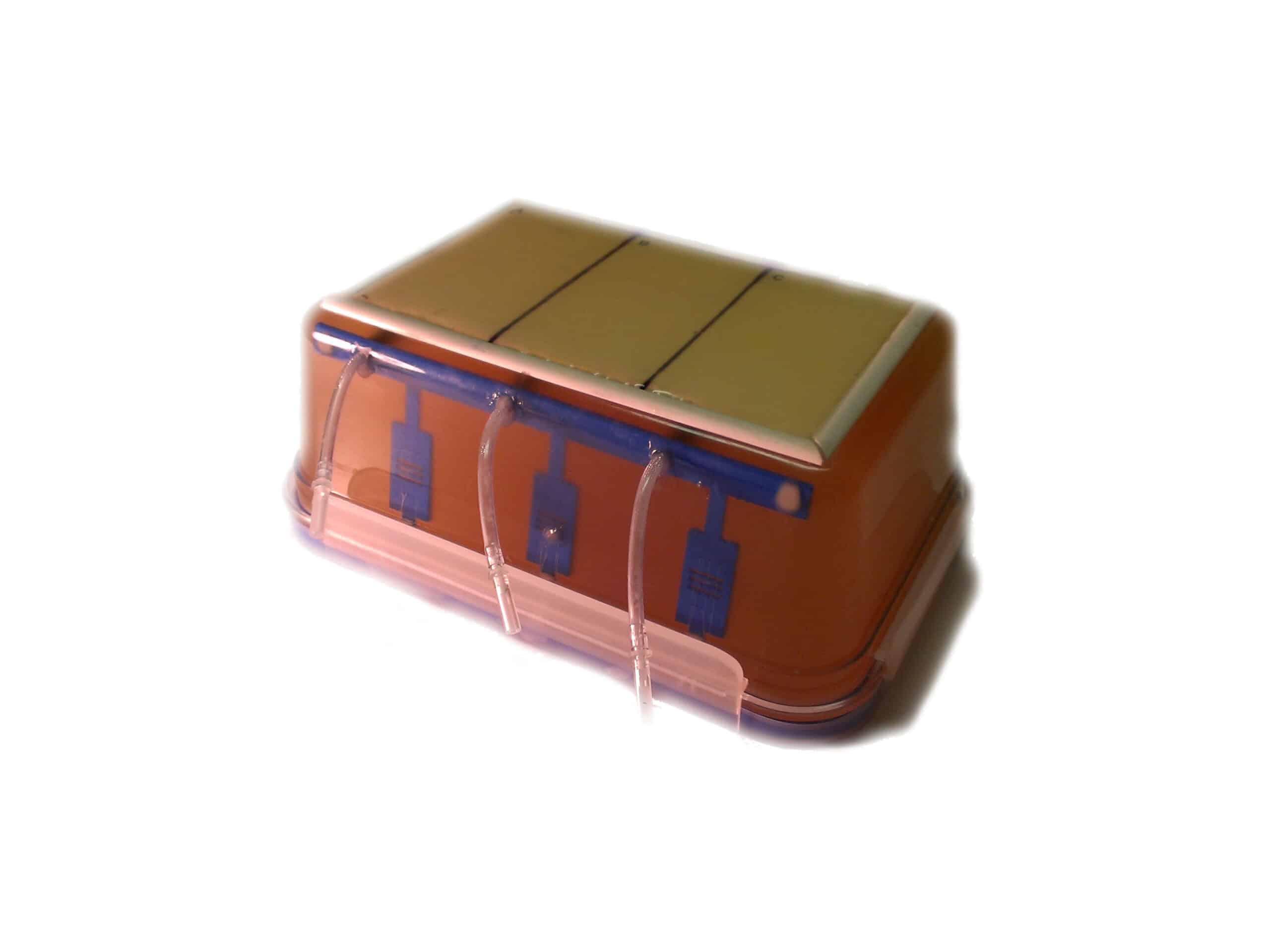

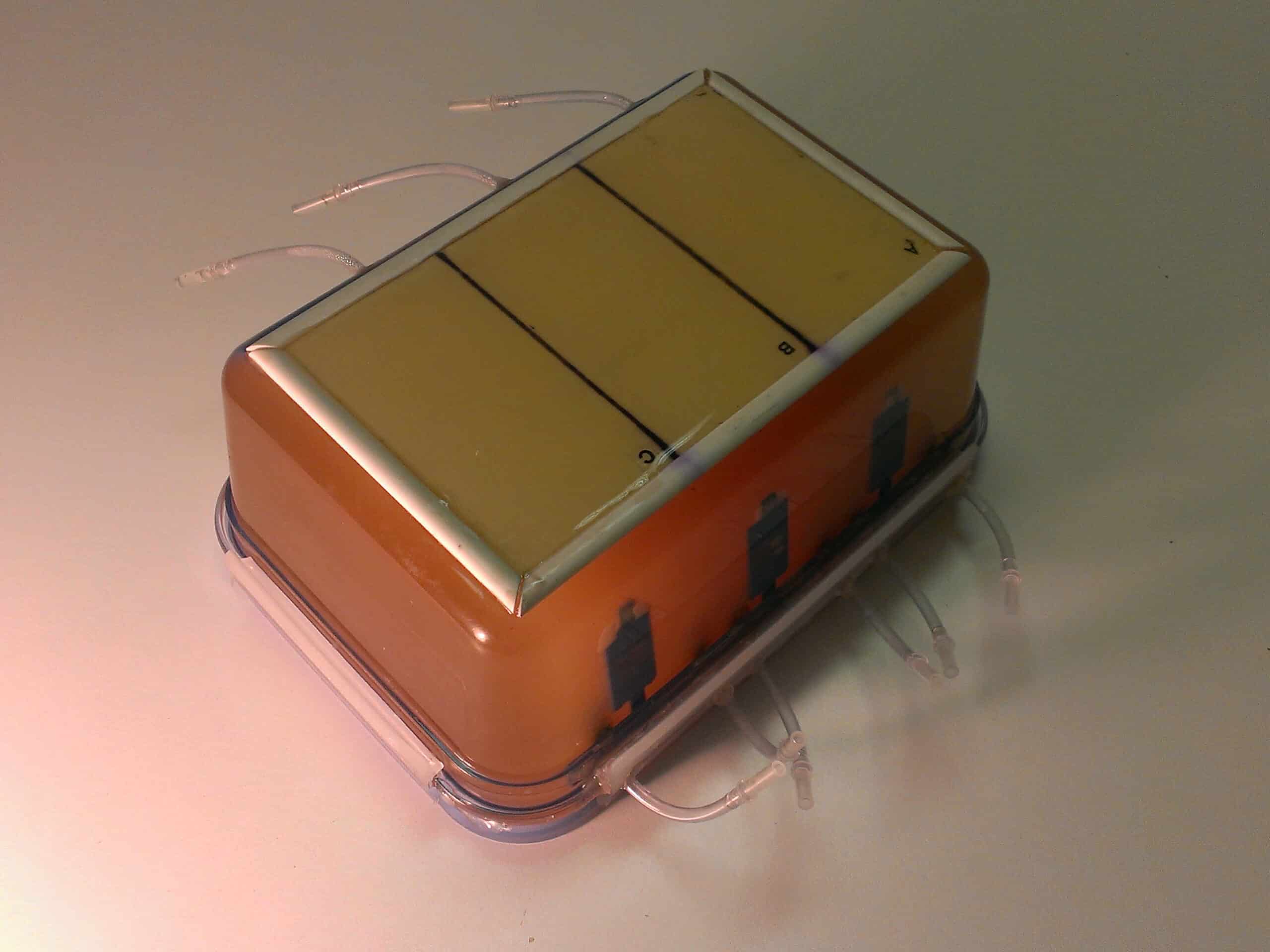

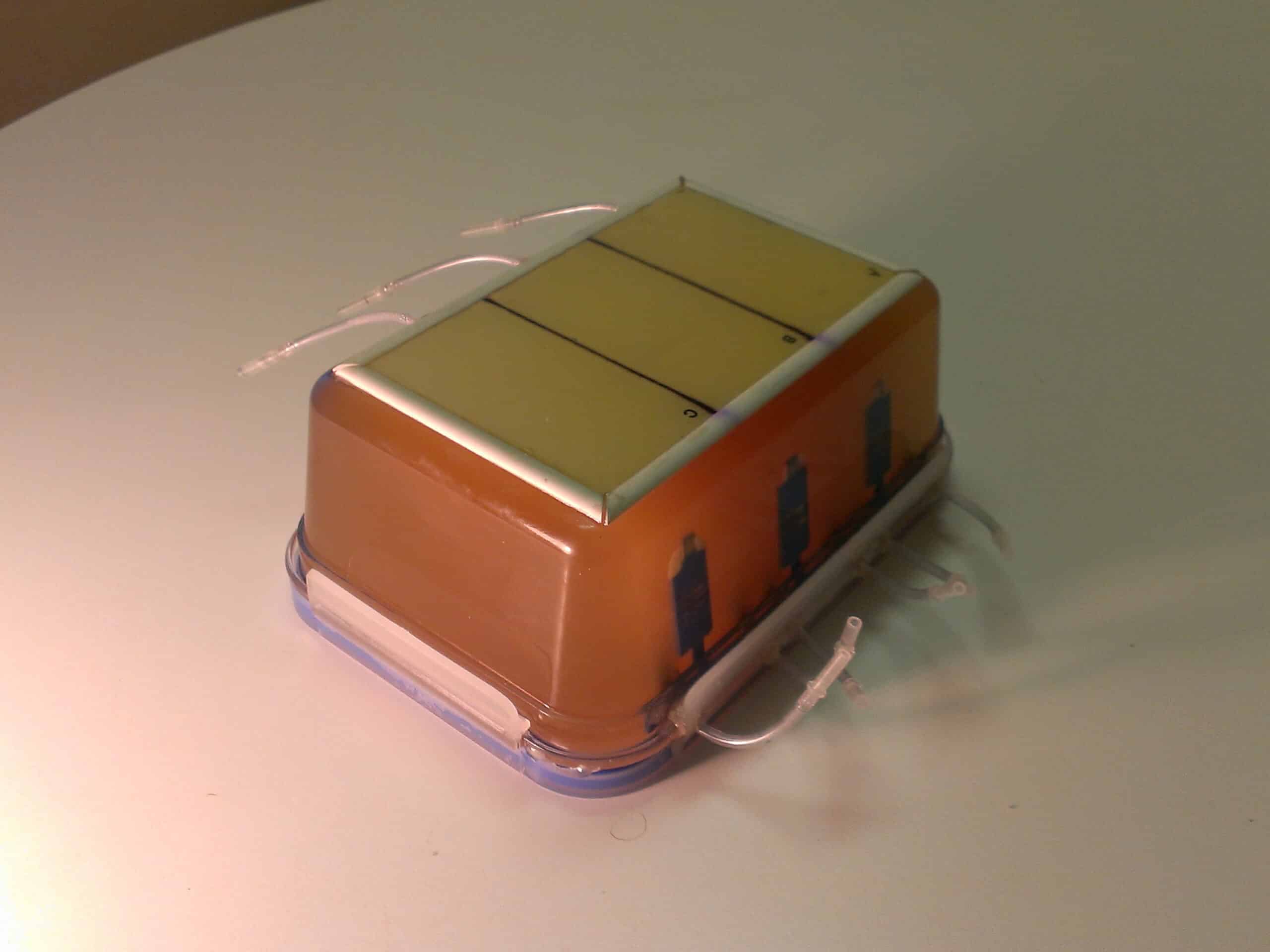

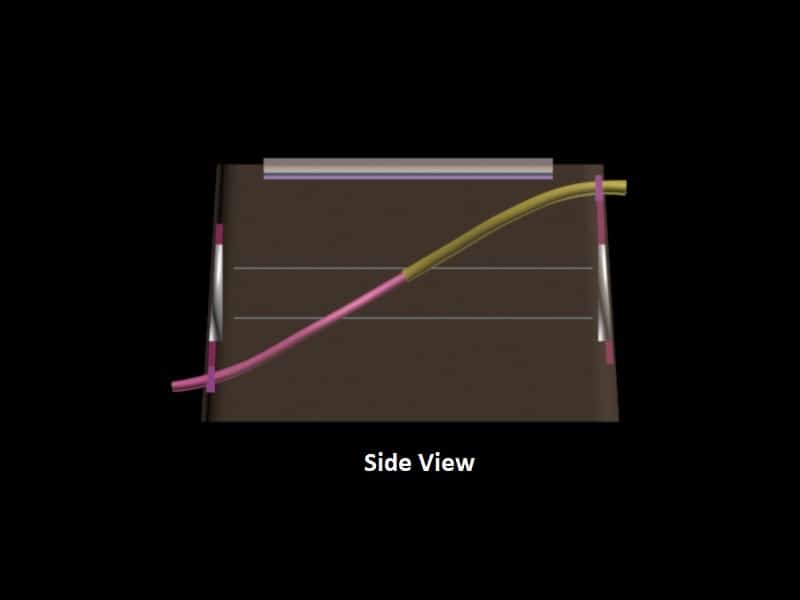

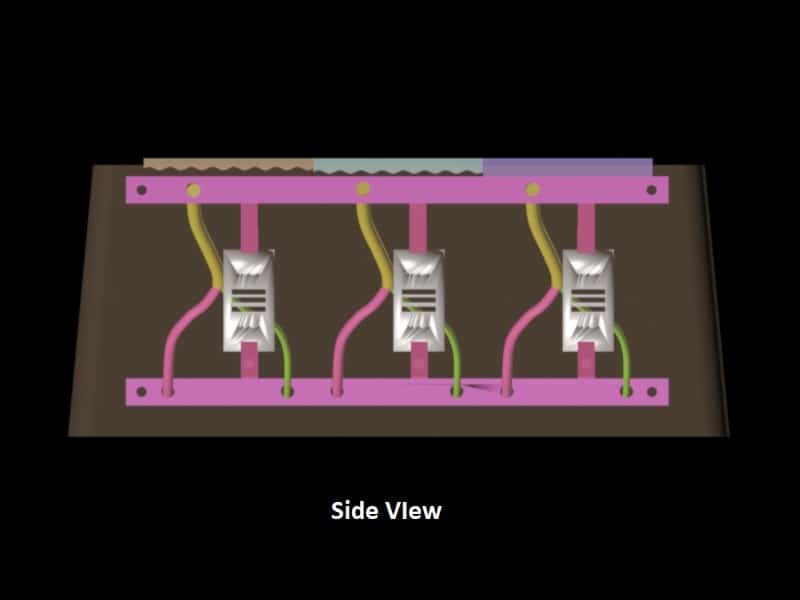

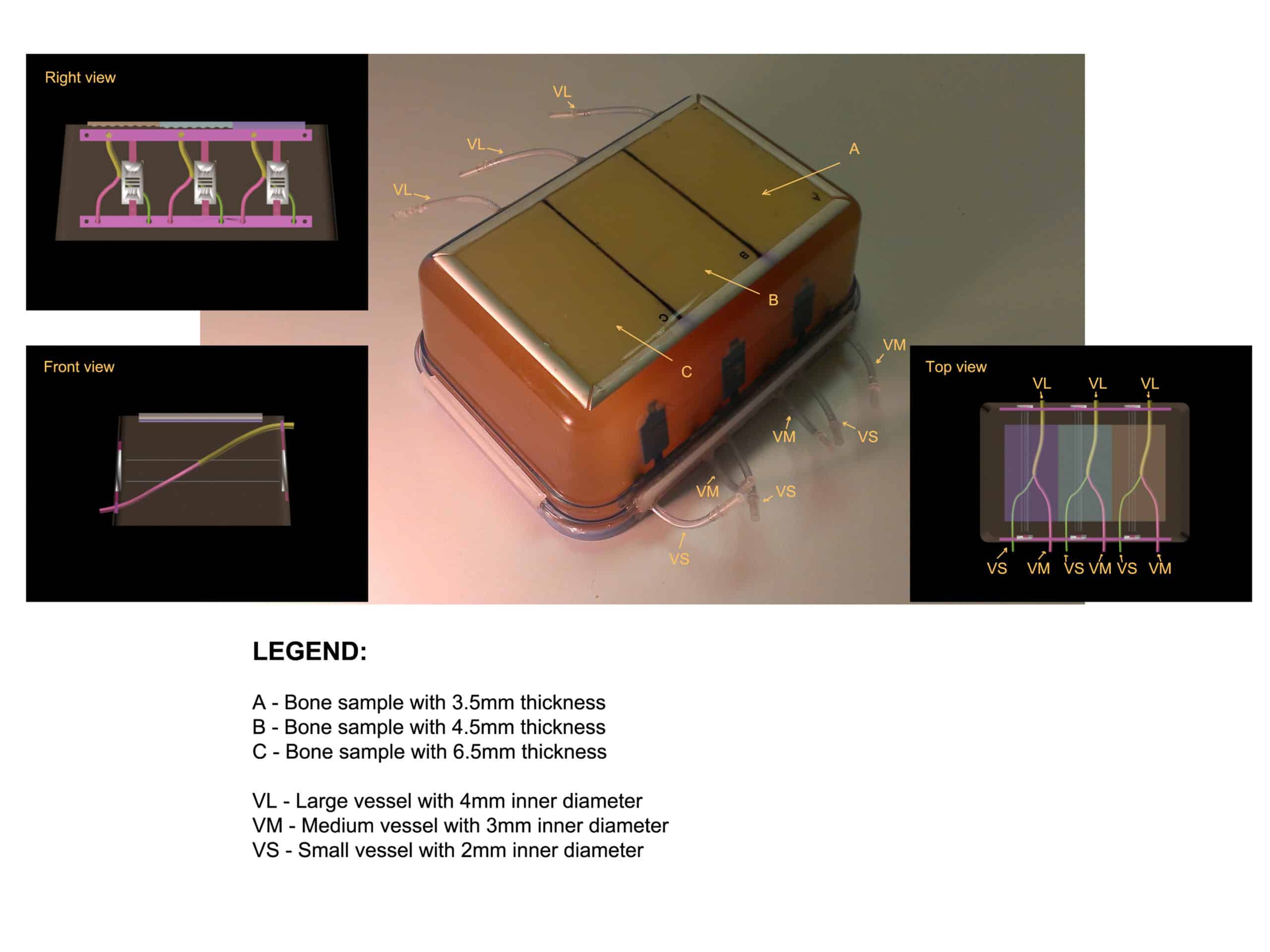

Doppler Phantoms are used for medical imaging research and development, training, and testing purposes. The bone plate installed on the top of this phantom mimics the skull bone, which in this case simulates only the 2D projection of the skull with a realistic internal porosity structure. The internal blood vessels can be filled either with water or with most of the commonly used blood-mimicking fluids. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
The phantom can be customized in multiple ways to suit the needs of a wide variety of applications.
- Partial Skull Phantom with a Customized Thickness
- Filling the Phantom with the Acoustically Correct Brain-Mimicking Material
- Custom Blood Vessels
- Standard Tubes and Connectors Connected to the Custom Vessels
- Incorporating the Phantom within a Standard Compact Box
- Implementing a Thin Film on Top of the Phantom
- Custom Target Wires
Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 |
| Skin Tissue | 1400 ± 10 | 1.02 | 1.7 ± 0.2 |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| Section Number | Cortical Outer Thickness [mm] | Trabecular Thickness [mm] | Cortical Inner Thickness [mm] | Total Thickness [mm] |
| A | 1.5 ± 0.2 | 1 ± 0.2 | 1.0 ± 0.2 | 3.5 ± 0.2 |
| B | 1.5 ± 0.2 | 2 ± 0.2 | 1.0 ± 0.2 | 4.5 ± 0.2 |
| C | 2.5 ± 0.2 | 3m± 0.2 | 1.0 ± 0.2 | 6.5 ± 0.2 |

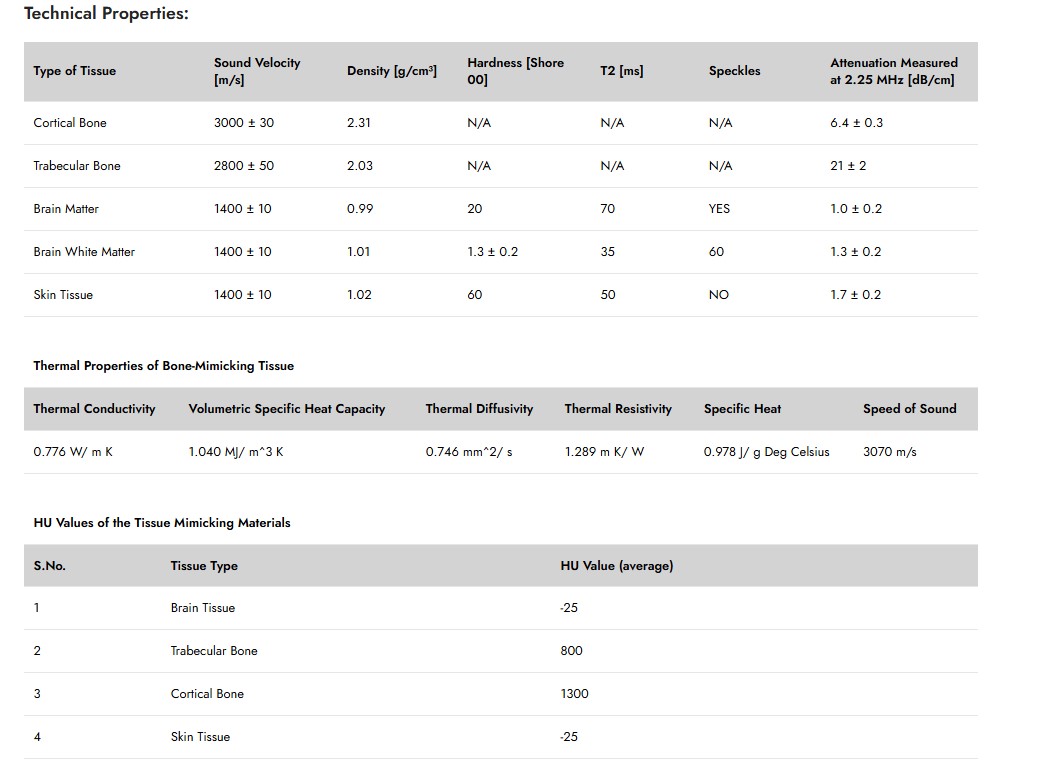

View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.
Doppler Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Phantom:
Size: 8 x 6 x 4 Inches, Weight: 1 Lbs (approx.).
Shipment:
Size: 12 x 10 x 10 Inches, Weight: 6 Lbs (approx.)
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
