The newly designed detachable dog phantom is a training simulator independent of external hardware/software. The phantom is compatible with X-Ray/CT, and MRI imaging. It has all the right features to be an ideal teaching tool for sonographers, radiographers, veterinary residents, and other vet professionals.
Unlike its predecessor, the new detachable dog phantom has improved anatomical structures and removable body parts(head, limbs, torso, and tail). This improvement is an added advantage as it helps perform various positioning techniques under the X-Ray/CT, and MRI imaging modalities. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
This product is available in two versions: Opaque and Translucent Amber.
Anatomy:
The following anatomical features are included in the standard version of this phantom. Should you require additional organs or components, please reach out to us and we can customize the model to suit your specific needs.
Adult Dog Head
Dog Skull Jaw Bone Realistic Dog Brain
Adult Dog Front Arms
Arm (Humerus) Elbow Joints Forearm (Radius, Ulna) Paw (Wrist with Fingers) Skin-Mimicking Material
Adult Dog Rear Legs
Thigh (Femur) Knee Joints Leg (Tibia, Fibula) Paw (Finger Bones) Skin-Mimicking Material
Adult Dog Tail
Tail Bone Skin-Mimicking Material
Adult Dog Torso
Complete Spine Complete Ribcage Shoulder (Scapula Bones) Pelvis Heart Blood Vessels Connected to Heart Lungs Diaphragm Stomach Liver and Gallbladder Kidneys Spleen Pancreas Arteries for Kidneys Bladder Ureters and Uterine Large and Small Intestine
Design:
-
- Perspective View
-
- Left View
-
- Right View
-
- Top View
Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of a dog for medical imaging, it is not meant to replace a live animal and may have certain limitations in its capabilities.
Unlike a live dog however, the phantom does not require any sedation or pose any risk to the animal. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents an ethical alternative to using sedated live animals. This makes it a sustainable, ethical choice for the early stages of research and education.
Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, please refer to our Warranty Policy and Return Policy. For any specific questions or concerns, please contact our technical team here.
Product Images (Translucent Amber):

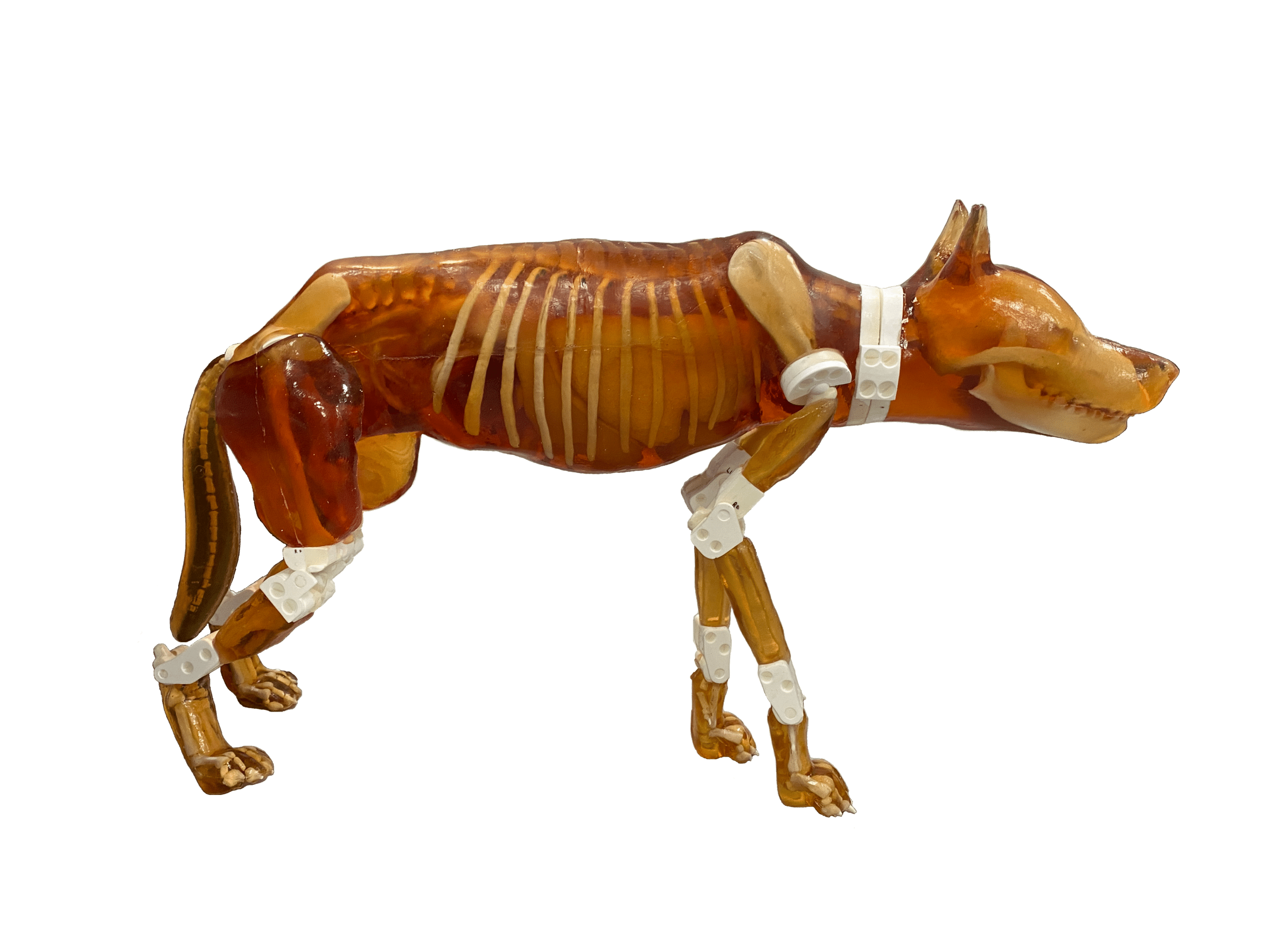

Note: By default, the phantom comes in a translucent amber appearance.
Product Images (Opaque):
Note: Upon special request, the opaque version can be customized.
X-Ray Scans:

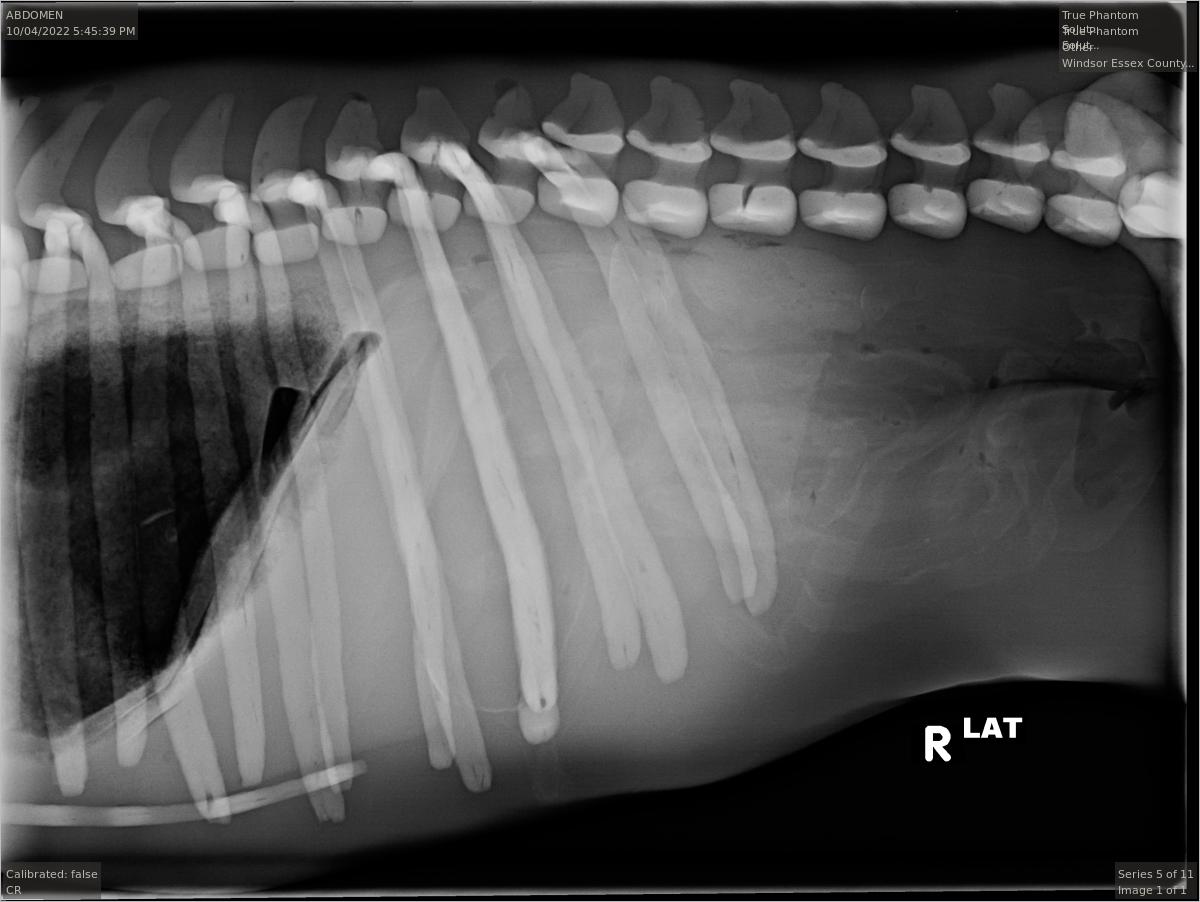

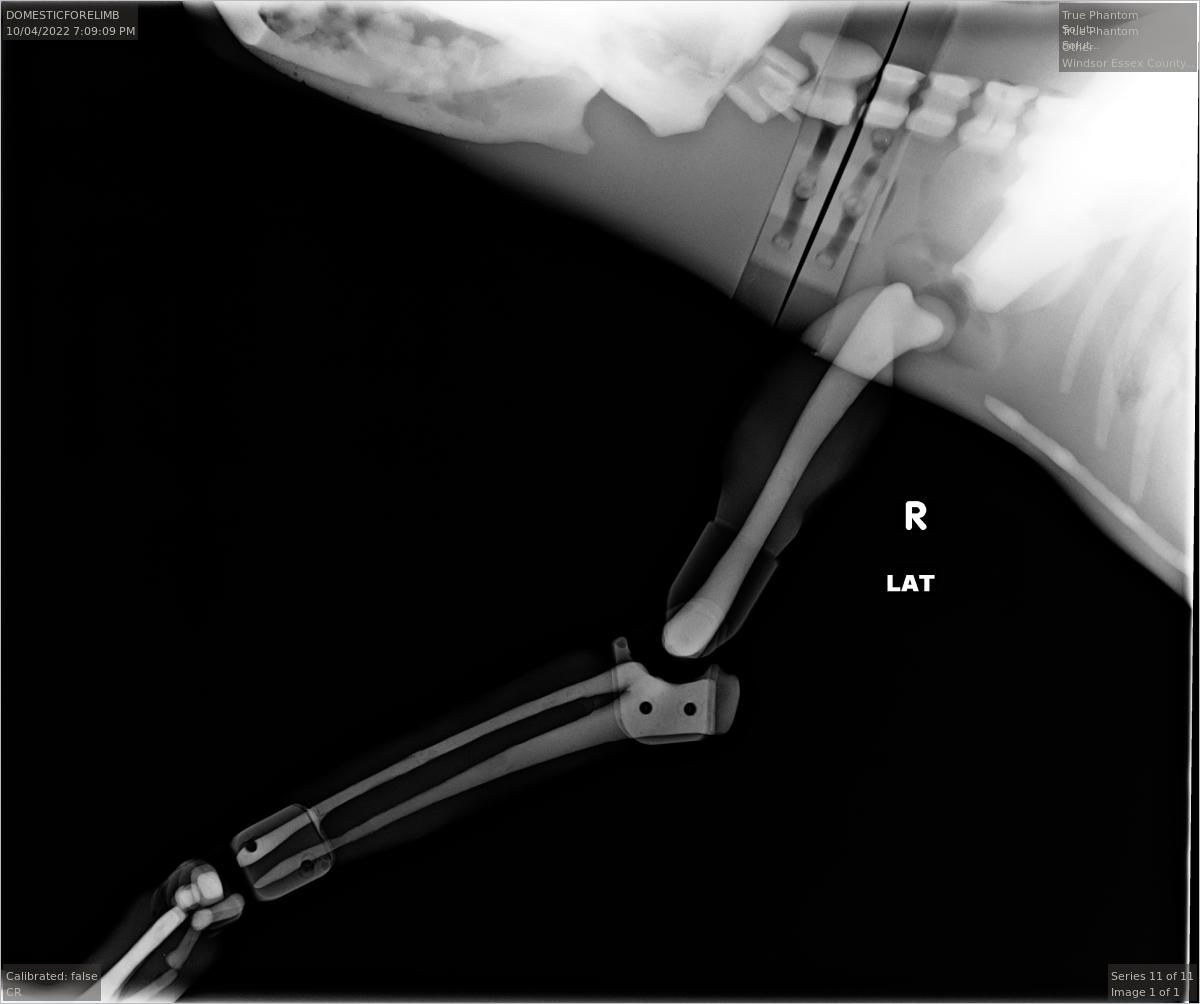

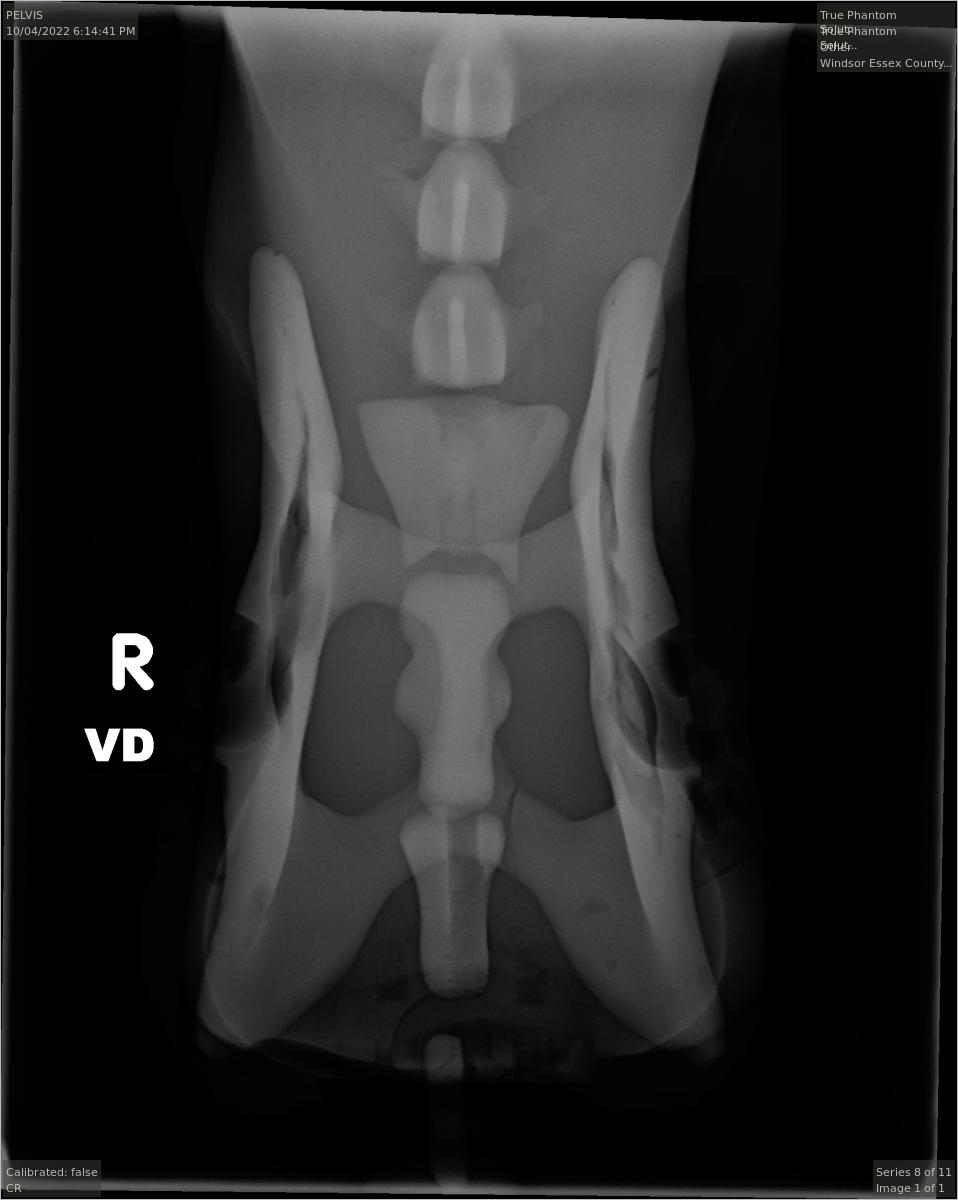

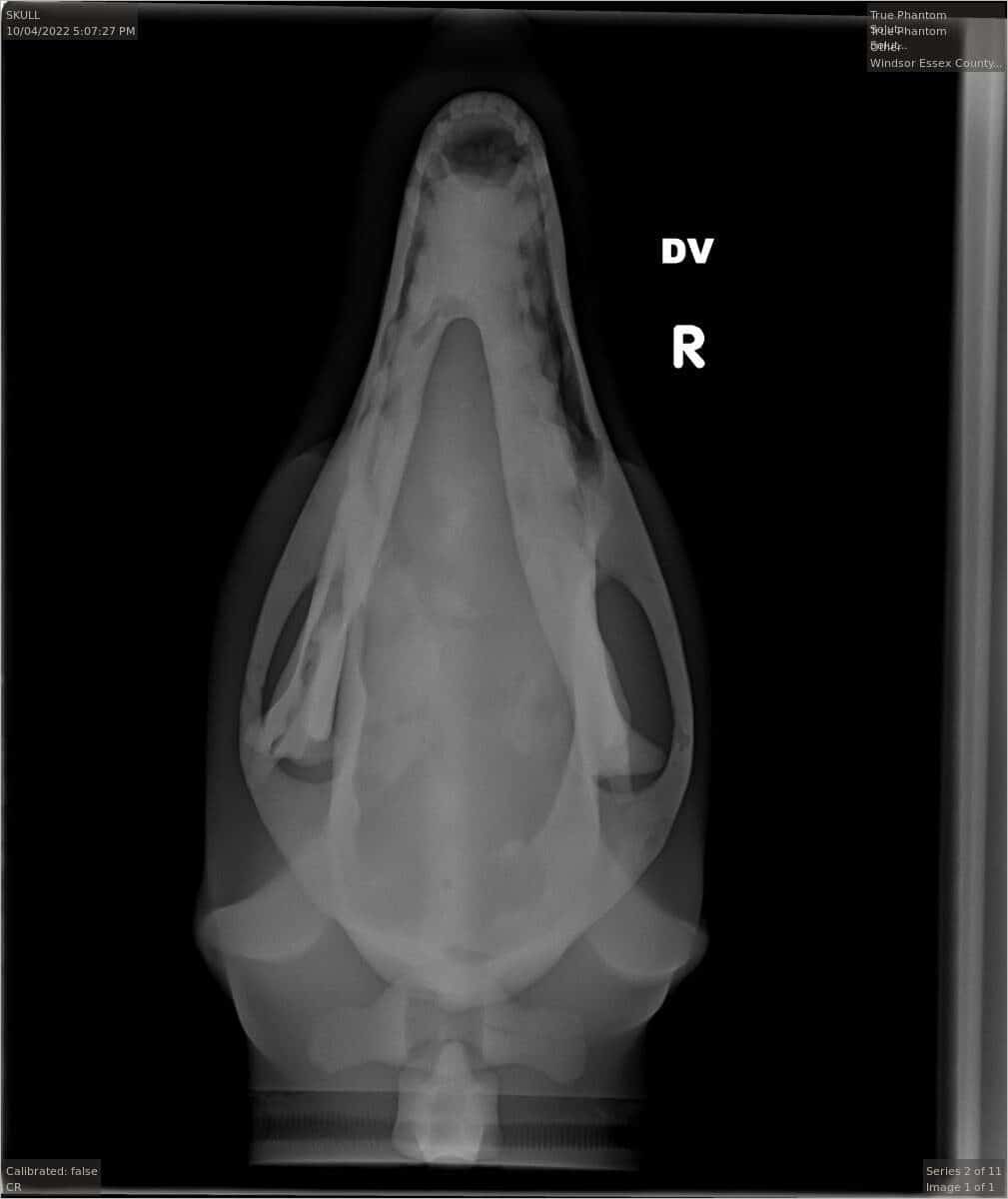

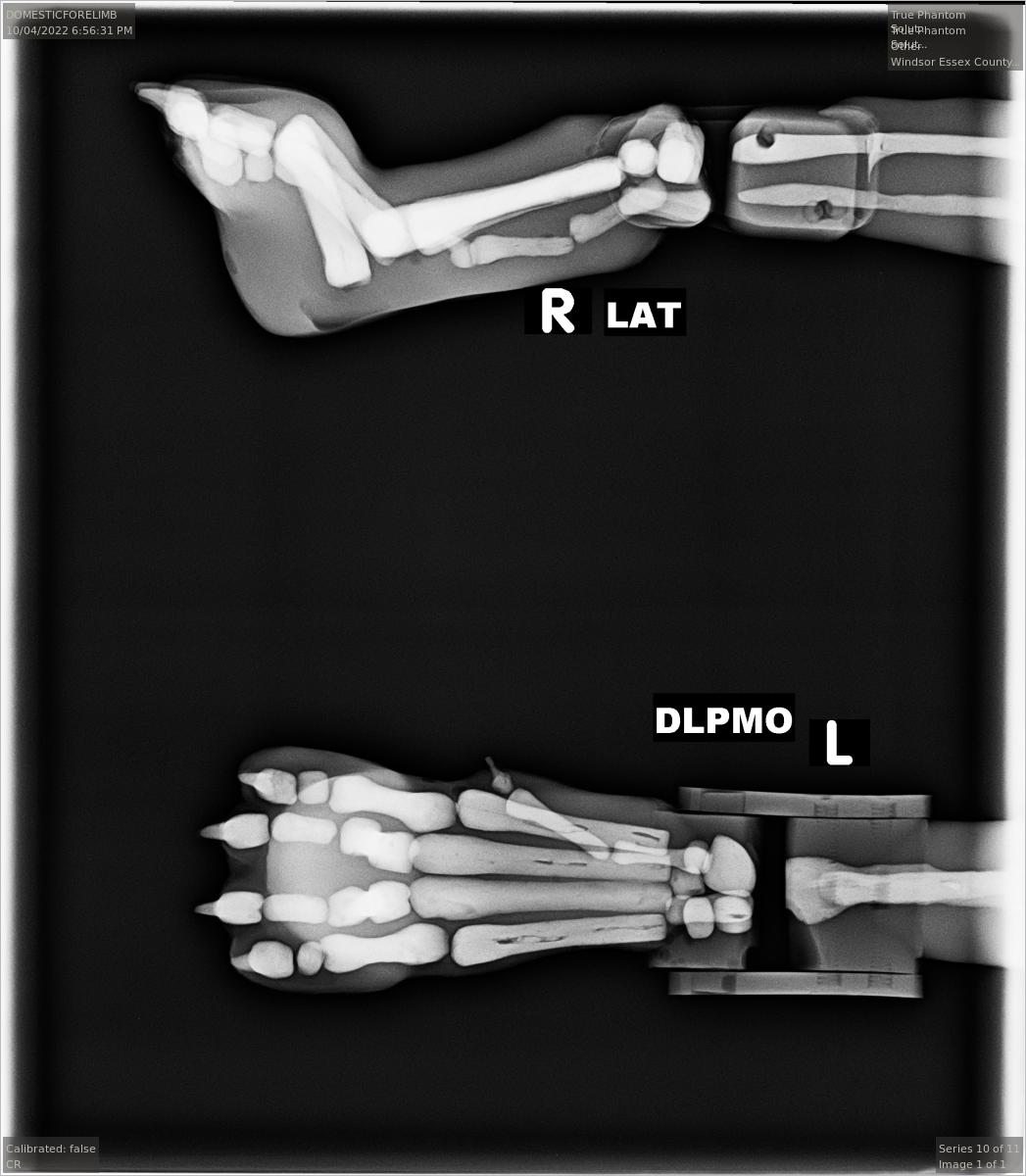

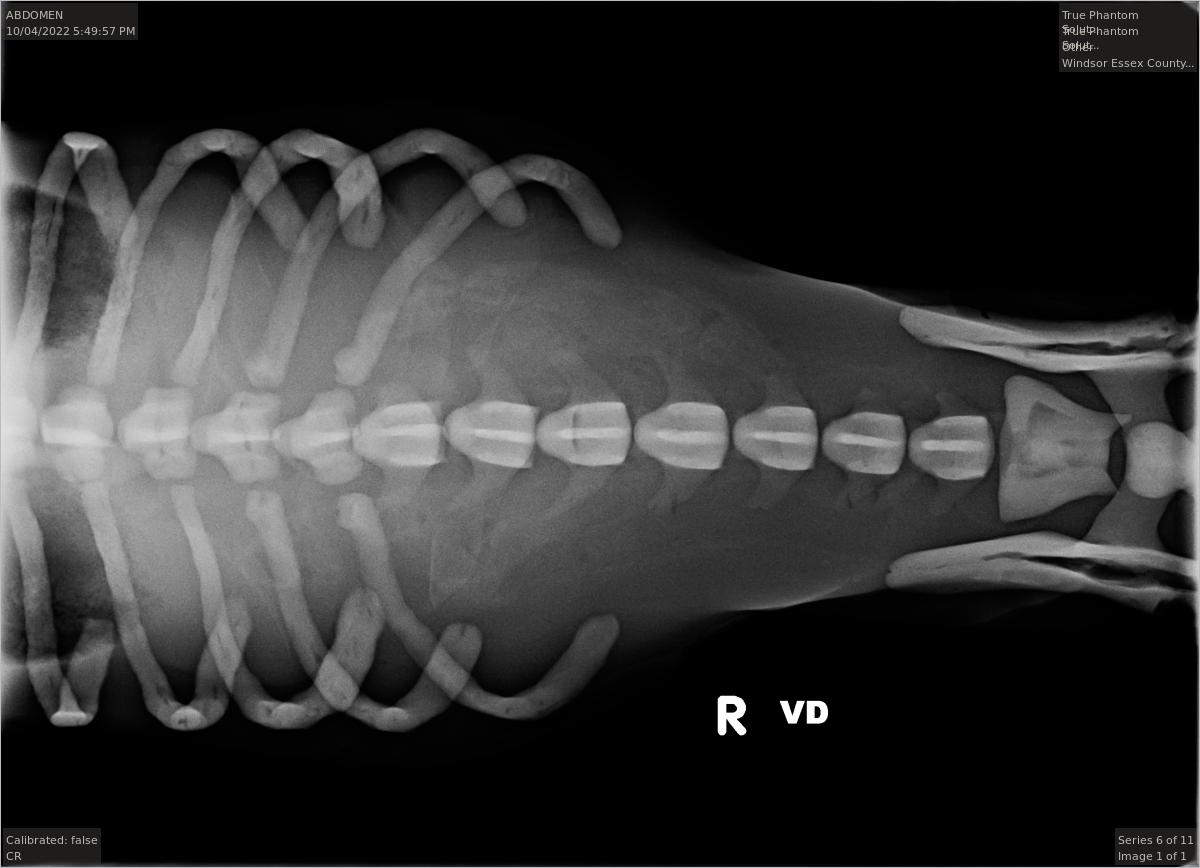

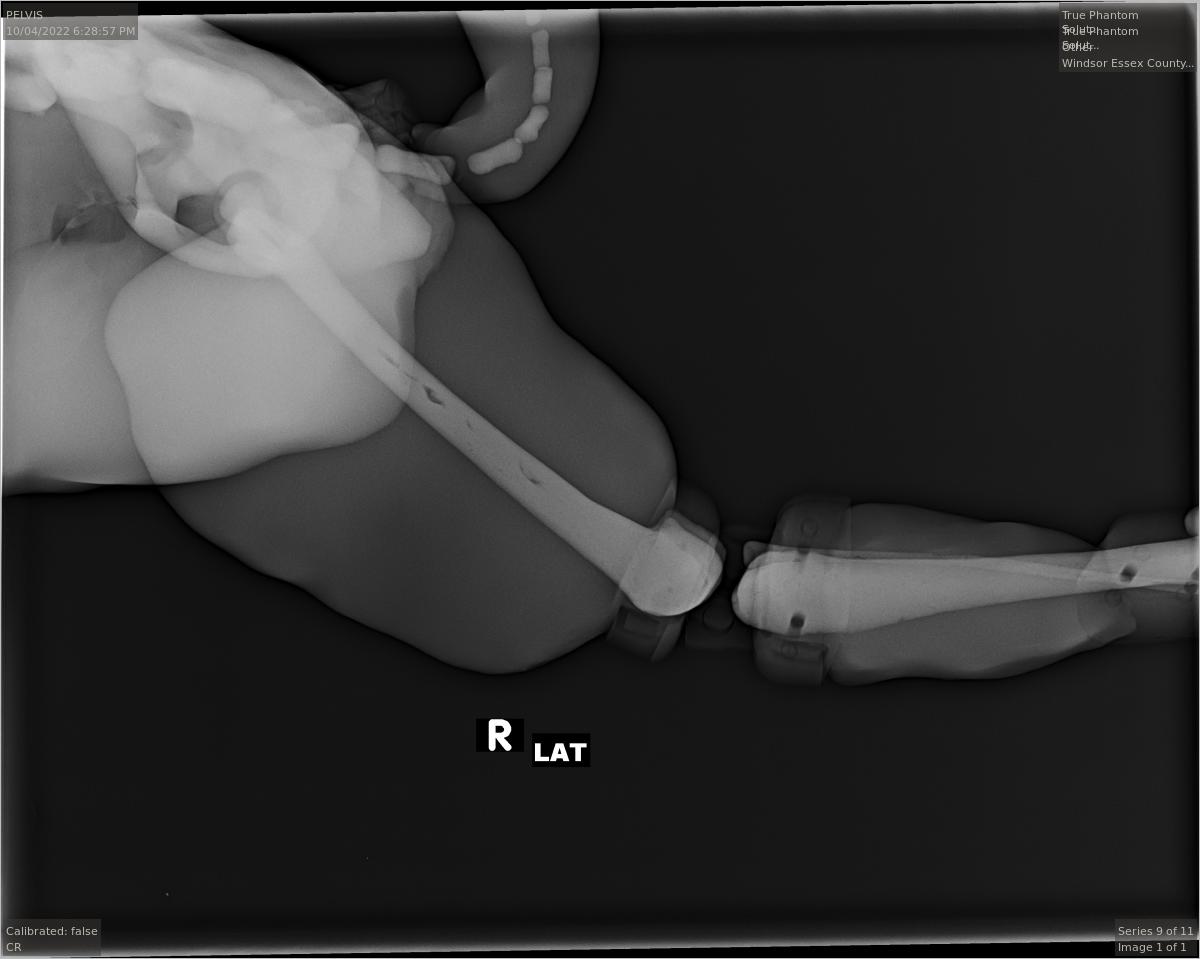

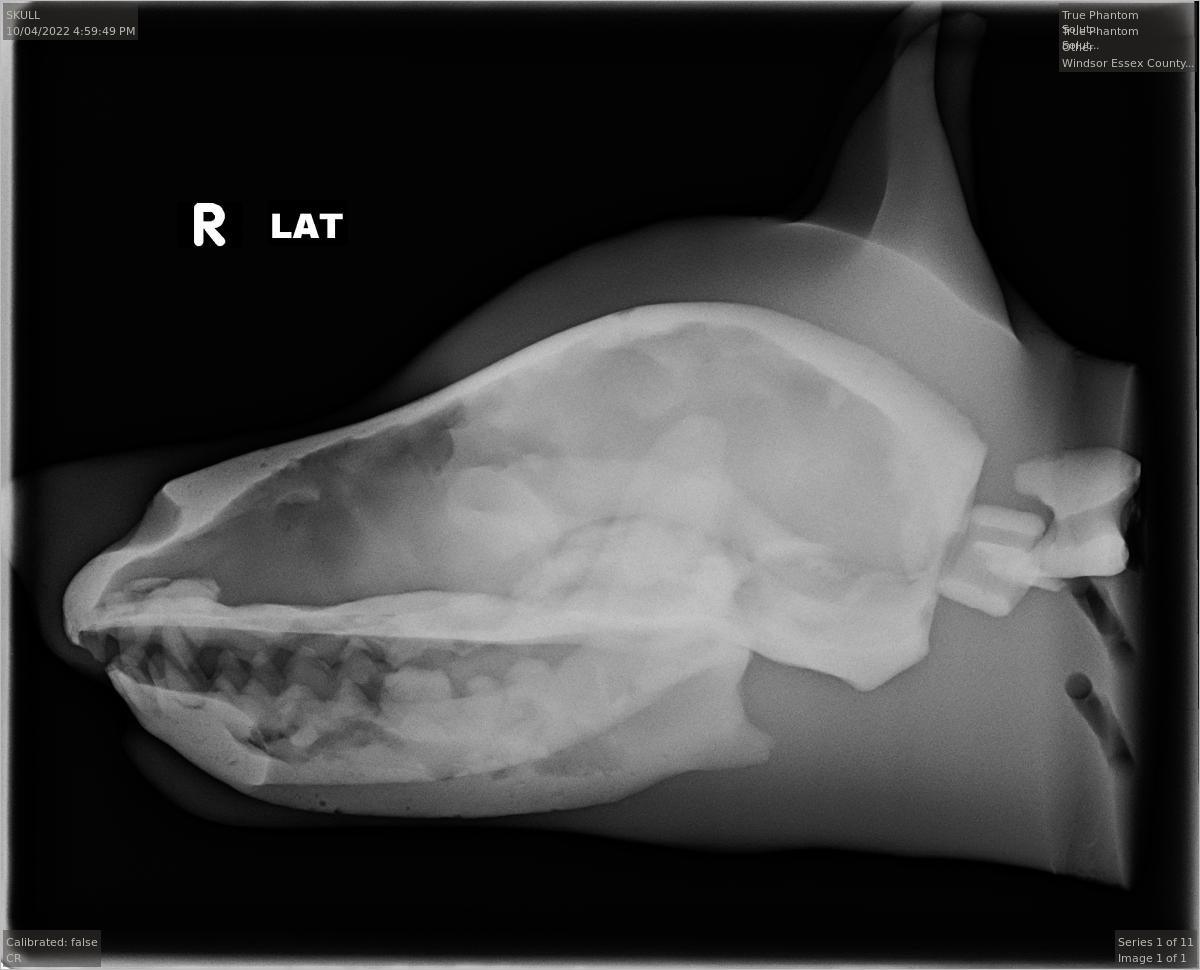

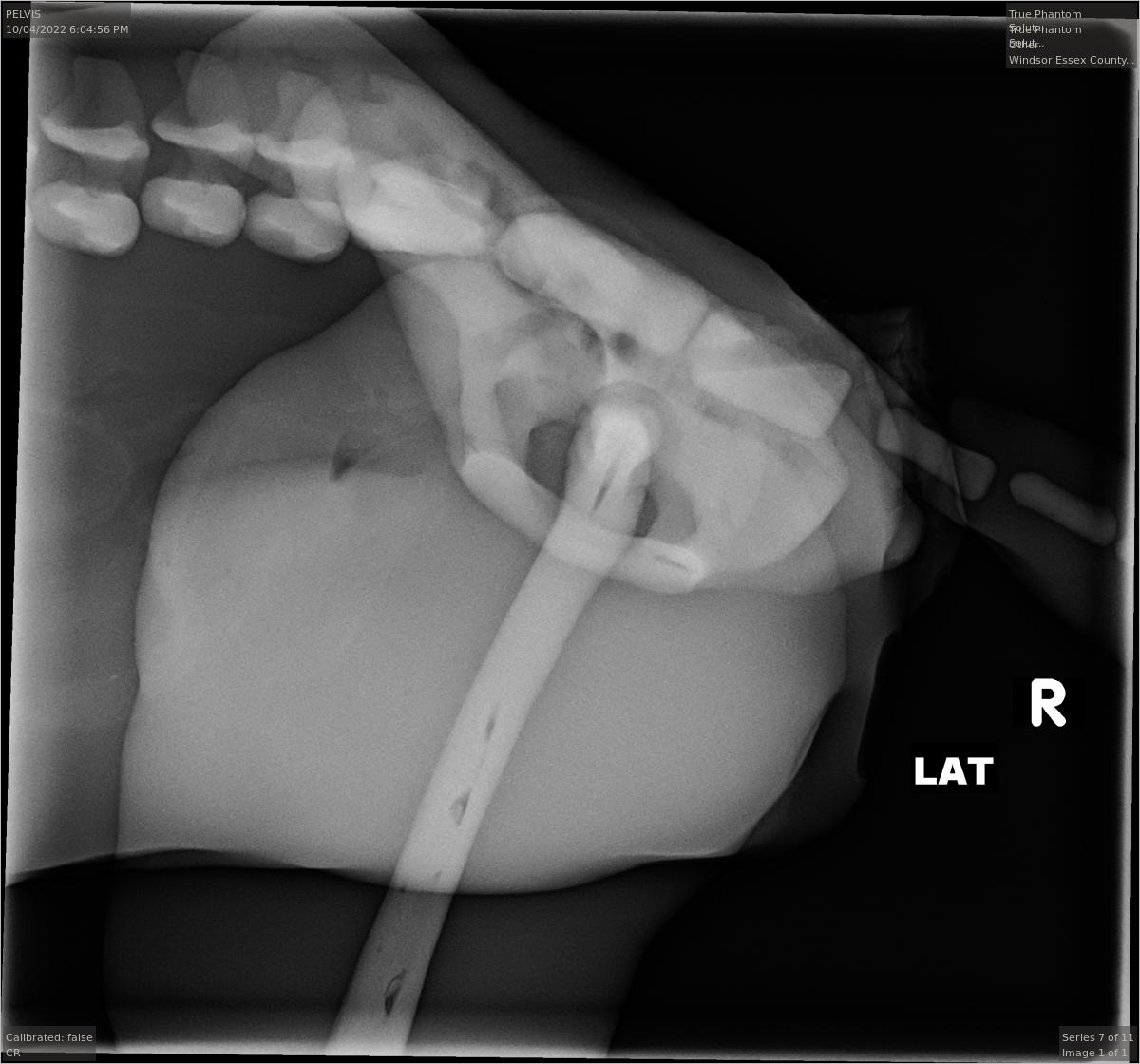

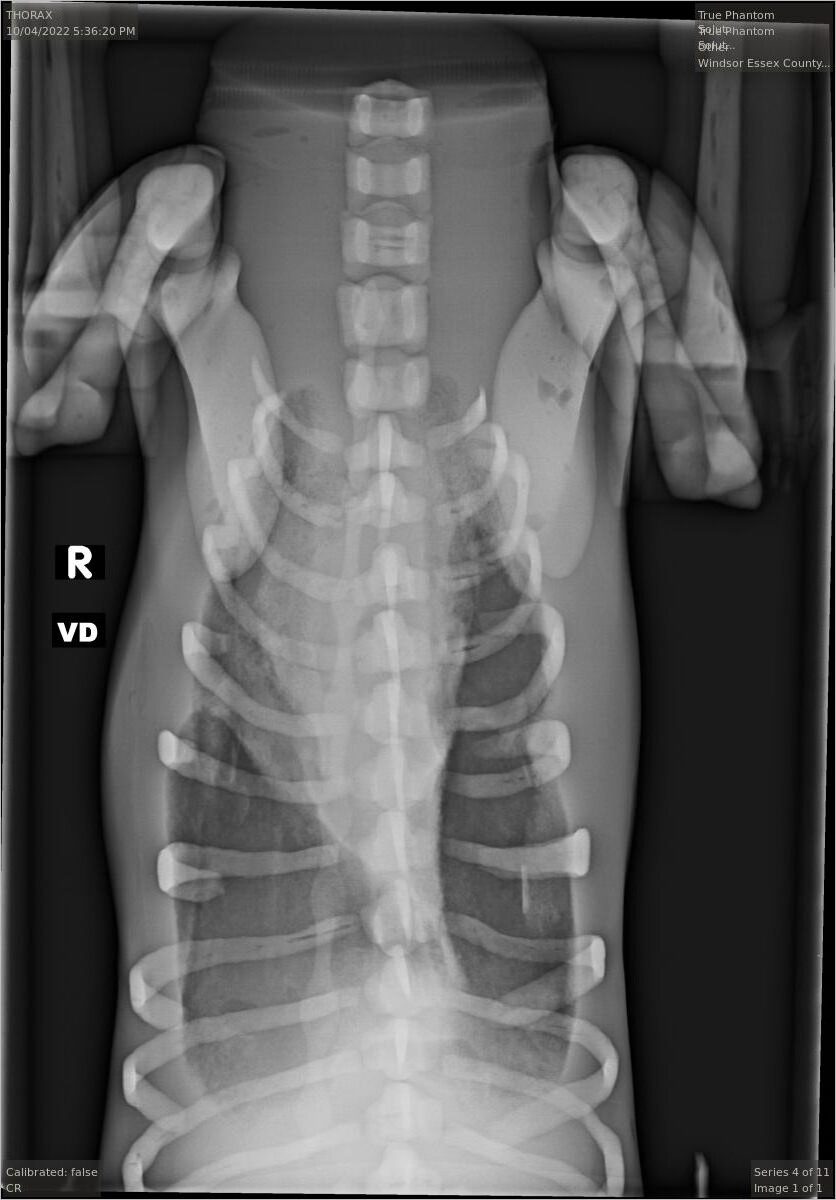

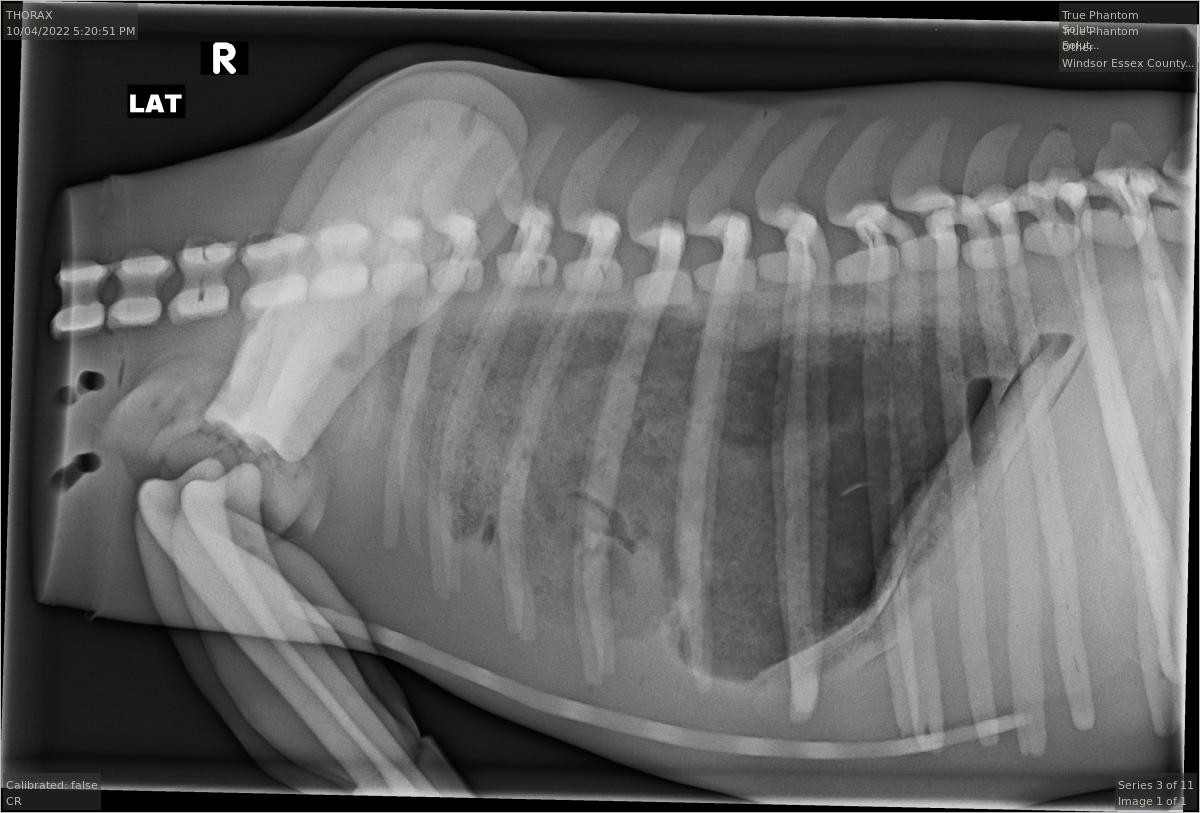

*/The above X-Ray images were obtained from our Dog Phantom for X-Ray CT, US SKU:DG-A01 model. An IMAGE VUE CR 20 X-RAY Scanner was used to scan the phantom. This phantom was scanned and validated by Elyse Morassutti, a registered Veterinary technician from Windsor-Essex County Humane Society/*

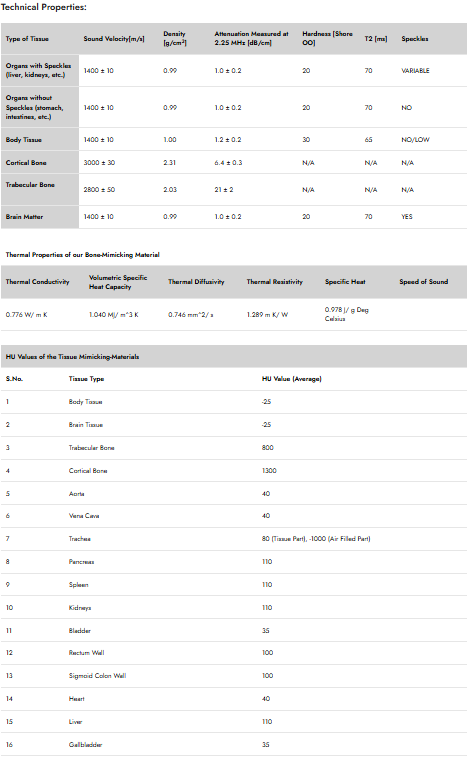

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Body Tissue | -25 |
| 2 | Brain Tissue | -25 |
| 3 | Trabecular Bone | 800 |
| 4 | Cortical Bone | 1300 |
| 5 | Aorta | 40 |
| 6 | Vena Cava | 40 |
| 7 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 8 | Pancreas | 110 |
| 9 | Spleen | 110 |
| 10 | Kidneys | 110 |
| 11 | Bladder | 35 |
| 12 | Rectum Wall | 100 |
| 13 | Sigmoid Colon Wall | 100 |
| 14 | Heart | 40 |
| 15 | Liver | 110 |
| 16 | Gallbladder | 35 |
Included In Order:
Dog Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 33 x 18 x 6 Inches, Weight: 40 Lbs (approx.).
Shipment:
Size with Hard Carry Case: 32 x 23 x 13 Inches, Weight: 99 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane base soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
