The newly designed detachable dog phantom is a training simulator independent of external hardware/software. The phantom is compatible with Ultrasound and X-RAY/CT imaging. It has all the right features to be an ideal teaching tool for sonographers, radiographers, veterinary residents, and other vet professionals. This phantom can be used with Iodine-based and Microbubble contrast mediums.
Unlike its predecessor, the new detachable dog phantom has improved anatomical structures and removable body parts (head, limbs, torso, and tail). This improvement is an added advantage as it helps perform various positioning techniques under the US and X-RAY/CT imaging modalities.
This product is available in two versions: Opaque (Speckles) and Translucent Amber (No Speckles).

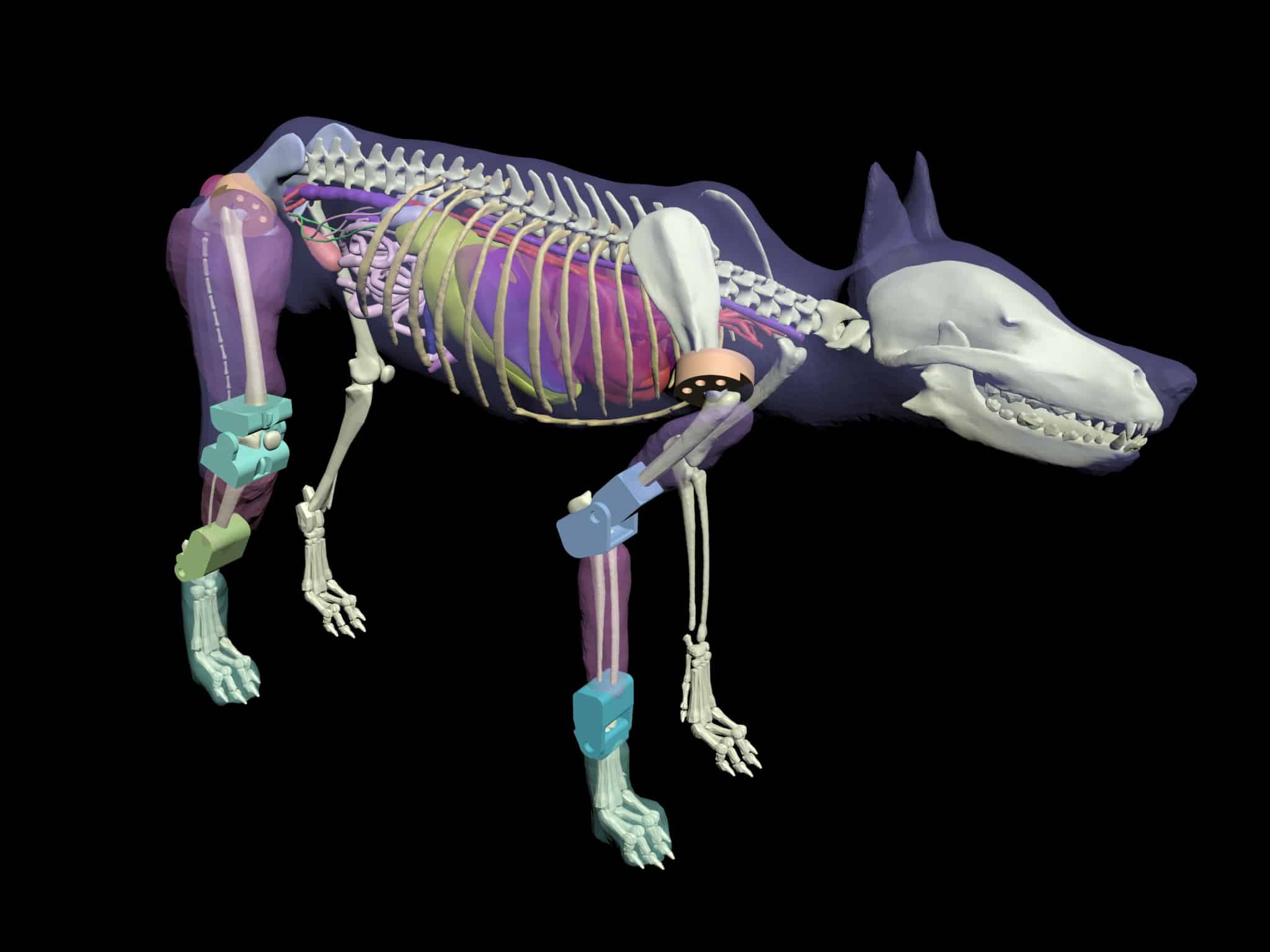

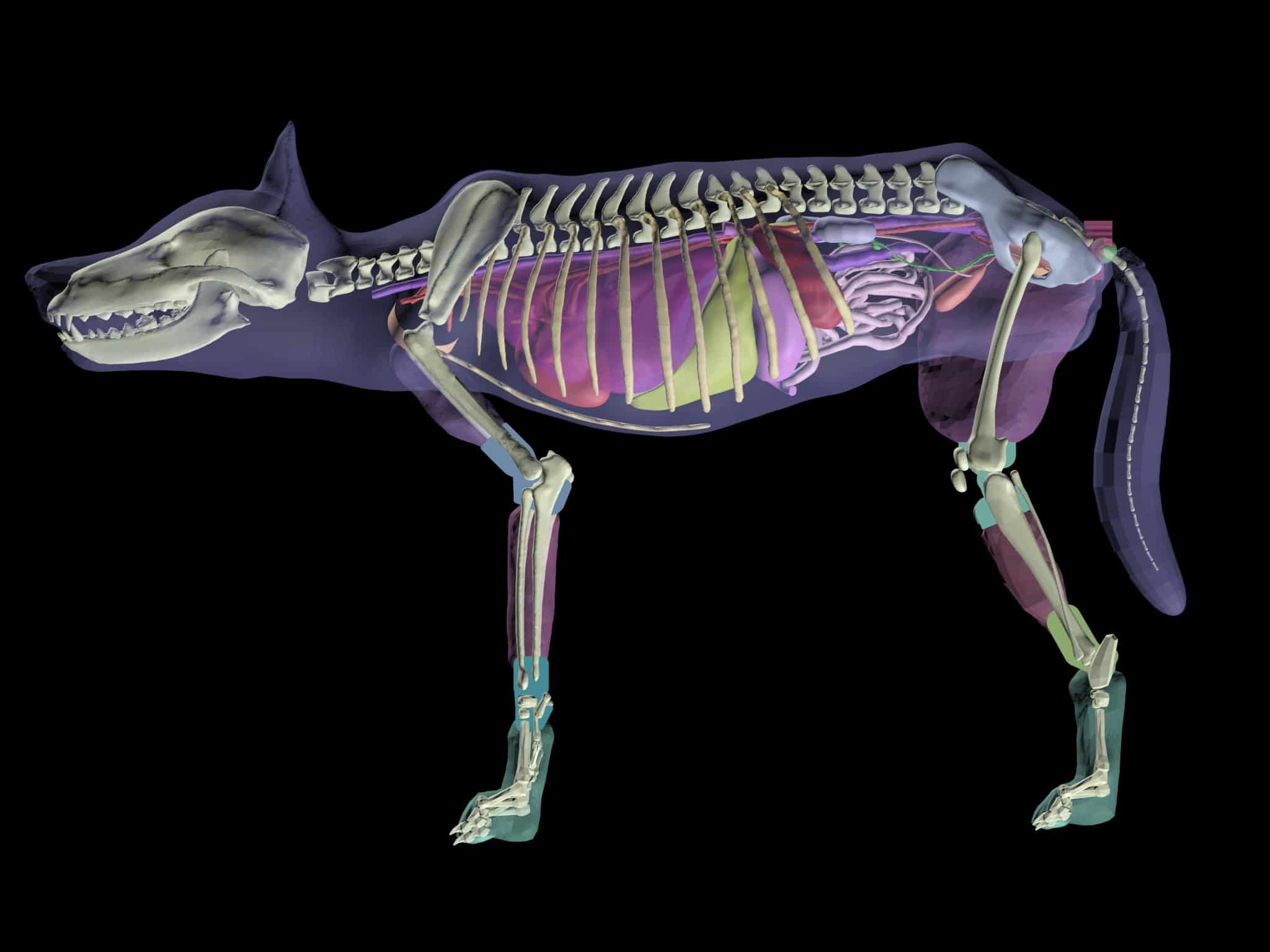

Anatomy:

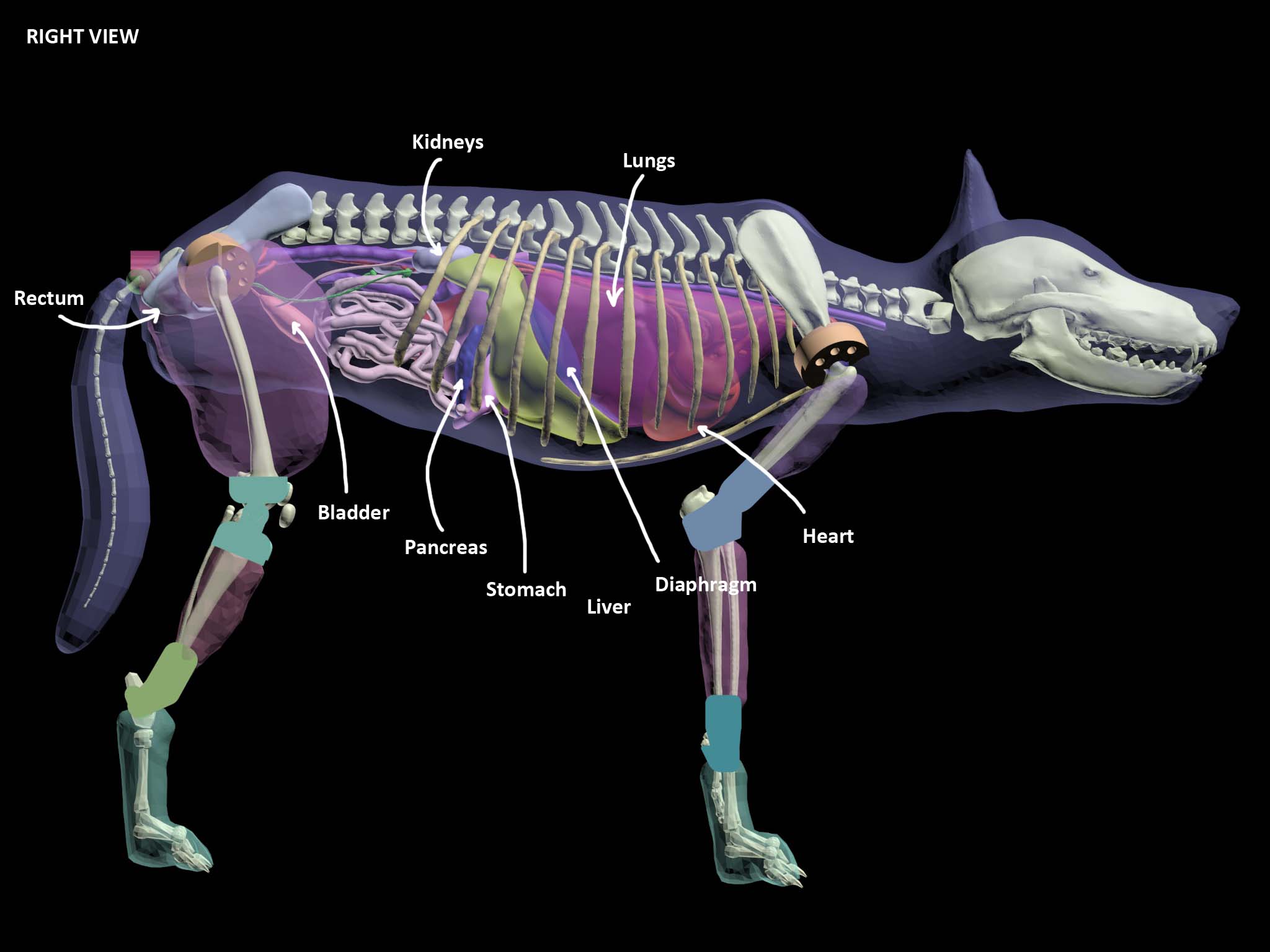

The following anatomical features are included in the standard version of this phantom. Should you require additional organs or components, please reach out to us and we can customize the model to suit your specific needs.
Adult Dog Head
Dog Skull
Jaw Bone
Realistic Dog Brain
Adult Dog Front Arms
Arm (Humerus)
Elbow Joints
Forearm (Radius, Ulna)
Paw (Wrist with Fingers)
Skin-Mimicking Material
Adult Dog Rear Legs
Thigh (Femur)
Knee Joints
Leg (Tibia, Fibula)
Paw (Finger Bones)
Skin-Mimicking Material
Adult Dog Tail
Tail Bone
Skin-Mimicking Material
Adult Dog Torso
Complete Spine
Complete Ribcage
Shoulder (Scapula Bones)
Pelvis
Heart
Blood Vessels Connected to Heart
Lungs
Diaphragm
Stomach
Liver and Gallbladder
Kidneys
Spleen
Pancreas
Arteries for Kidneys
Bladder
Ureters and Uterine
Large and Small Intestine

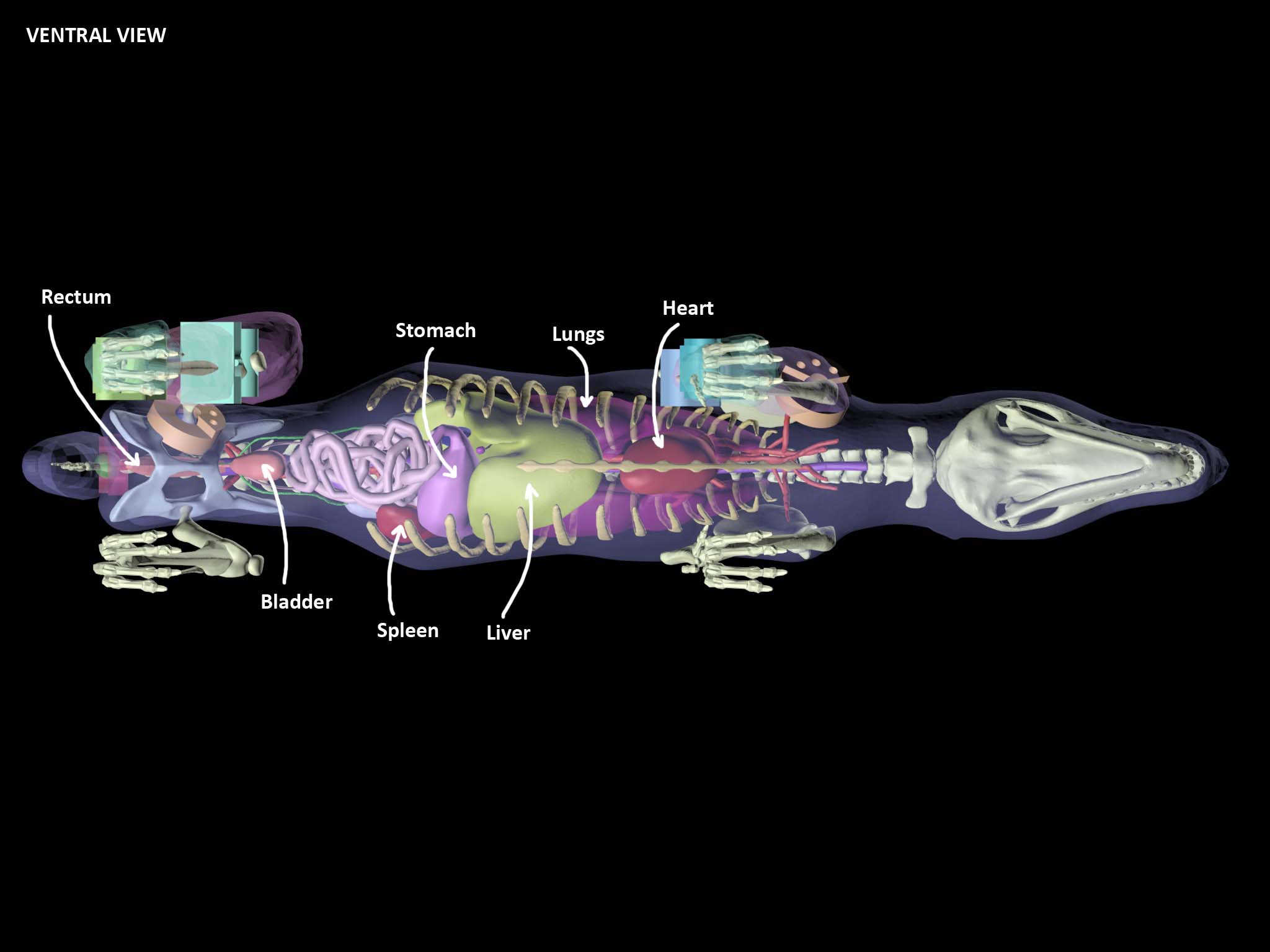

Design:
Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of a dog for medical imaging, it is not meant to replace a live animal and may have certain limitations in its capabilities.
Unlike a live dog however, the phantom does not require any sedation or pose any risk to the animal. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents an ethical alternative to using sedated live animals. This makes it a sustainable, ethical choice for the early stages of research and education.
Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, please refer to our Warranty Policy and Return Policy. For any specific questions or concerns, please contact our technical team here.

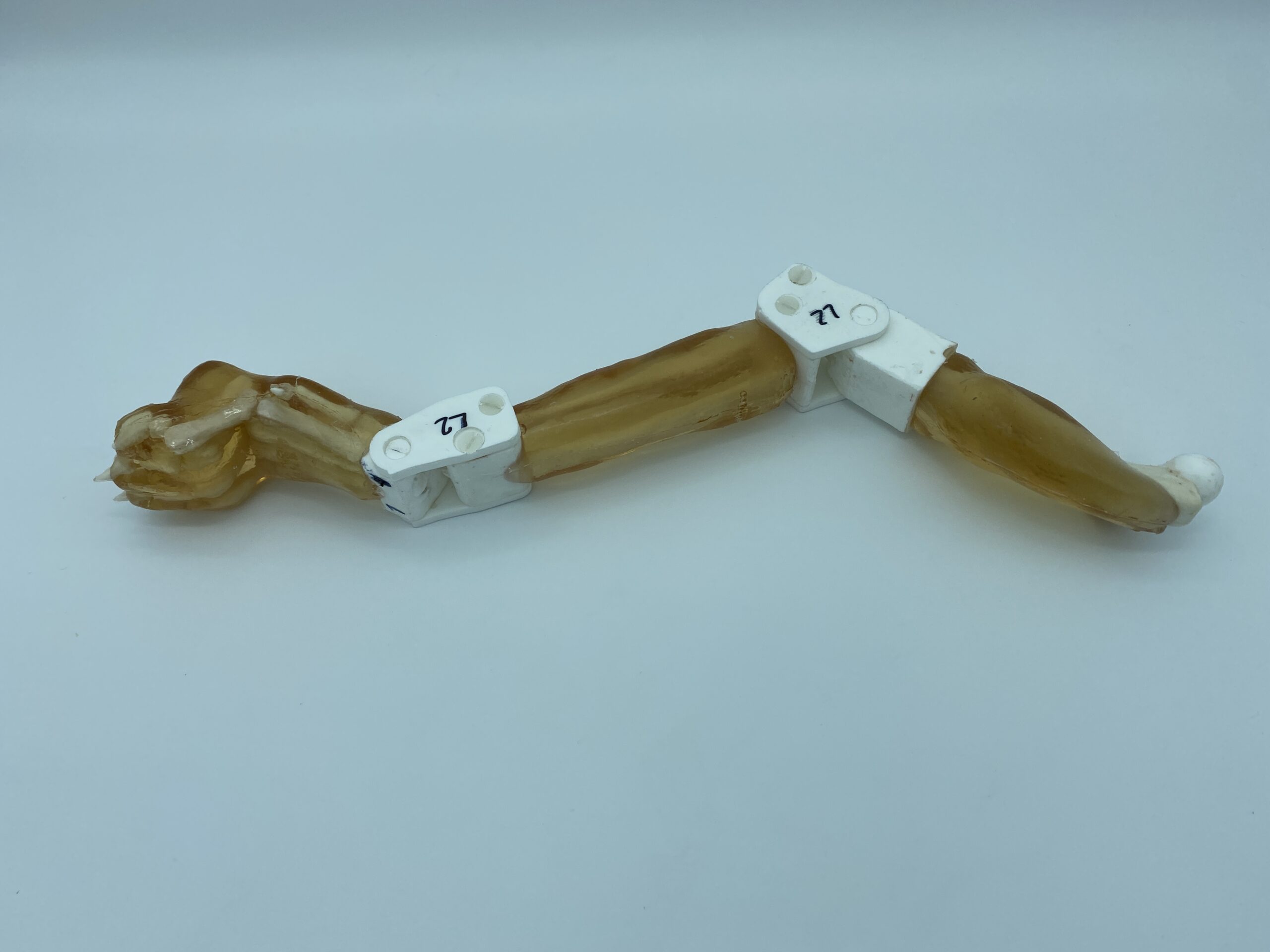

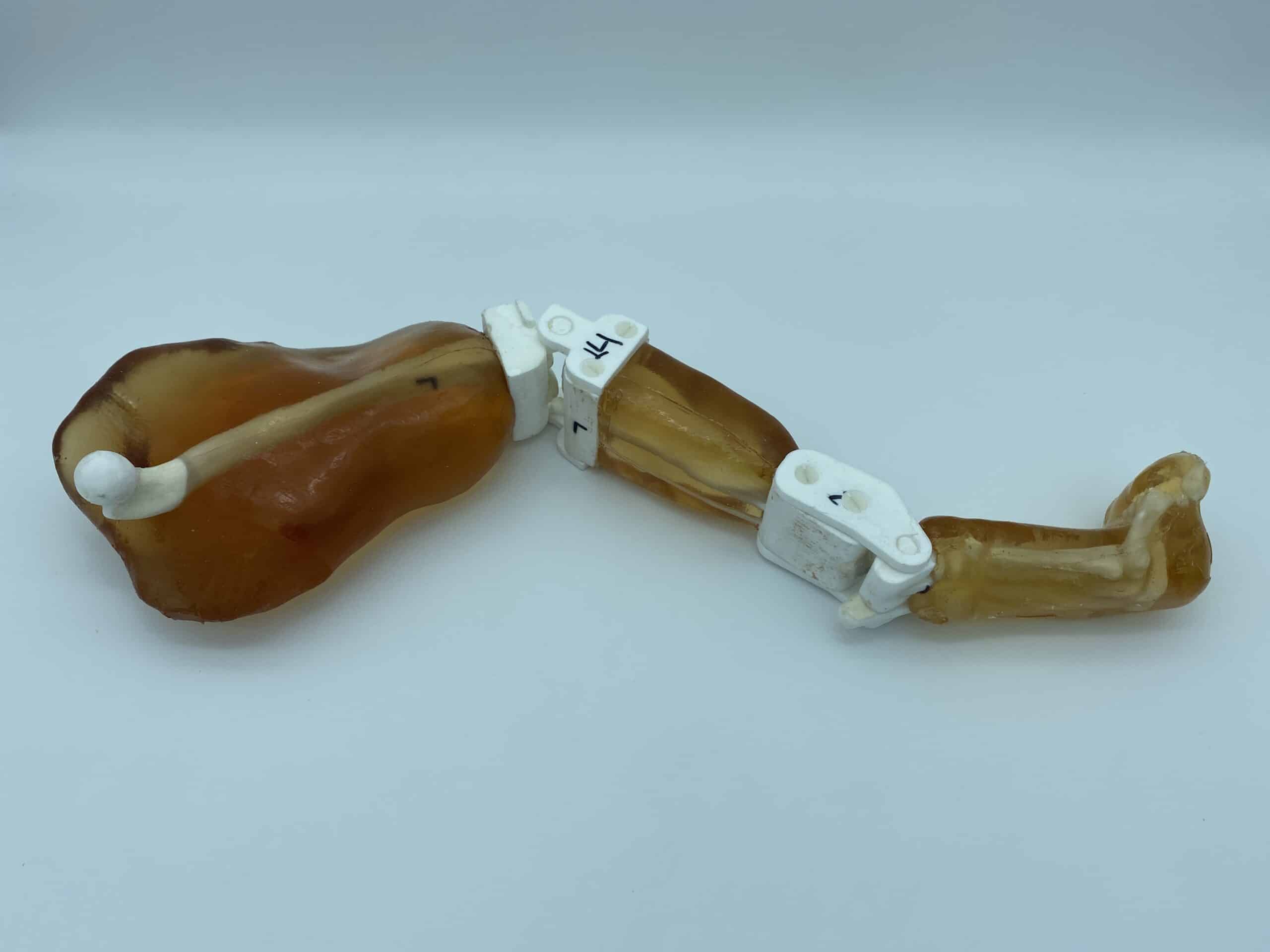

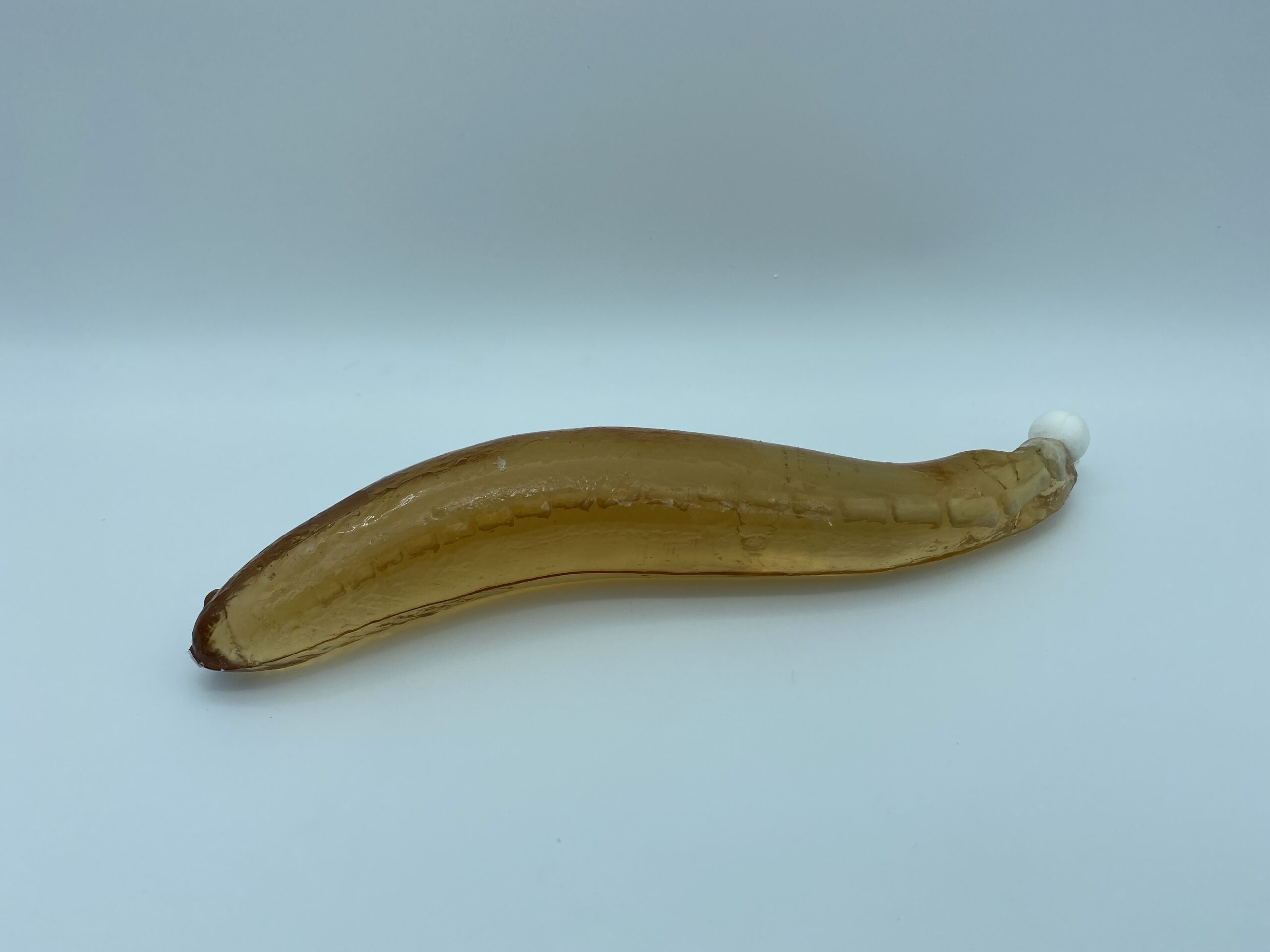

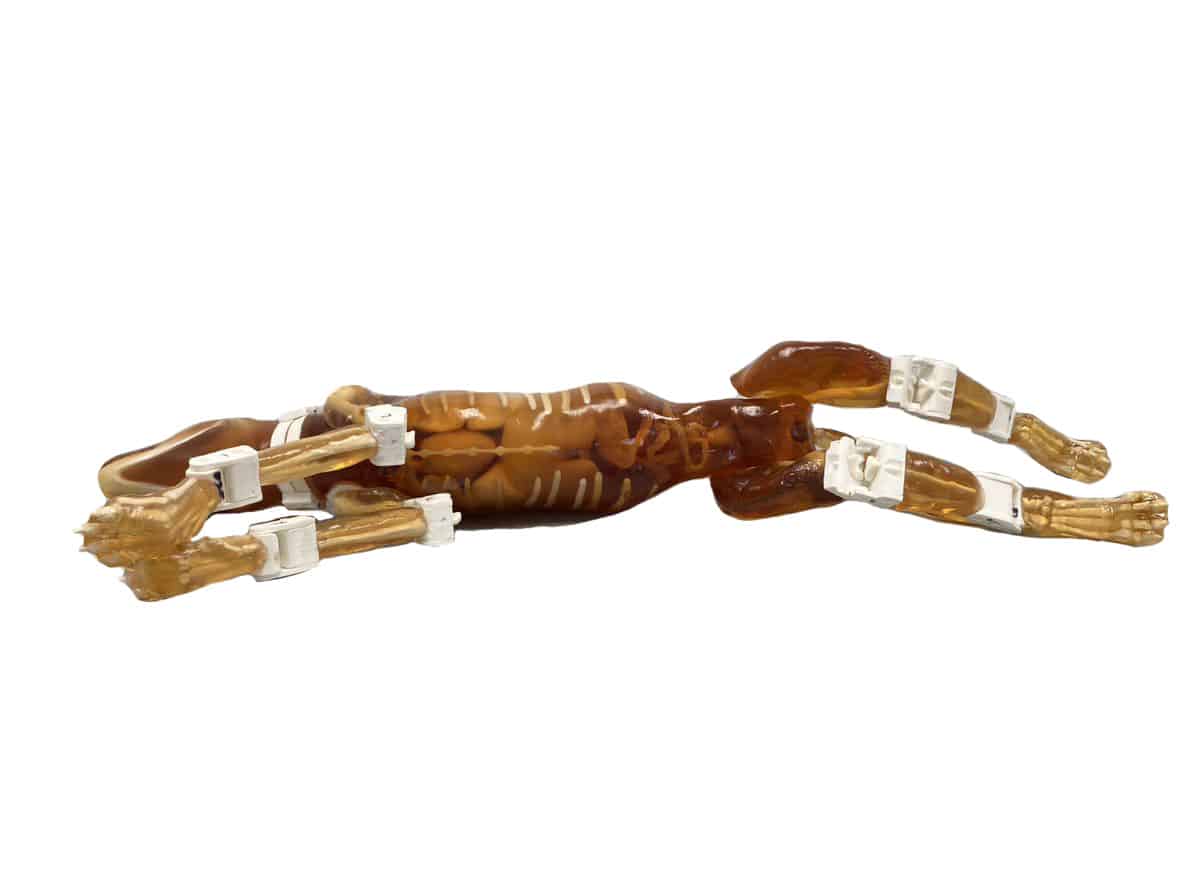

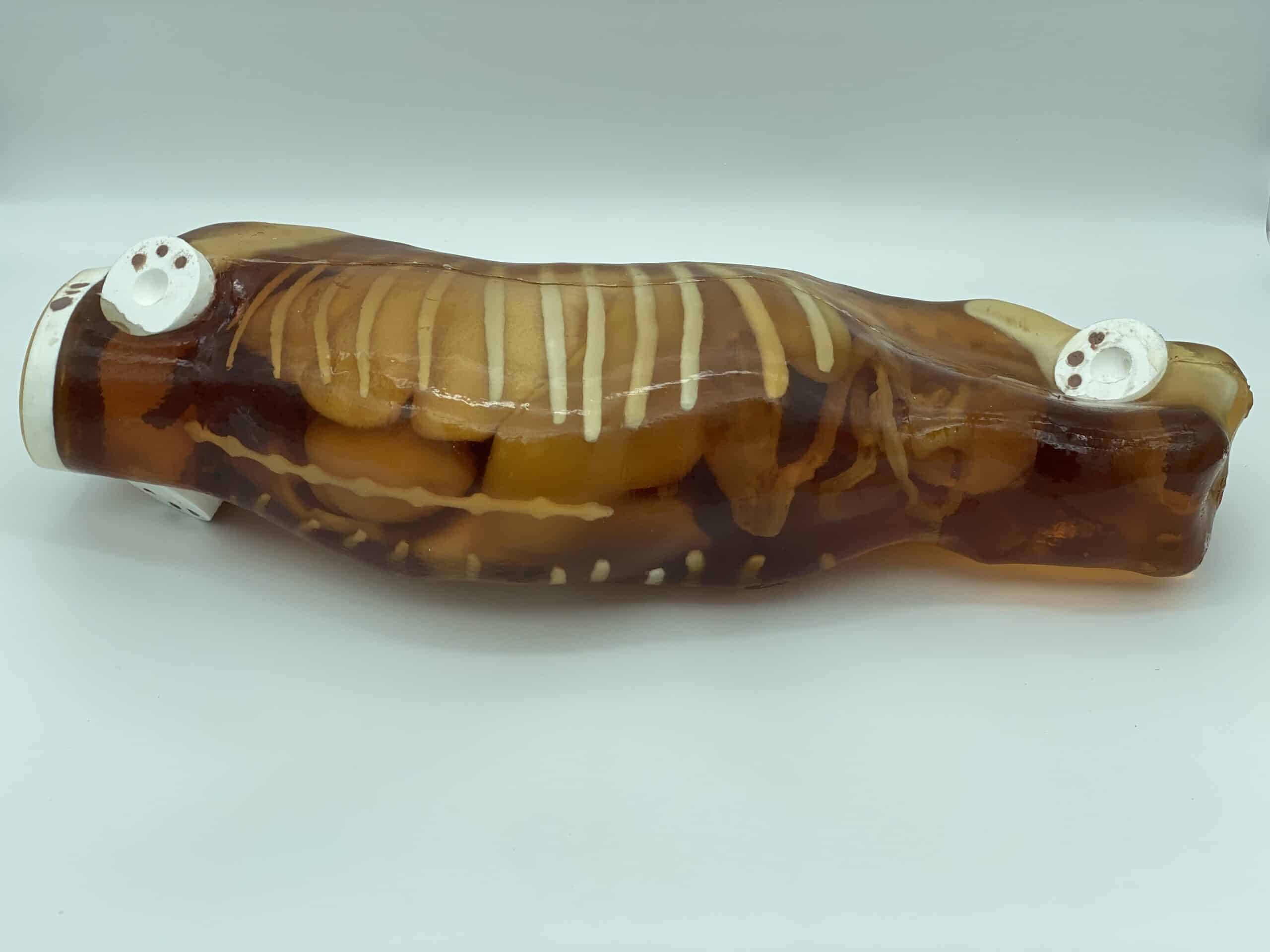

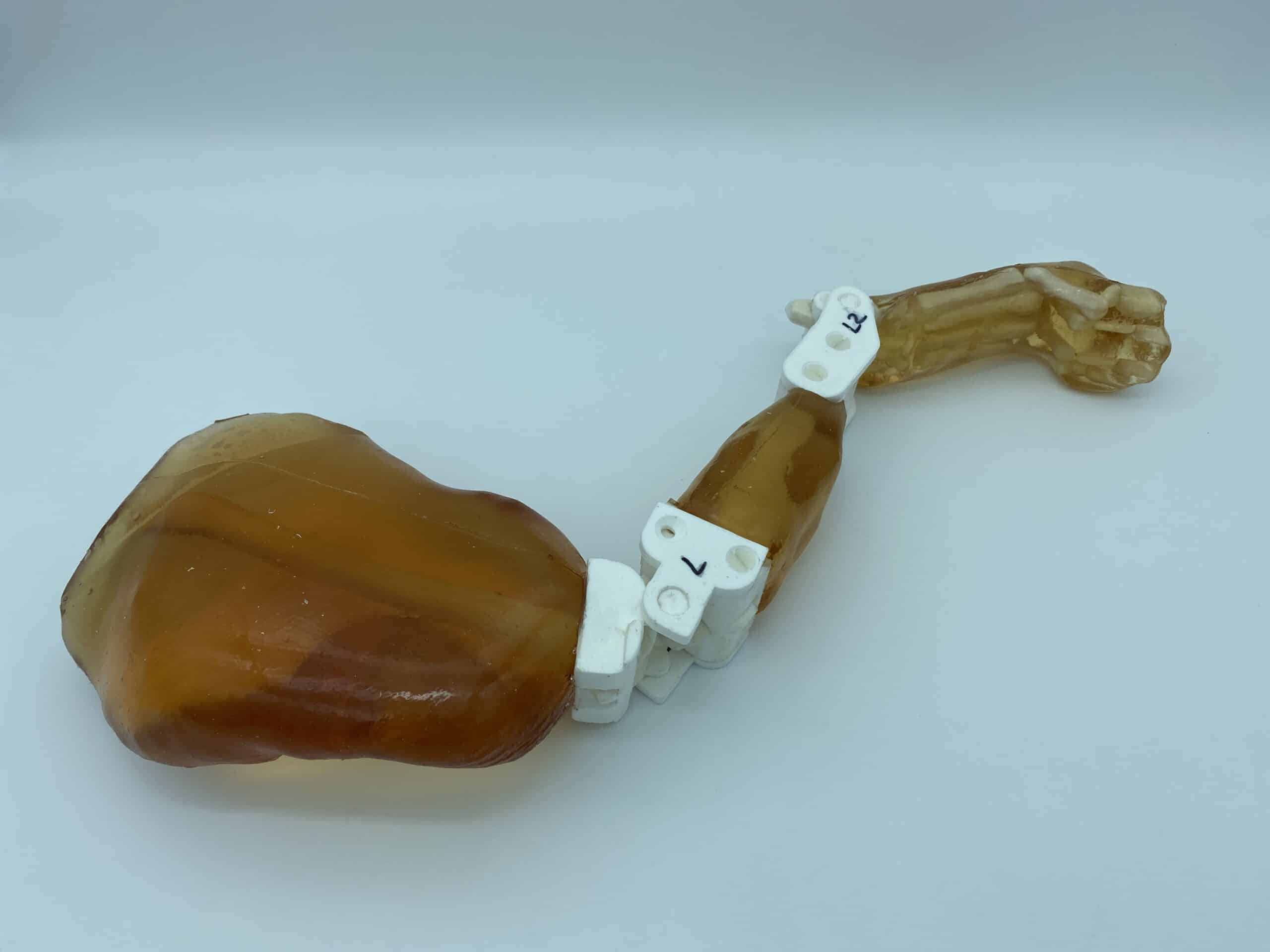

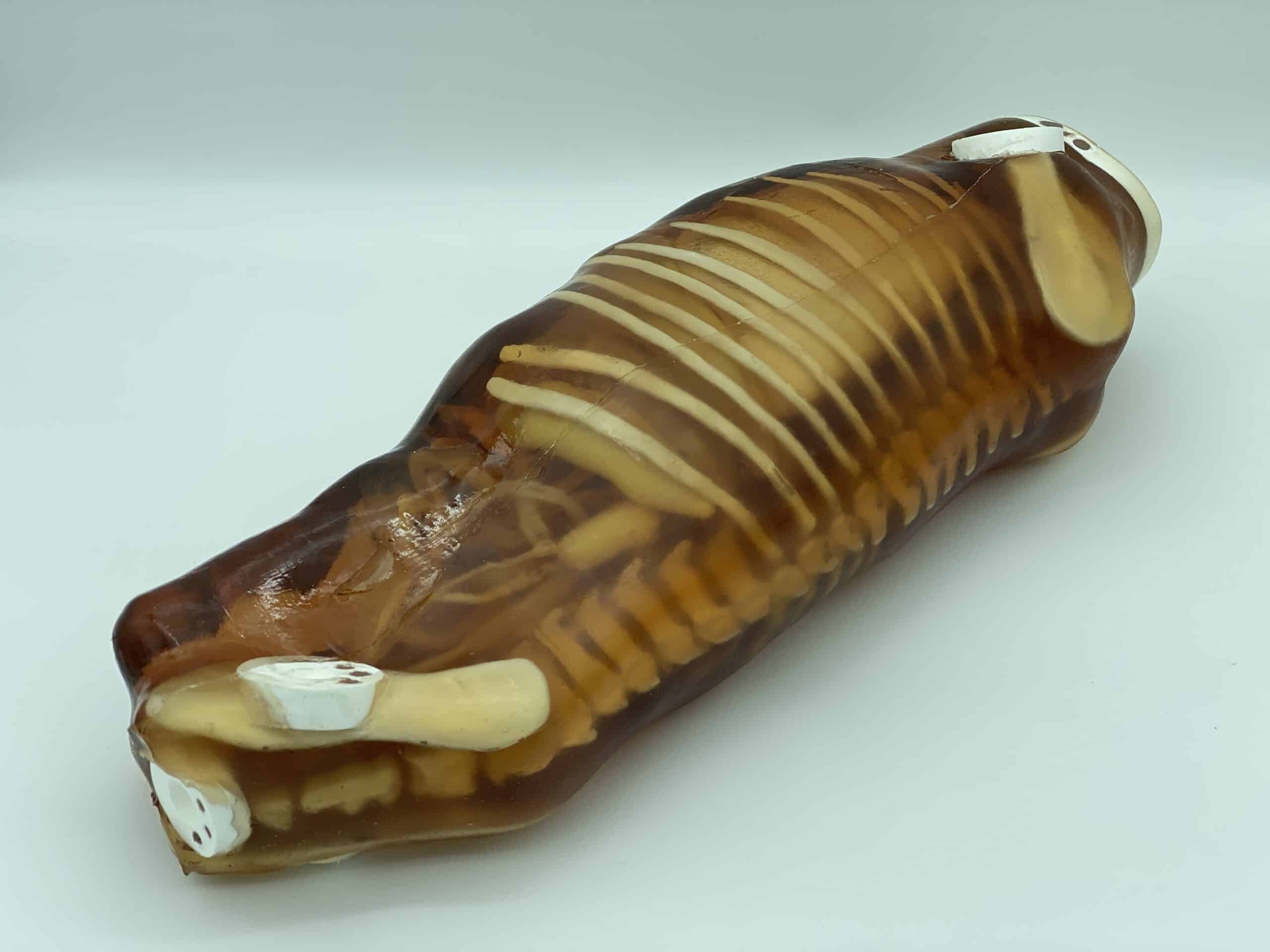

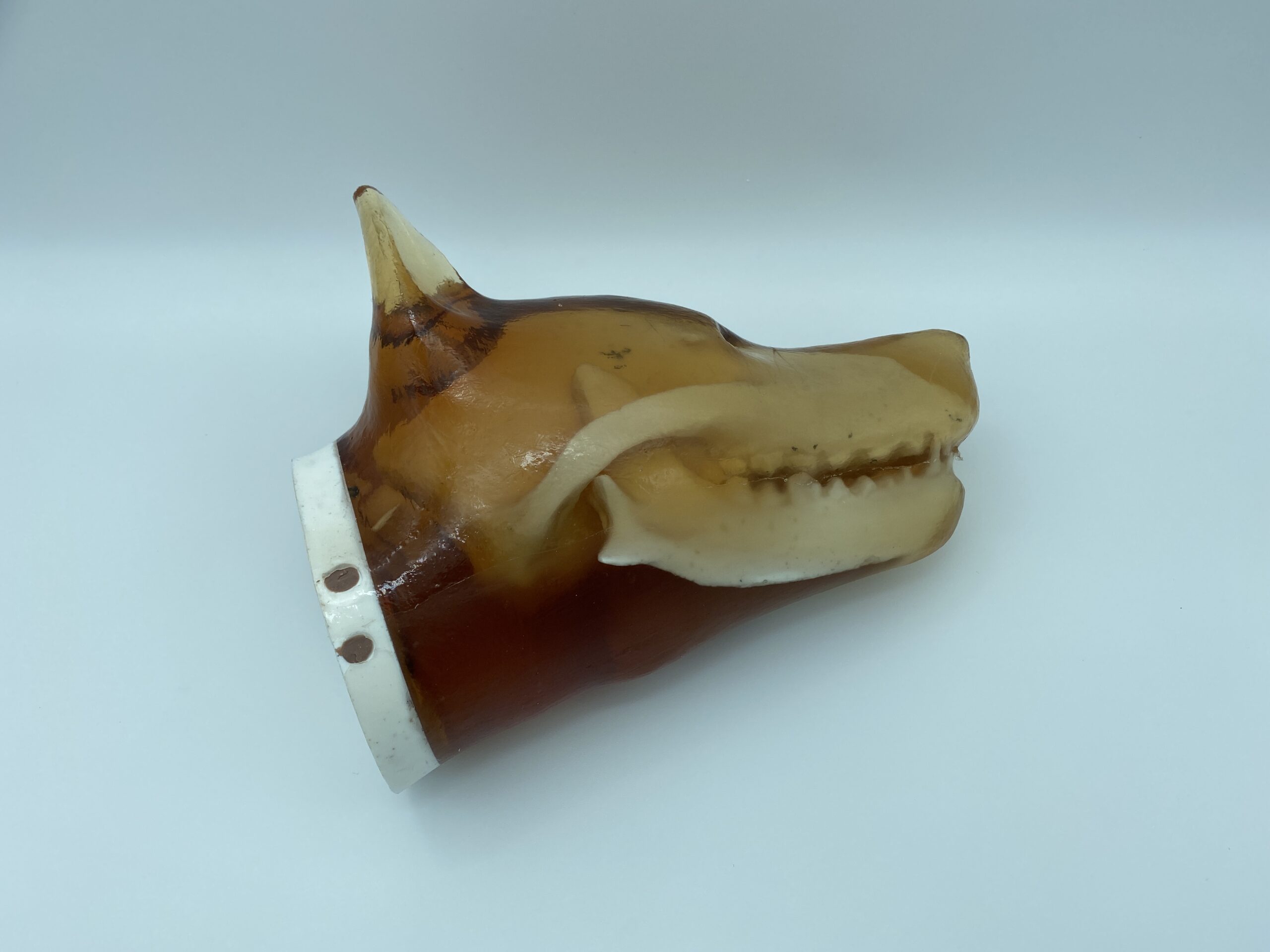

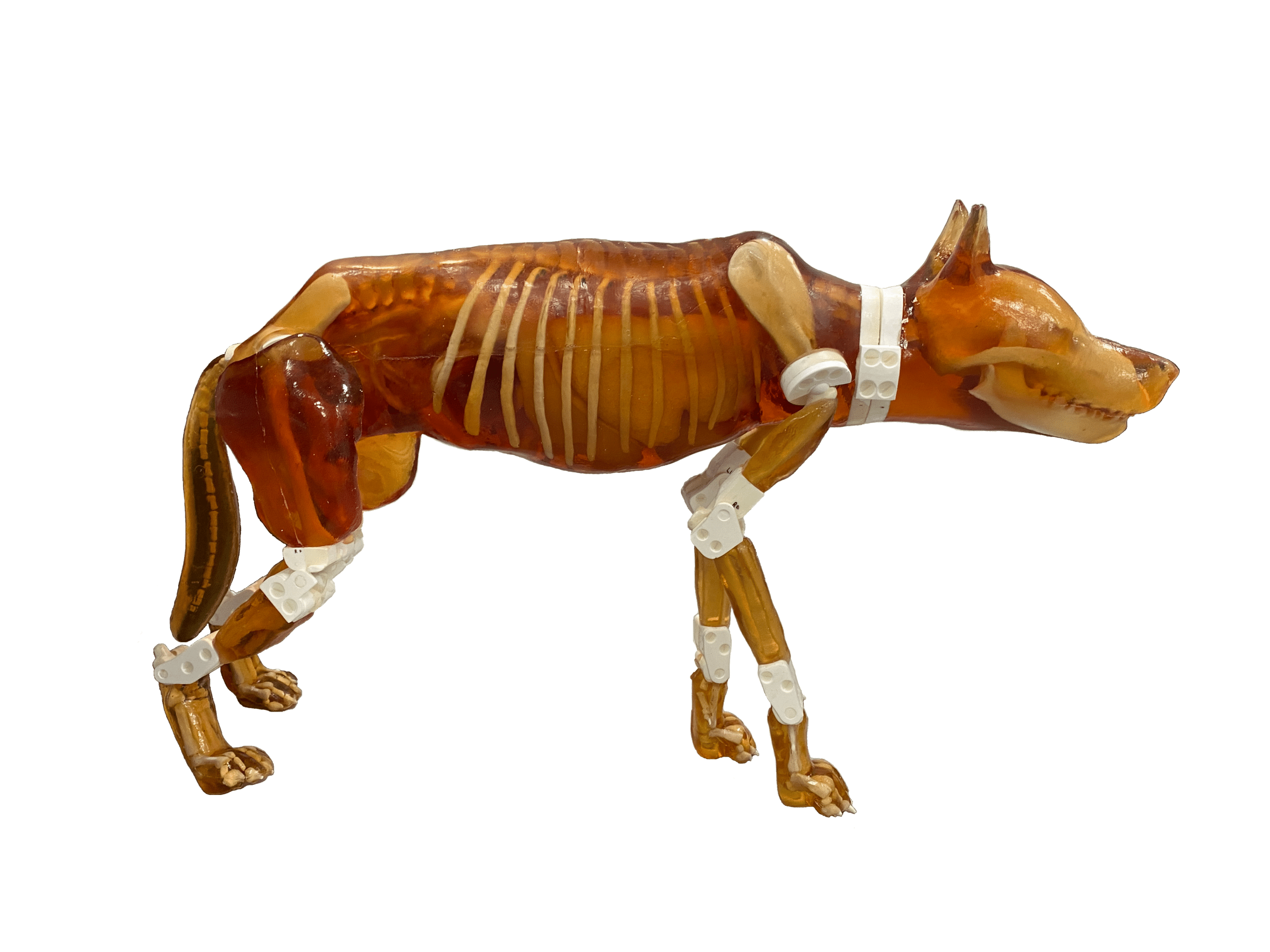

Product Images (Translucent Amber – No Speckles):

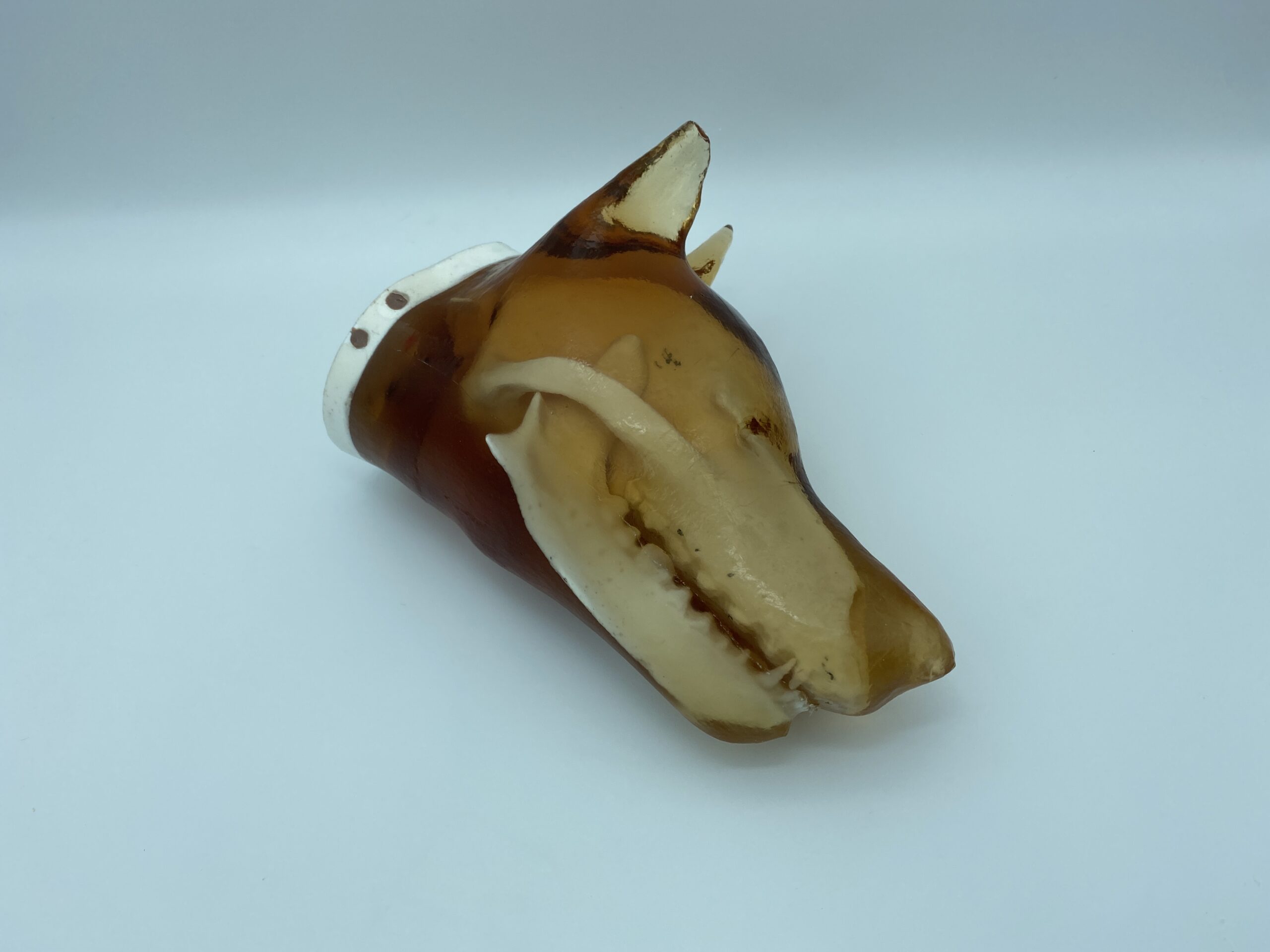

Note: By default, the phantom comes in a translucent amber appearance.

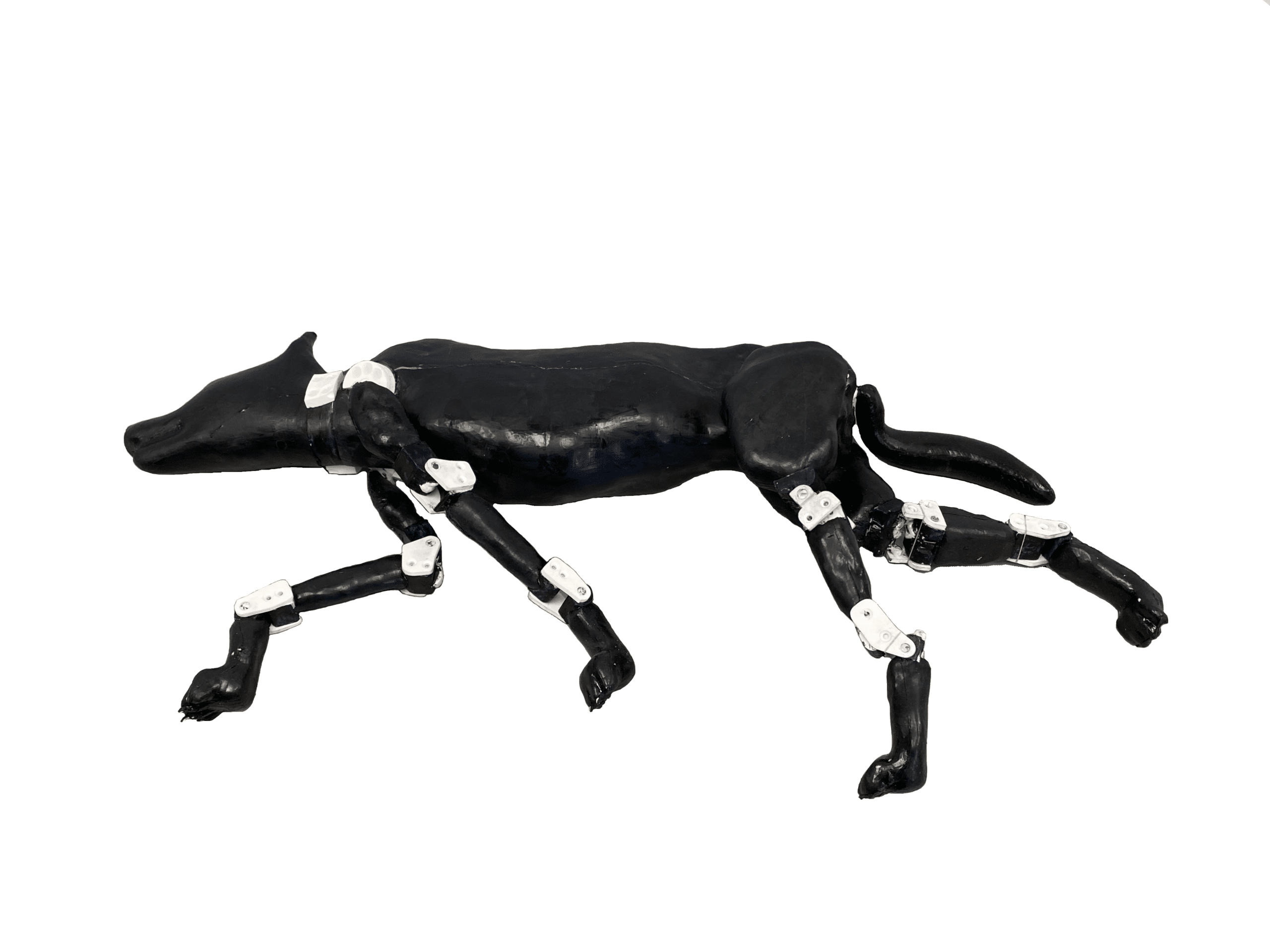

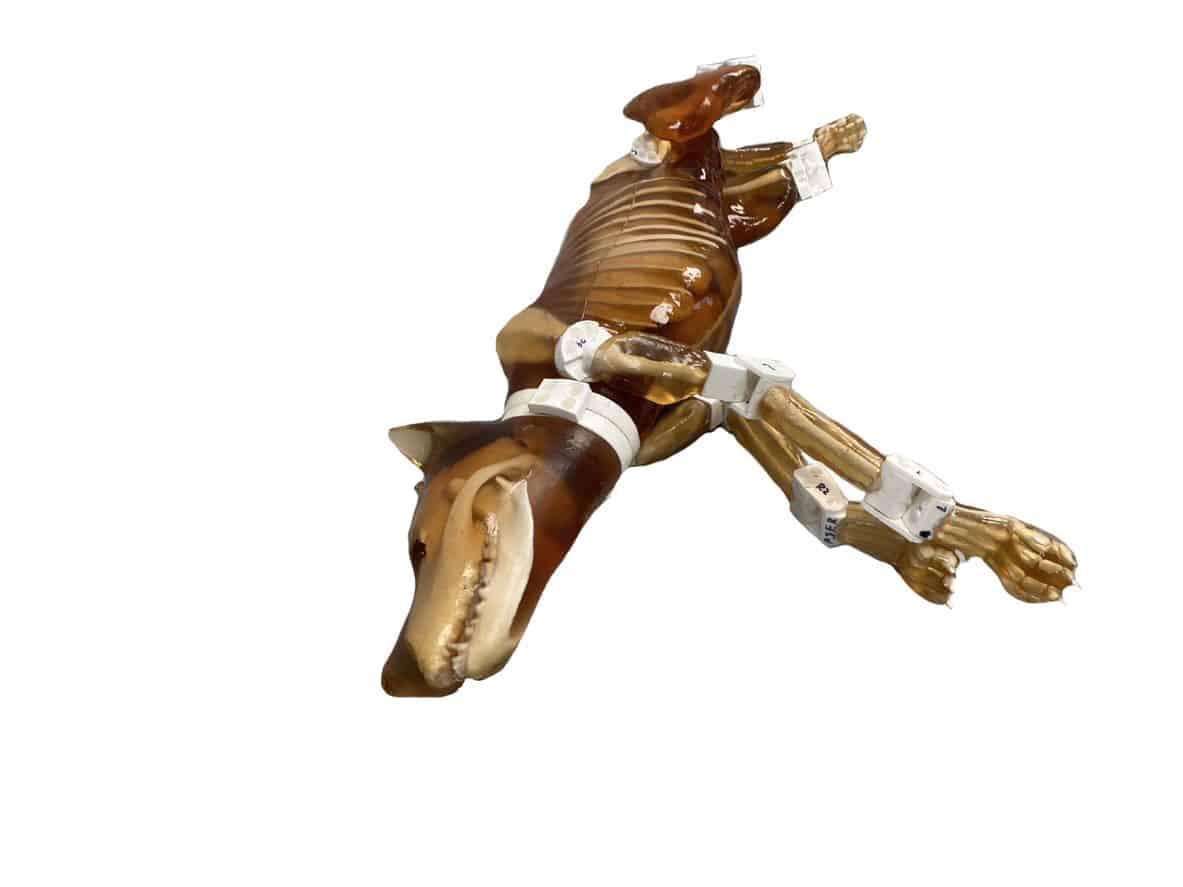

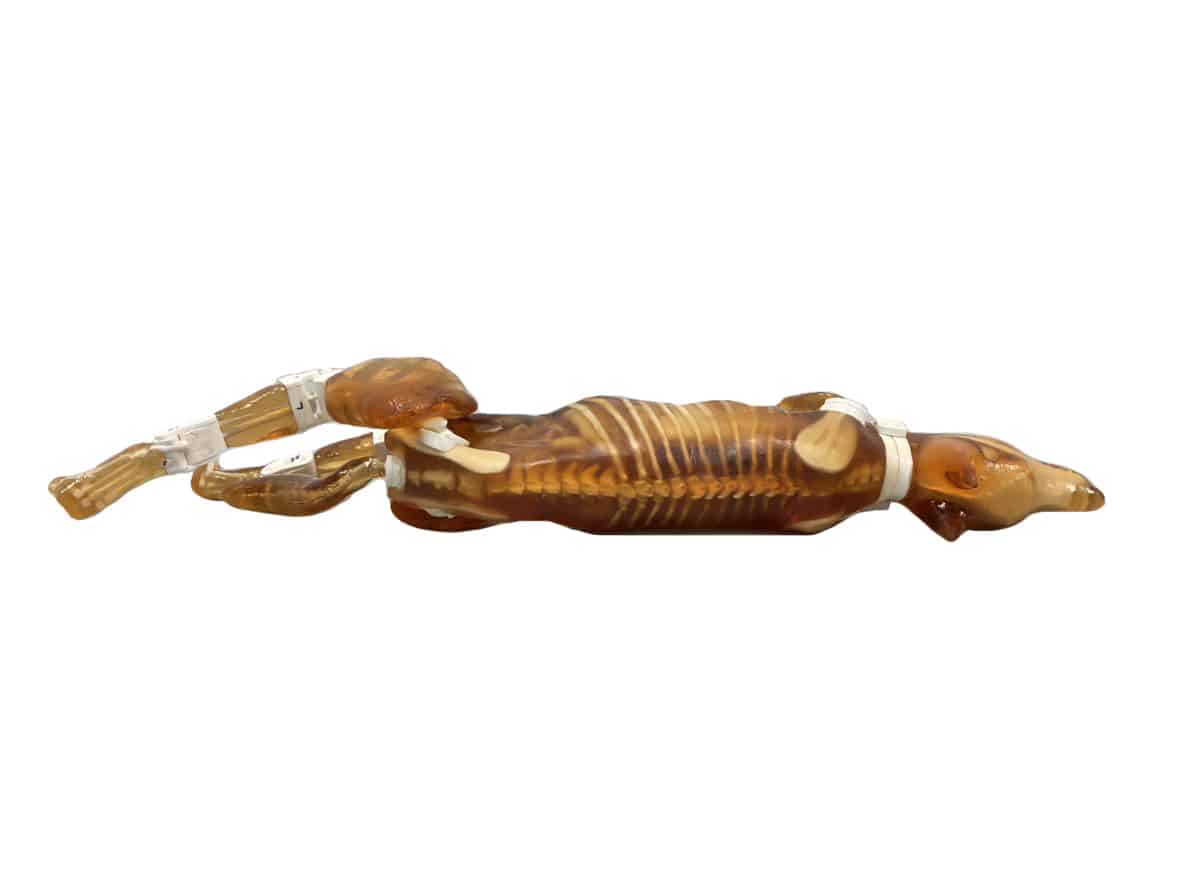

Product Images (Opaque – Speckles):

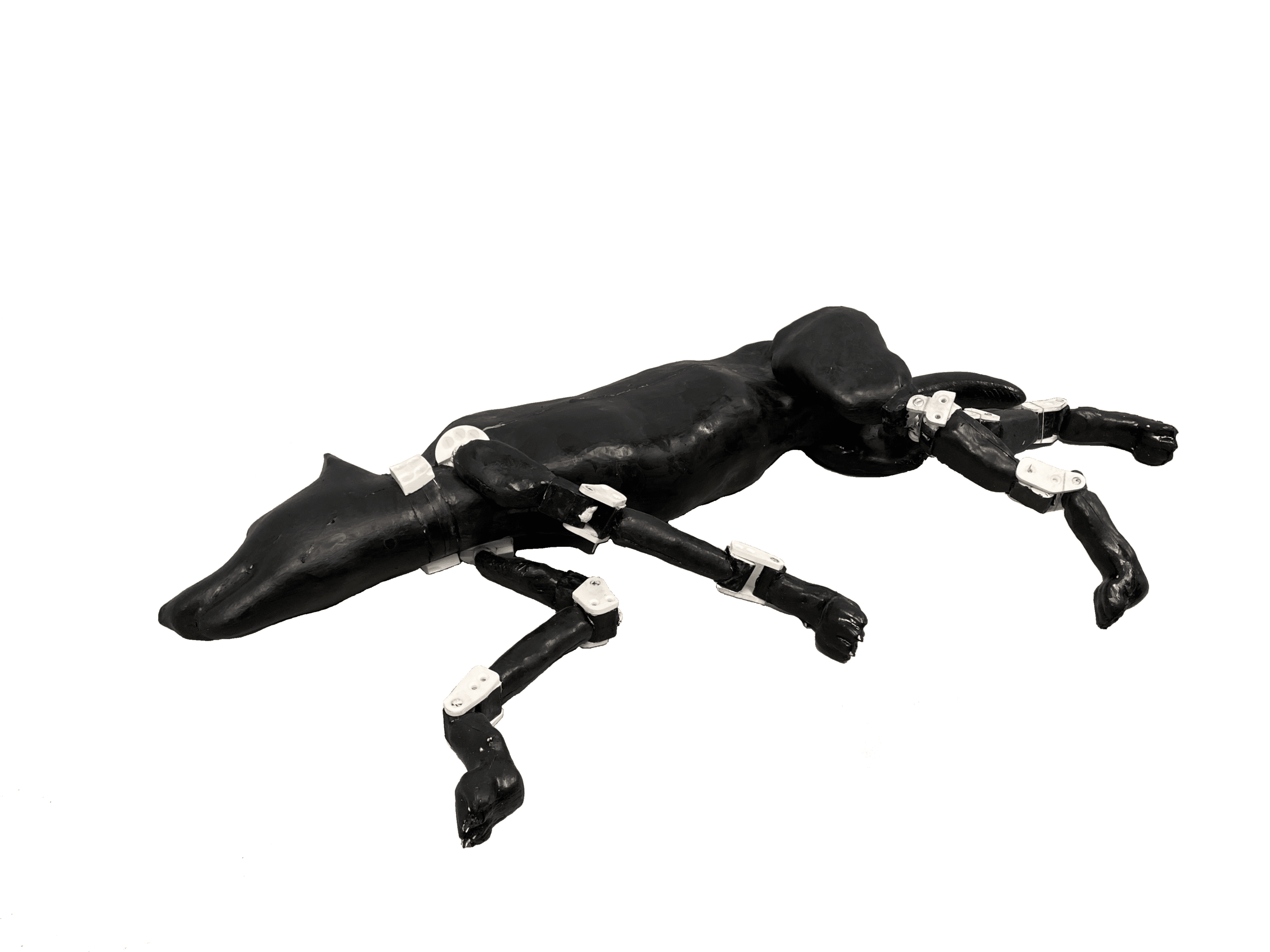

Note: Upon special request, the opaque version can be provided.

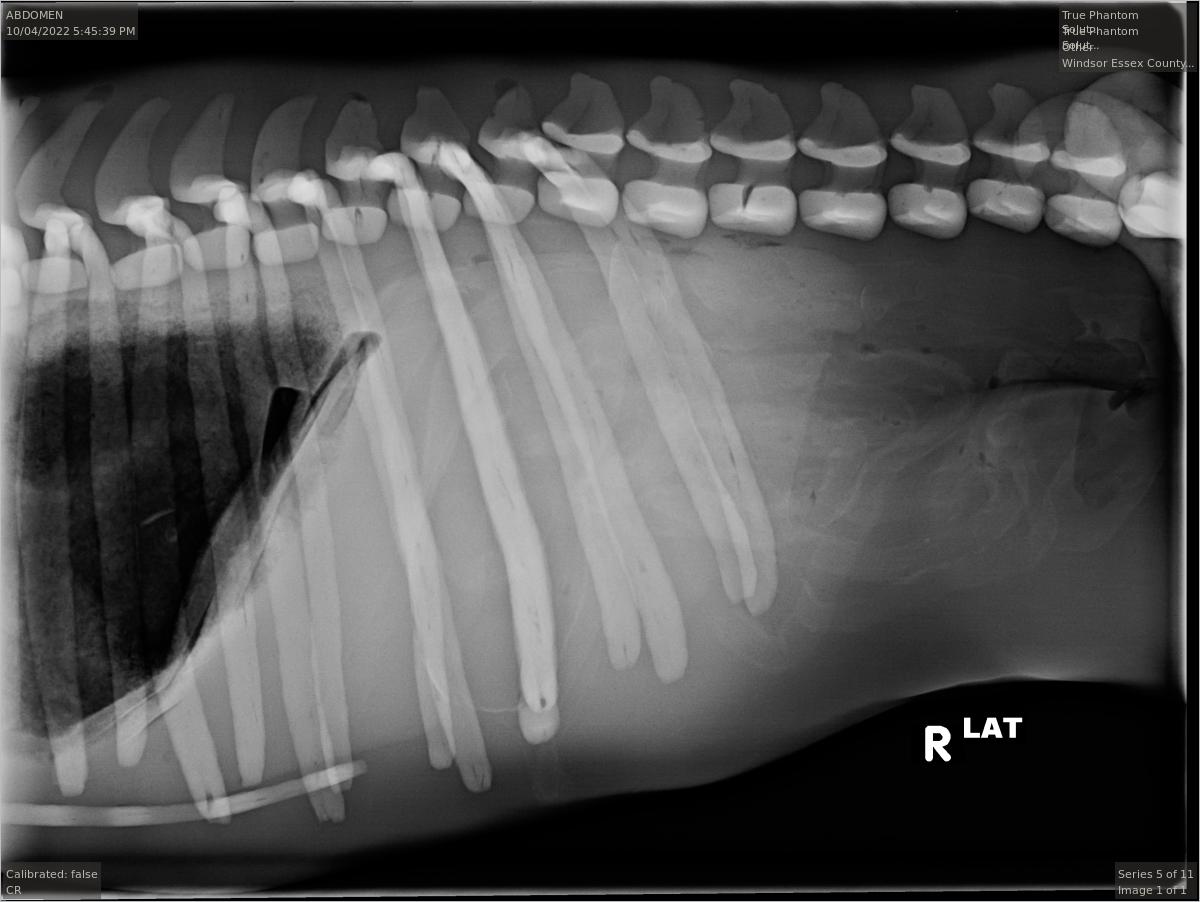

X-Ray Scans:

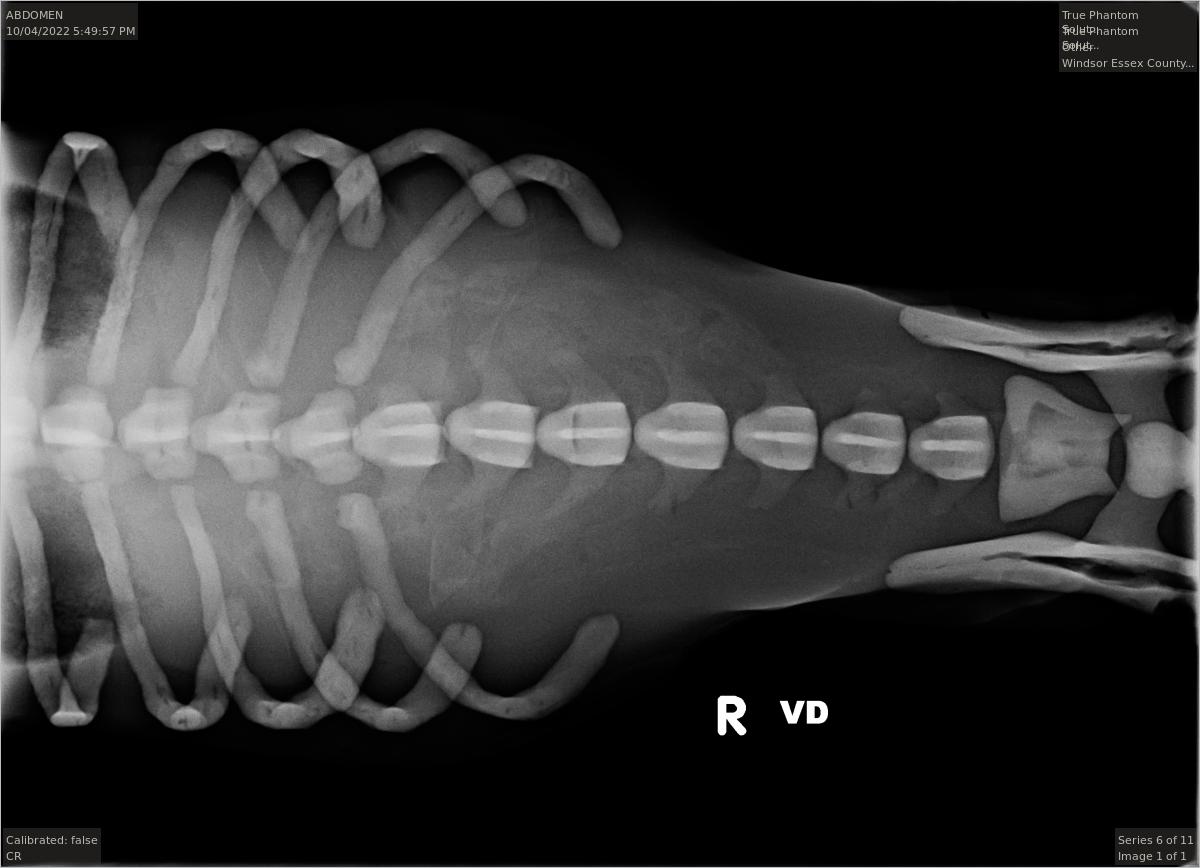

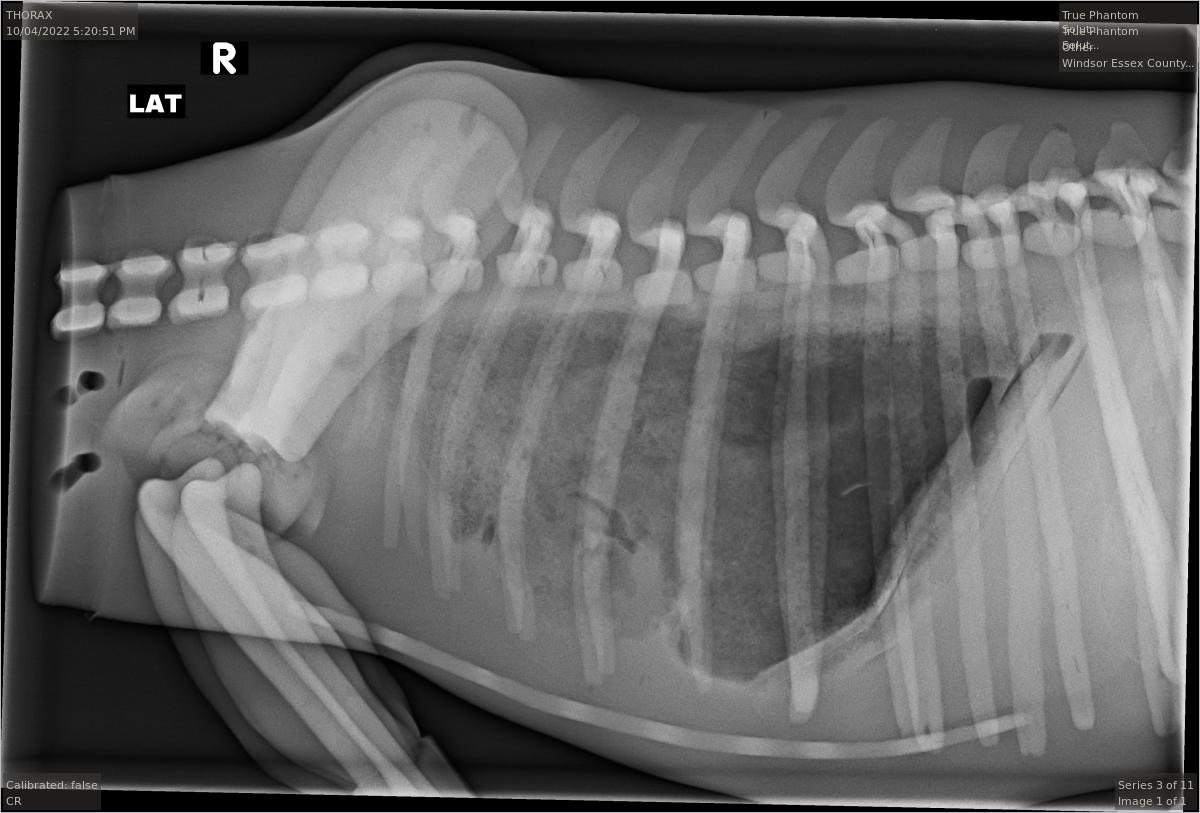

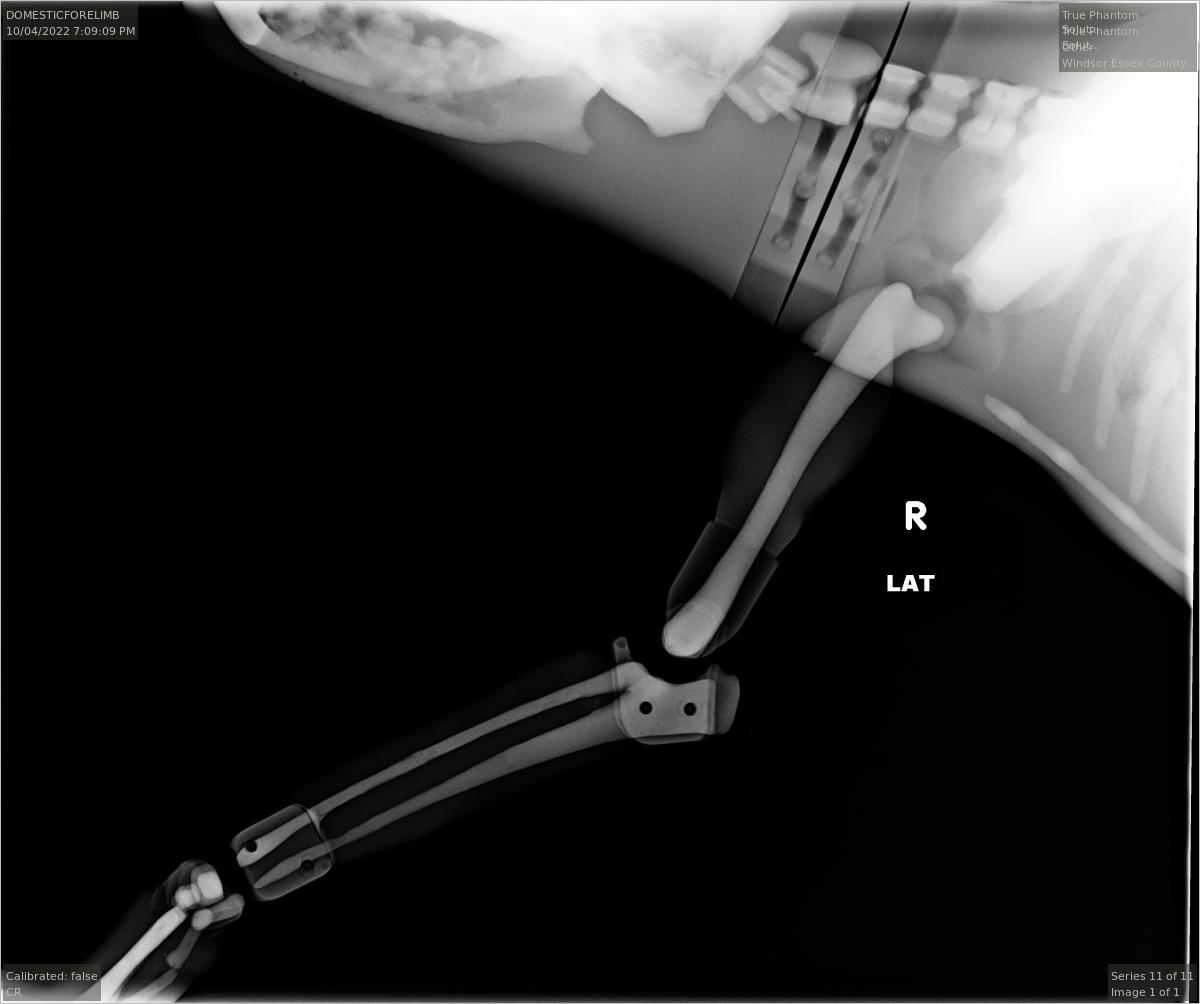

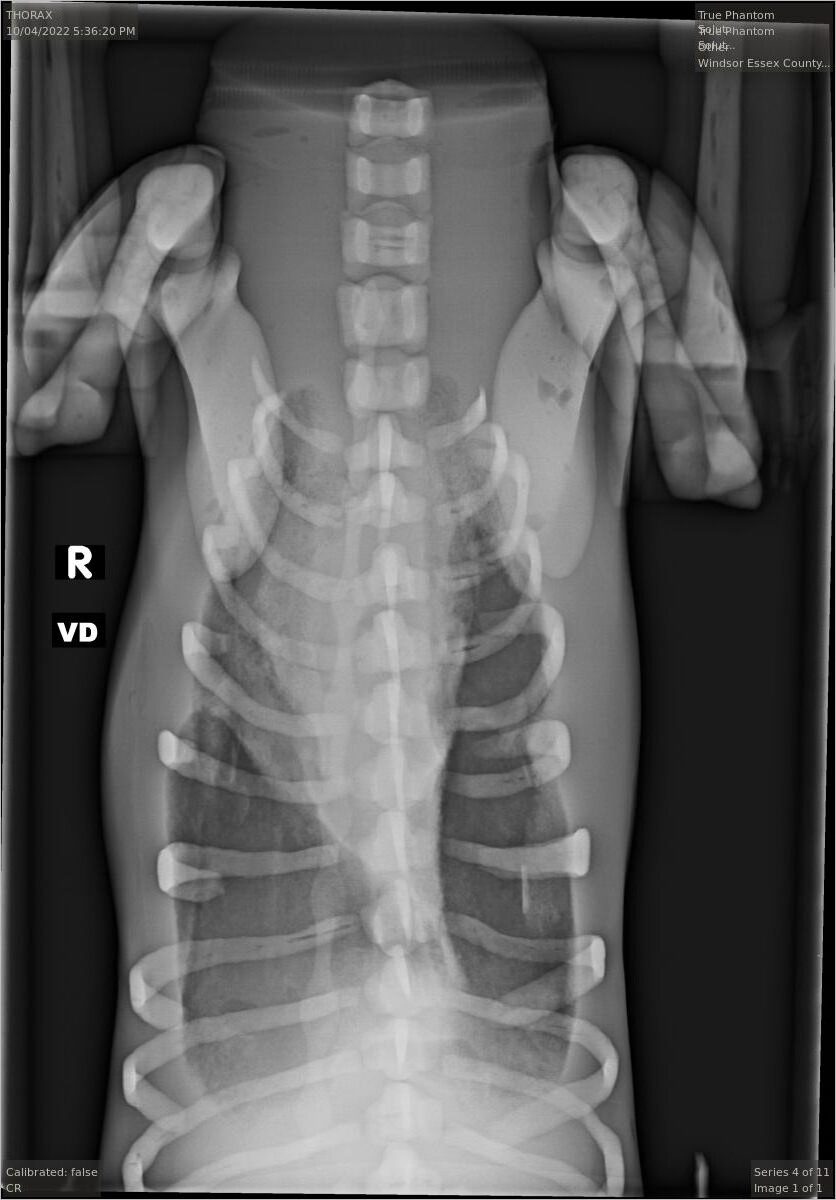

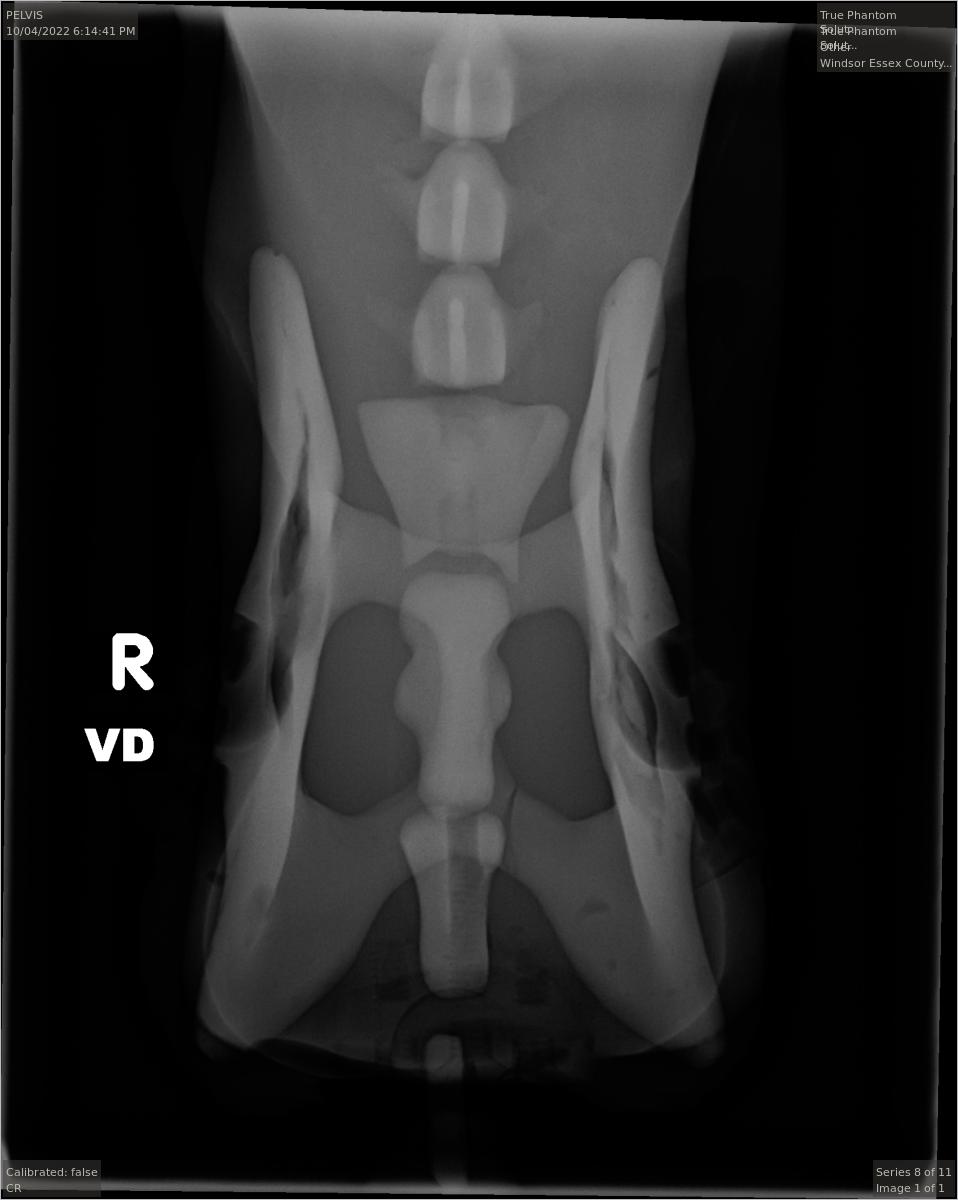

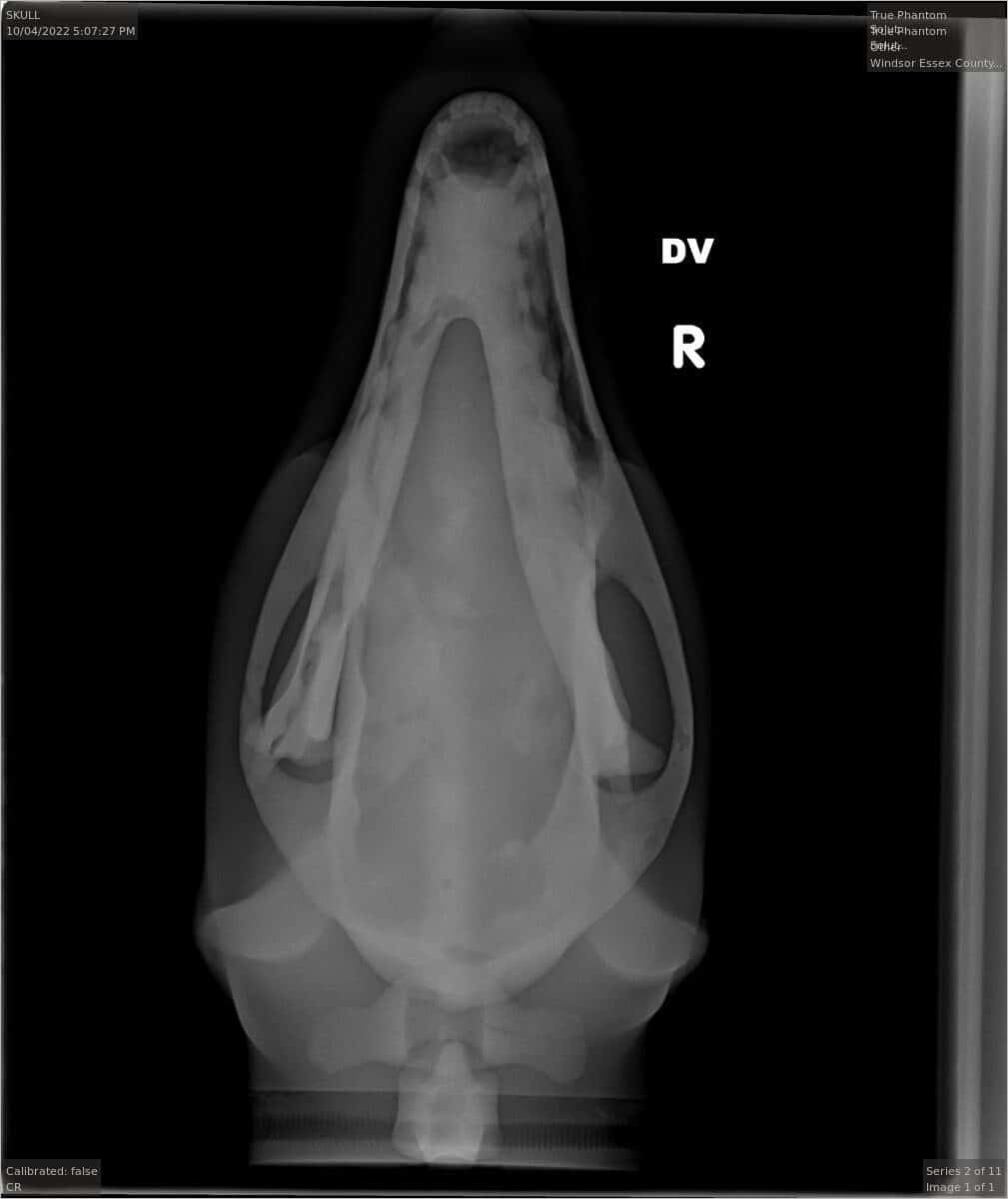

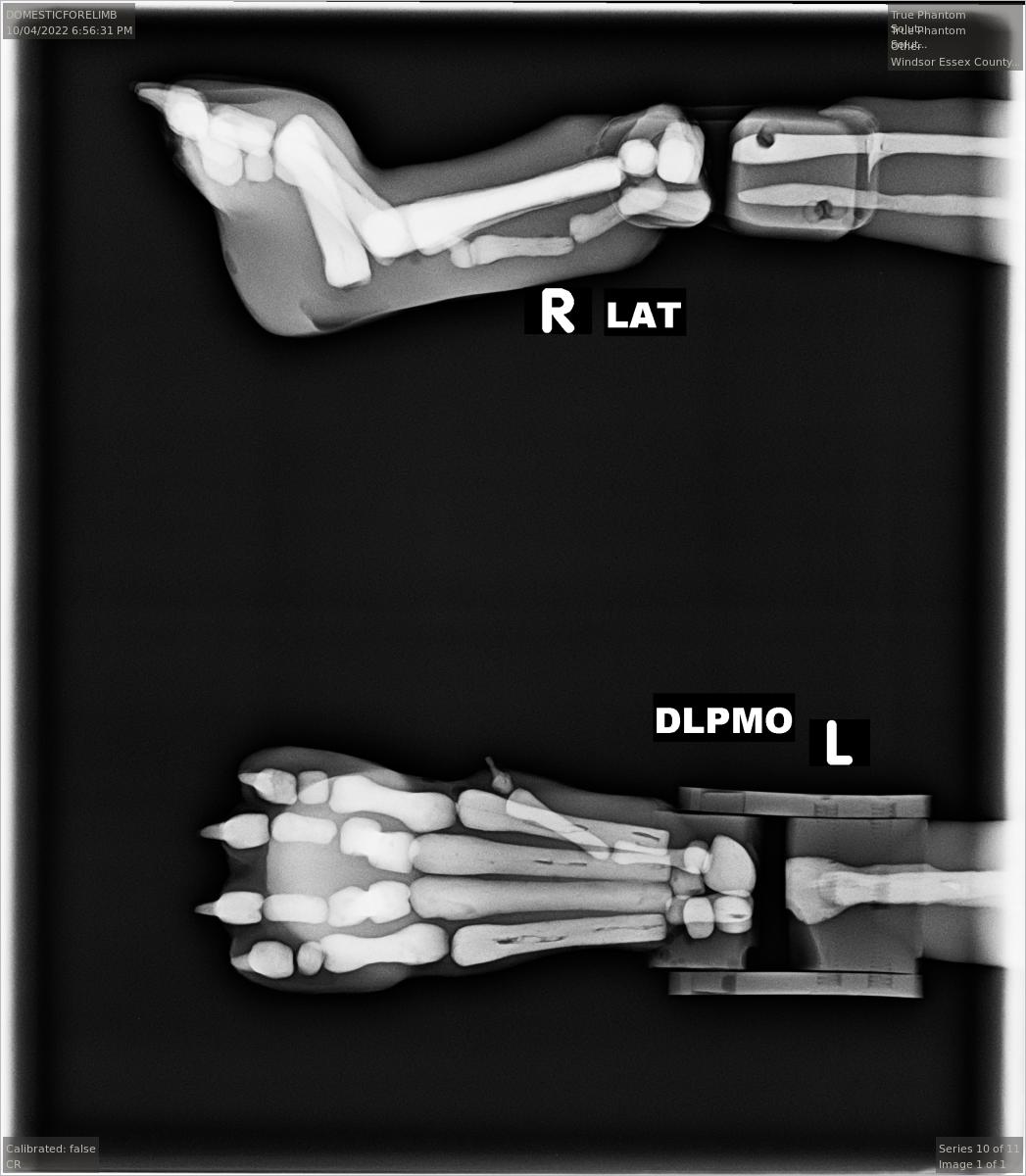

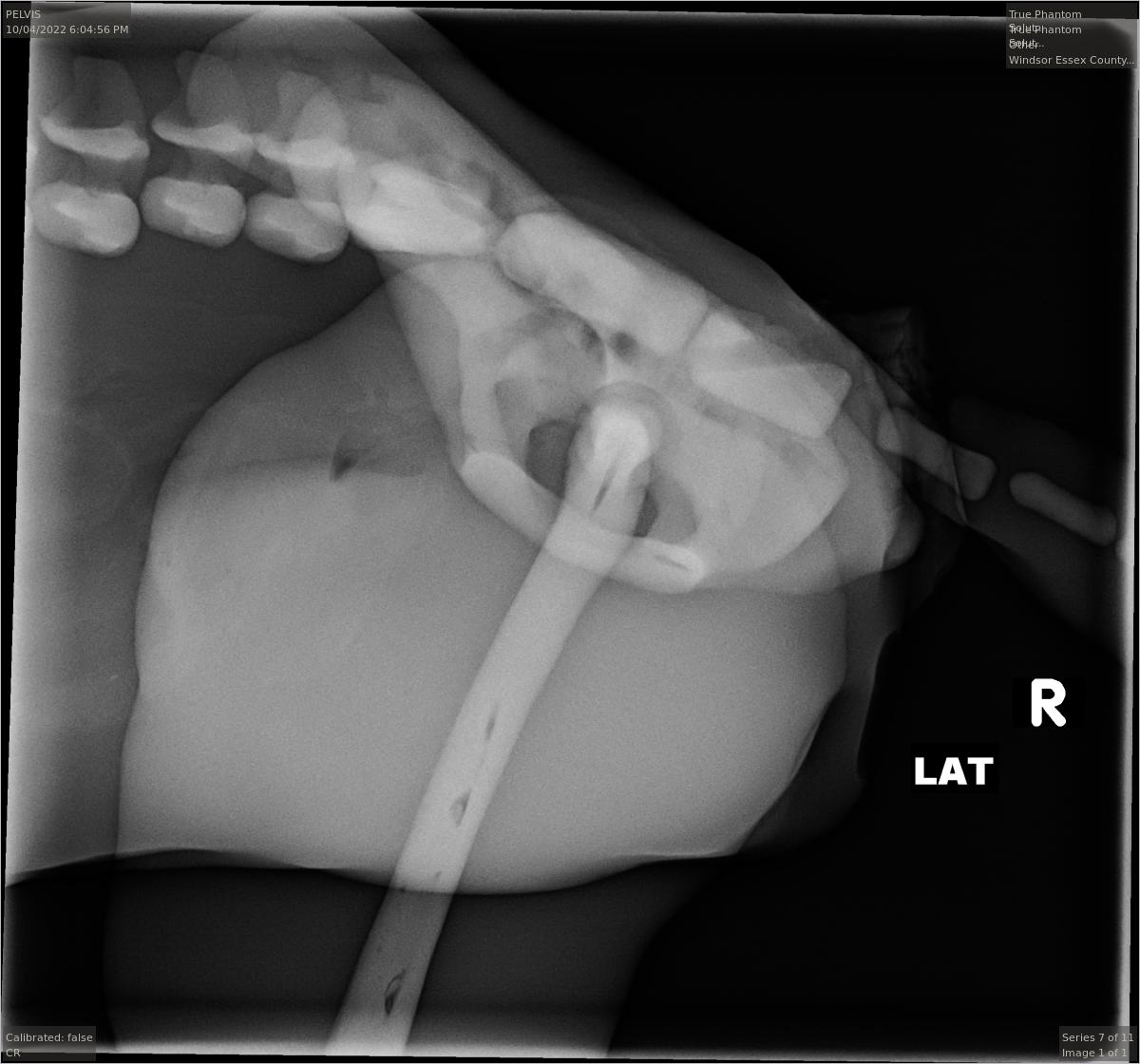

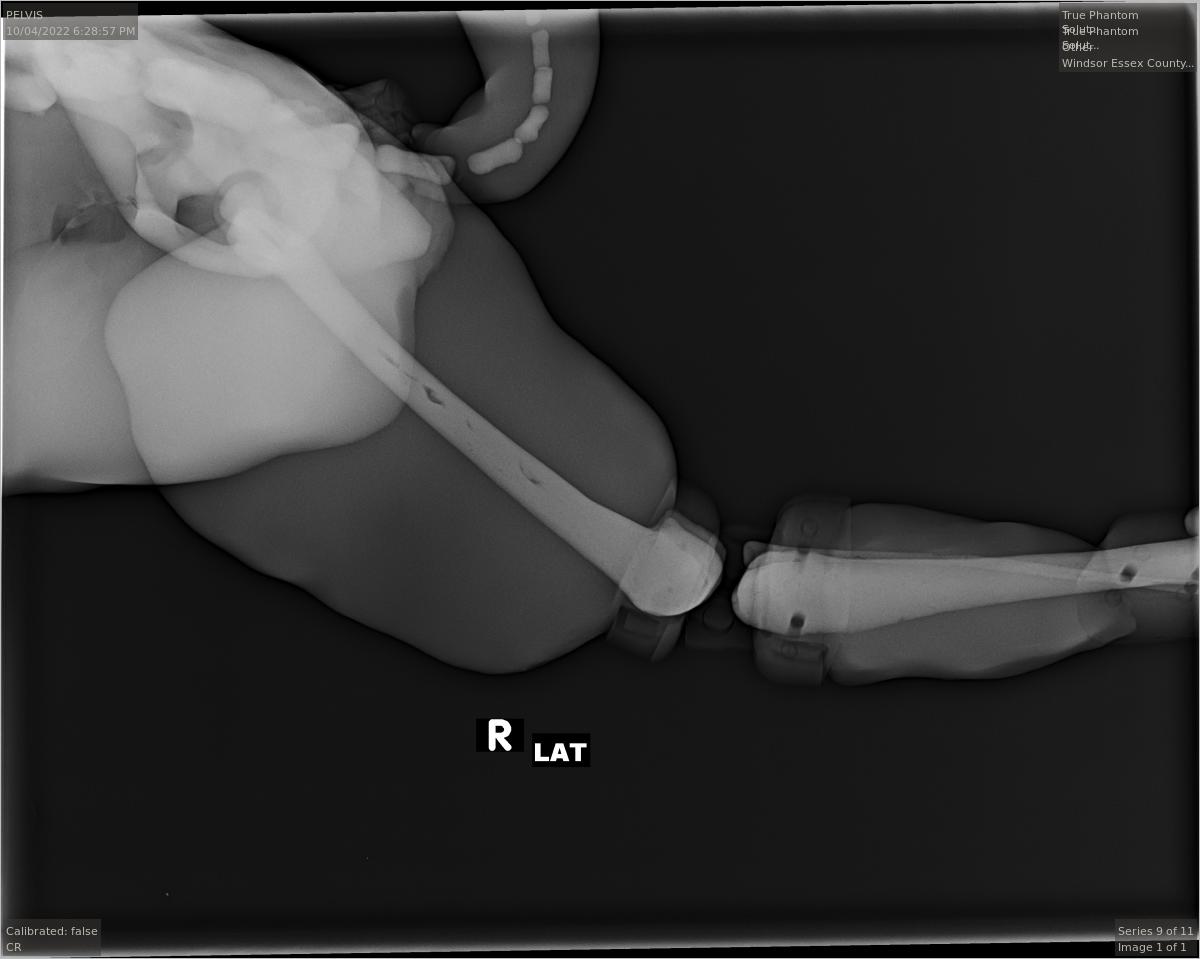

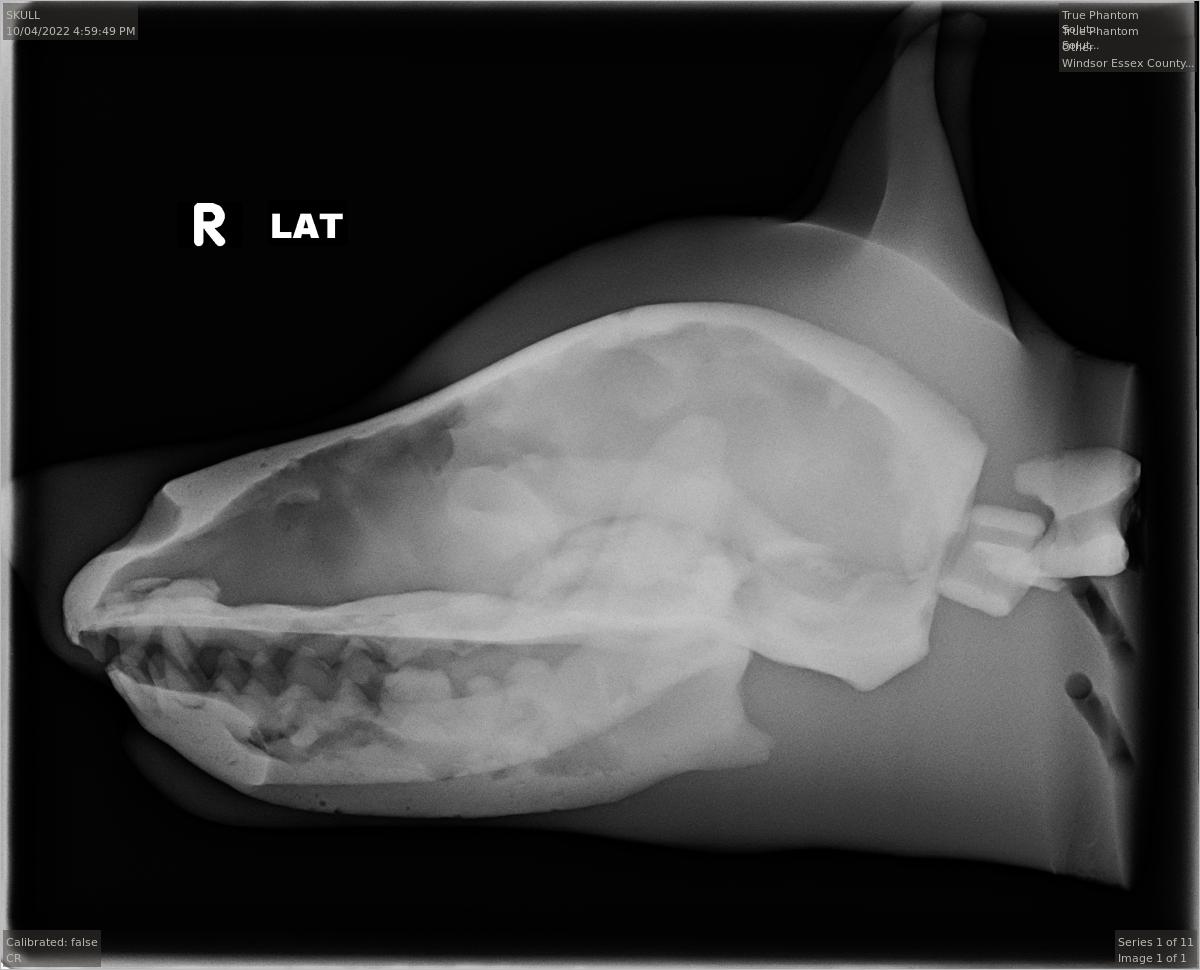

The above X-RAY images were obtained from a standard phantom of our DG-A01 model. An IMAGE VUE CR 20 X-RAY Scanner was used to scan the phantom. This phantom was scanned and validated by Elyse Morassutti, a registered Veterinary technician from the Windsor-Essex County Humane Society

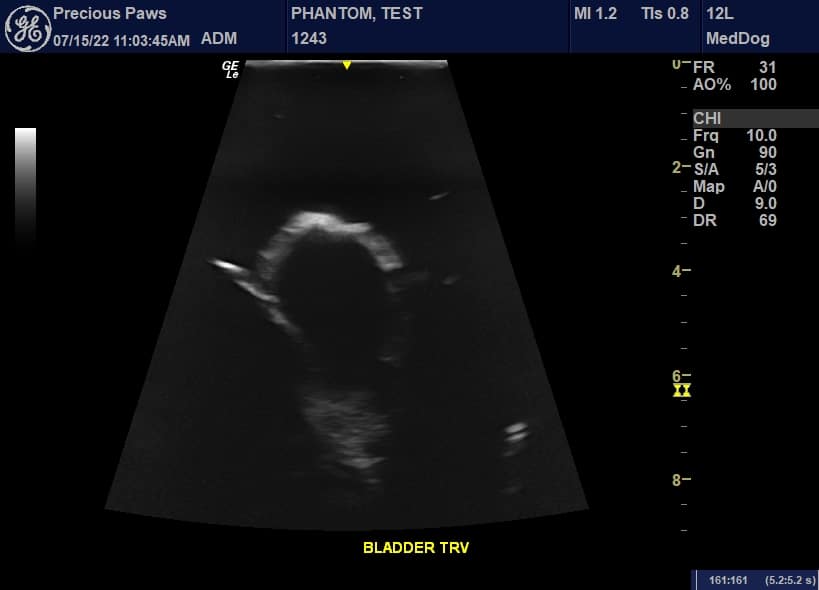

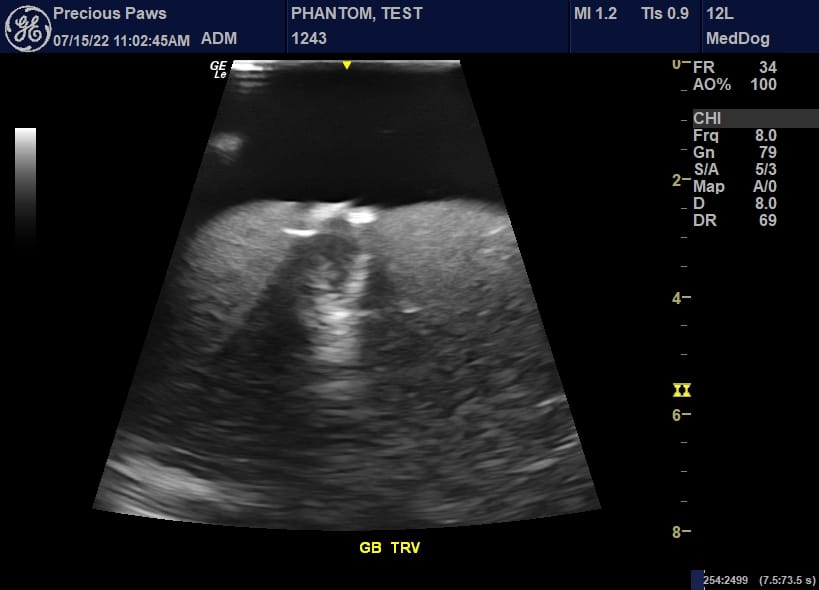

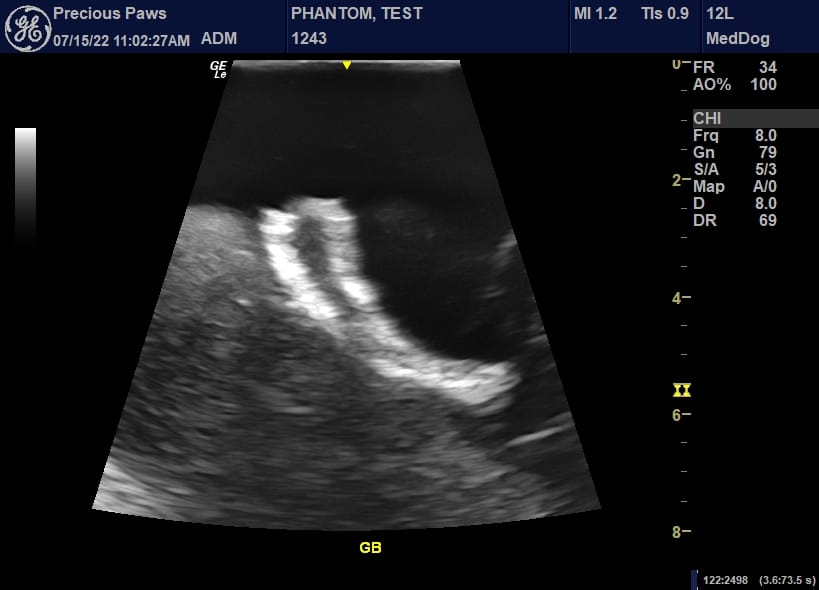

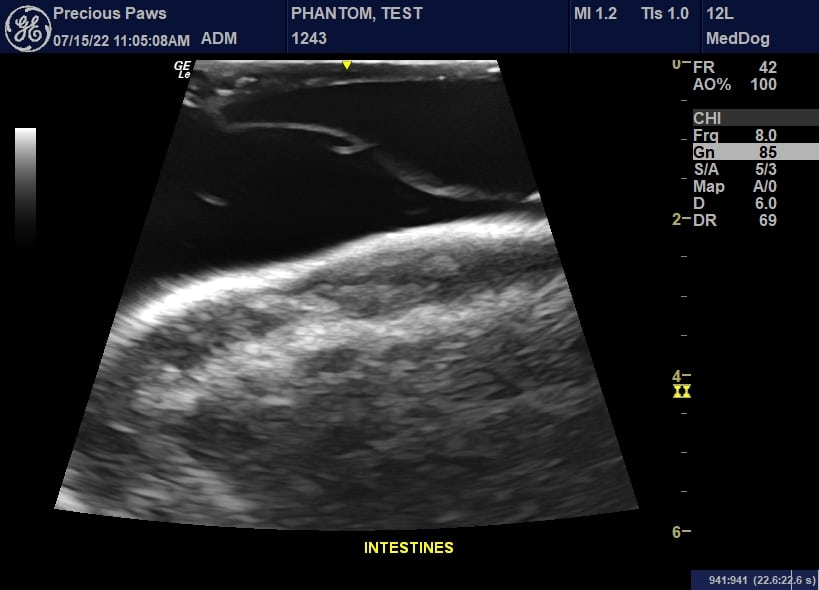

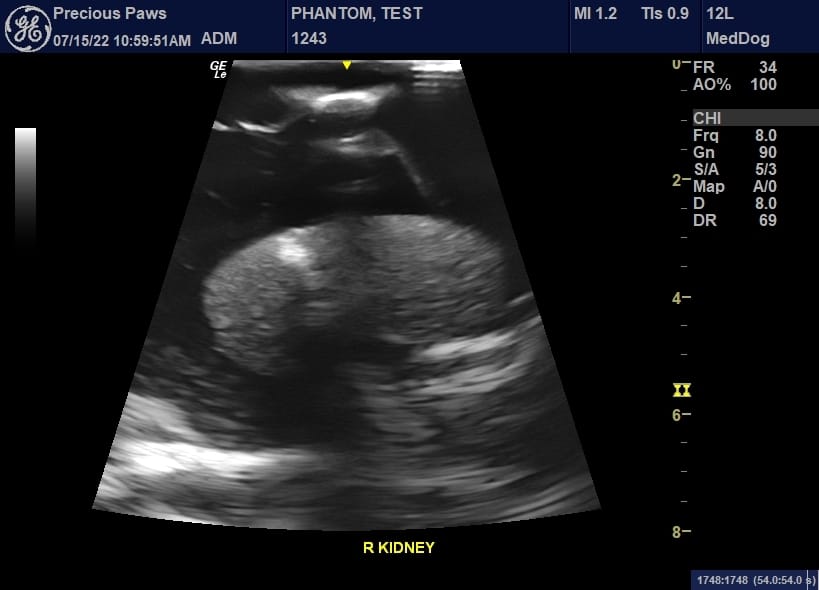

Ultrasound Scans:

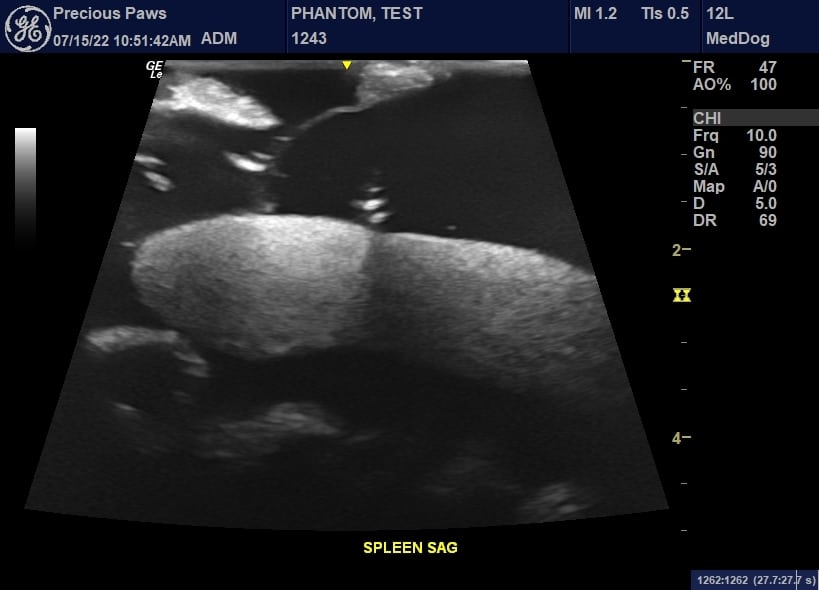

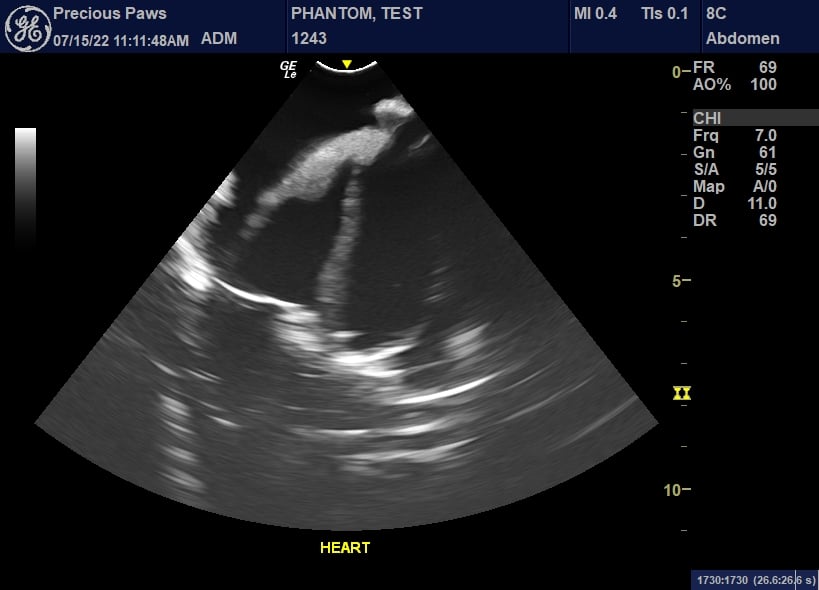

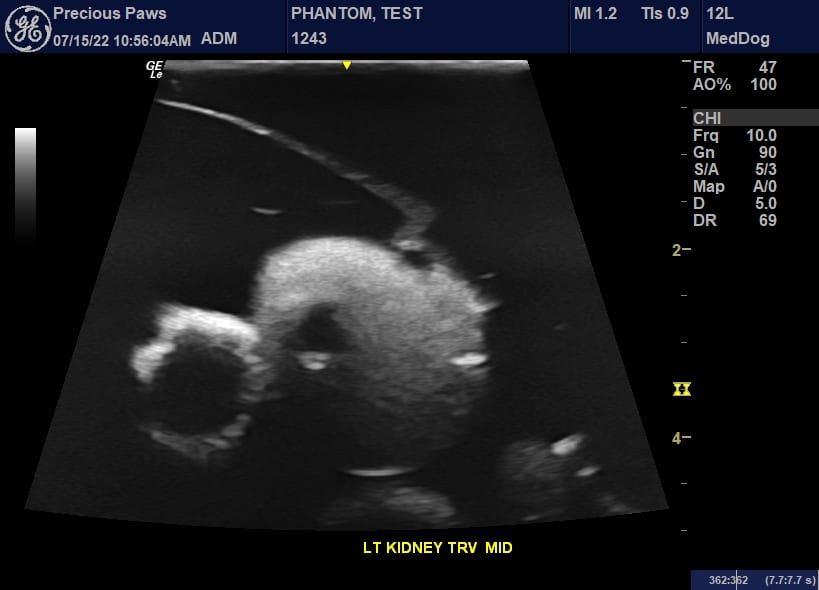

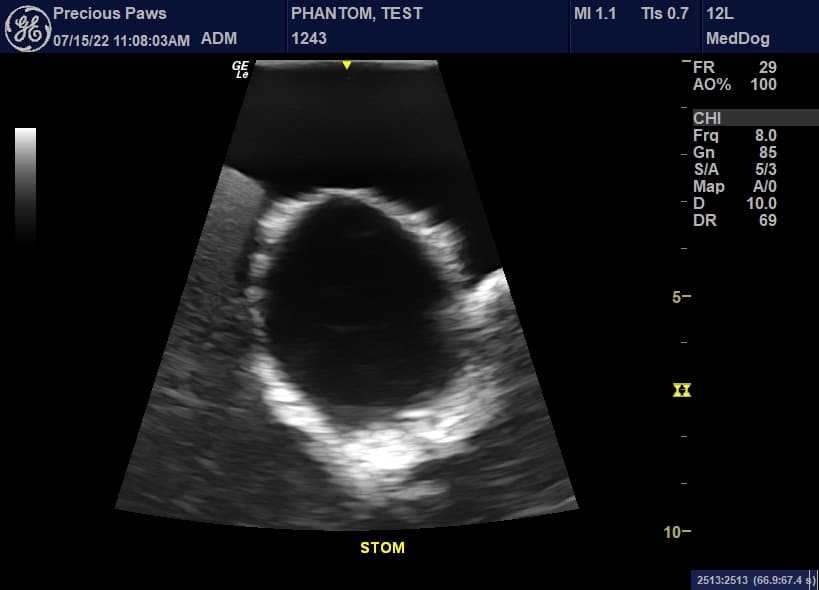

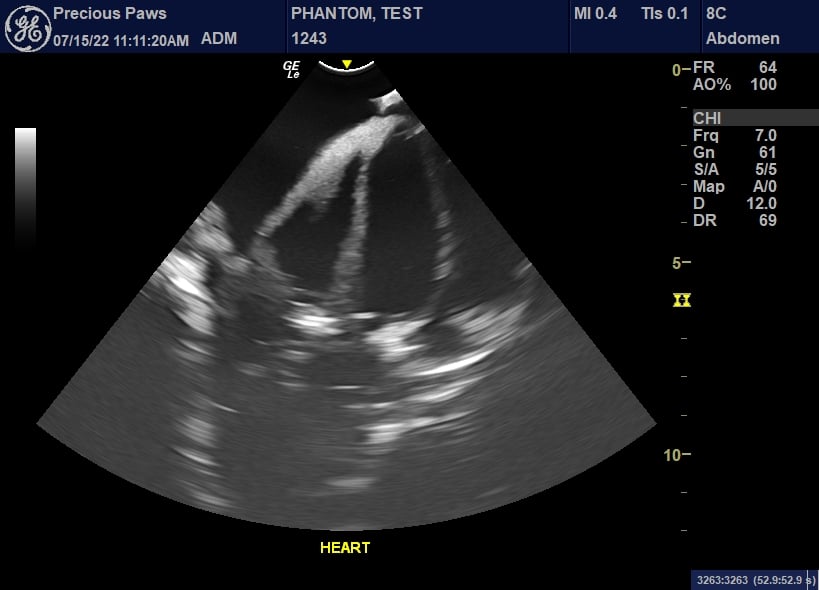

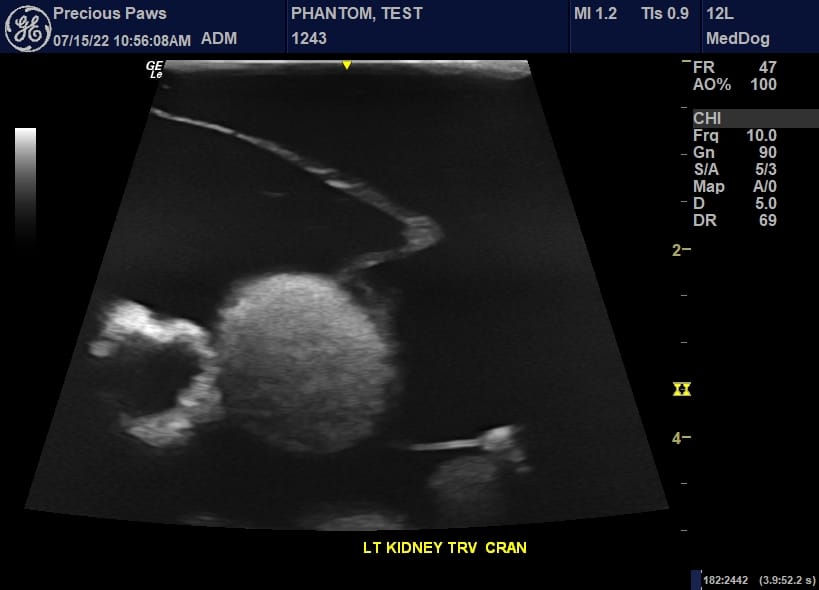

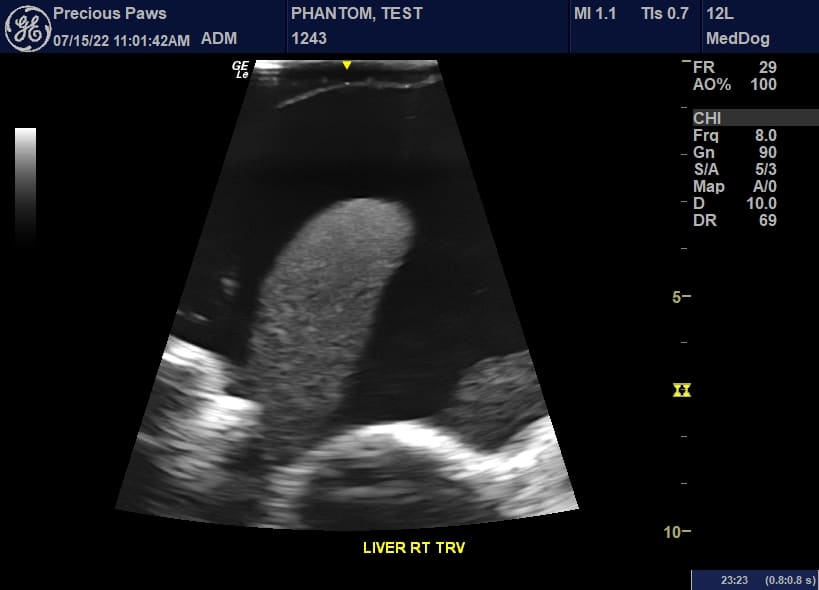

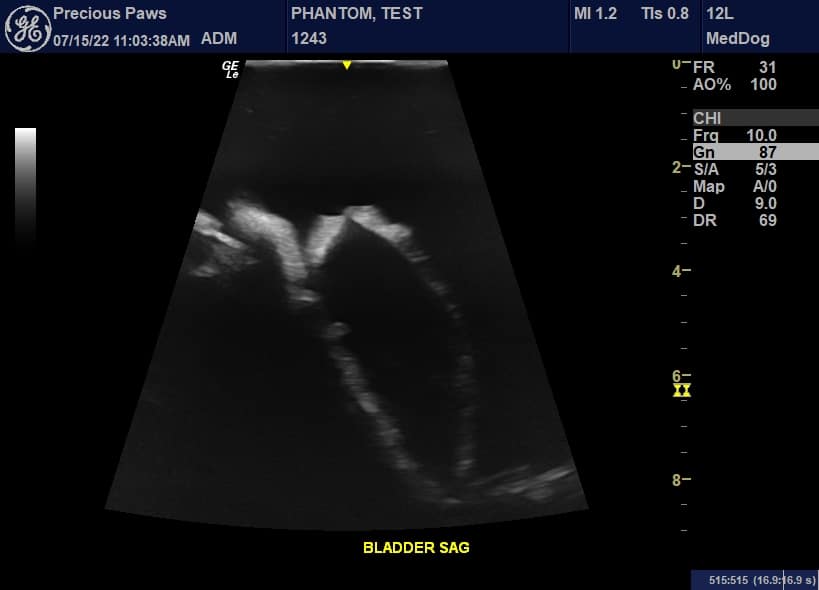

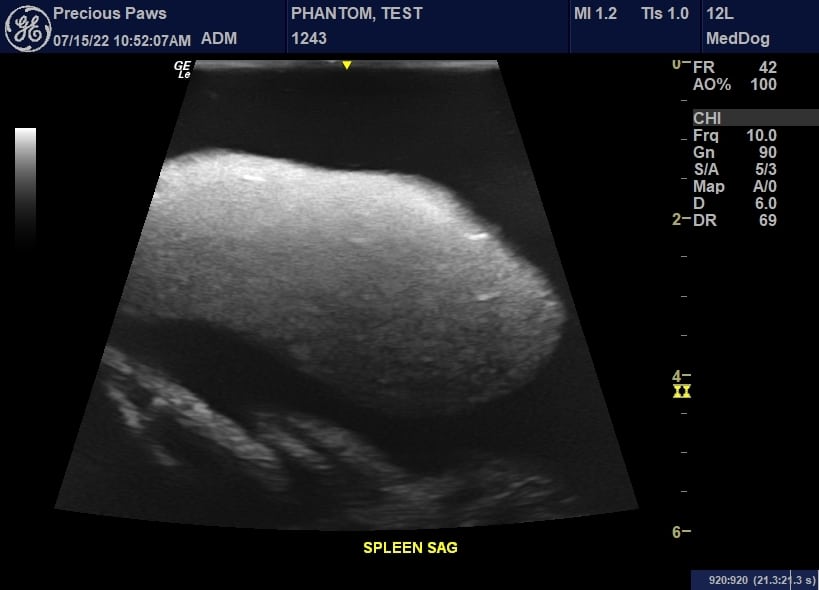

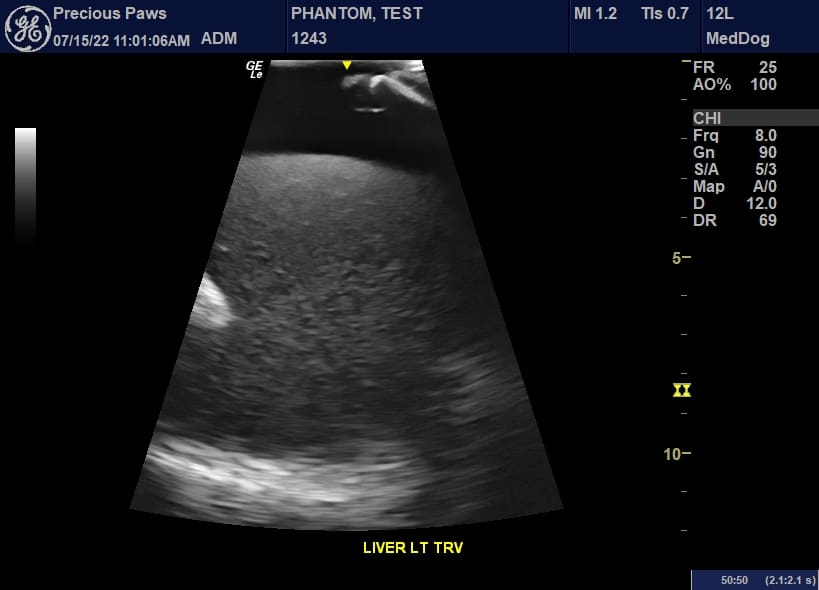

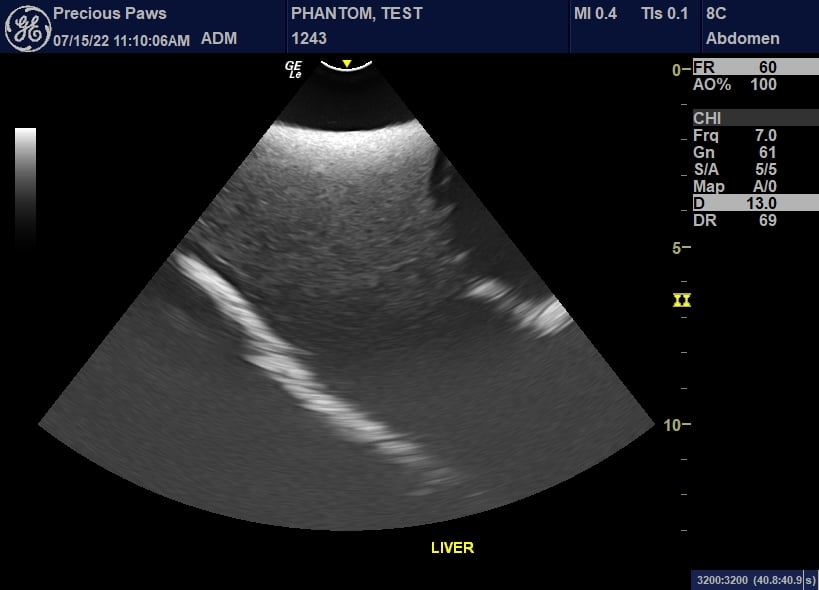

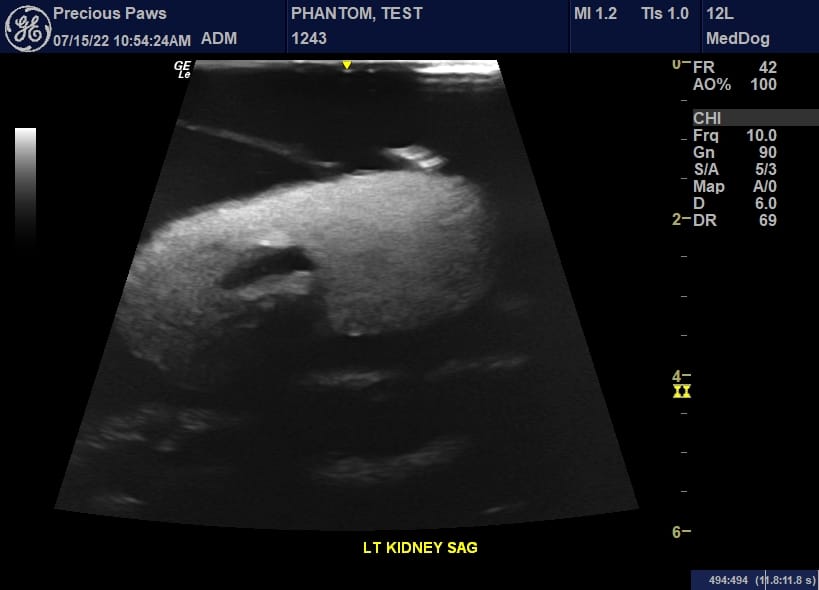

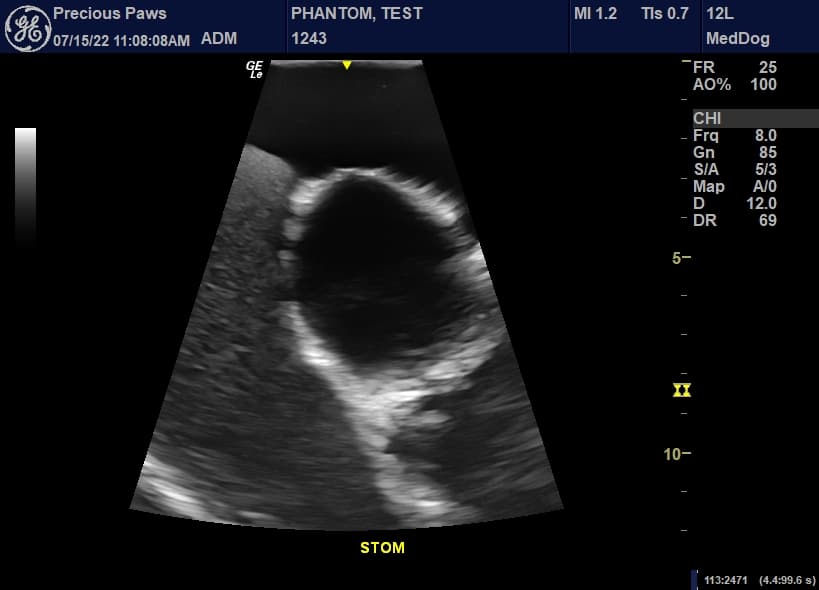

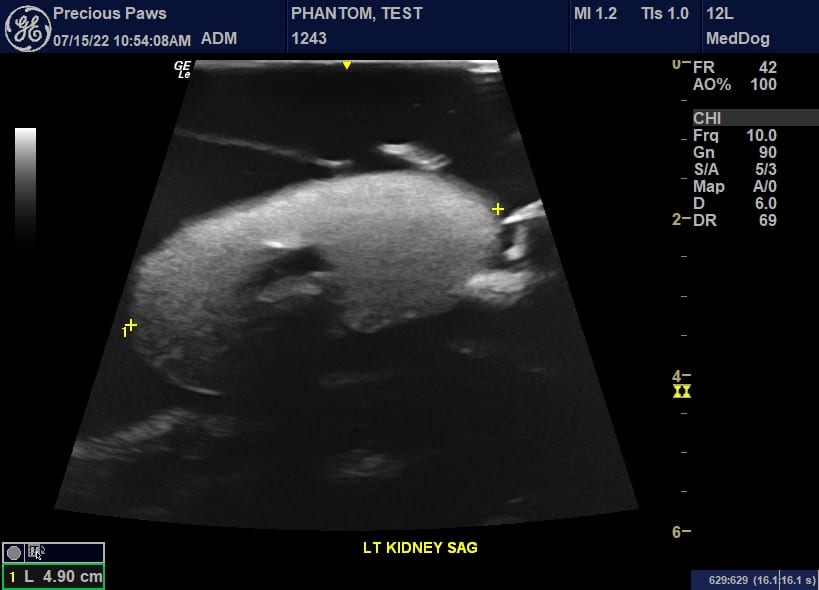

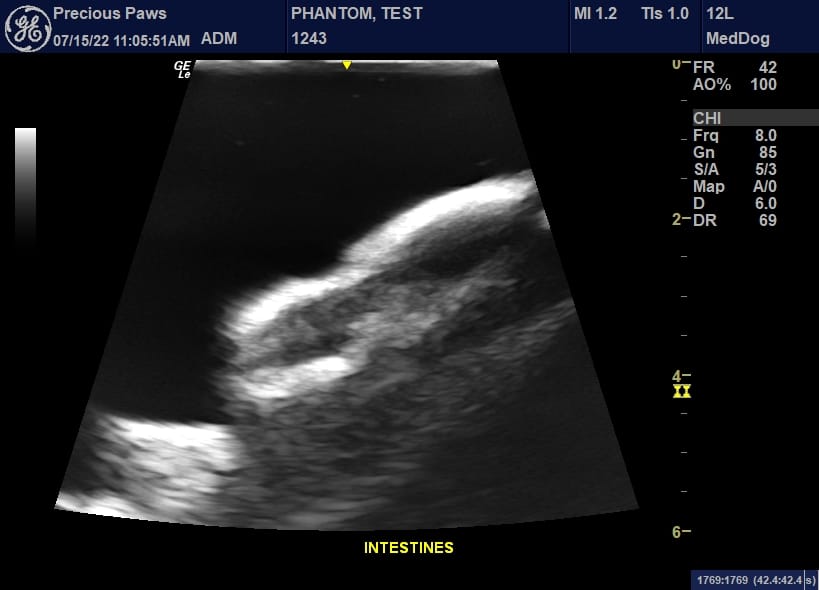

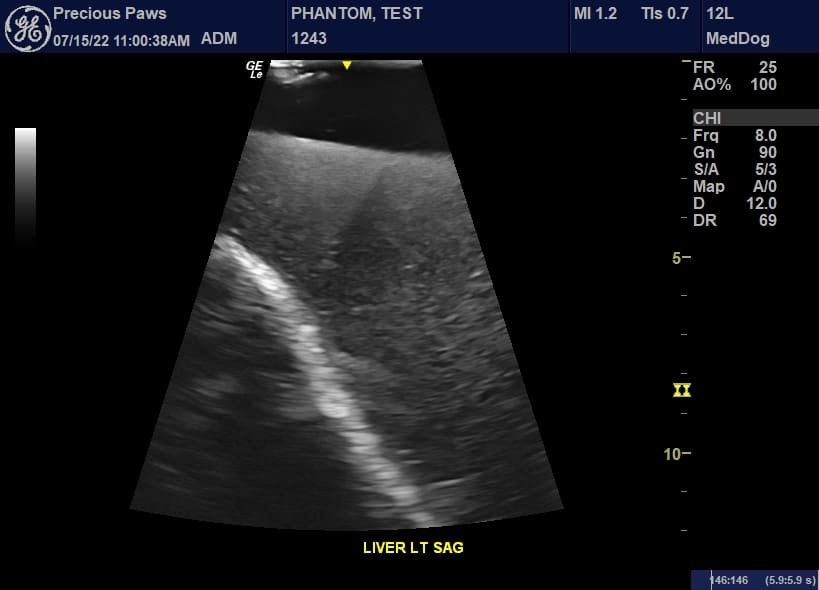

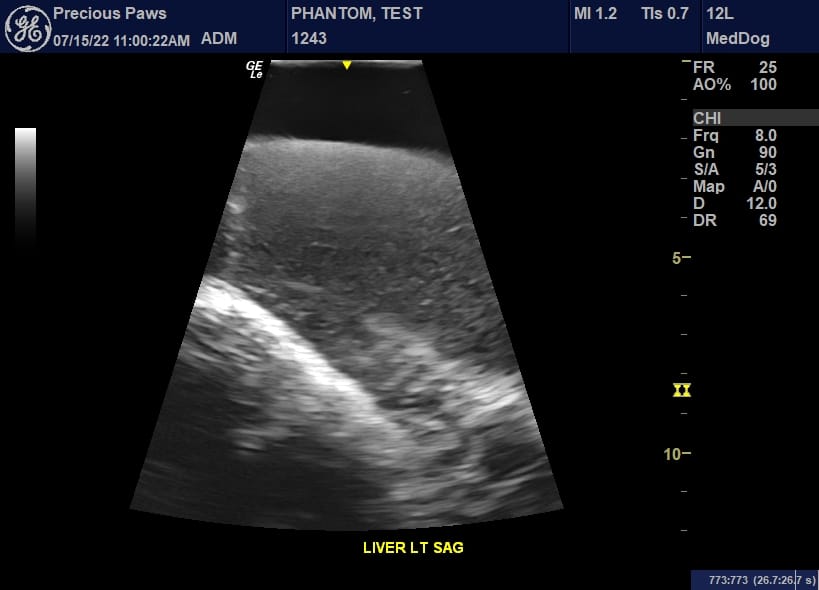

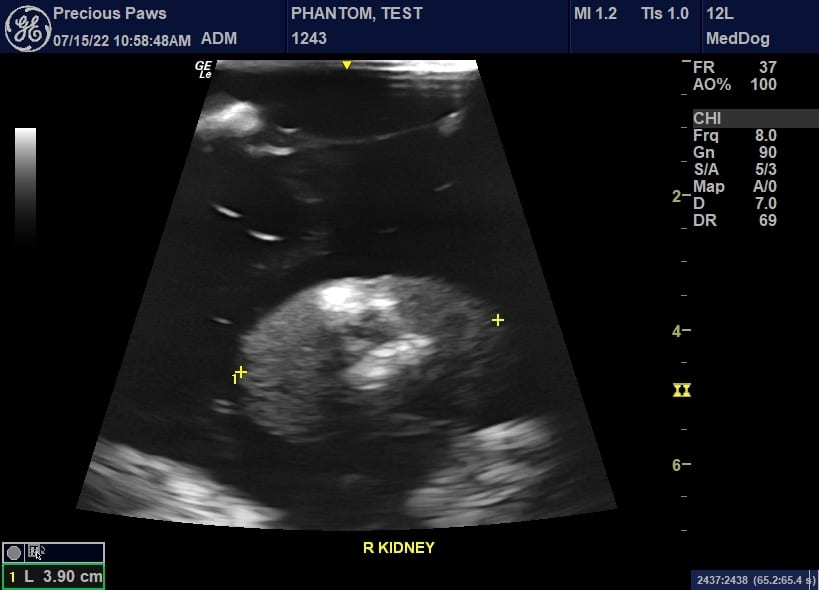

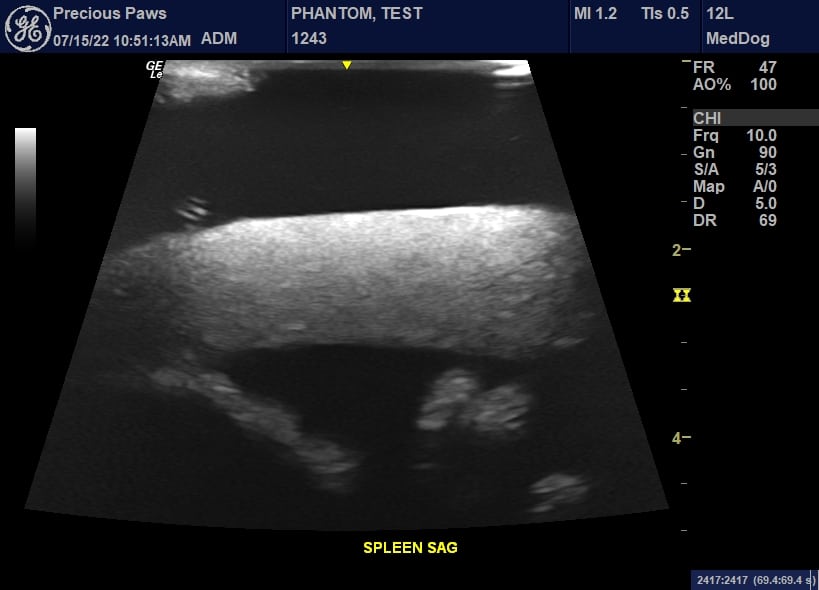

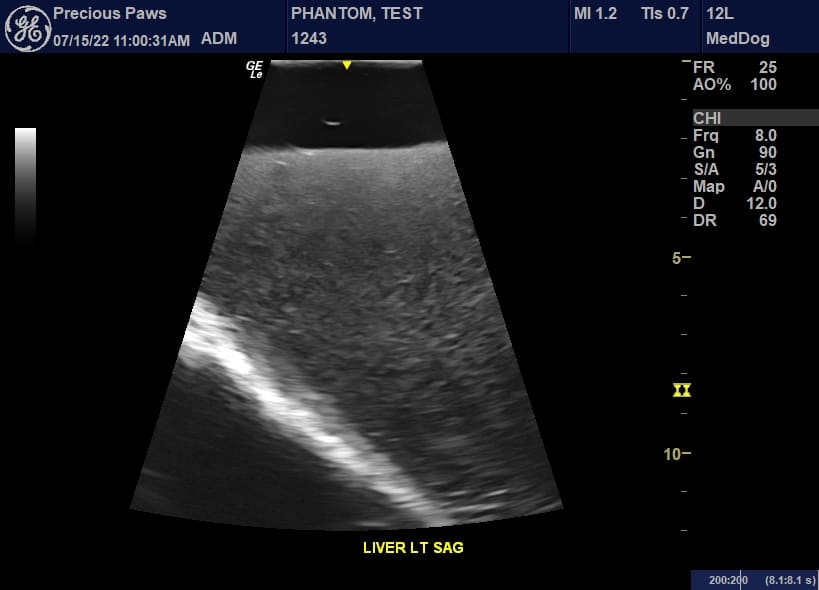

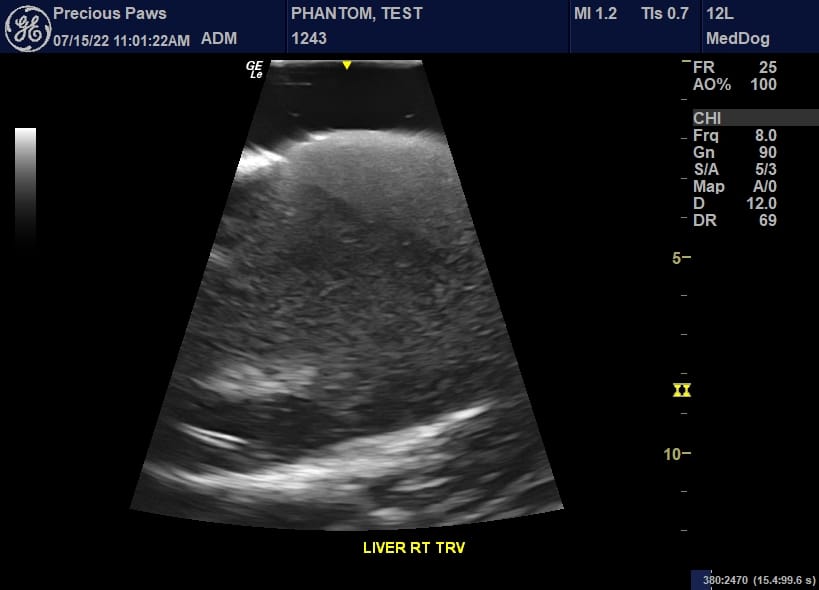

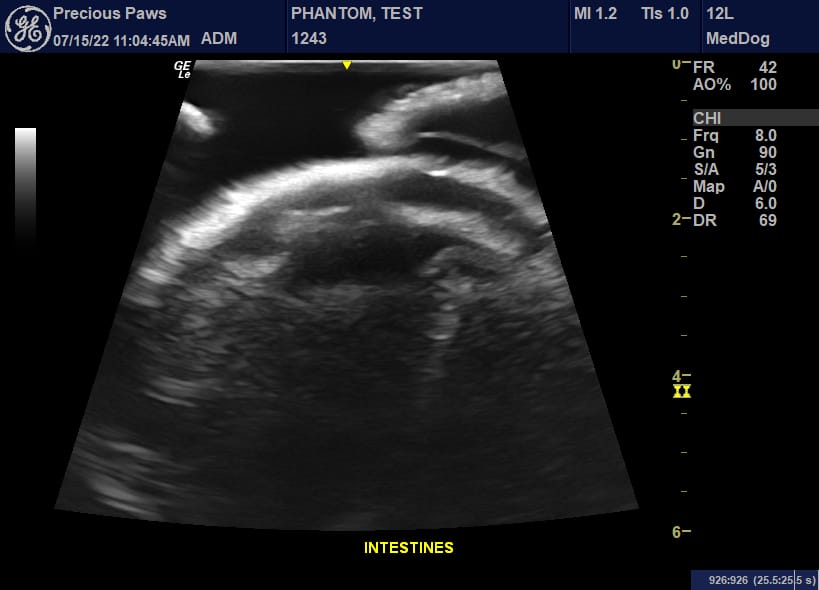

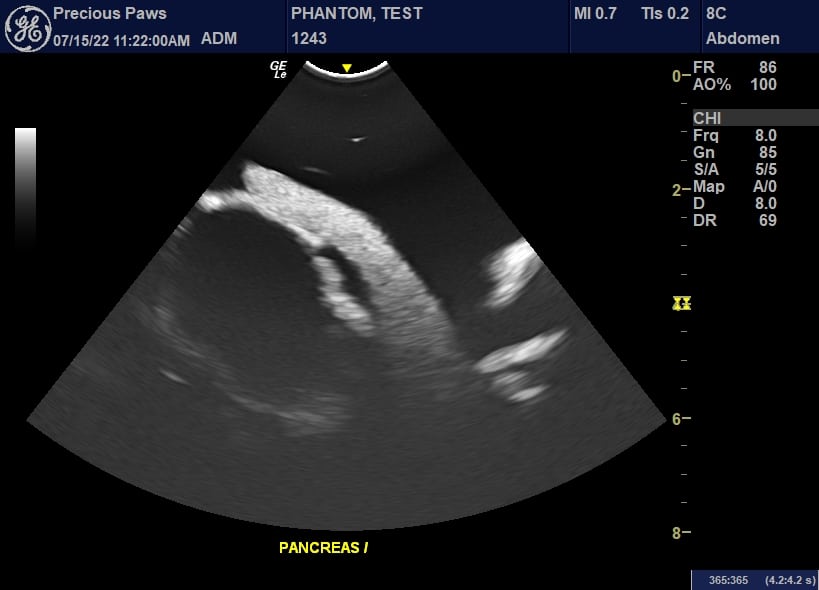

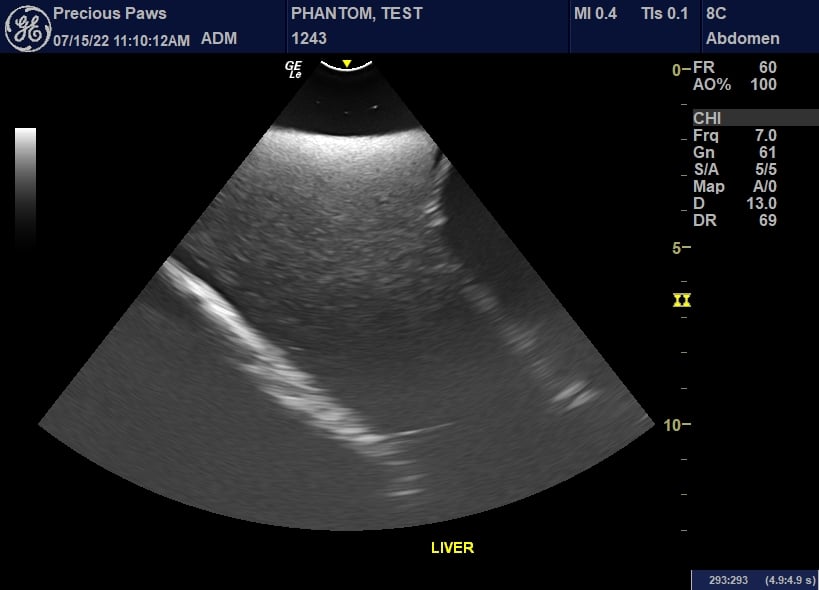

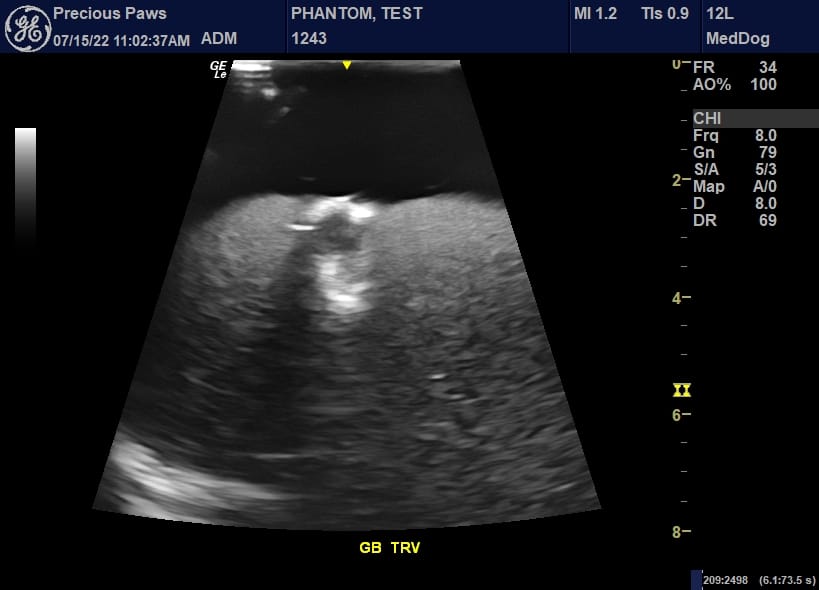

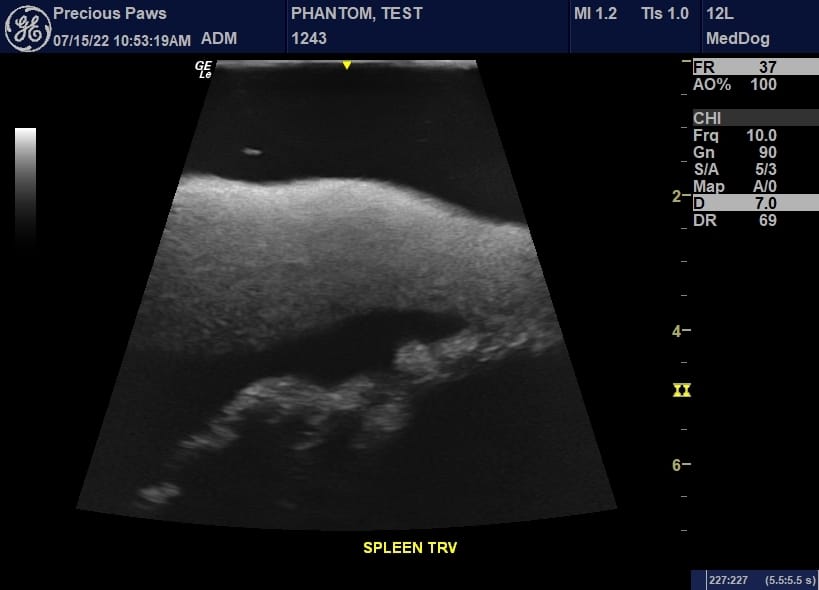

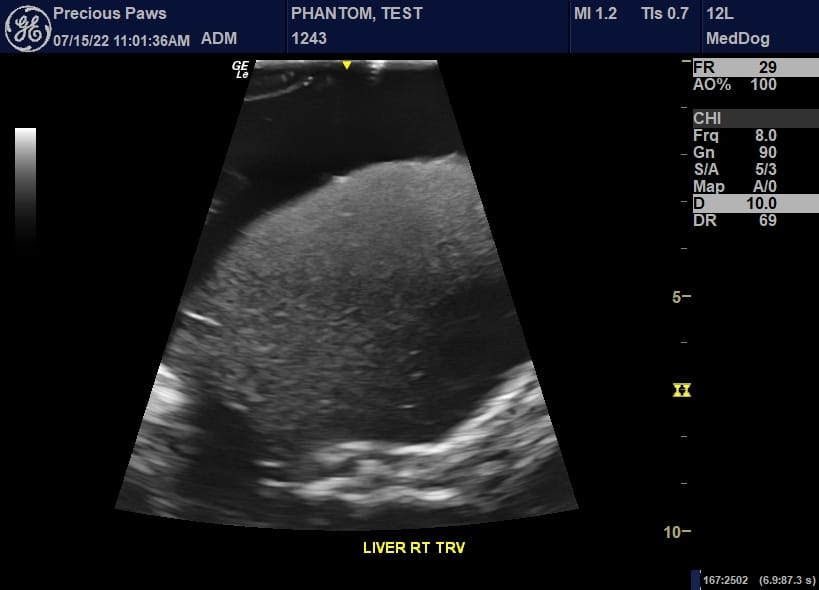

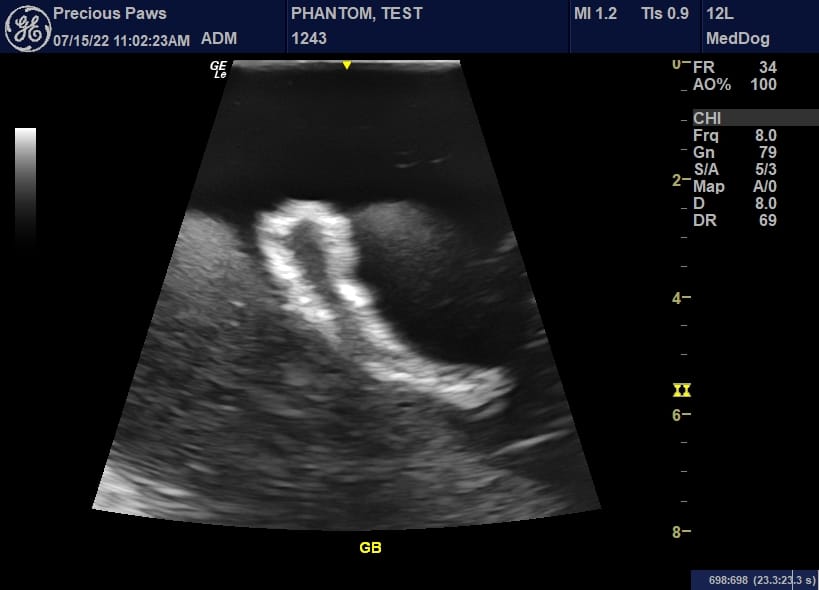

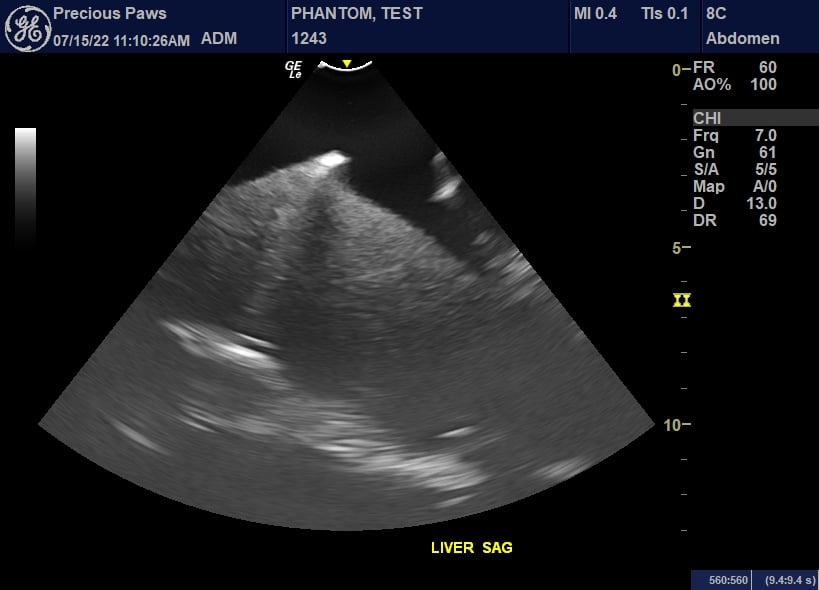

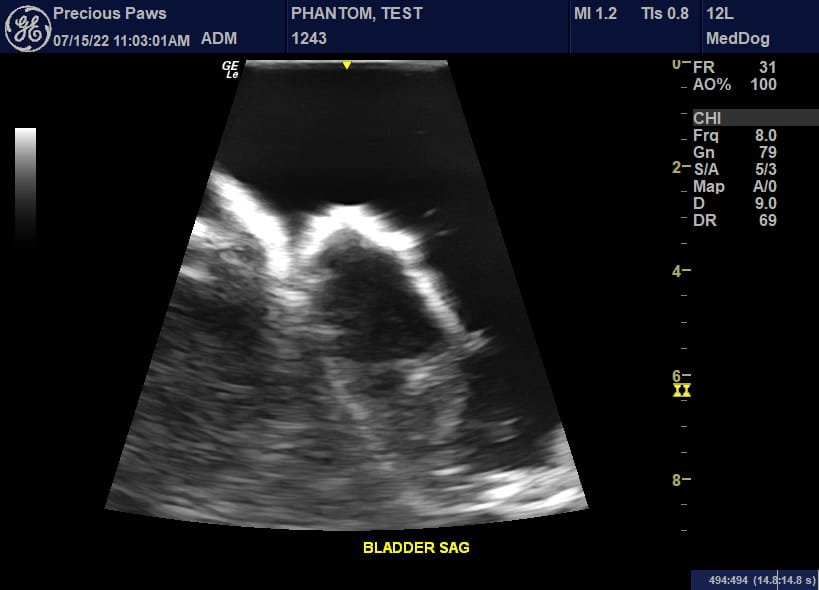

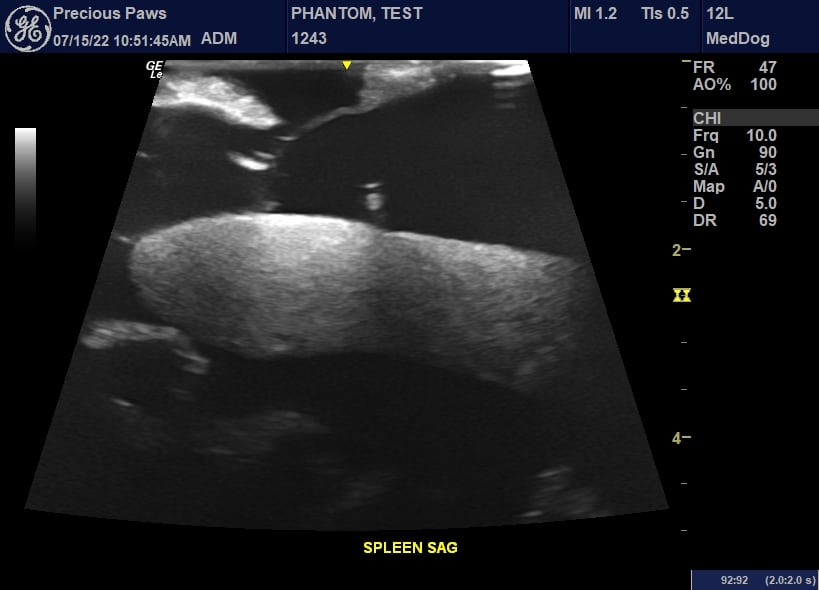

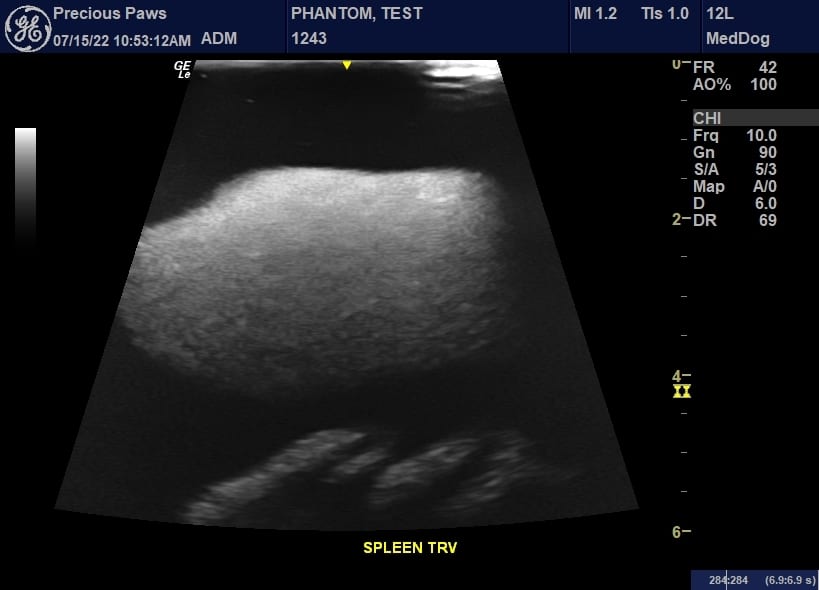

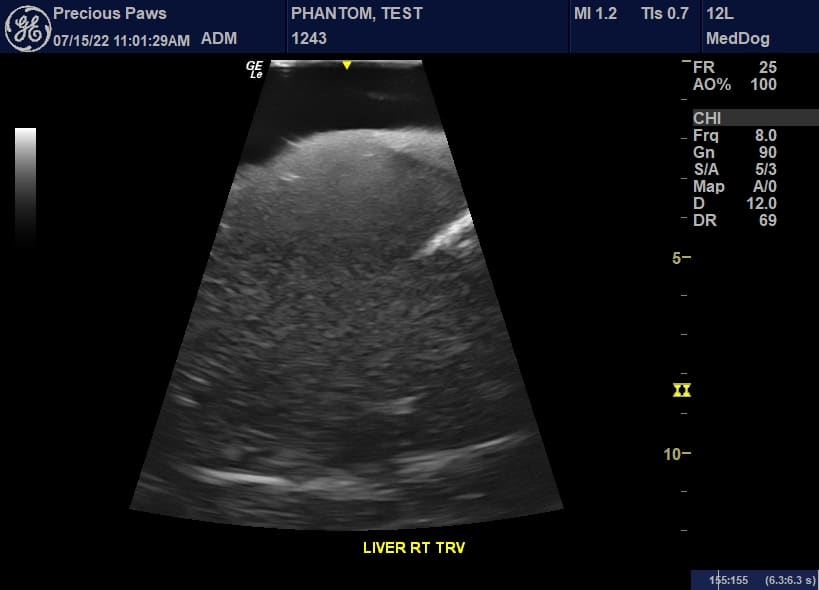

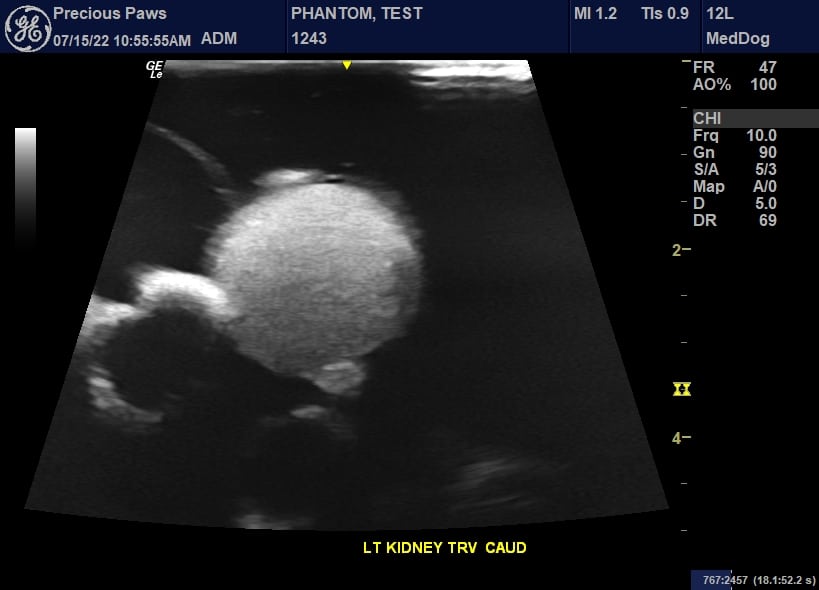

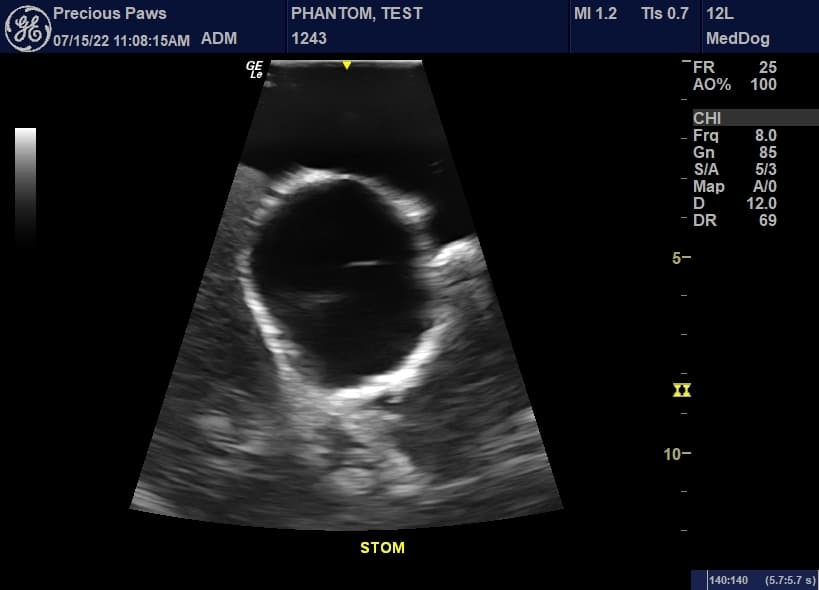

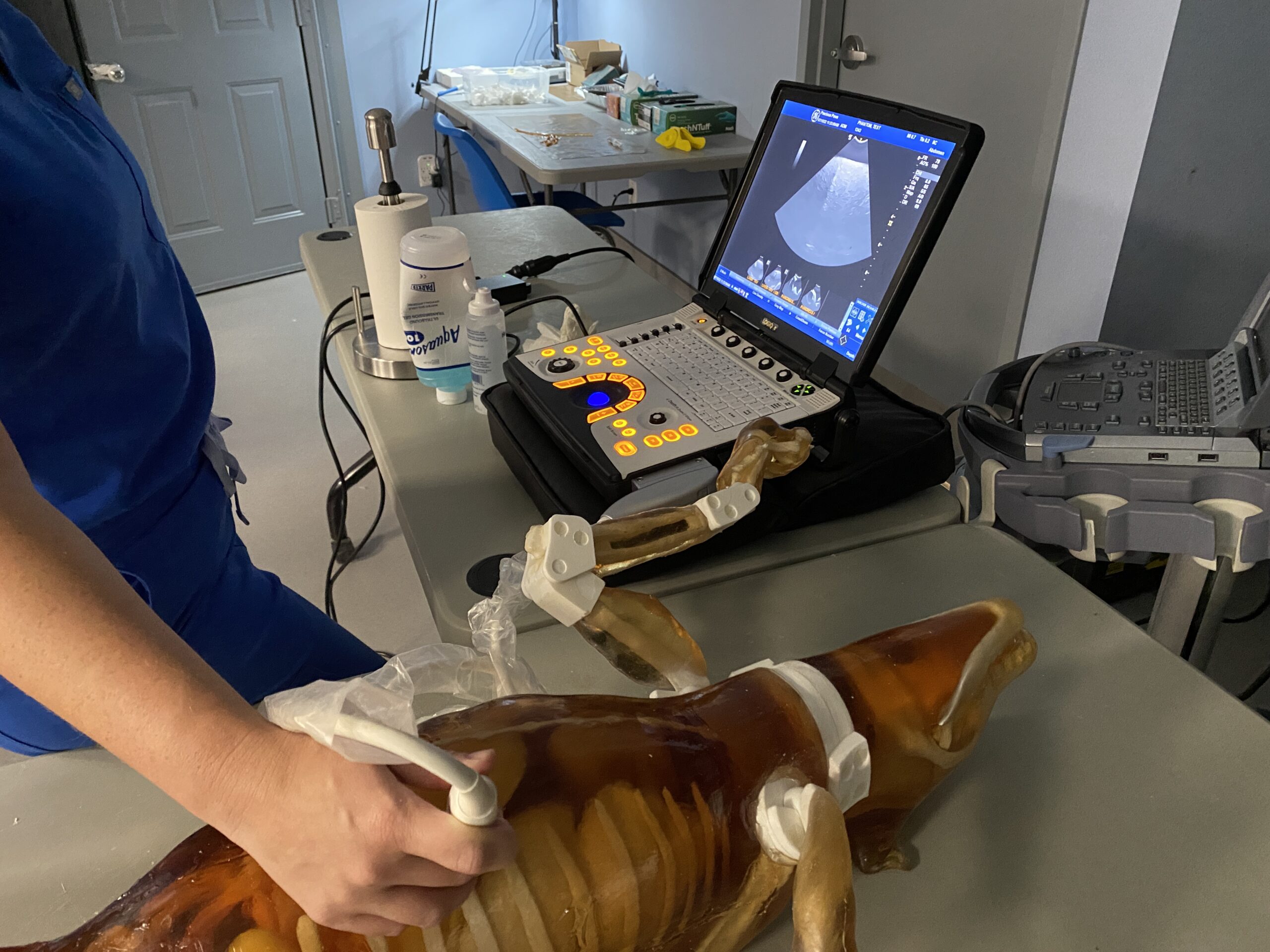

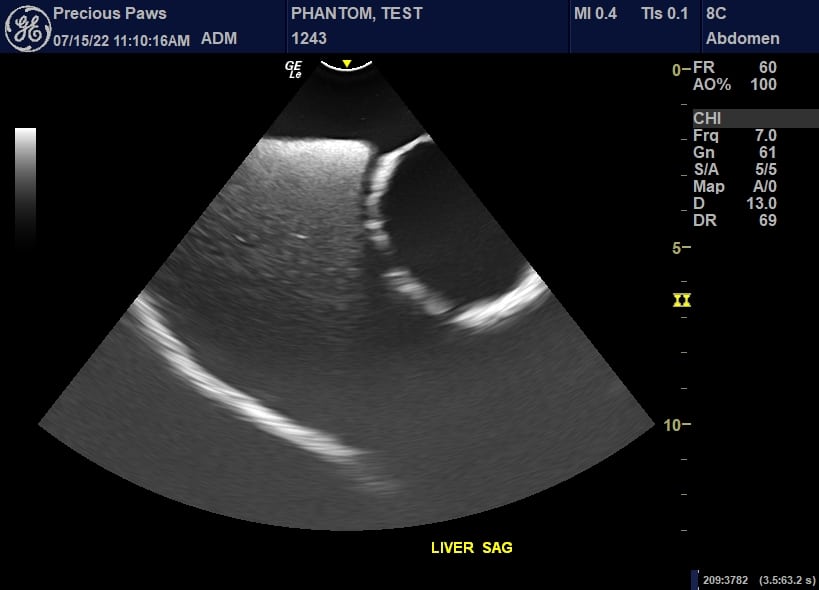

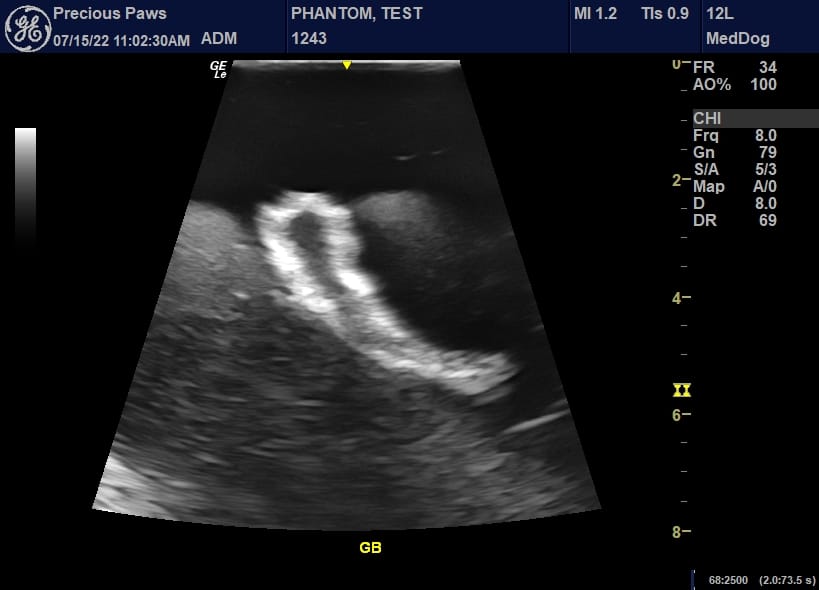

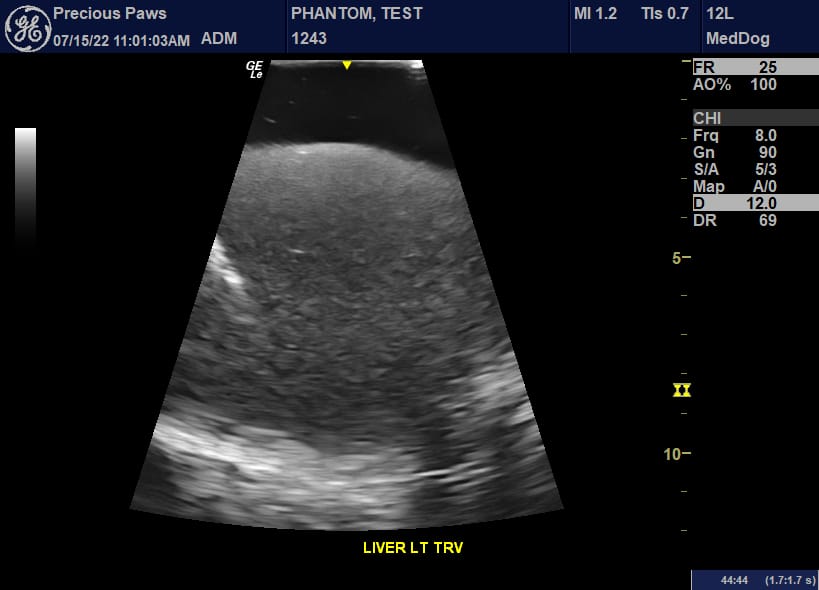

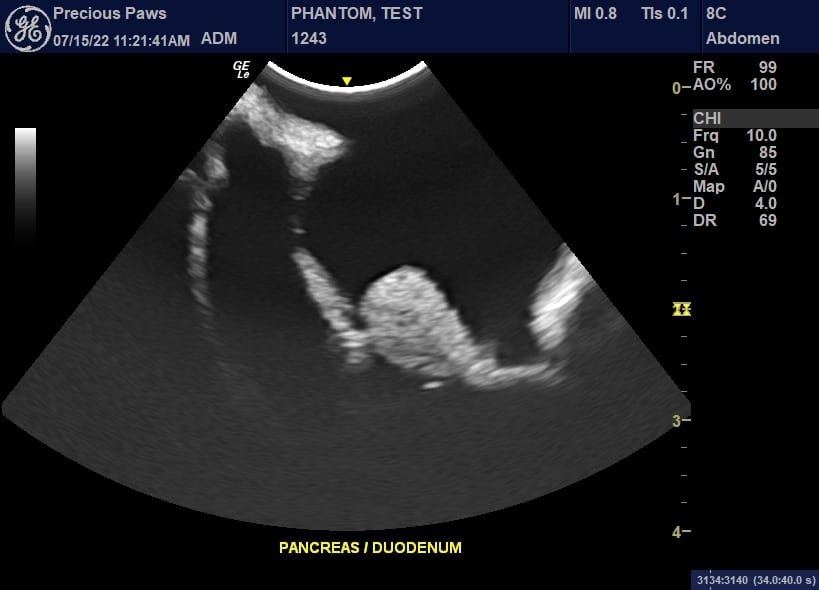

The above results were obtained from a transparent model of DG-A01. All ultrasounds were performed with the GE Logiq e R8 using the standard 8C micro convex and the L12 Linear probes. This allowed us to interrogate and obtain the best-quality images. By having two different ultrasound probes with varying frequencies, we were able to switch our probes throughout the exam while assessing different organs/body parts resulting in obtaining high-quality images. The phantom was scanned and validated by a VET ultrasound specialist from Precious Paws Ultrasound.

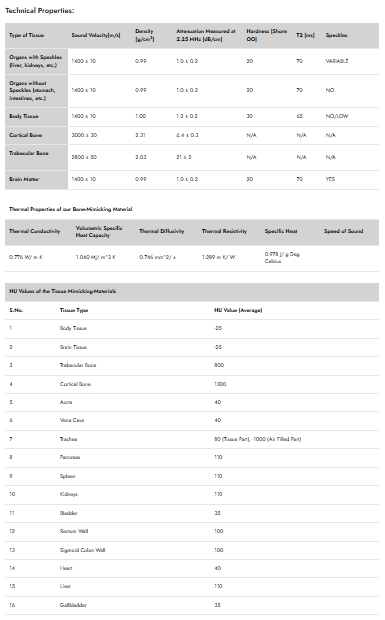

Technical Properties:
Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
Thermal Properties of our Bone-Mimicking Material | |||||
Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius |
HU Values of the Tissue Mimicking-Materials | ||
S.No. | Tissue Type | HU Value (Average) |
1 | Body Tissue | -25 |
2 | Brain Tissue | -25 |
3 | Trabecular Bone | 800 |
4 | Cortical Bone | 1300 |
5 | Aorta | 40 |
6 | Vena Cava | 40 |
7 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
8 | Pancreas | 110 |
9 | Spleen | 110 |
10 | Kidneys | 110 |
11 | Bladder | 35 |
12 | Rectum Wall | 100 |
13 | Sigmoid Colon Wall | 100 |
14 | Heart | 40 |
15 | Liver | 110 |
16 | Gallbladder | 35 |
Included In Order:
Dog Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 33 x 18 x 6 Inches, Weight: 40 Lbs (approx.).
Shipment:
Size with Hard Carry Case: 32 x 23 x 13 Inches, Weight: 99 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
