The design of this phantom is based on an average human male skull, and It is developed using our patented ceramic-reinforced epoxy-based composite material suitable for Ultrasound, MRI, and CT applications (any other part of the skull can be fabricated based on the customer order).
The phantom has a realistic three-layered structure, and the inner porosity can be adjusted according to the project’s requirements.
There are several applications of this phantom. It is primarily used for medical imaging & diagnostic research, and treatment planning of non-invasive HIFU brain surgeries.
Anatomy:
Calvaria
– Cortical Bone
– Trabecular Bone

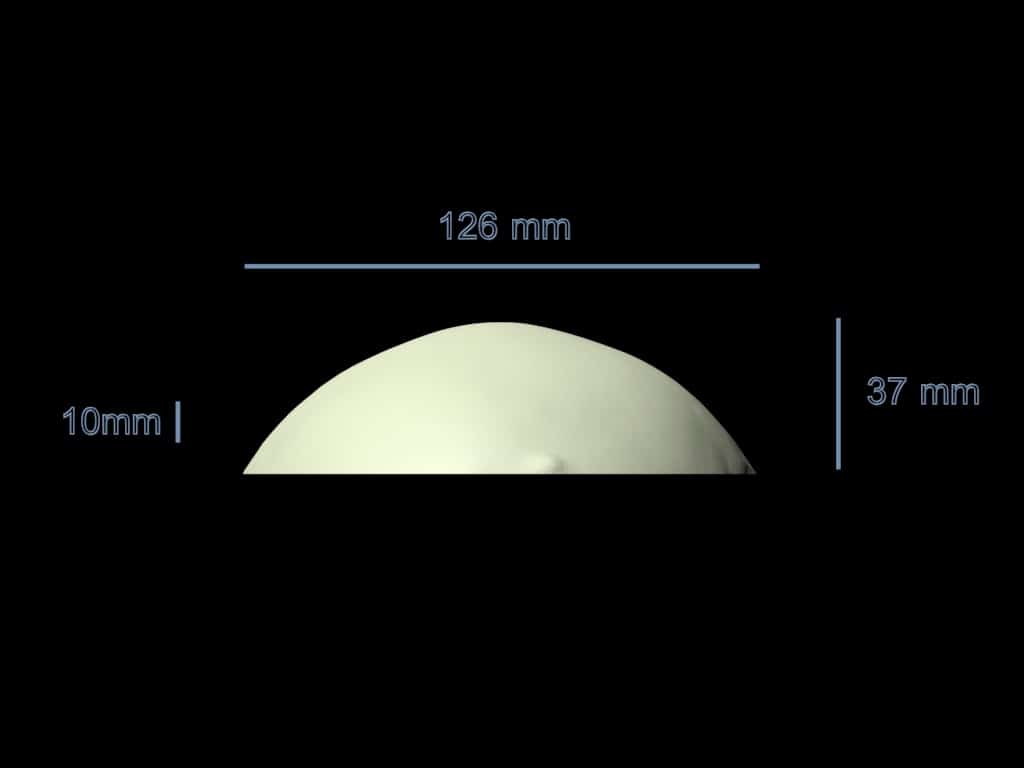

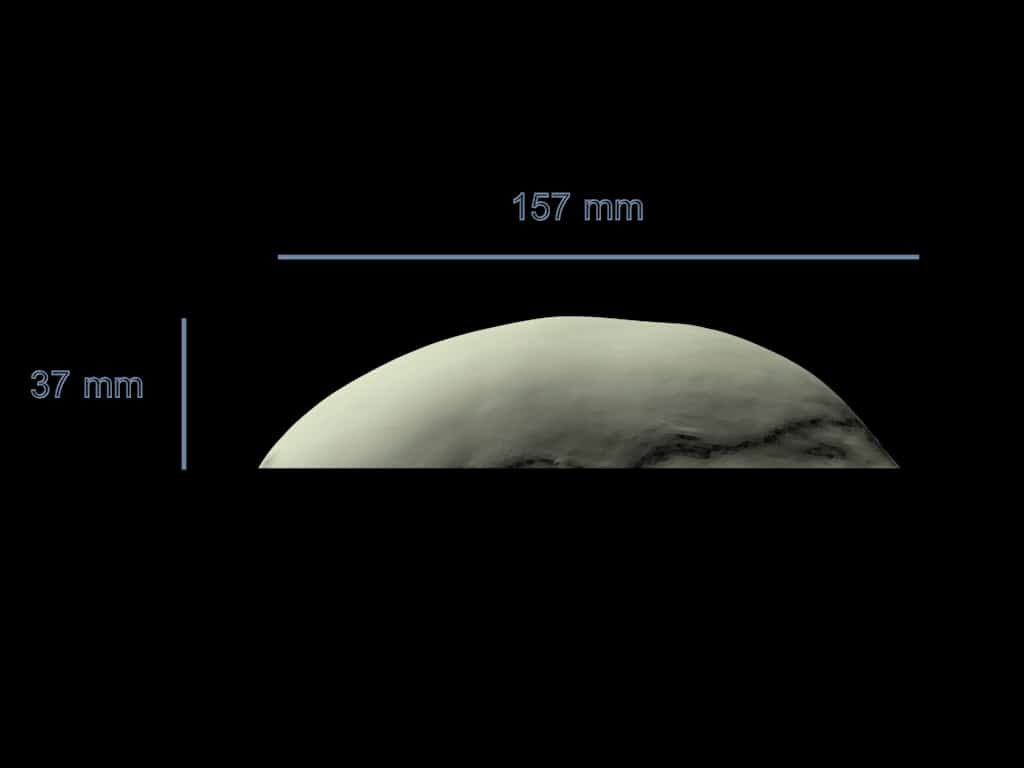

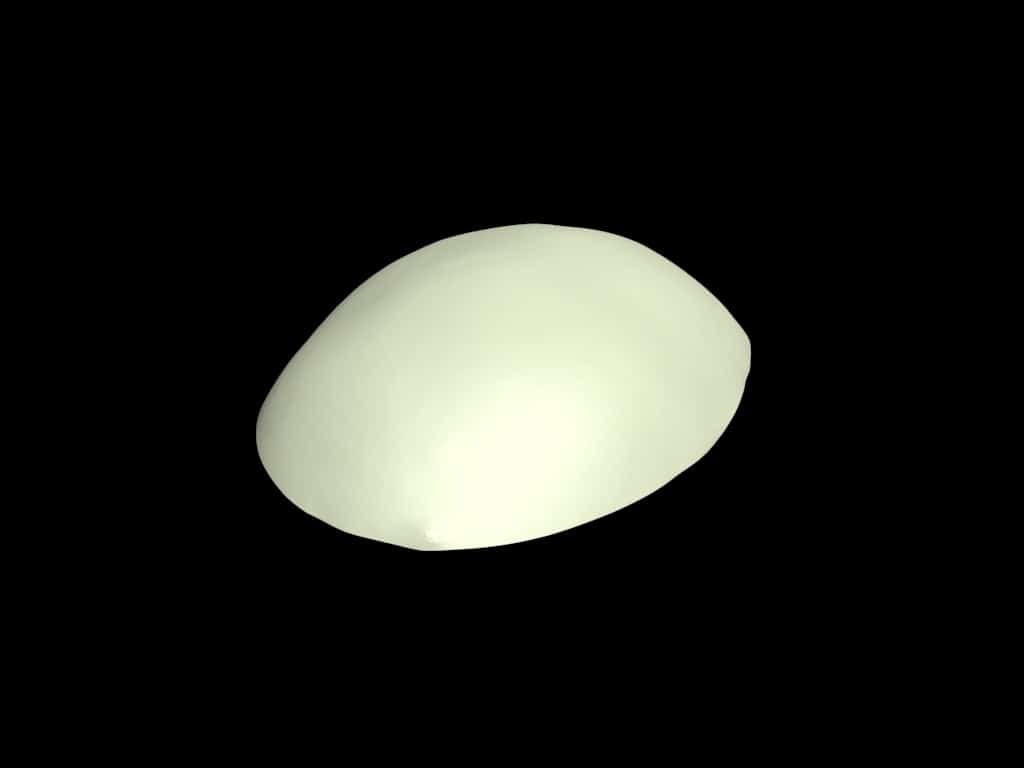

Design:
-

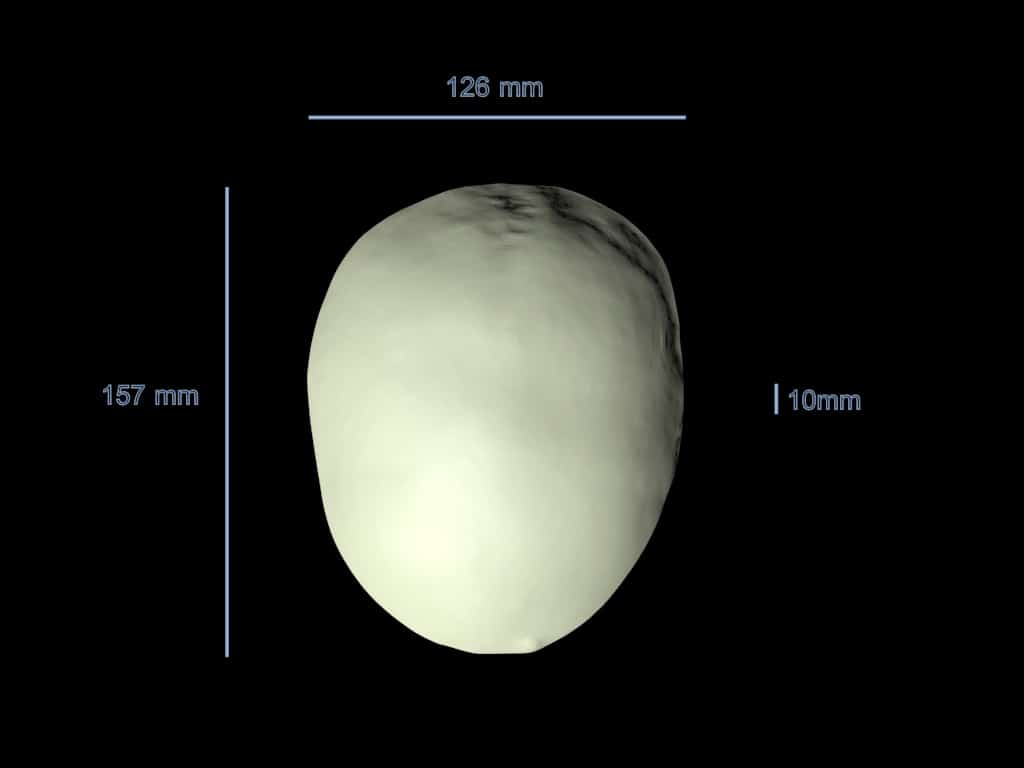

- Calvaria Top View

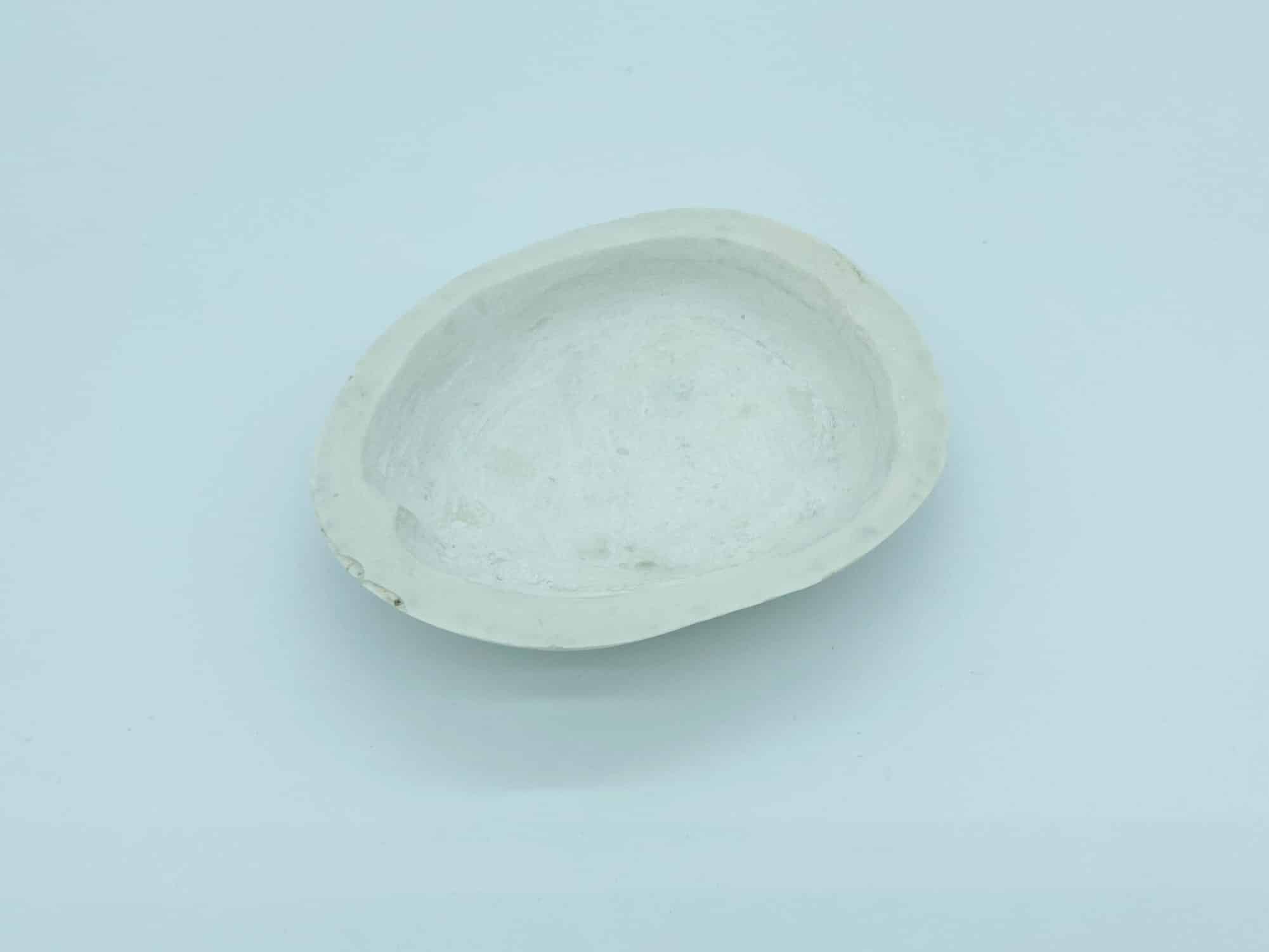

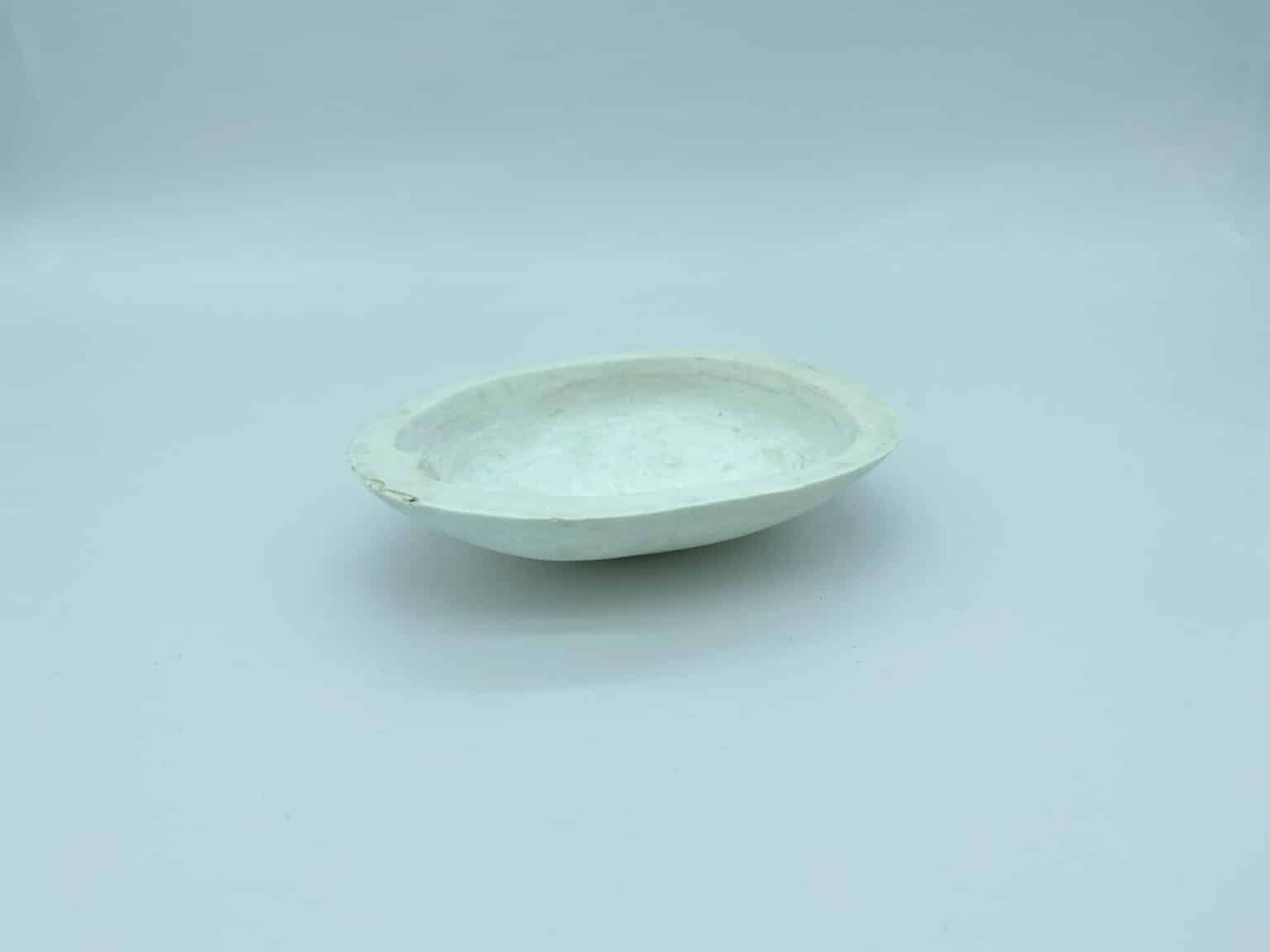

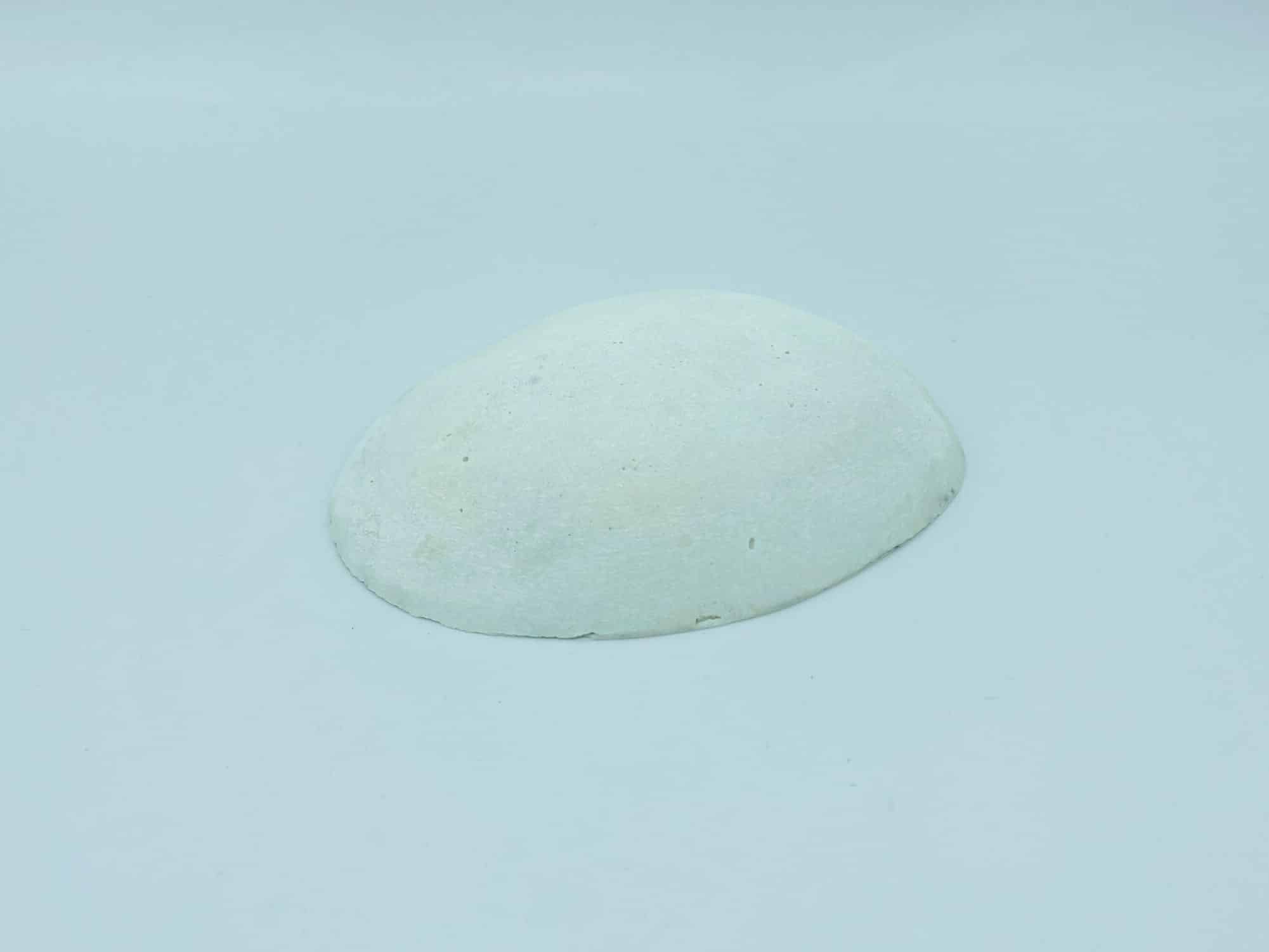

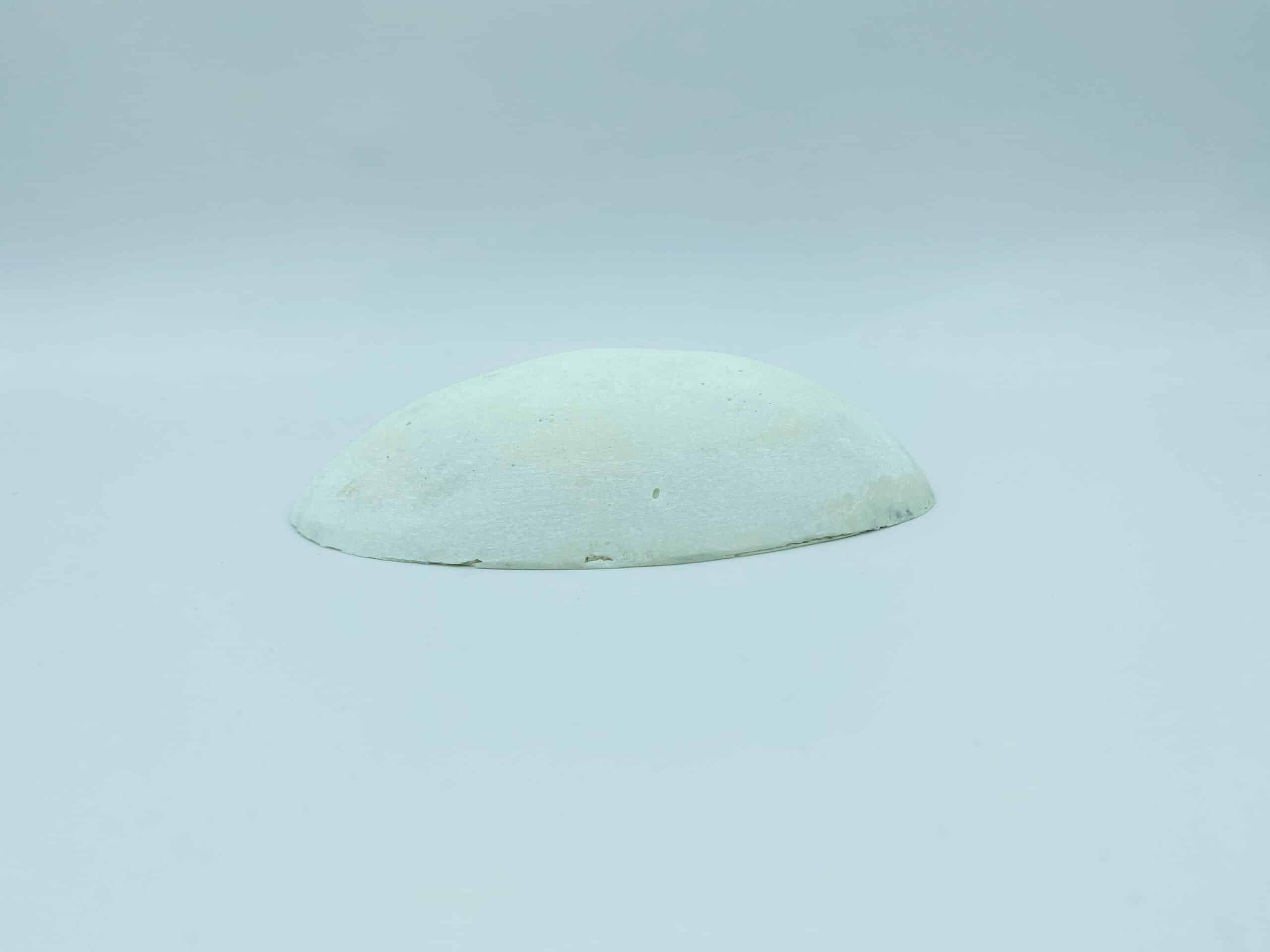

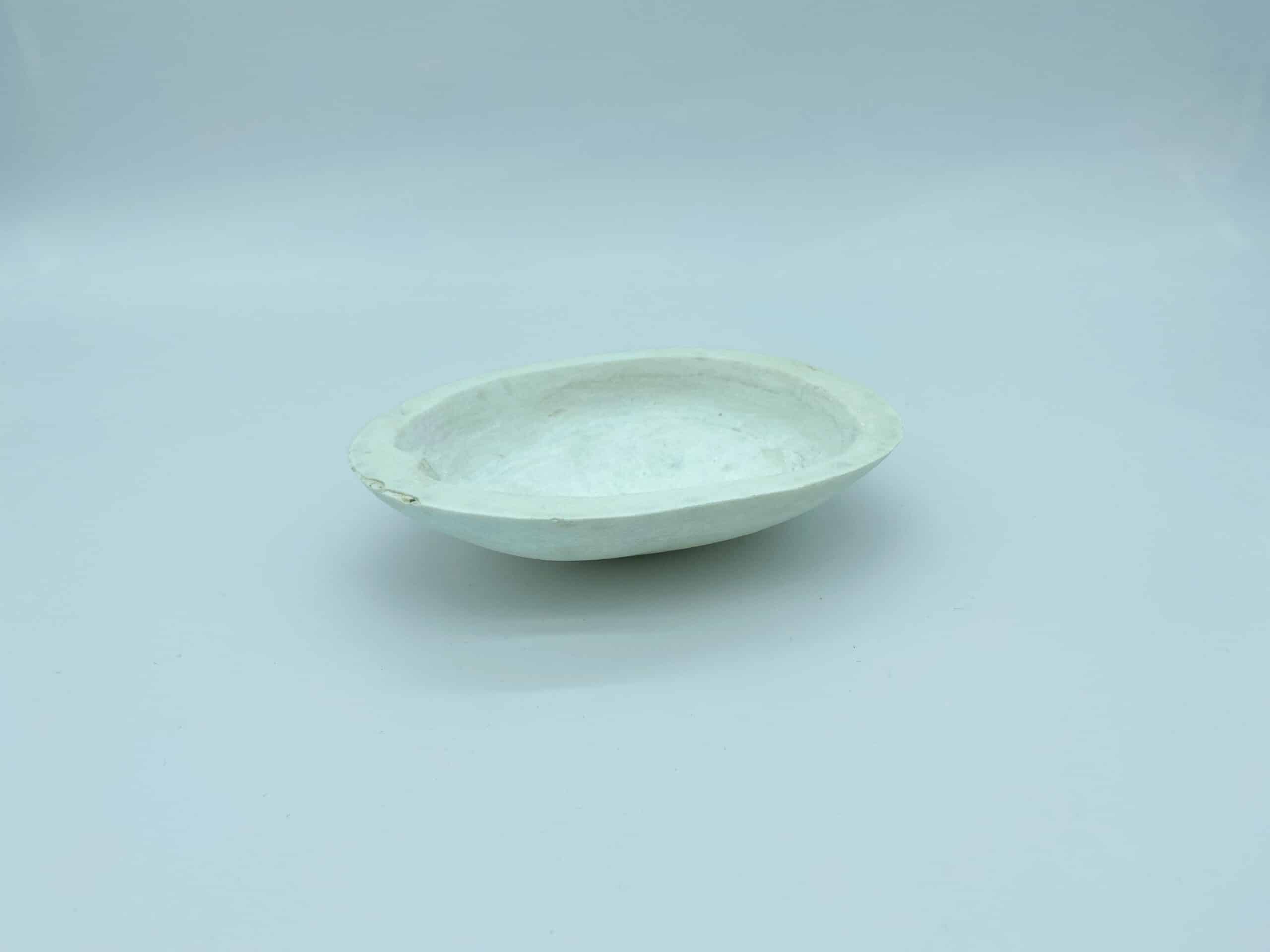

Product Images:
Technical Properties:
| Type of Tissues | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
Included In Order:
Standard Calvaria Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 6.7 x 5.5 x 2.4 Inches, Weight: 2 Lbs (approx.).
Shipment:
Size: 12 x 10 x 10 Inches, Weight: 6 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane base soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
