The Adult Brain (Basic) phantom is a realistic training tool designed to resemble an average brain. It is constructed using tissue-mimicking materials that are suitable for Ultrasound, MRI, and X-Ray/CT applications.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Anatomy:
Tumor Realistic Brain Tissue Brain White Matter Brain Grey Matter
Design:
-

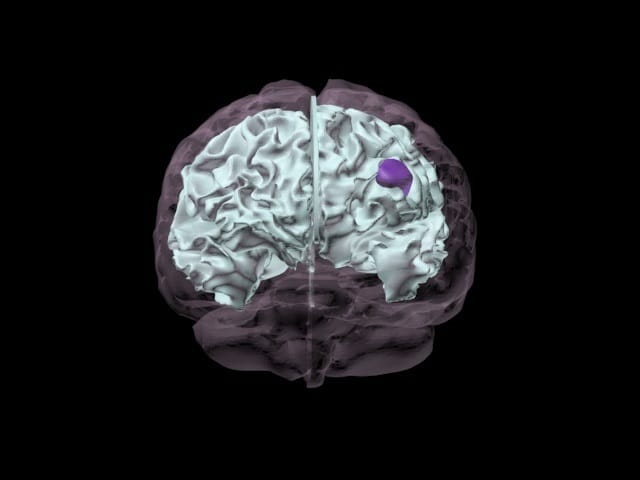

- Front View
-

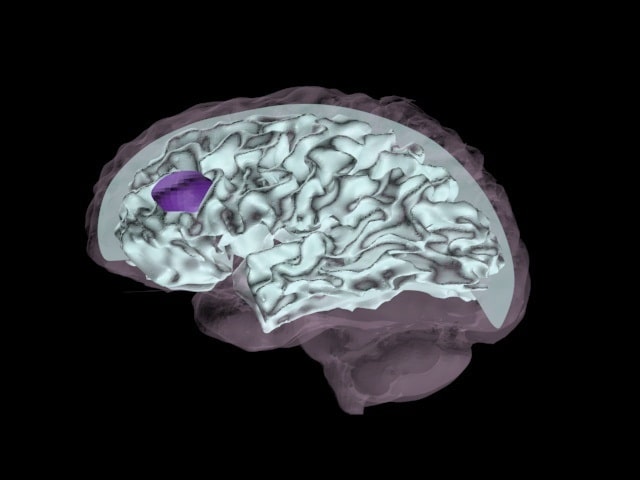

- Lateral View
-

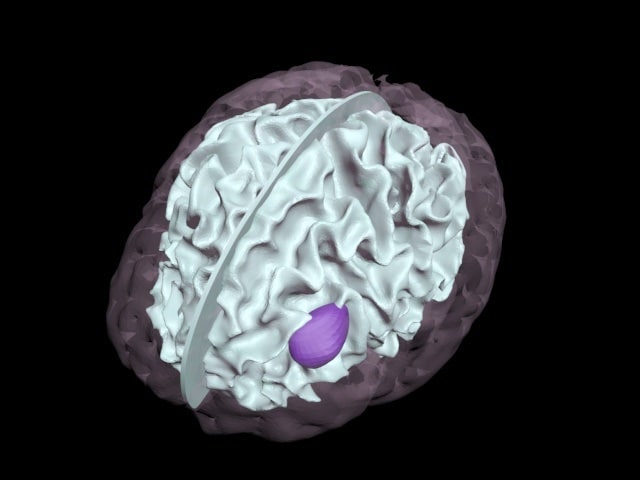

- Perspective View
-

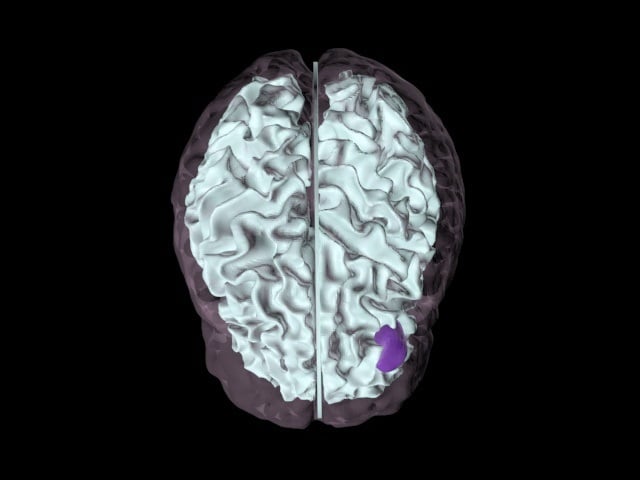

- Top View

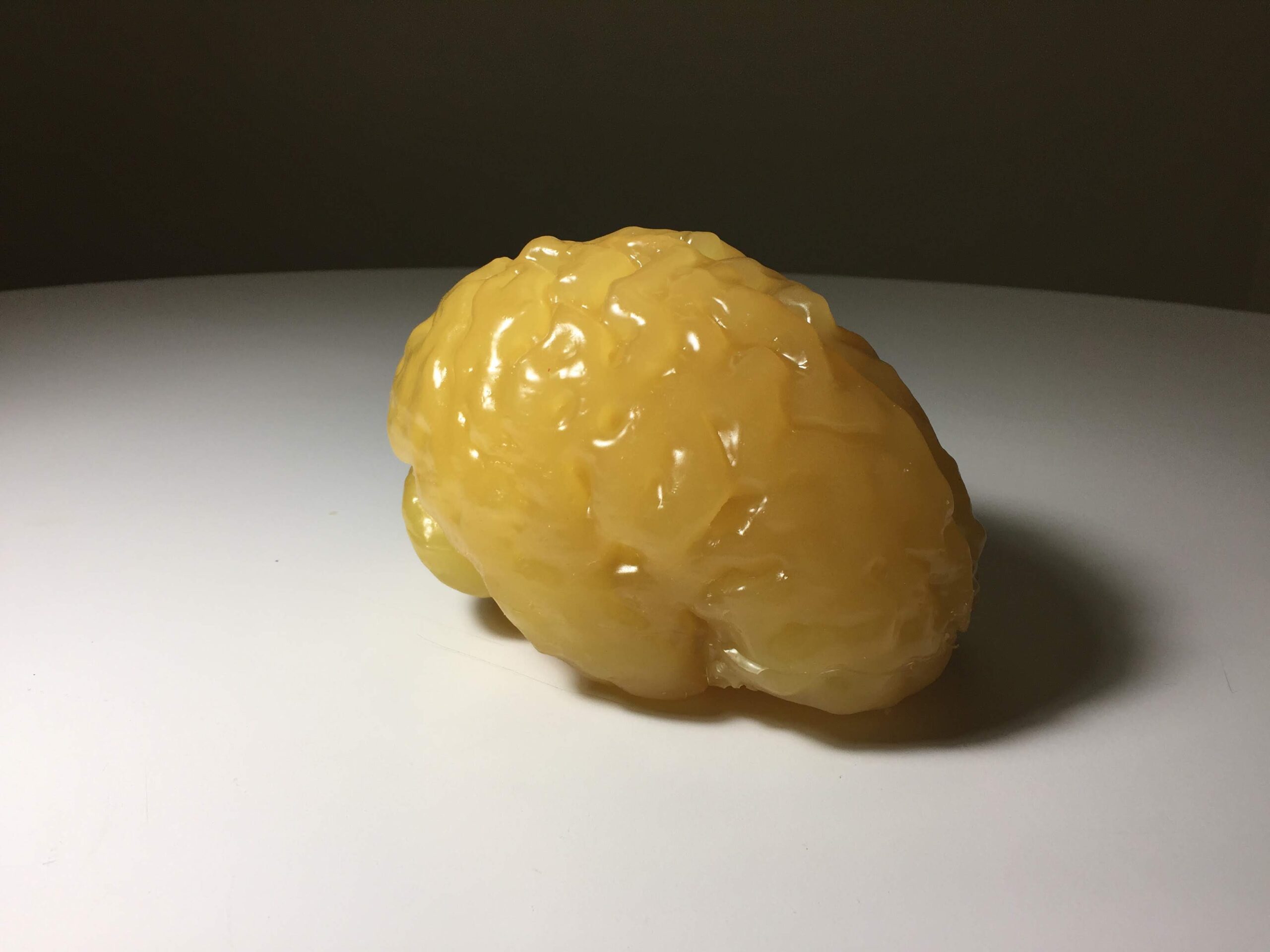

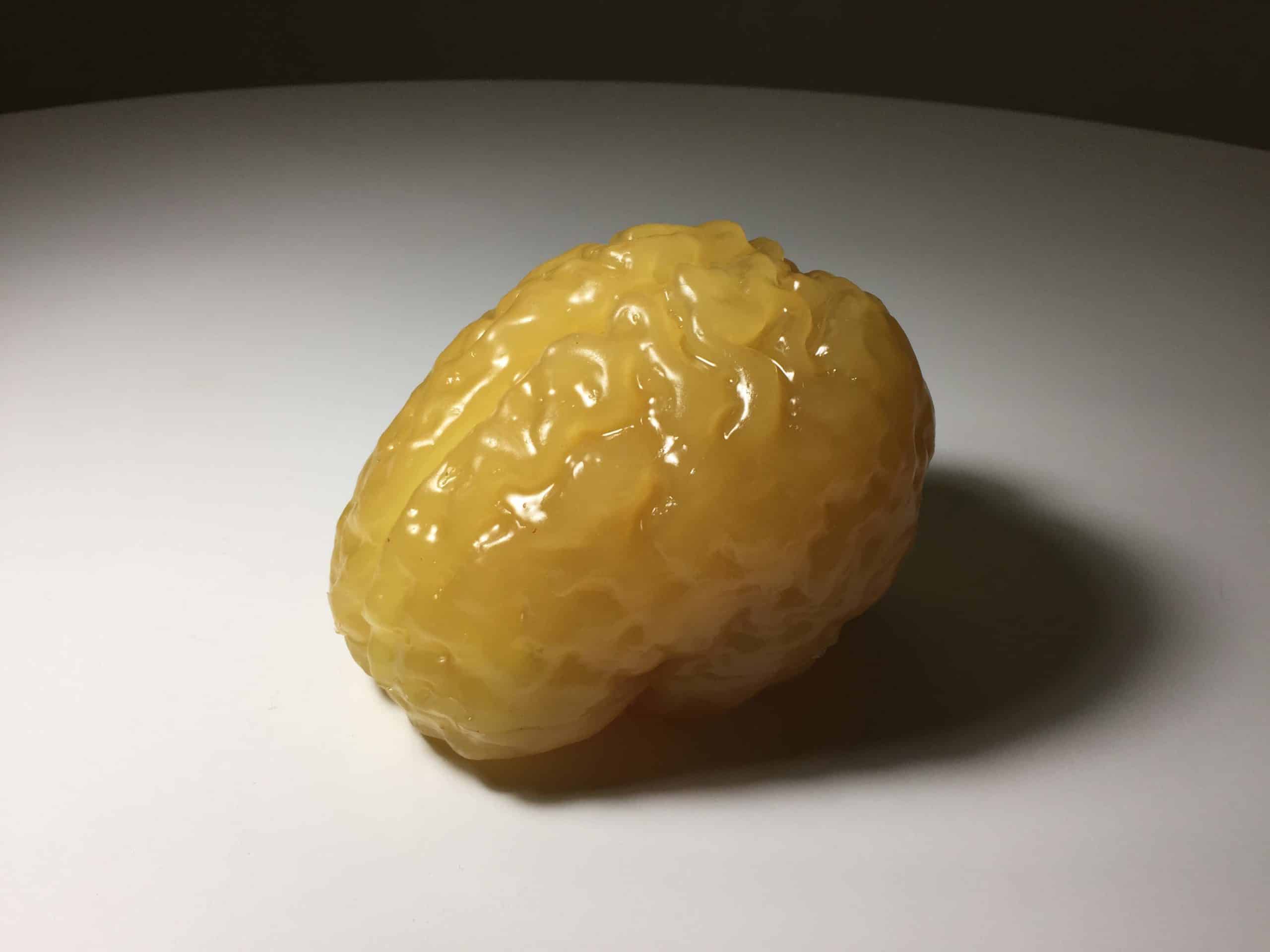

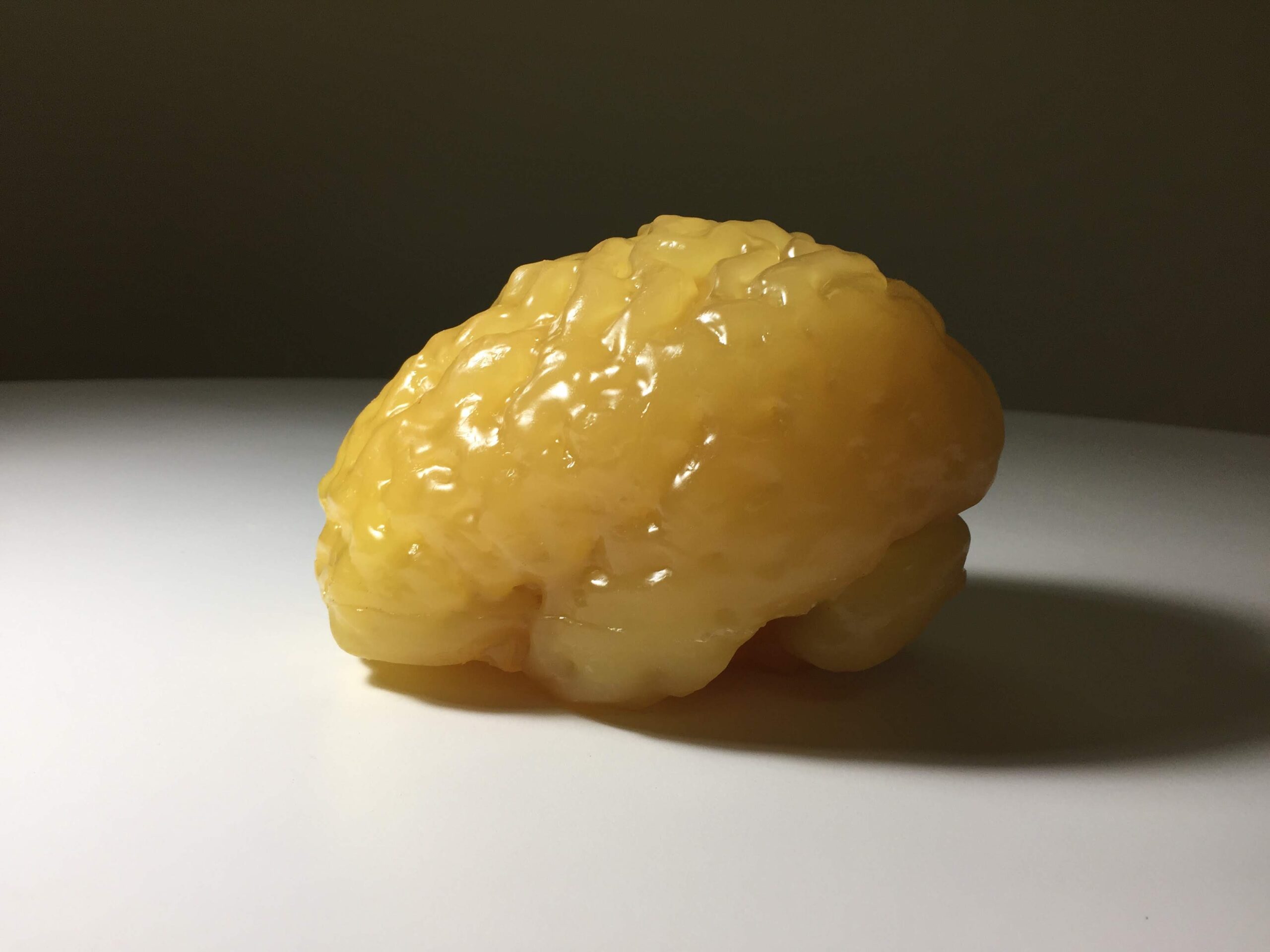

Product Images:

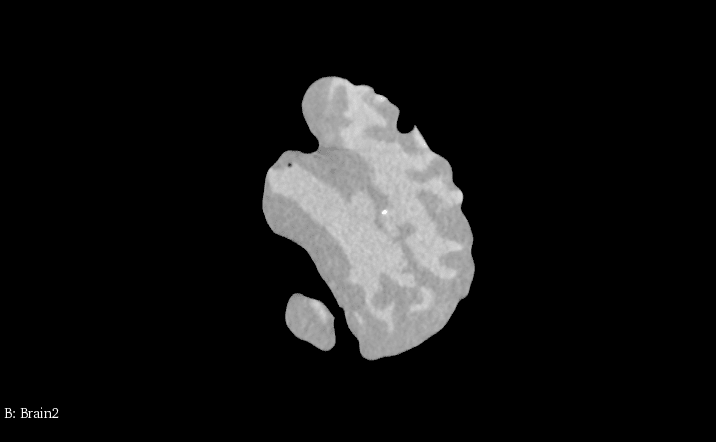

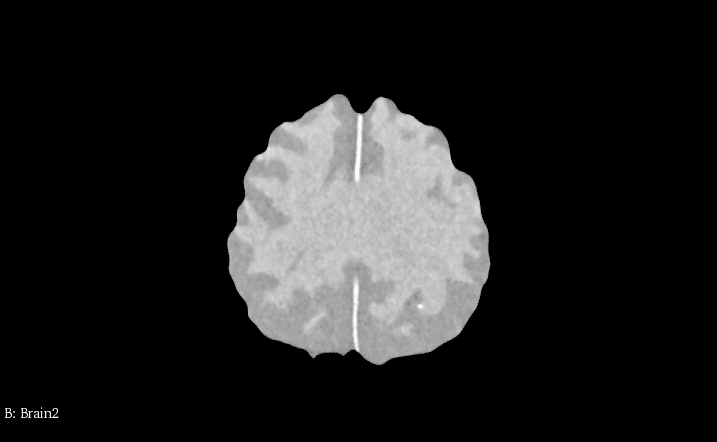

CT Scans:

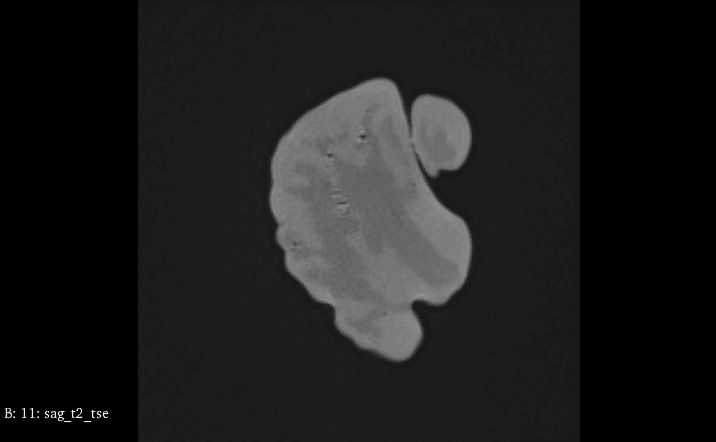

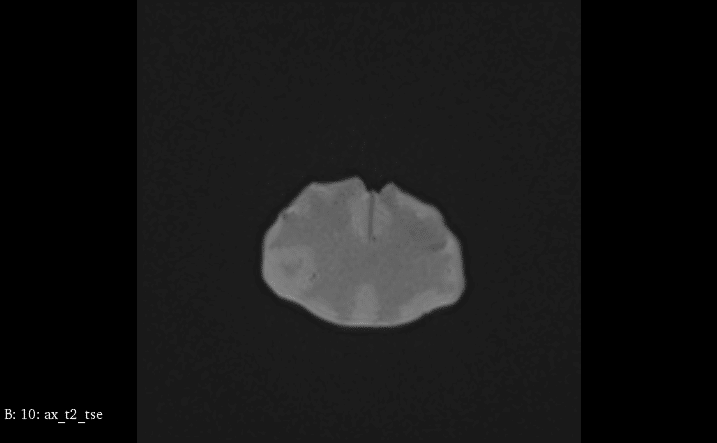

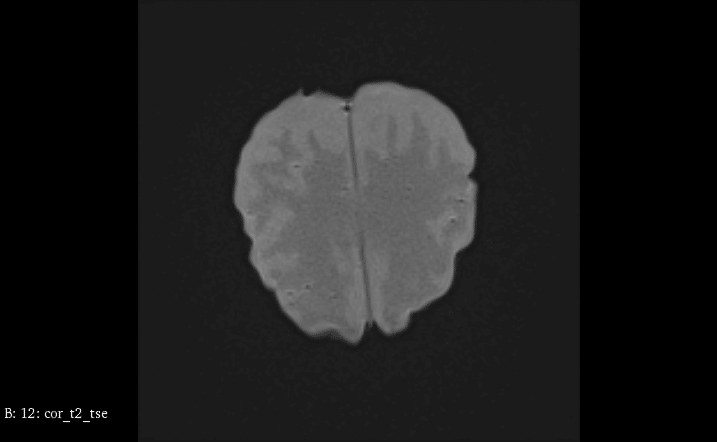

MRI Scans:

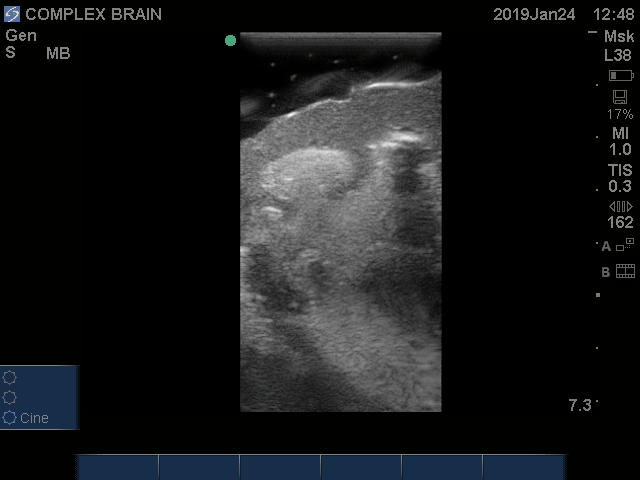

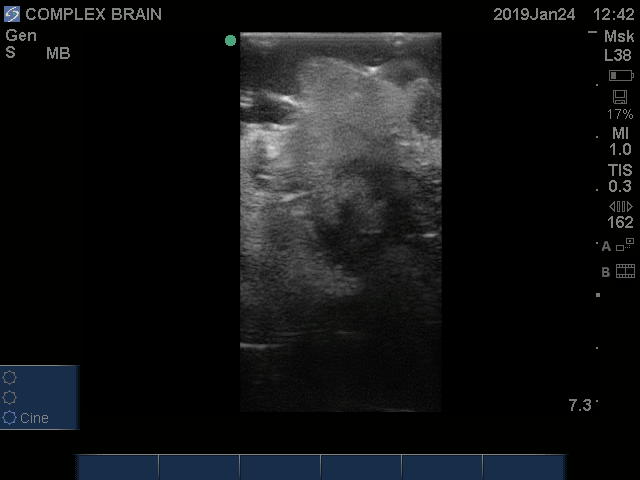

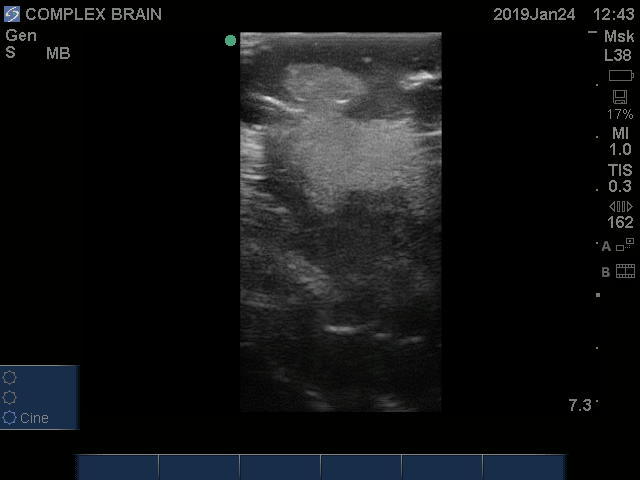

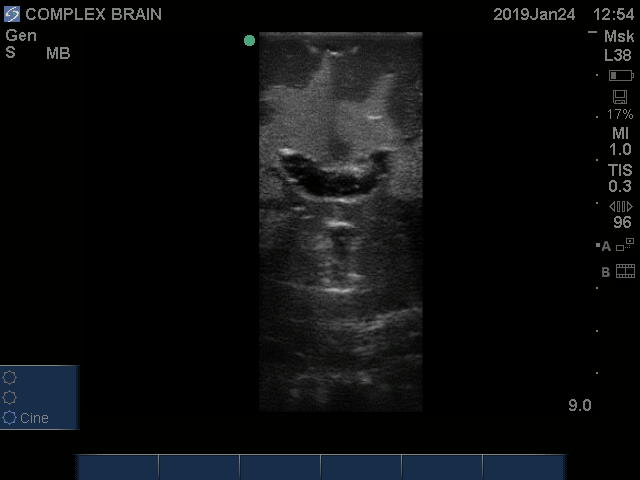

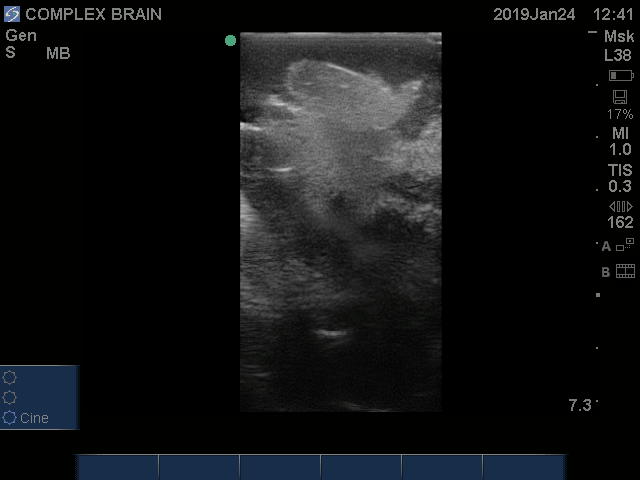

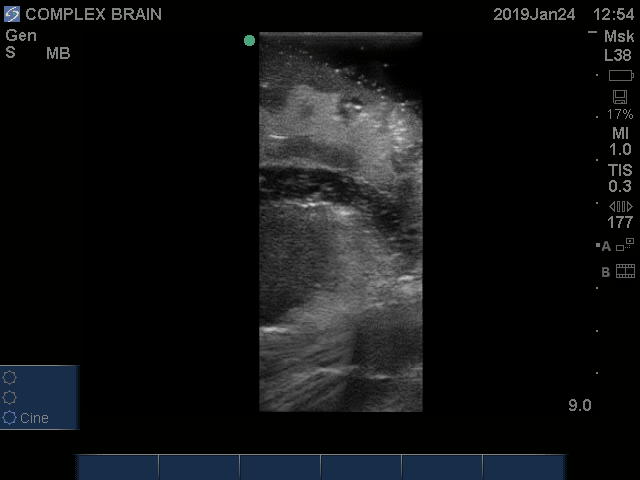

Ultrasound Scans:
*/ These Ultrasound scans were obtained from our Adult Brain (Complex) Phantom. SKU:BN-A02. They serve only as an example of our imaging quality. Actual product images may vary. If you have any questions related to this, please write us at [email protected] /*

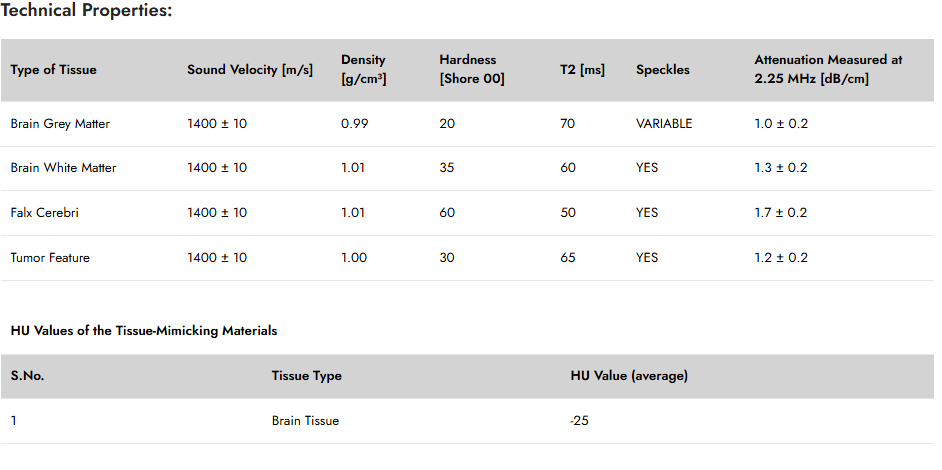

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] | |
| Brain Grey Matter | 1400 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 | |
| Brain White Matter | 1400 ± 10 | 1.01 | 35 | 60 | YES | 1.3 ± 0.2 | |
| Falx Cerebri | 1400 ± 10 | 1.01 | 60 | 50 | YES | 1.7 ± 0.2 | |
| Tumor Feature | 1400 ± 10 | 1.00 | 30 | 65 | YES | 1.2 ± 0.2 | |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
Add-ons (Optional):
Included in Order:
Adult Brain (Basic) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 5 x 6 x 5 Inches, Weight: 2 Lbs (approx.).
Shipment:
Size: 12 x 10 x 10 Inches, Weight: 6 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
