This phantom is designed based on average human anatomy and is made out of realistic bone and soft tissue-mimicking materials that are suitable for X-Ray/CT and MRI applications. It can be used for medical imaging research and radiology training and can also be served as a customized tool for equipment testing and calibration.
The skeleton is made from individually cast bones from a realistic patented epoxy-based composite material with vertebrae that have a realistic three-layered structure with inner porosity.
The Lungs installed inside this Torso can be customized in several ways to simulate any pathology, such as mucus, lesions, and typical infections. This phantom can also be customized as a training simulator to train medical students on COVID-19-related diagnostic procedures.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Upon request, this phantom can also be customized in size & shape (i.e., based on the individual’s CT scan).
Anatomy:
Complete Spine Complete Ribcage Shoulders & Clavicles Pelvis Partial Femur Bones Trachea Heart Lungs Diaphragm Liver
– Ligaments
– Bile Ducts Gallbladder Stomach Kidneys Spleen Pancreas Large & Small Intestines Bladder Prostate
Design:
-

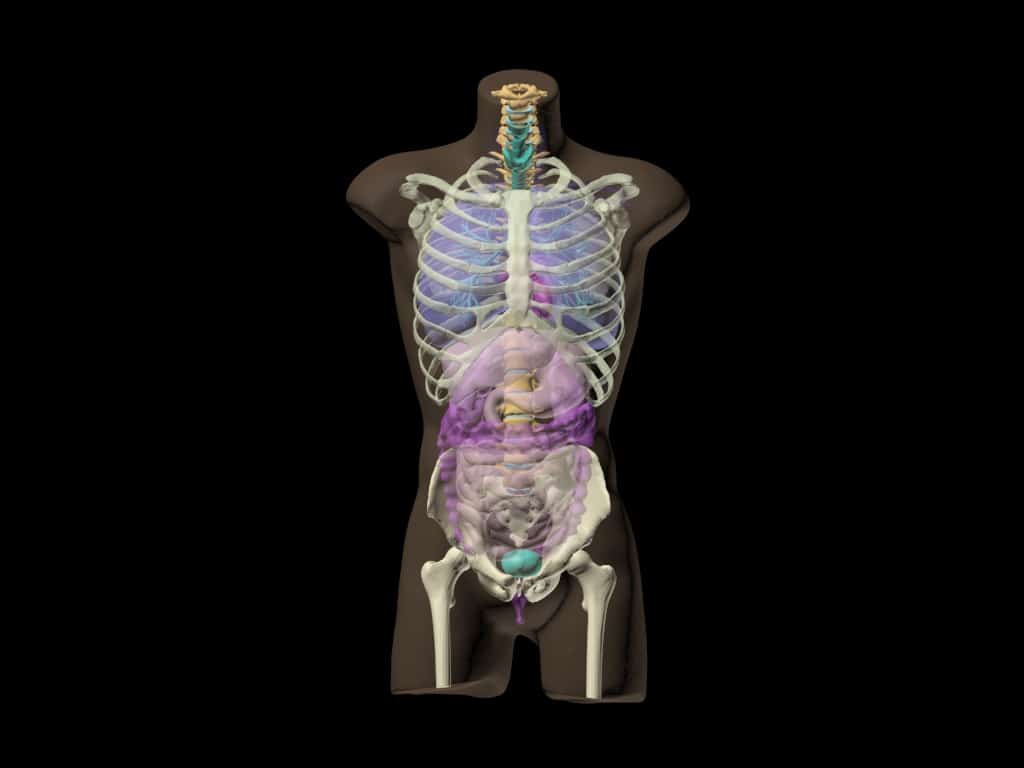

- Front View
-

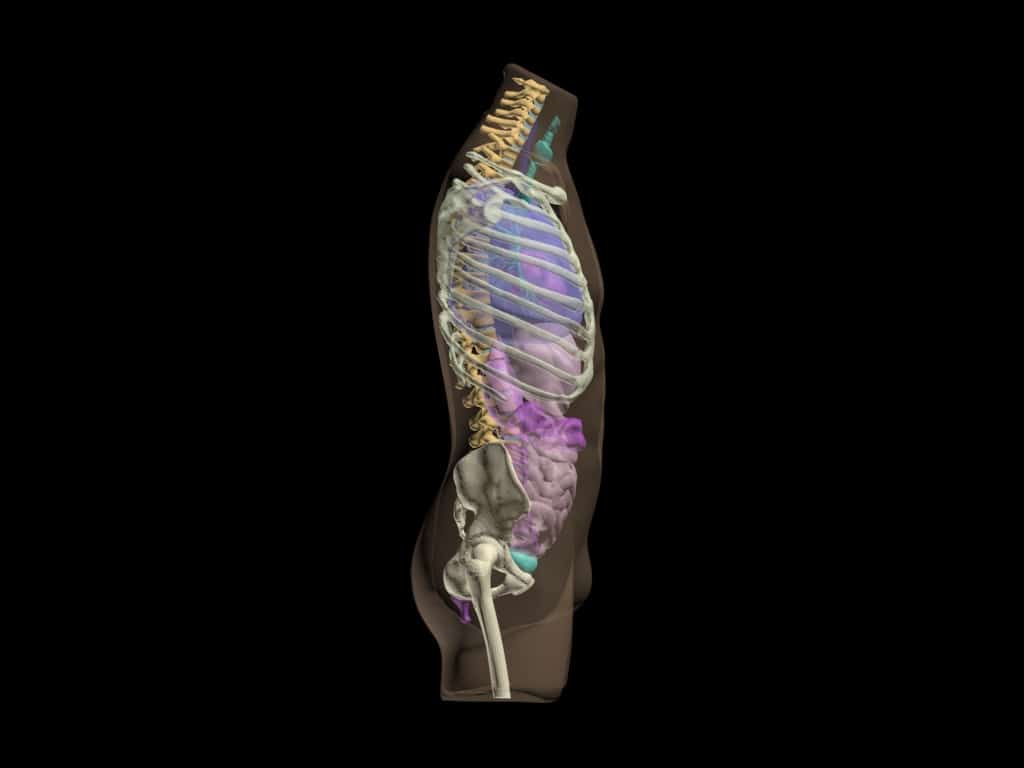

- Lateral View
-
- Perspective View
-

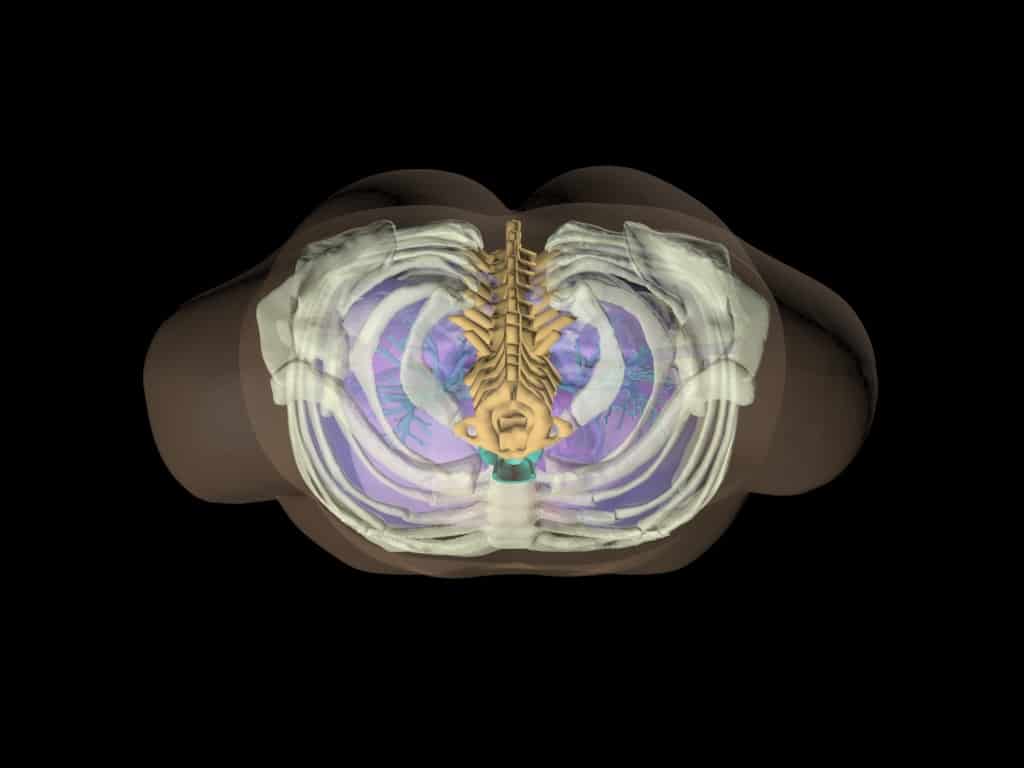

- Top View

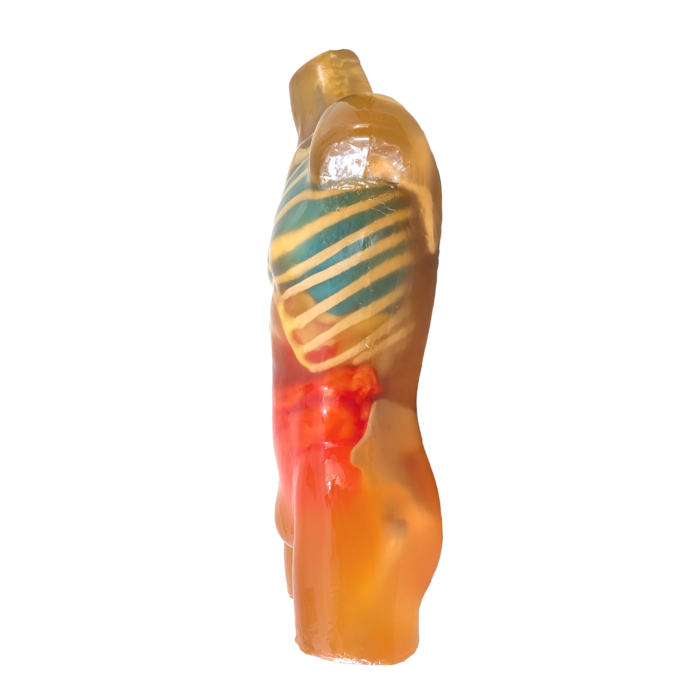

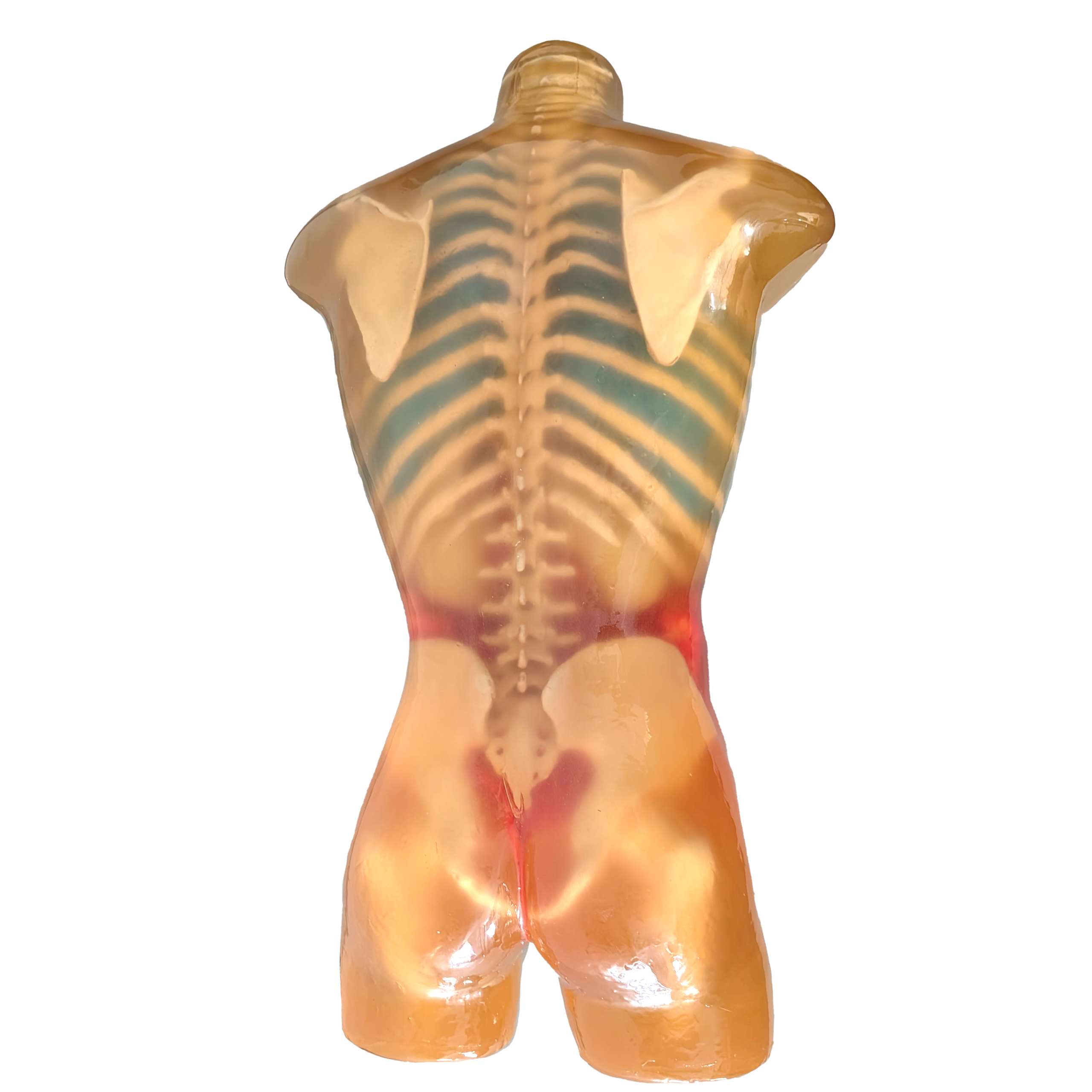

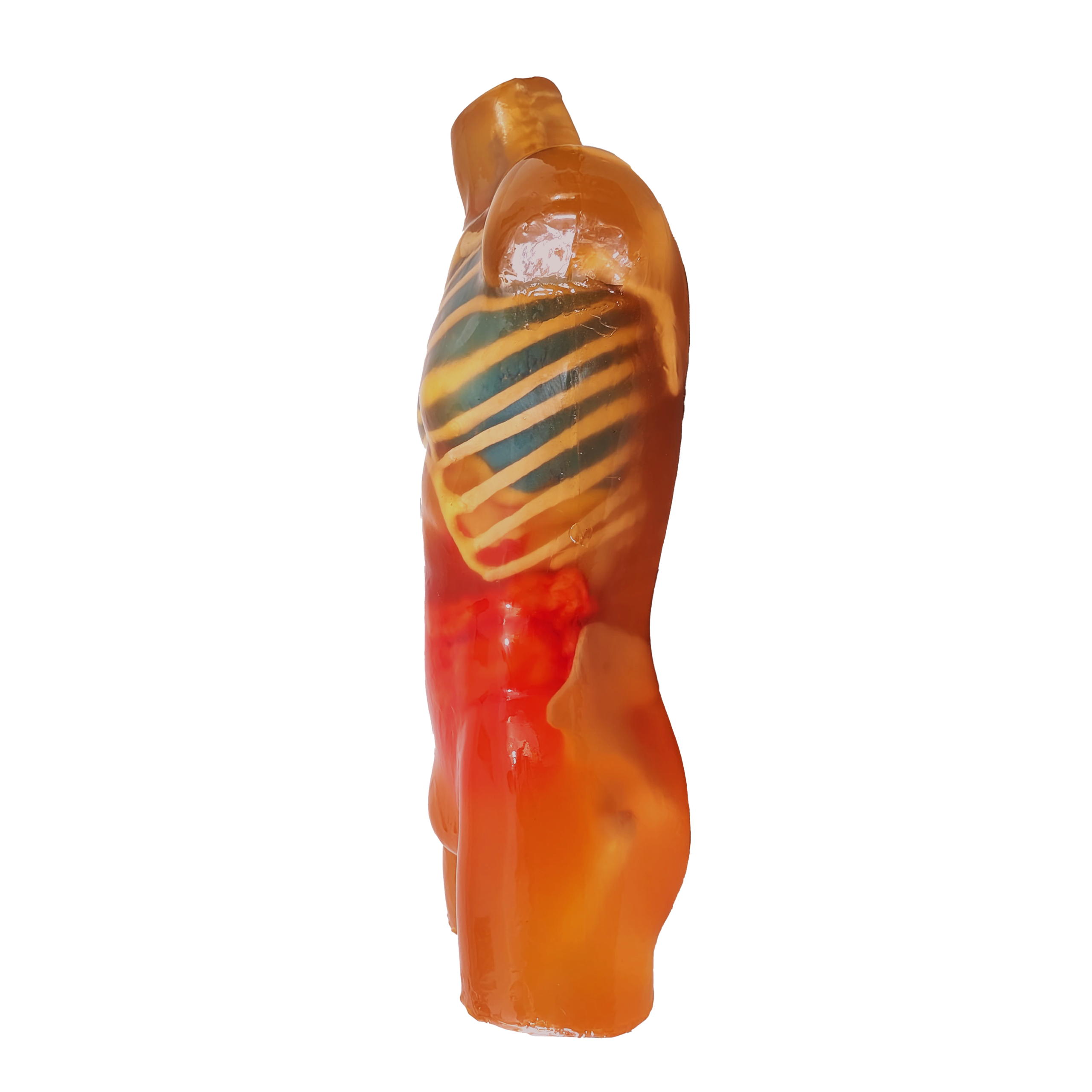

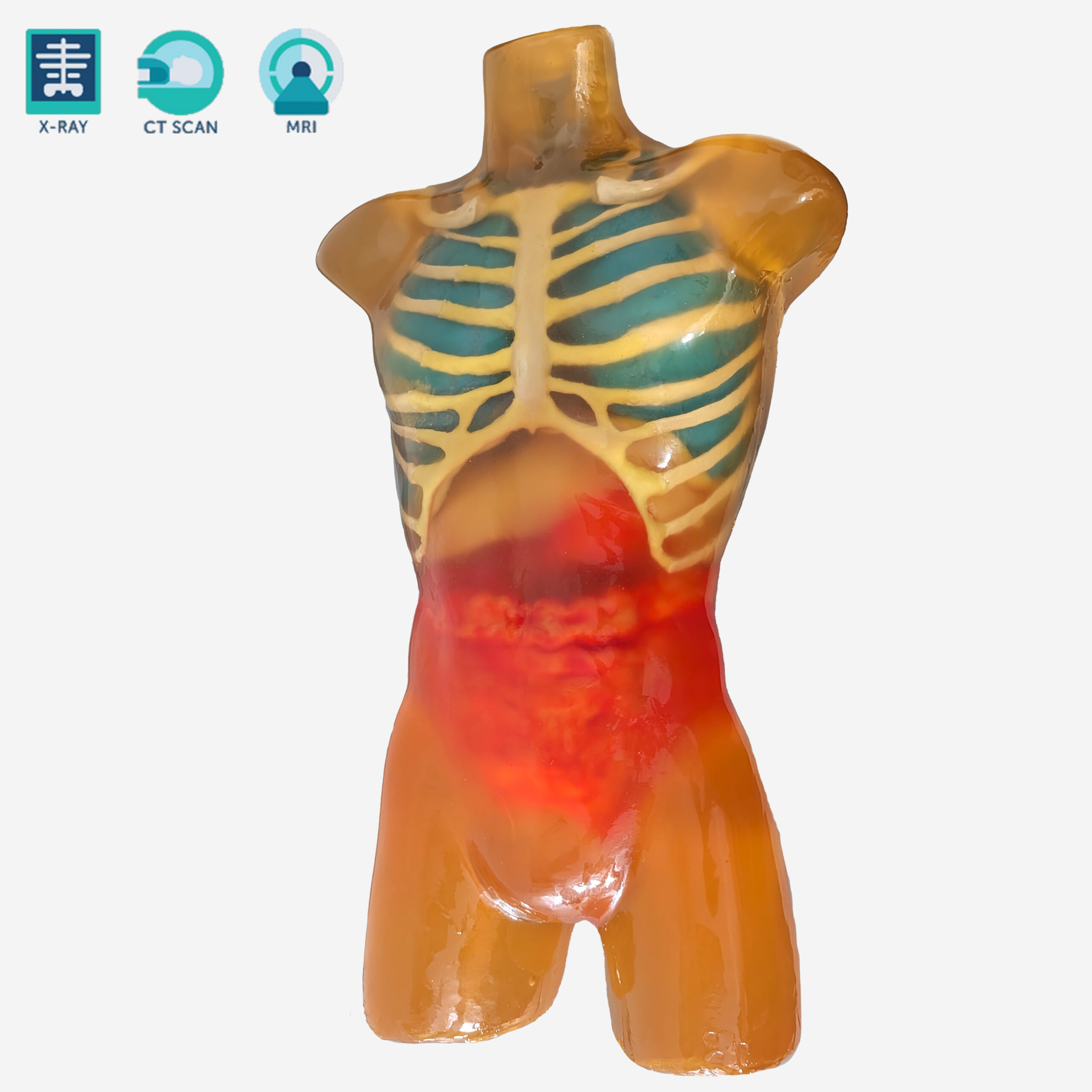

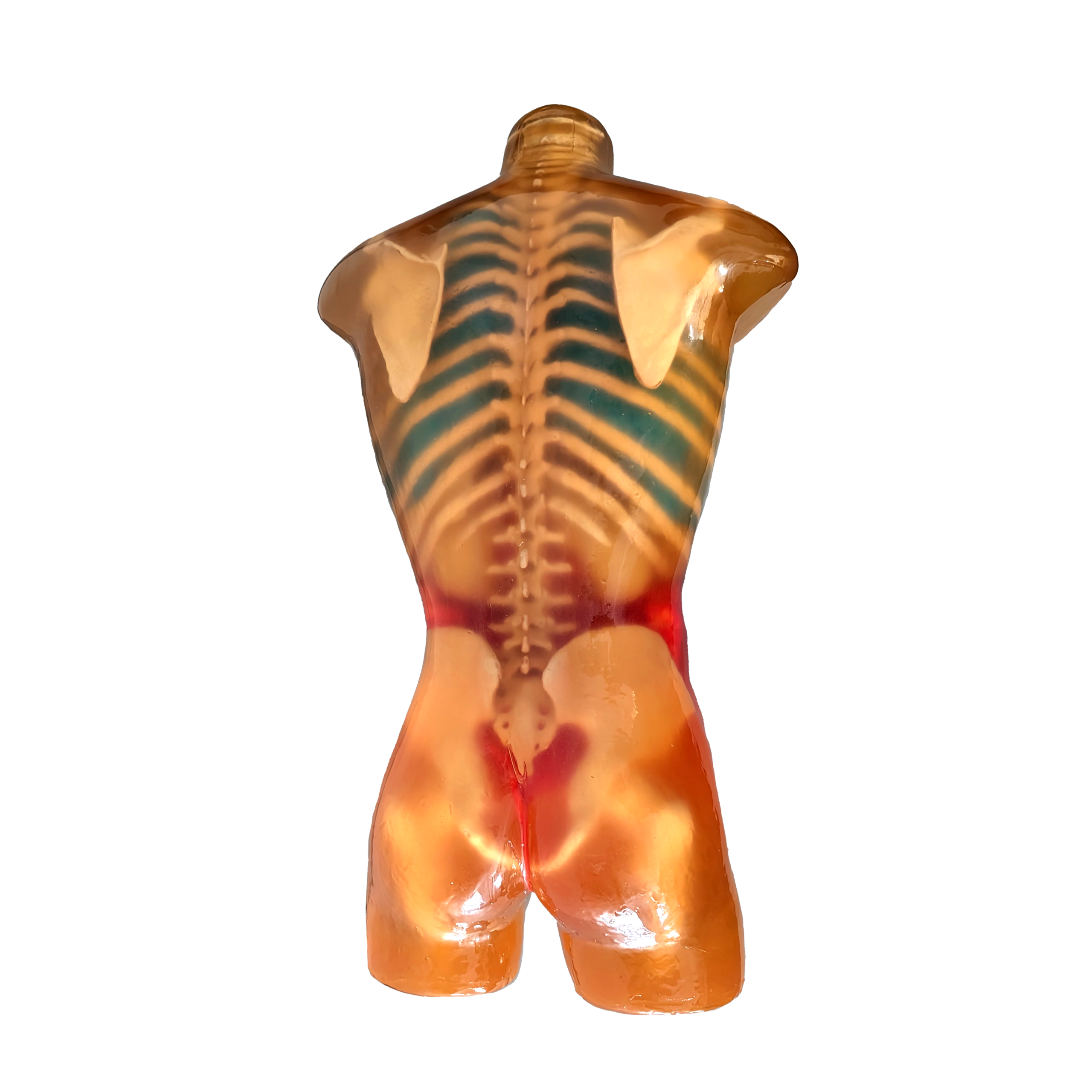

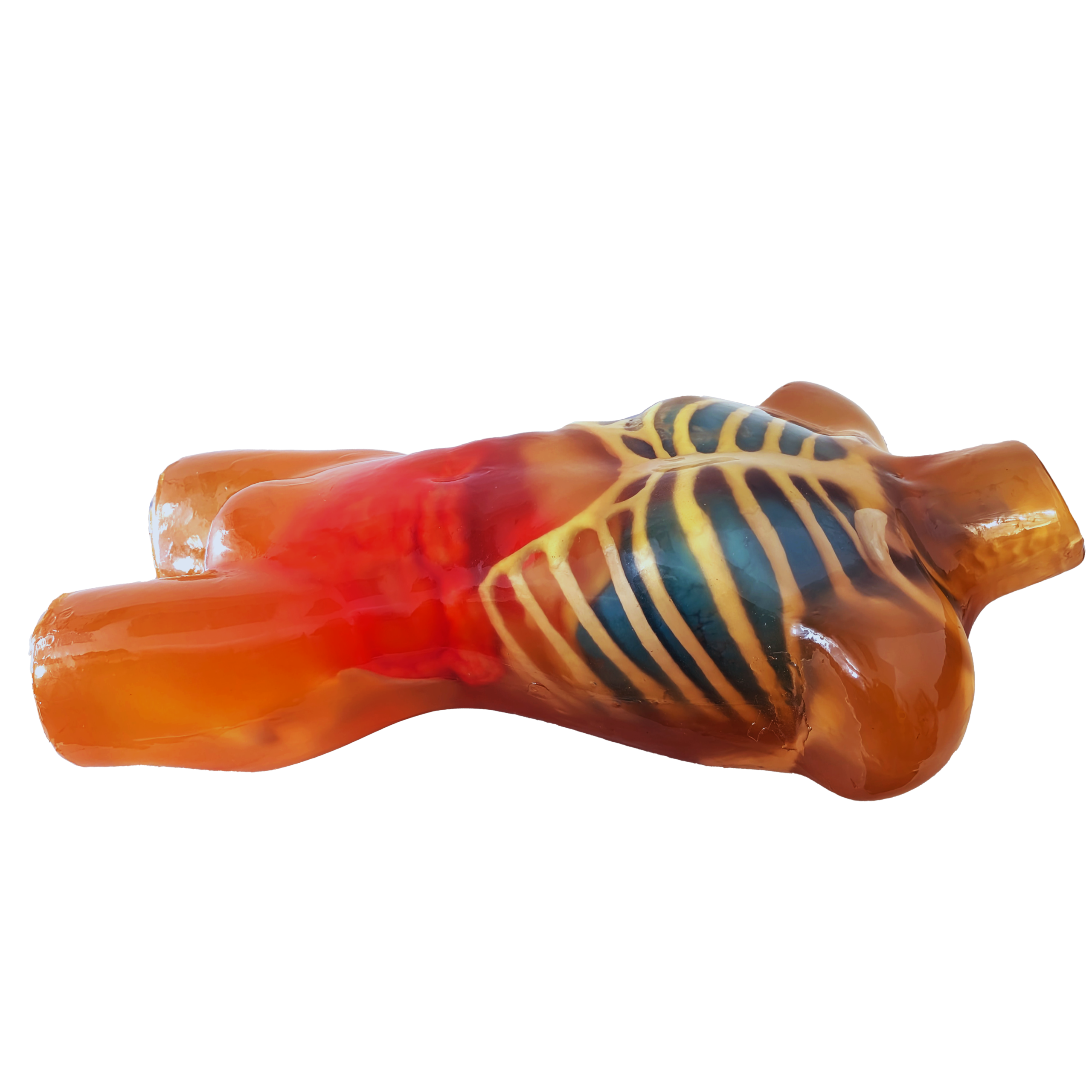

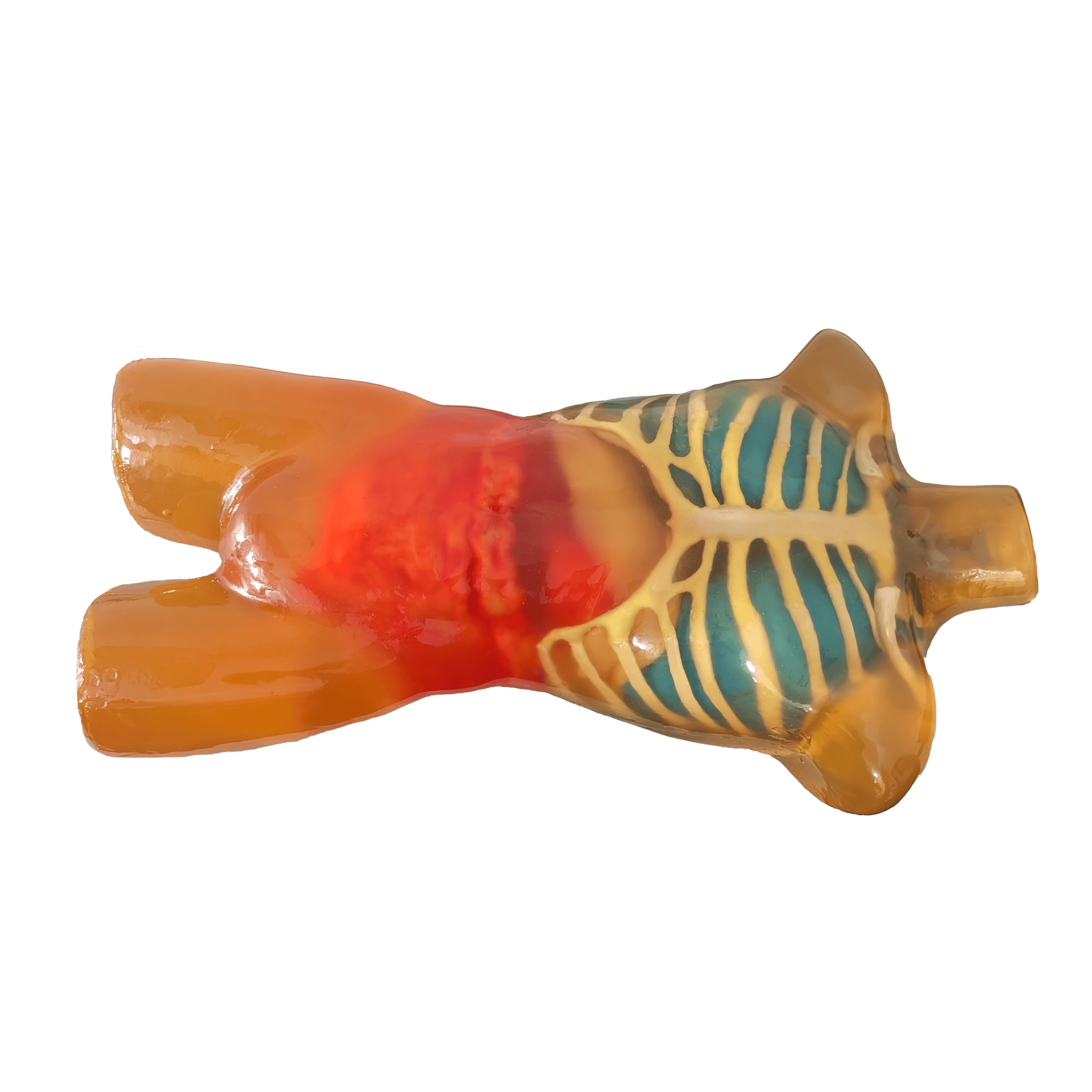

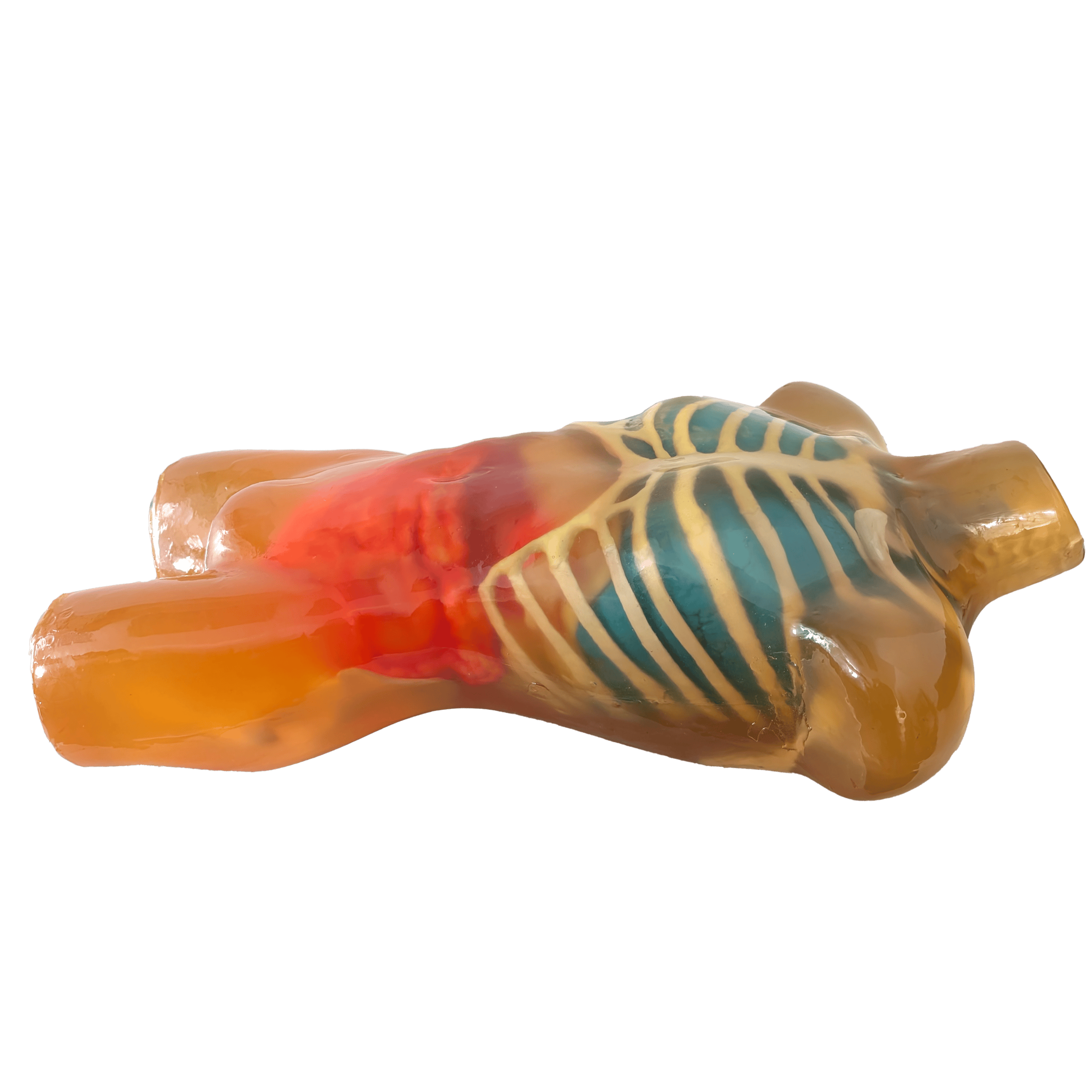

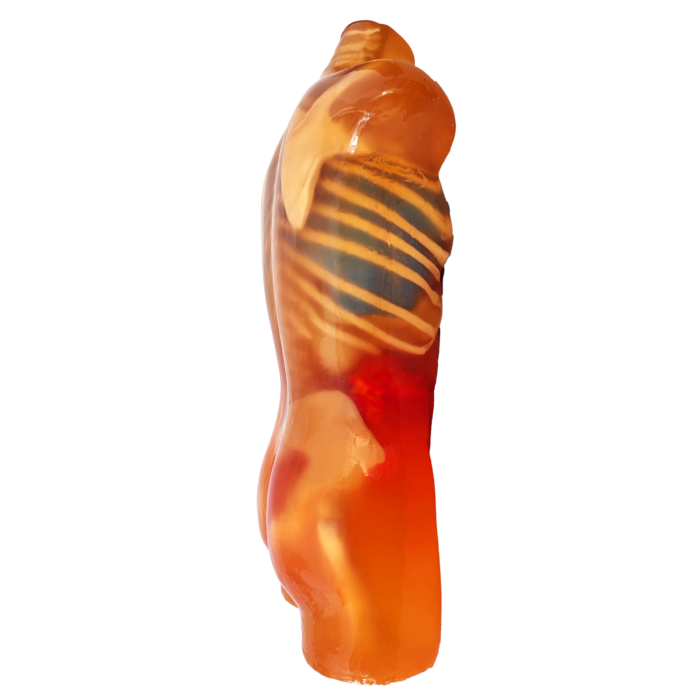

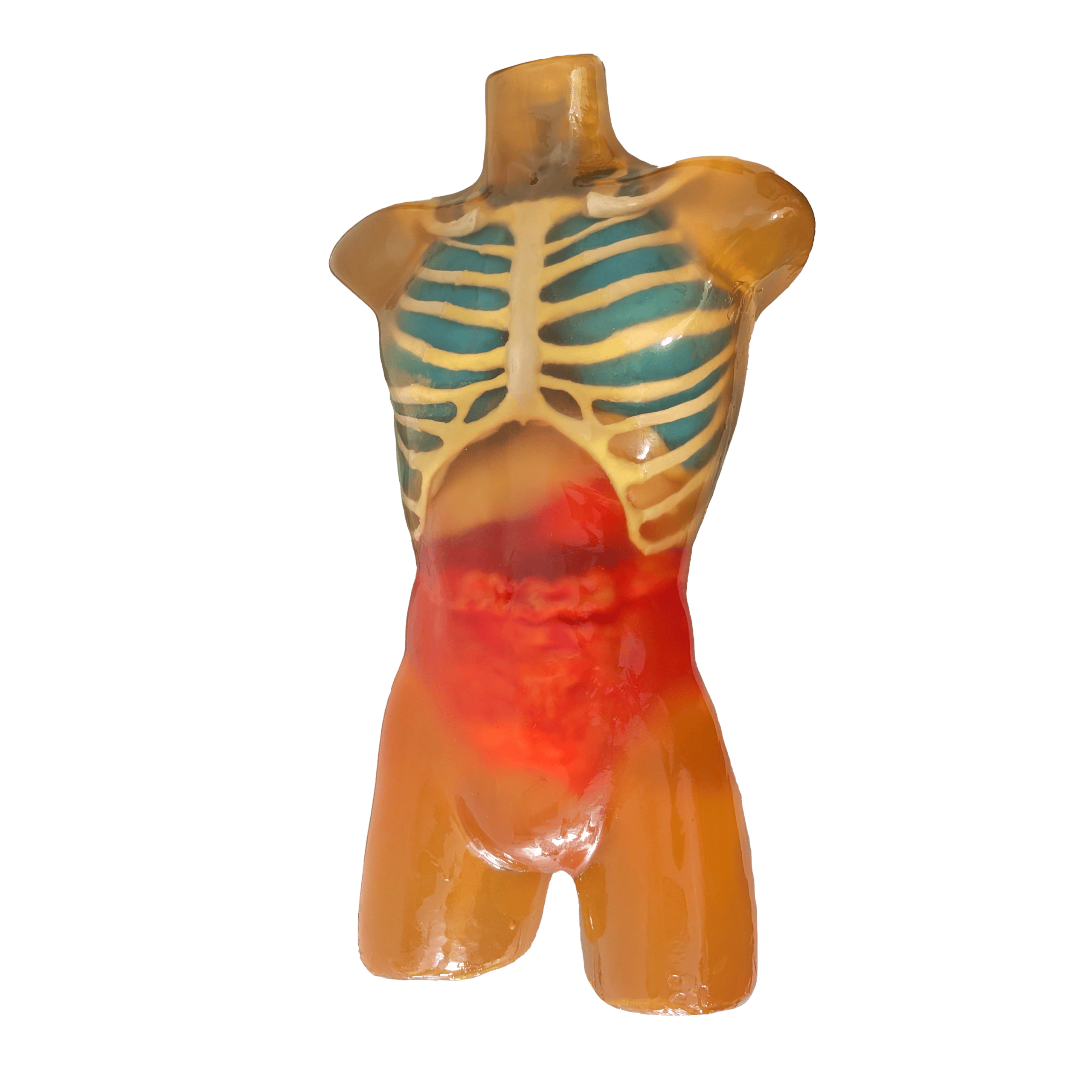

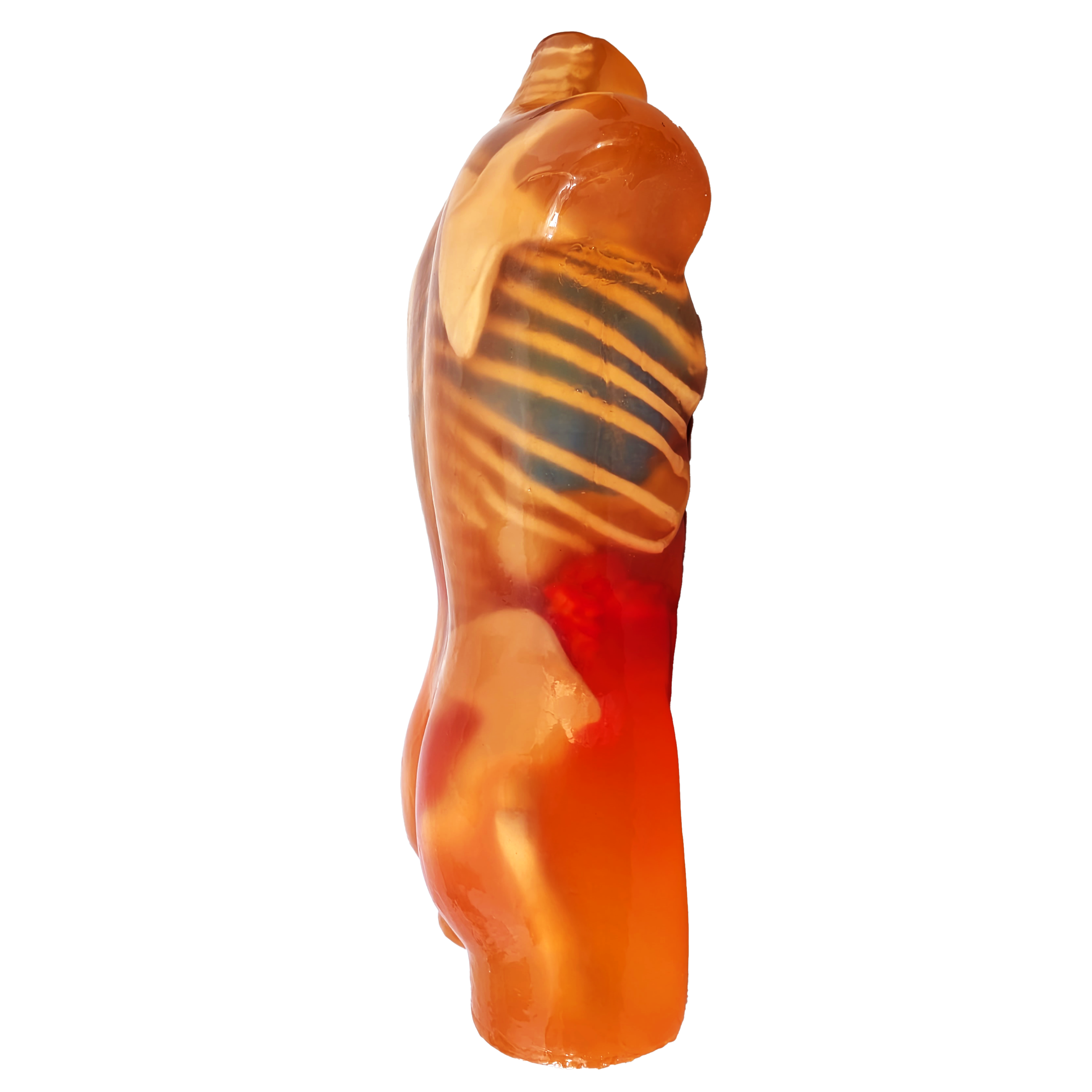

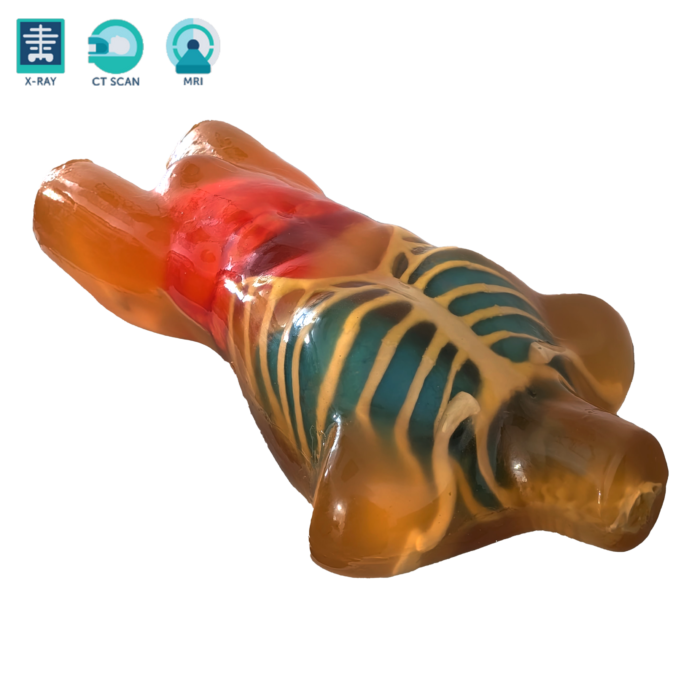

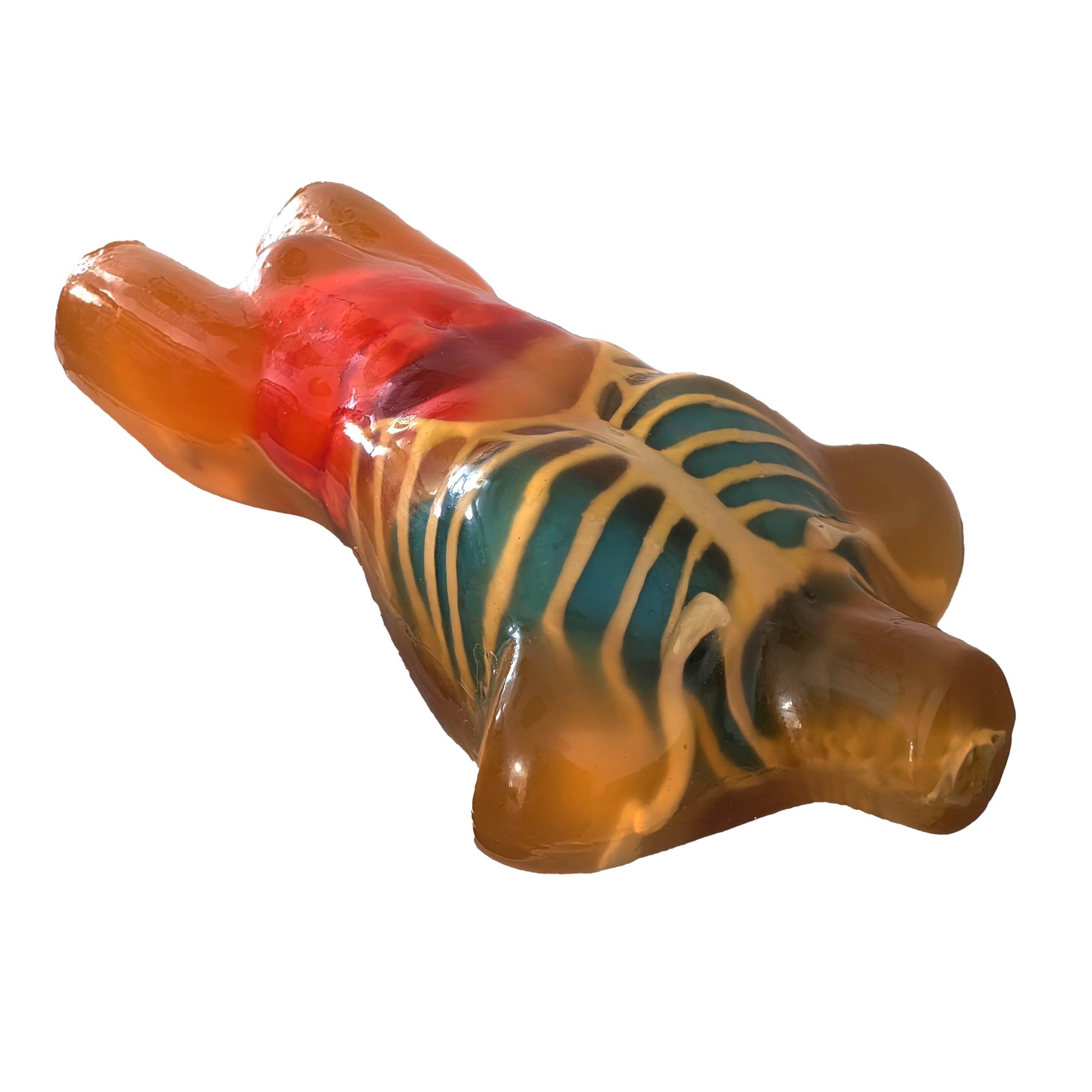

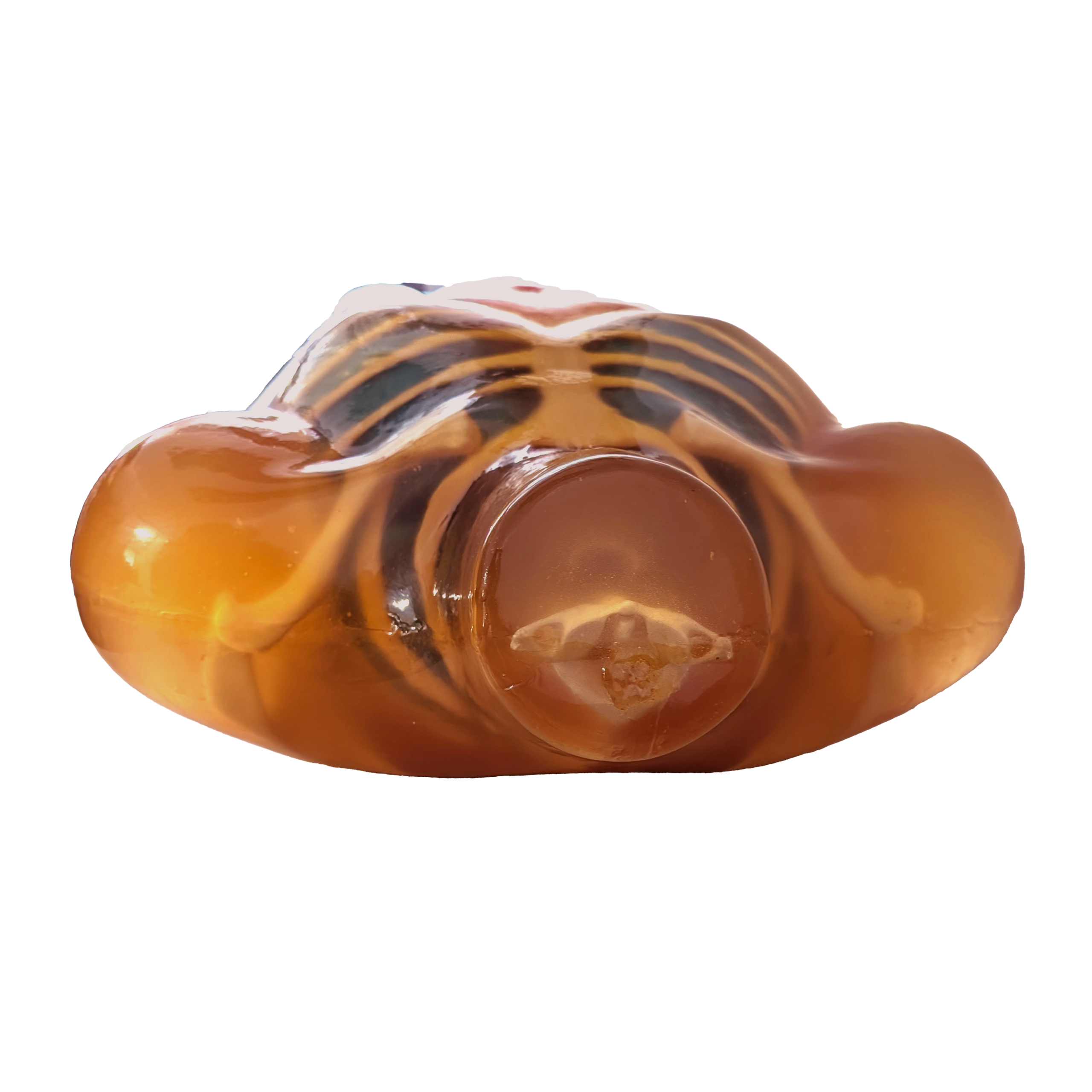

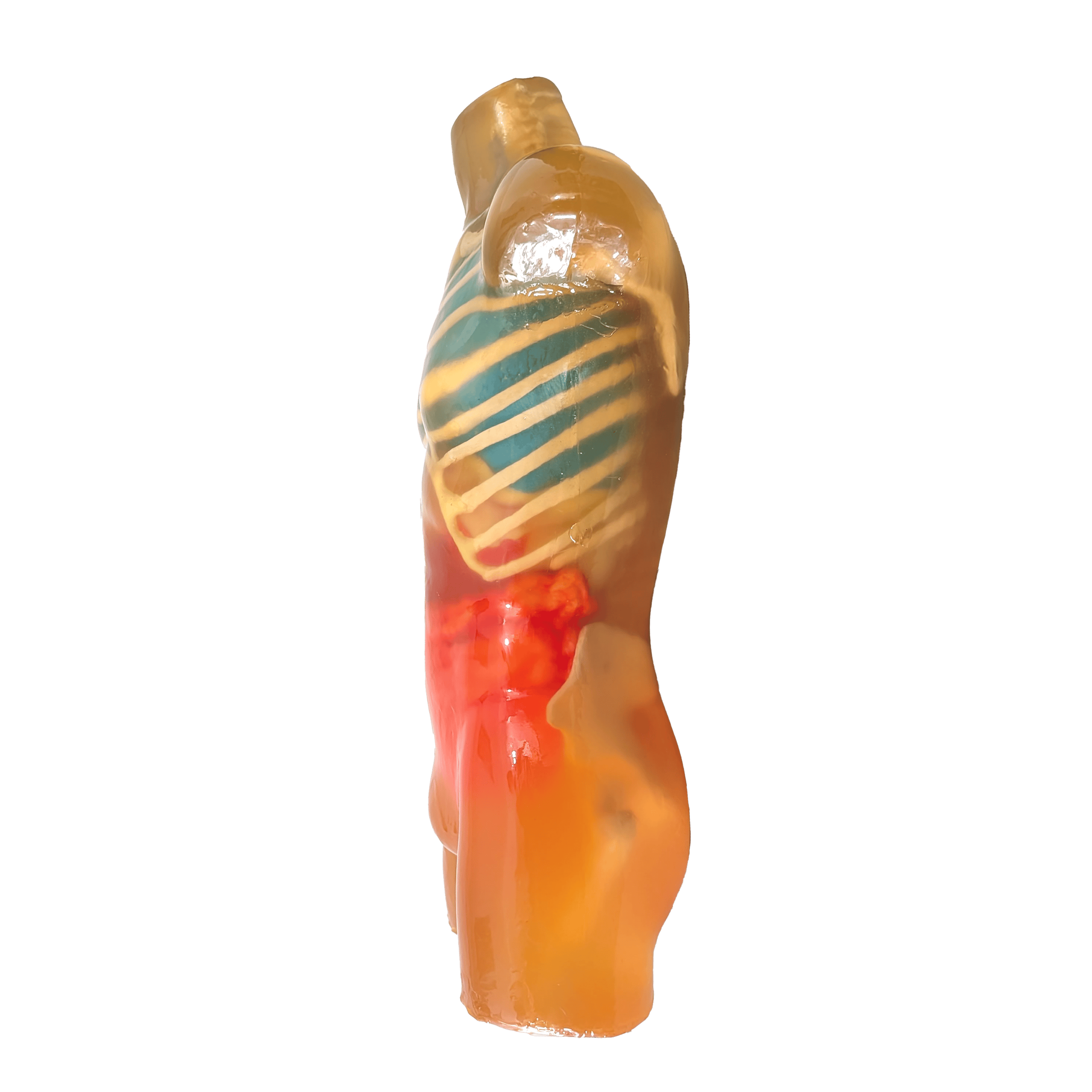

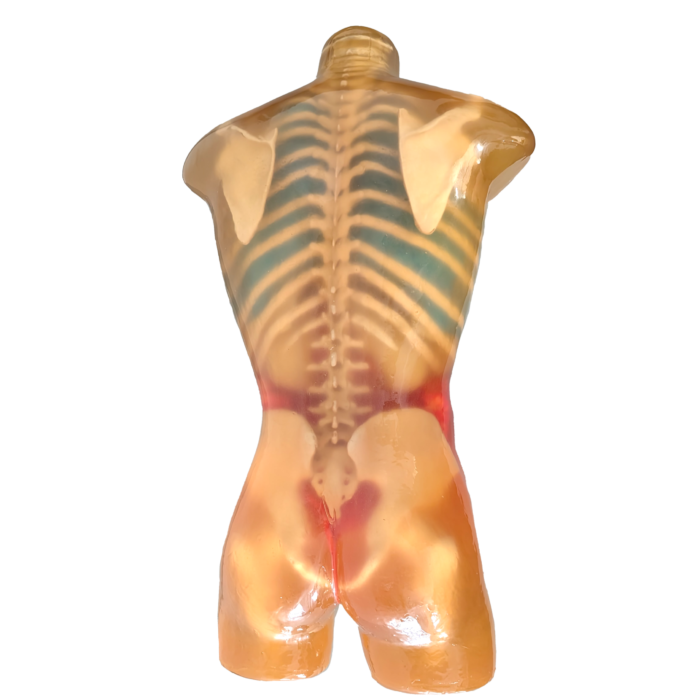

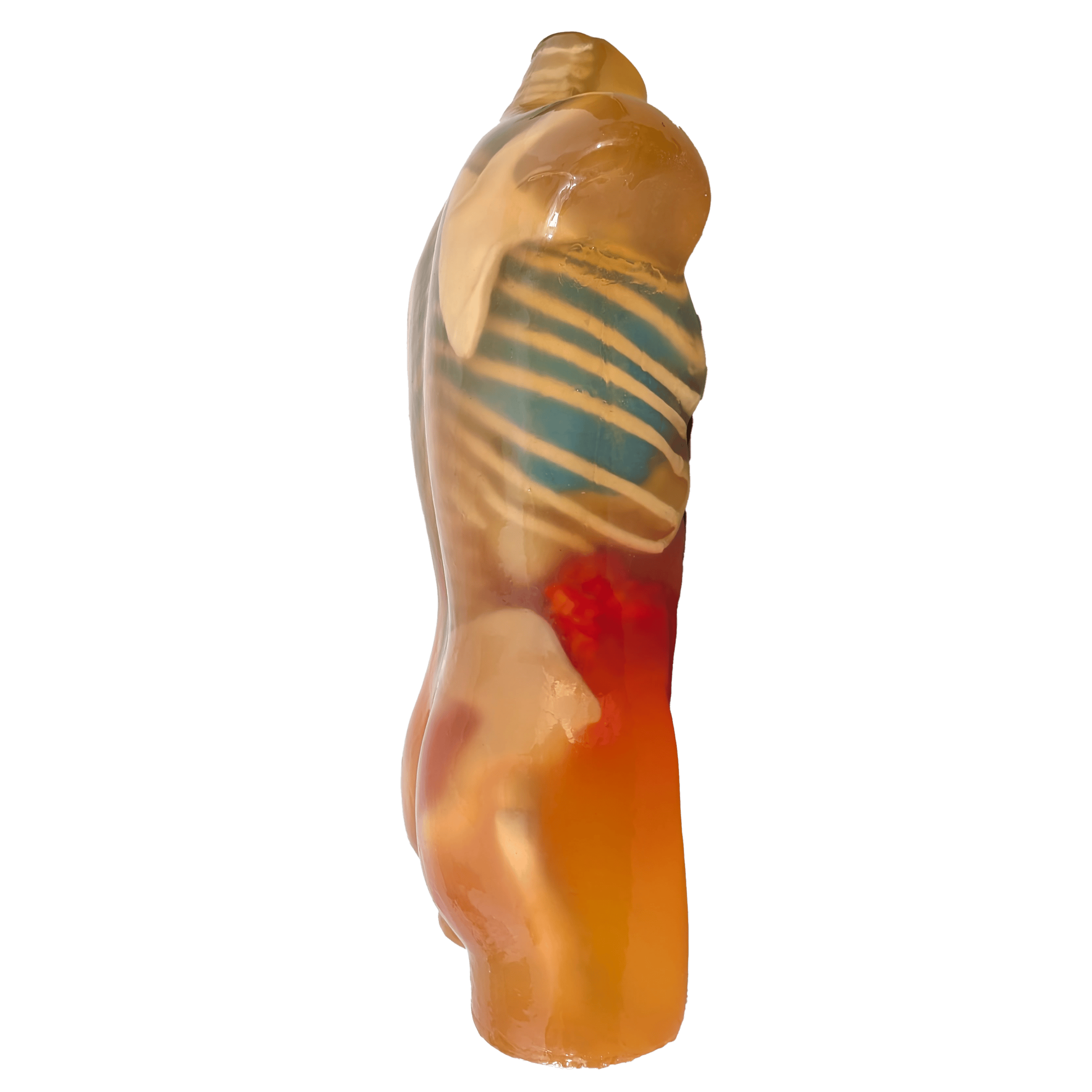

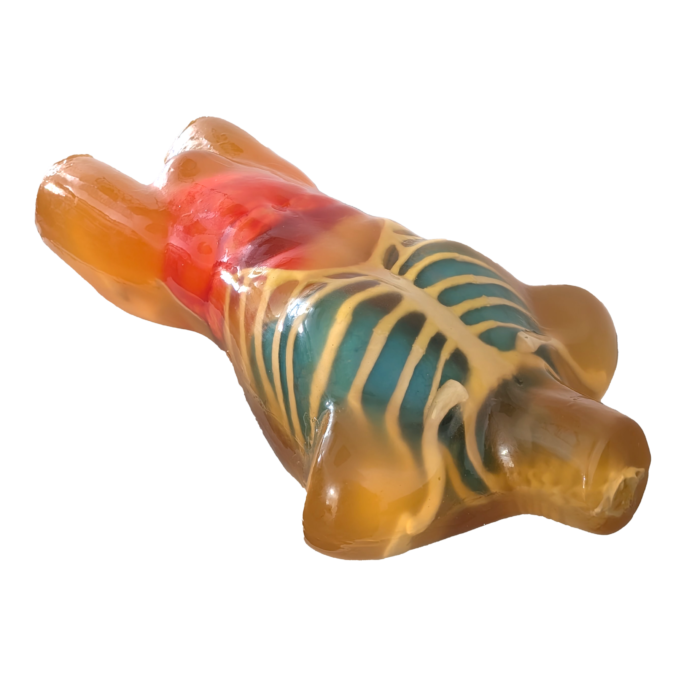

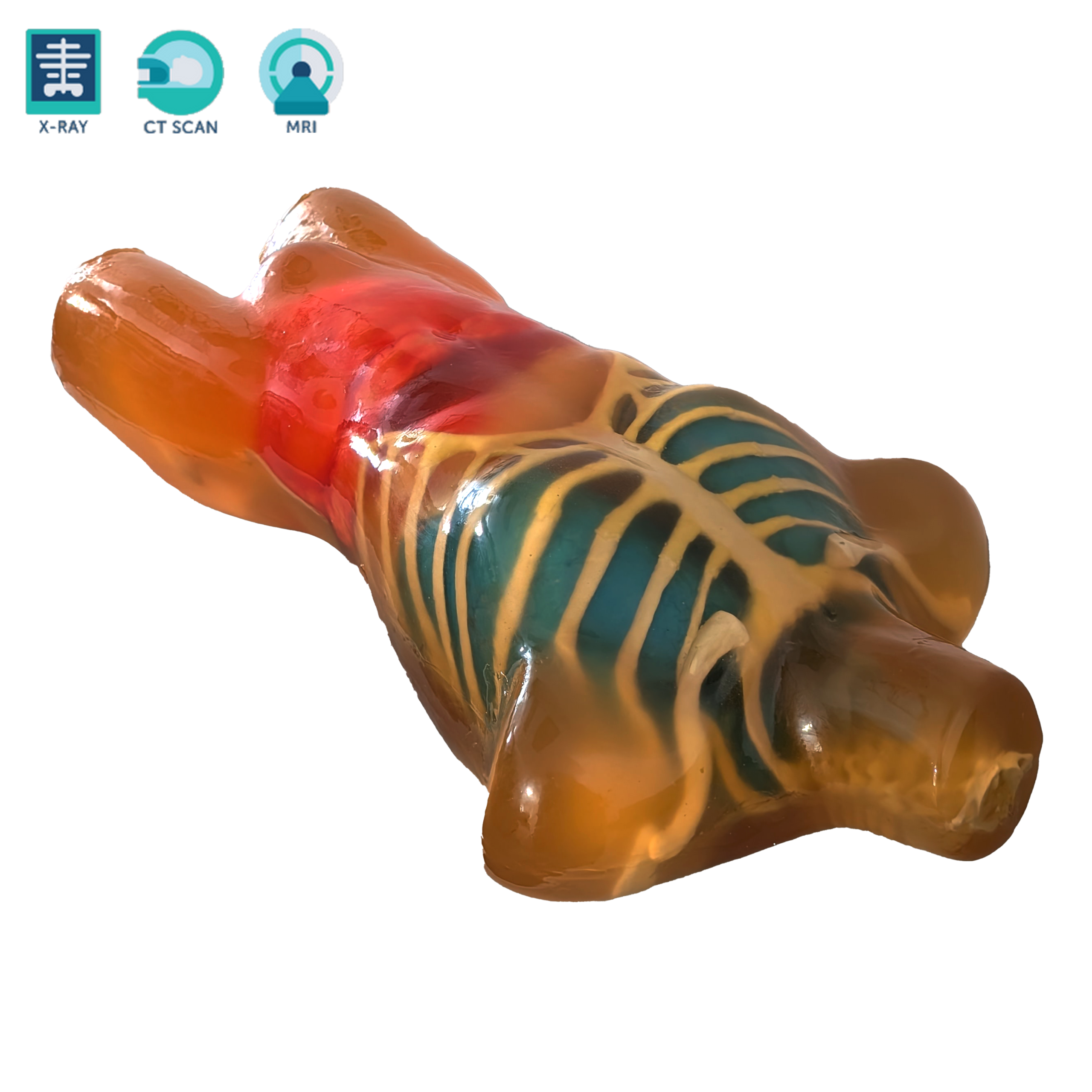

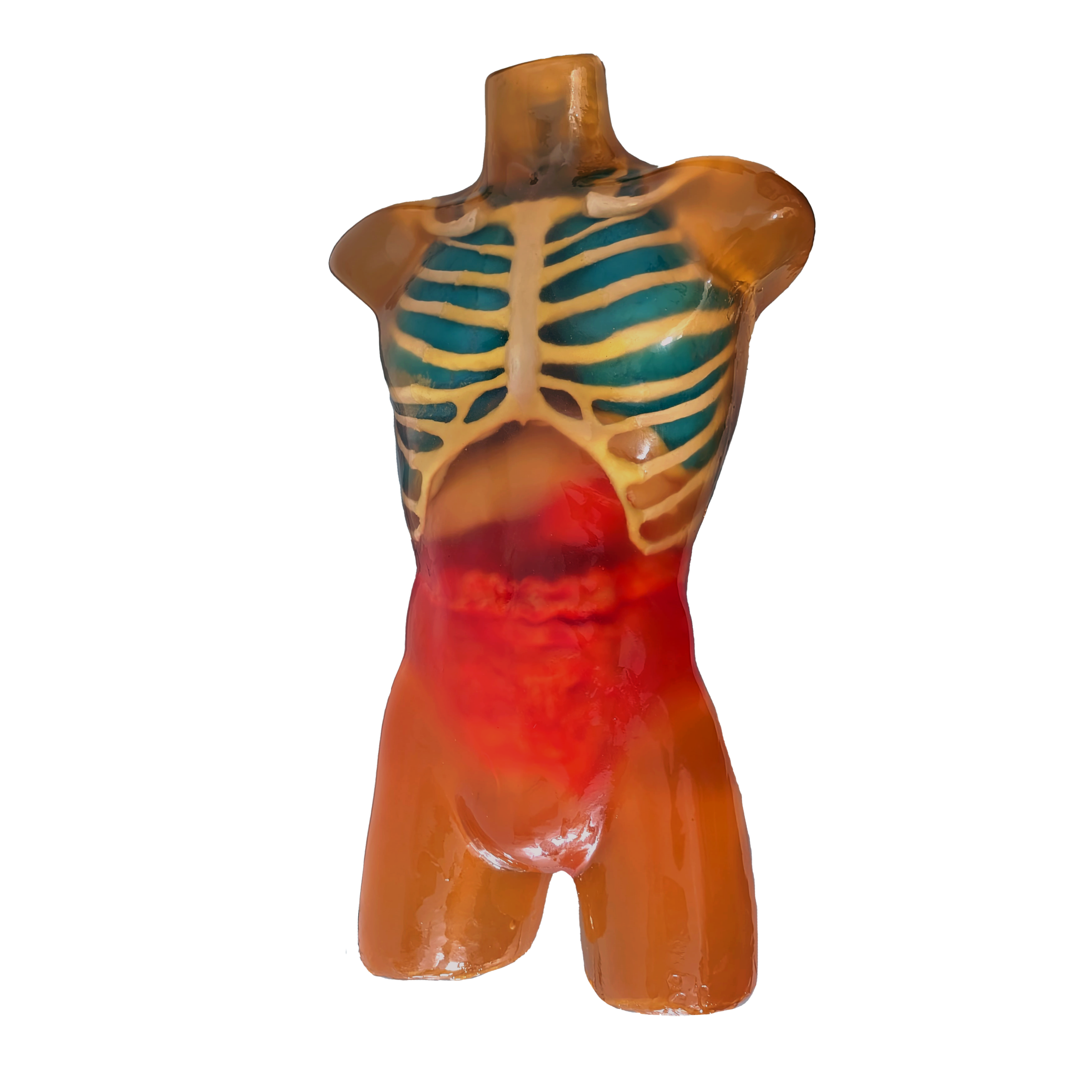

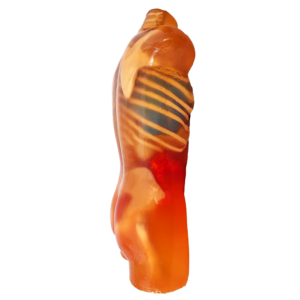

Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

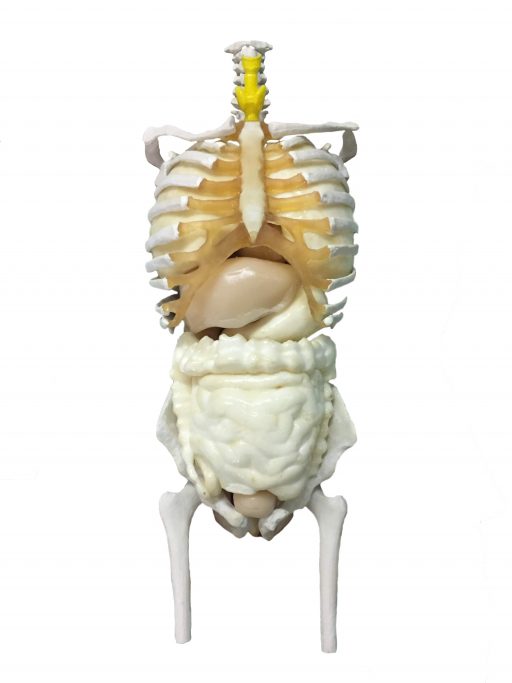

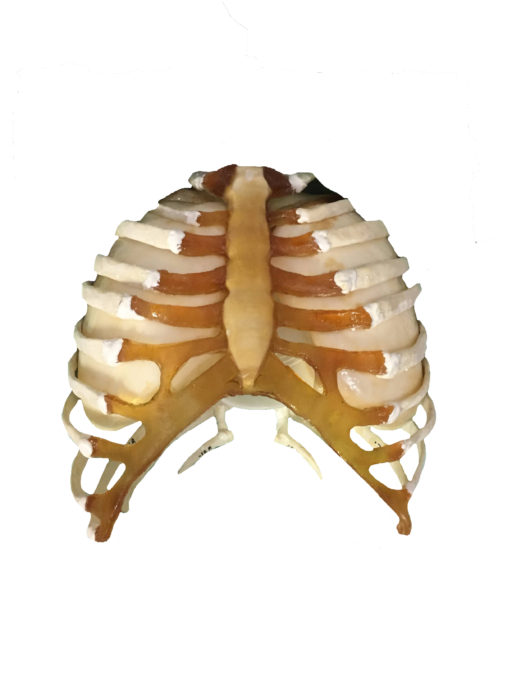

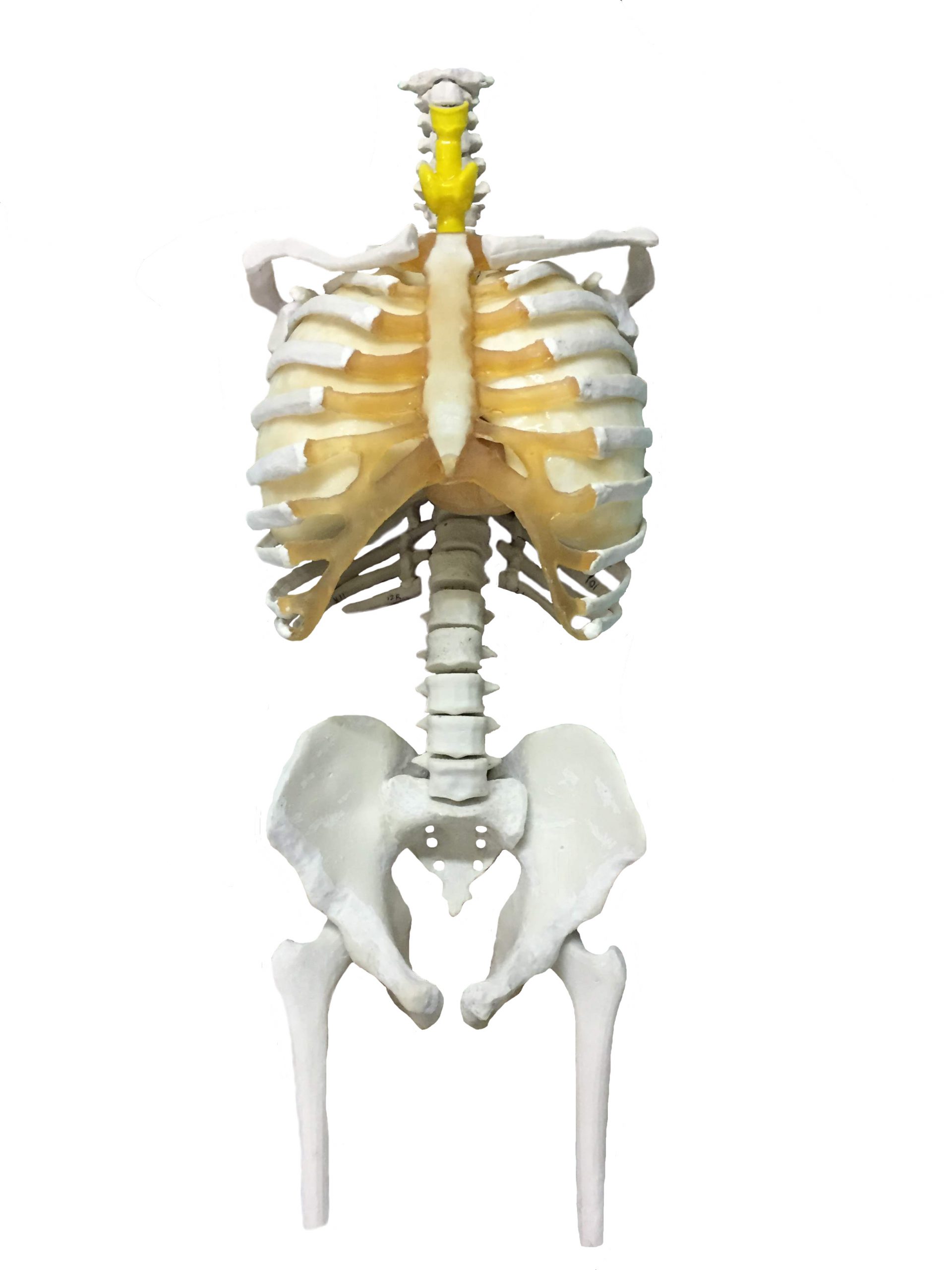

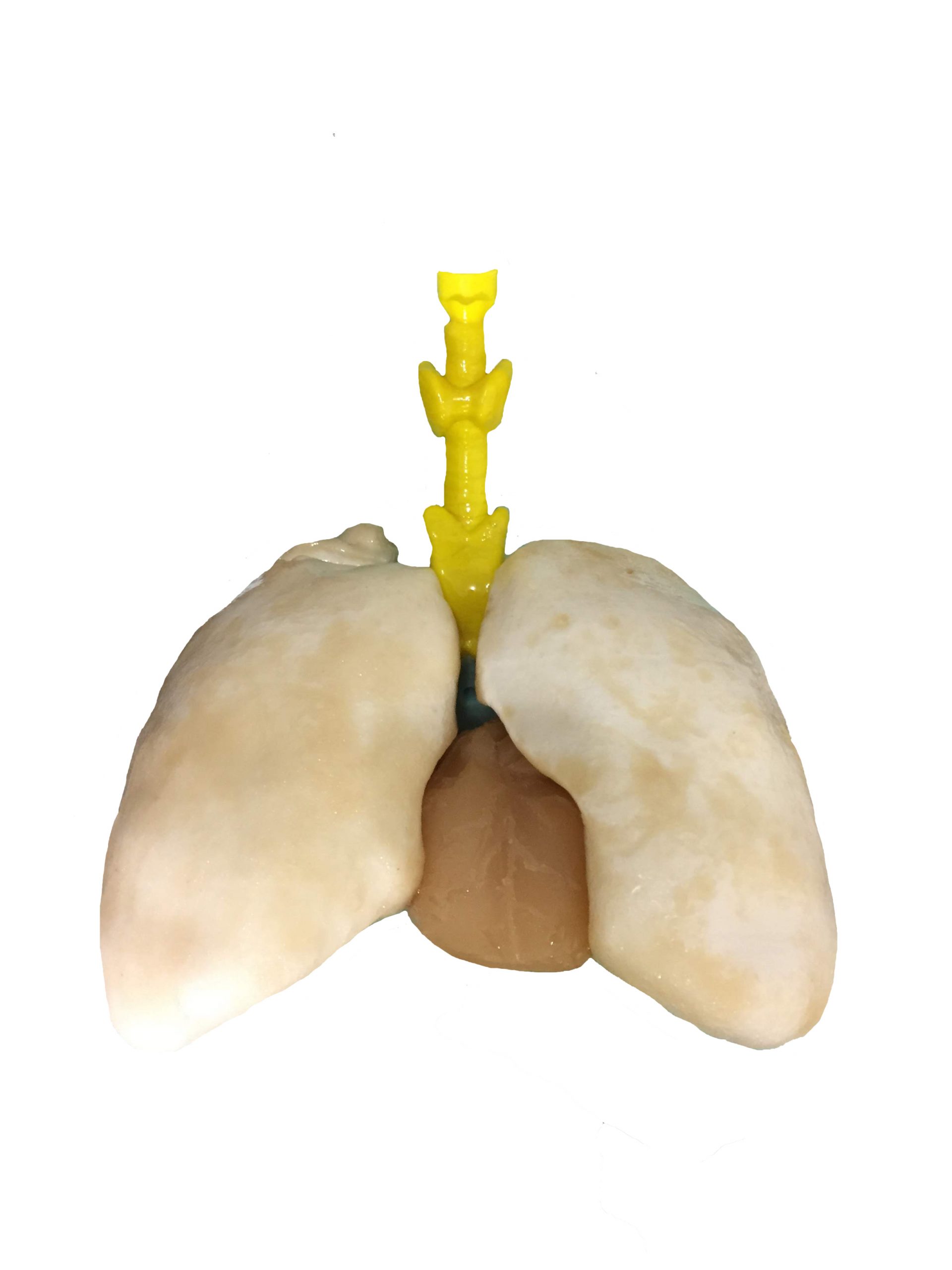

Product Images (Internal):
MRI Scans:
*/ These MRI scans were obtained from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. These are served as an example to refer to the imaging quality of this phantom; this phantom only includes the torso portion. If you have any questions related to these, please write us at [email protected] /*

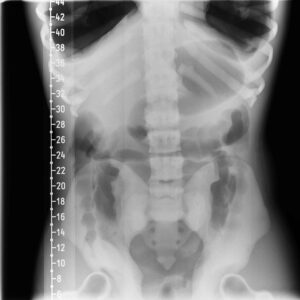

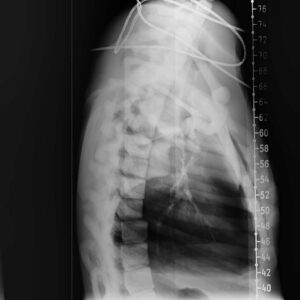

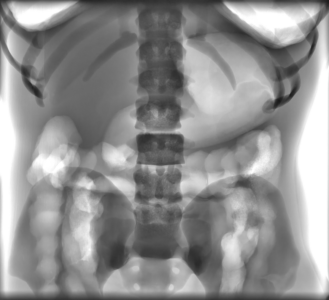

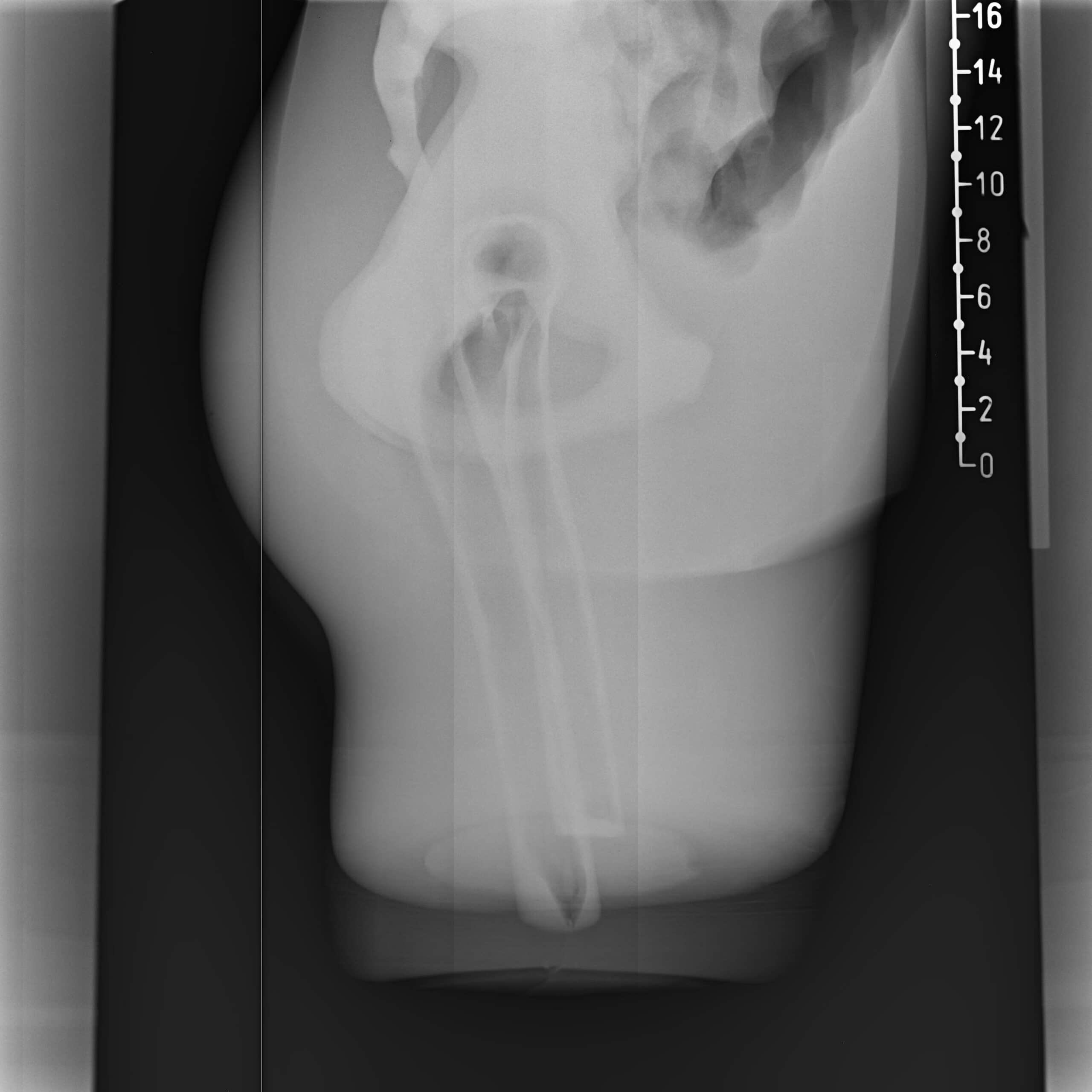

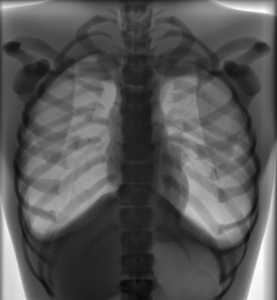

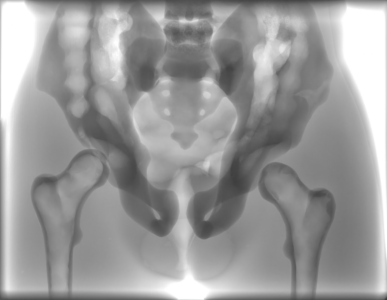

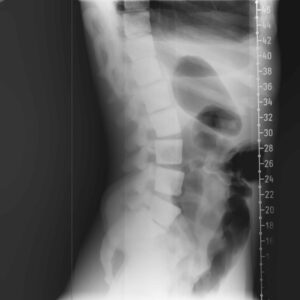

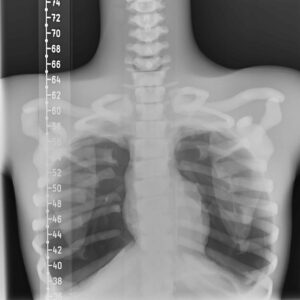

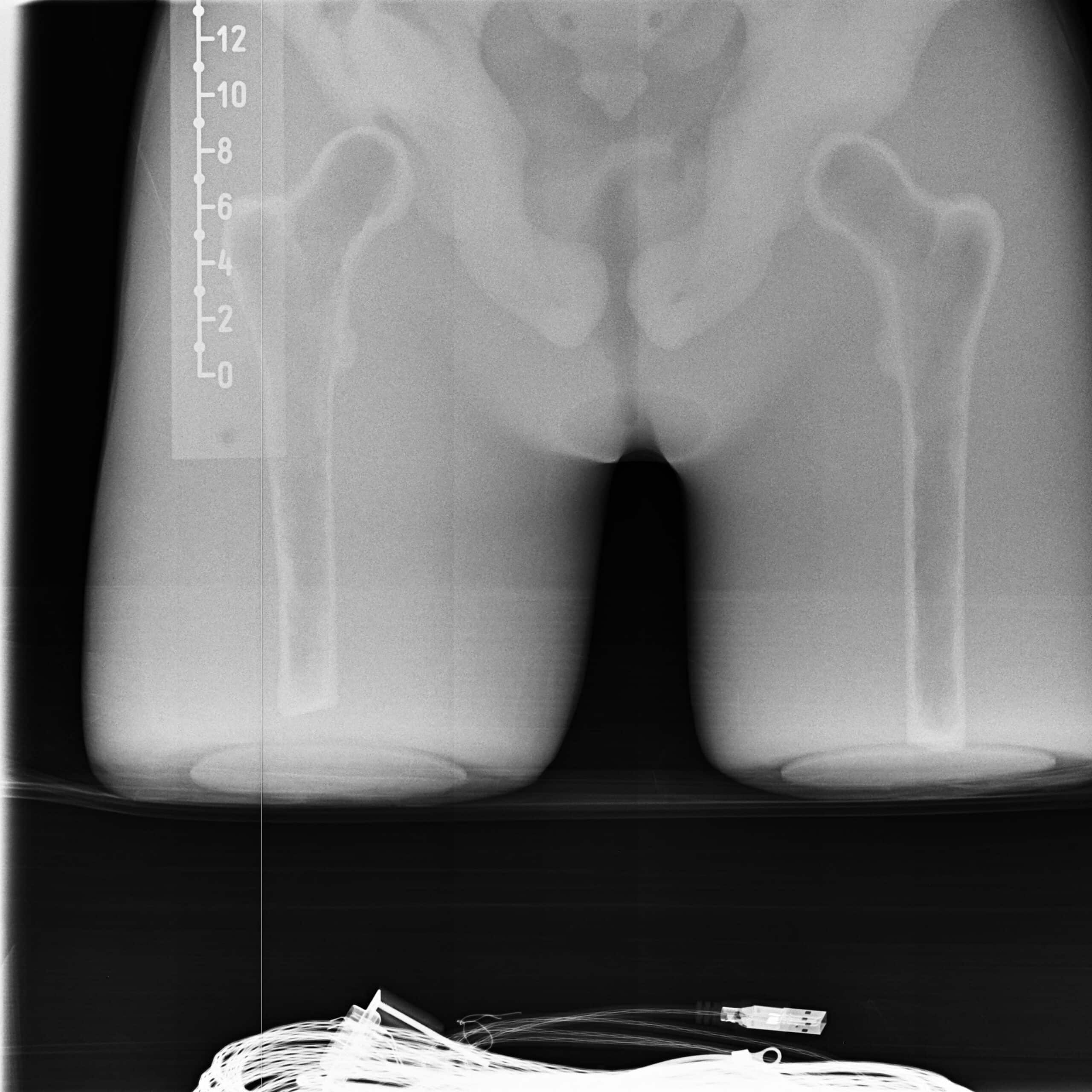

X-Ray Scans:
X-Ray Fluoro Scans:

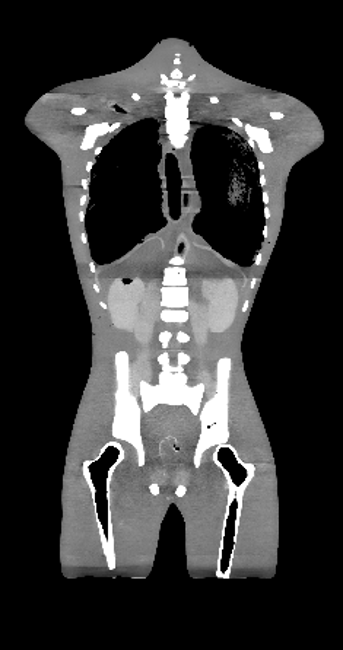

CT Scans:
-

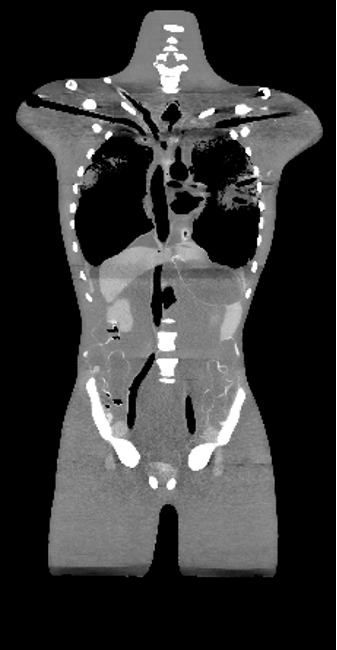

- Frontal View 1
-
- Frontal View 2
-

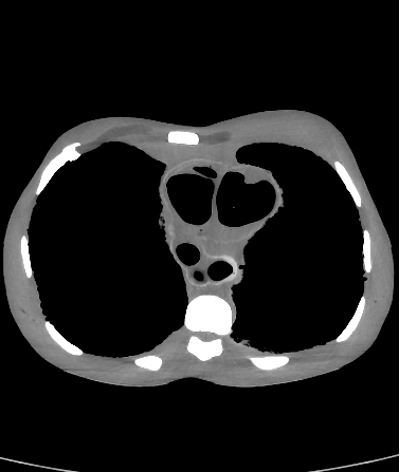

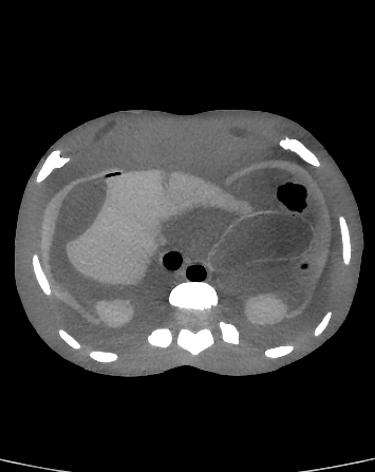

- Transversal View 1
-
- Transversal View 2
-

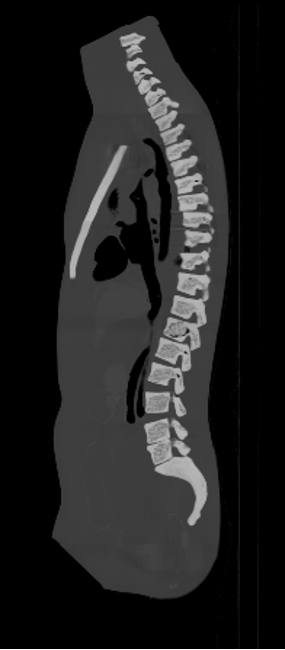

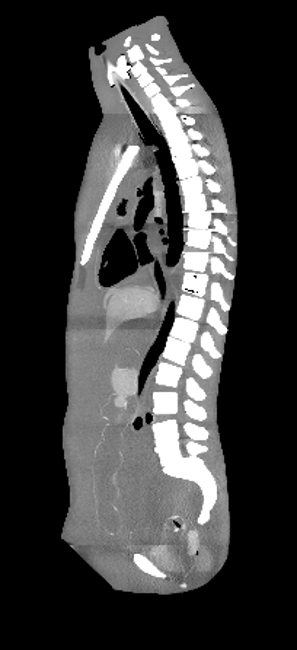

- Sagittal View 1
-
- Sagittal View 2
*/ These scans were obtained from a customized Ultrasound & X-RAY CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, please write us at [email protected] /*
Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Aorta | 40 |
| 5 | Vena Cava | 40 |
| 6 | Trachea | 80(Tissue part), -1000(Air filled part) |
| 7 | Pancreas | 110 |
| 8 | Spleen | 110 |
| 9 | Kidneys | 110 |
| 10 | Bladder | 35 |
| 11 | Rectum Wall | 100 |
| 12 | Sigmoid Colon Wall | 100 |
| 13 | Heart | 40 |
| 14 | Liver | 110 |
| 15 | Gallbladder | 35 |
Included In Order:
Adult Torso Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 34 x 18 x 10 Inches, Weight: 88 Lbs (approx.).
Shipment:
Size with Hard Carry Case: 46 x 36 x 17 Inches, Weight: 142 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
