This phantom is based on an average human anatomy and its skeleton is individually cast from a realistic patented bone material that is suitable for X-Ray/CT & MRI applications. It can be used for medical imaging research and radiology training and can also serve as a customized tool for equipment testing and calibration-related work.
The vertebrae have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The lungs installed inside this torso can be customized in several ways to simulate any pathology, such as mucus, lesions, and typical infections.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Upon request, this phantom can also be customized in size and shape (i.e. based on the individual’s CT scan).
Anatomy:
Spine with Porous Inner Structure Complete Ribcage Shoulders and Clavicles Trachea Heart Lungs with Prefilled Major Vessels
Design:
-
- Front View
-
- Lateral View
-
- Perspective View
-
- Top View
Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
Scan Results:
Coming Soon...
In the meantime, please refer to our Radiographs page for imaging quality of our phantoms.

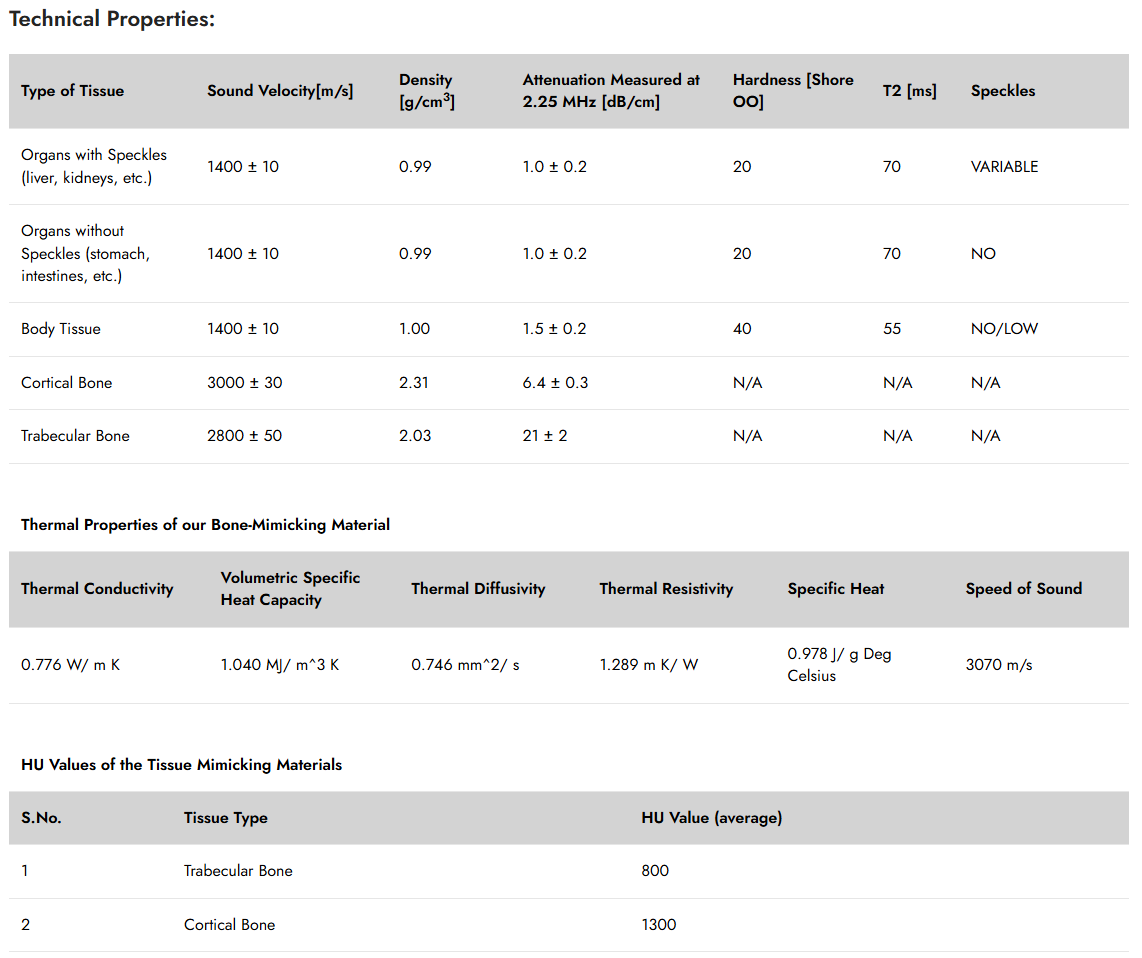

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Human Thorax Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 18 x 10 x 18 Inches, Weight: 58 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 90 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
