Adult Spine Phantom consists of 25 individual vertebrae assembled on top of each other. The vertebrae have a realistic three-layered structure, and their inner porosity can be adjusted according to the requirement of the particular project.
The Phantom is designed based on average human anatomy, and the bones are made out of realistic patented bone material that is suitable for X-Ray/CT applications. It can be used for medical imaging research and treatment planning of various medical procedures.
Anatomy:
Cervical Vertebrae (C1 – C7) Thoracic Vertebrae (T1 – T12) Lumbar Vertebrae (L1 – L5)
Design:
-

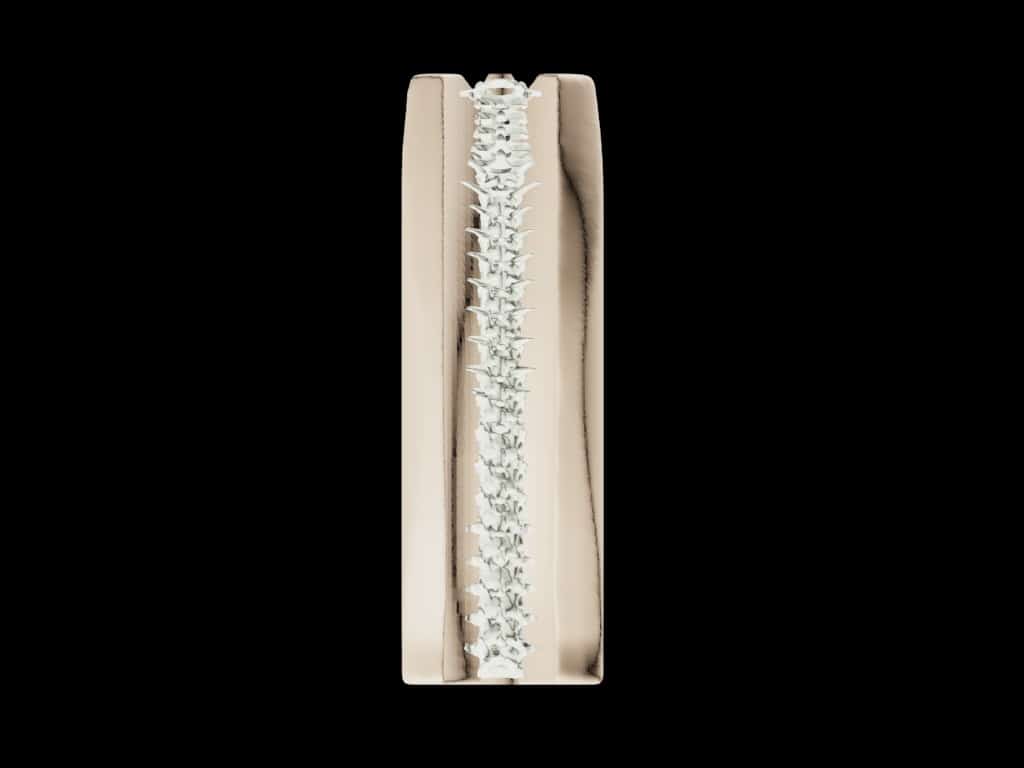

- Front View
-

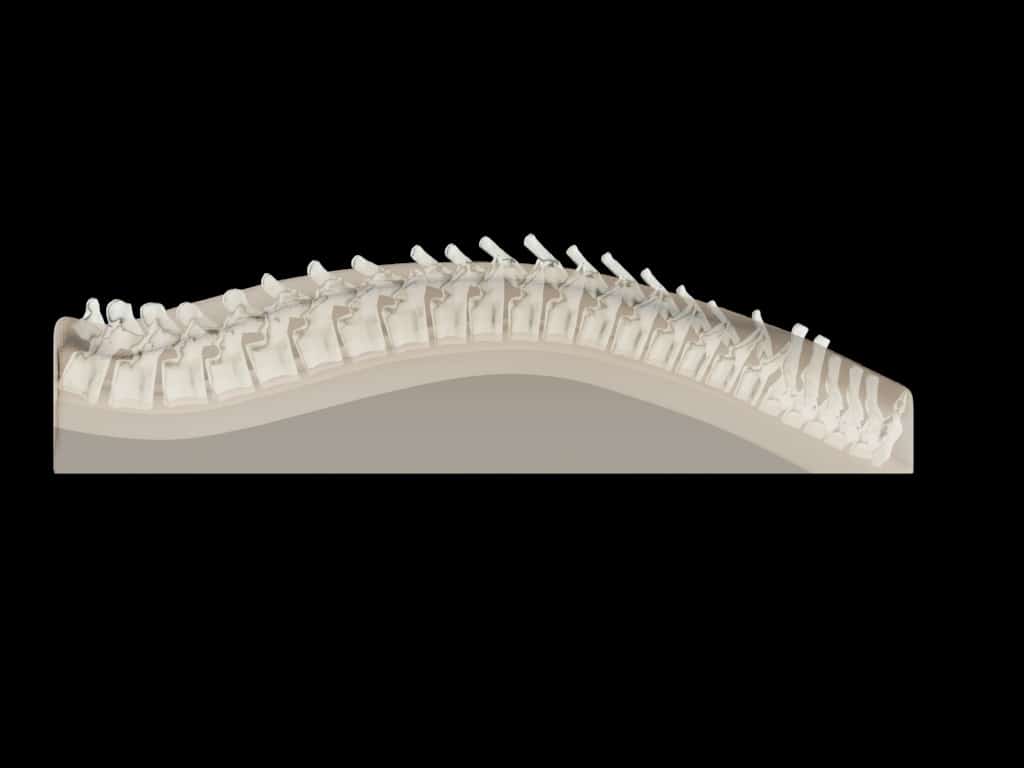

- Lateral View
-

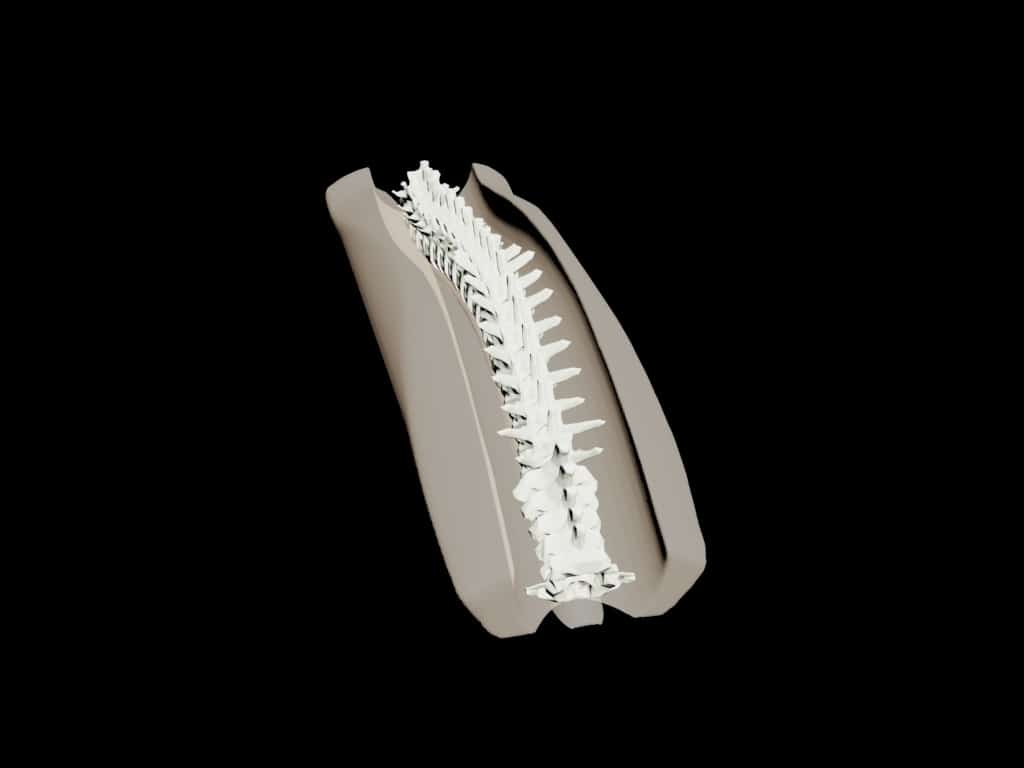

- Perspective View
-

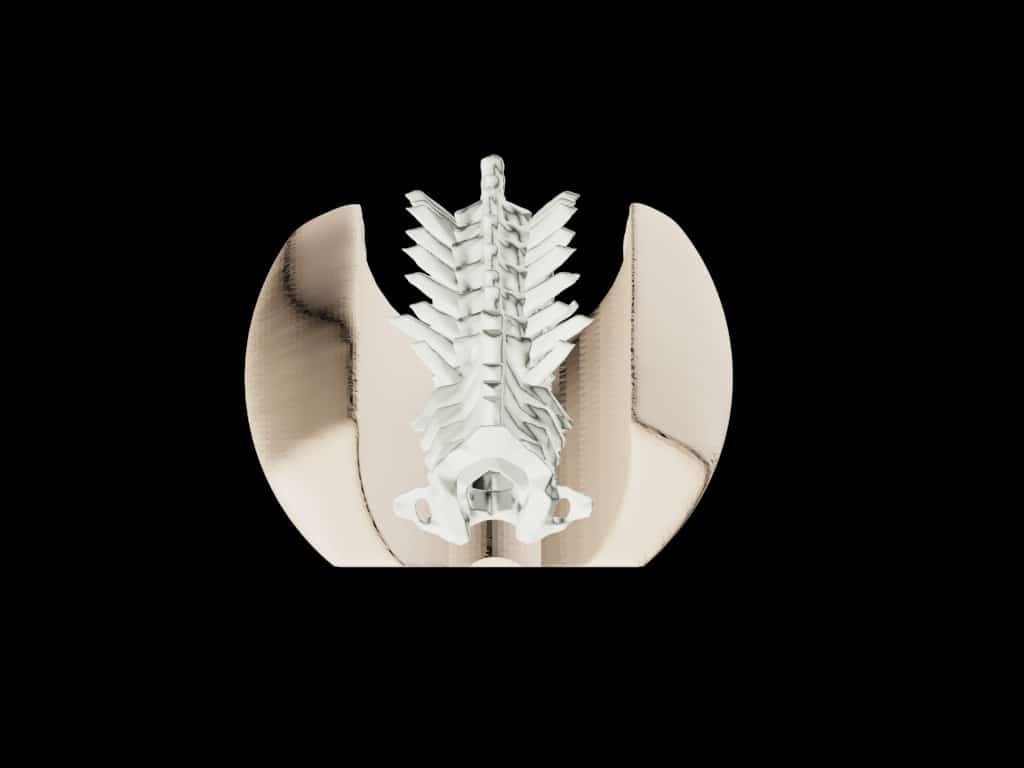

- Top View

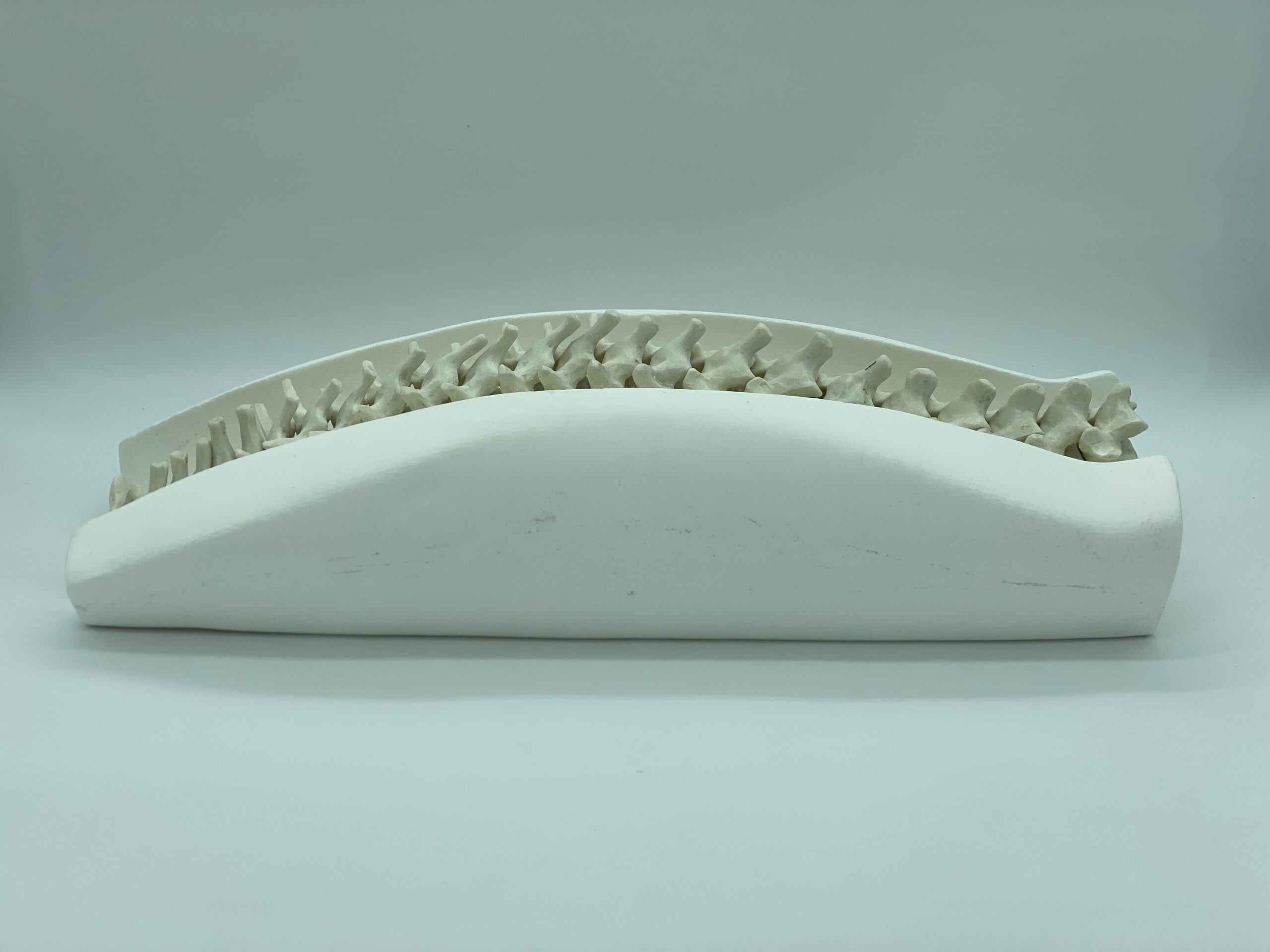

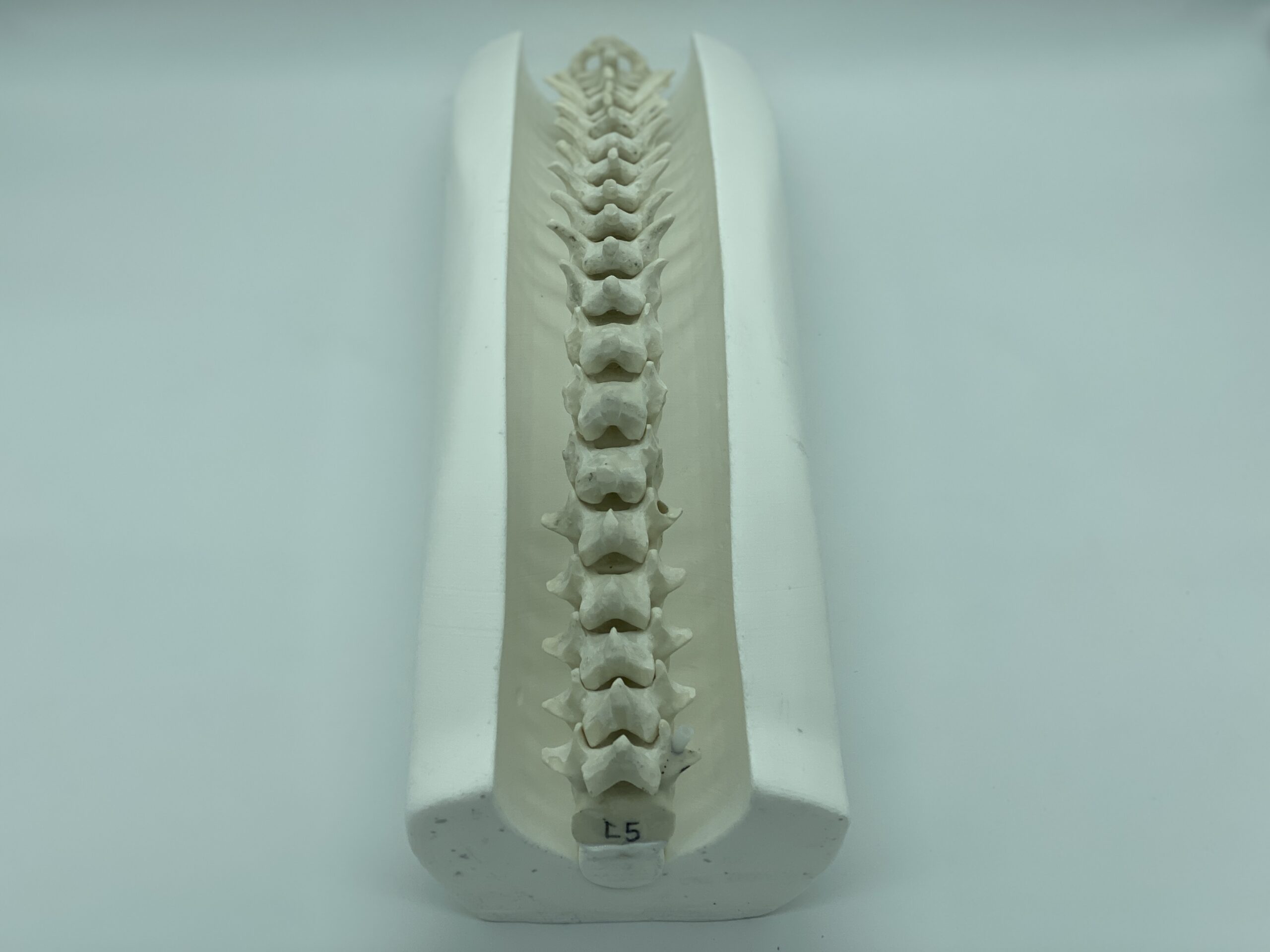

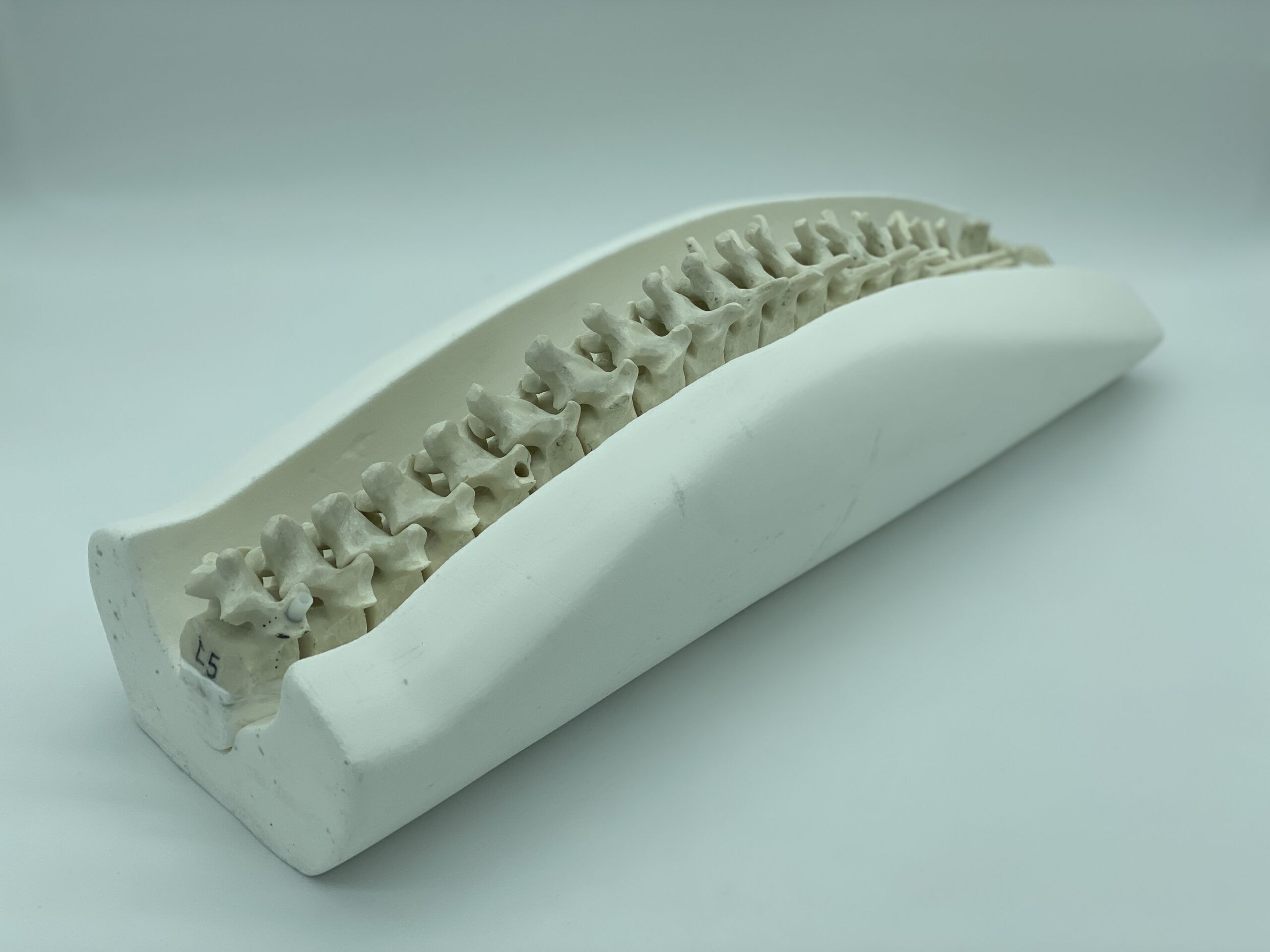

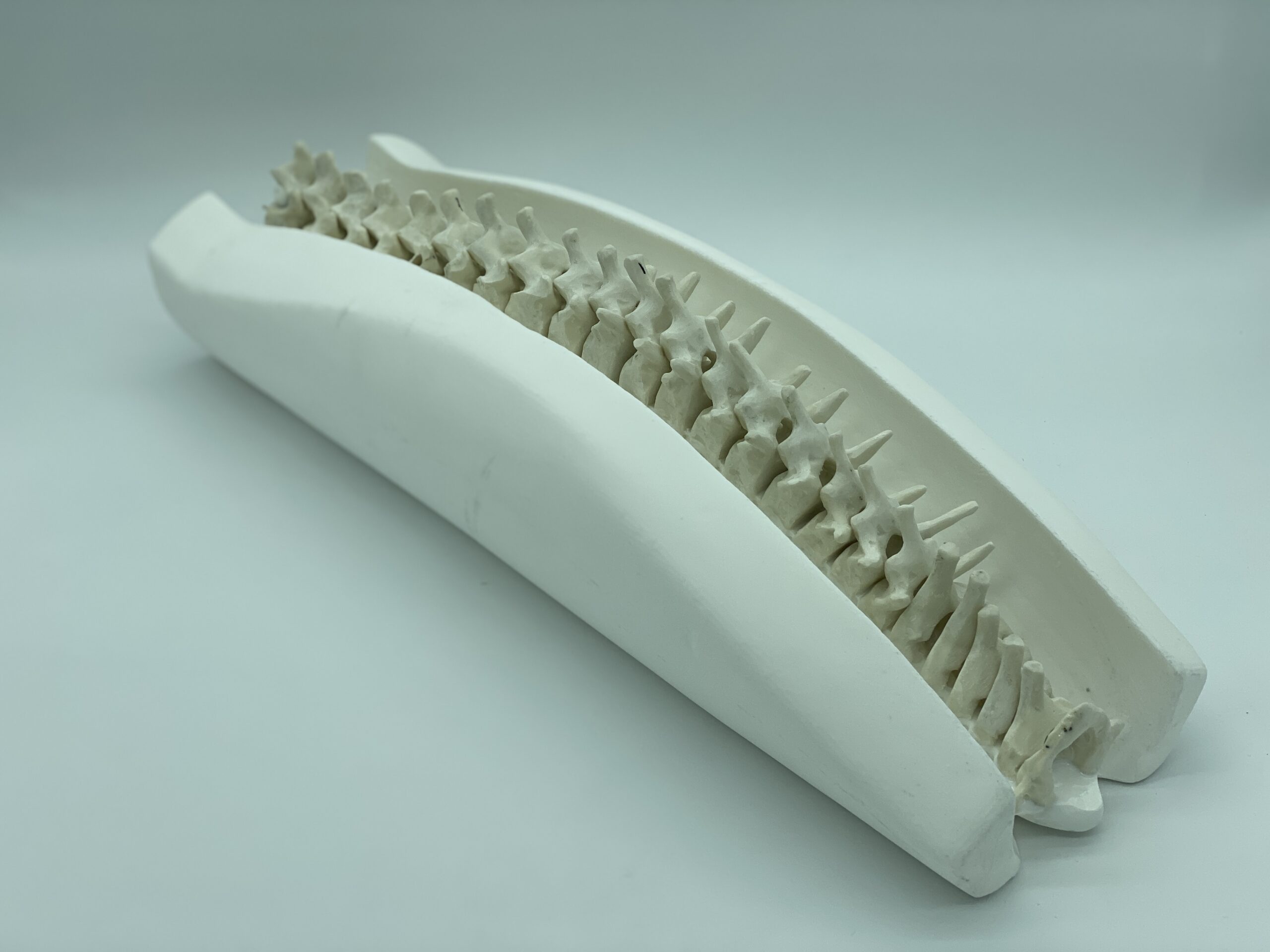

Product Images:

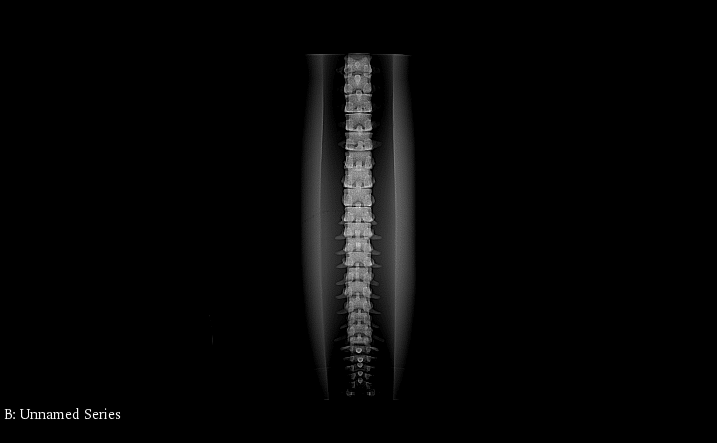

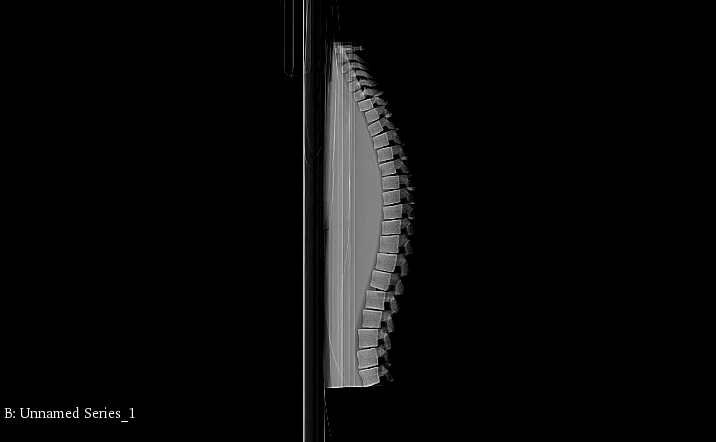

X-Ray Scans:

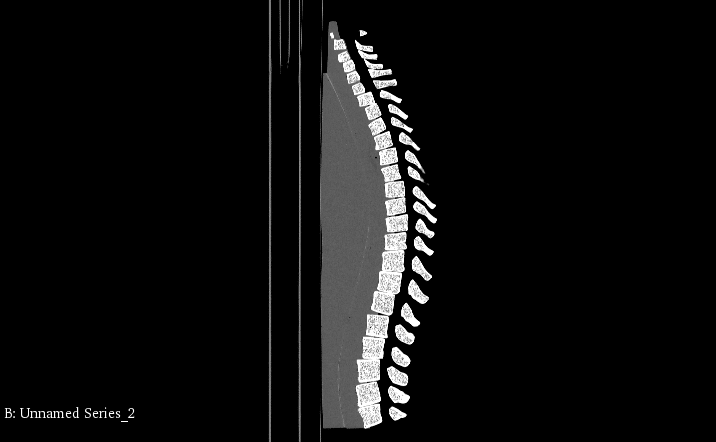

CT Scans:

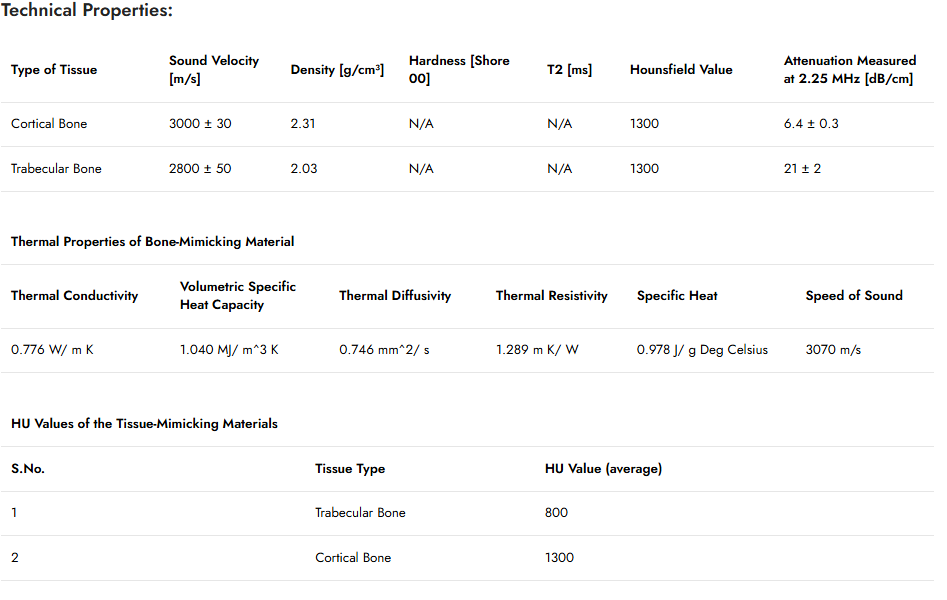

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Spine Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 22 x 7 x 7 Inches, Weight: 30 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 55 Lbs (approx.)
Materials Used:
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
