Adult Spine Phantom consists of 25 individual vertebrae assembled on top of each other and encased in a semi-cylindrical-shaped body-mimicking tissue. The vertebrae have a realistic three-layered structure, and their inner porosity can be adjusted according to the requirement of the particular project.
The Phantom is designed based on average human anatomy, and the bones are made out of realistic patented bone material that is suitable for Ultrasound and X-Ray/CT applications. It can be used for medical imaging research and treatment planning of various medical procedures (Upon request, it can be modified for a lumbar or spine lumbar practice phantom with soft tissue-mimicking material surrounding it).
The phantom can be further customized with water fillable spinal canal inside the vertebrae or with a prefilled spinal canal for medical imaging or research applications.
Anatomy:
Cervical Vertebrae (C1 – C7) Thoracic Vertebrae (T1 – T12) Lumbar Vertebrae (L1 – L5)
Design:
-
- Front View
-

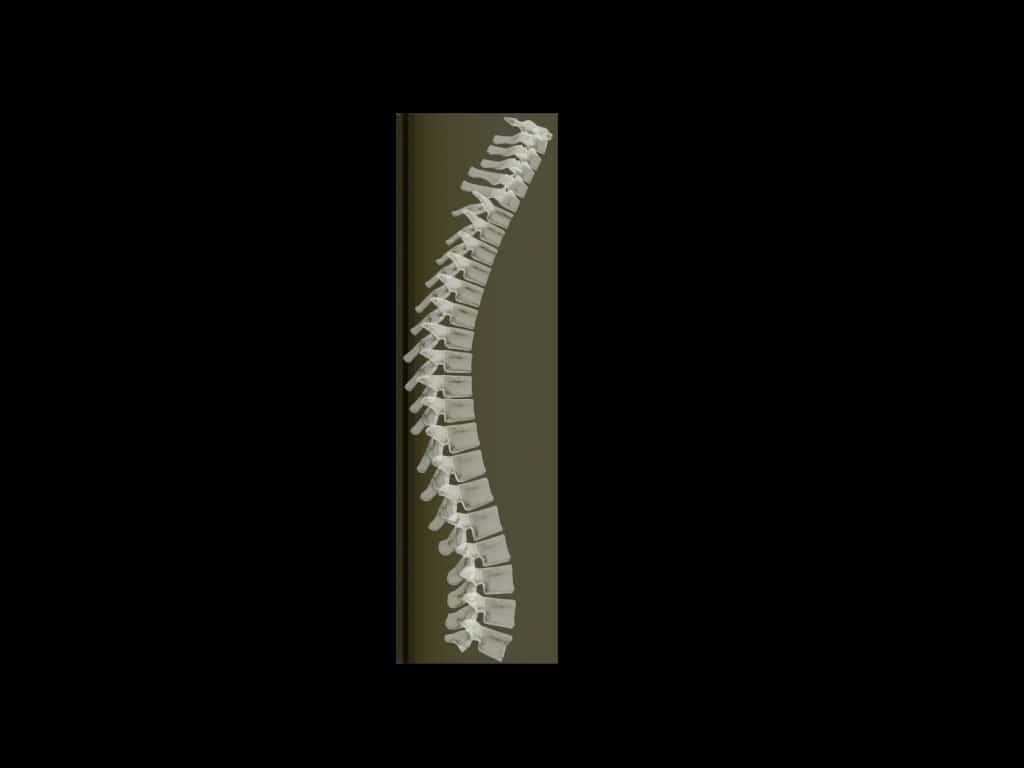

- Lateral View
-

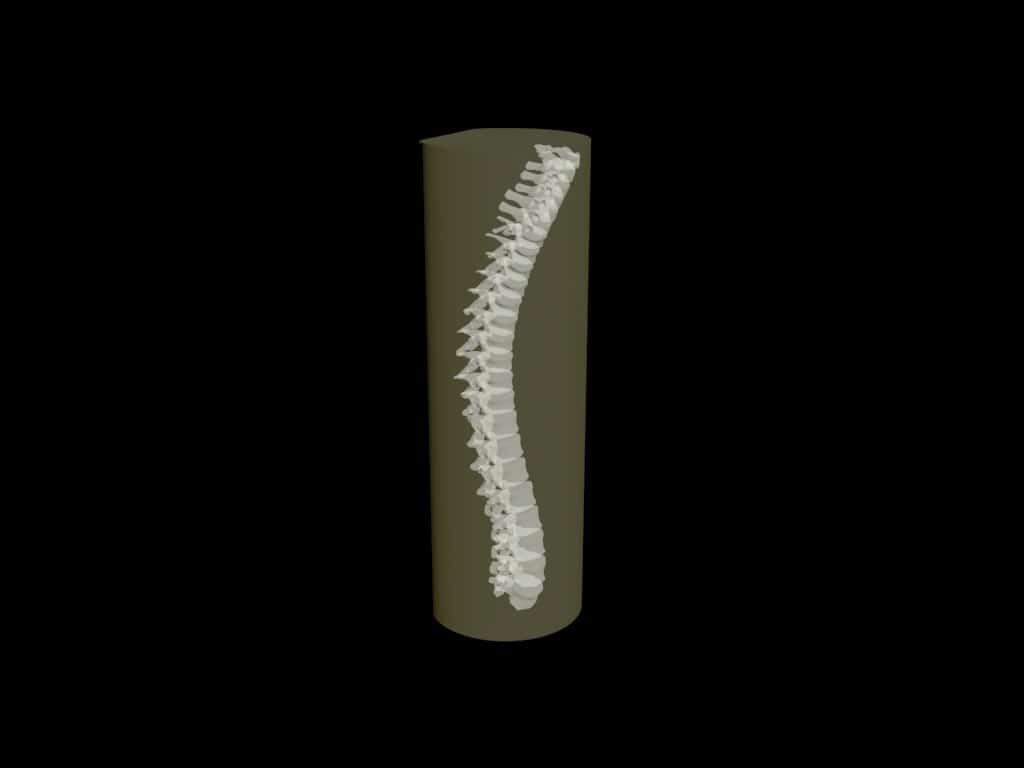

- Perspective View
-
- Top View

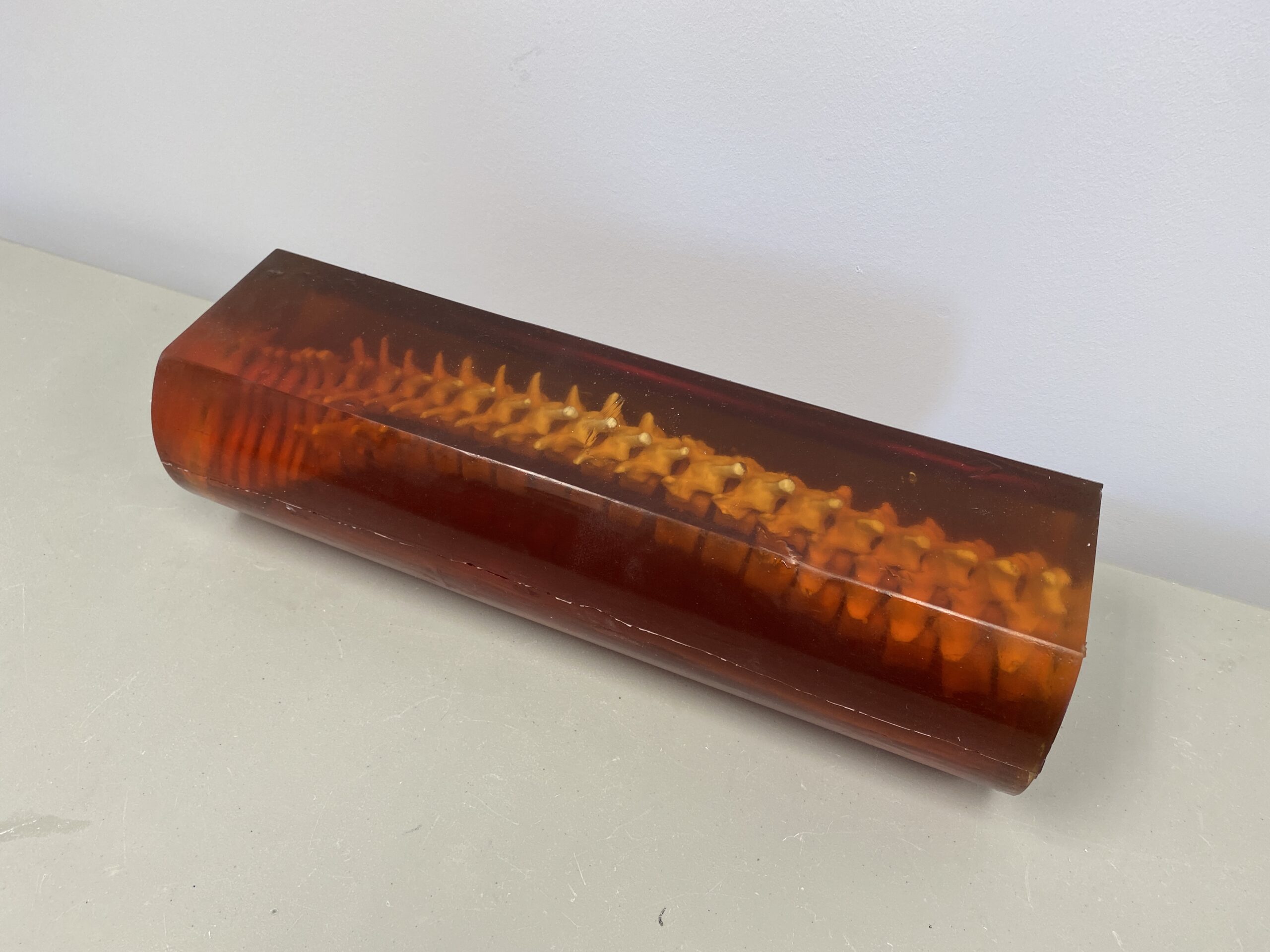

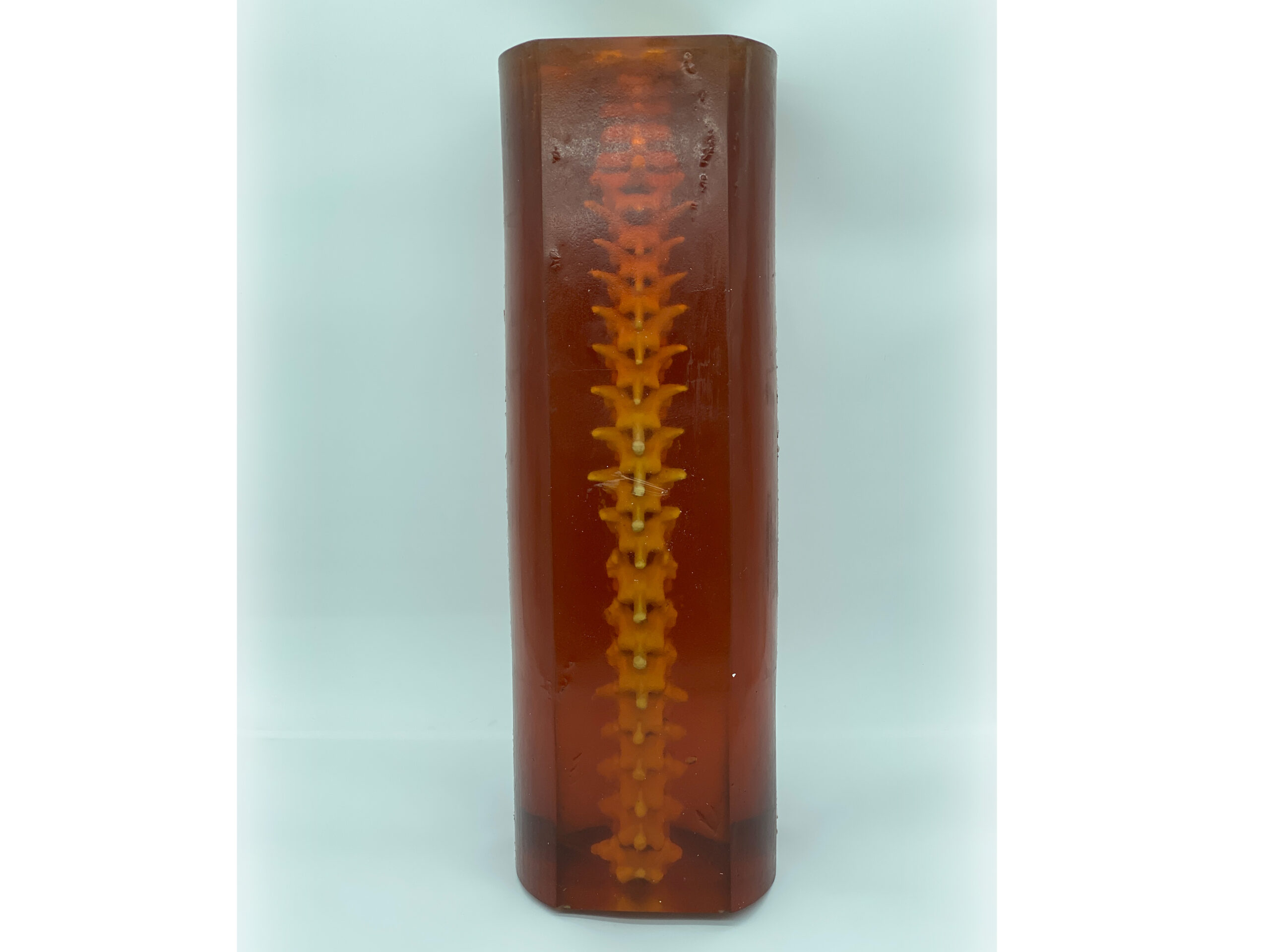

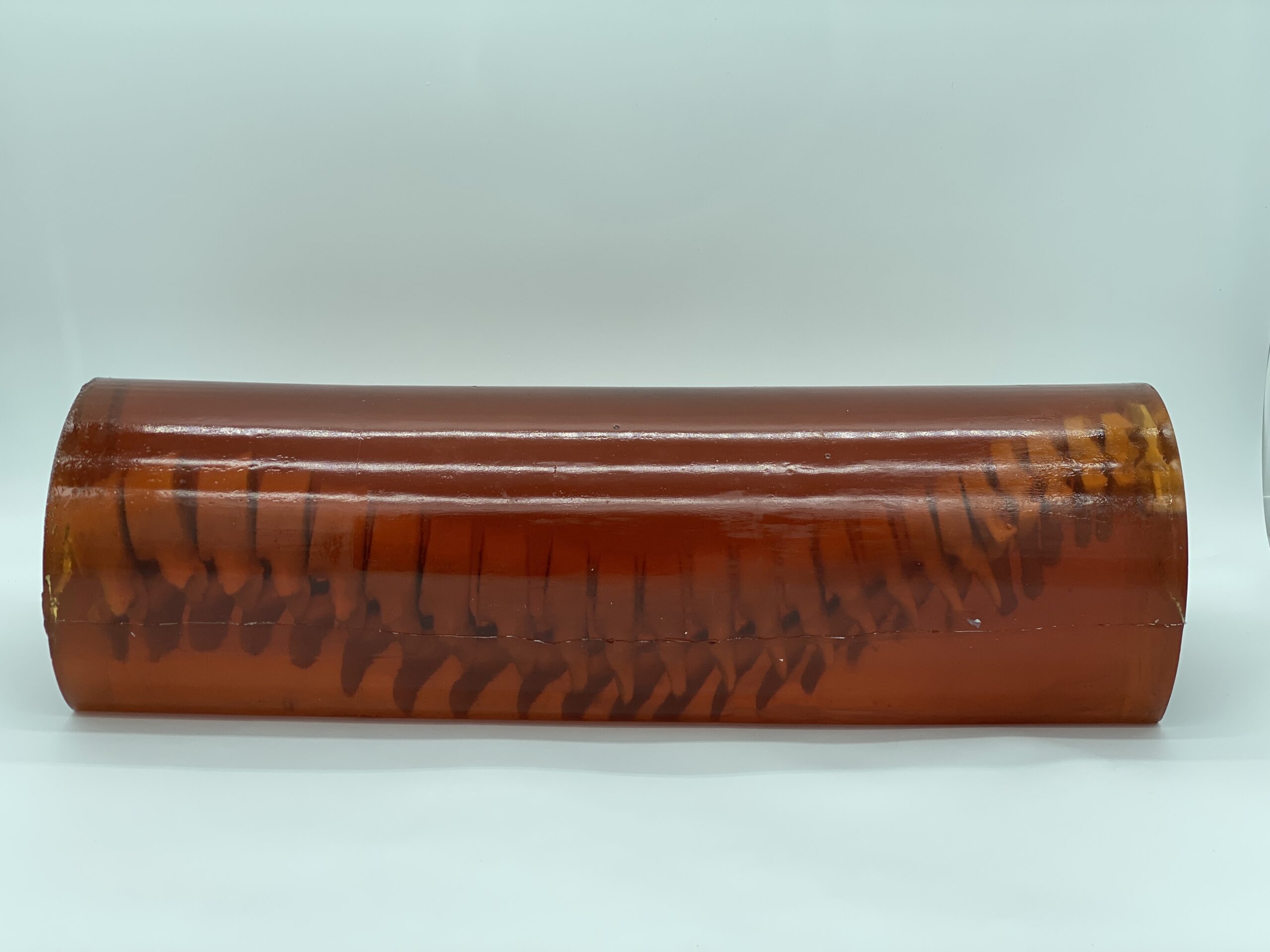

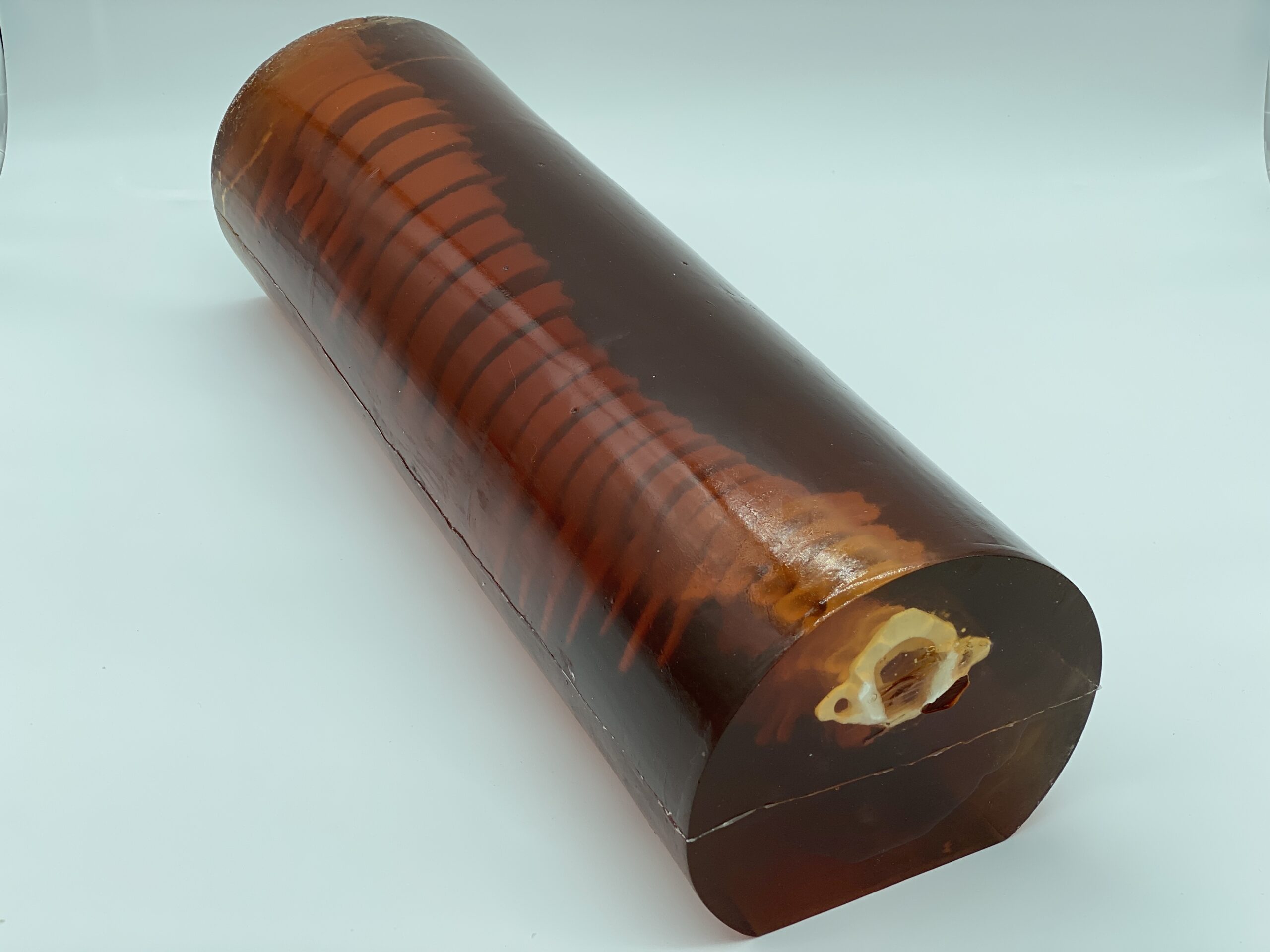

Product Images:

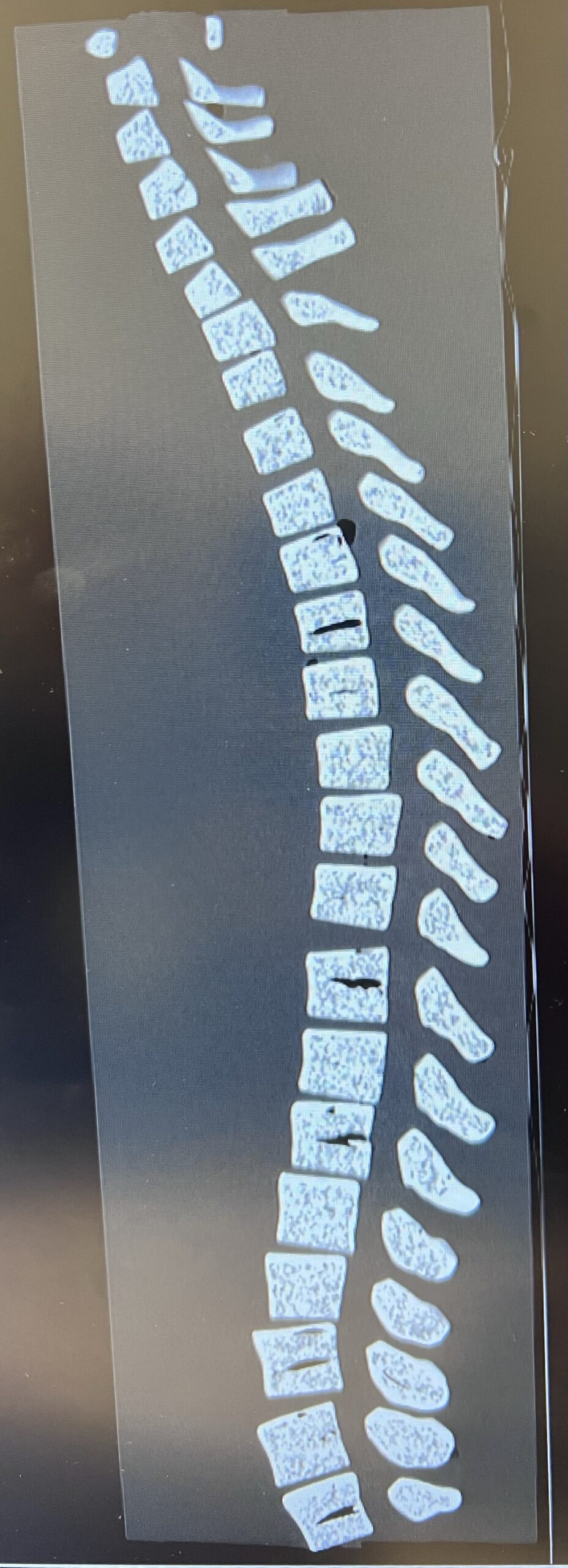

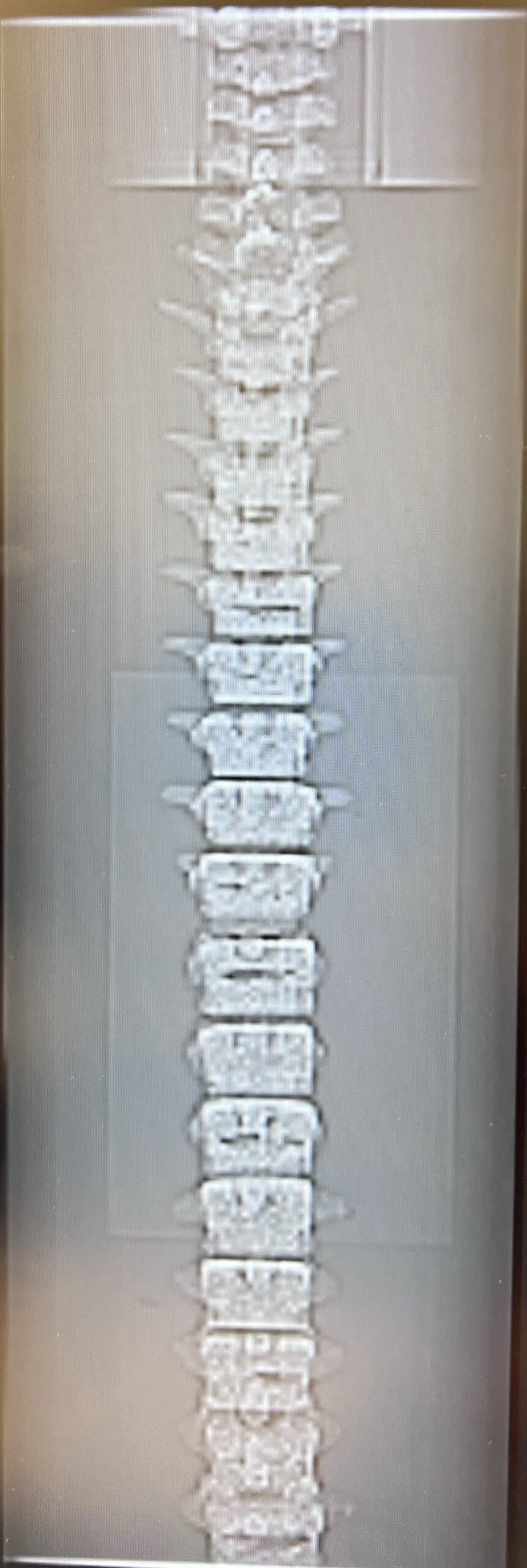

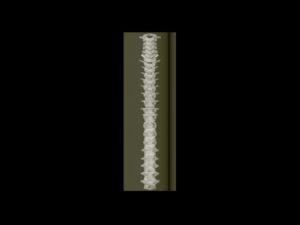

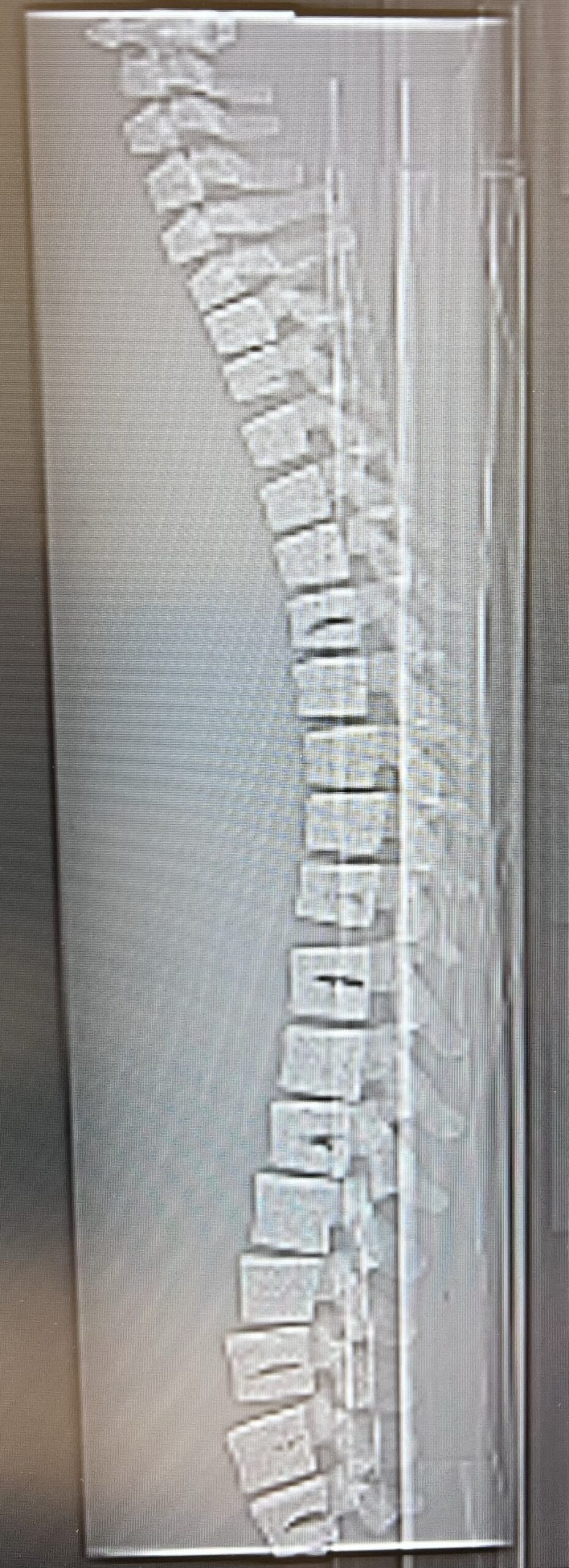

X-Ray Scans:
The above images are obtained from the standard Spine Phantom. These are only meant as a reference. For any questions about these, please write us at [email protected]

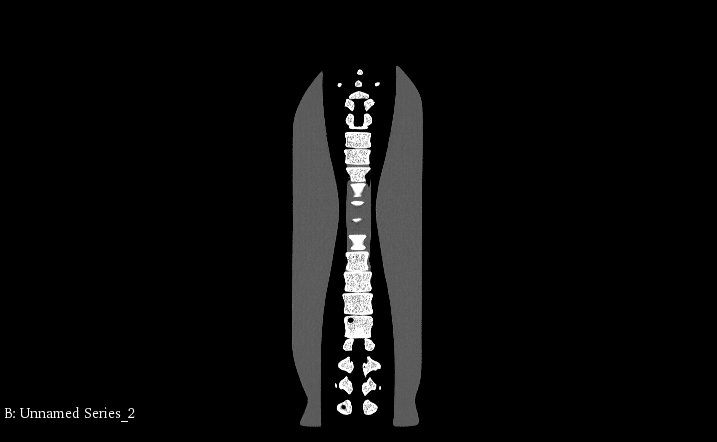

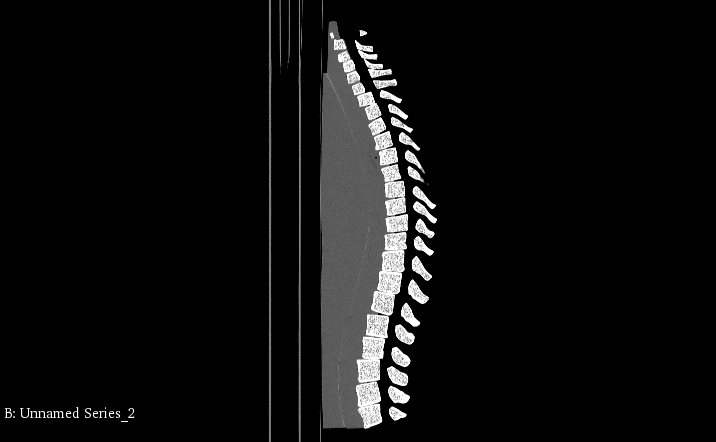

CT Scans:
*/ These CT scans were obtained from our Adult Spine for X-Ray CT. These serve as an example of the imaging quality of our products, the CT scans from this phantom may slightly differ. If you have any questions related to these, please write us at [email protected] /*

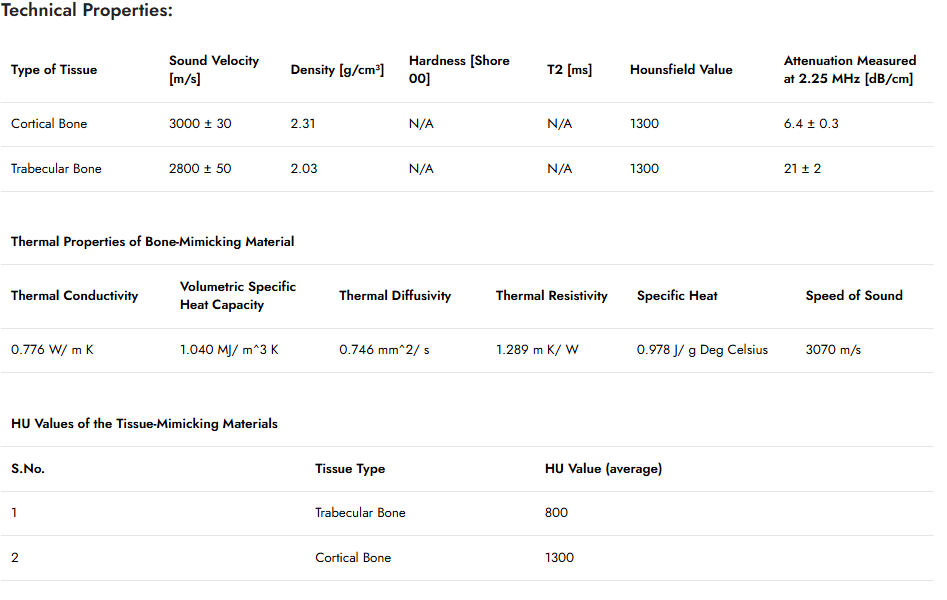

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Soft Tissue | -25 |
| 3 | Trabecular Bone | 800 |
| 4 | Cortical Bone | 1300 |
| 11 | Bladder | 35 |
| 12 | Rectum Wall | 100 |
| 13 | Sigmoid Colon Wall | 100 |
Included In Order:
Adult Spine for X-Ray CT, US Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 22 x 7 x 7 Inches, Weight: 30 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 55 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
