Adult Spine Phantom consists of 25 individual vertebrae assembled on top of each other and encased in a semi-cylindrical-shaped body-mimicking tissue. The vertebrae have a realistic three-layered structure with inner porosity which can be adjusted according to the requirement of the particular project.
The Phantom is designed based on average human anatomy, and the bones are made out of realistic patented bone material that is suitable for MRI and X-Ray CT applications. It can be used for medical imaging research and treatment planning of various medical procedures. (Upon request, it can be modified for a lumbar or spine lumbar practice phantom with soft tissue-mimicking material surrounding it)
The phantom can be further customized with a water-fillable spinal canal inside the vertebrae or with a prefilled spinal canal for medical imaging or research applications.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Anatomy:
Cervical Vertebrae (C1 – C7) Thoracic Vertebrae (T1 – T12) Lumbar Vertebrae (L1 – L5)
Design:
-

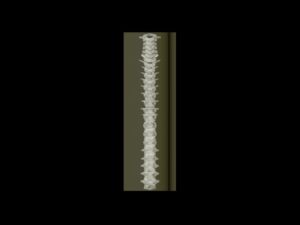

- Front View
-

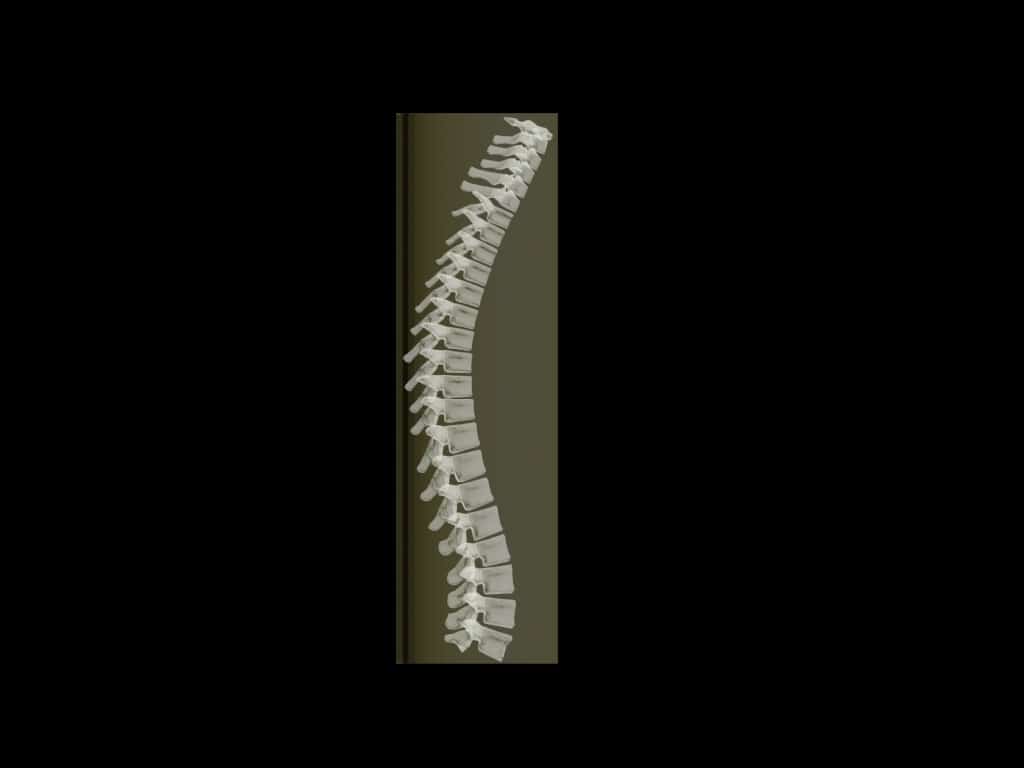

- Lateral View
-

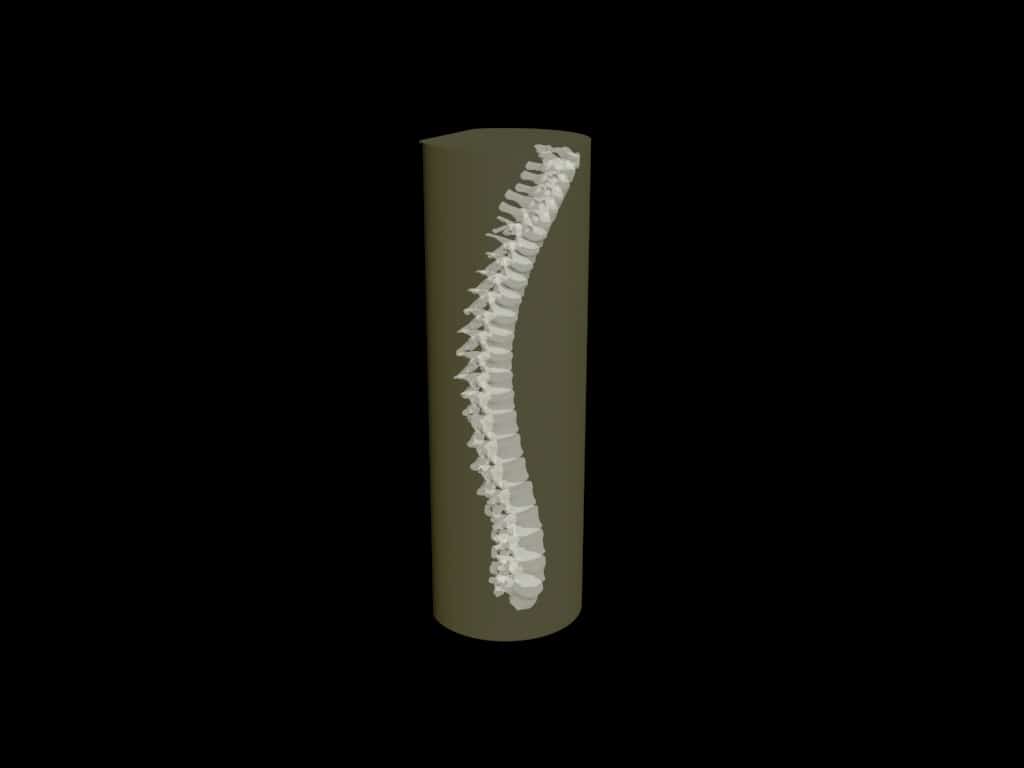

- Perspective View
-

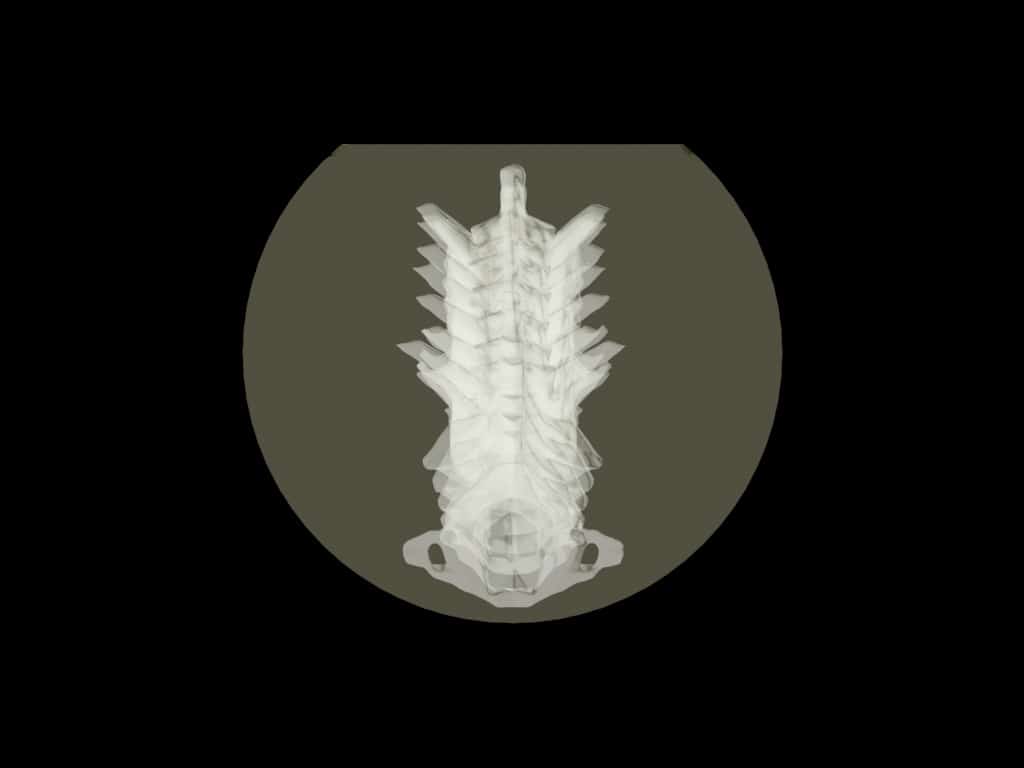

- Top View
Product Images:

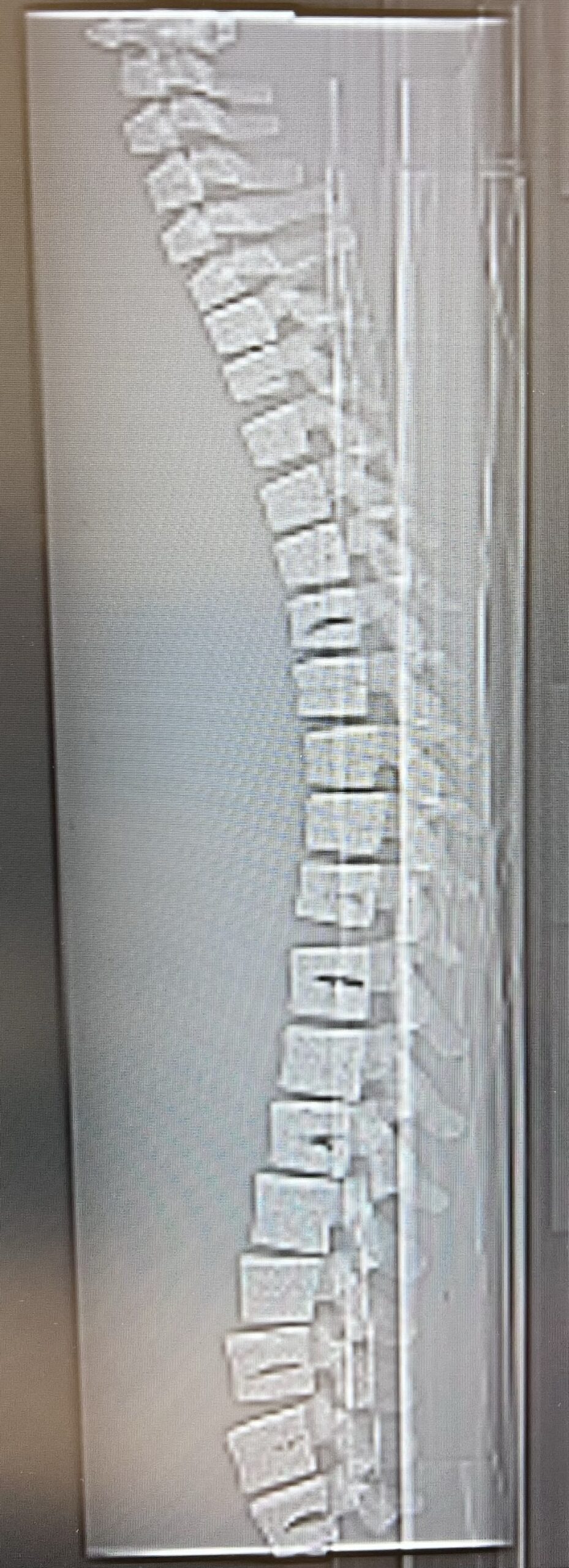

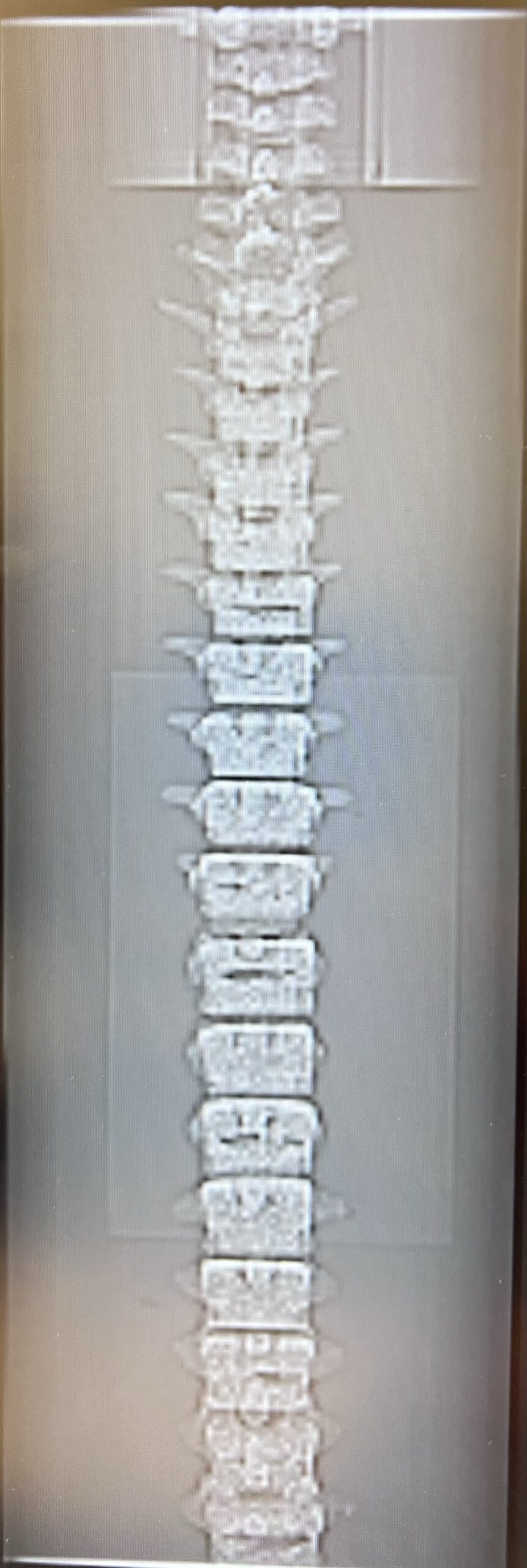

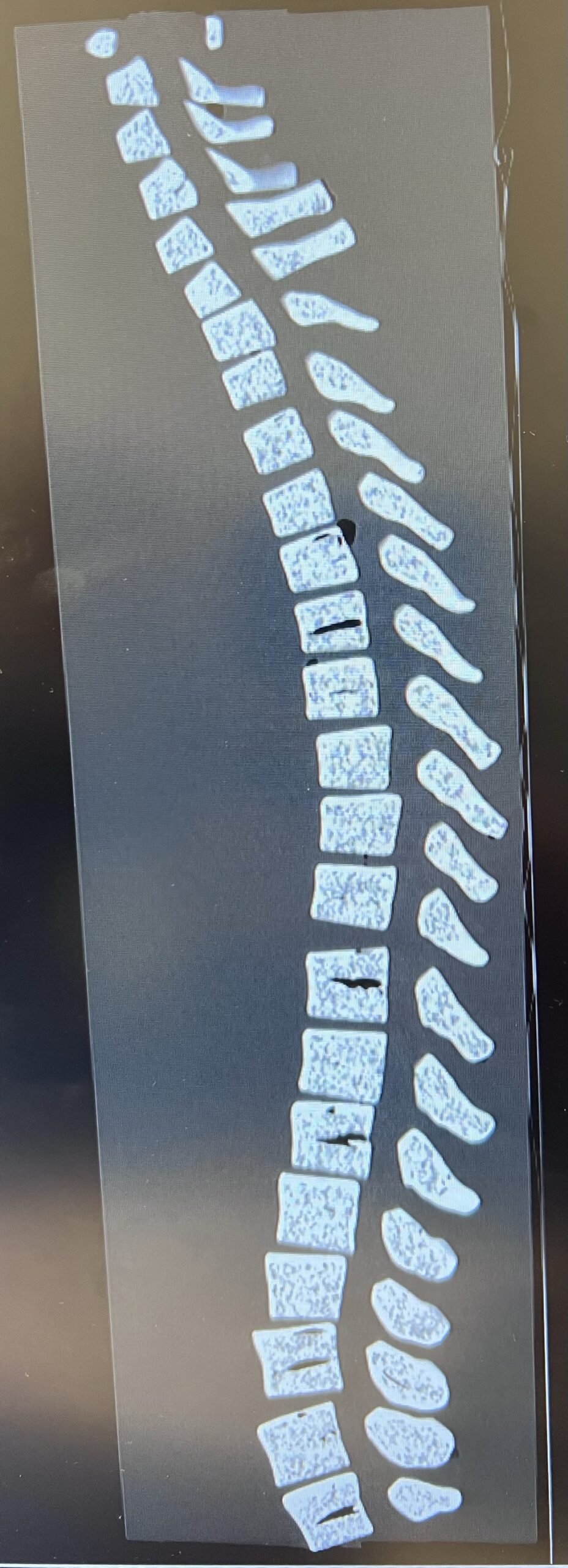

X-Ray Scans:

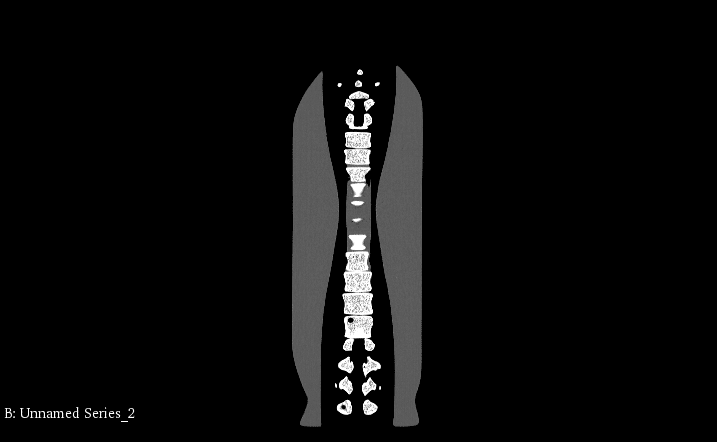

CT Scans:
*/ These CT scans were obtained from our Adult Spine for X-Ray CT. These serve as an example of the imaging quality of our products, the CT scans from this phantom may slightly differ. If you have any questions related to these, please write us at [email protected] /*

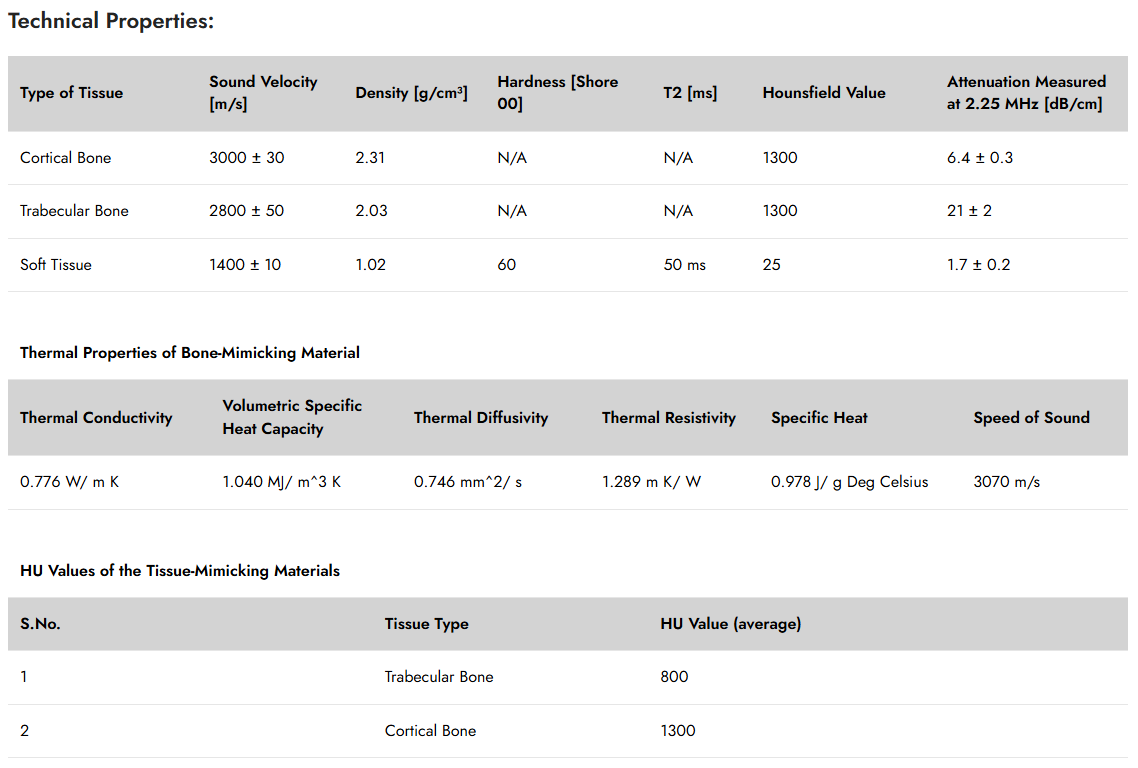

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Spine Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 22 x 7 x 7 Inches, Weight: 30 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 55 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
