Adult Sectional Abdomen for X-Ray CT, US is designed based on an average anatomy of an adult healthy human male. It is compatible with X-Ray/CT and Ultrasound. The bones are made from a realistic patented epoxy-based composite material with vertebrae that have a realistic three-layered structure with inner porosity.
The phantom can be customized with any pathologies for learning the techniques of FAST (focused assessment with sonography for trauma), FAMUS (Focused Acute Medicine Ultrasound), and any other procedural training (Pericardial effusion, etc.)
This product is a translucent amber version (opaque, skin-colored version available upon request). An ideal phantom for training ultrasound technicians and other medical students.
Anatomy:
Partial Spine Diaphragm Liver (with vessels and bile duct) Spleen Stomach Upper Large Intestine Kidneys (with vessels) Pancreas Gallbladder 13 Lesions Soft Body Tissue
Lesion Details:
1-2cm in diameter Spherical and non-spherical in shape 6 lesions in the liver 4 lesions in kidneys (2 in each) 1 in the gallbladder 1 in the spleen 1 interstitial tumor “floating” just above the left kidney/below the diaphragm
Design:
-

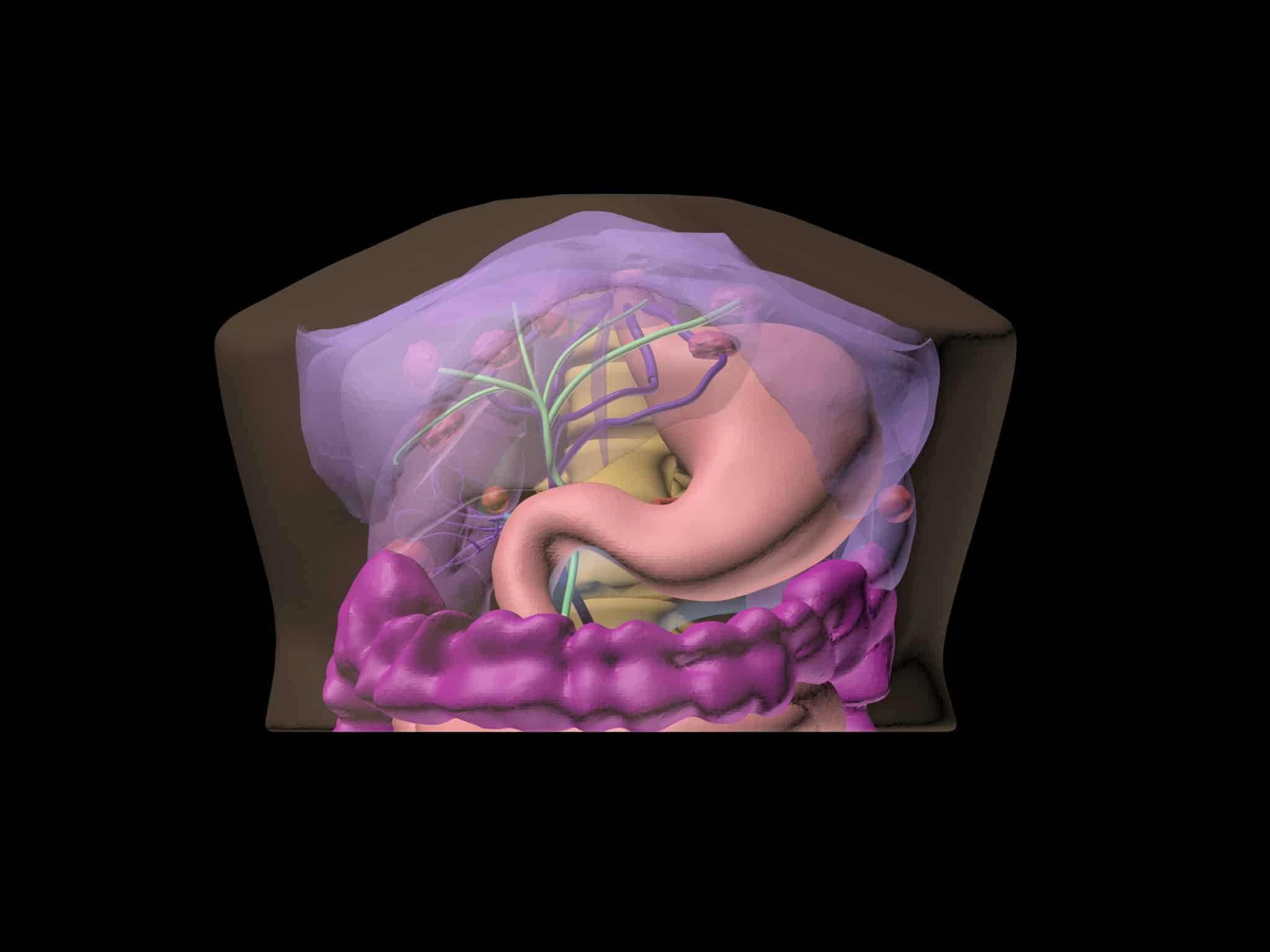

- Front View
-

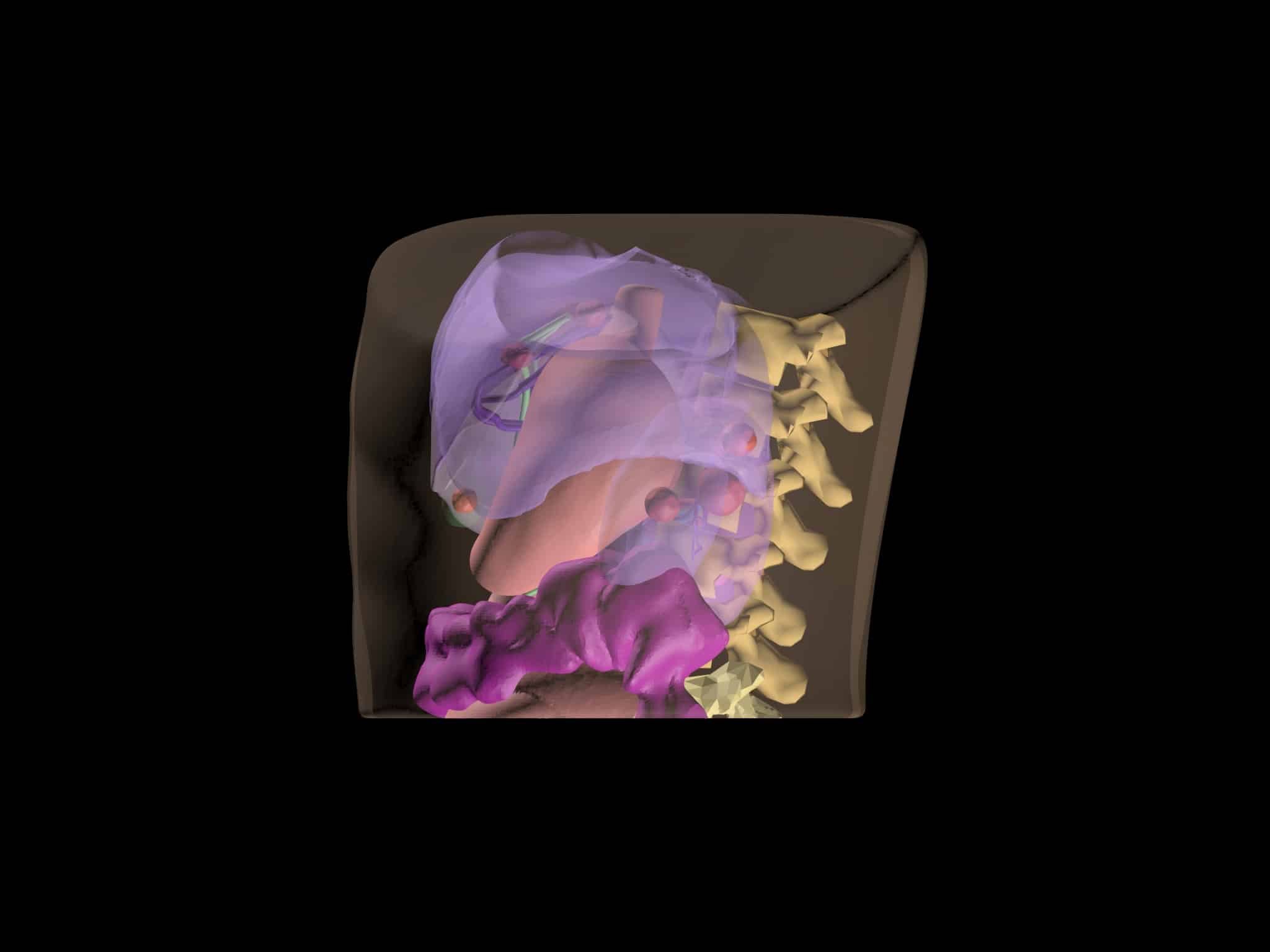

- Lateral View
-

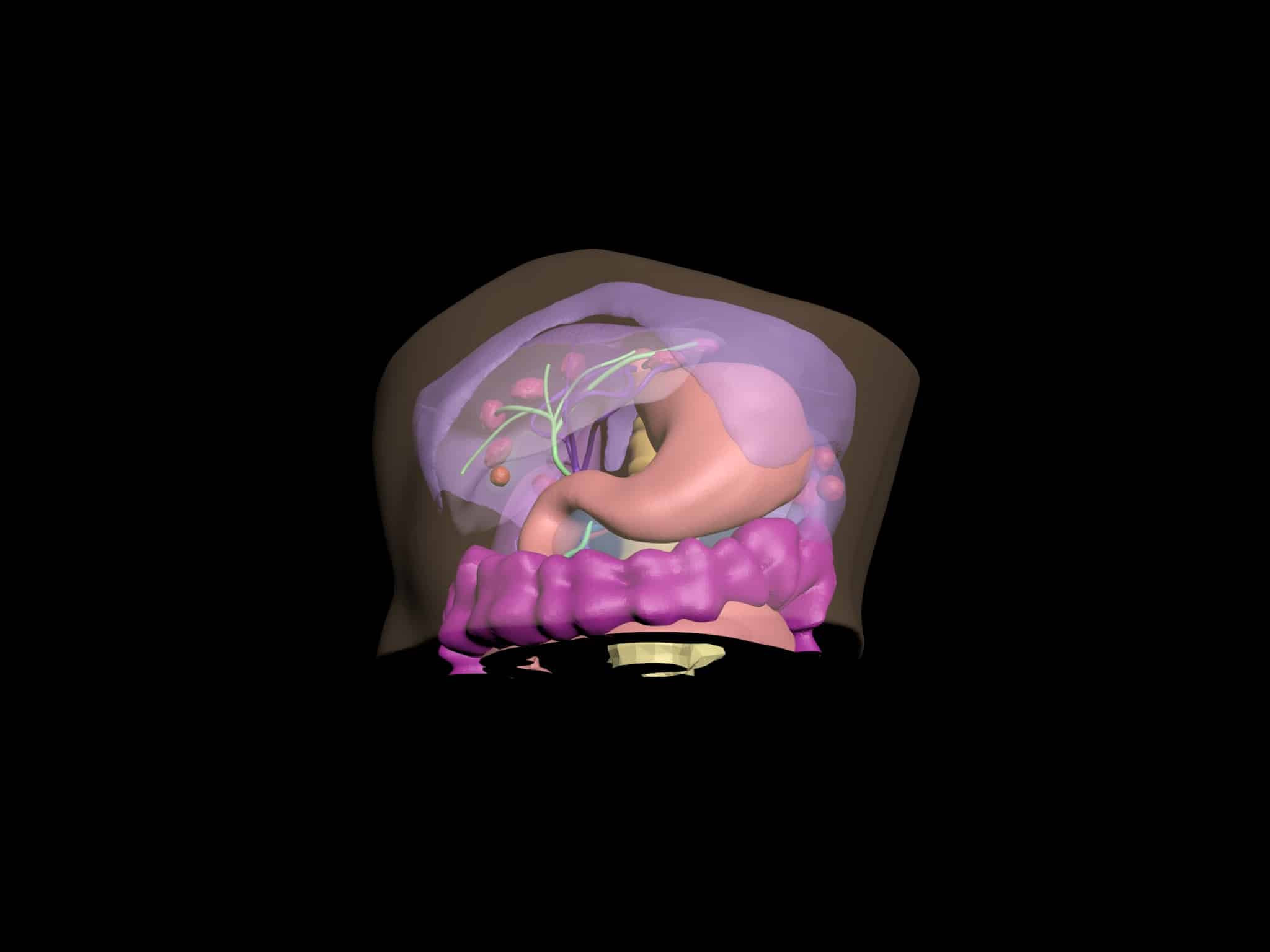

- Perspective View
-

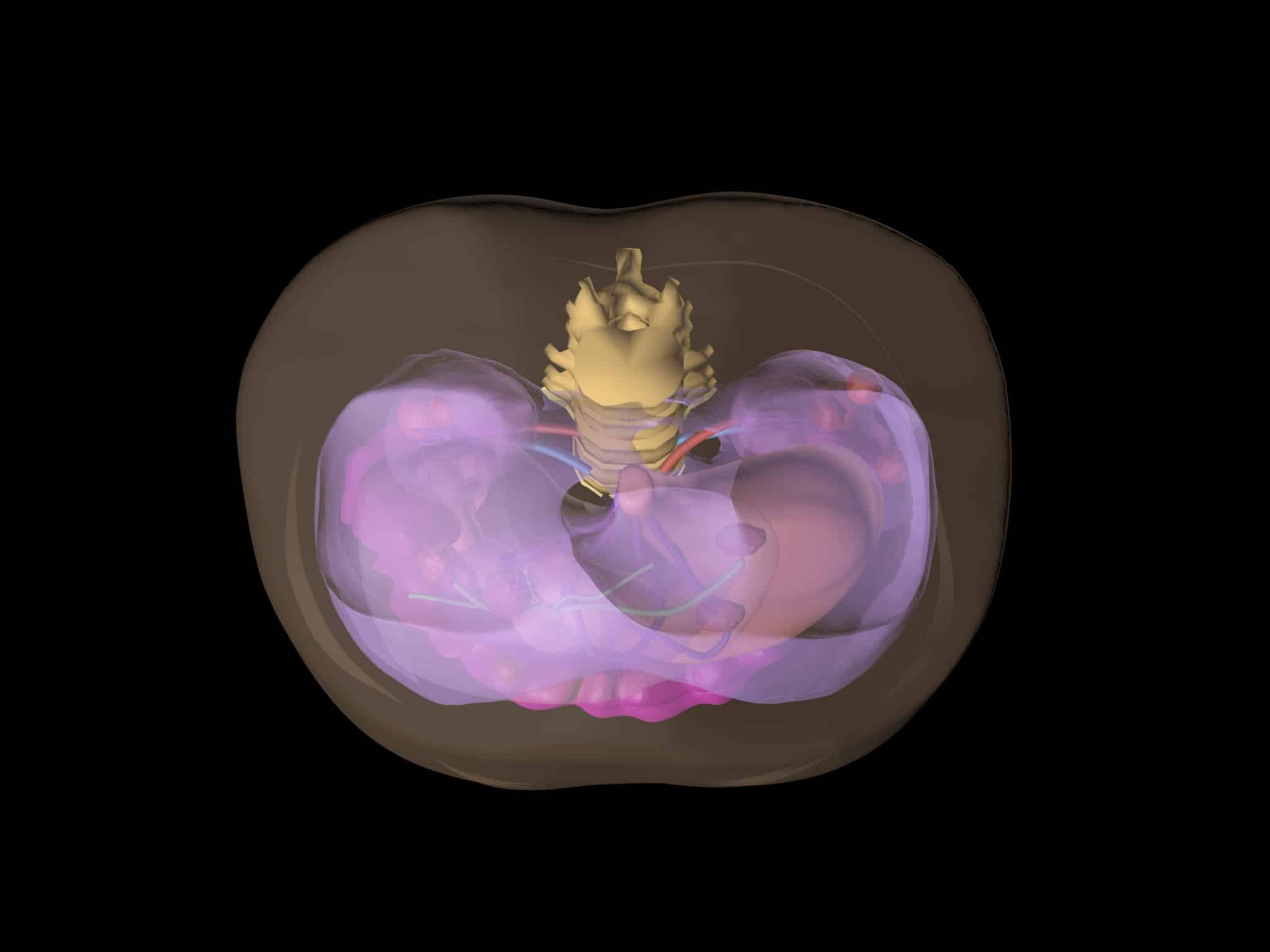

- Top View

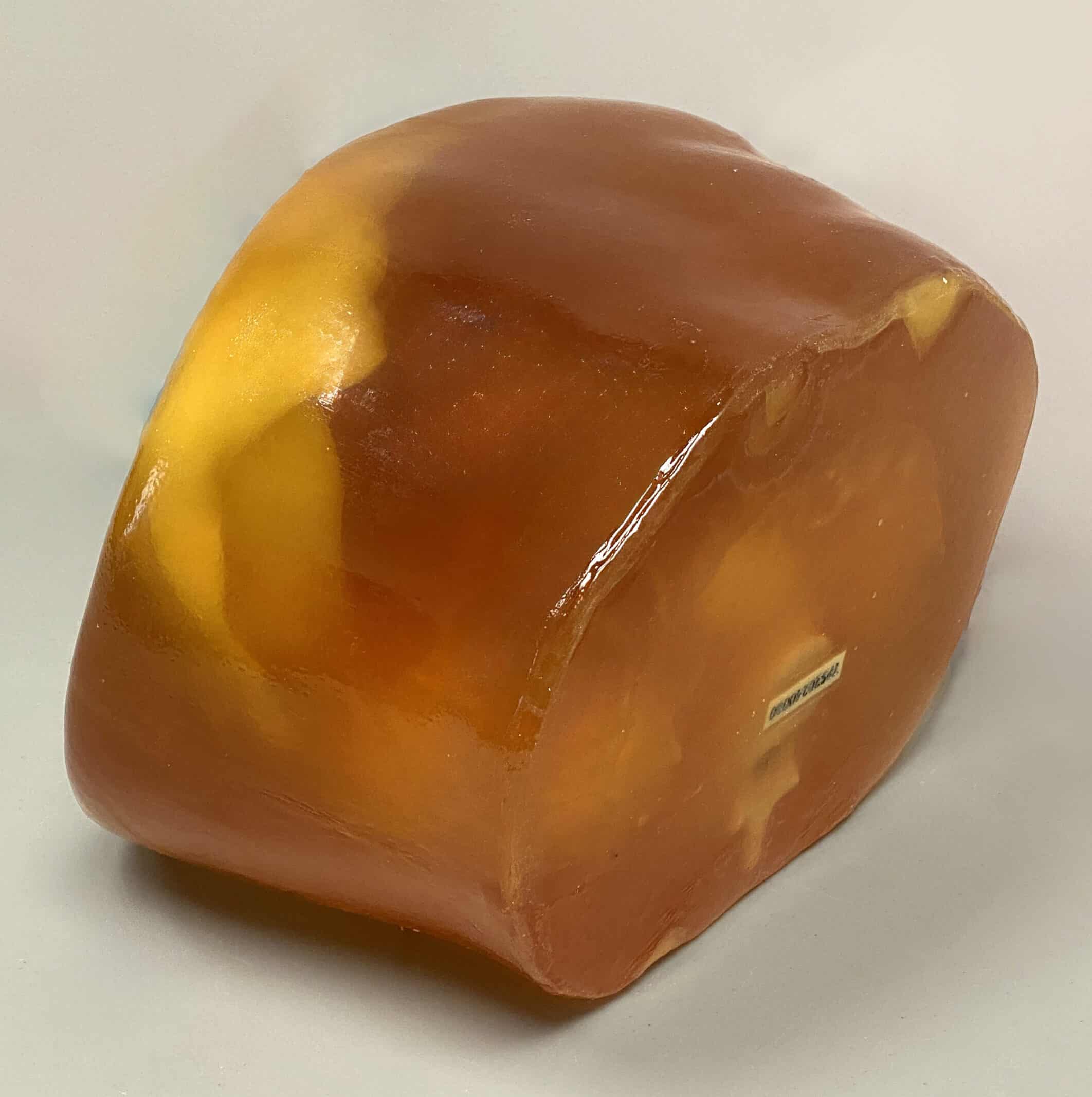

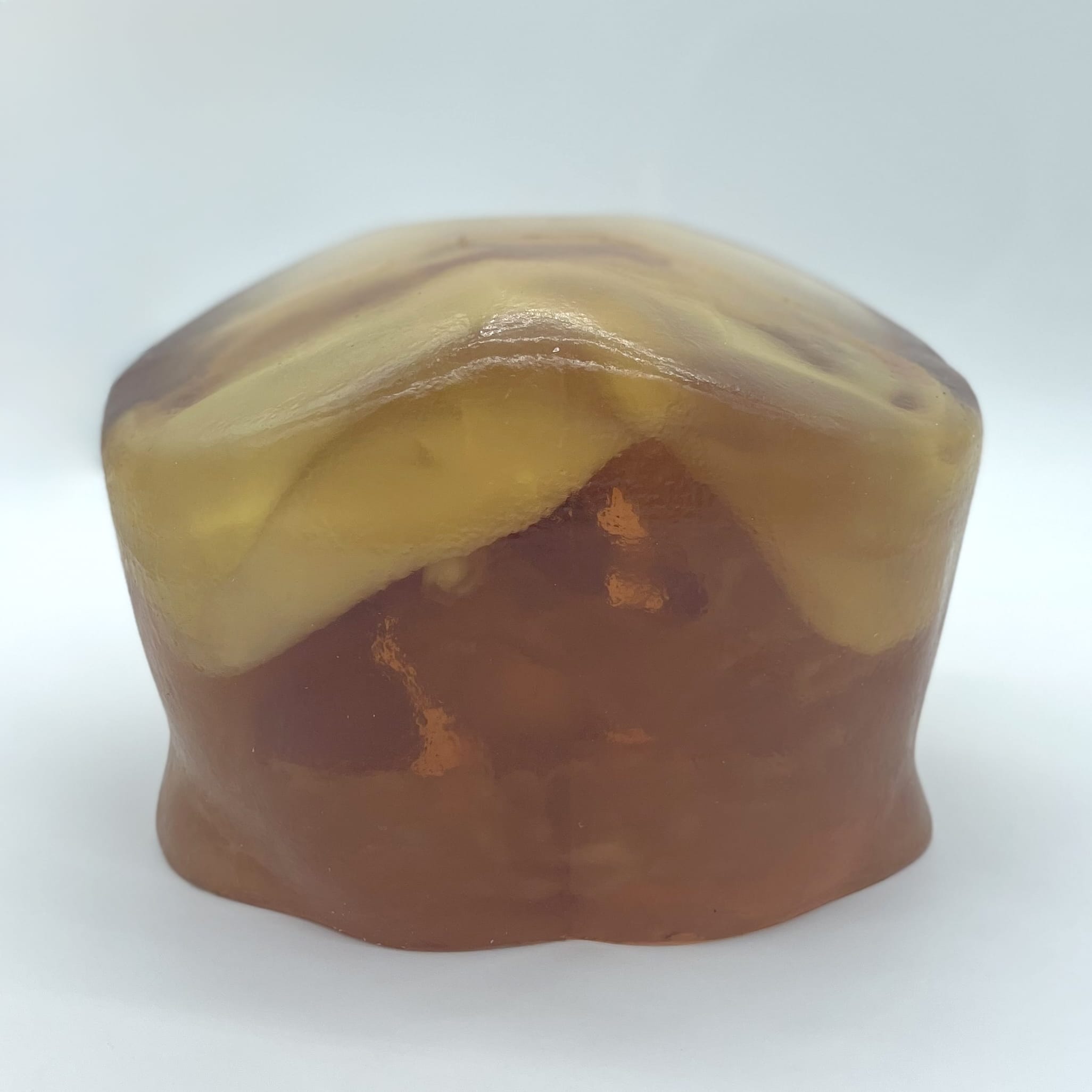

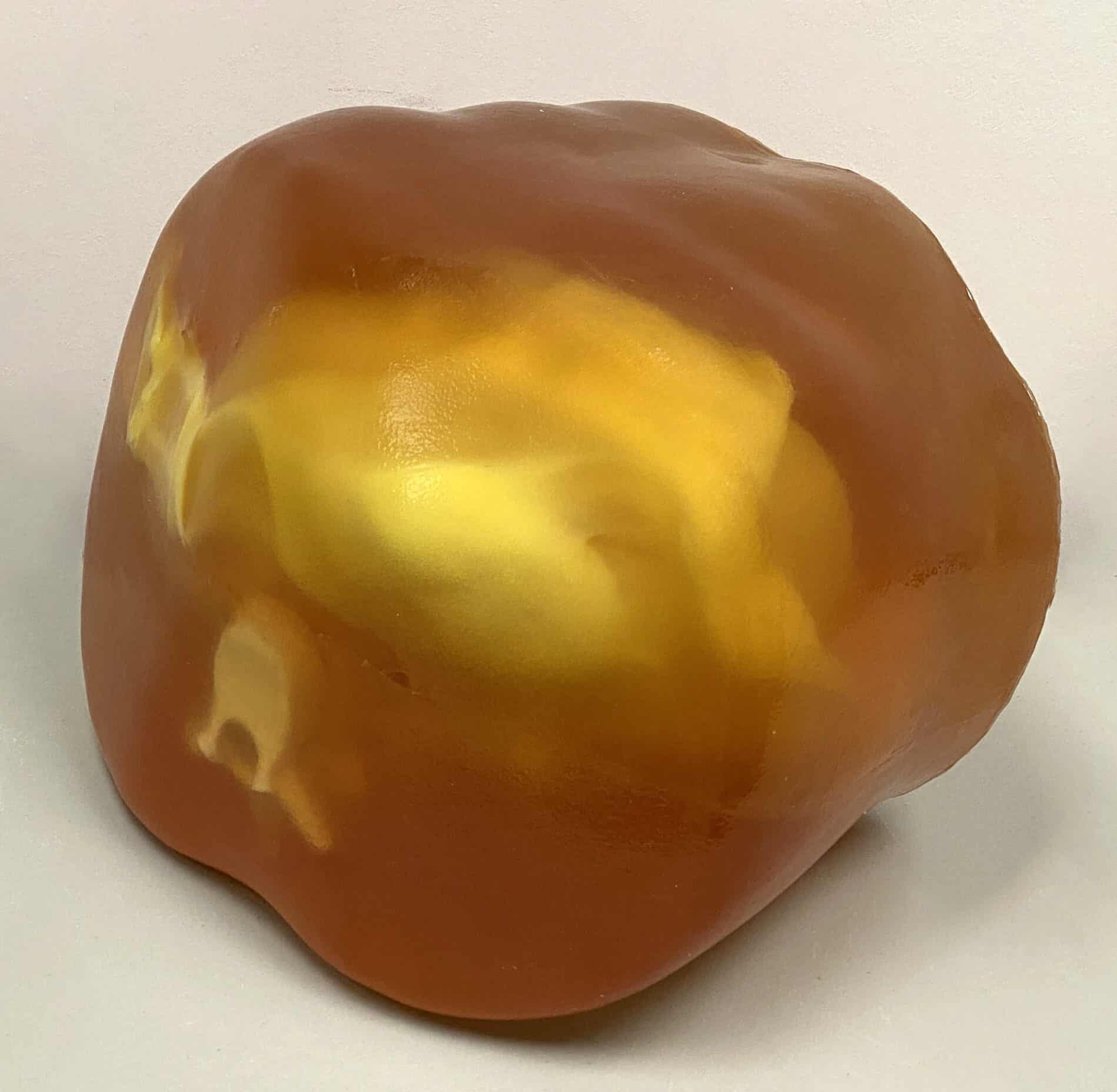

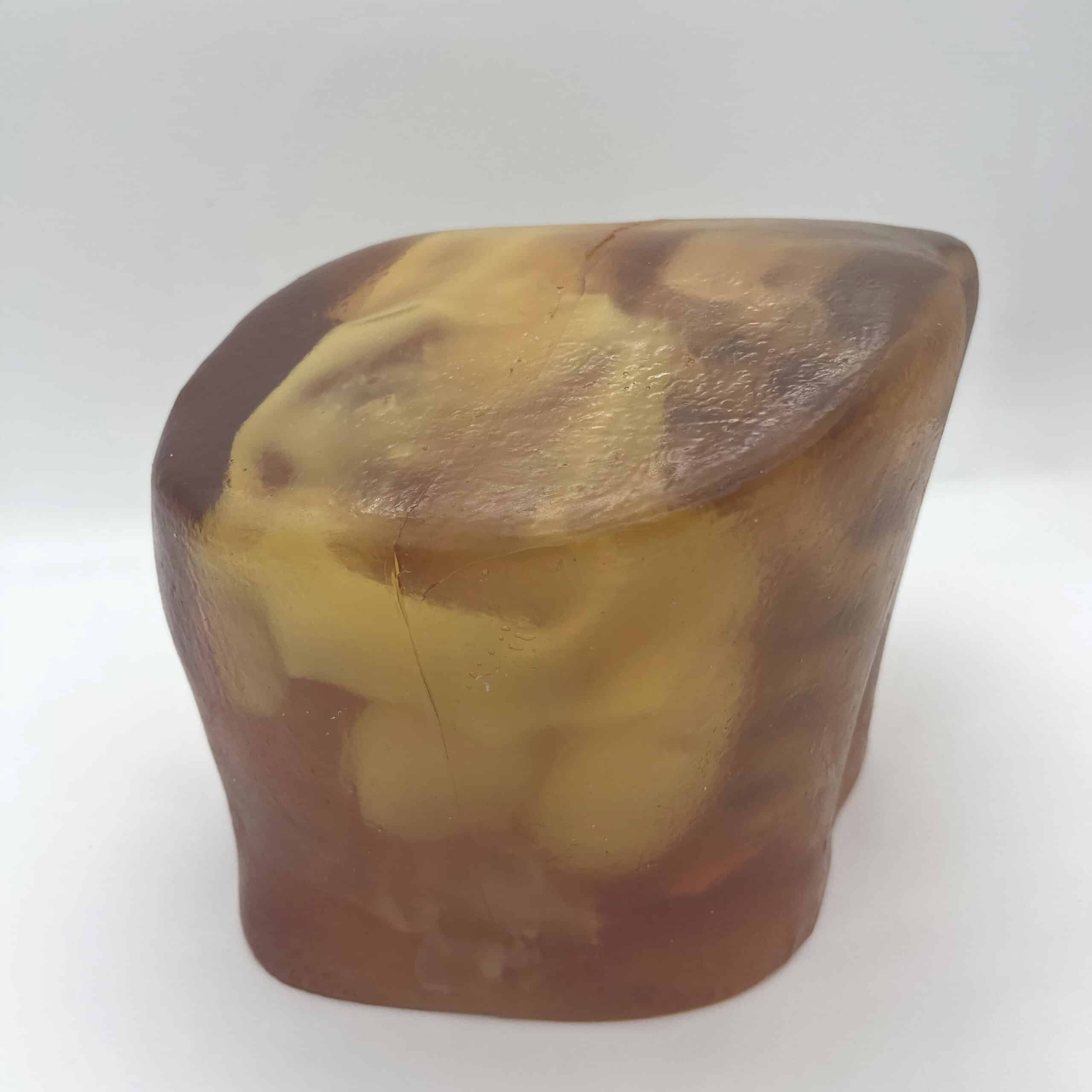

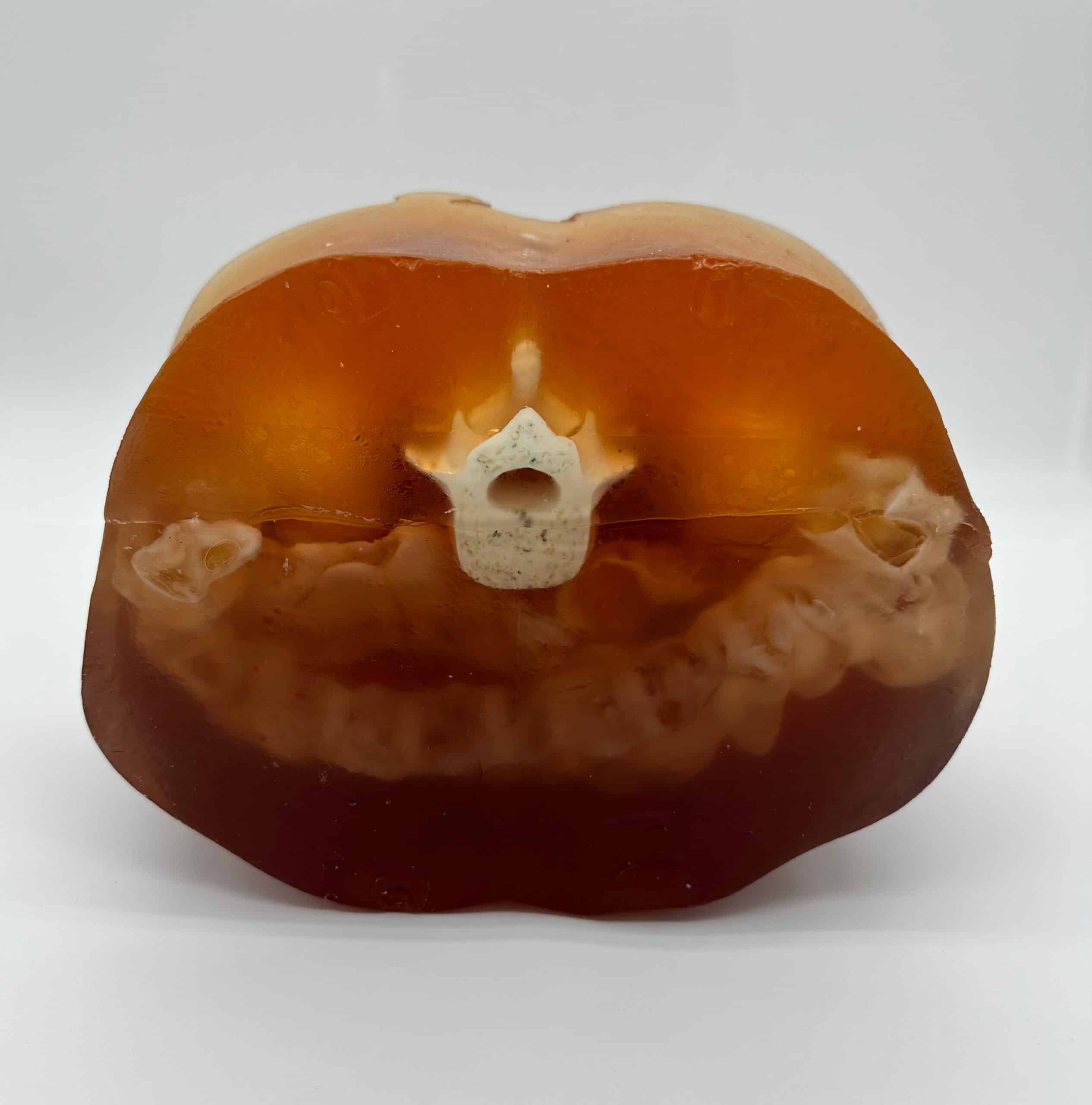

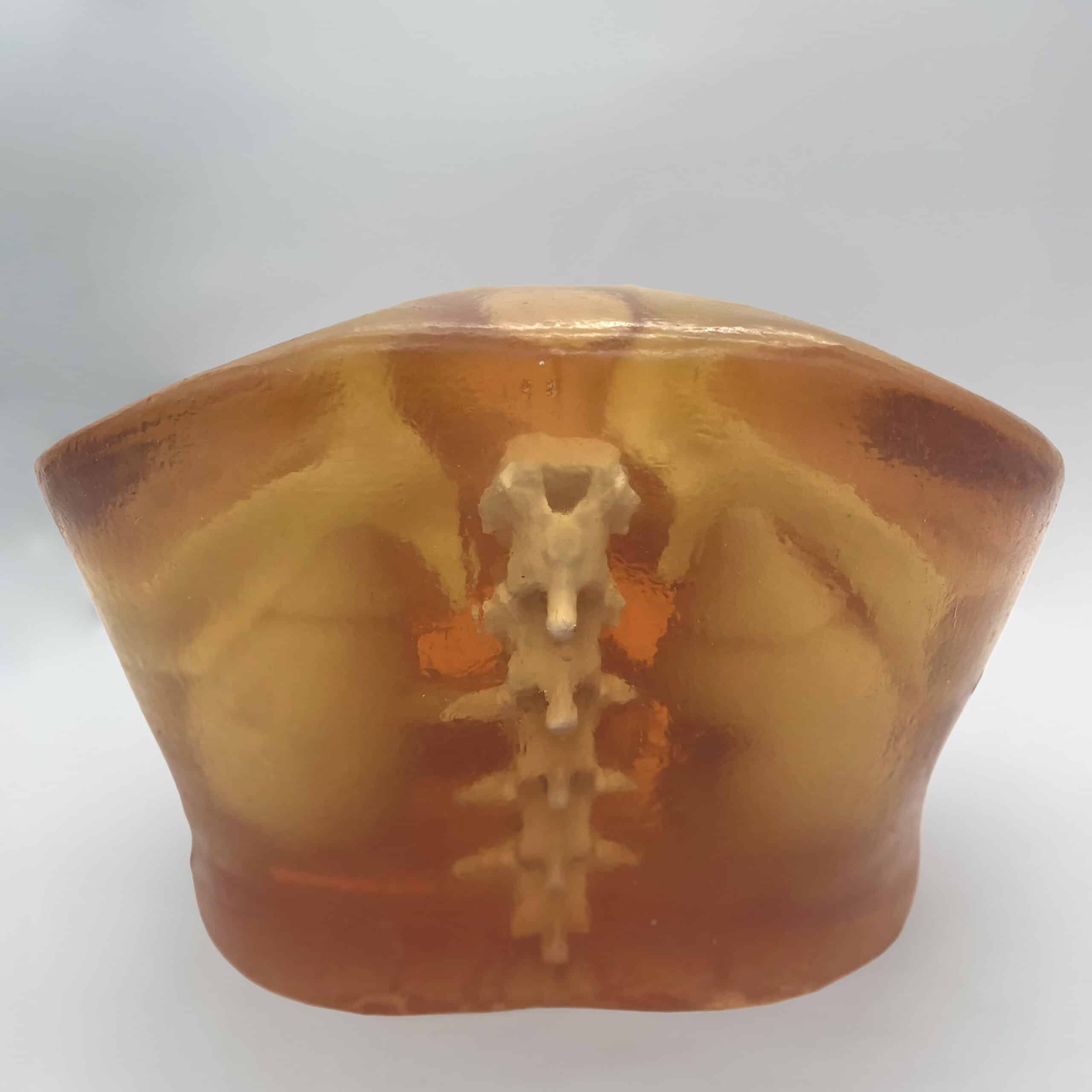

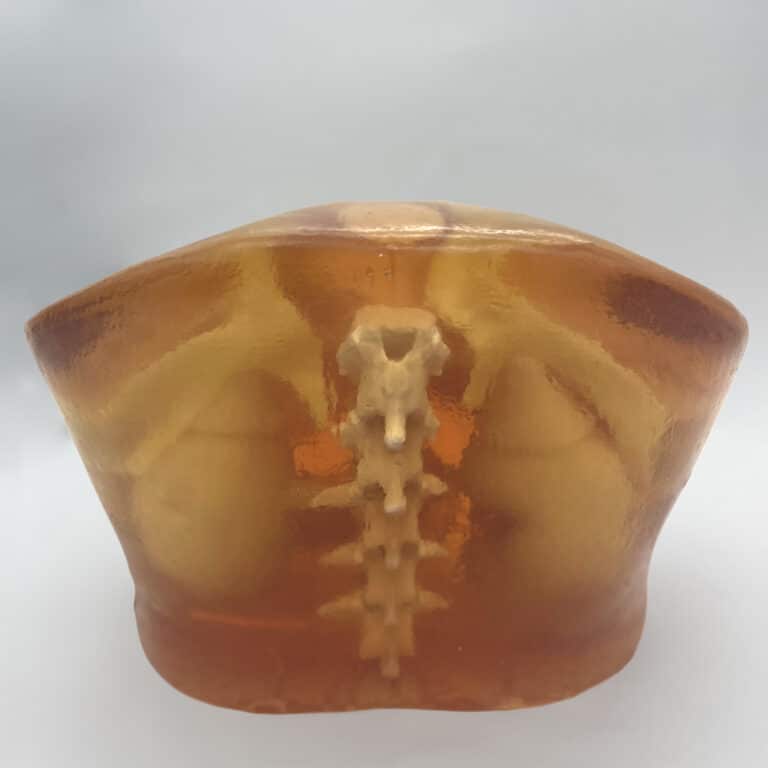

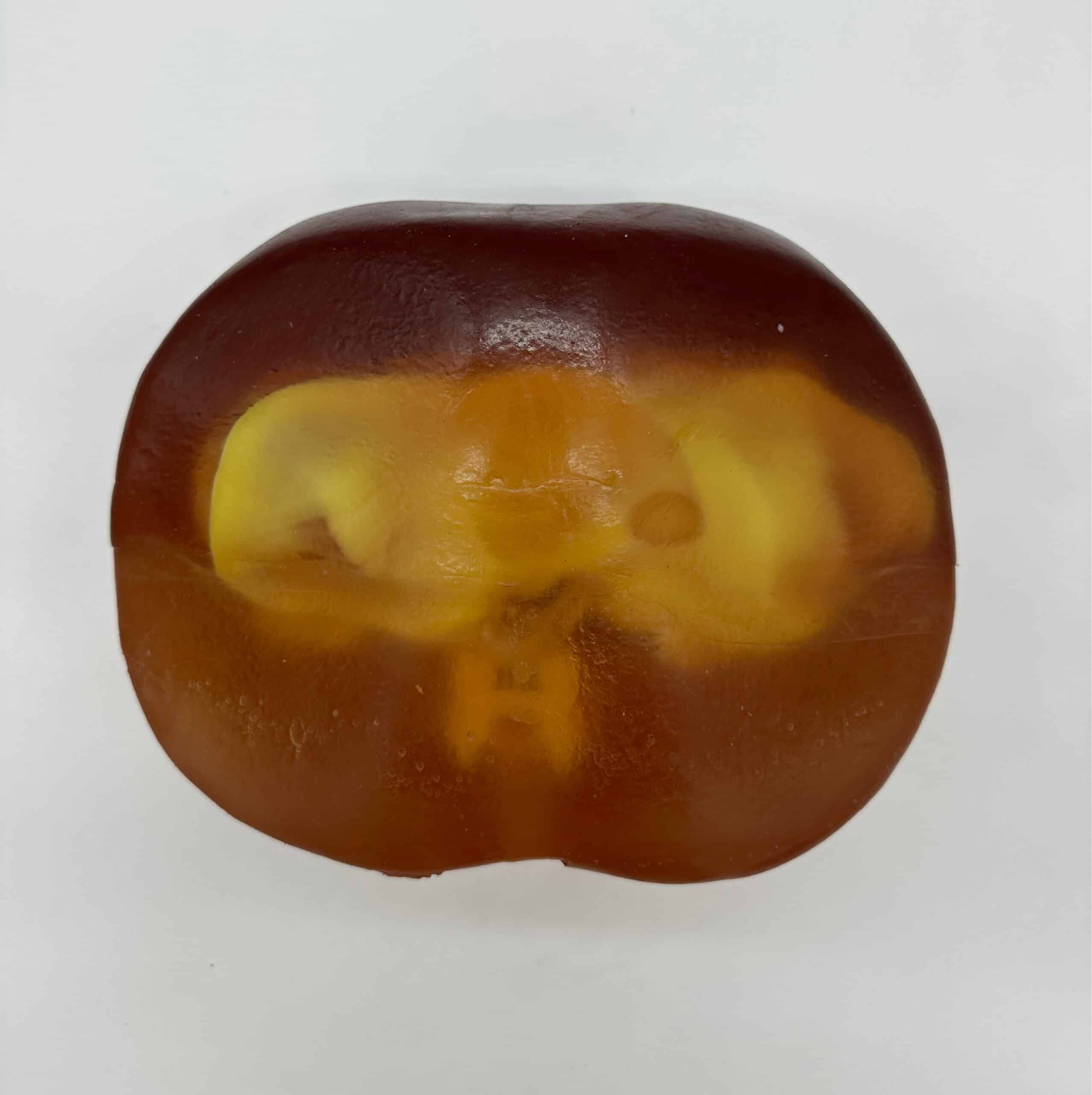

Product Images:
Note: By default, the phantom comes in a translucent amber appearance. A skin appearance can be achieved upon request.
Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Lesion Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |

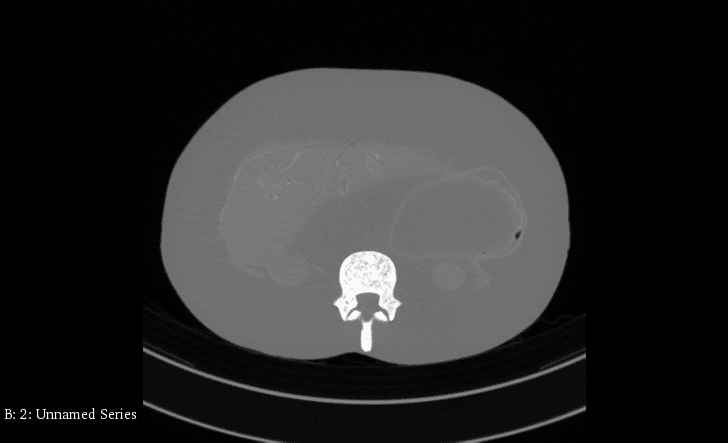

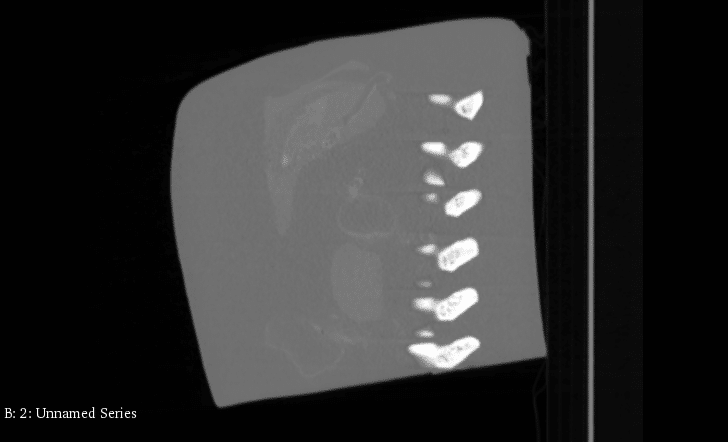

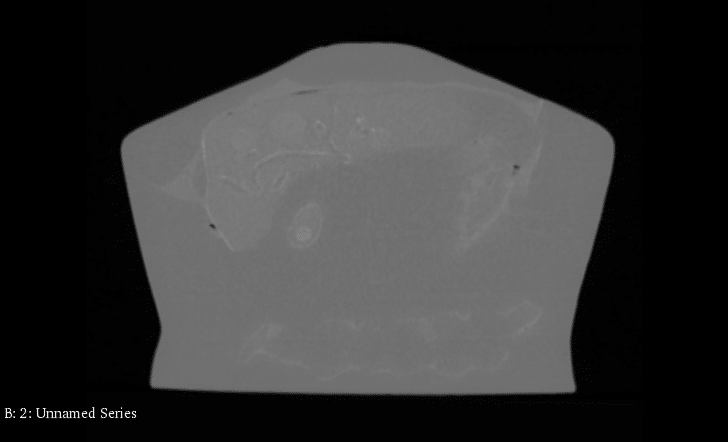

CT Scans:
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Pancreas | 110 |
| 5 | Spleen | 110 |
| 6 | Kidneys | 110 |
| 7 | Bladder | 35 |
| 8 | Liver | 110 |
Included In Order:
Adult Sectional Abdomen Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 11 x 9 x 8 Inches, Weight: 22 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 30 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
