The Adult Pelvis with Prostate Phantom is built based on an average adult human male anatomy. It is made out of realistic soft tissue-mimicking materials and patented synthetic bones suitable for X-Ray/CT and US imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration purposes. This product can be further customized to match our client’s specific requirements.
The spine bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The phantom can also be customized in size and shape (i.e., based on any individual’s CT scan).
Anatomy:
Spine from L5 to L2 Pelvis Bone Partial Left and Right Femoral Bones Large Intestine Rectum Prostate Bladder

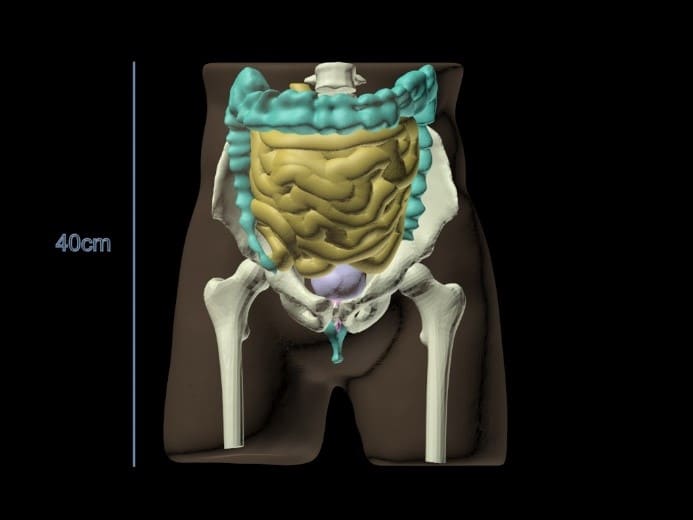

Design:
-
- Front View
-

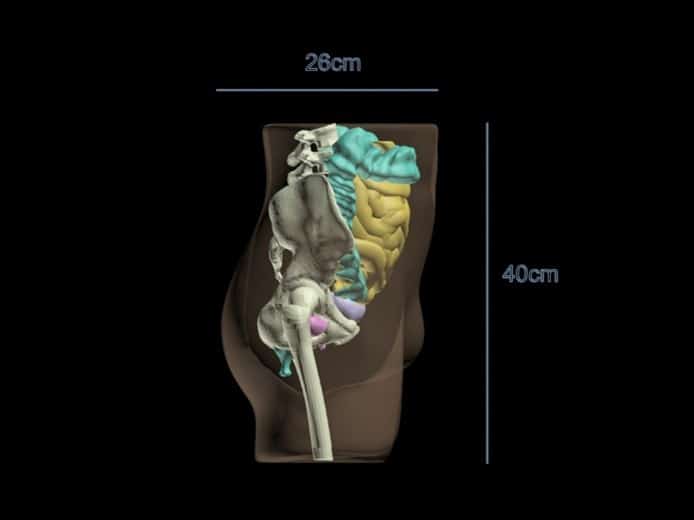

- Lateral View
-

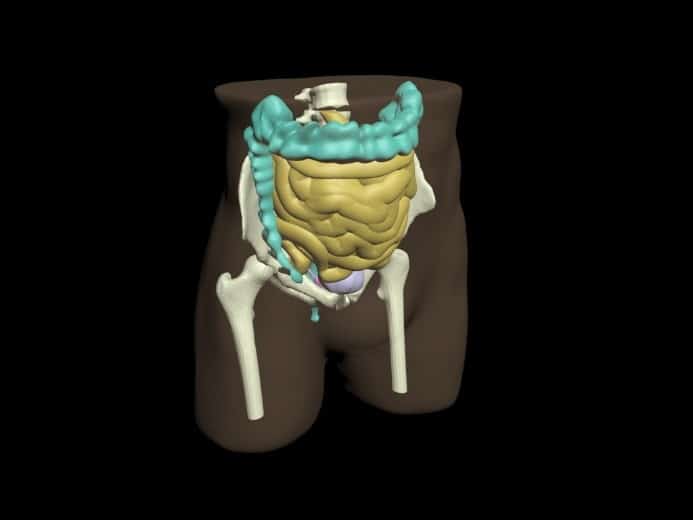

- Perspective View
-

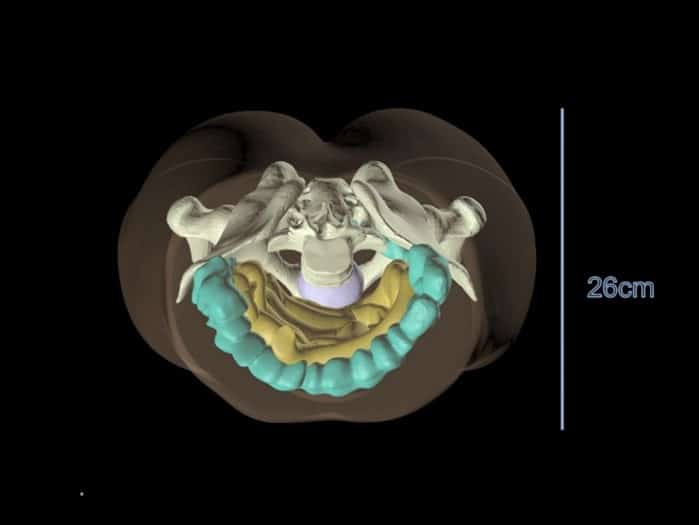

- Top View

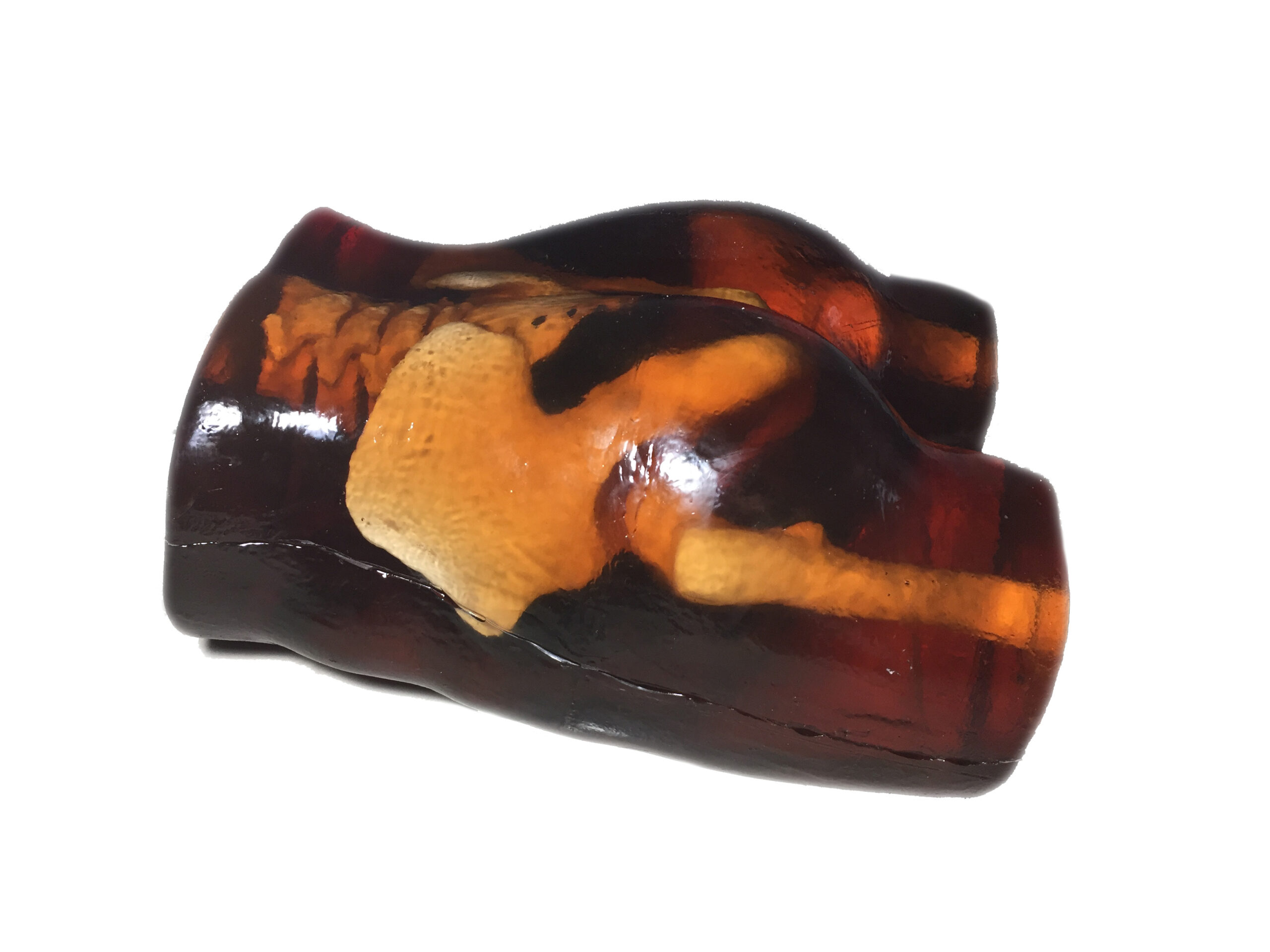

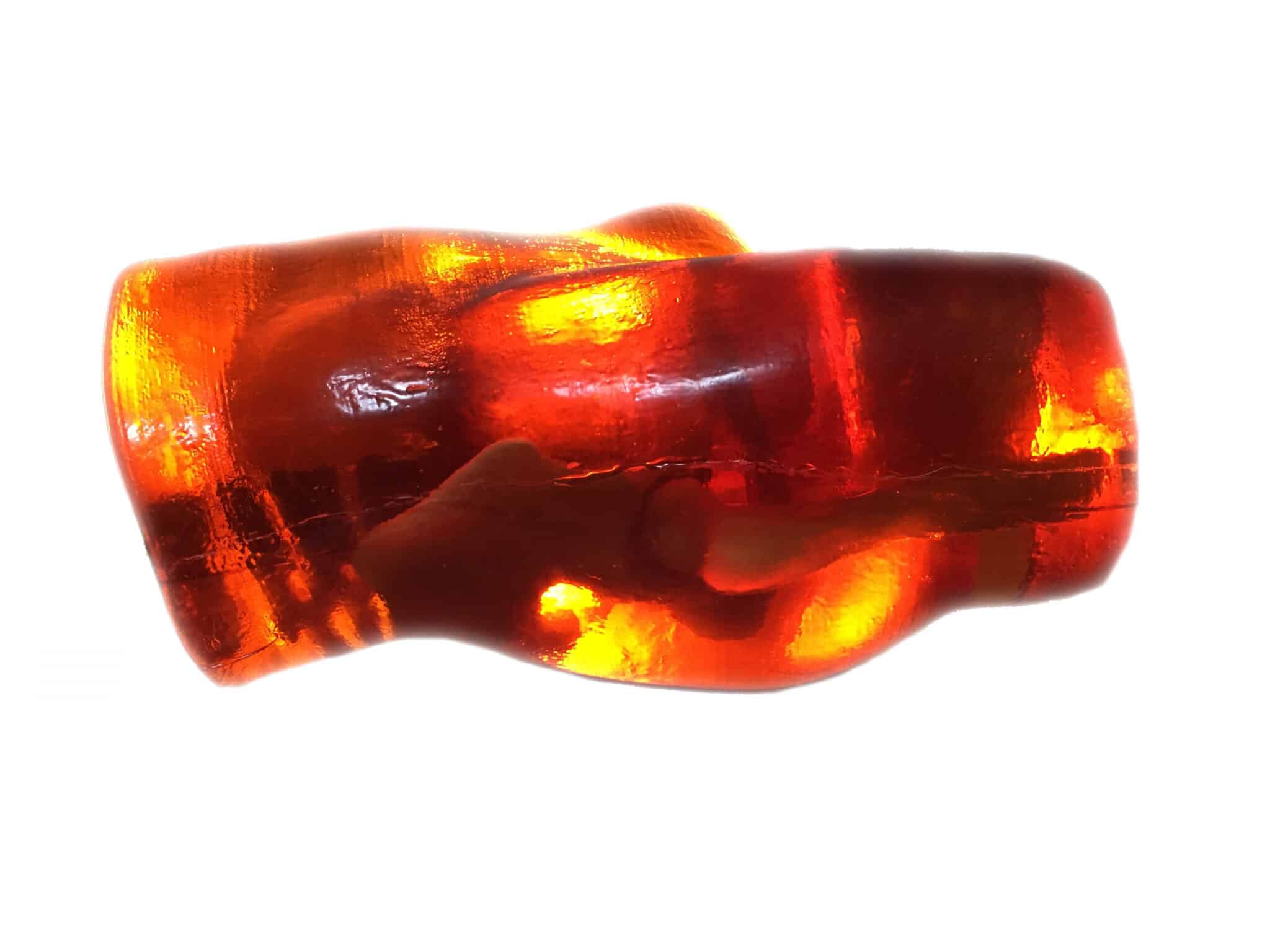

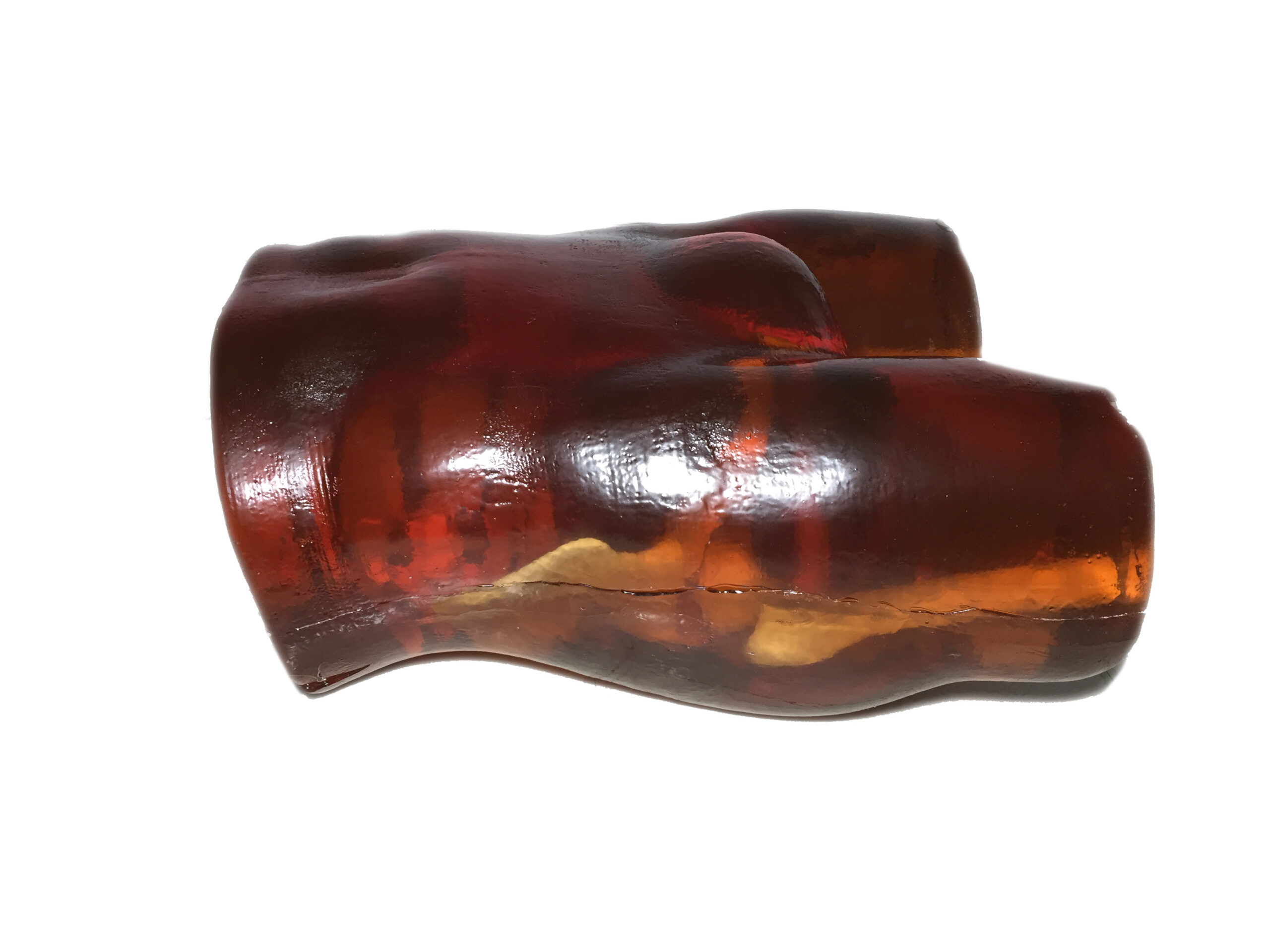

Product Images:

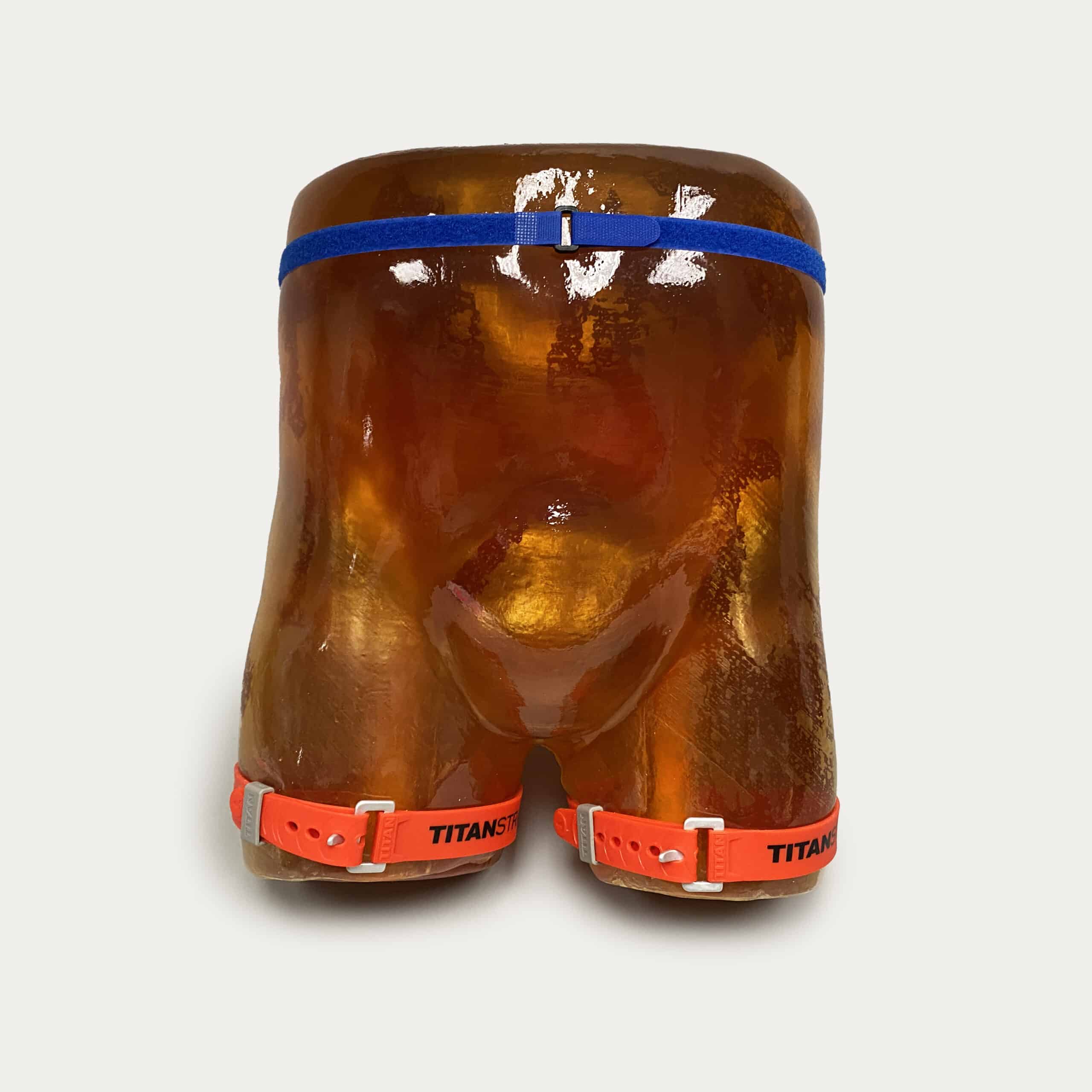

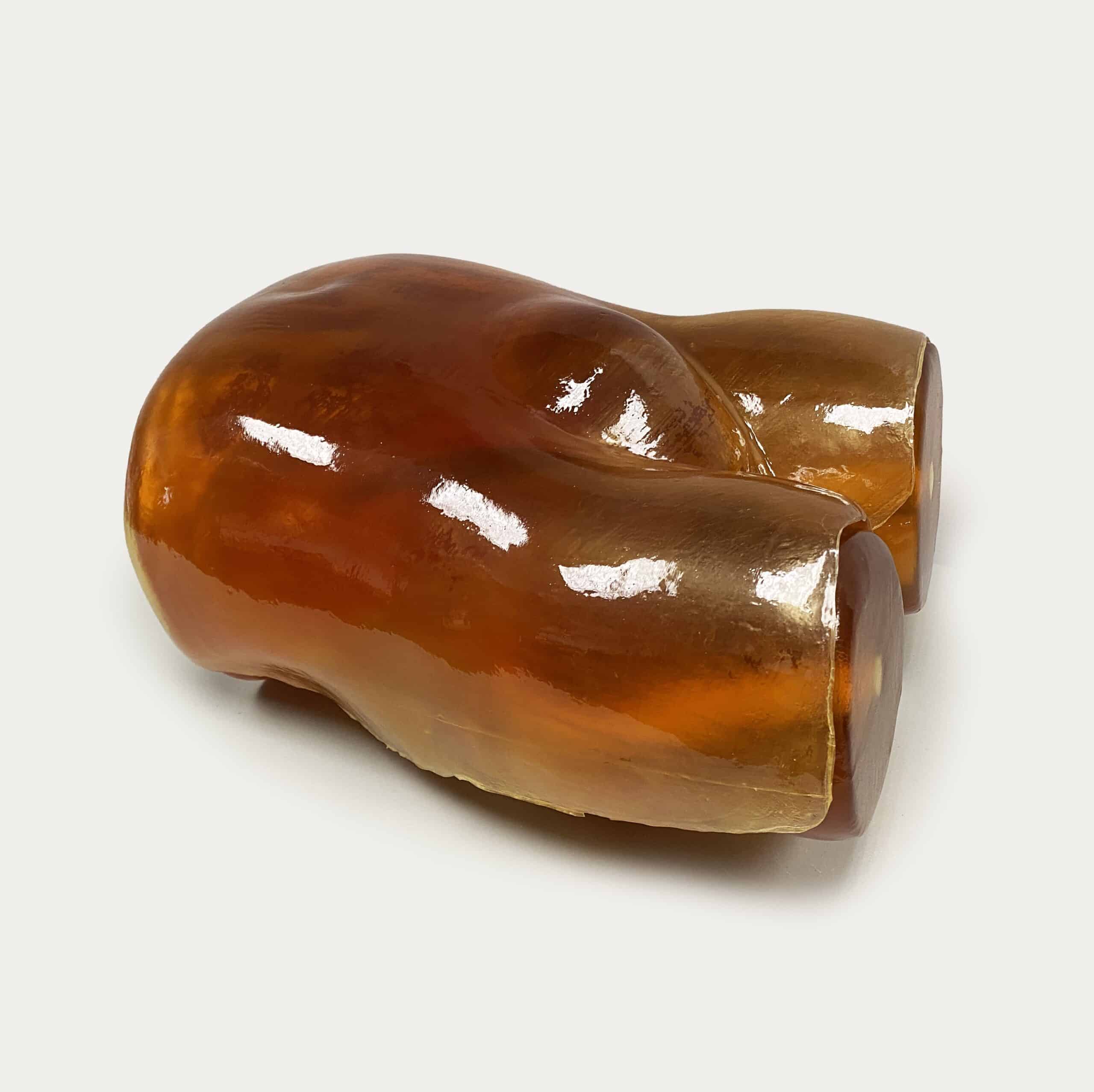

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
Custom Fat Layer with the pelvis (optional add-on)
-

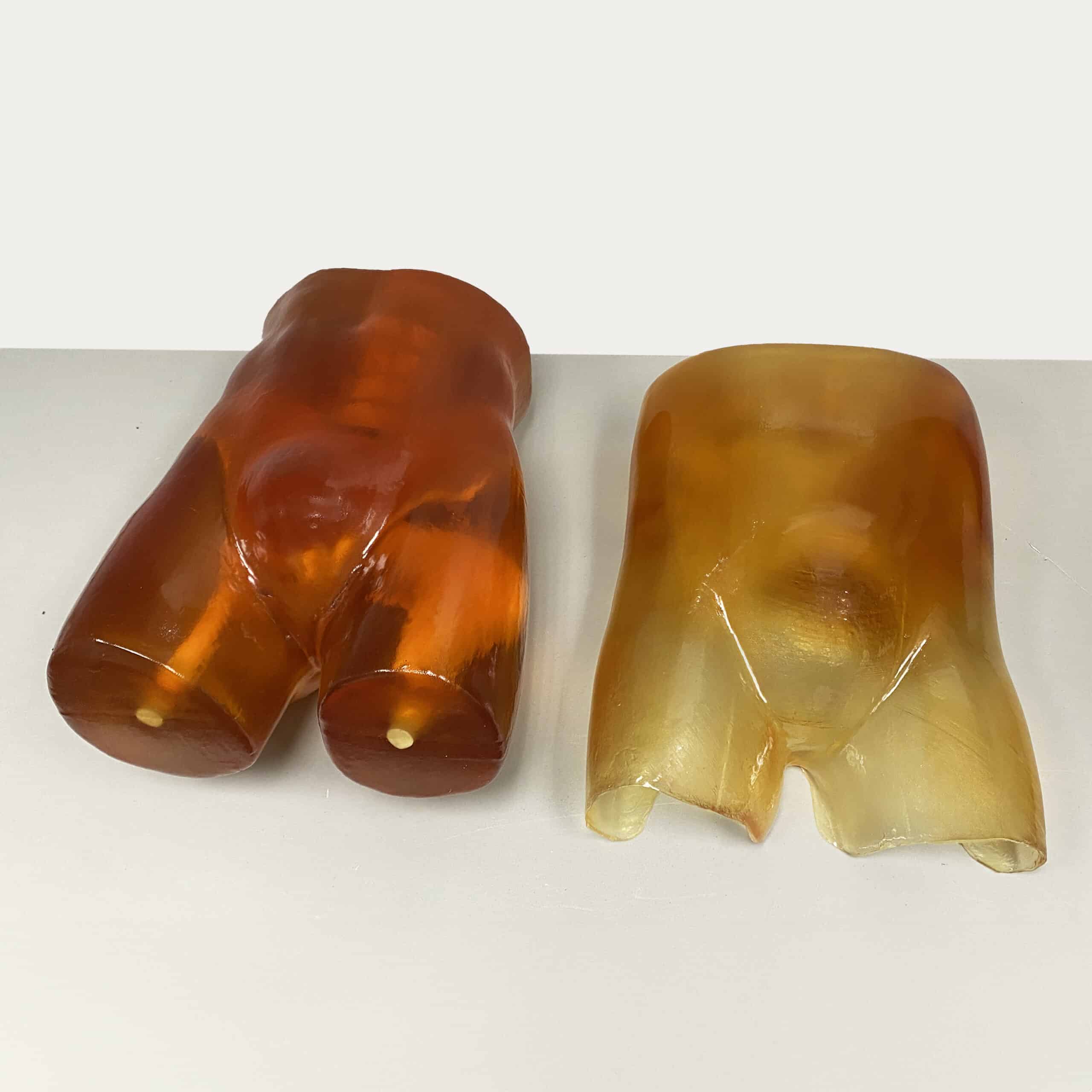

- Pelvis Phantom and fat layer
-
- Fat layer attached on the pelvis phantom
-
- Fat layer on the phantom
-
- Fat layer inside look
-

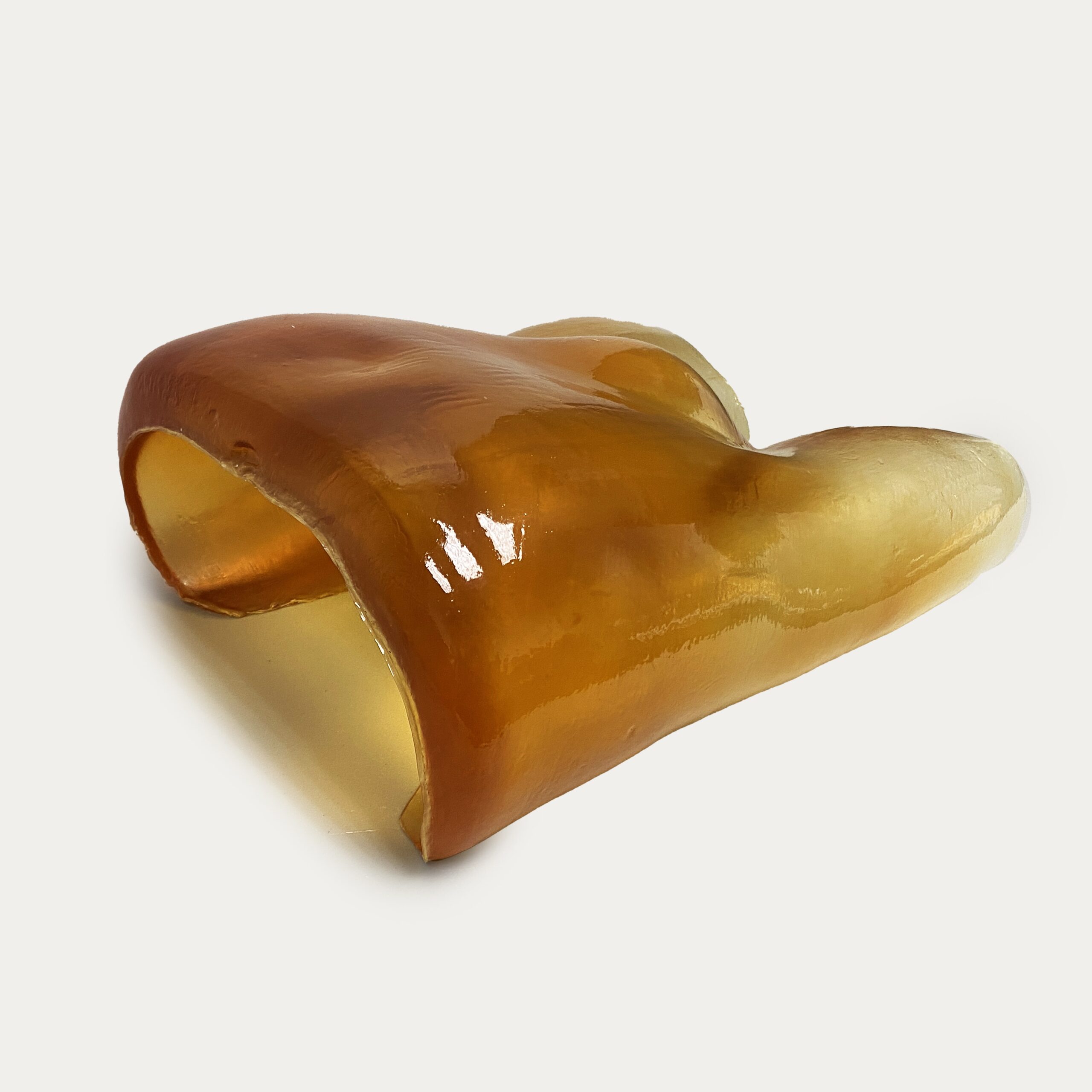

- Fat layer outside look
Note: This is a custom fat layer which can be added upon request. With the addition of this fat layer, BMI of the phantom was increased to 33.

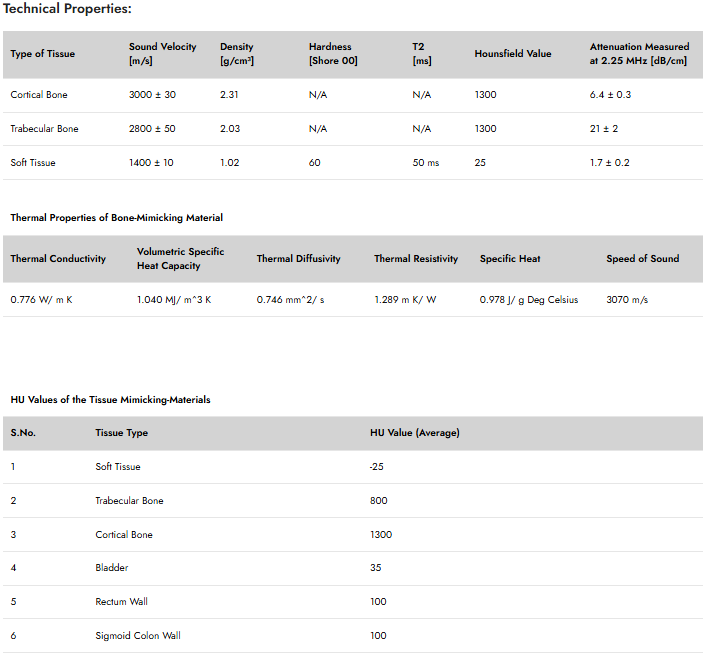

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |

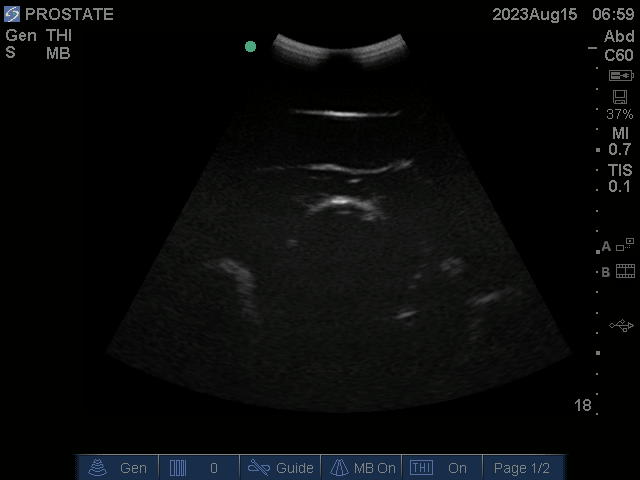

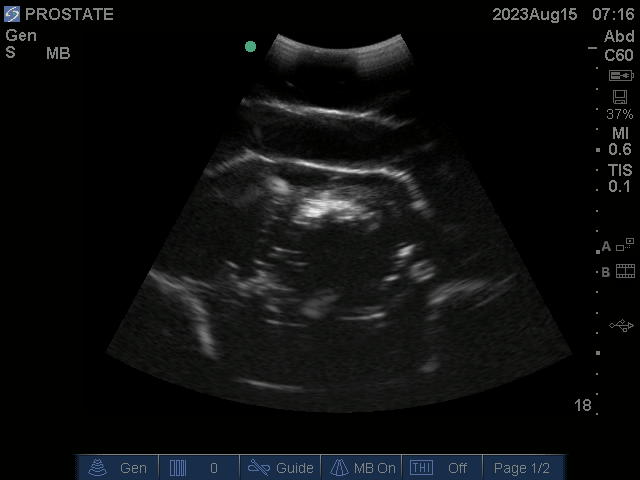

Ultrasound Scans:
*/ These scans were obtained from a customized version of this product. Customization included a realistic water-fillable bladder with custom wall thickness. This feature does not comes with the standard version of the product. If you have any questions related to these, please write us at [email protected] /*

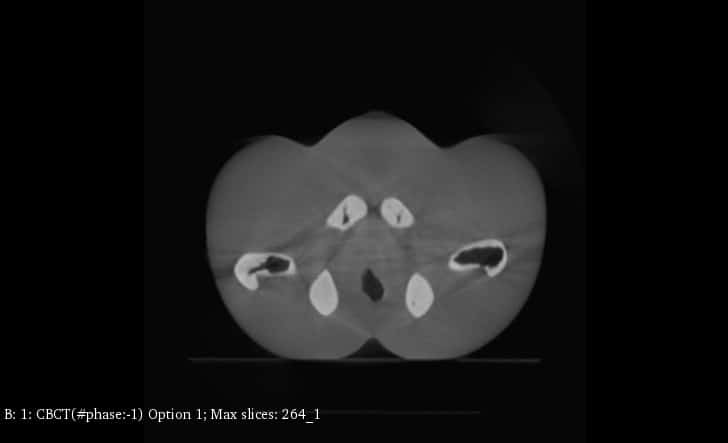

CT Scans:
-

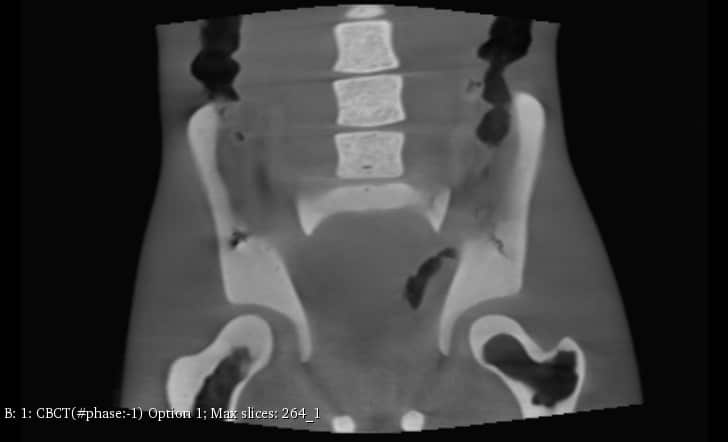

- Coronal Plane
-

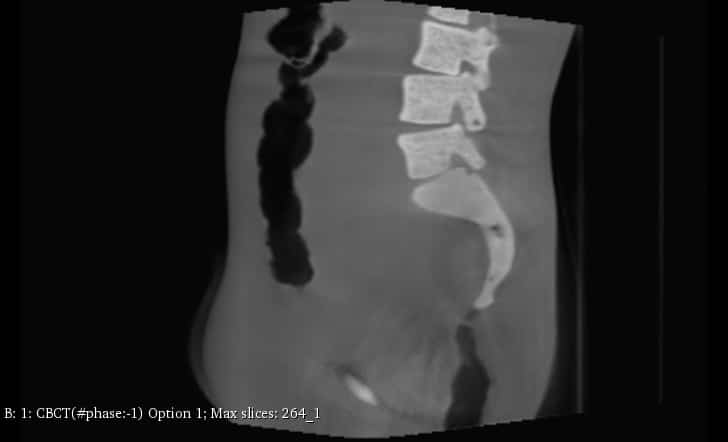

- Sagittal Plane
-
- Transverse Plane
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Soft Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Bladder | 35 |
| 5 | Rectum Wall | 100 |
| 6 | Sigmoid Colon Wall | 100 |
Included In Order:
Adult Pelvis with Prostate Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 14 x 10 x 16 Inches, Weight: 49 Lbs (approx.)
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 88 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
