The Adult Pelvis with Prostate Phantom is designed based on an average adult human (male). It is made out of realistic patented bone material that is suitable for X-RAY CT and MR imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration purposes. This product can be further customized to match our client’s specific requirements.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The phantom can also be customized in size and shape (i.e. based on any individual’s CT scan).
Anatomy:
Spine from L5 to L2 Pelvis Bone Partial Left and Right Femoral Bones Large Intestine Rectum Prostate Bladder with Simulated Internal Fluid Cervical Spine
Design:
-

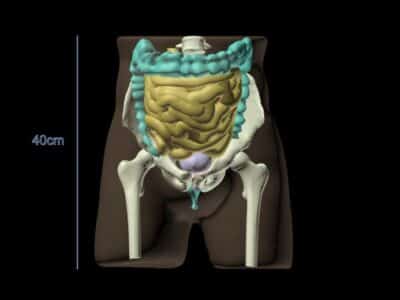

- Front View
-

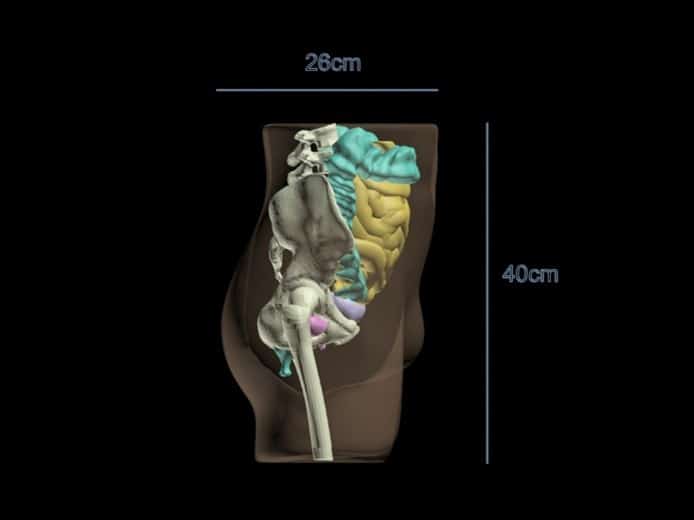

- Lateral View
-

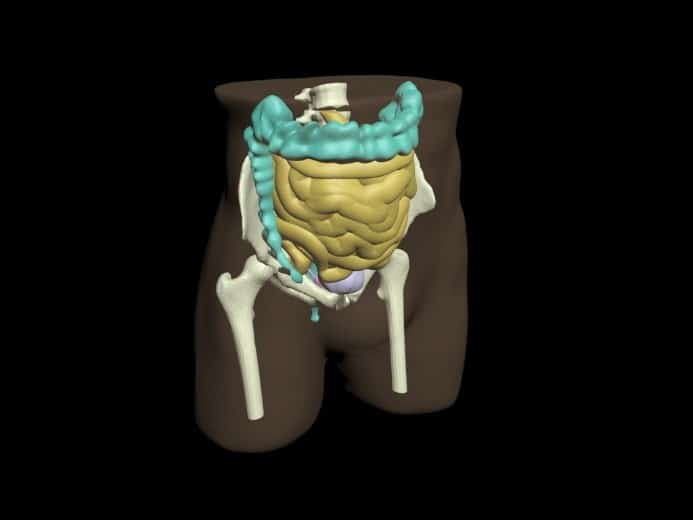

- Perspective View
-

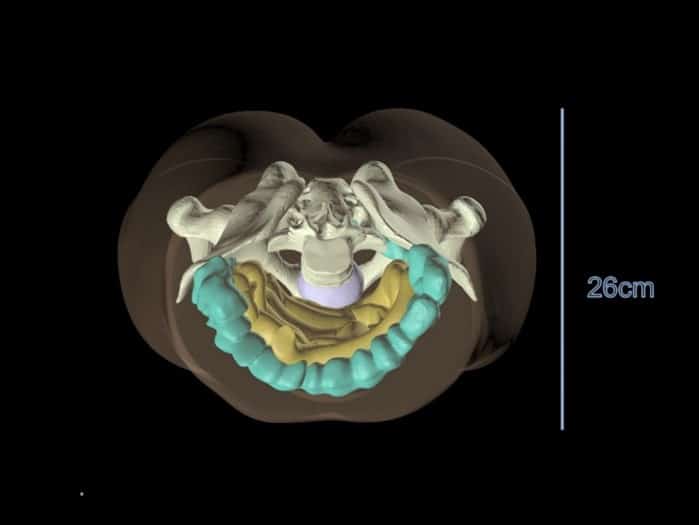

- Top View
Product Images:

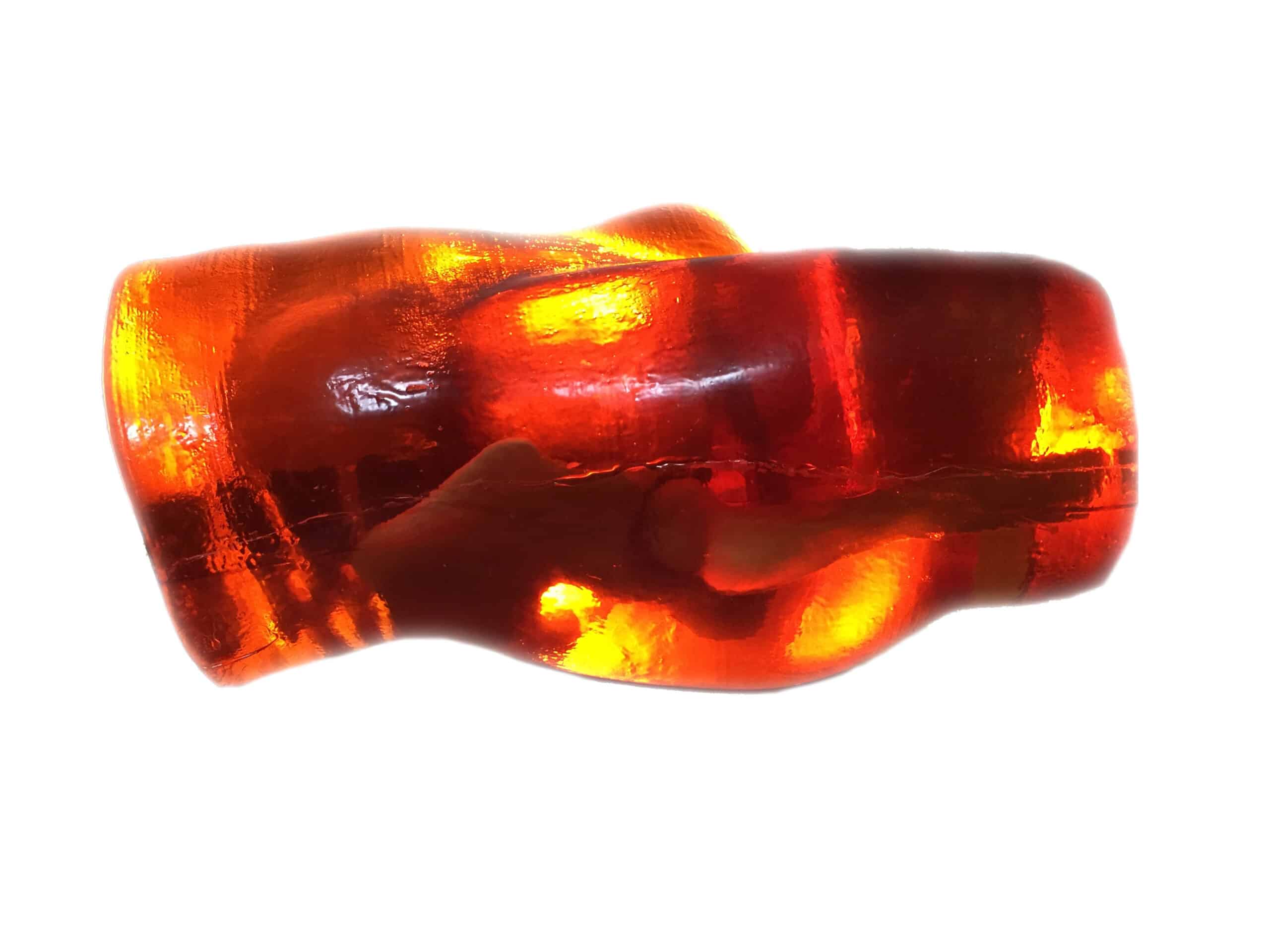

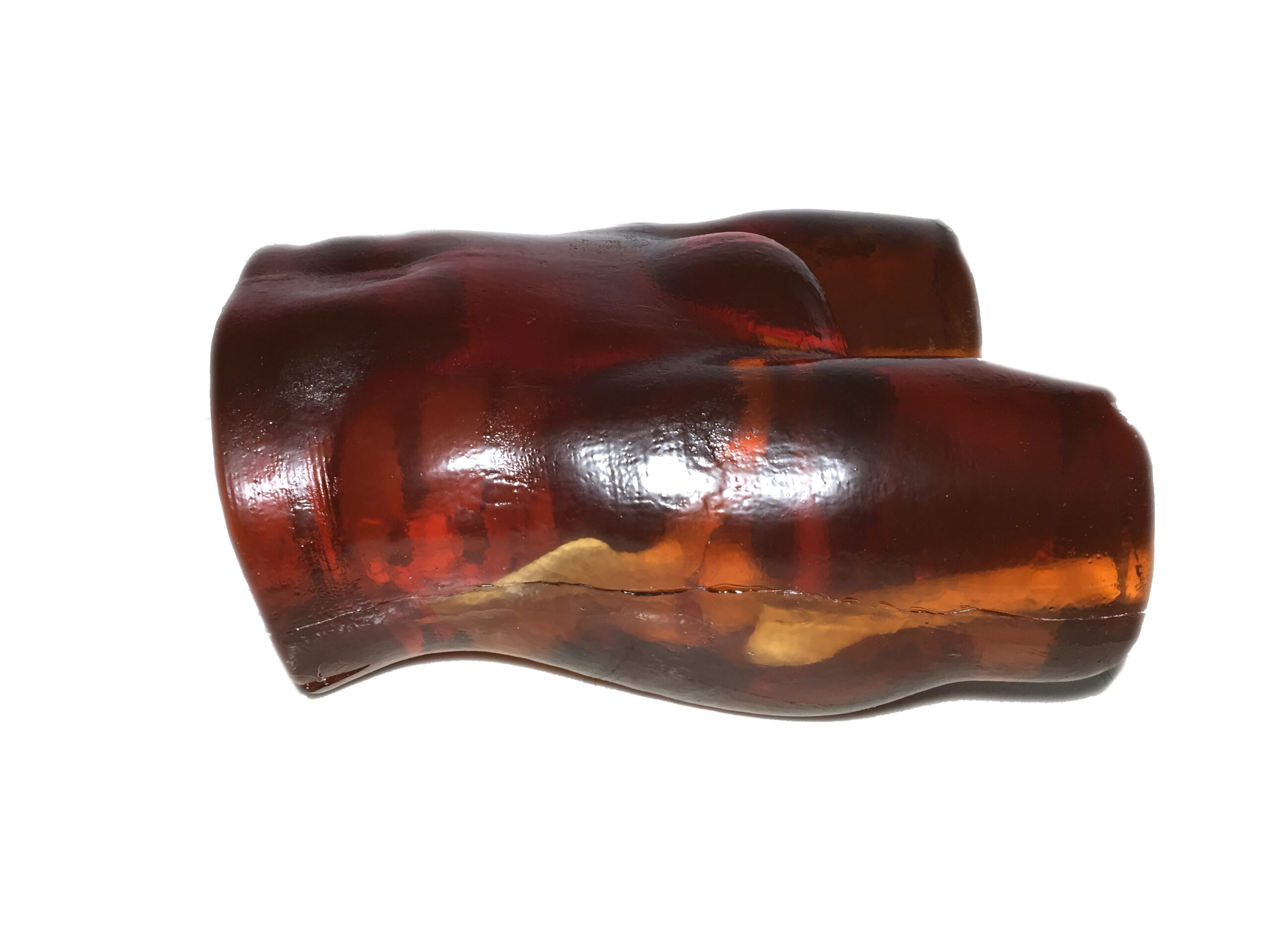

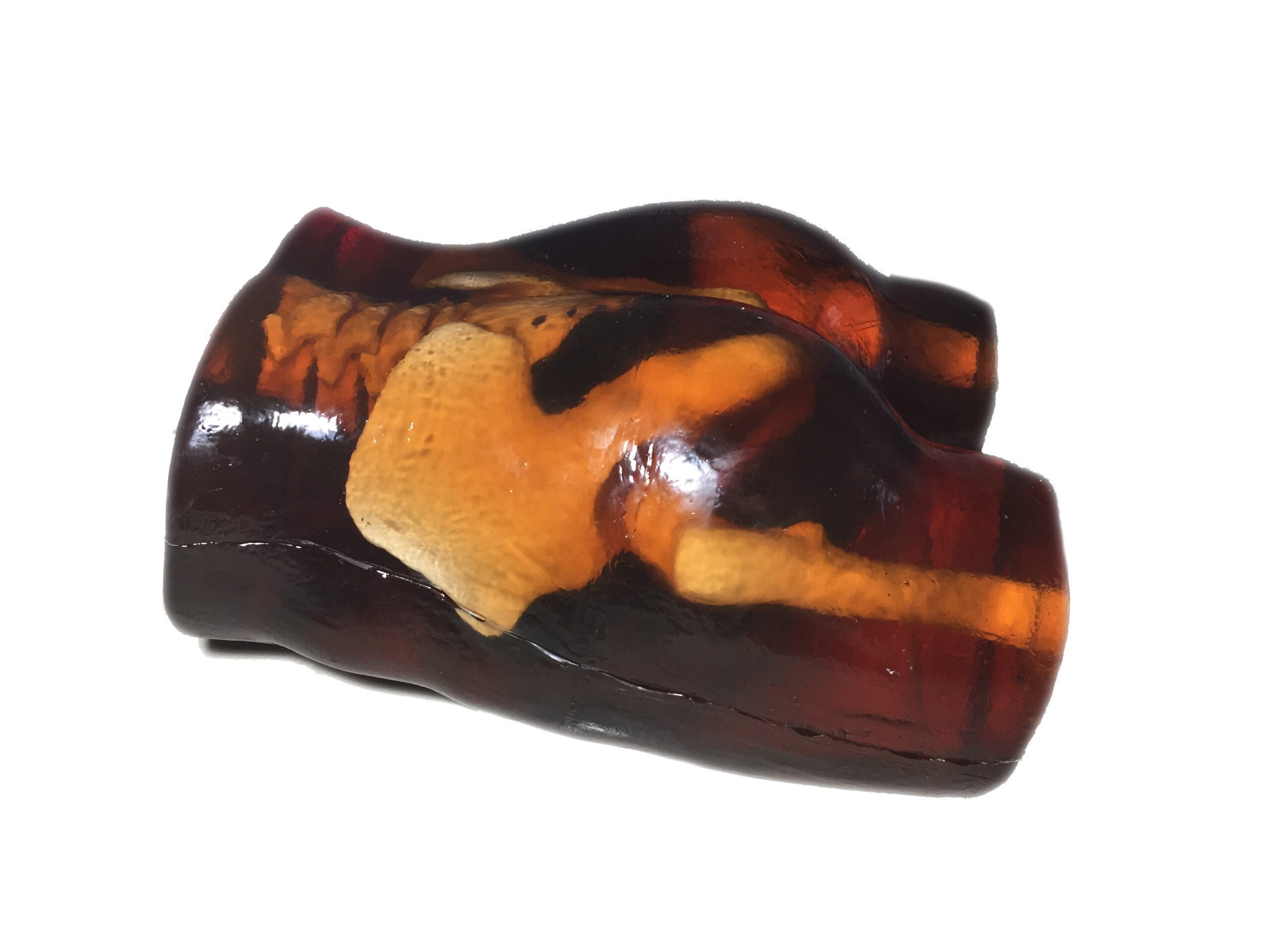

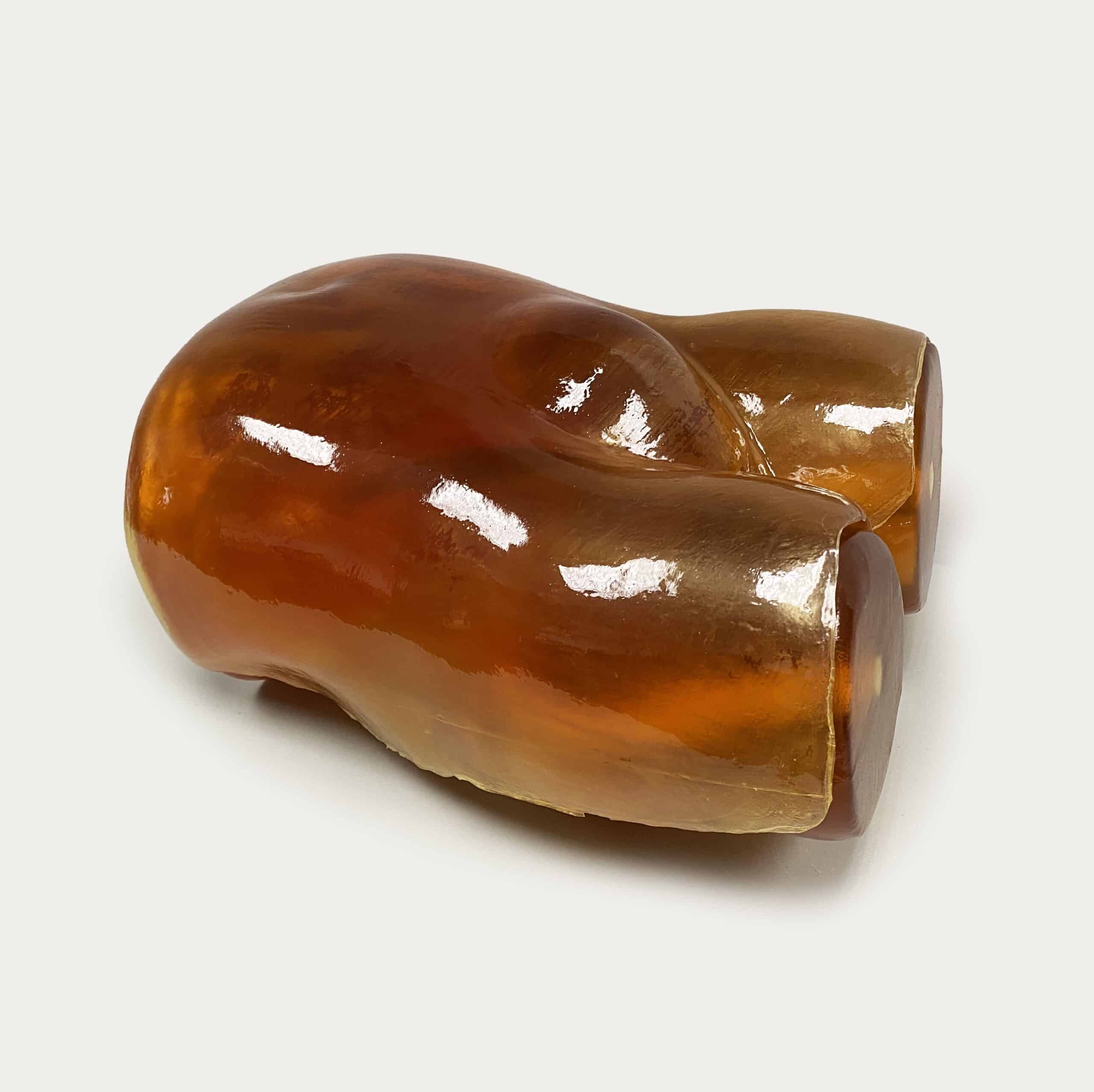

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
Custom Fat Layer with the pelvis (optional add-on)
-

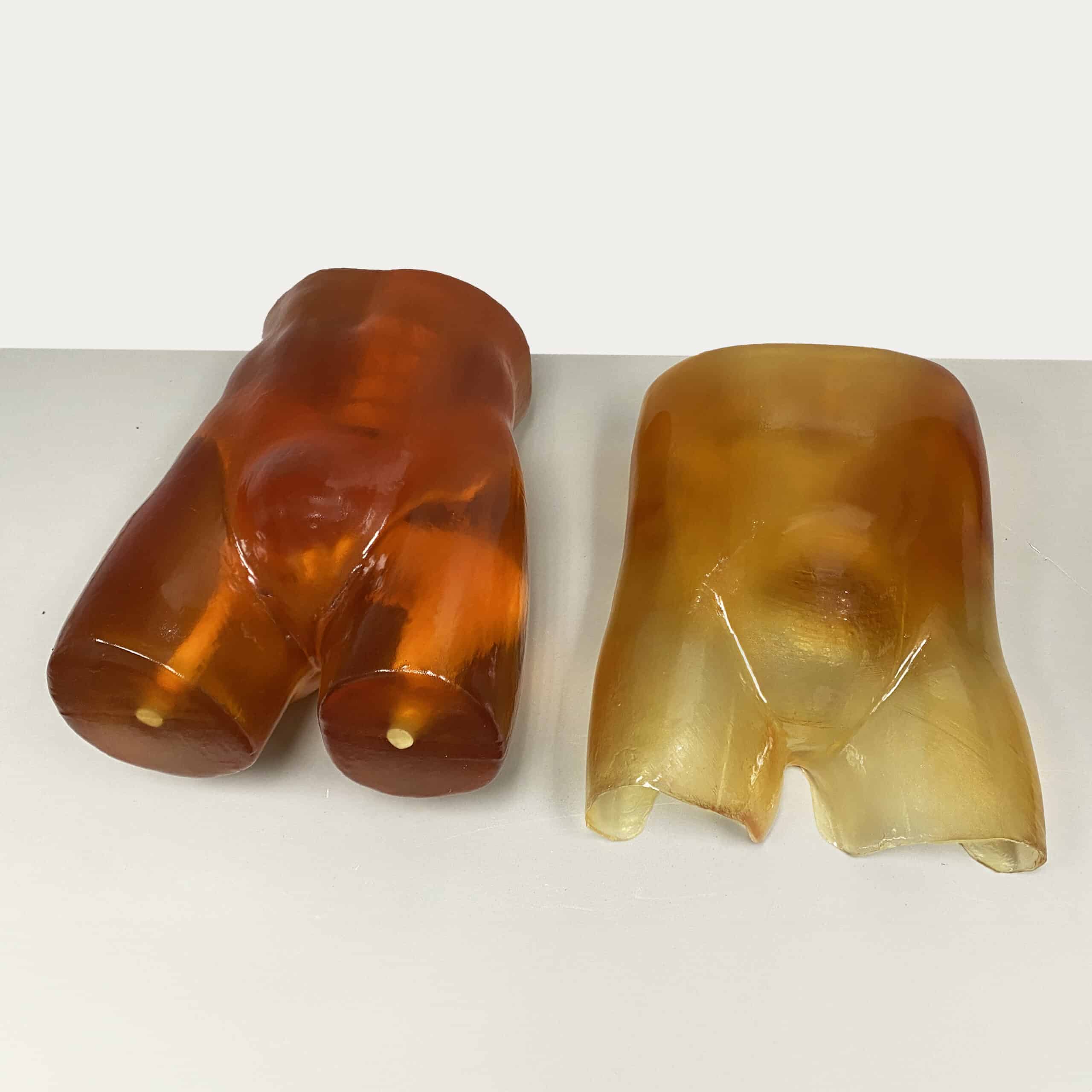

- Pelvis Phantom and fat layer
-

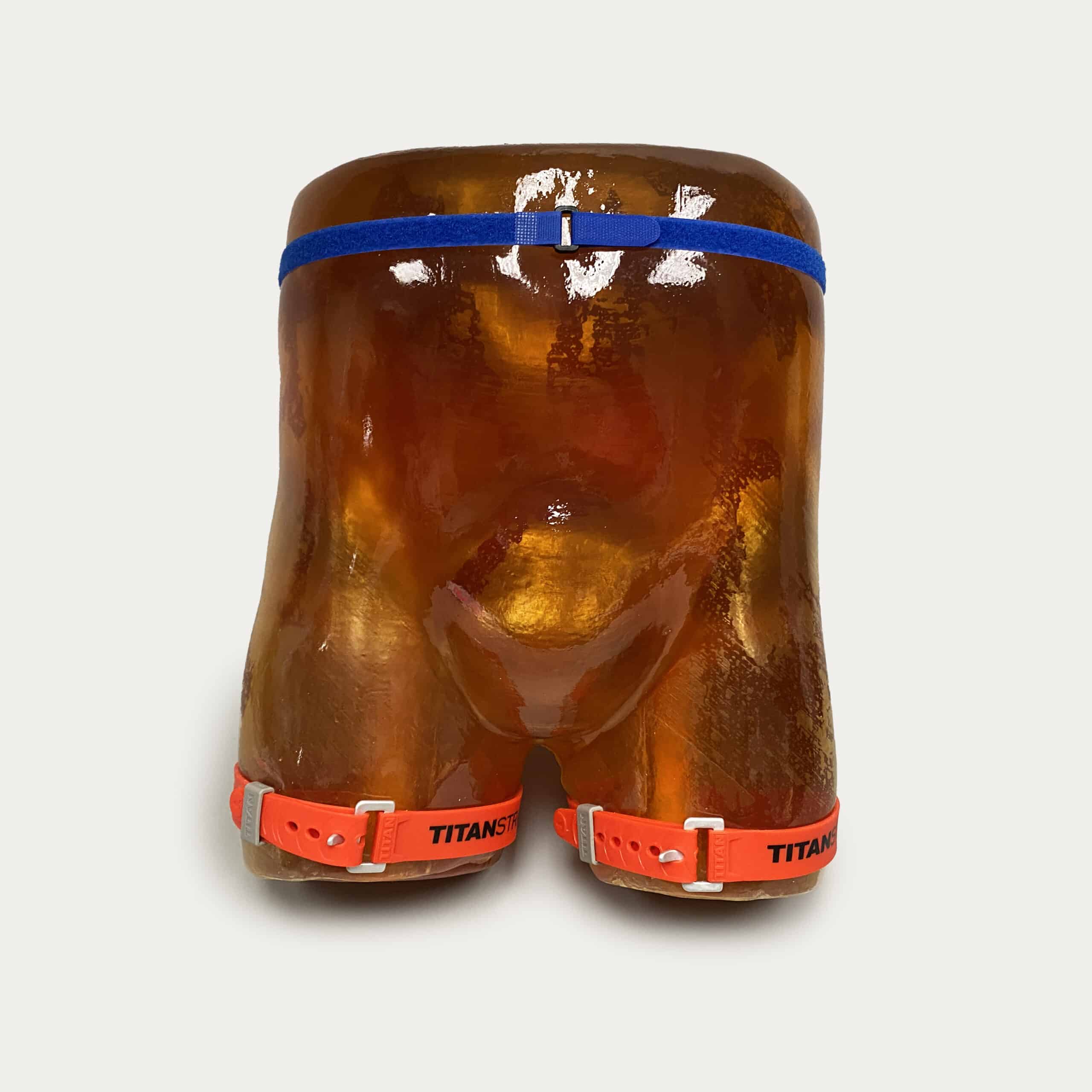

- Fat layer attached on the pelvis phantom
-
- Fat layer on the phantom
-

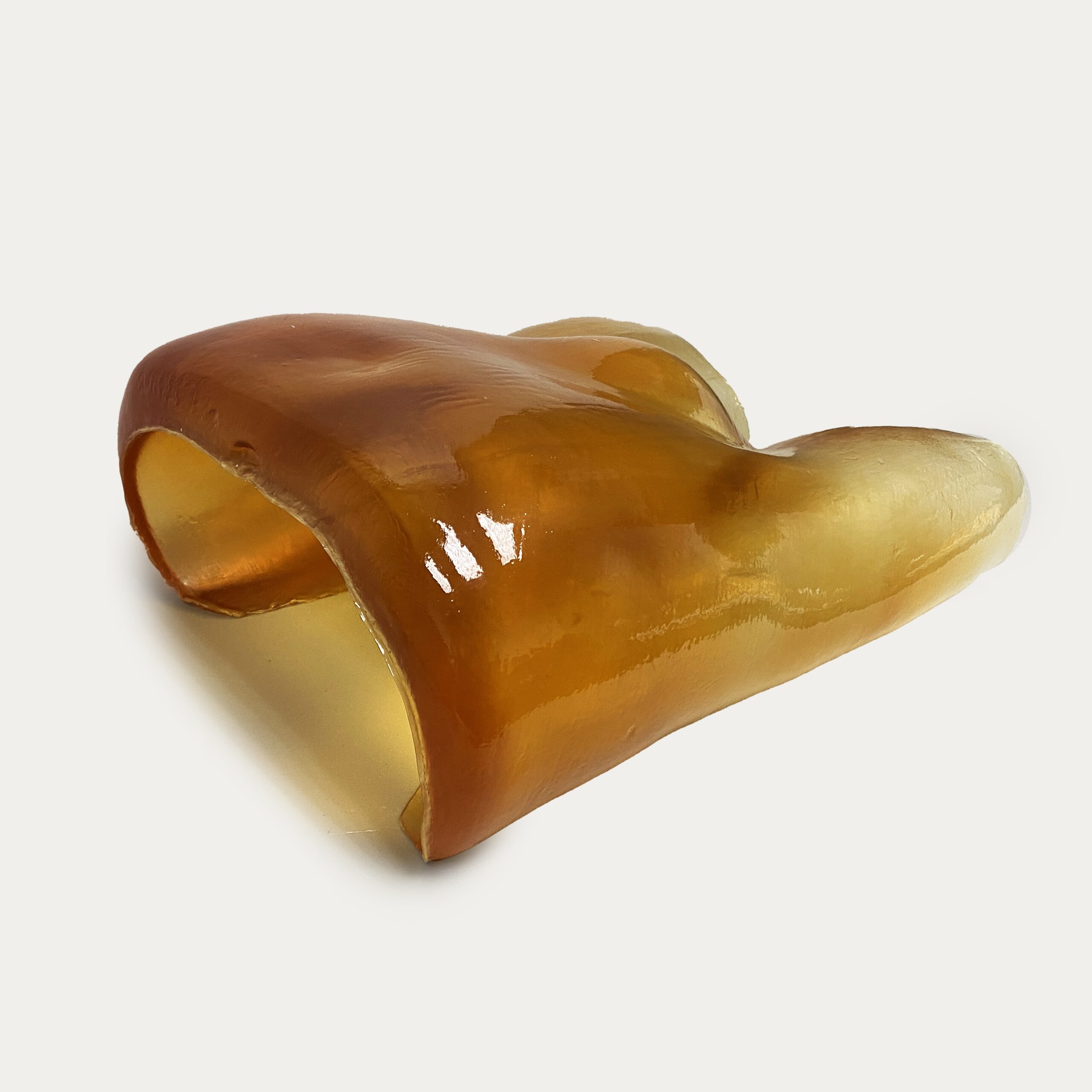

- Fat layer inside look
-

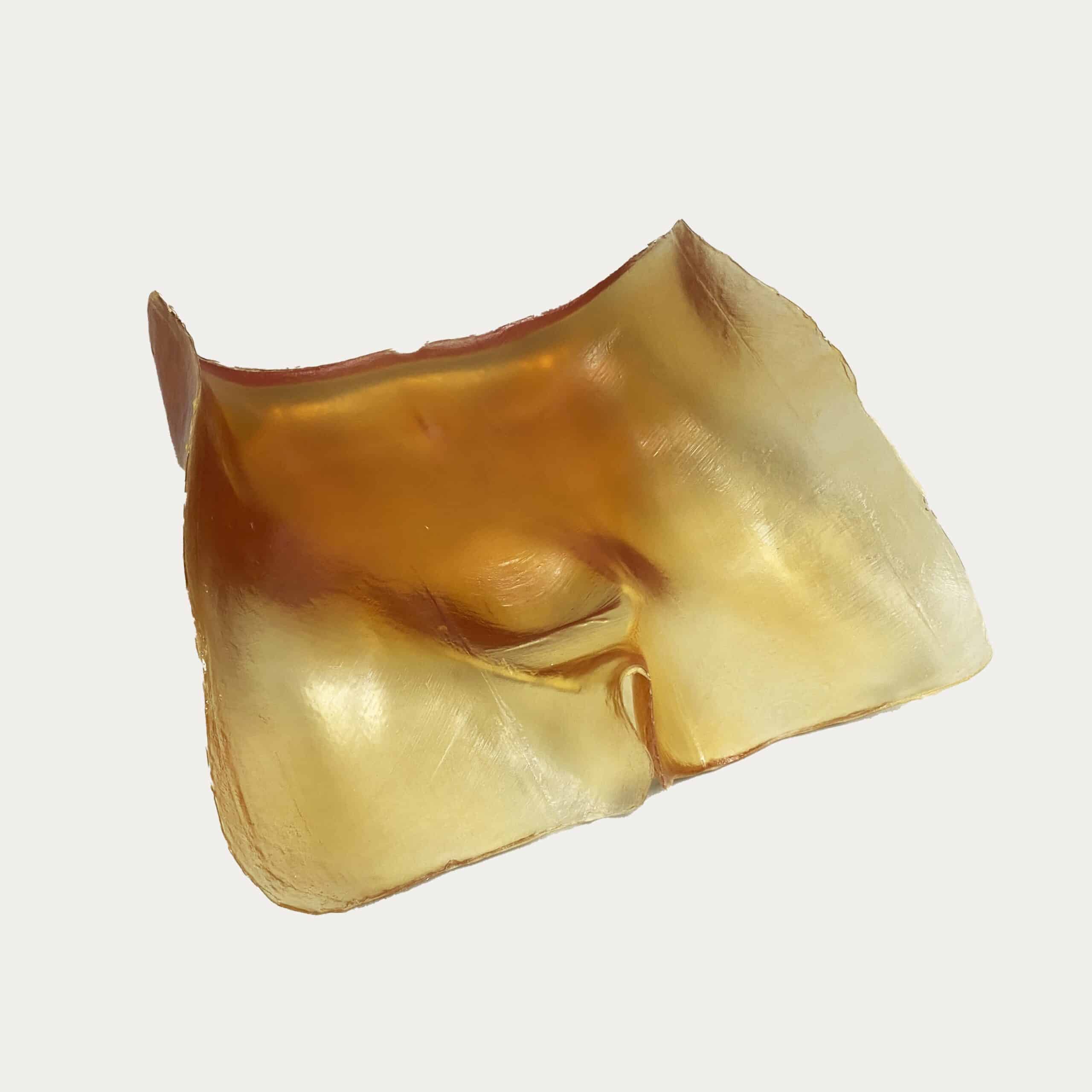

- Fat layer outside look
Note: This is a custom fat layer which can be added upon request. With the addition of this fat layer, BMI of the phantom was increased to 33.
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
CT Scans:
-

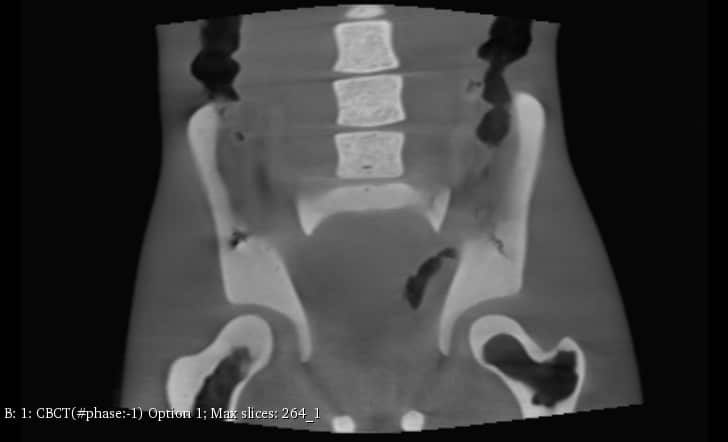

- Coronal Plane
-

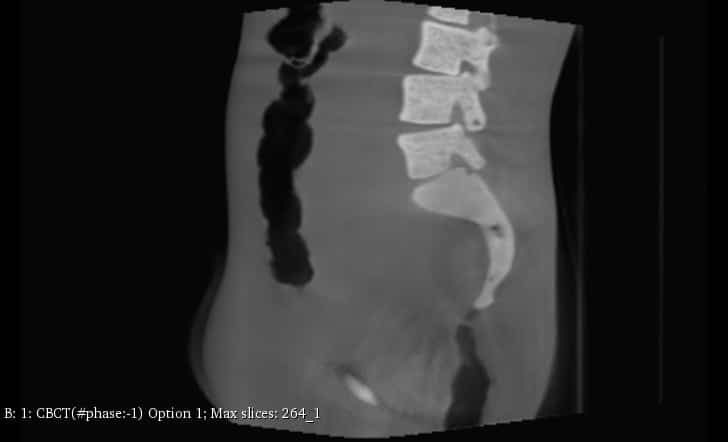

- Sagittal Plane
-

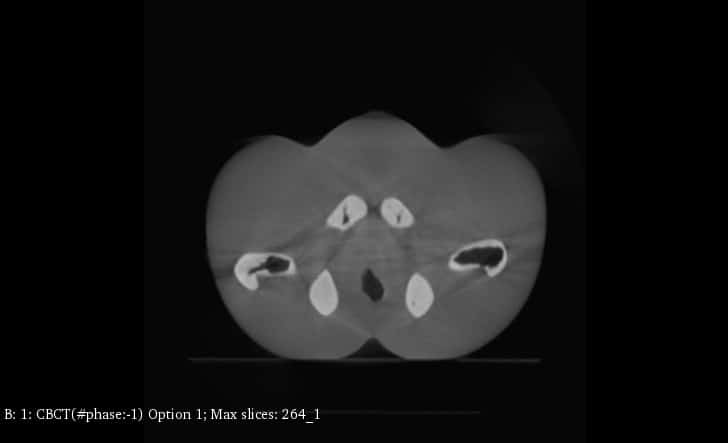

- Transverse Plane
MRI Scans:
-

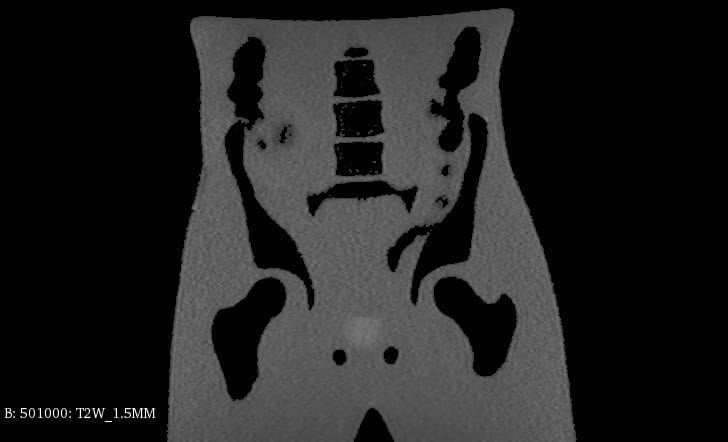

- Coronal Plane
-

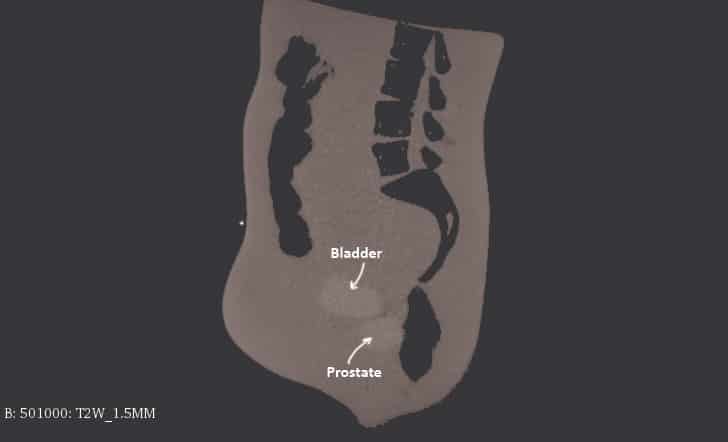

- Sagittal Plane
-

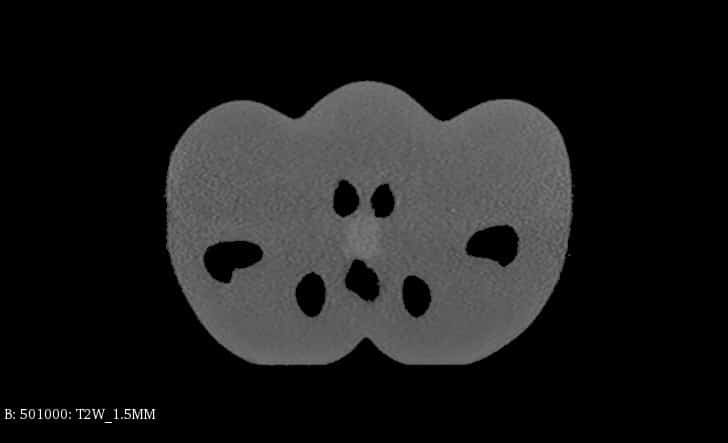

- Transverse Plane
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Pelvis with Prostate Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 14 x 10 x 16 Inches, Weight: 49 Lbs (approx.)
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 88 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
