Adult Leg (Muscles) Phantom for X-Ray CT and Ultrasound is a realistic phantom designed based on the average anatomy of a human male leg. It has all the essential bony and soft tissue features that make it an ideal tool to study, research, and test medical imaging devices.
The LG-A02 can be used to study several diagnostic X-Ray CT and Ultrasound procedures in different orientation and positioning techniques. Upon request, this product can be customized with different pathologies as well as for specific training applications.
Anatomy:
Fibula Bone Tibia Bone Foot Bones Major Muscle Tissues Realistic Soft Body Tissue
Design:
-

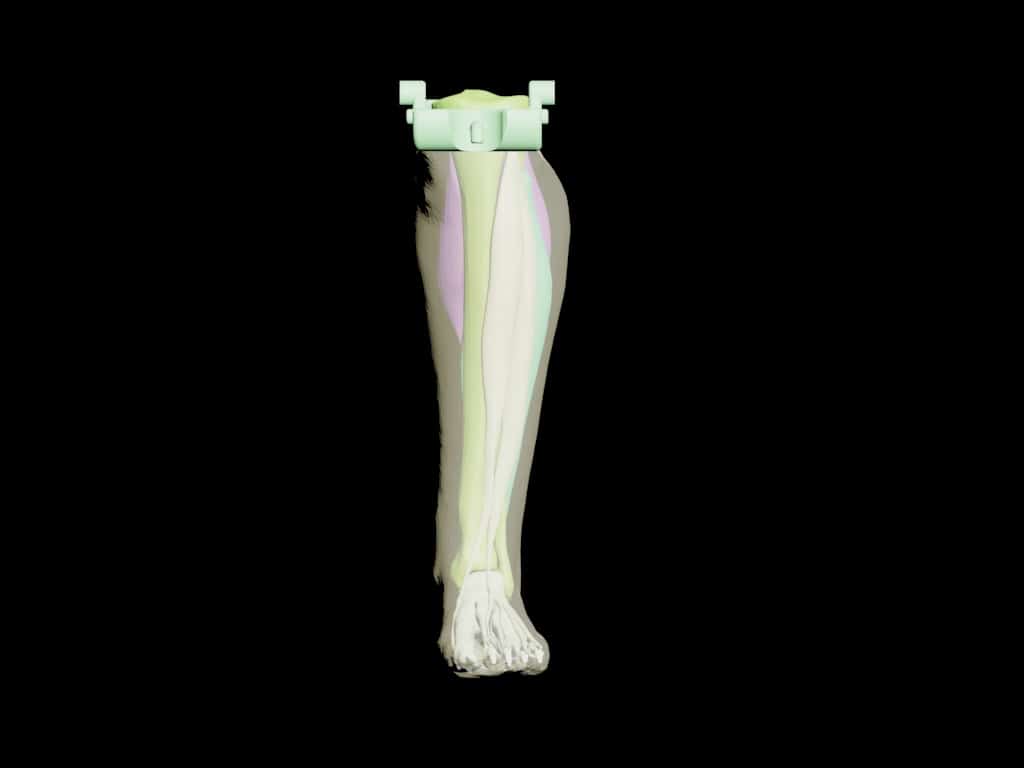

- Front View
-

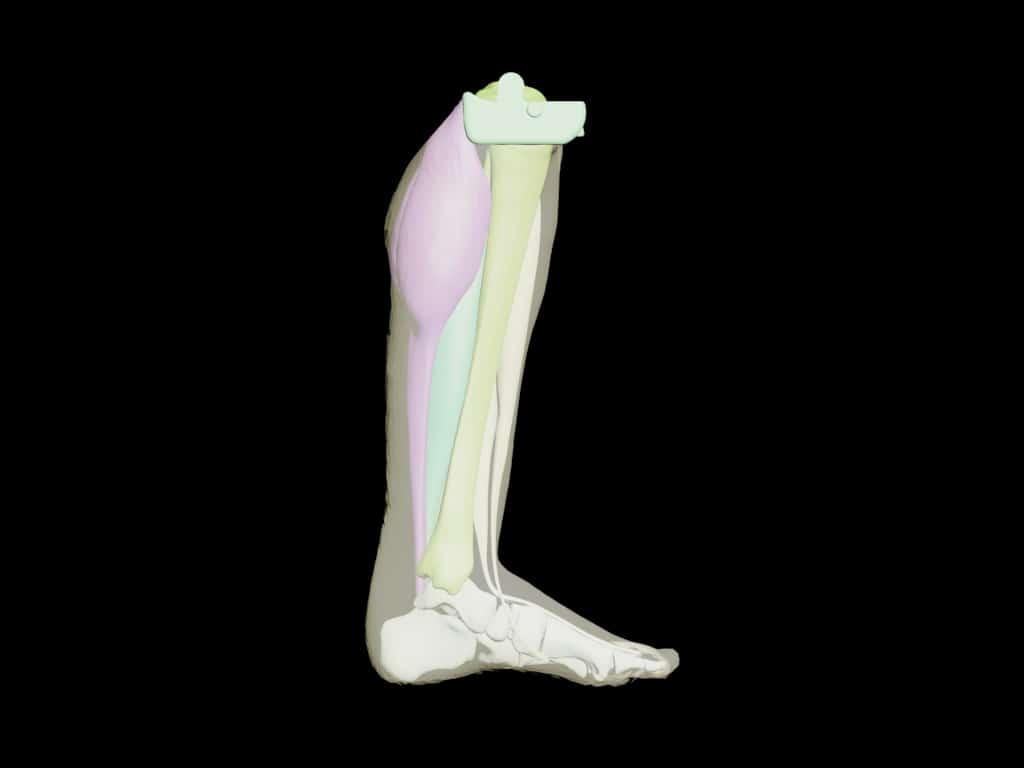

- Lateral View
-

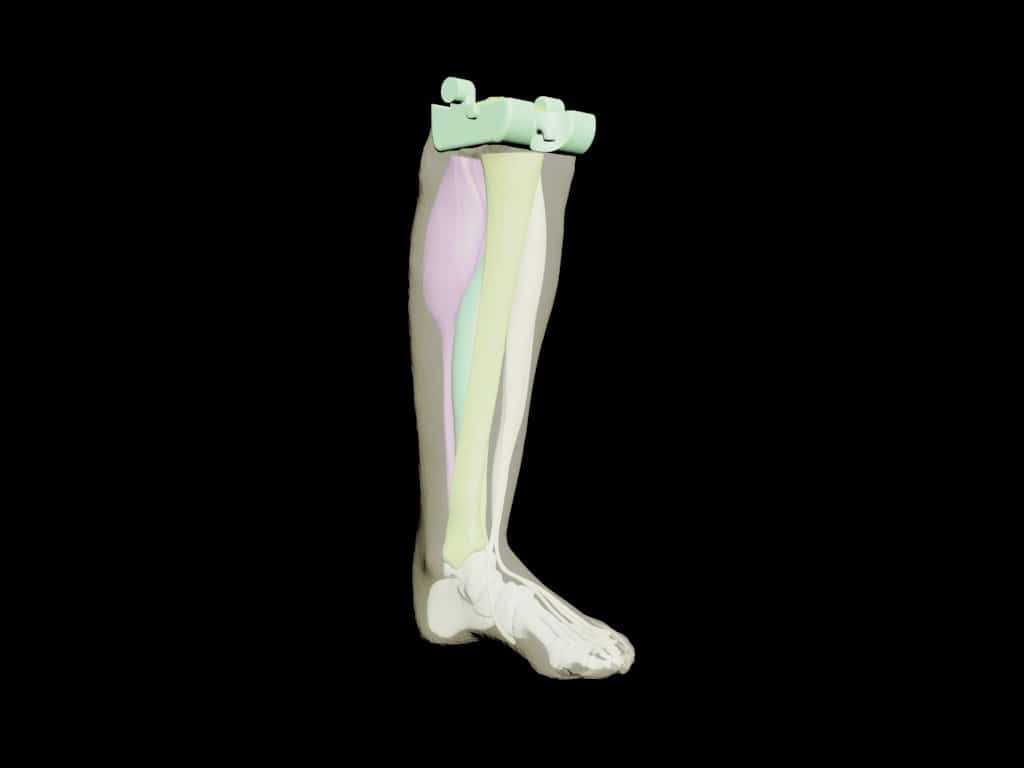

- Perspective View
-

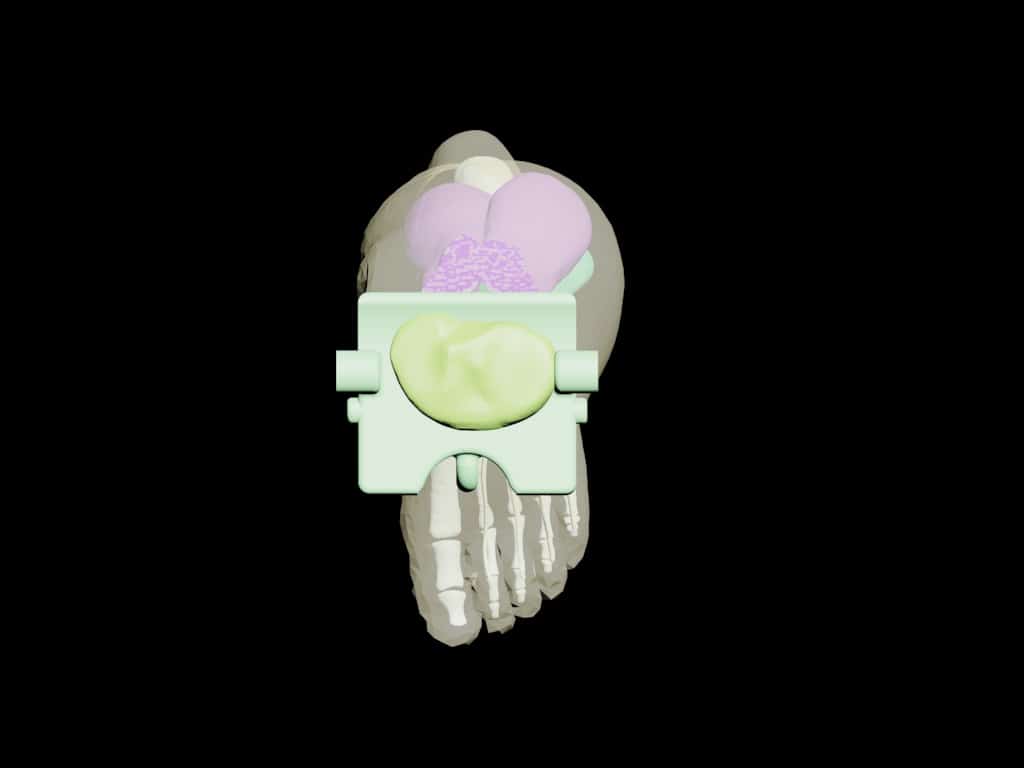

- Top View

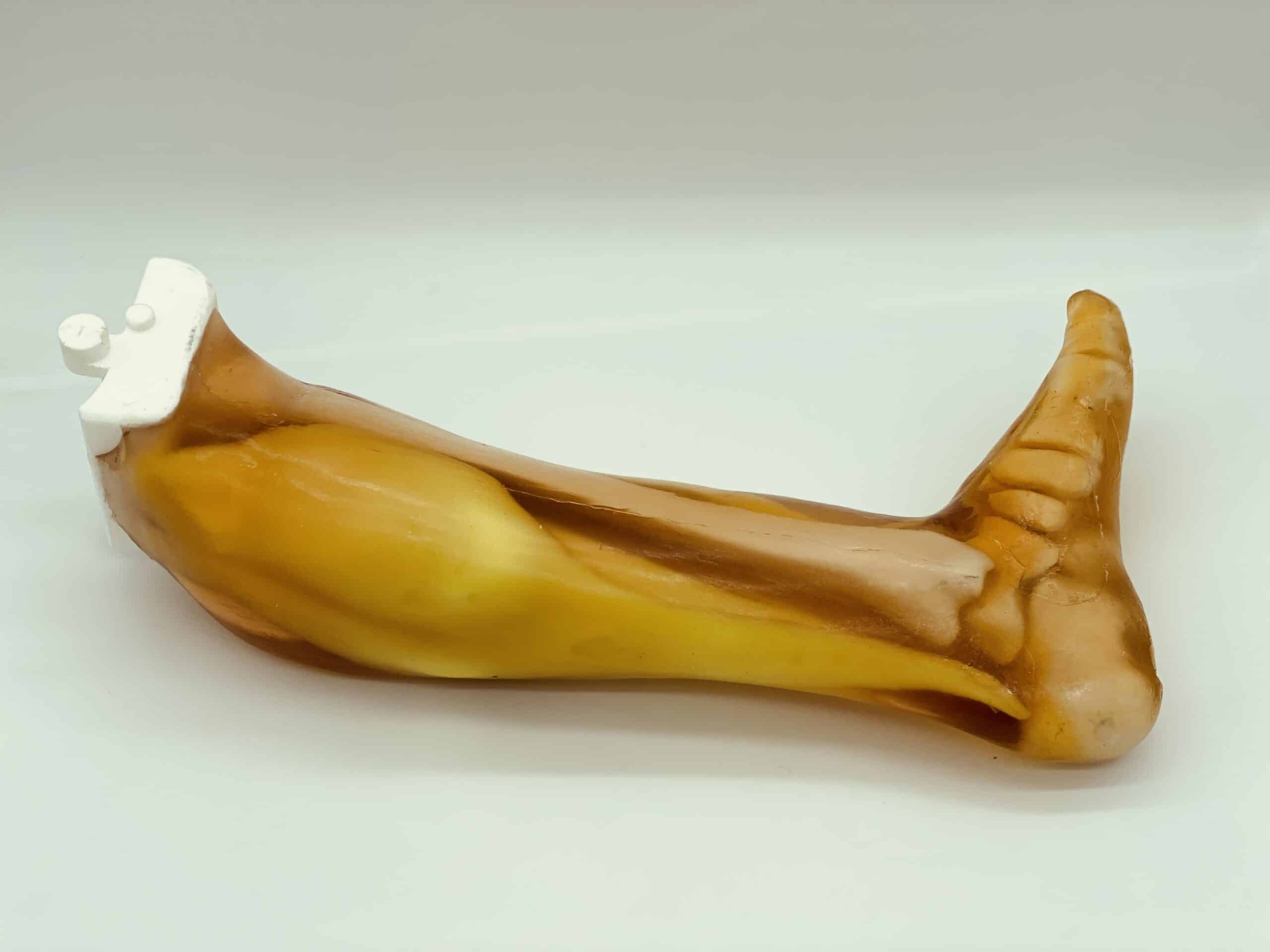

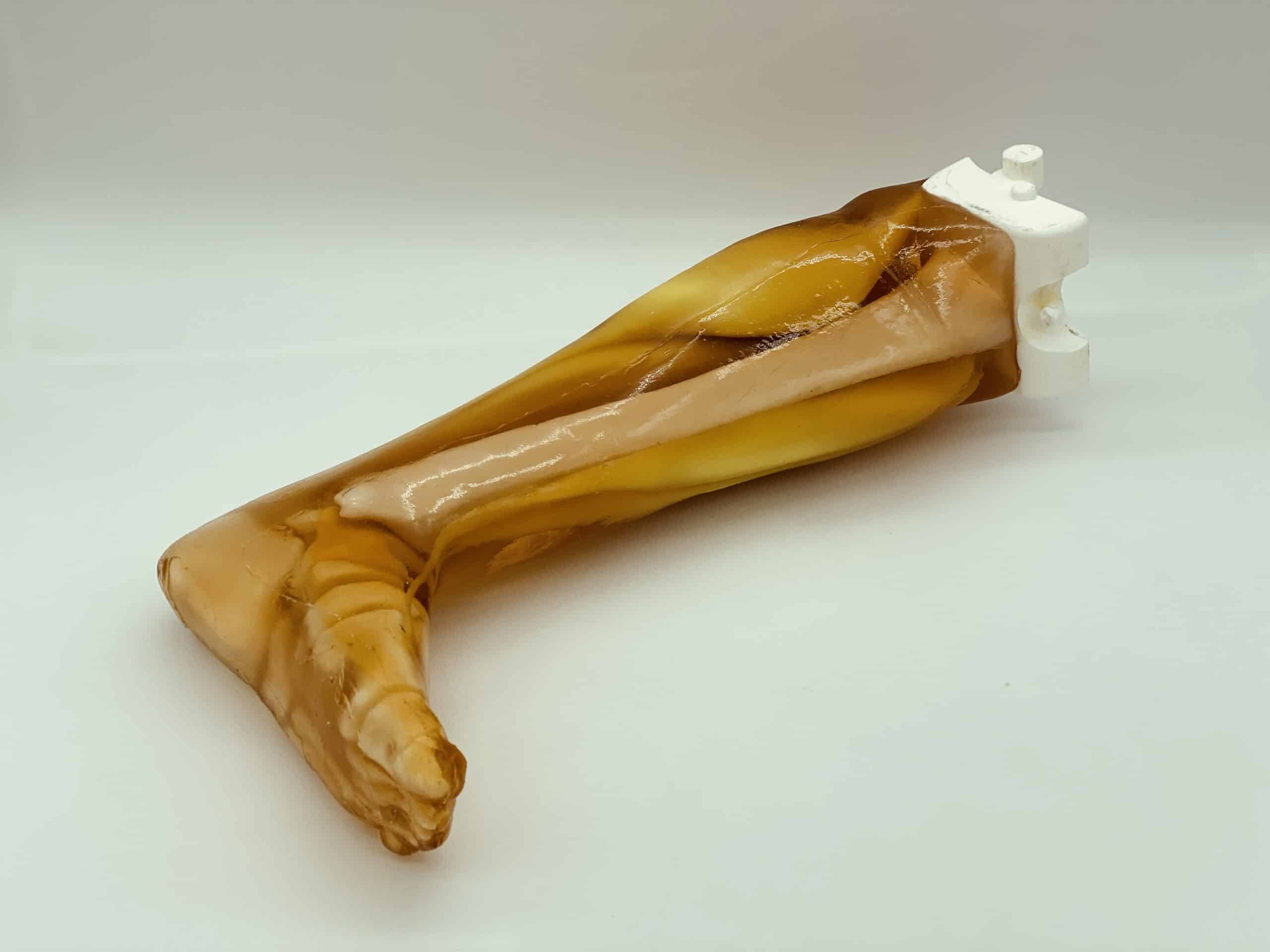

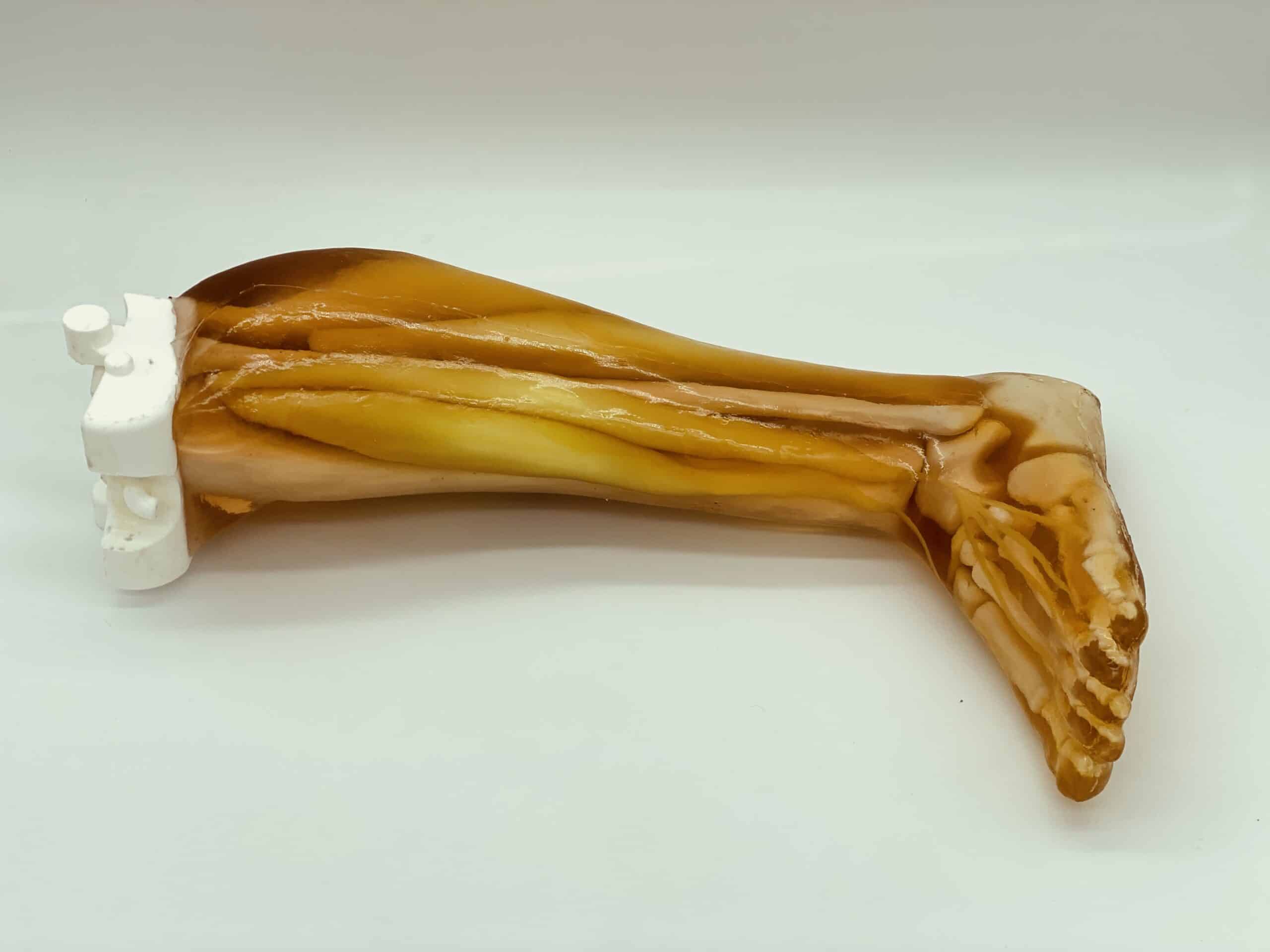

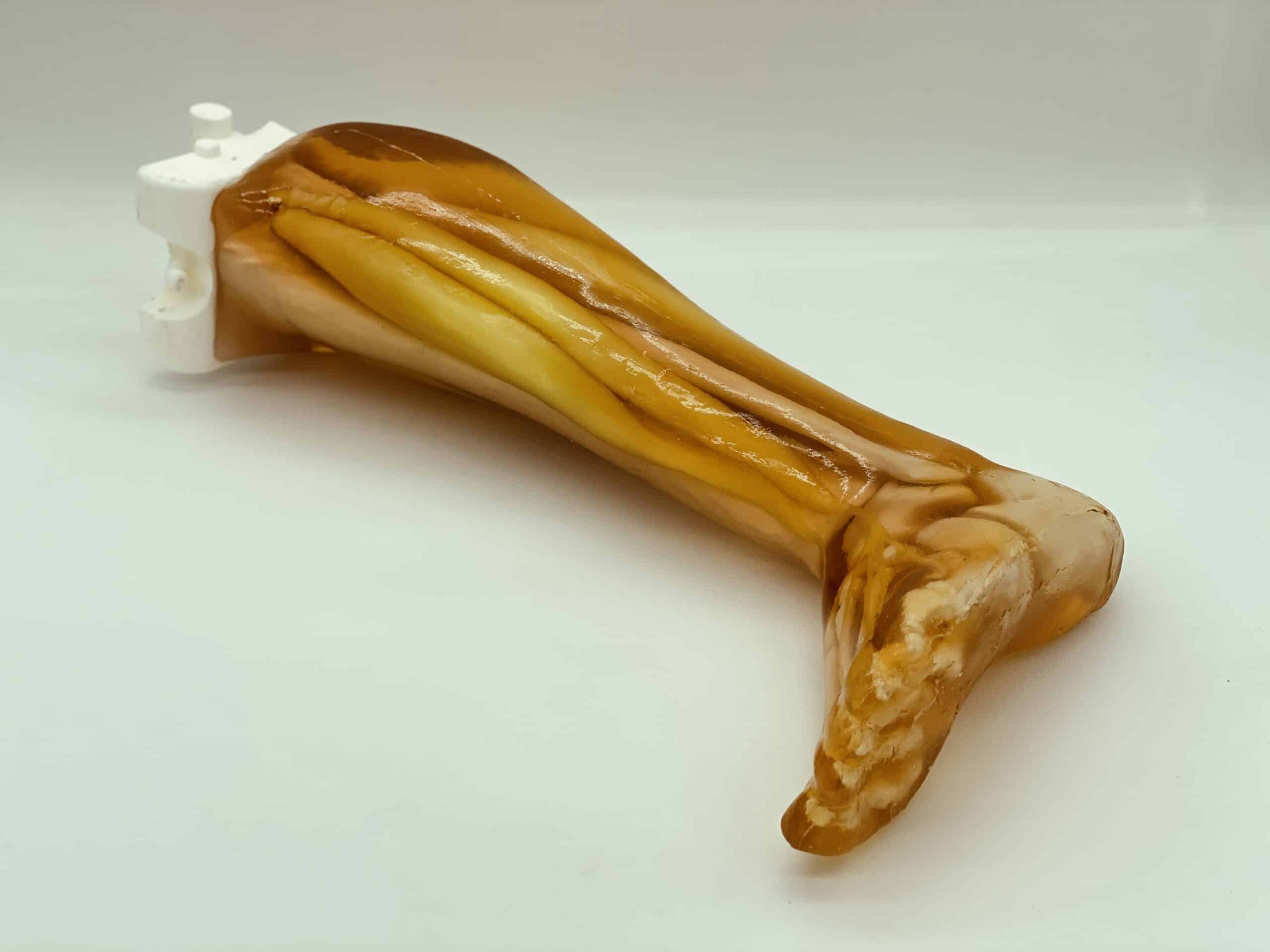

Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
Ultrasound Scans:

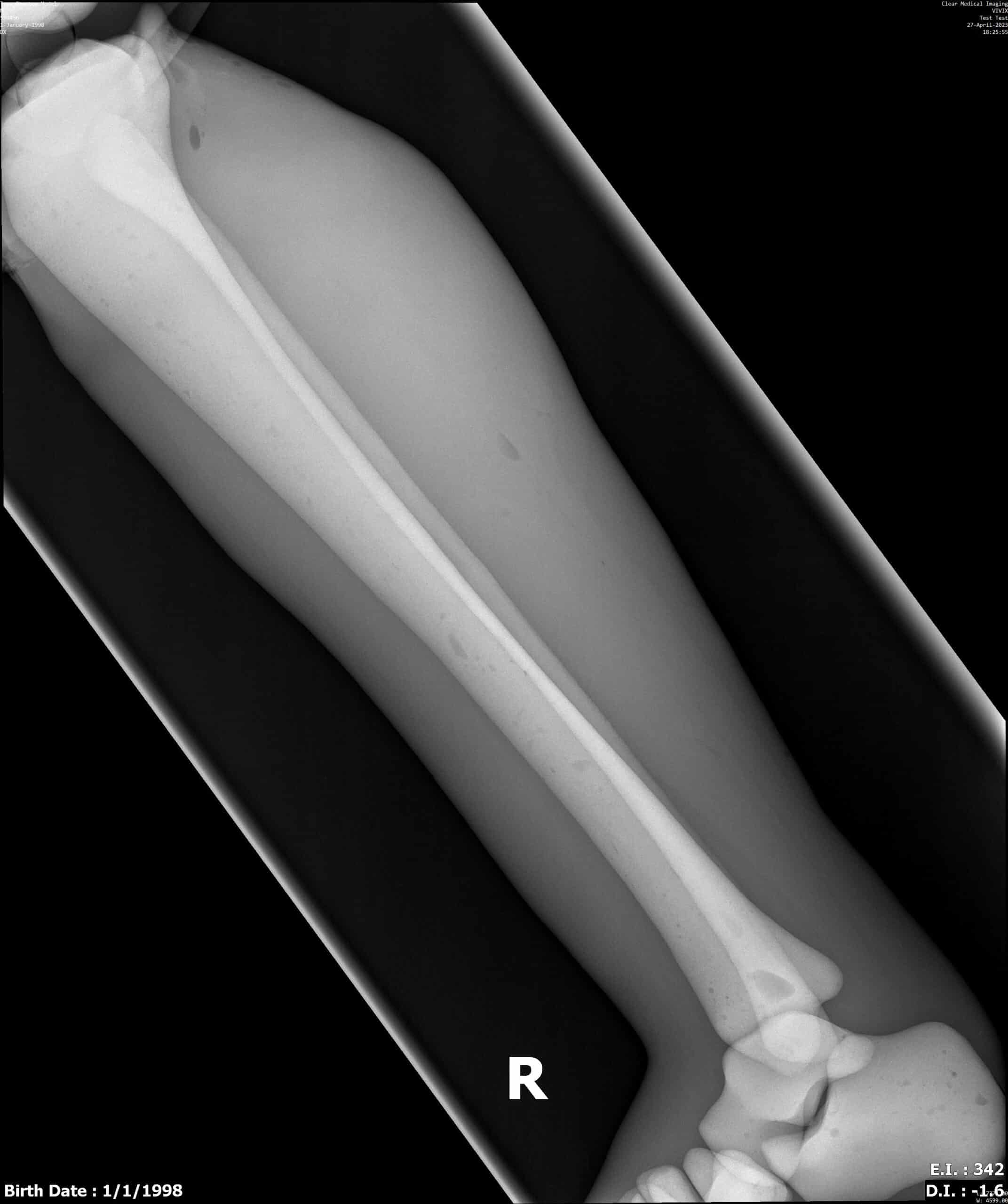

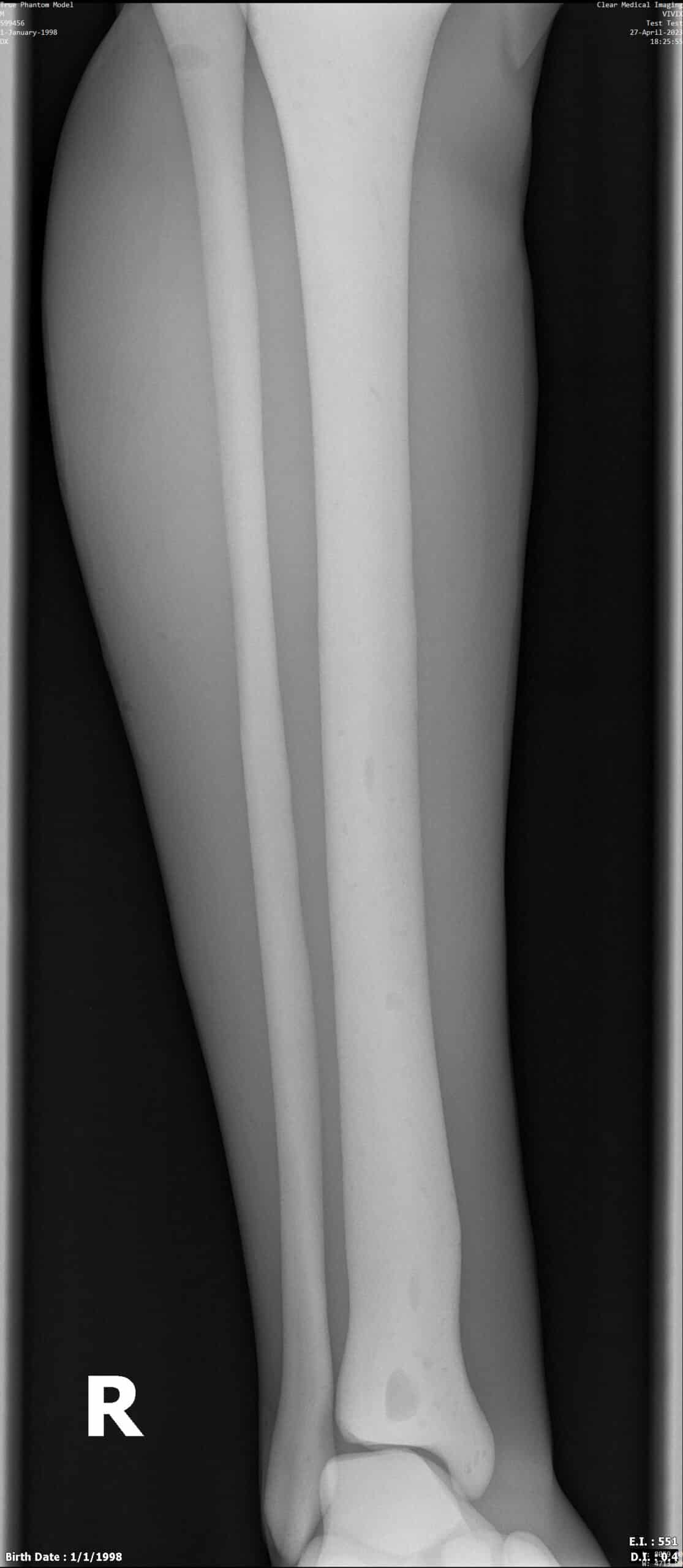

X-Ray Scans:
*/ These CT scans were obtained from our product, Adult Leg for X-Ray CT, MRI SKU: LG-A01. These are served as an example to refer to the imaging quality of this phantom. If you have any questions related to these, please write us at [email protected] /*
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Muscle Tissue | 1400 ± 10 | 1.01 | 35 | 60 | N/A | 1.3 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Leg (Muscles) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 38 x 10 x 7 Inches, Weight: 26.5 Lbs (approx.).
Shipment:
Size: 36 x 24 x 12 Inches, Weight: 35 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
