Adult Leg for X-Ray CT and MRI is a part of our Adult Full Body Phantom for X-Ray CT and MRI training [FB-A01] that can be purchased independently.
This X-Ray CT and MRI Leg Phantom can be used to take X-Ray images of the full leg. The model includes synthetic bones made out of realistic patented bone-mimicking material. The X-Ray Leg Model is perfect for radiology schools for training and learning different settings of X-Ray without the danger of exposing an actual patient to harmful radiation.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MR imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The bones are embedded in a realistic tissue-mimicking material that can be either transparent or opaque. The X-Ray Models may differ in size and shape. Due to production technology, there may be discoloring and cracks inside the phantom. This is related to production and does not lack quality.

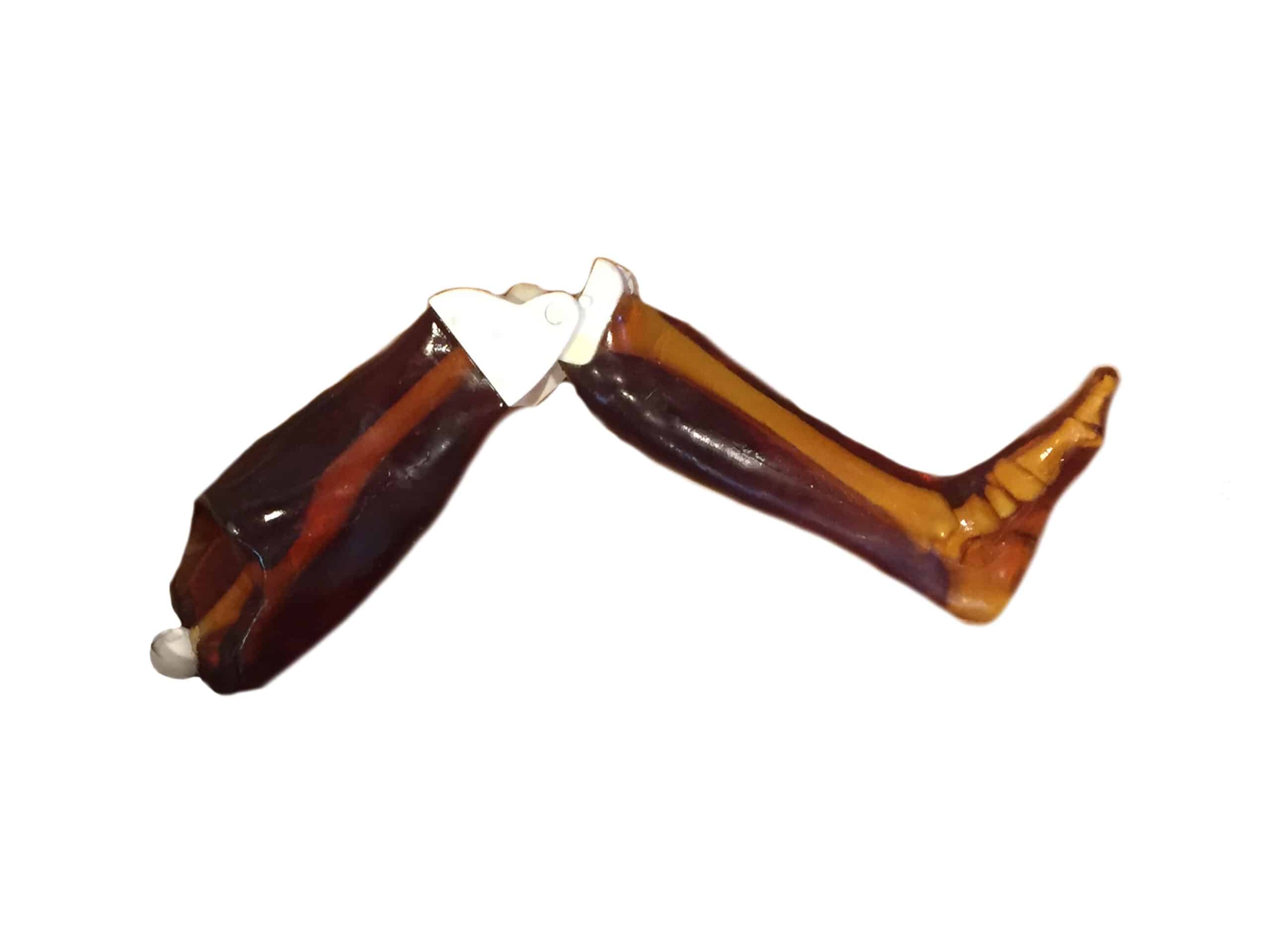

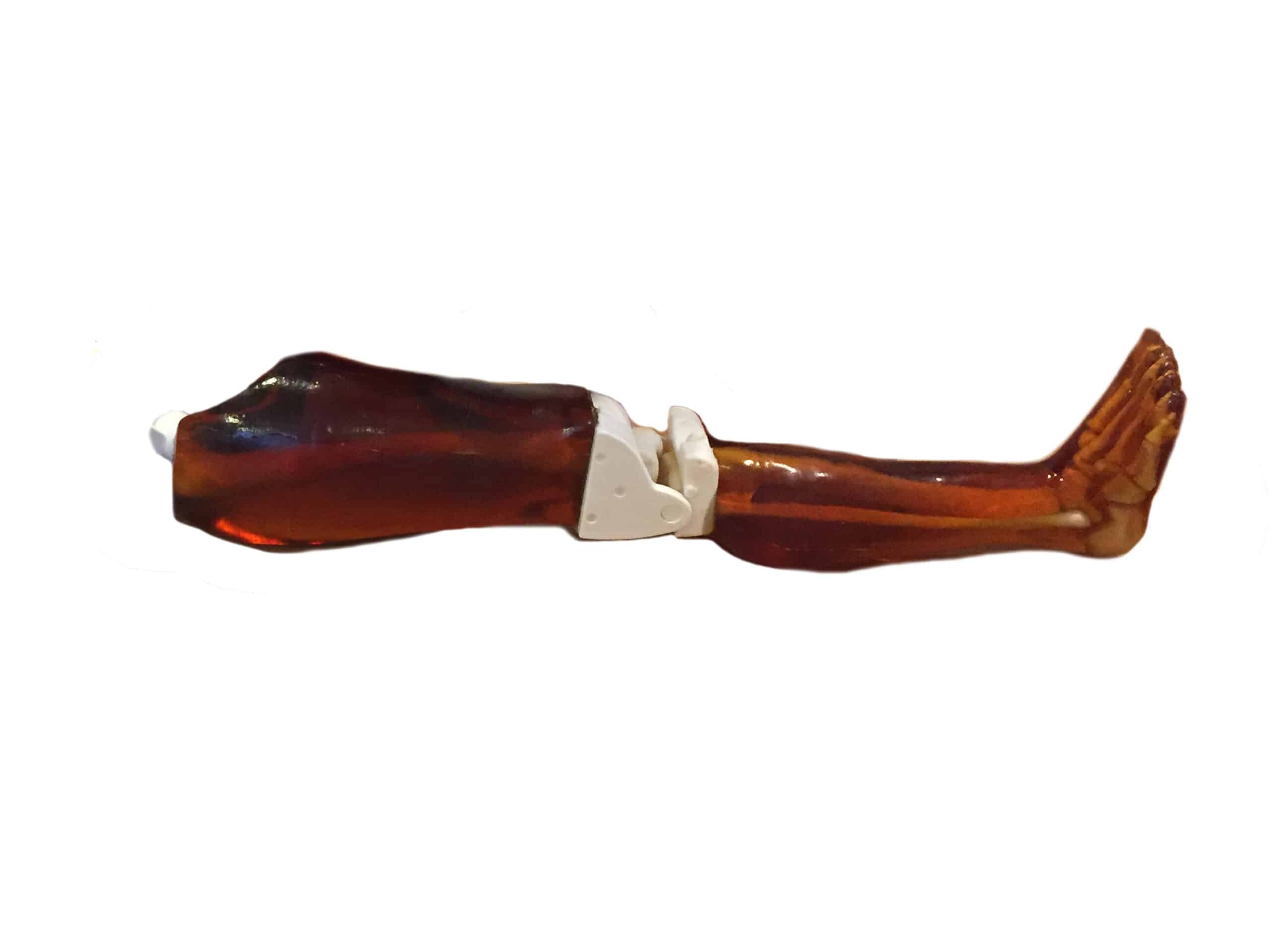

The leg phantom has a joint at the knee for flexibility and motion. It connects the lower leg with the upper leg (thigh).
Anatomy:
Thigh (Femur) Knee Joint Leg (Tibia, Fibula) Foot (Toe Bones)
Design:
-

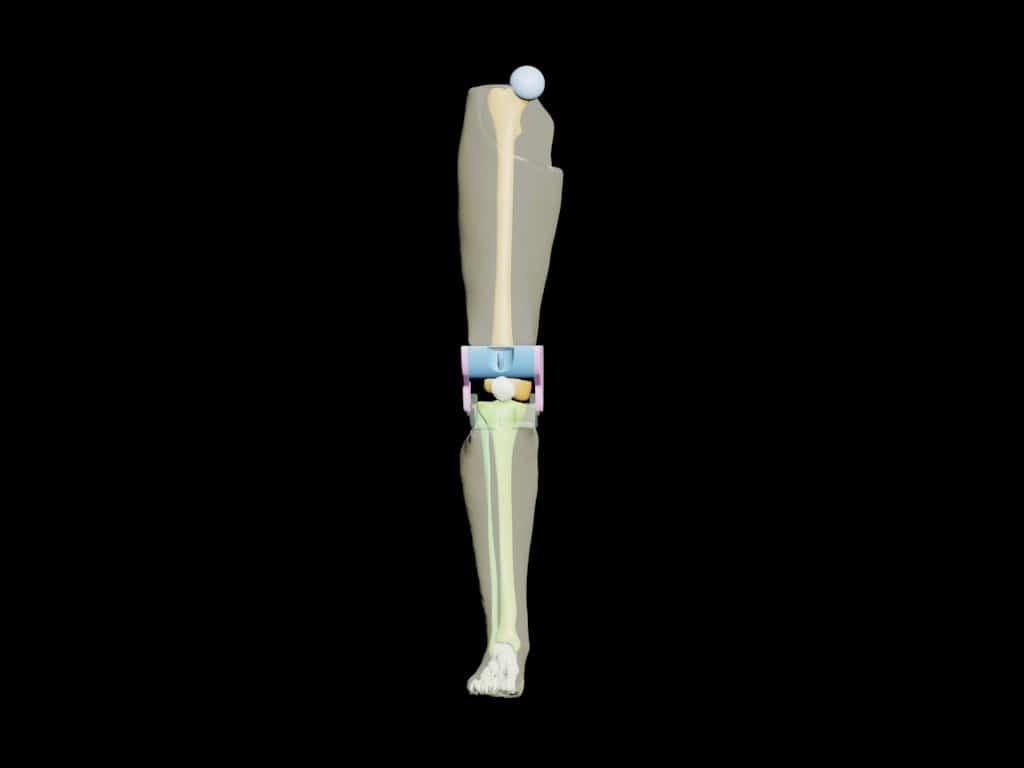

- Front View
-
- Lateral View
-

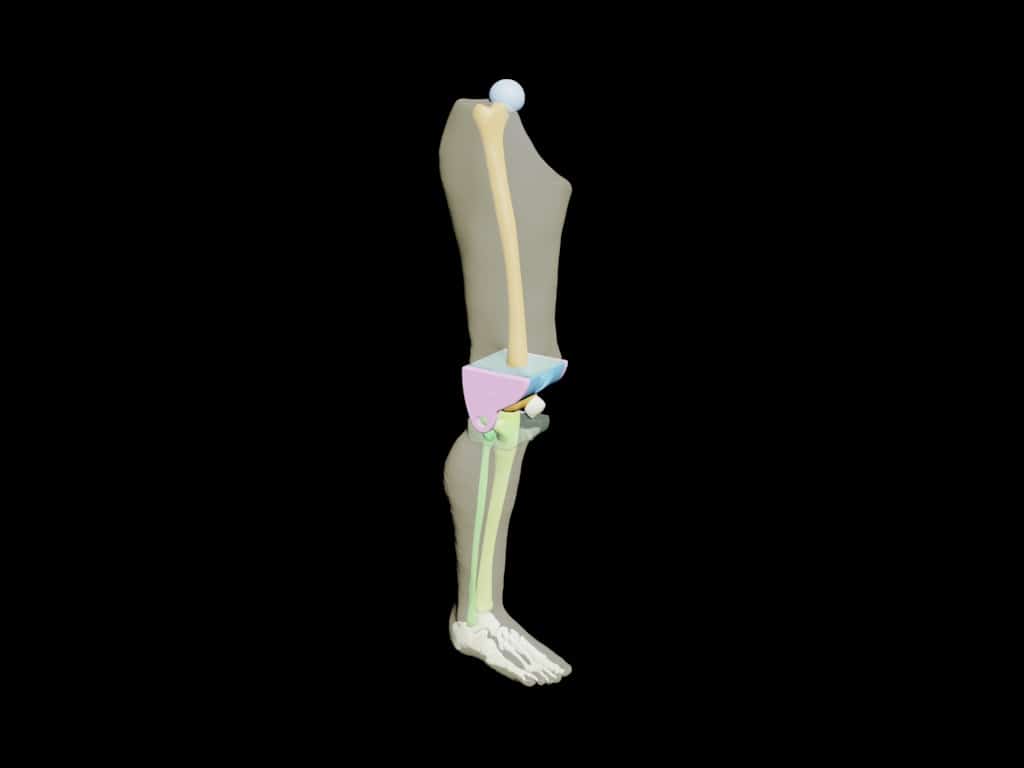

- Perspective View
-

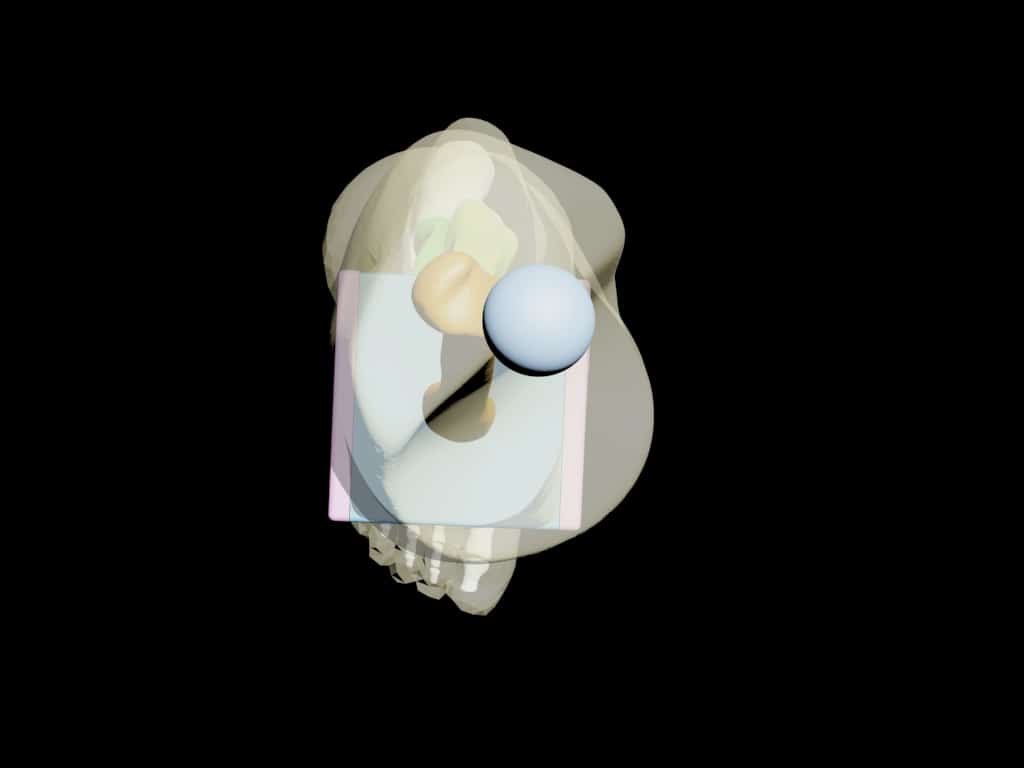

- Top View
Product Images:
-

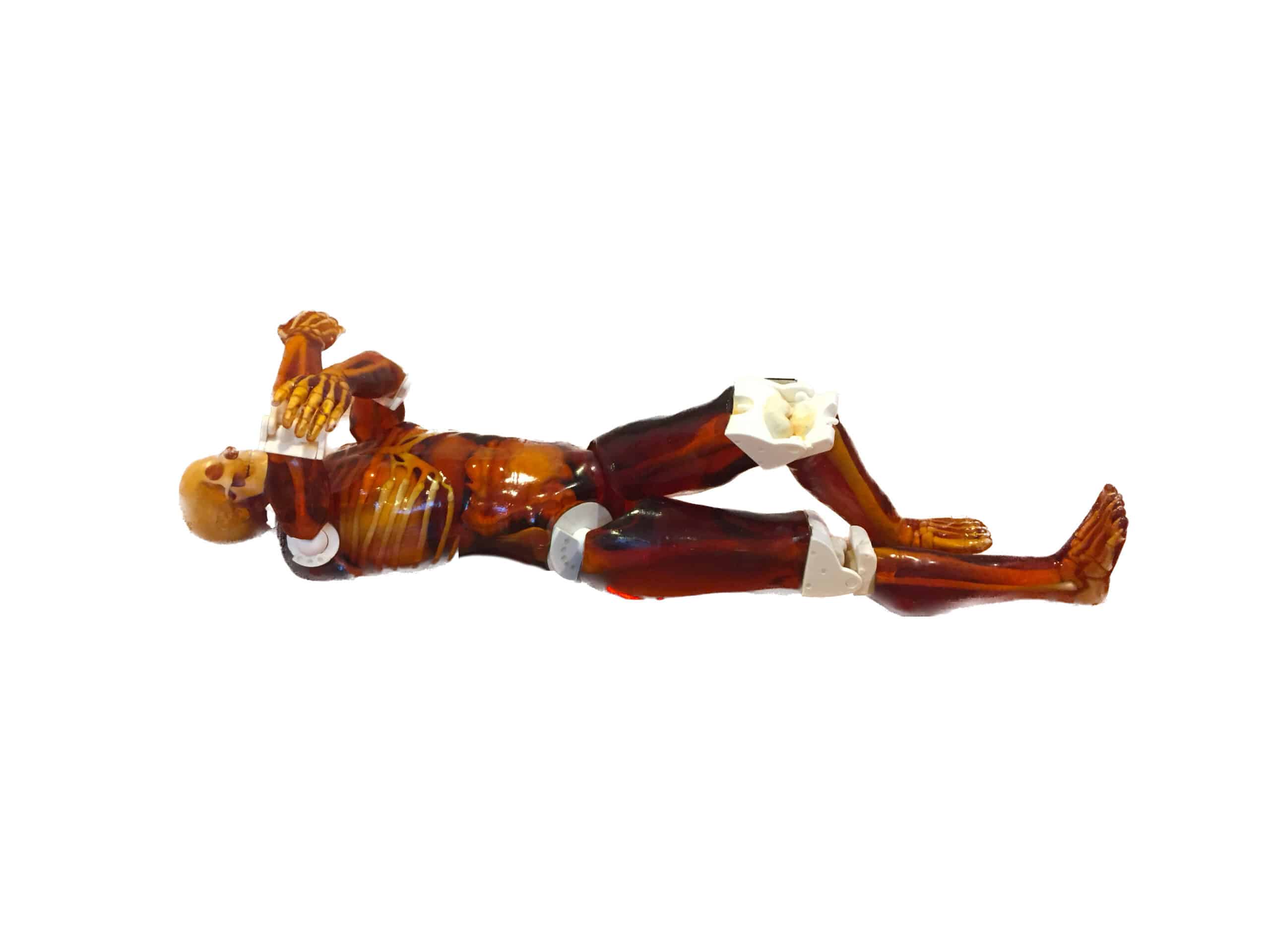

- Leg with full body phantom
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
X-Ray Scans:
CT Scans:
*/ These CT scans were obtained from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. This phantom will only include 1 leg. If you have any questions related to these, please write us at [email protected] /*
MRI Scans:
*/ These MRI scans were obtained from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. This phantom will only include 1 leg. If you have any questions related to these, please write us at [email protected] /*

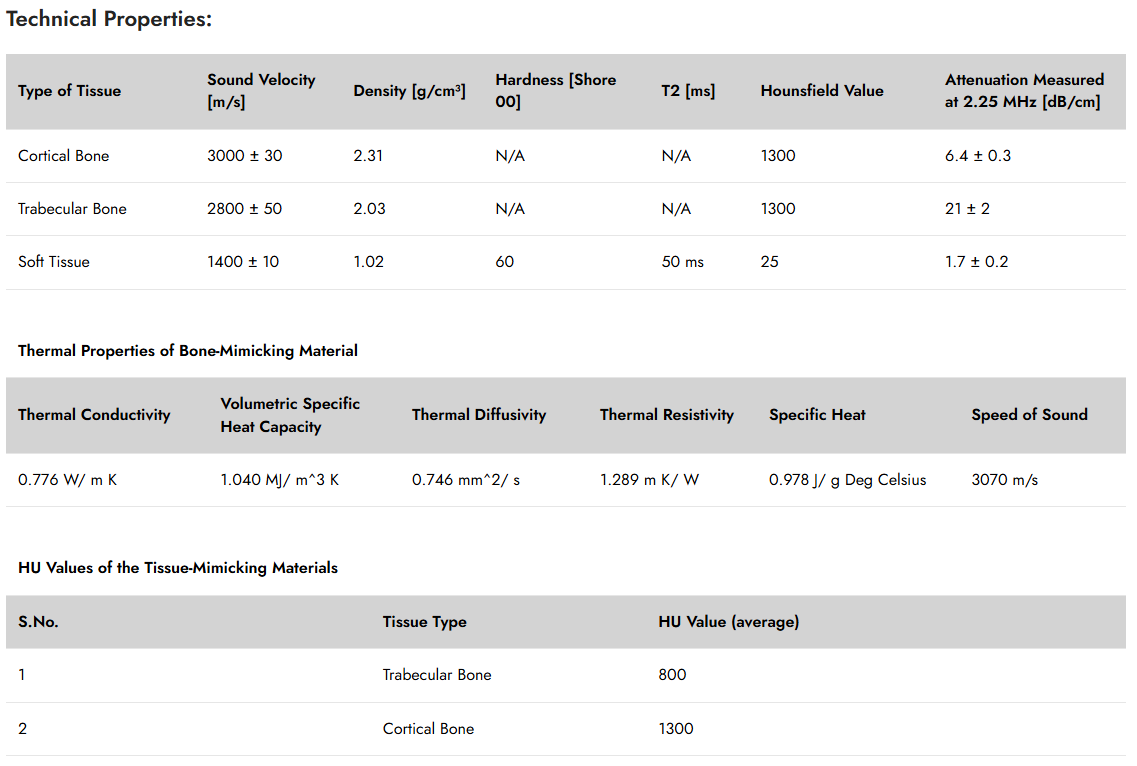

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Leg for X-Ray/CT and MRI Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 38 x 10 x 7 Inches, Weight: 27 Lbs (approx.).
Shipment:
Size: 36 x 24 x 12 Inches, Weight: 35 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Contact us for any questions you may have.
