The Adult Knee phantom has a complex internal structure and anatomy, which are based on an average knee of an adult human male. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray CT and US imaging applications. The soft tissues, tendons, ligaments, and cartilage are made from realistic urethane-based tissue-mimicking materials.
The phantom can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration-related work. This product can be further customized to match a wide variety of project requirements.
Anatomy:

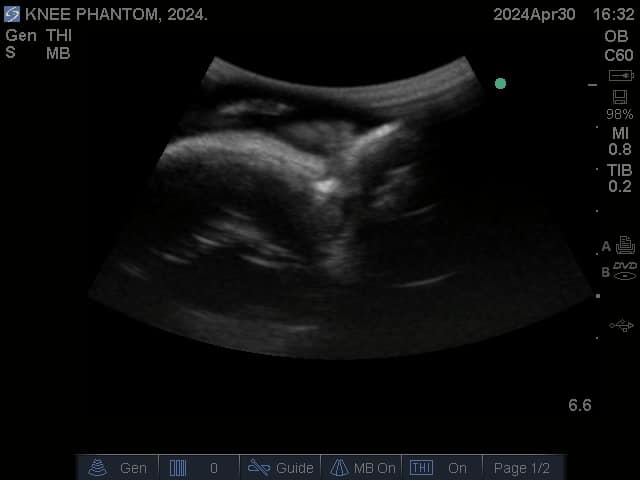

Partial Upper Leg Partial Lower Leg Patella Meniscus:
– Lateral Meniscus
– Medial Meniscus Condyle:
– Lateral Condyle Femoral
– Medial Condyle Femoral Ligaments and Tendons:

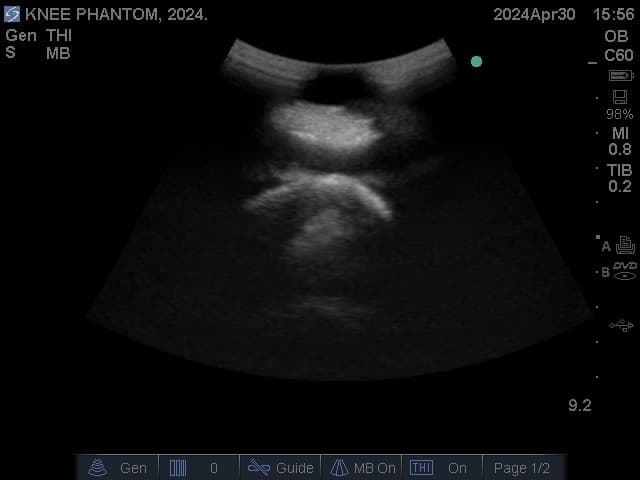

– Quadriceps Femoris Tendon
– Patellar Ligament

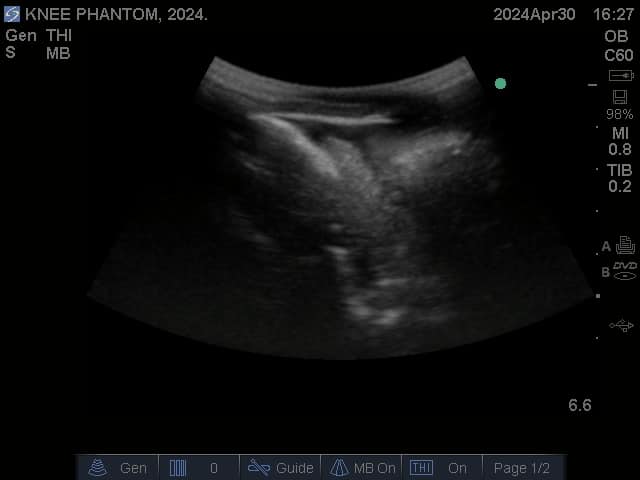

– Lateral Patellar Retinaculum

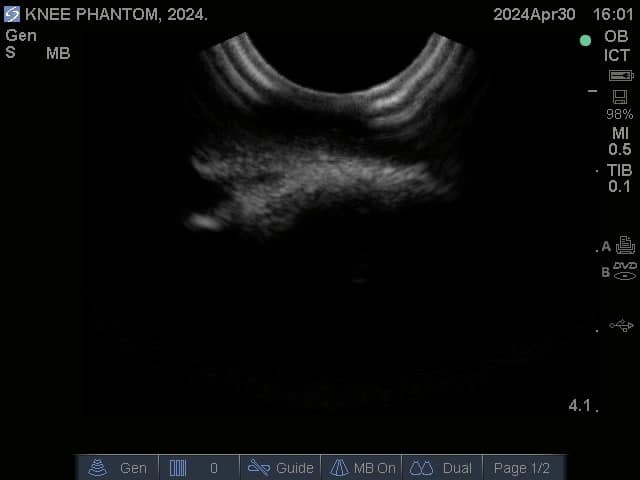

– Medial Patellar Retinaculum

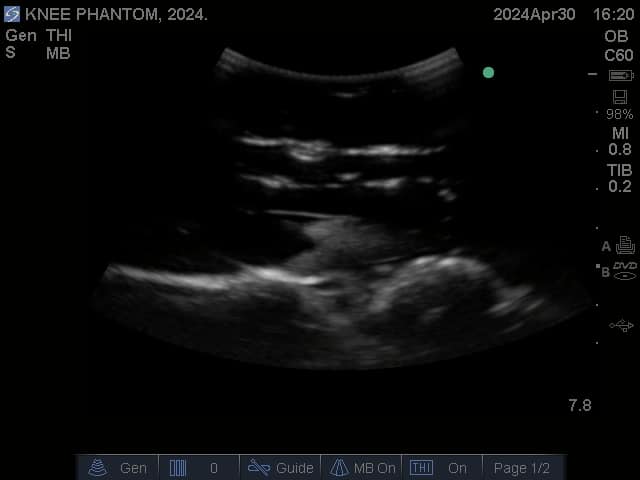

– Anterior Cruciate Ligament
– Posterior Cruciate Ligament

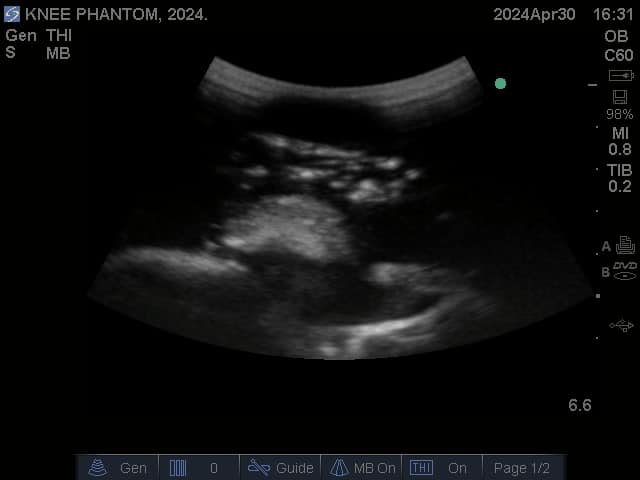

– Arcuate Popliteal Ligament
– Oblique popliteal Ligament Bursa:
– Subtendinous Bursa (3)
– Semimembranosus Bursa
– Pes anserine Bursa
– Infrapatellar Bursa
– Prepatellar Bursa
– Iliotibial Band Bursa
Design:
-

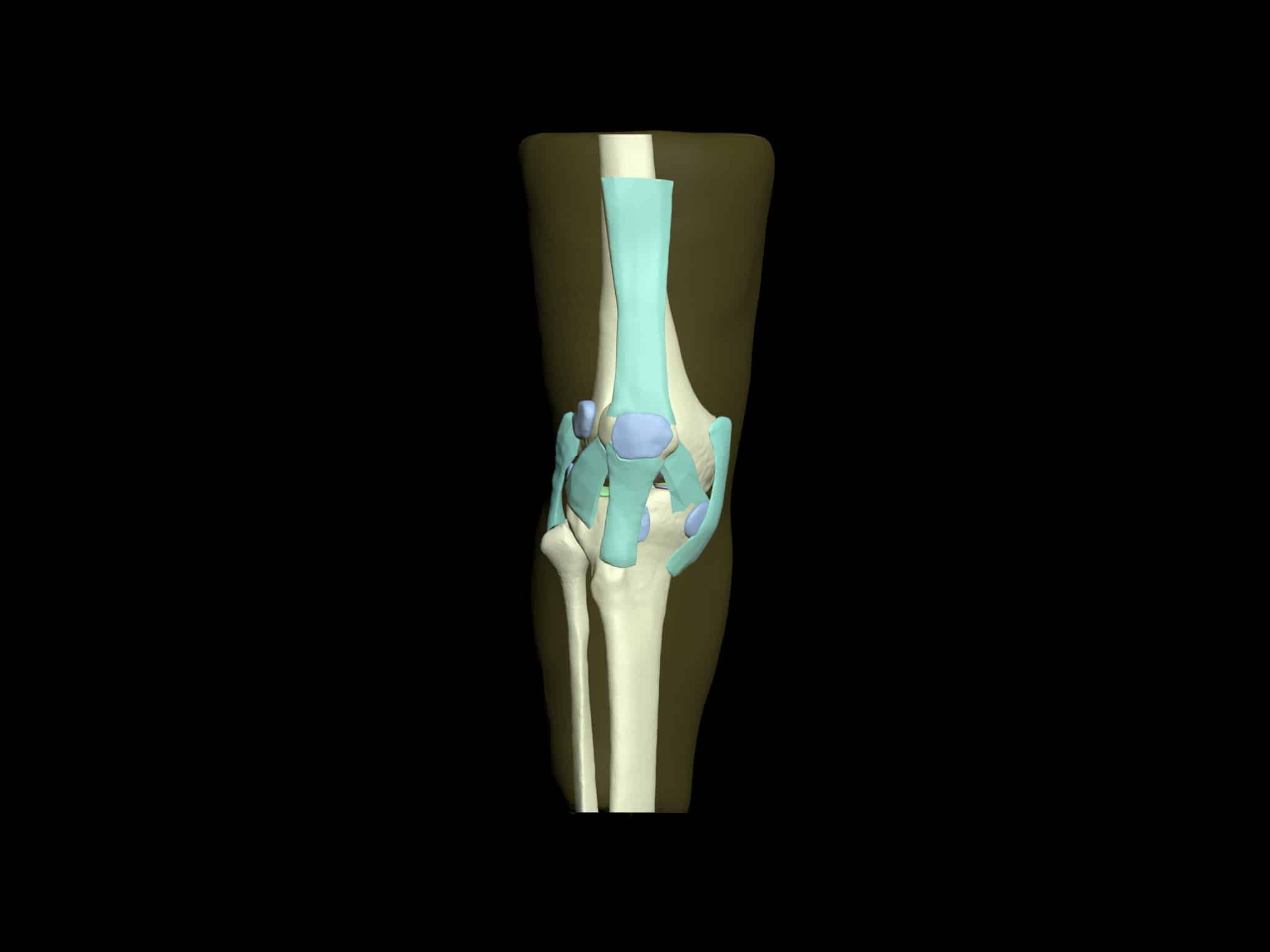

- Front View
-

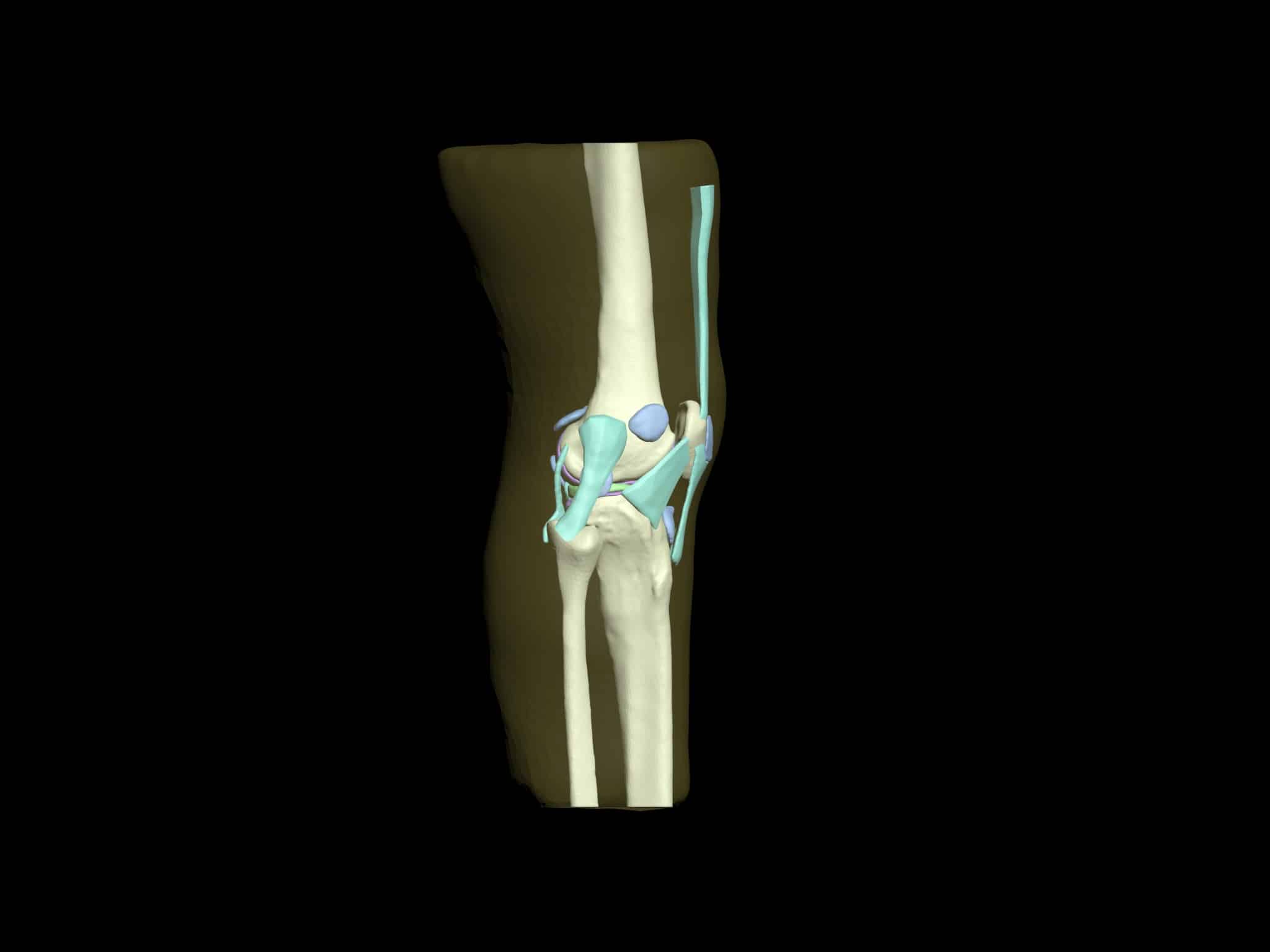

- Lateral View
-

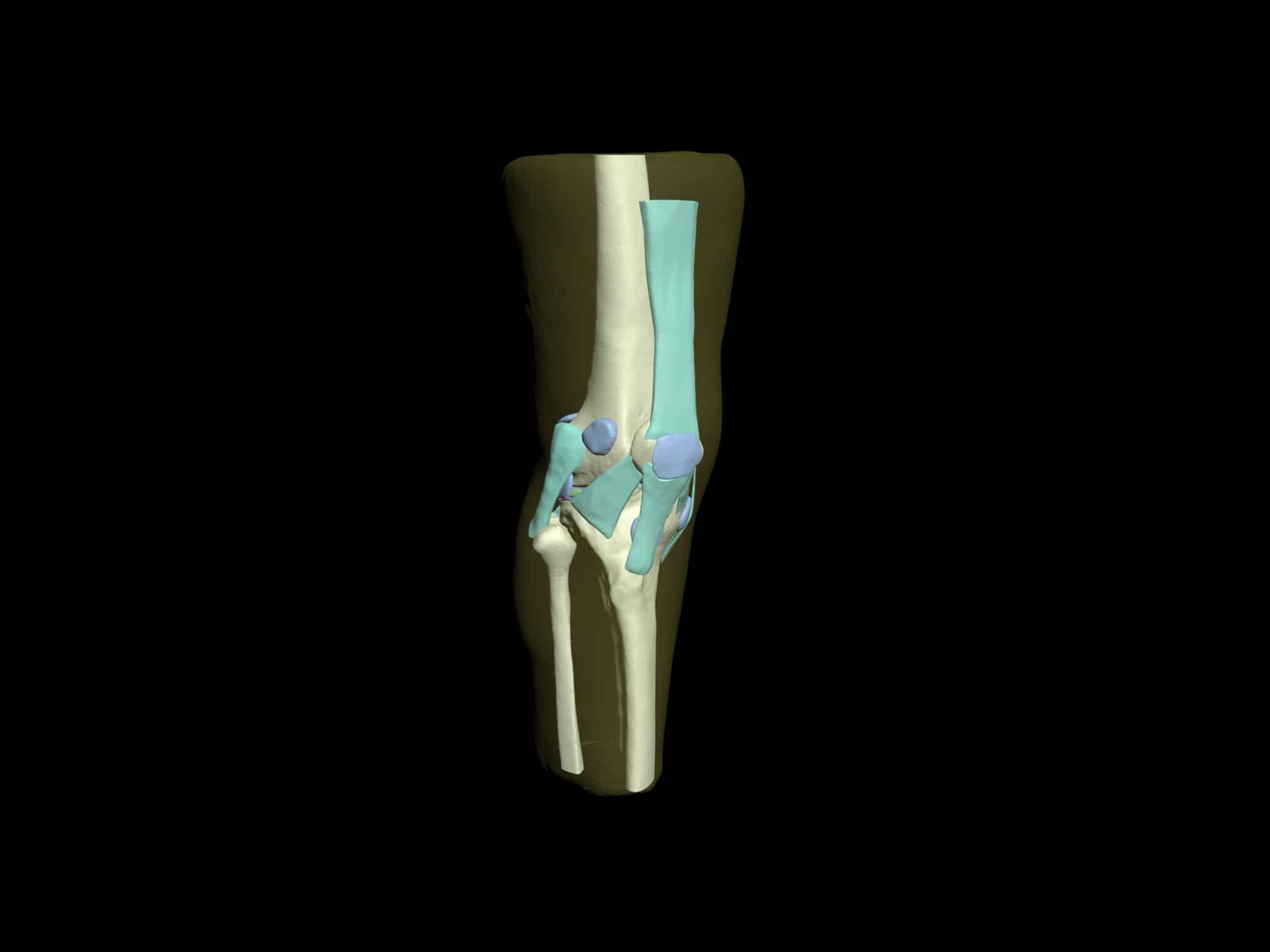

- Perspective View
-
- Top View

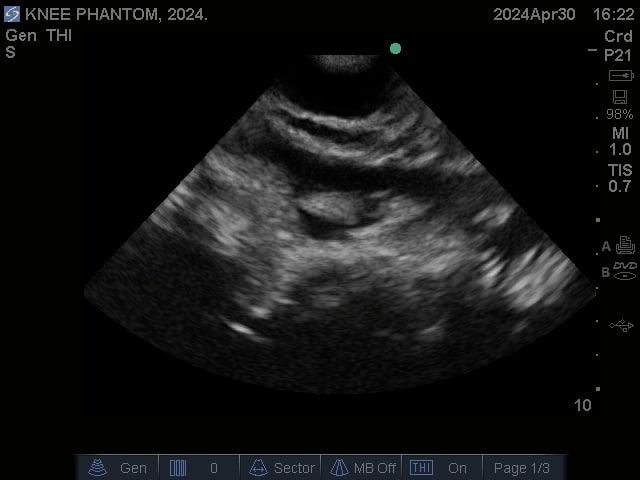

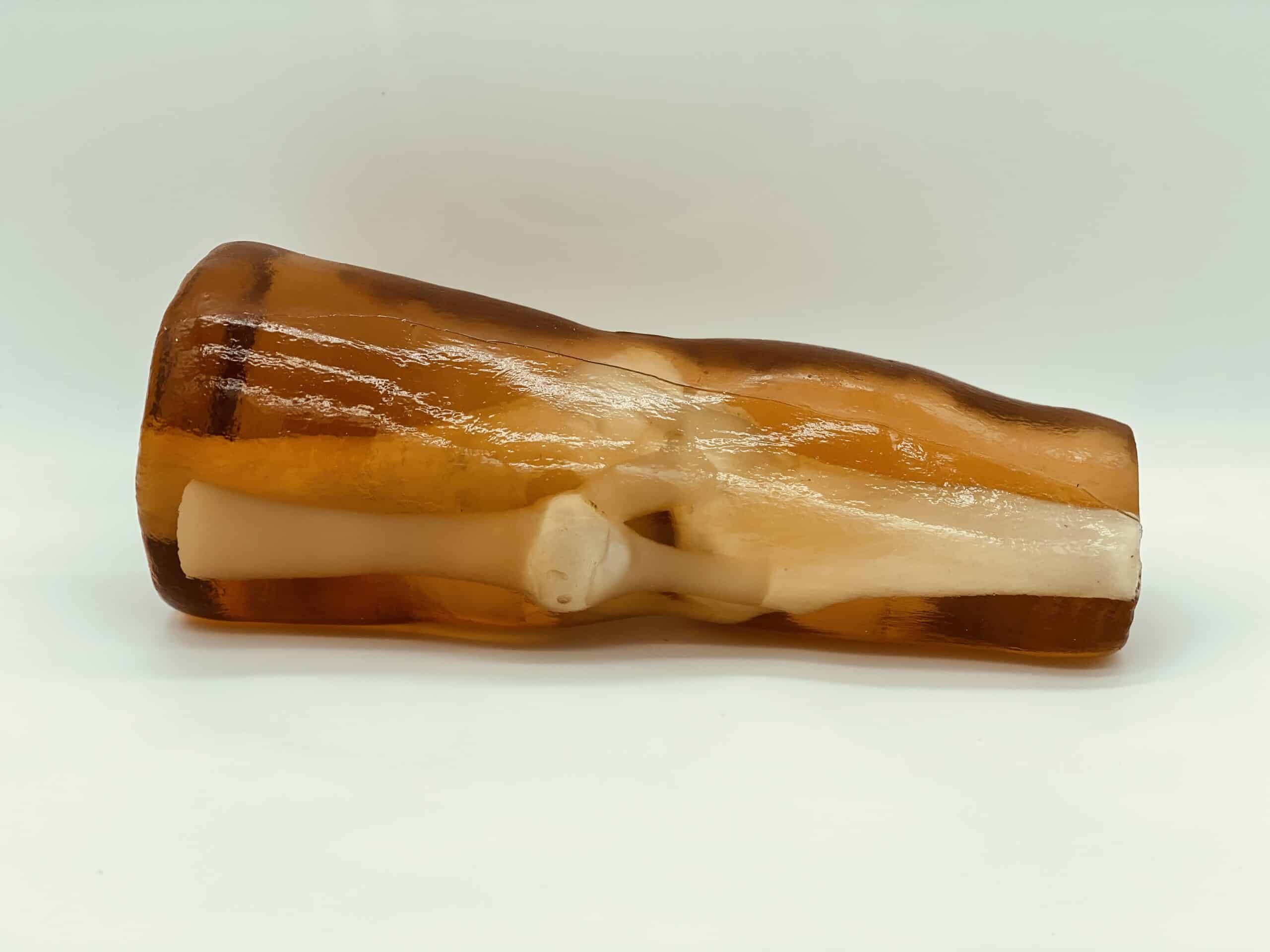

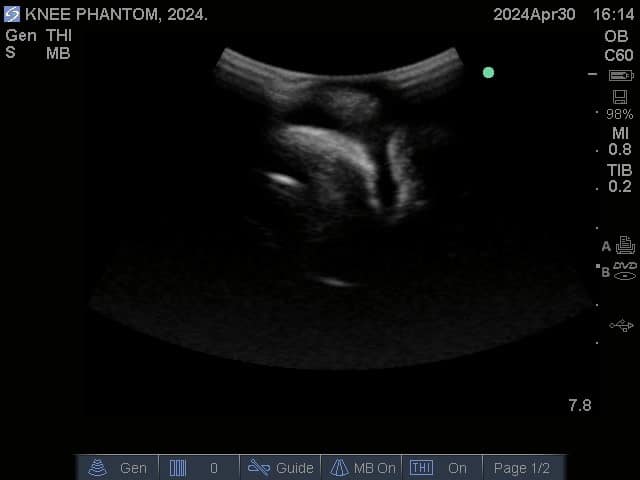

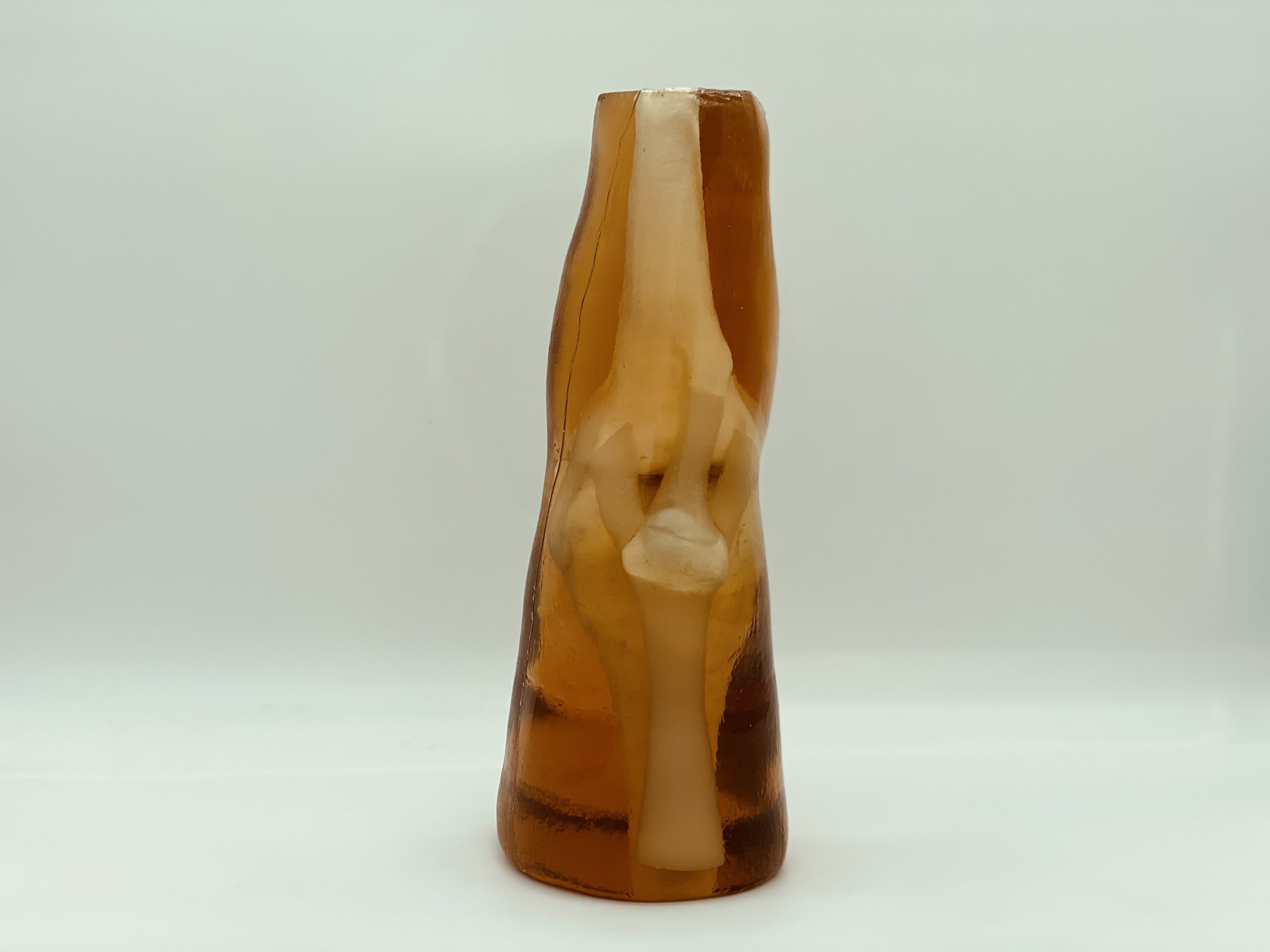

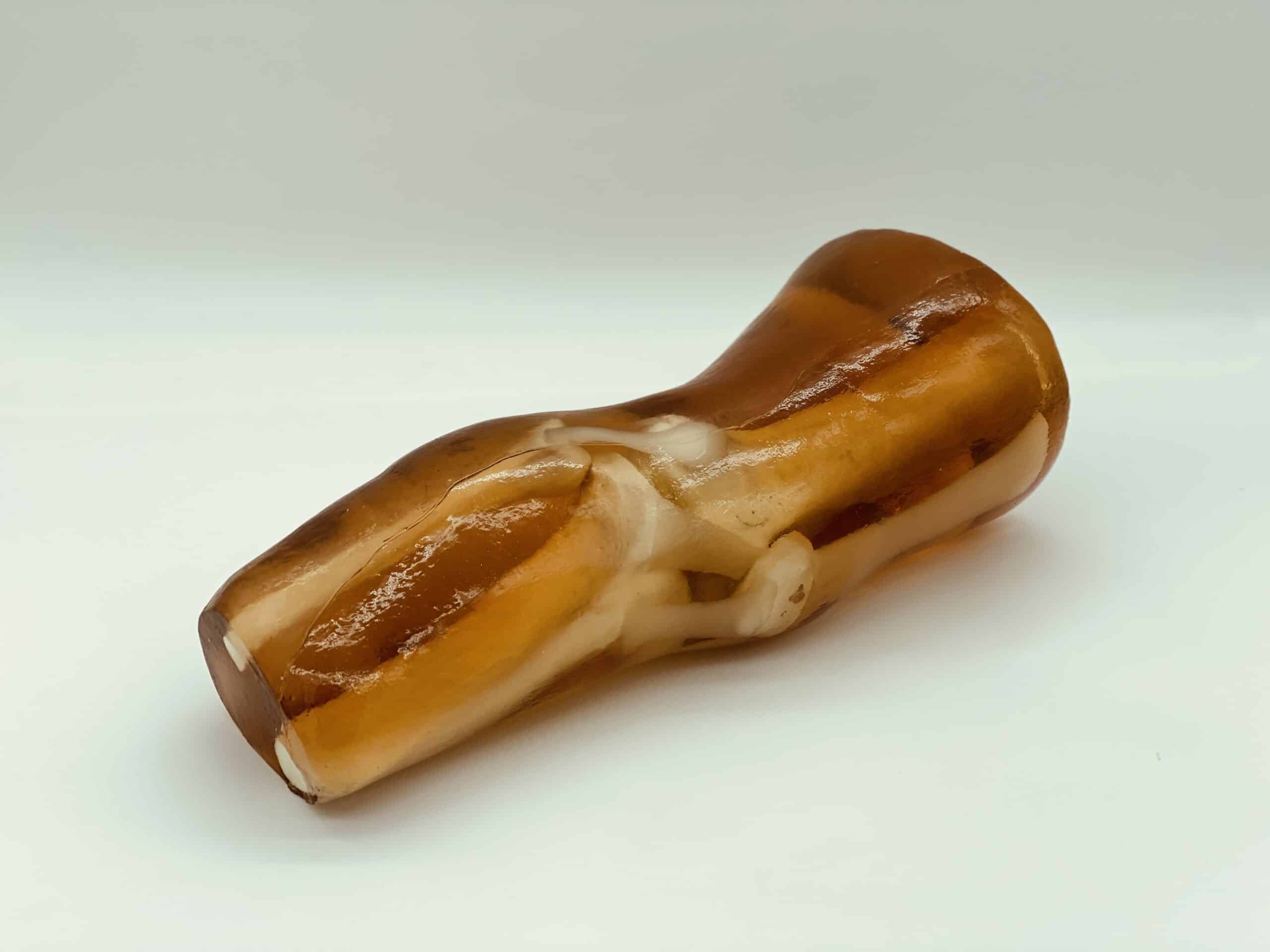

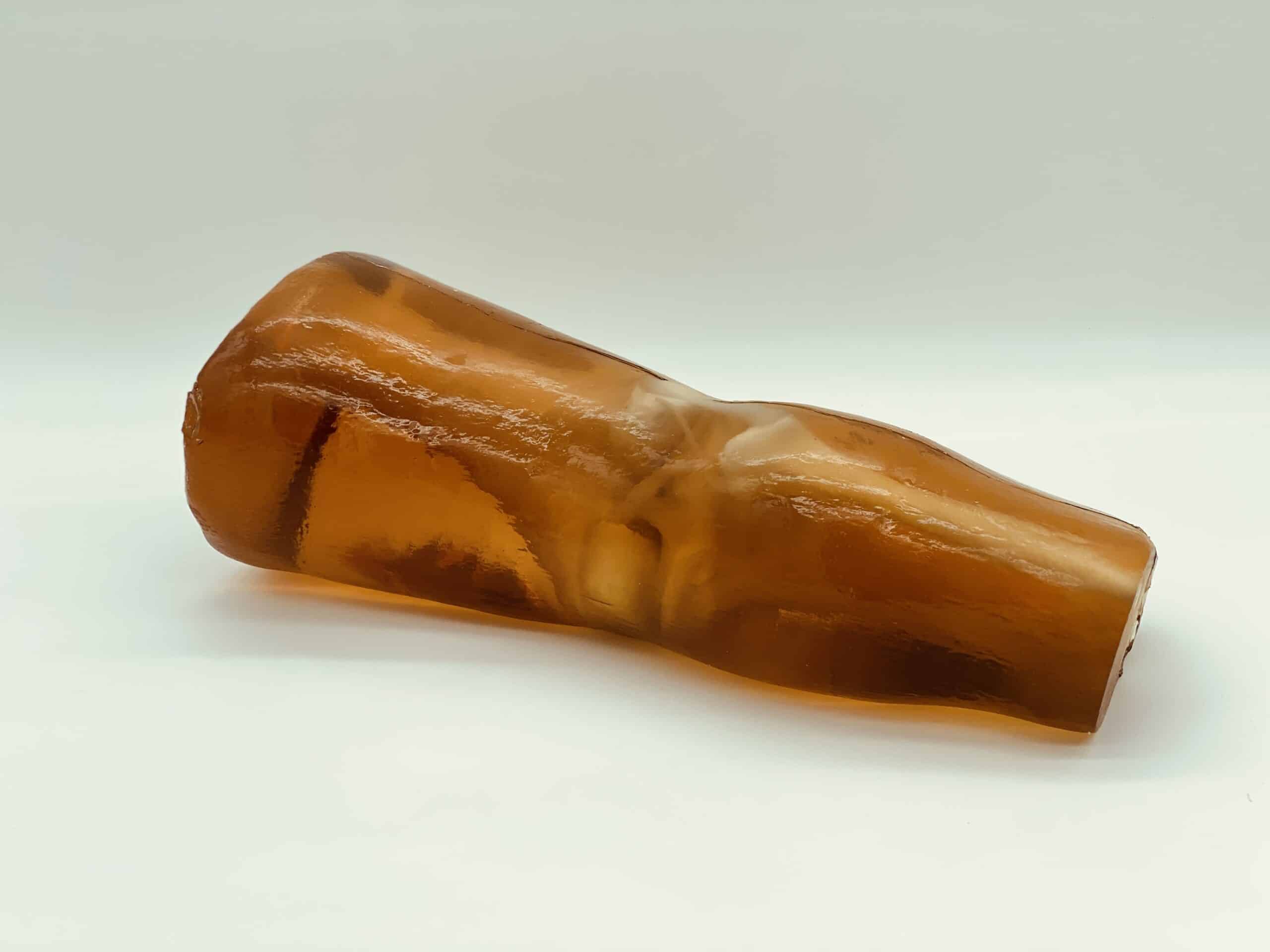

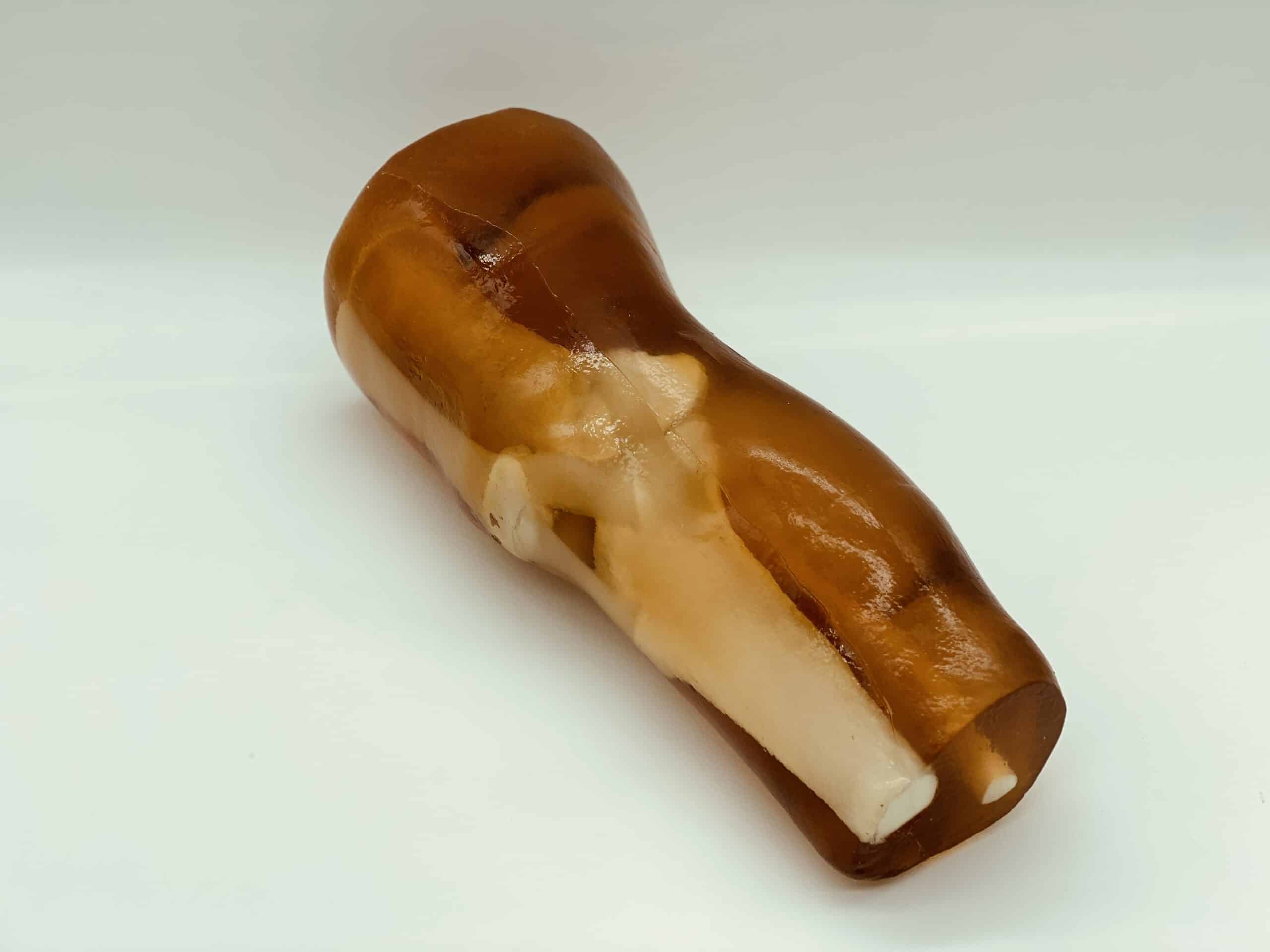

Product Images:

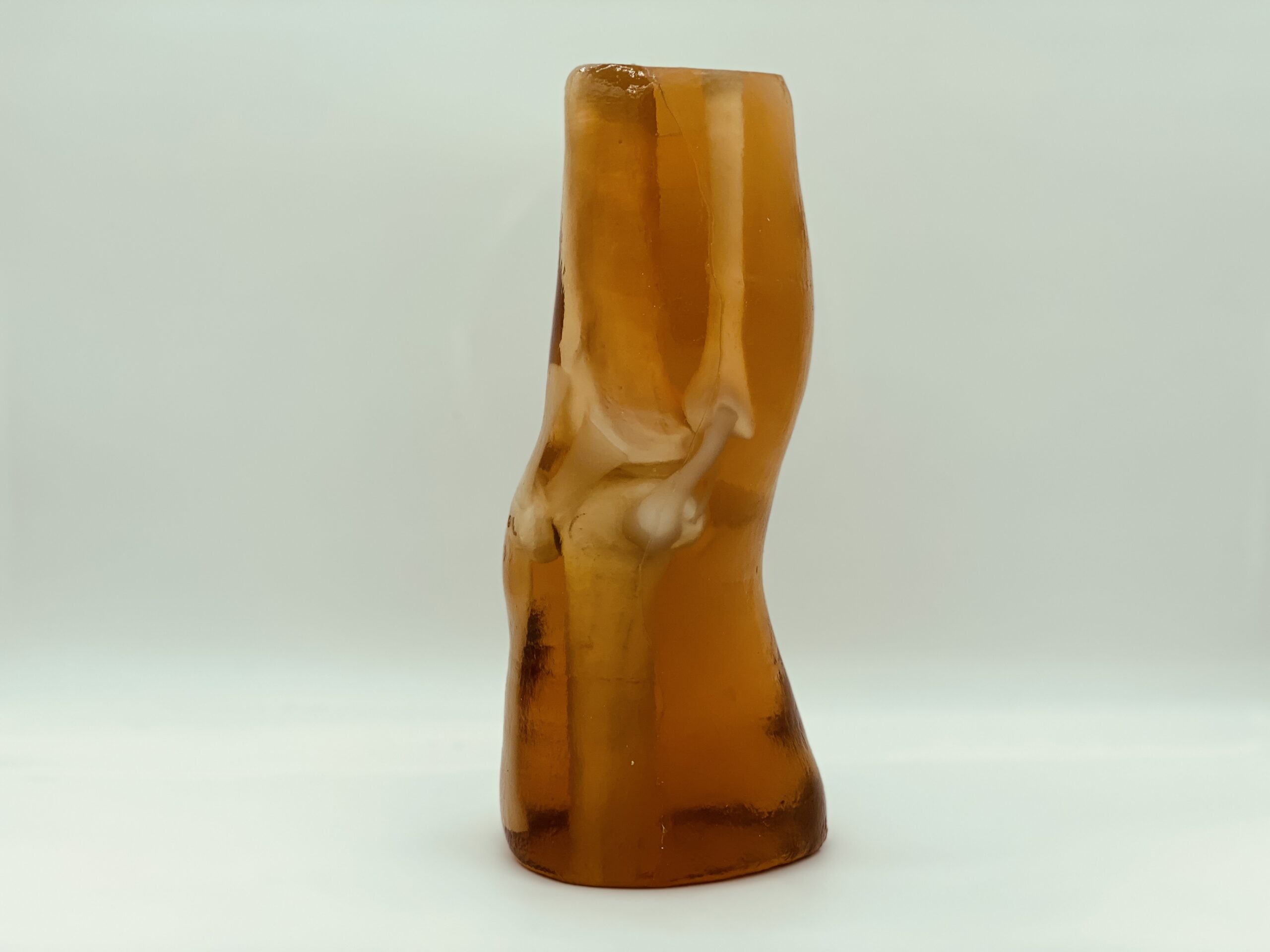

Note: By default, the phantom comes in a translucent amber appearance. The skin finish can be included upon request.
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
CT Scans:
-

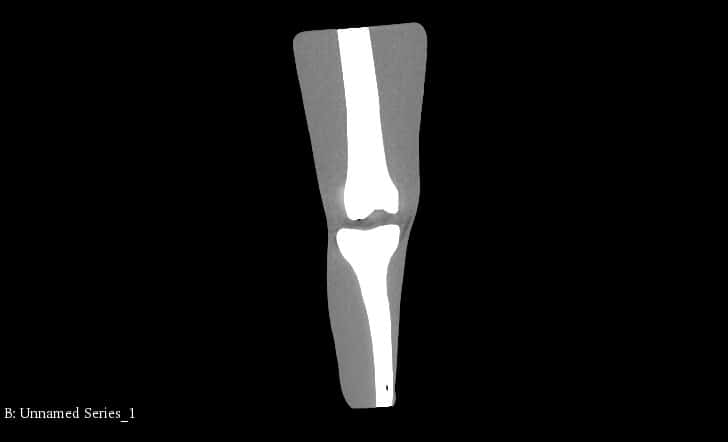

- Coronal
-

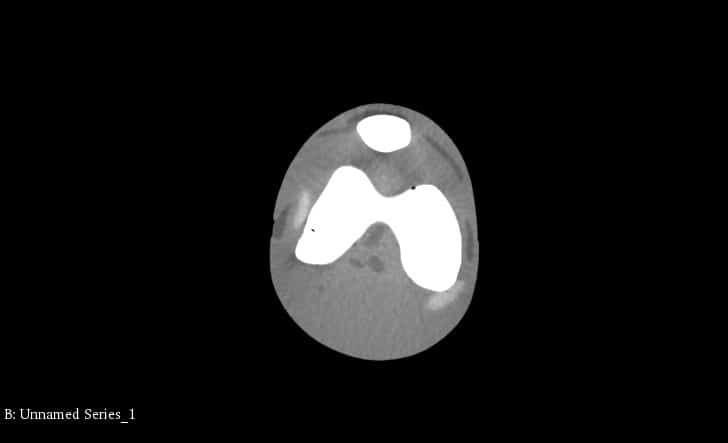

- Transverse
-

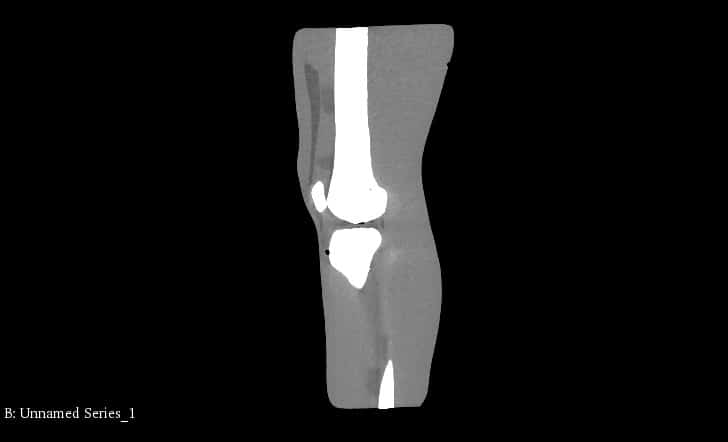

- Sagittal
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Knee Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 6 x 7 x 15 Inches, Weight: 18 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 26 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
