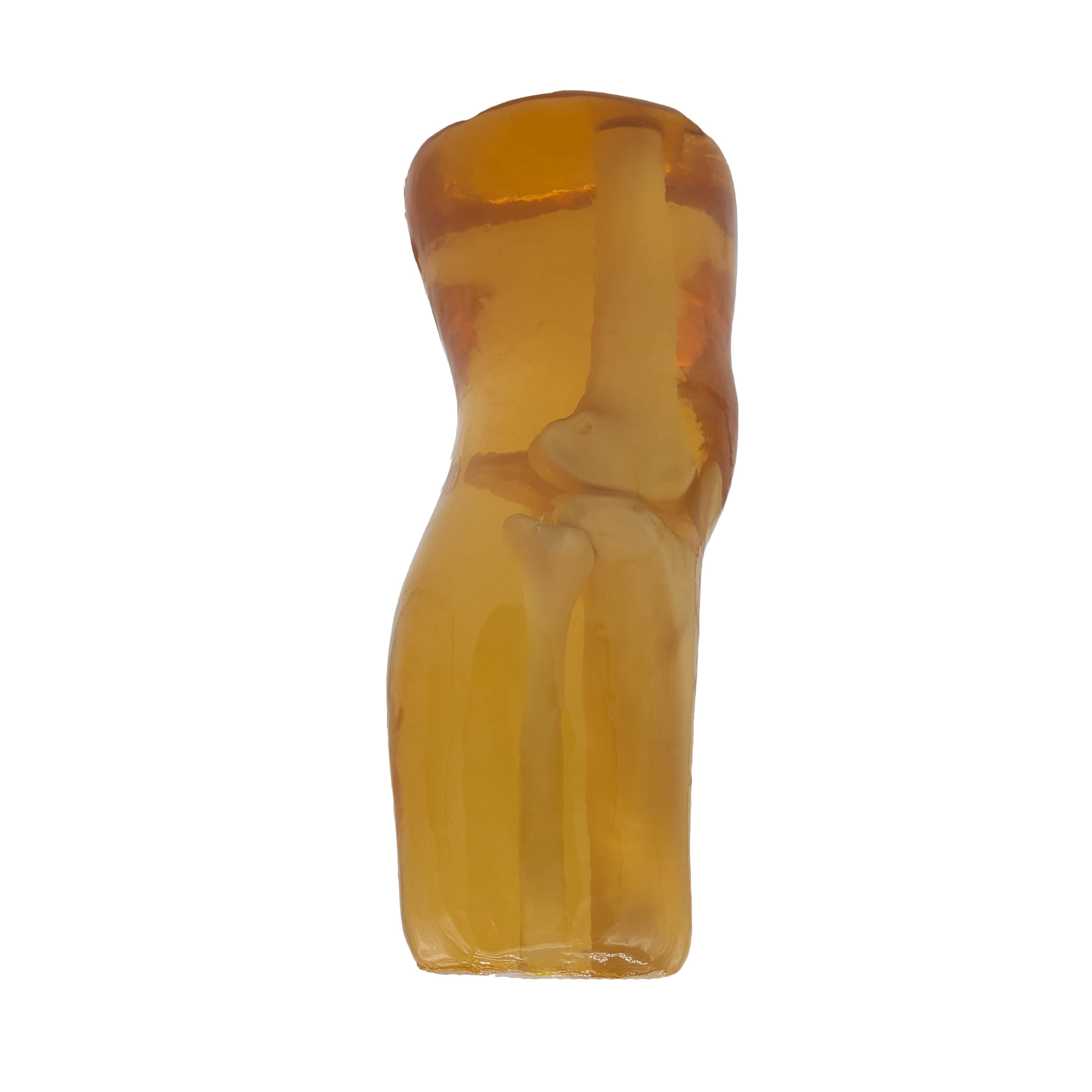

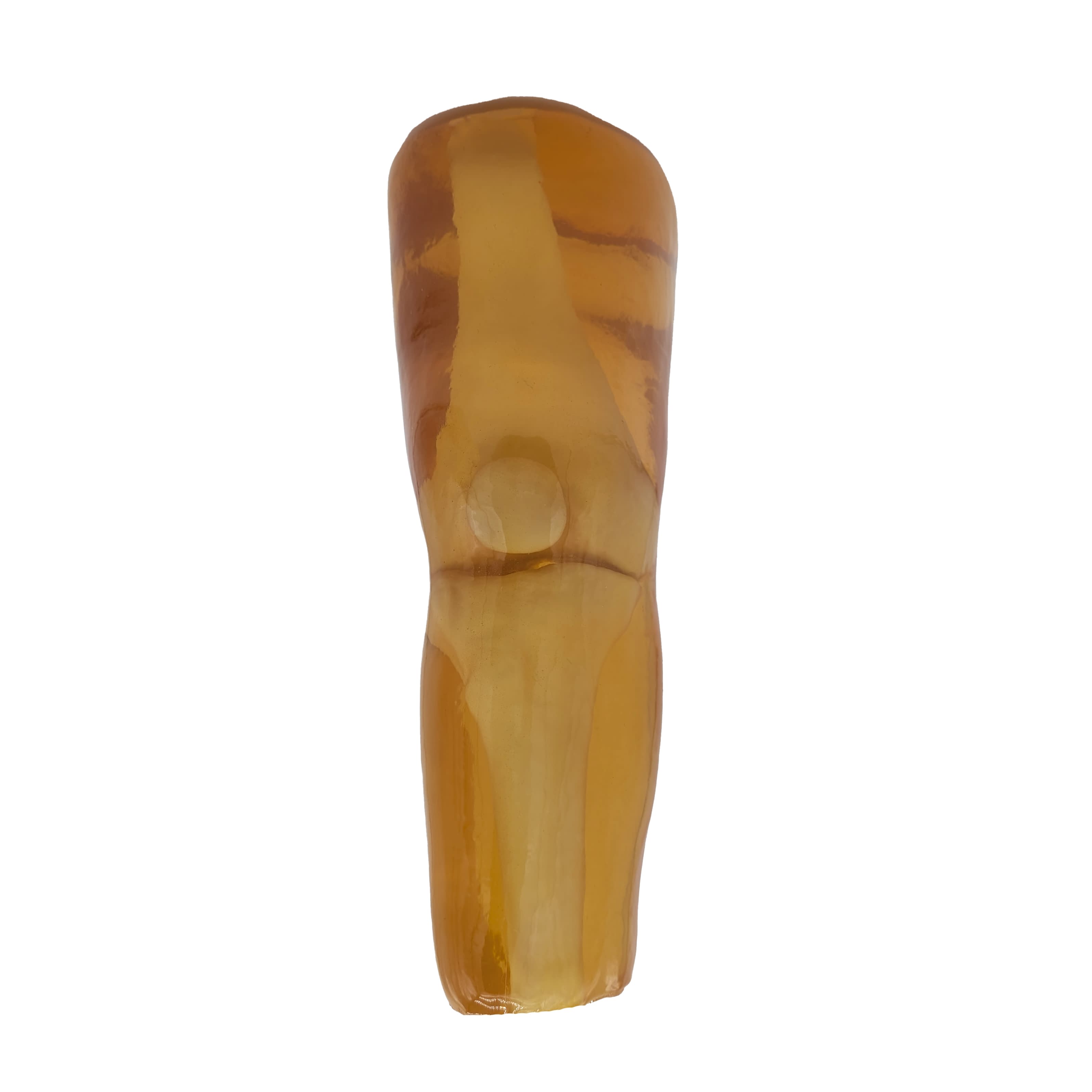

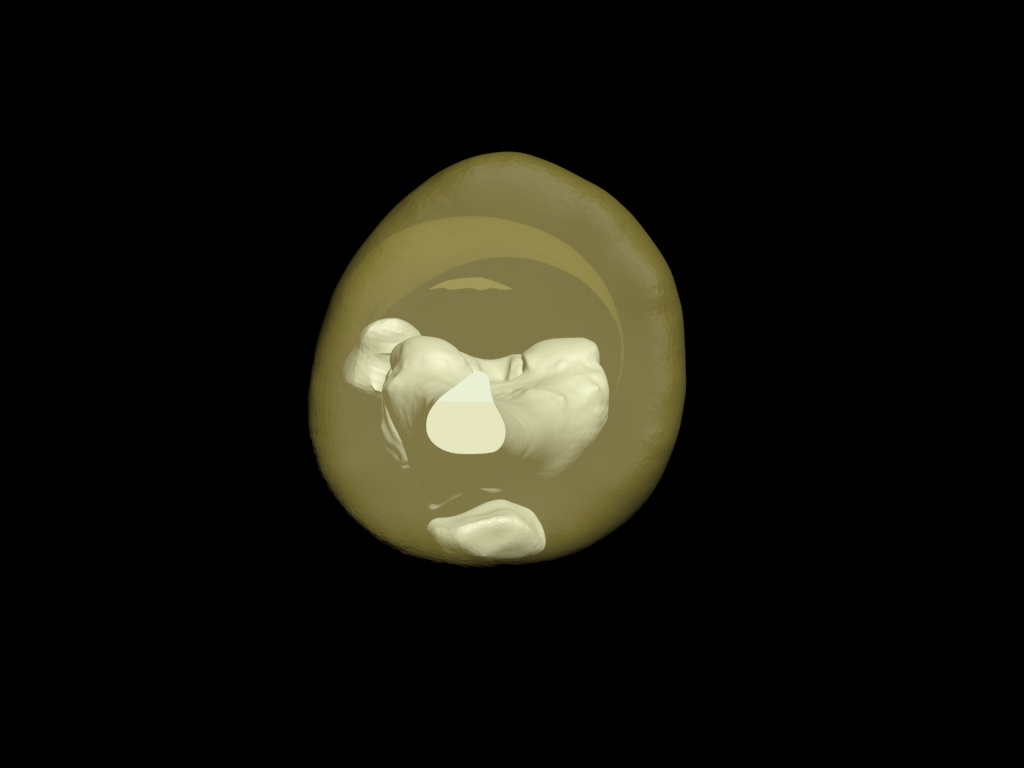

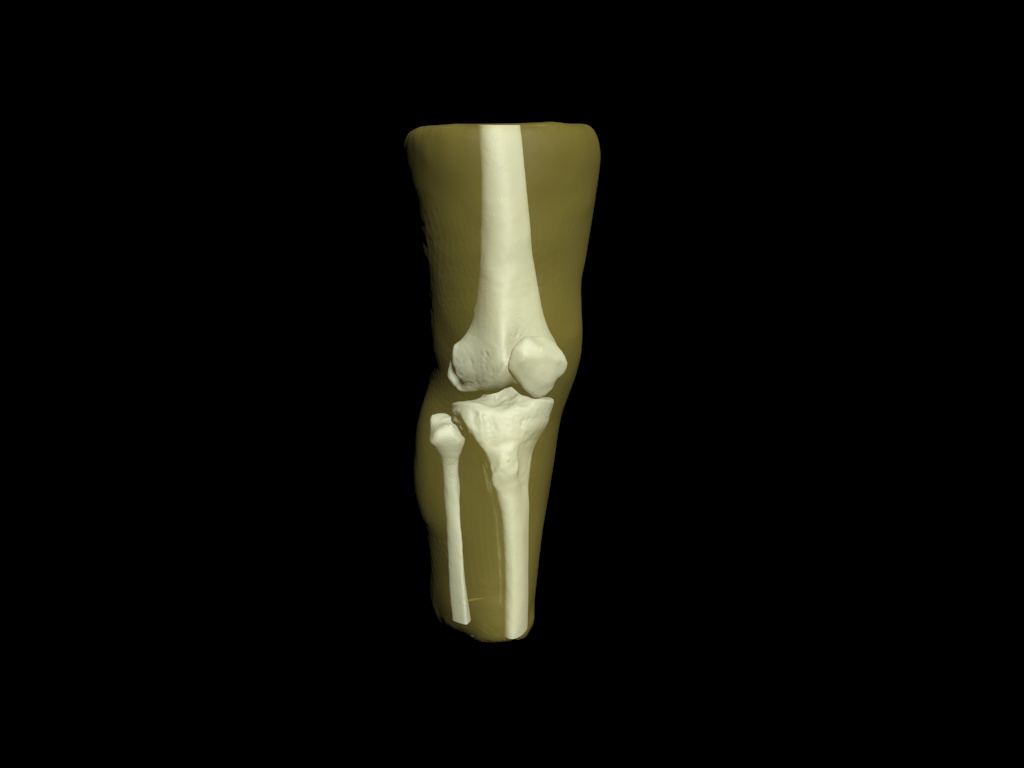

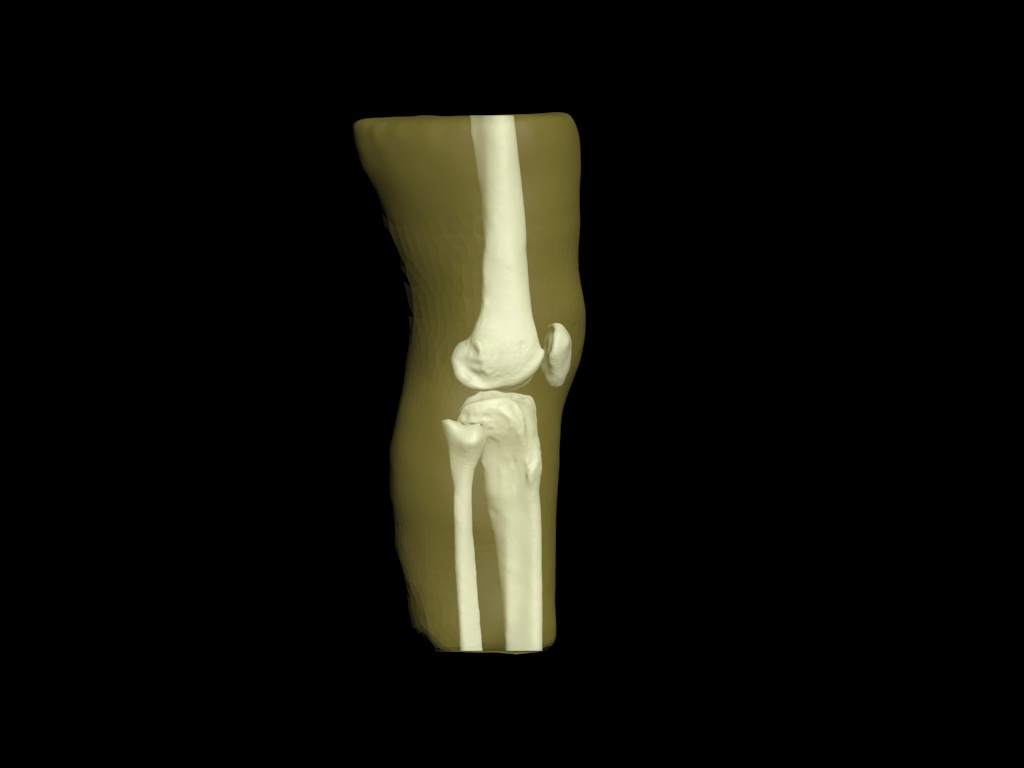

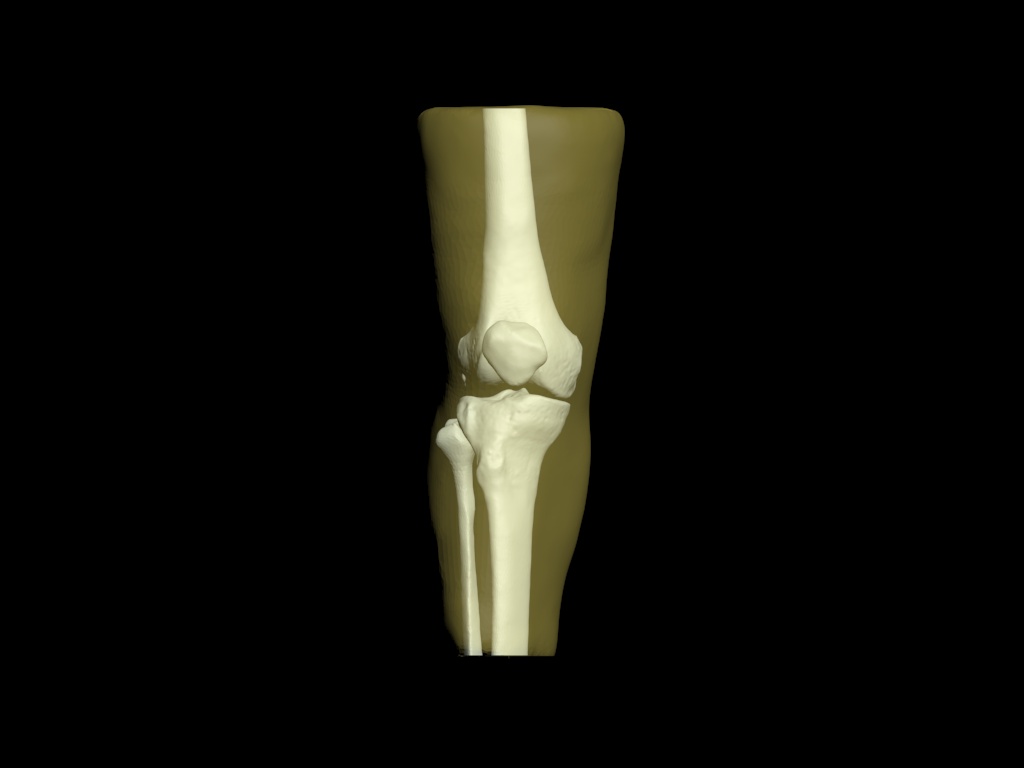

The Adult Knee phantom has an internal structure and anatomy based on the average knee of an adult human male. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray CT and US imaging applications. The soft tissue is made from realistic urethane-based tissue-mimicking materials.
The phantom can be used as a tool to conduct medical imaging research, radiology training, and testing. This product can be further customized to match a wide variety of project requirements.
Partial Upper Leg
Partial Lower Leg
Condyle:
Lateral Condyle Femoral
Medial Condyle Femoral

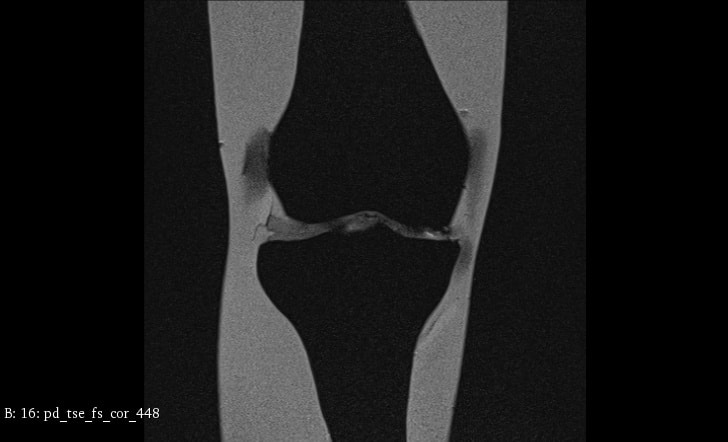

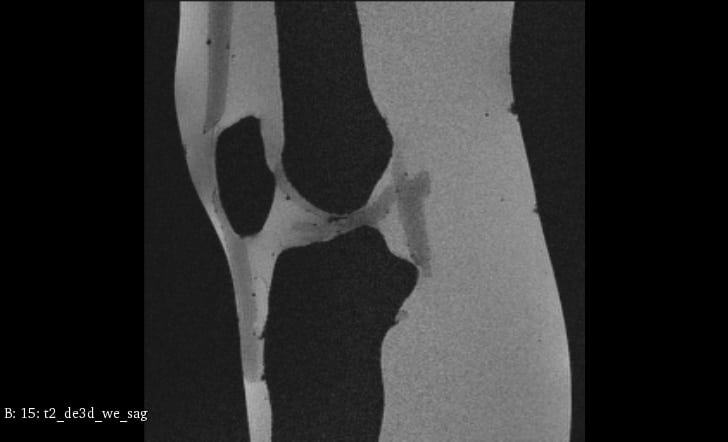

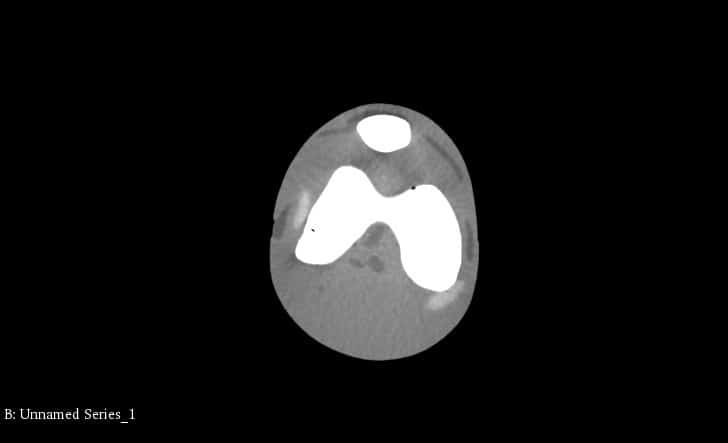

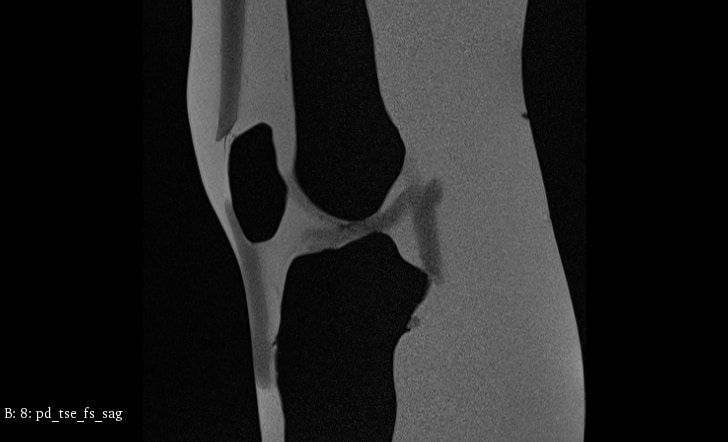

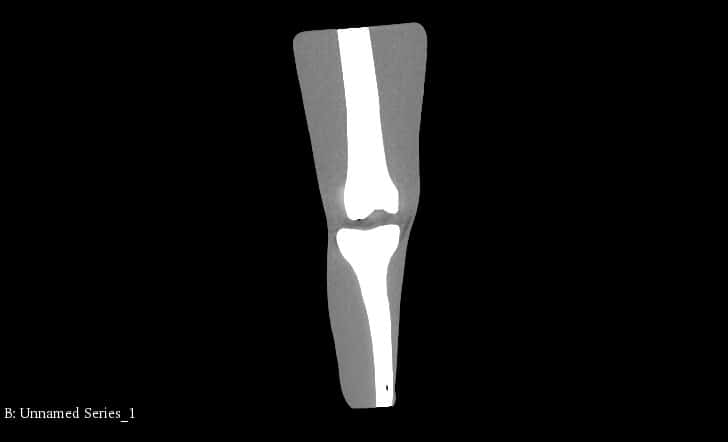

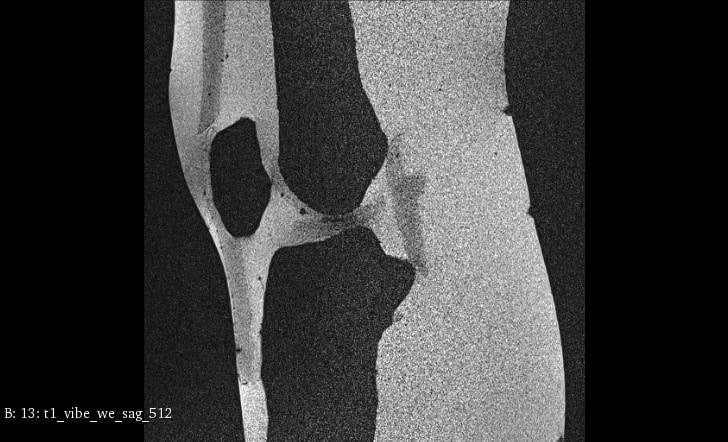

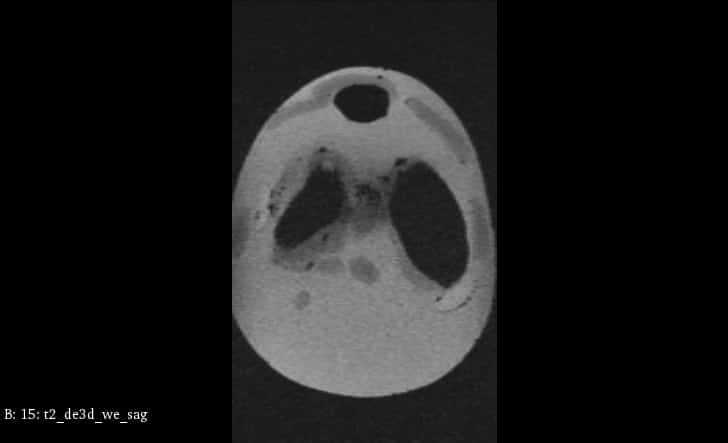

*/ These scans were obtained from our product, Adult Knee for X-Ray, CT, MRI SKU: KE-A03. These serve as an example to refer to the imaging quality of this phantom. If you have any questions related to these, please write to us at [email protected] /*

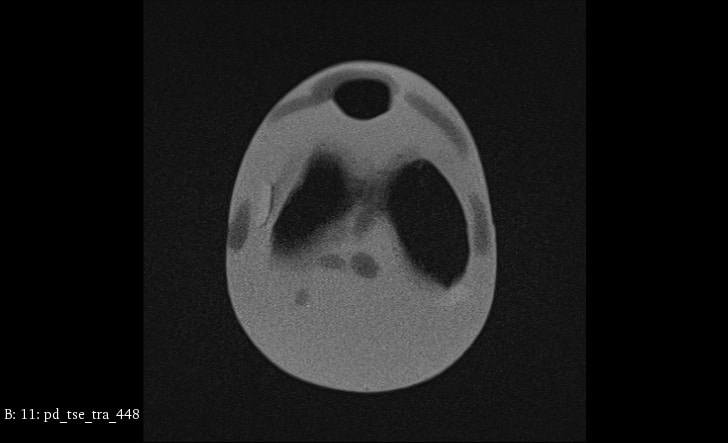

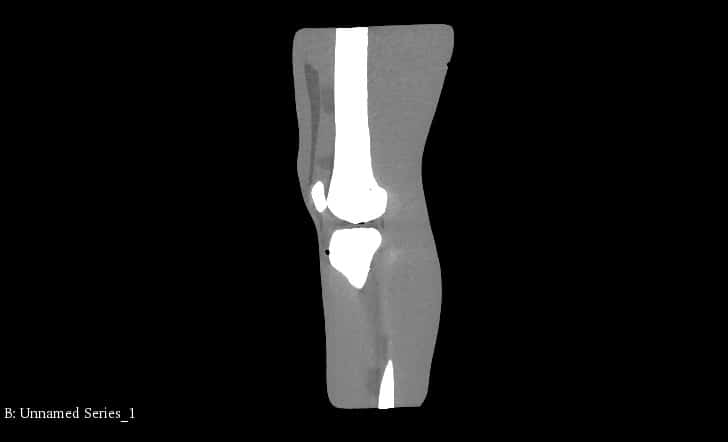

*/ These scans were obtained from our product, Adult Knee for X-Ray, CT, MRI SKU: KE-A03. These serve as an example to refer to the imaging quality of this phantom. If you have any questions related to these, please write to us at [email protected] /*

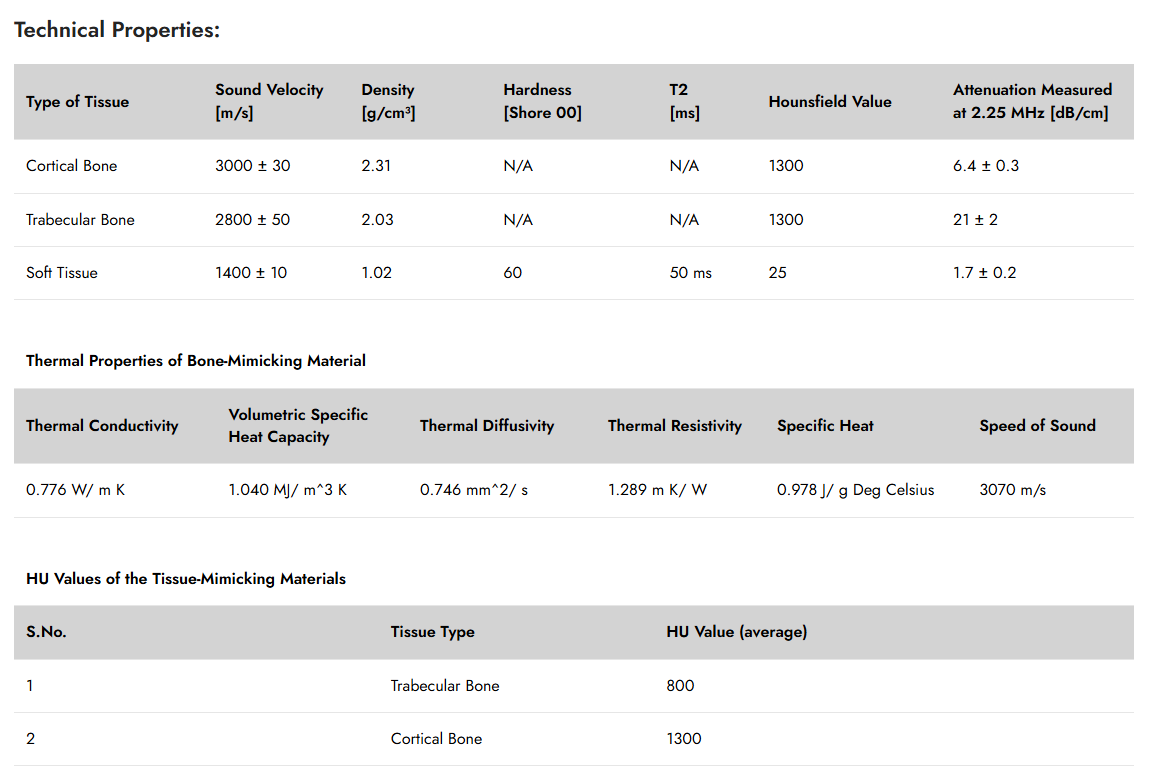

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.

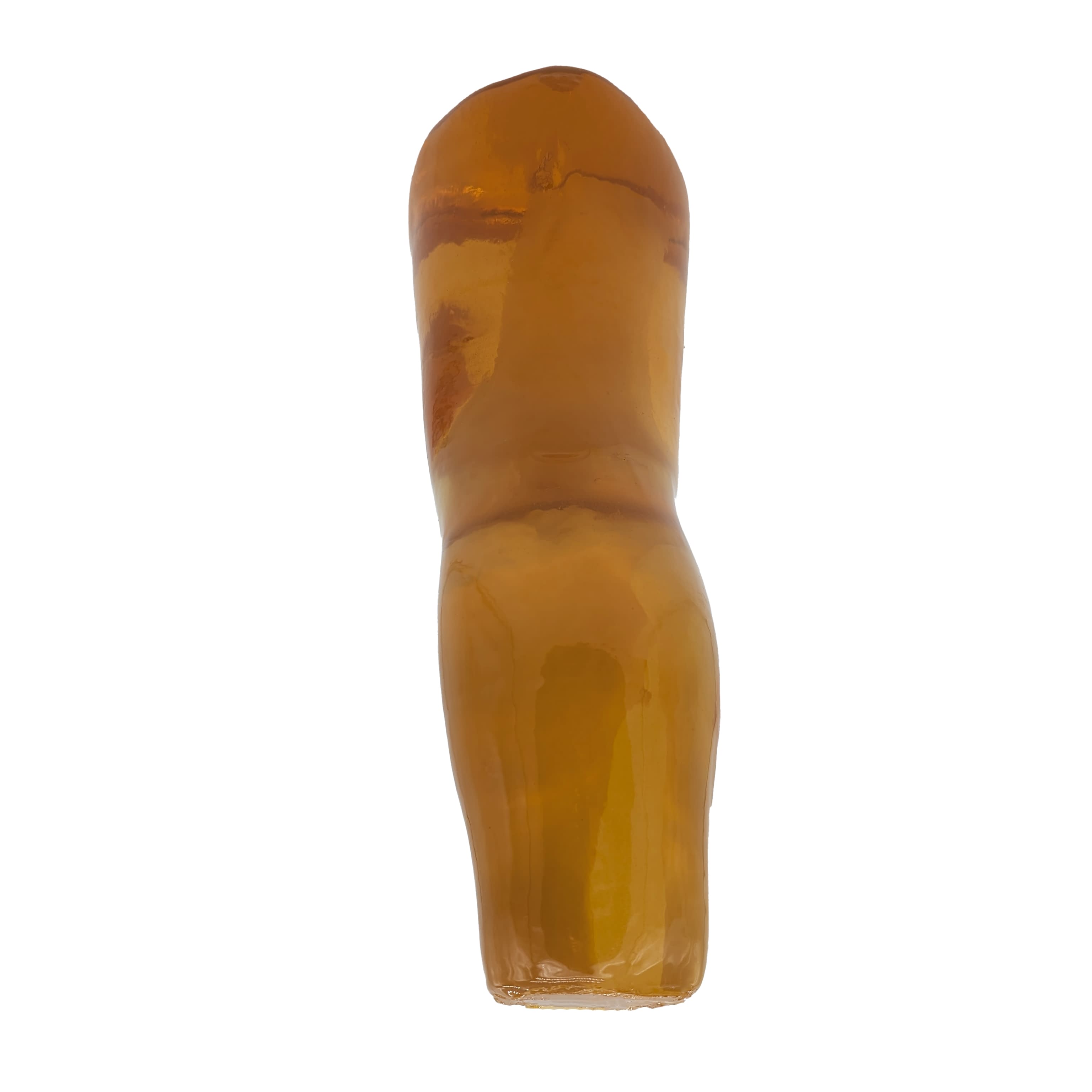

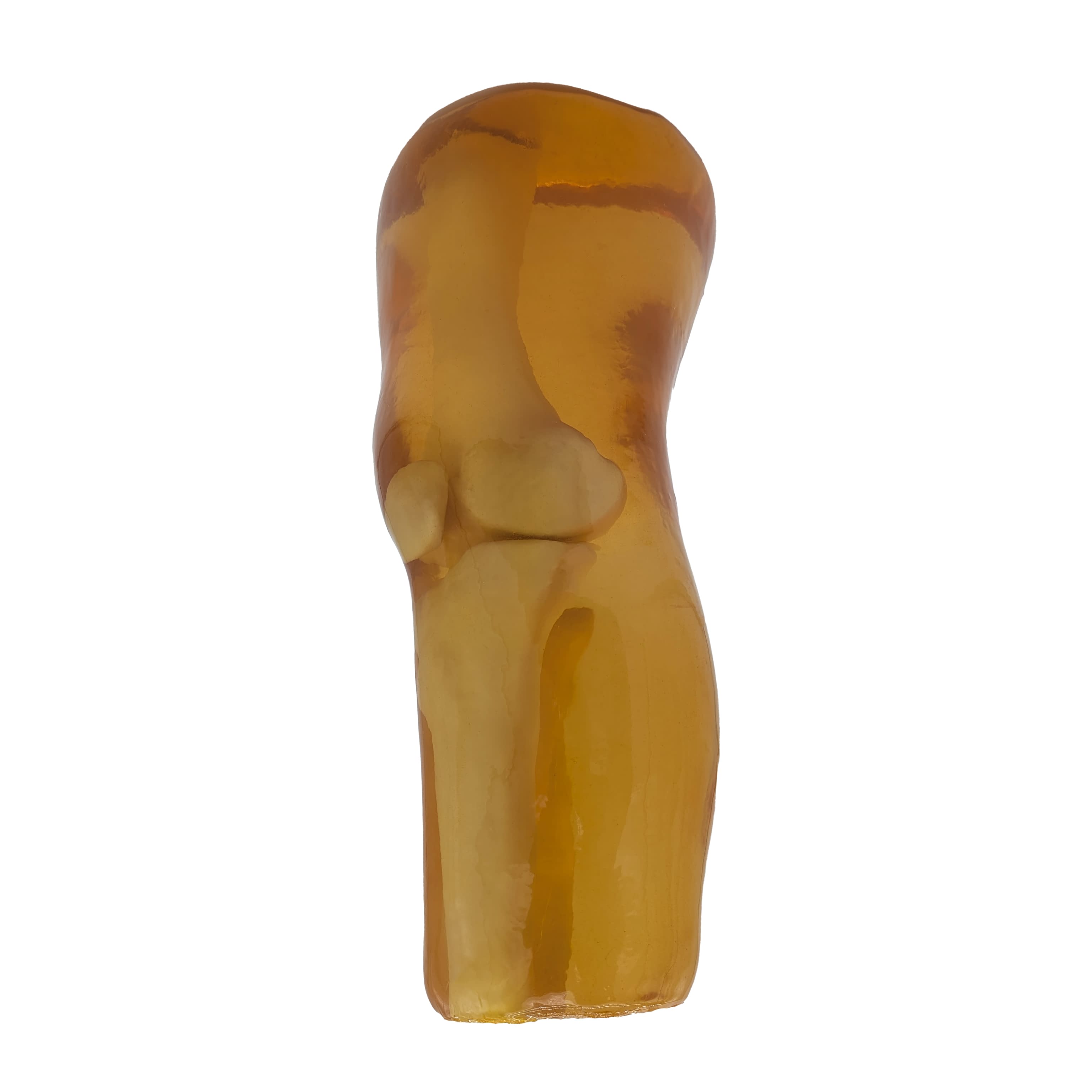

Adult Knee Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Phantom:
- Size: 6 x 7 x 15 Inches
- Weight: 18 Lbs (approx.).
Shipment:
- Size: 32 x 23 x 13 Inches
- Weight: 26 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
