Adult Human Torso (Advanced) with a beating heart is a lifelike phantom/simulator, anatomically realistic, from neck to pelvic area with all the essential organs present inside. This phantom can be made compatible with X-Ray/CT and MRI. It is an ideal tool for applications such as angiography. The organs, bones, and body tissue mimics closely that of an adult human body. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. The TPS heart pump is included with this phantom, and it enables the realistic heartbeat and motion of heart walls.
Anatomy:
Complete Spine Complete Ribcage Shoulders and Clavicles Pelvis Partial Femoral Bones Trachea Realistic Heart with:
– Right Ventricle
– Moderator Band that runs from the anterior wall to the septum bridge
– Volume: 60 ml
– Left Ventricle
– Papillary muscles to the anterior and posterior walls
– Volume: 63 ml
– Right Atrium
– Right atrial appendage with distinct muscle structures
– Volume: 45 ml
– Left Atrium
– Unique muscle structure to the appendage of the left atrium
– Volume: 29 ml Appendage Feature Aorta Jugular vessels Pulmonic and Pulmonary Veins attached to LA Flexible Valvular Structures SVC IVC Lungs Diaphragm Liver Gallbladder Stomach Kidneys Spleen Pancreas Large and Small Intestines Bladder Prostate
Beating Heart Features:
Beating heart model with the cyclic motion of the heart walls Water-fillable chambers with minimal air pockets Access to intravenous catheter insertion Adjustable heart rate (20 BPM – 140 BPM) Adjustable stroke volume (40 ml to 150 ml in 10ml increments)
Hysteresis in motion (diastole and systole of the cardiac cycle) Asymmetrical displacement of the heart chambers The complete system is installed on a plex glass Available in 220 V or 110 V
Pathologies:
Hemorrhages in the liver, pericardium, and urinary bladder Tumor in the bile duct obstructing the bile outflow, left renal tumor, and anal tumor Two tumors in the left kidney Anal tumor Colon polyps inside intestines Enlarged axillary lymph nodes on one side and normal on the other
Design:
-
- Front View
-
- Lateral View
-
- Perspective View
-
- Top View

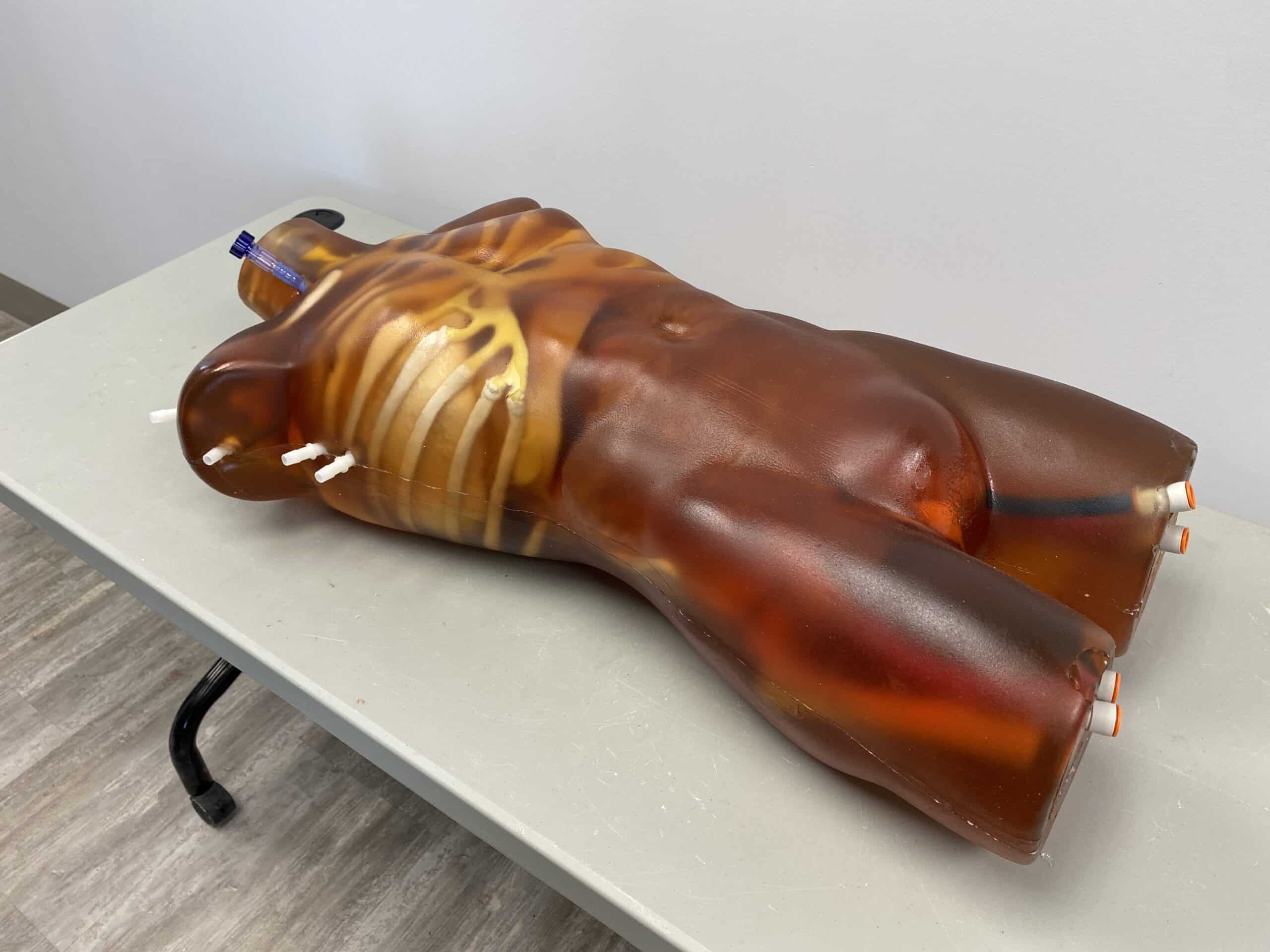

Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
Heart Installed in Torso:

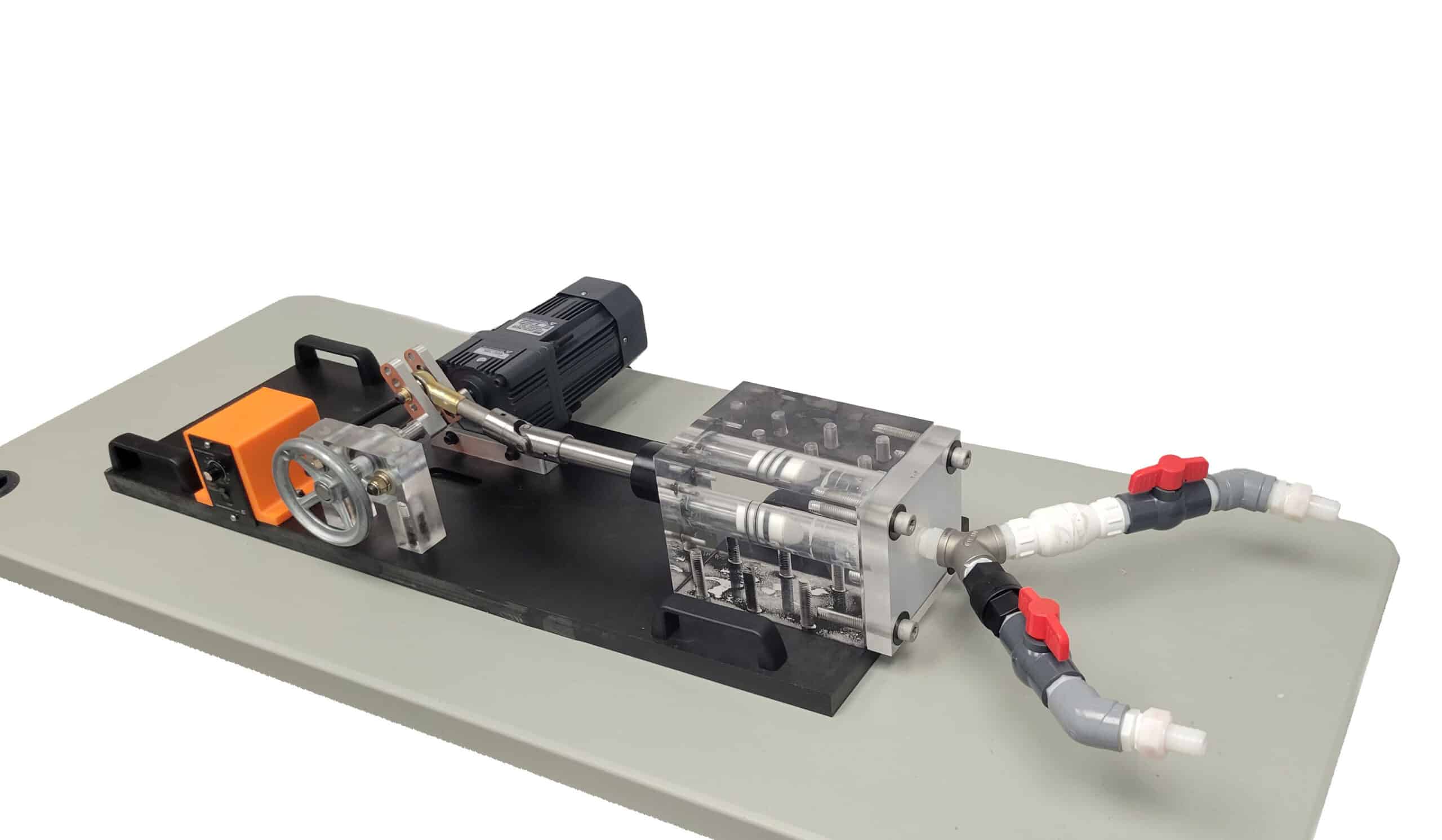

Heart Pump attached to the Heart inside of the Torso:
-
- Heart connections design
-
- Heart connections in Torso
MRI Scans of the Heart:
*/ These scans were obtained from the heart phantom placed in a water tank /*

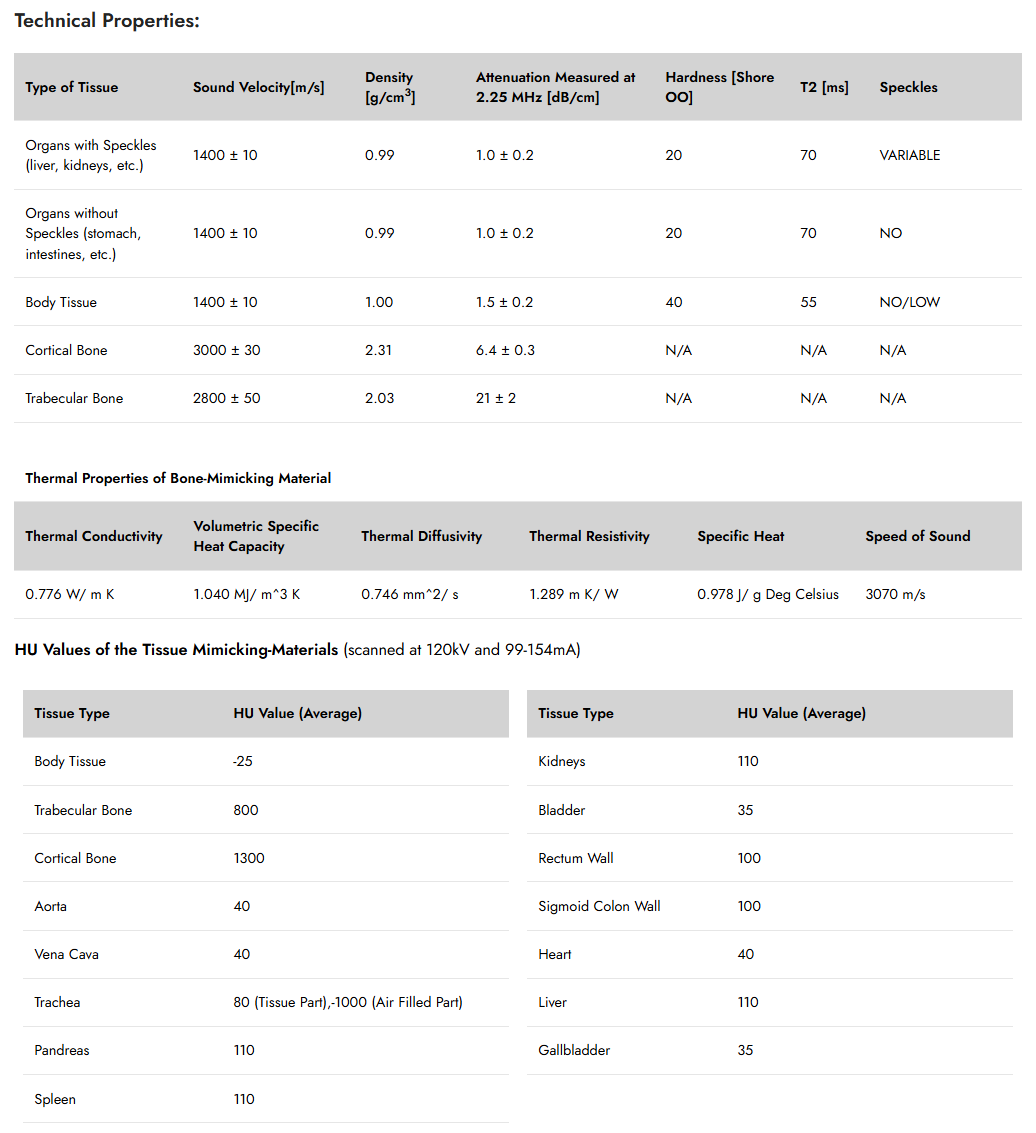

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
CT Scans of the Torso:
*/ These scans were obtained from a customized Ultrasound & X-RAY CT Torso that were captured by a CANON CT Scanner – One Aquilion (Model TSX-305A). If you have any questions related to these, please write us at [email protected] /*
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part),-1000 (Air Filled Part) |
| Pandreas | 110 |
| Spleen | 110 |
| Tissue Type | HU Value (Average) |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
Included In Order:
Adult Torso (Advanced) Phantom
TPS Heart Pump
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 34 x 18 x 10 Inches, Weight: 88 Lbs (approx.).
Heart Pump:
Size: 36 x 12 x 8 Inches, Weight: 88 Lbs (approx.)
Shipment:
Size with Hard Carry Case: 46 x 36 x 17 Inches, Weight: 142 Lbs (approx.)
Size of Pump Package: 36 x 14 x 10 Inches, Weight: 90 Lbs (approx.)
Entire shipment will be placed on a wooden pallet.
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
