The Adult Heart Phantom is a realistic simulator of a healthy-adult human heart. The phantom is compatible with X-Ray/CT, Ultrasound, and MRI. This product has a wide range of applications as it also has the potential to support beating functionality and generate life-like motions. Some of its uses and applications include transesophageal and transthoracic echocardiograms, ultrasound-navigated endoscopies, catheter insertion under ultrasound probes, angiography, and other cardio-based research and development studies. The heart phantom includes a hollow esophageal tube that can be utilized when performing transesophageal echocardiography. A TEE ultrasound probe can be inserted into the esophageal tube to image the heart internally.
This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
The phantom is built from a realistic, life-like, synthetic material to mimic the acoustical, physical, and mechanical properties of real biological tissues. Using 3D printing technology and synthetic material, the heart phantom is built to reflect exact anatomical structures. The phantom is fully customizable and able to suit a wide variety of bio-medical projects.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values which makes this product to be best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Upon special request, the geometry and dimensions of the phantom and its properties can be customized based on the requirements of any particular project.

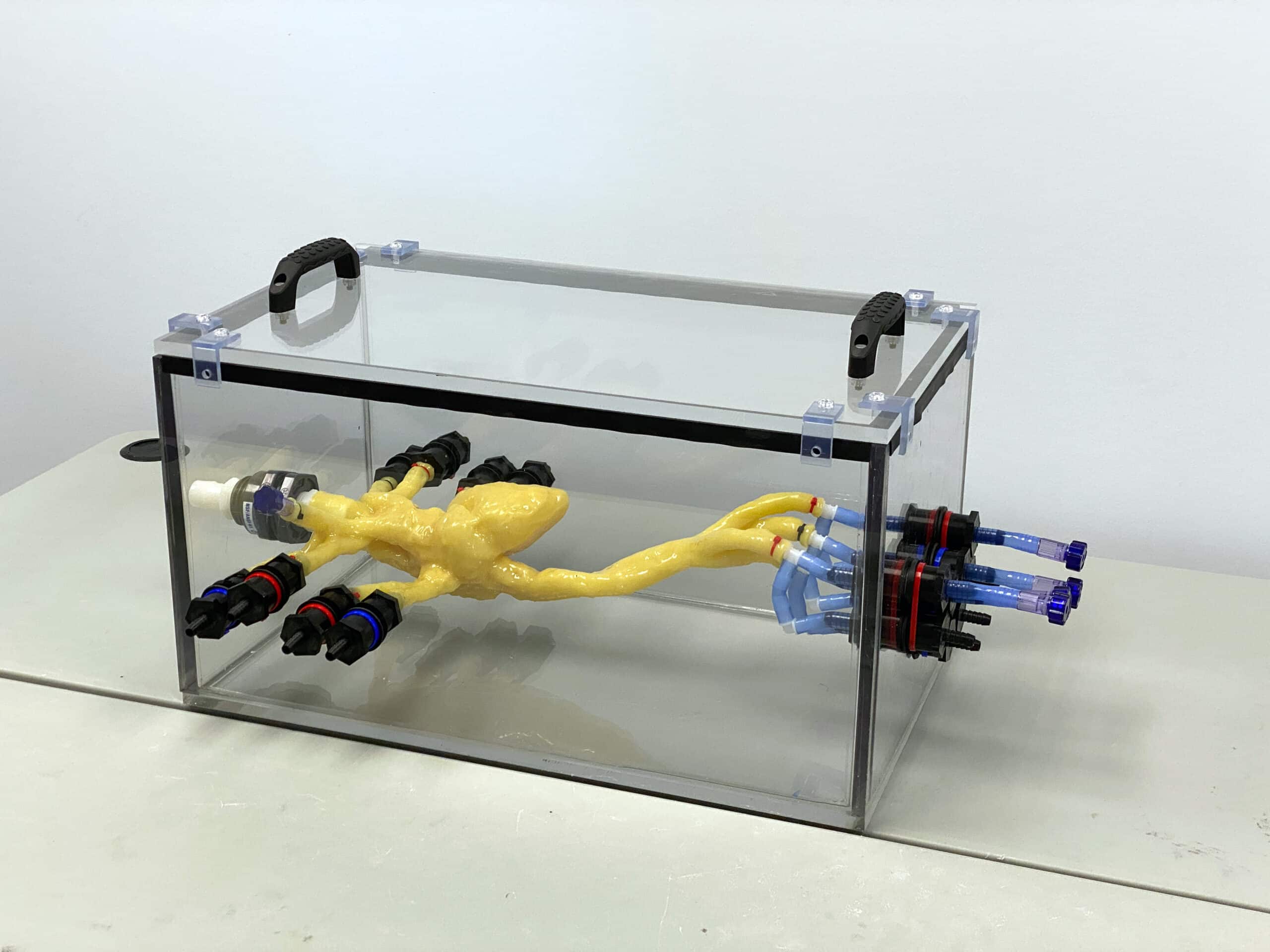

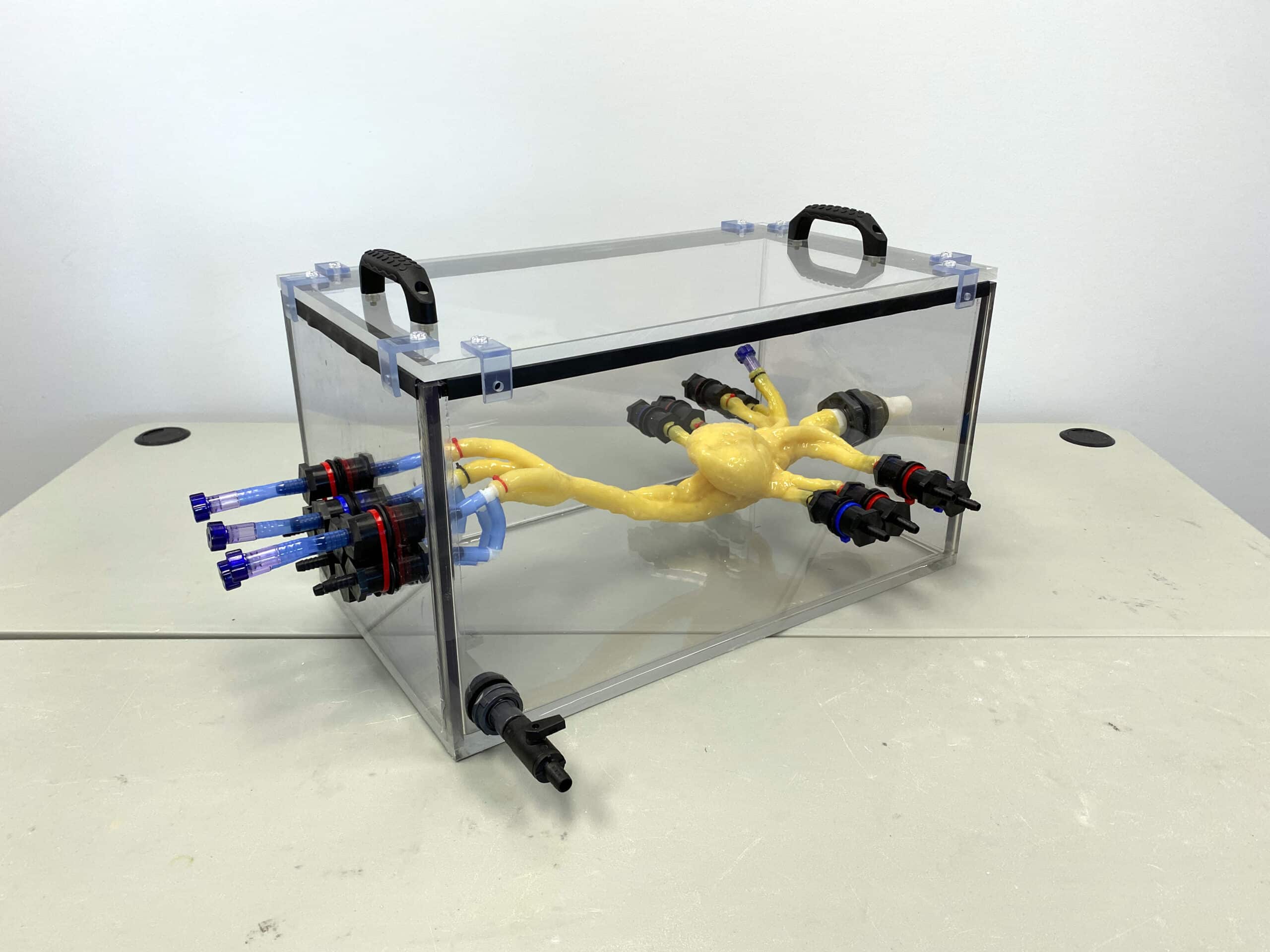

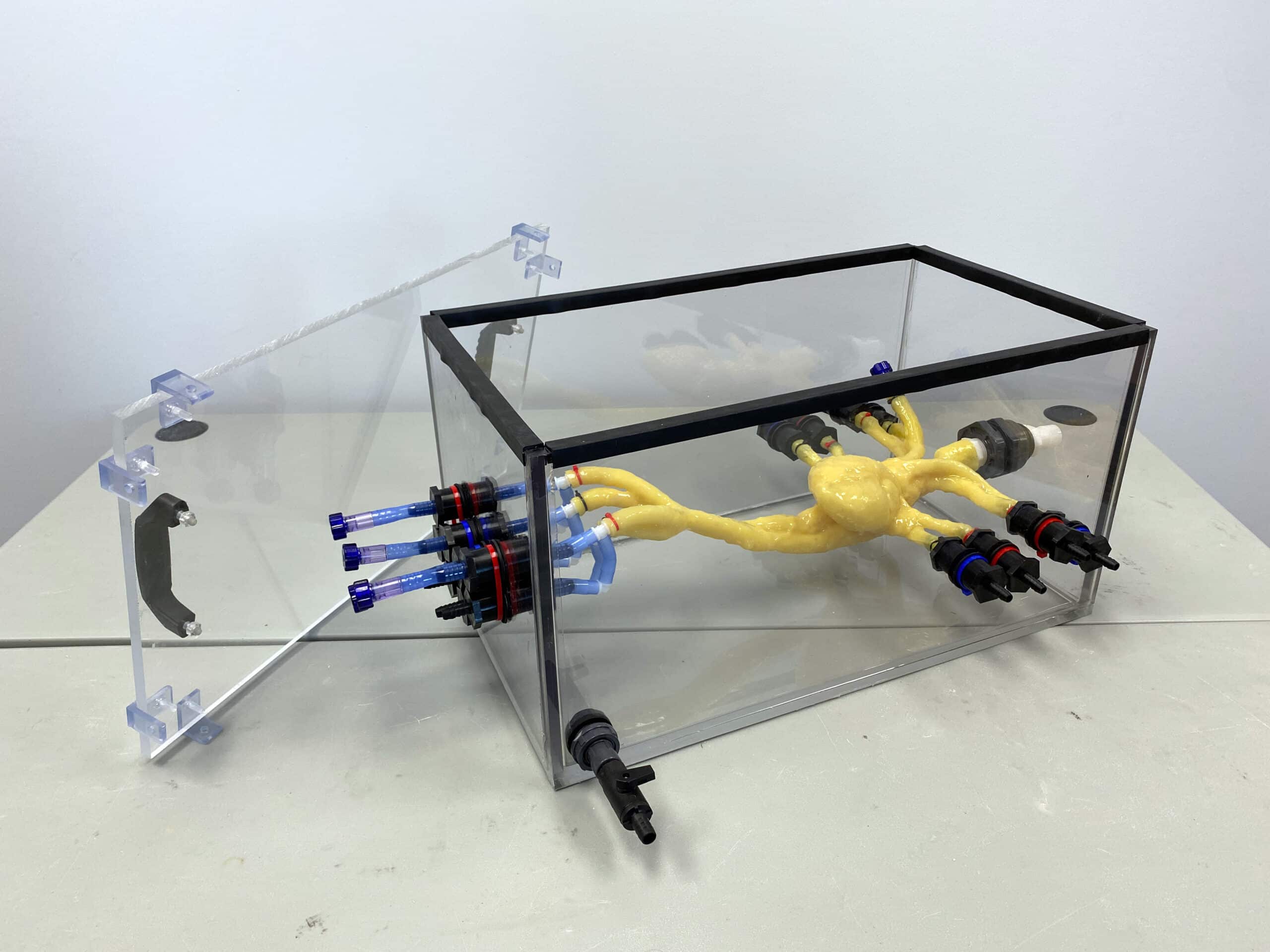

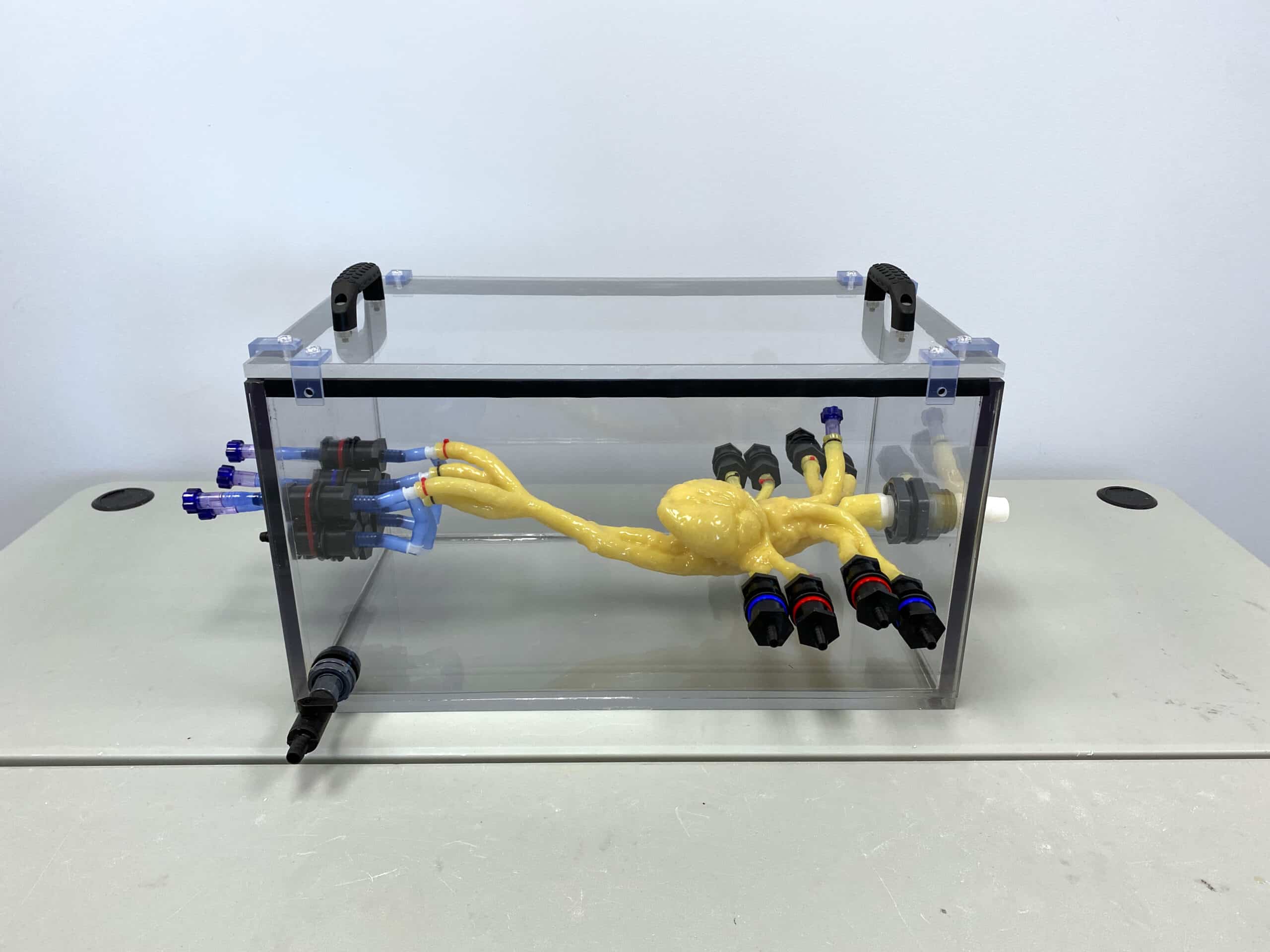

Note: This product comes with a water tank, as shown in the images above. The water tank helps researchers to mount the heart properly and achieve the correct performance of the phantom in terms of the view of internal structures and heart motion.
Anatomy:
2 Atria, 2 Ventricles:
– Right Ventricle
– Moderator Band that runs from the anterior wall to the septum bridge
– Volume: 60 ml
– Left Ventricle
– Papillary muscles to the anterior and posterior walls
– Volume: 63 ml
– Right Atrium
– Right atrial appendage with distinct muscle structures
– Volume: 45 ml
– Left Atrium
– Unique muscle structure to the appendage of the left atrium
– Volume: 29 ml 4 Valves Appendage Feature SVC IVC Aorta Jugular vessels Pulmonic and Pulmonary Veins attached to LA Flexible Valvular Structures Esophagus

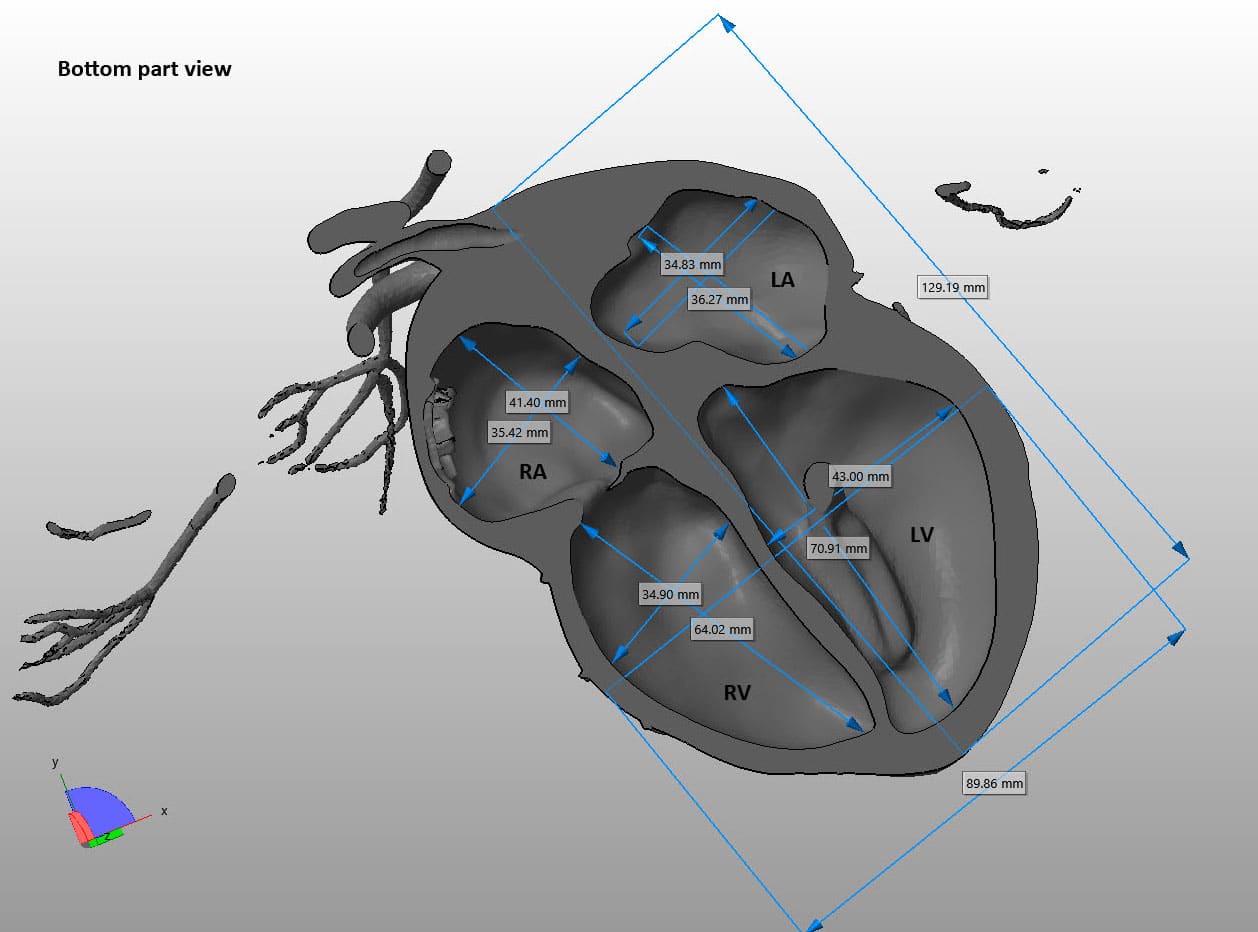

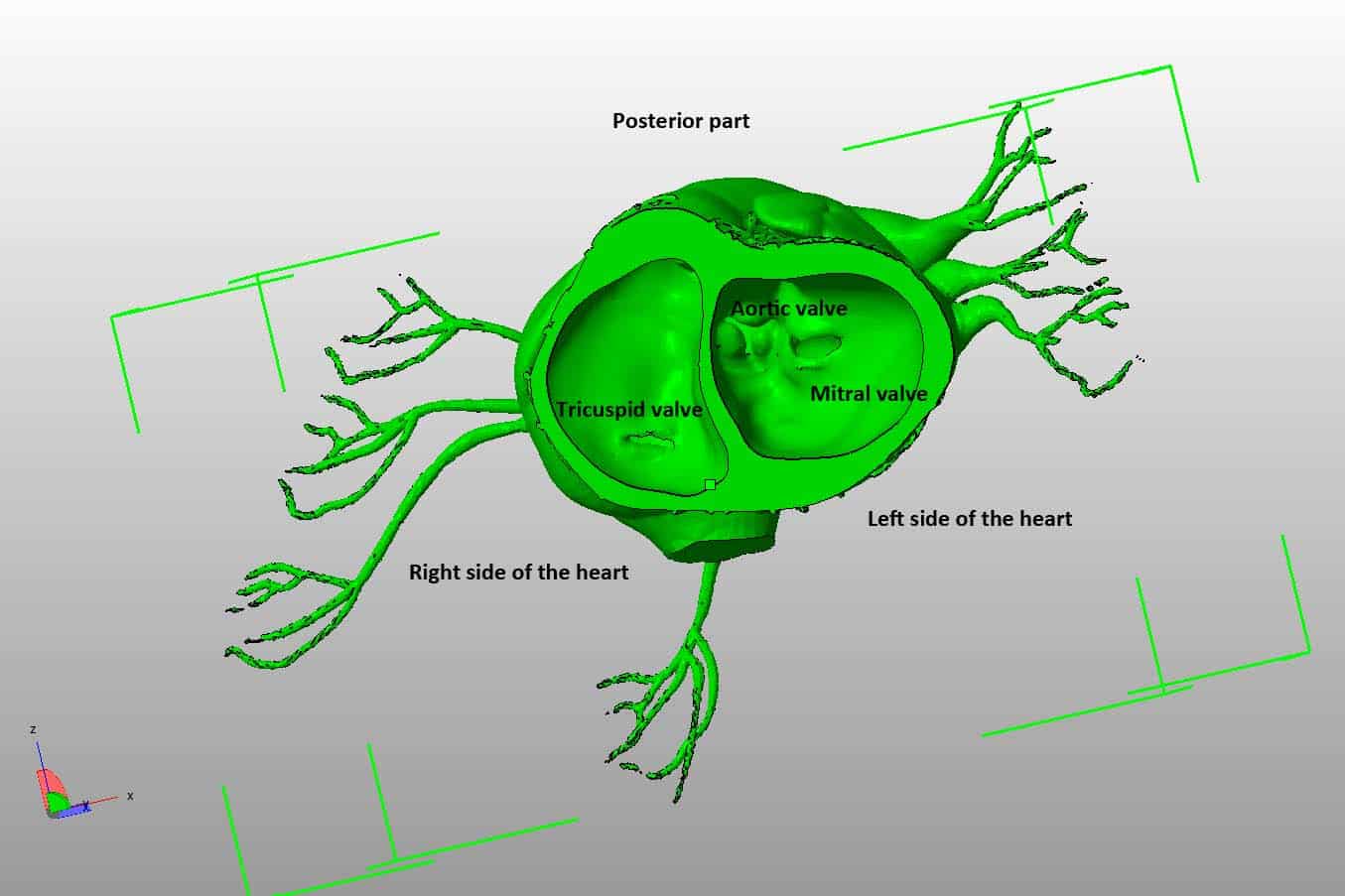

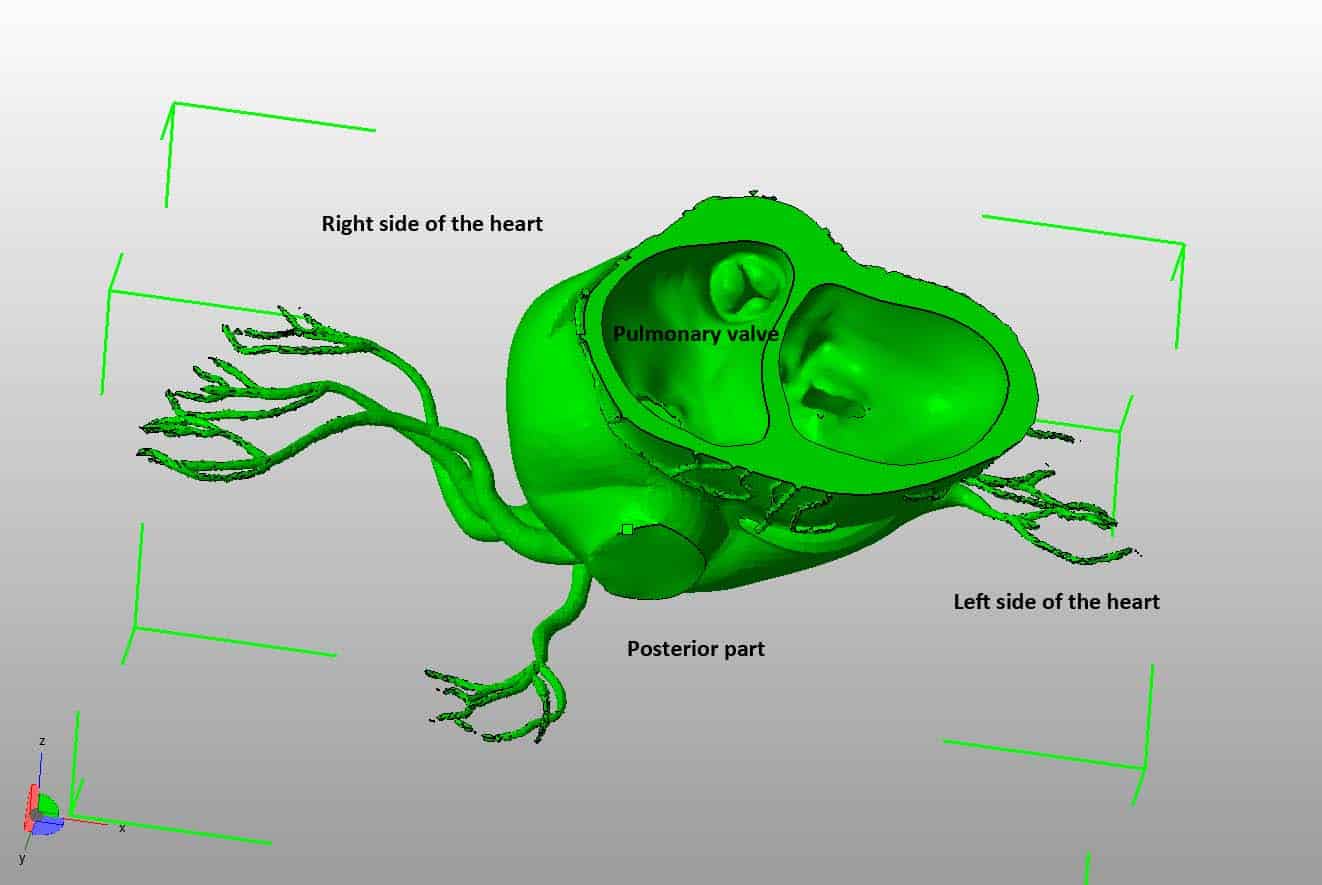

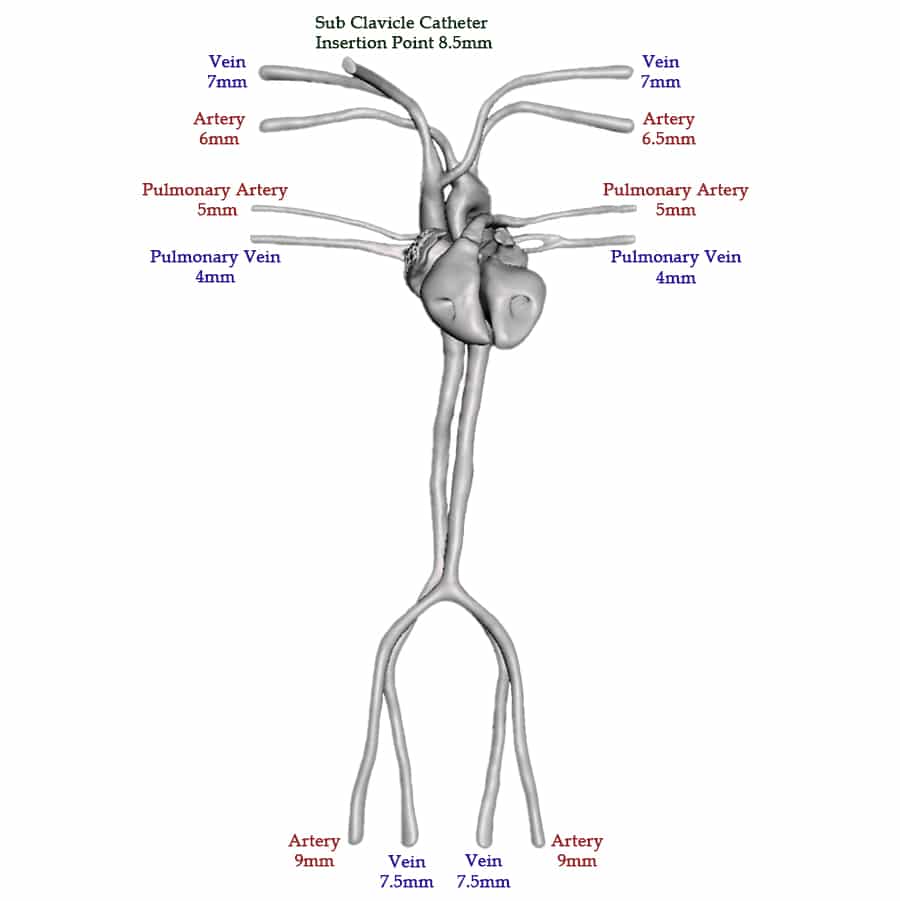

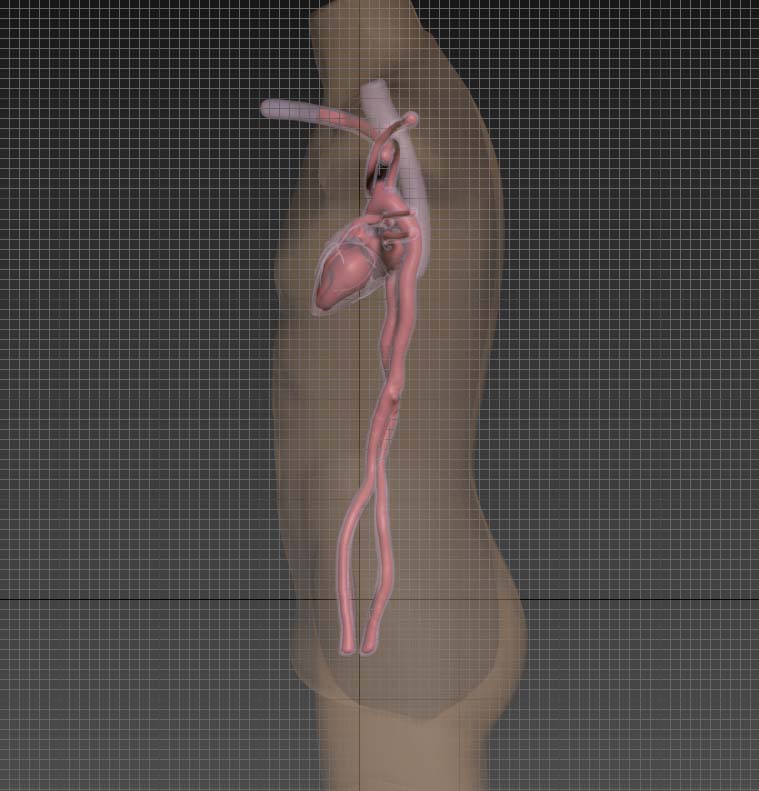

Design:

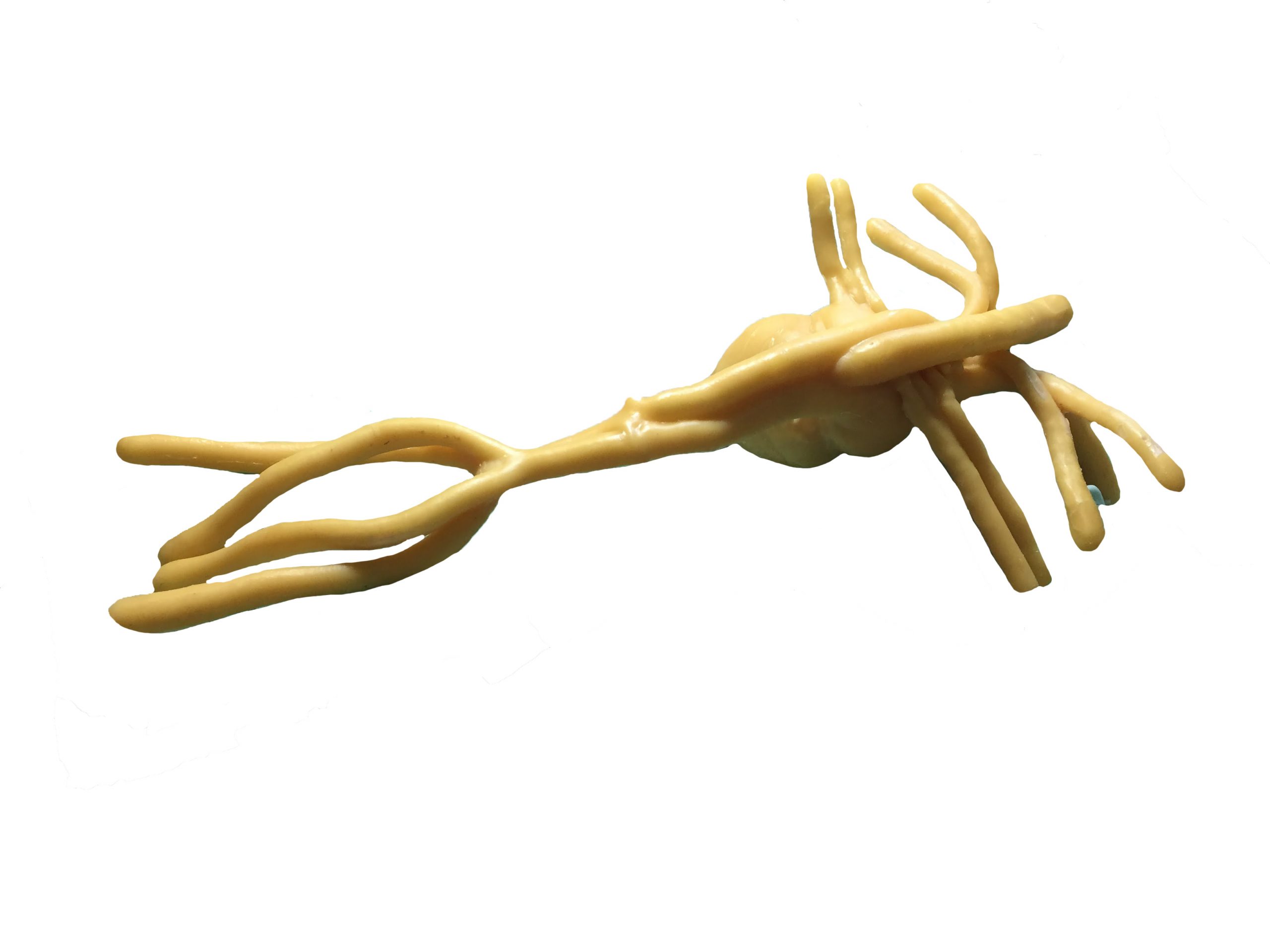

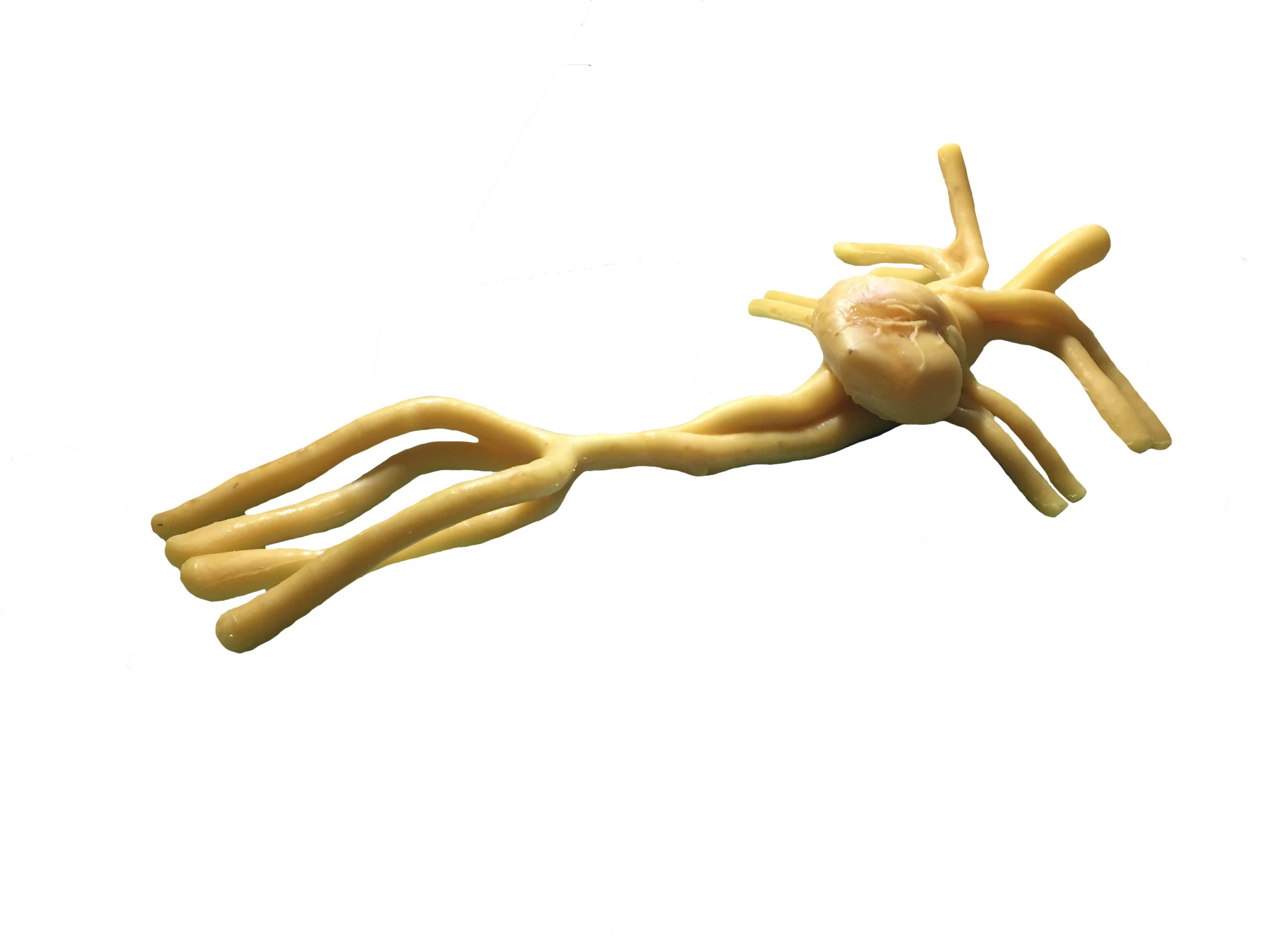

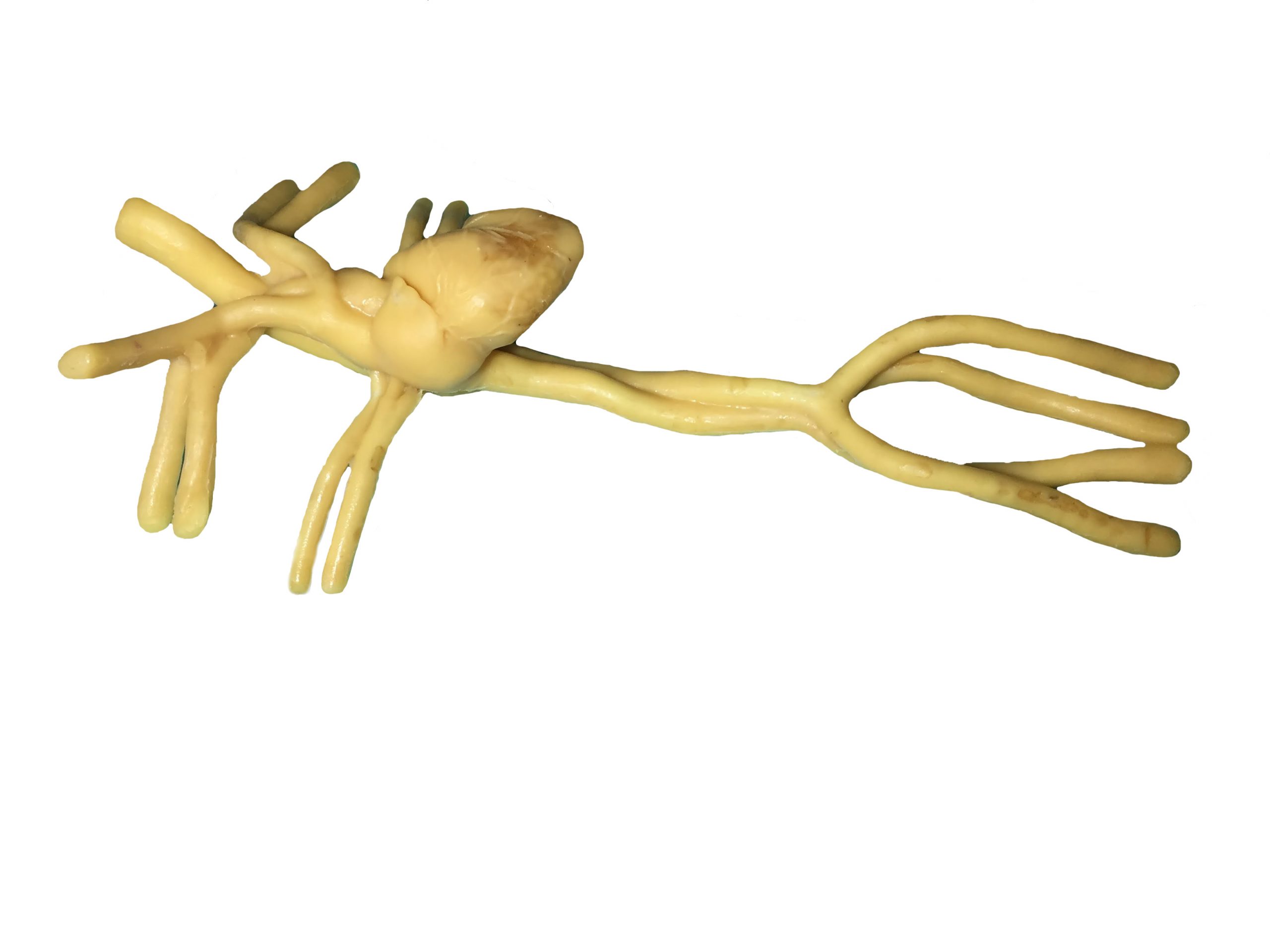

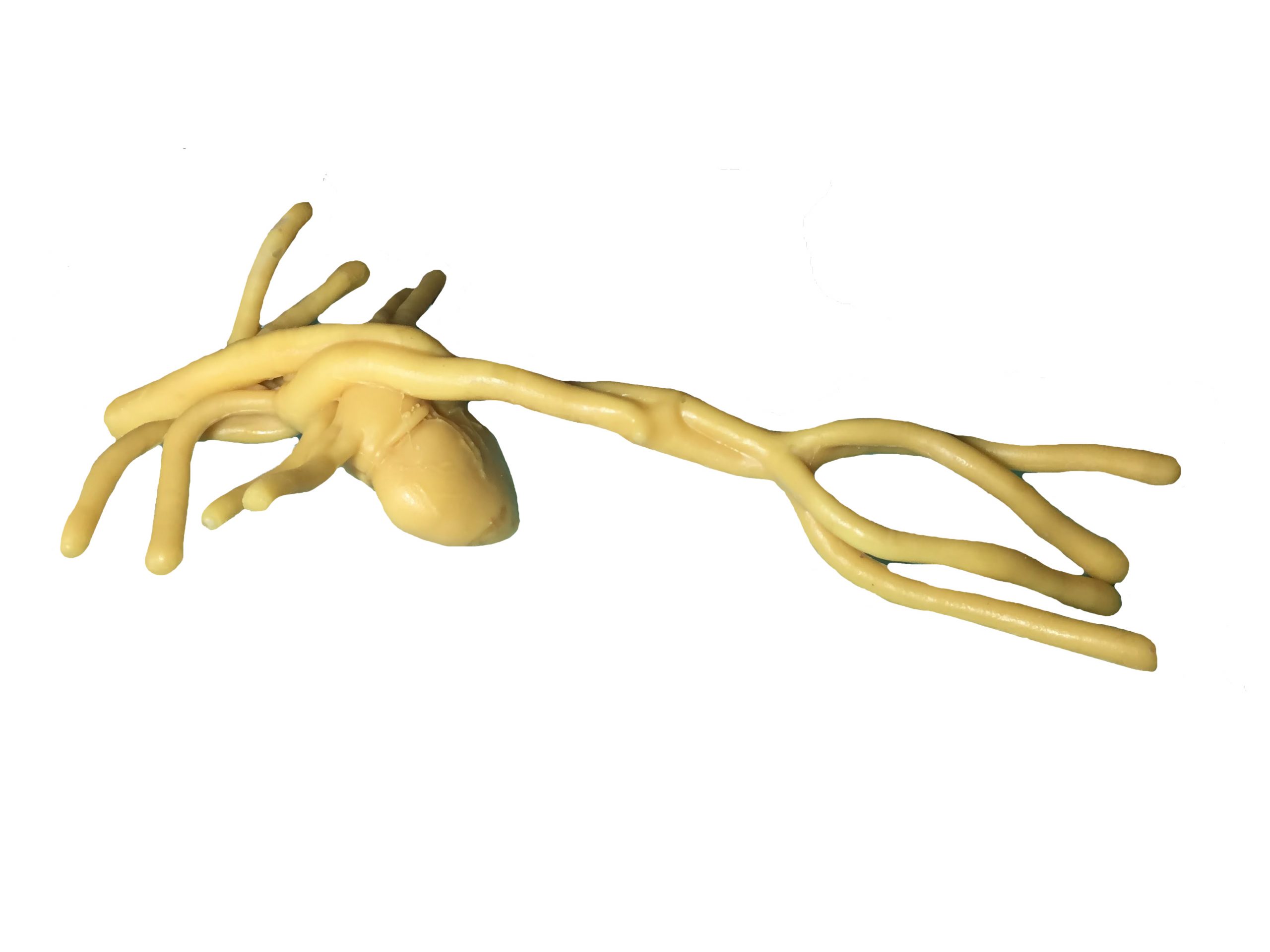

Product Images:

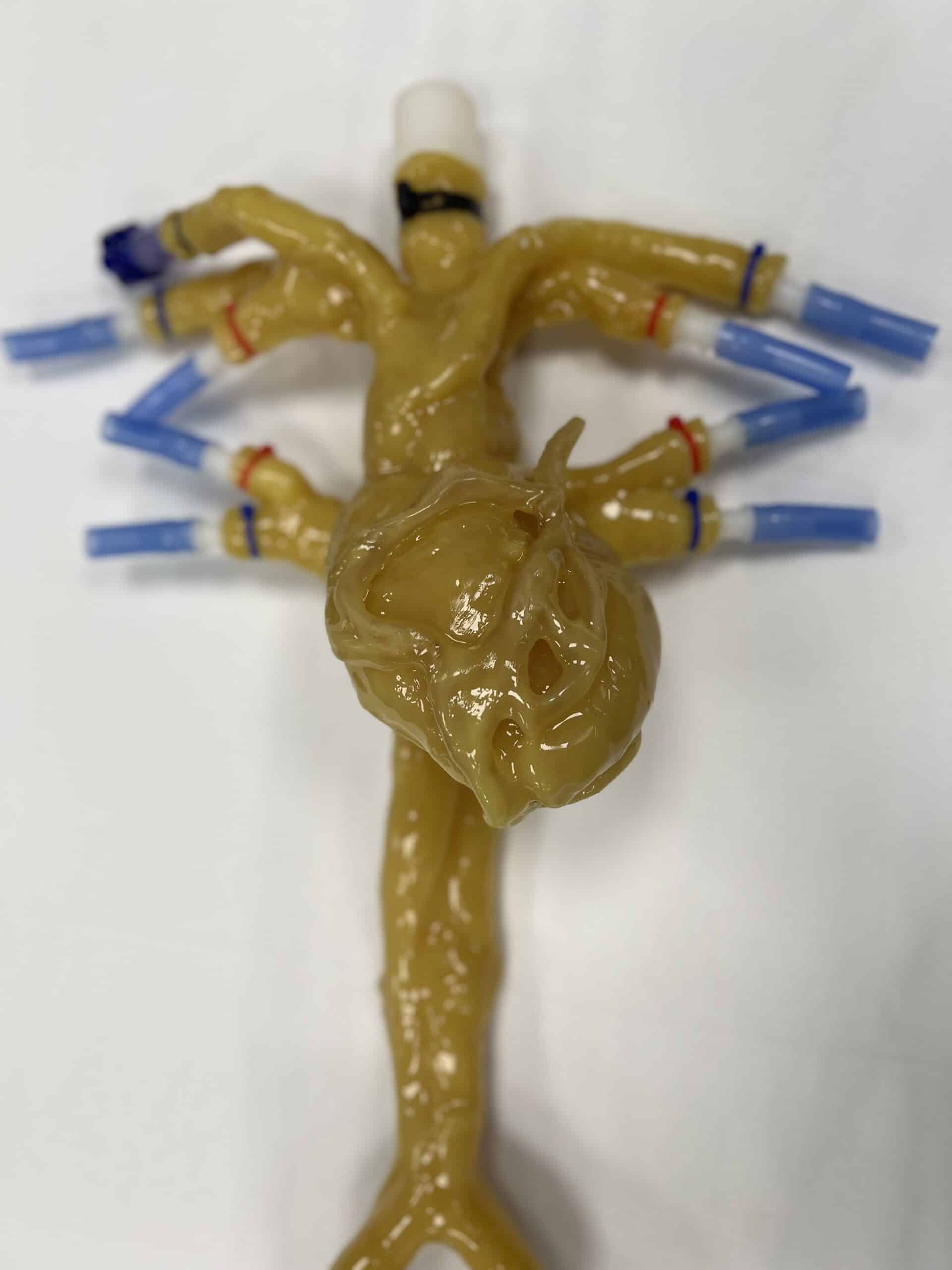

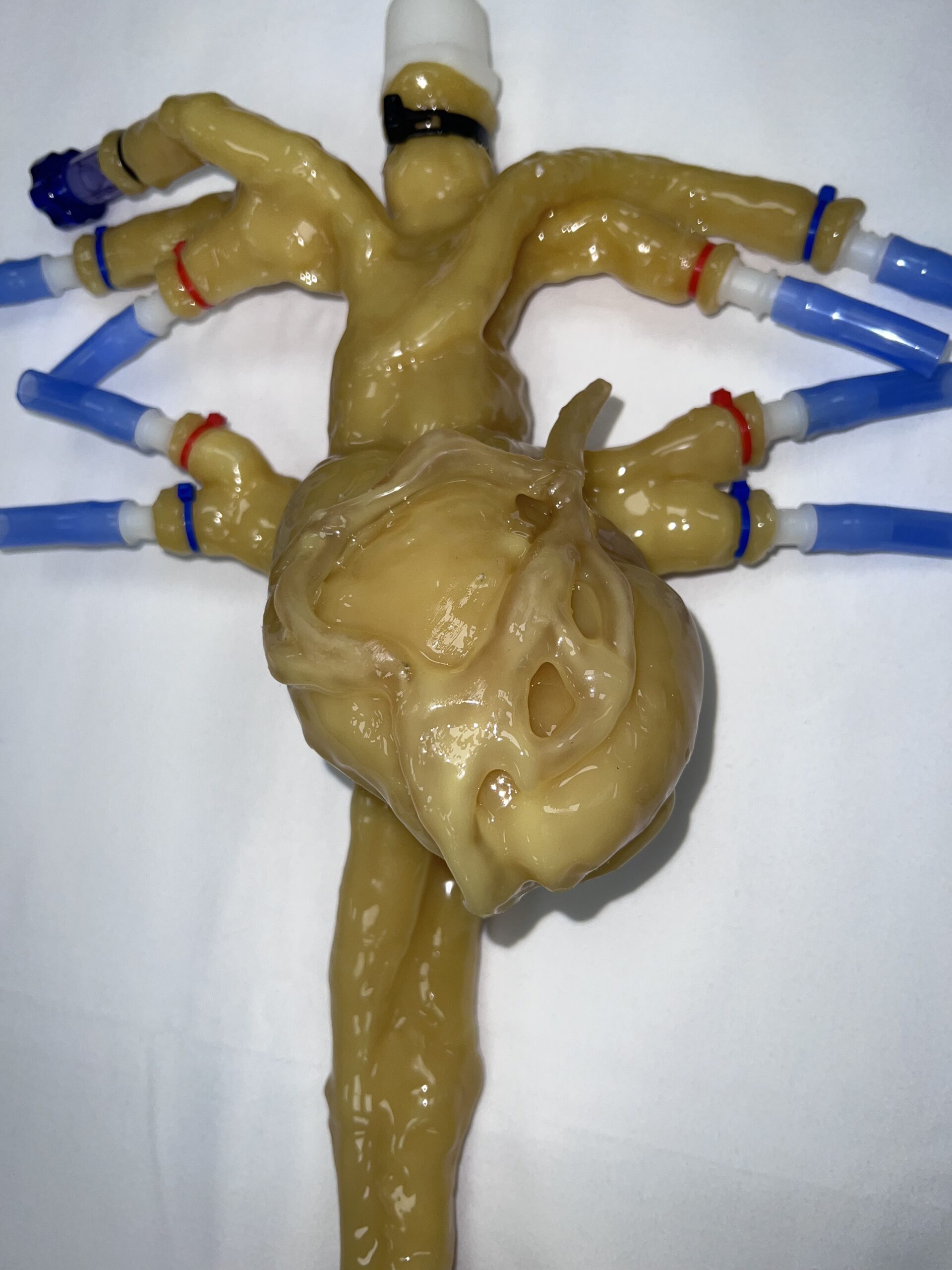

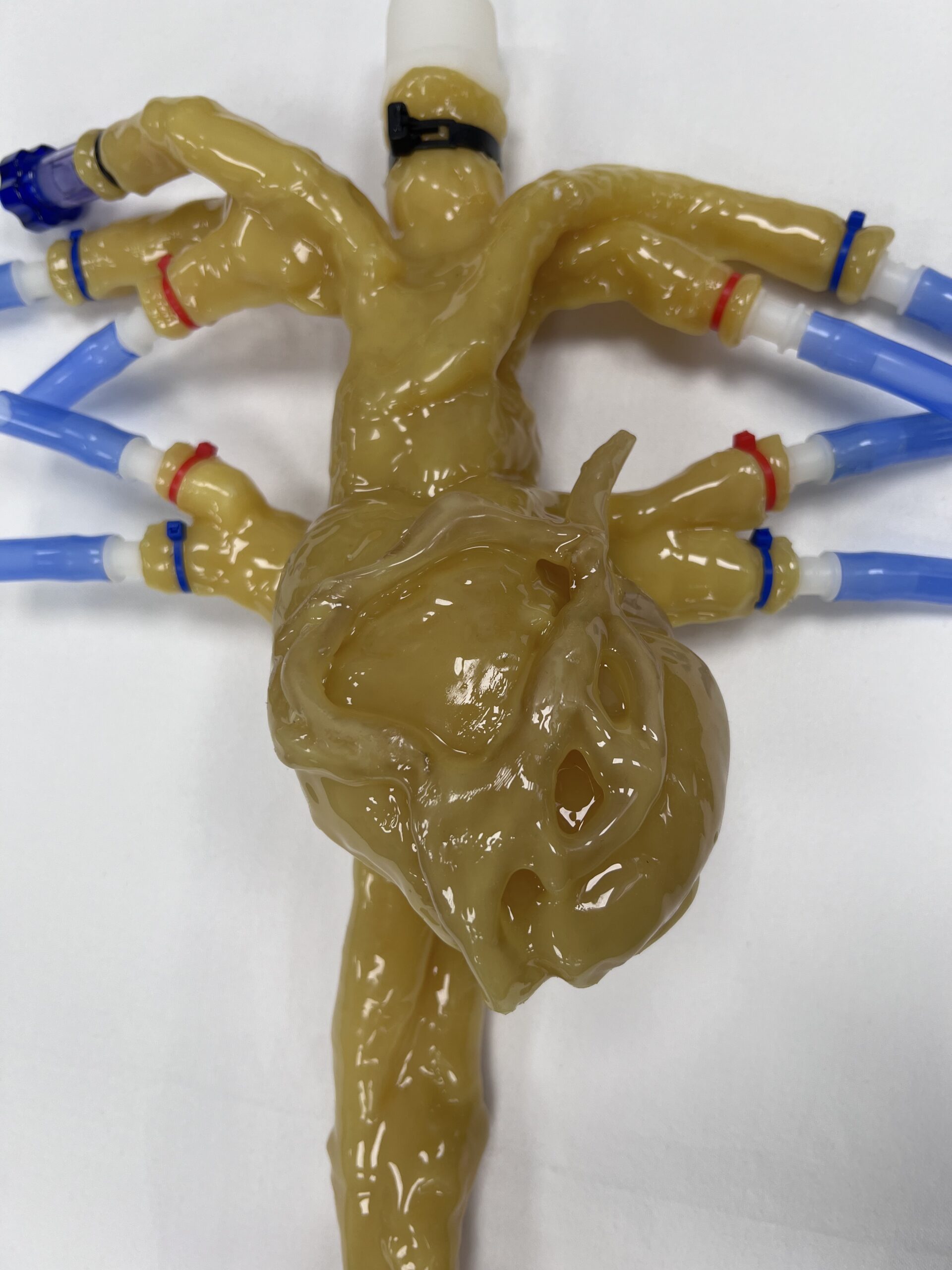

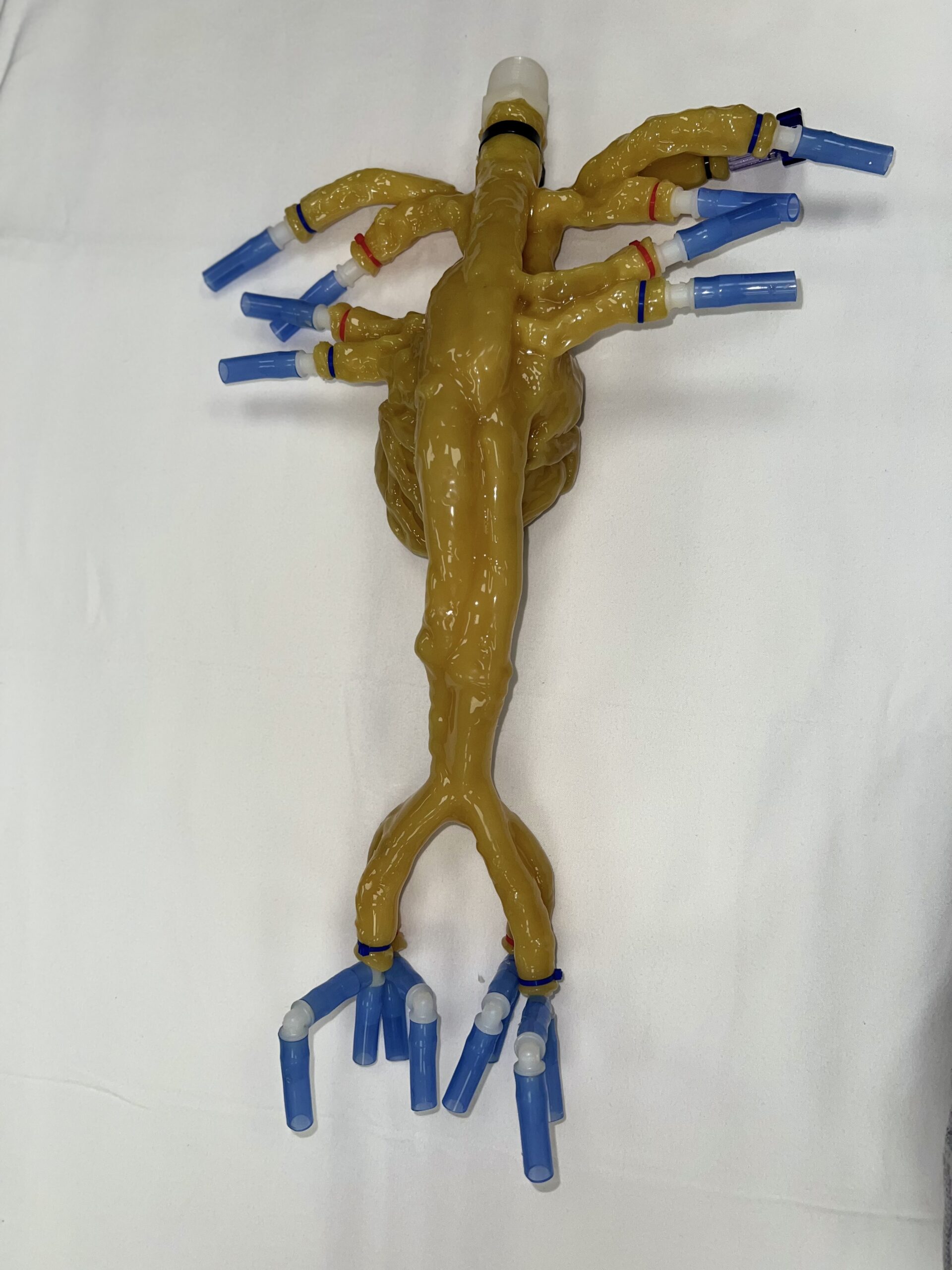

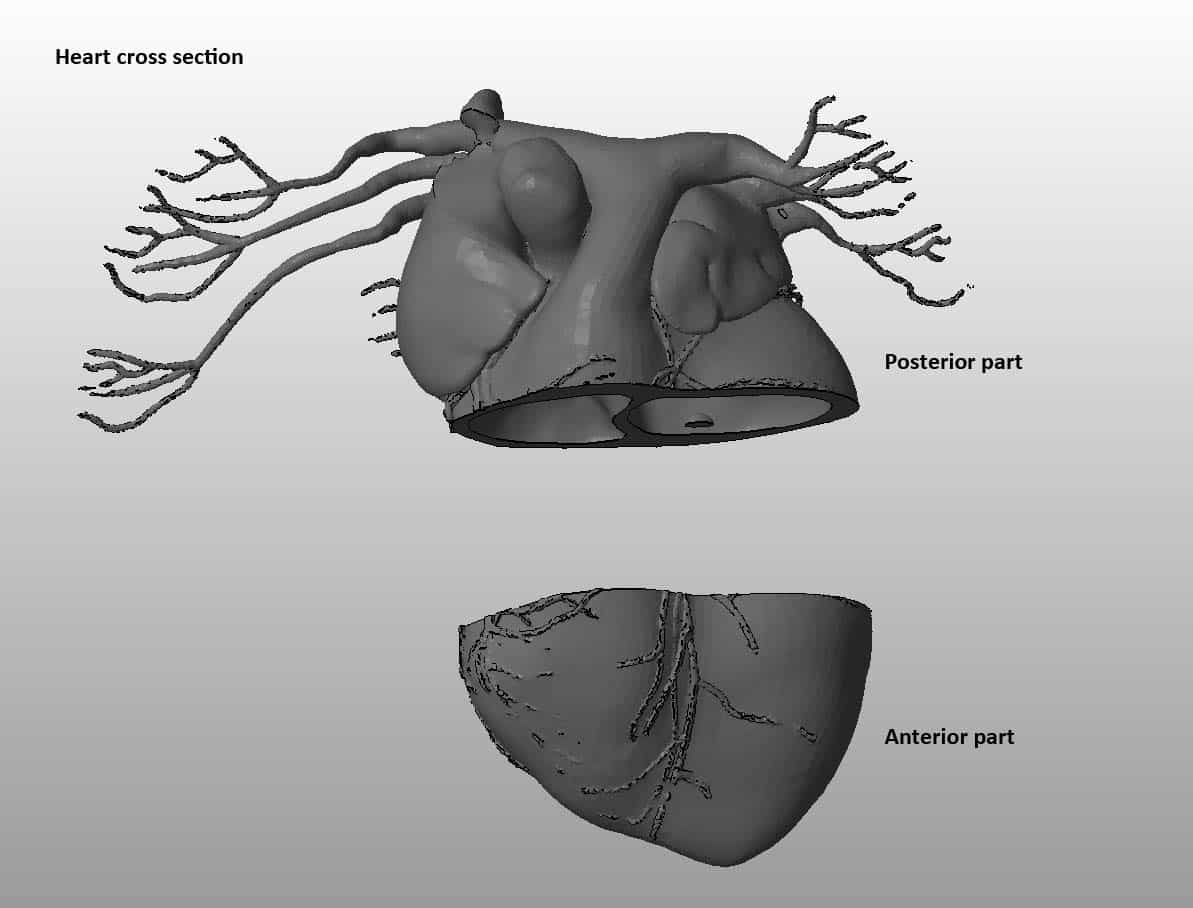

Custom Heart with Coronary Arteries (Optional):
Note: The coronary arteries in the heart phantom have been simplified to ensure optimal flow of the blood-mimicking liquid. They are not included in our standard heart phantom but are available upon request. If you have specific requirements for this phantom, please get in touch with us at [email protected].

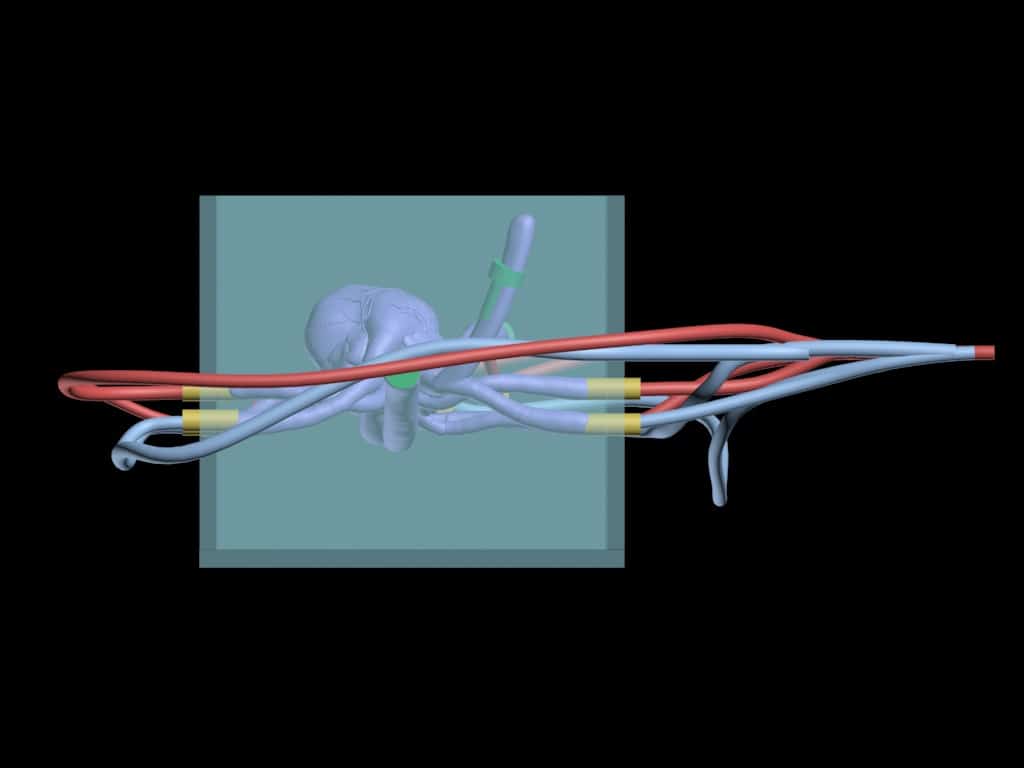

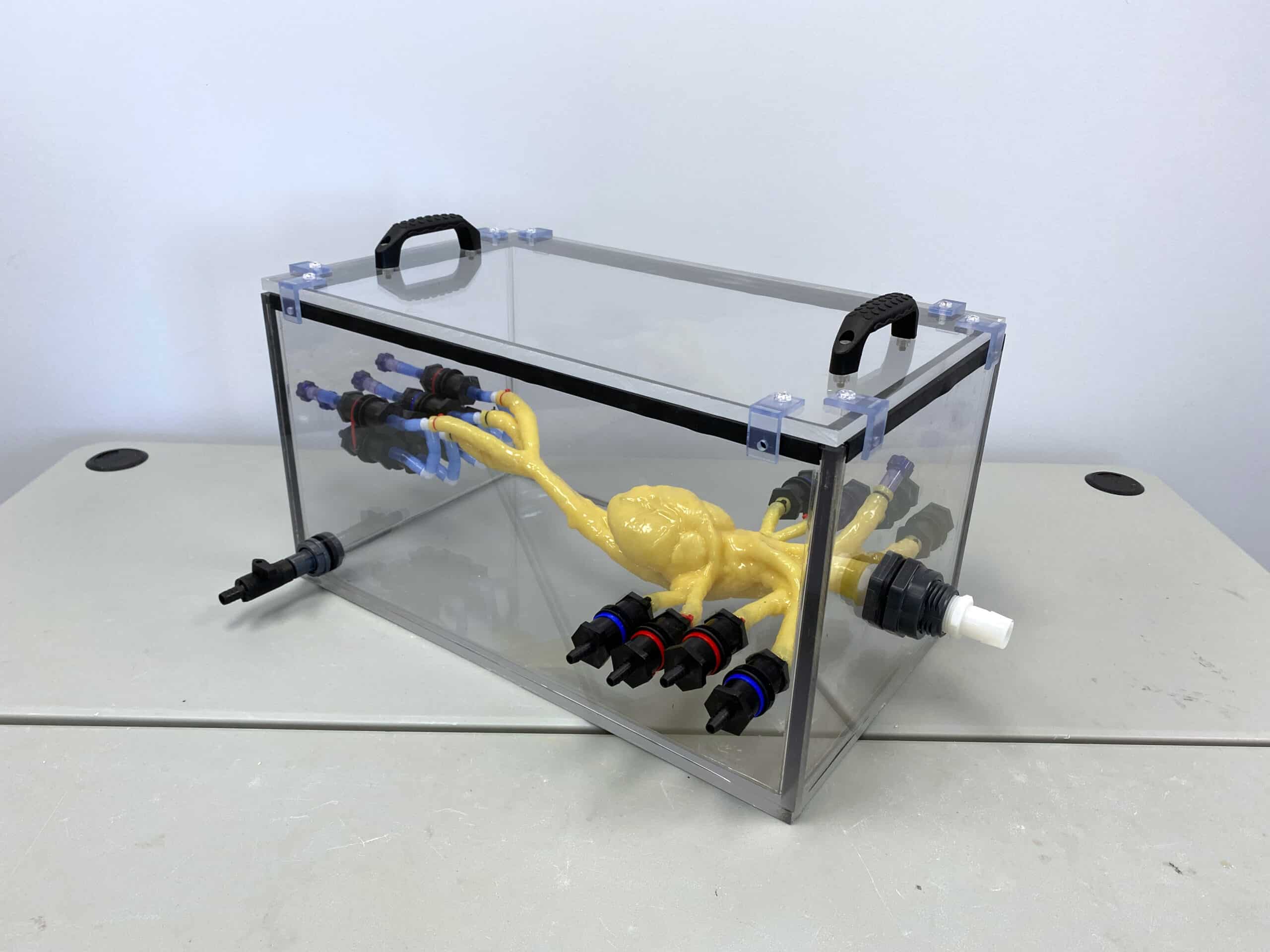

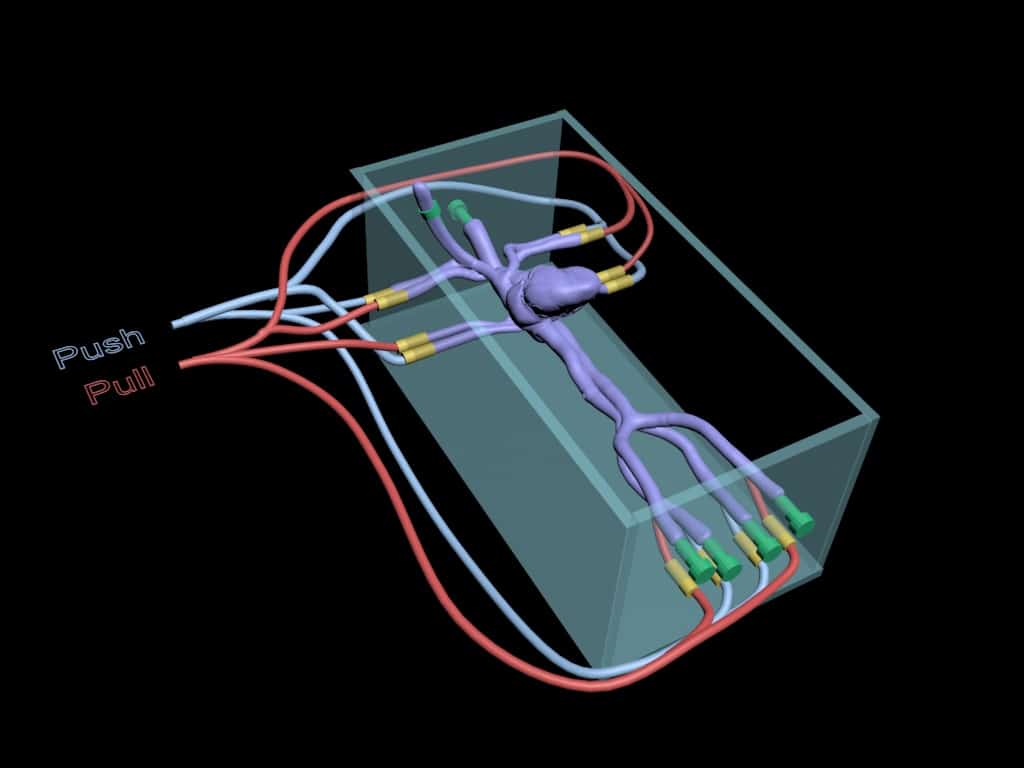

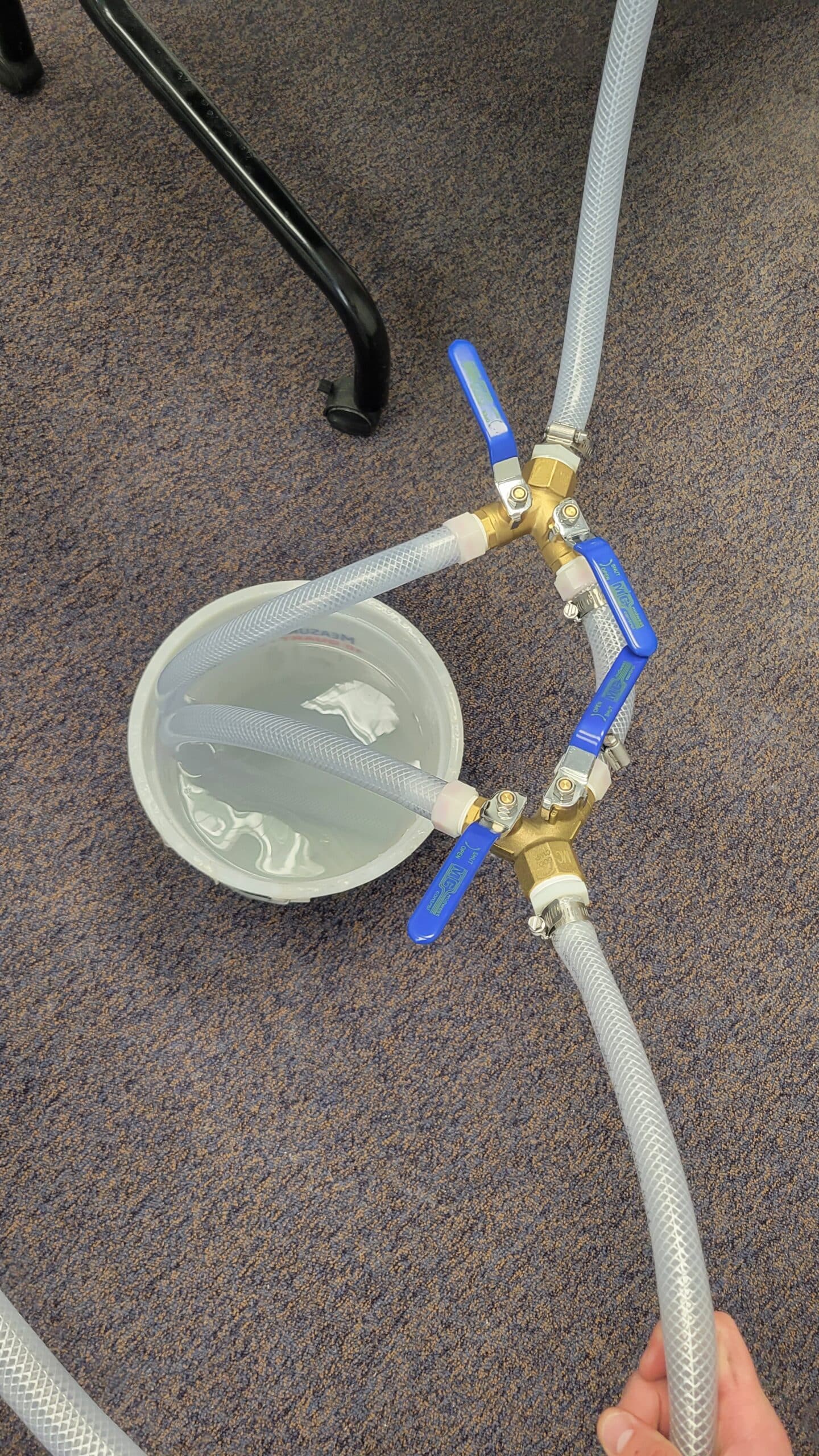

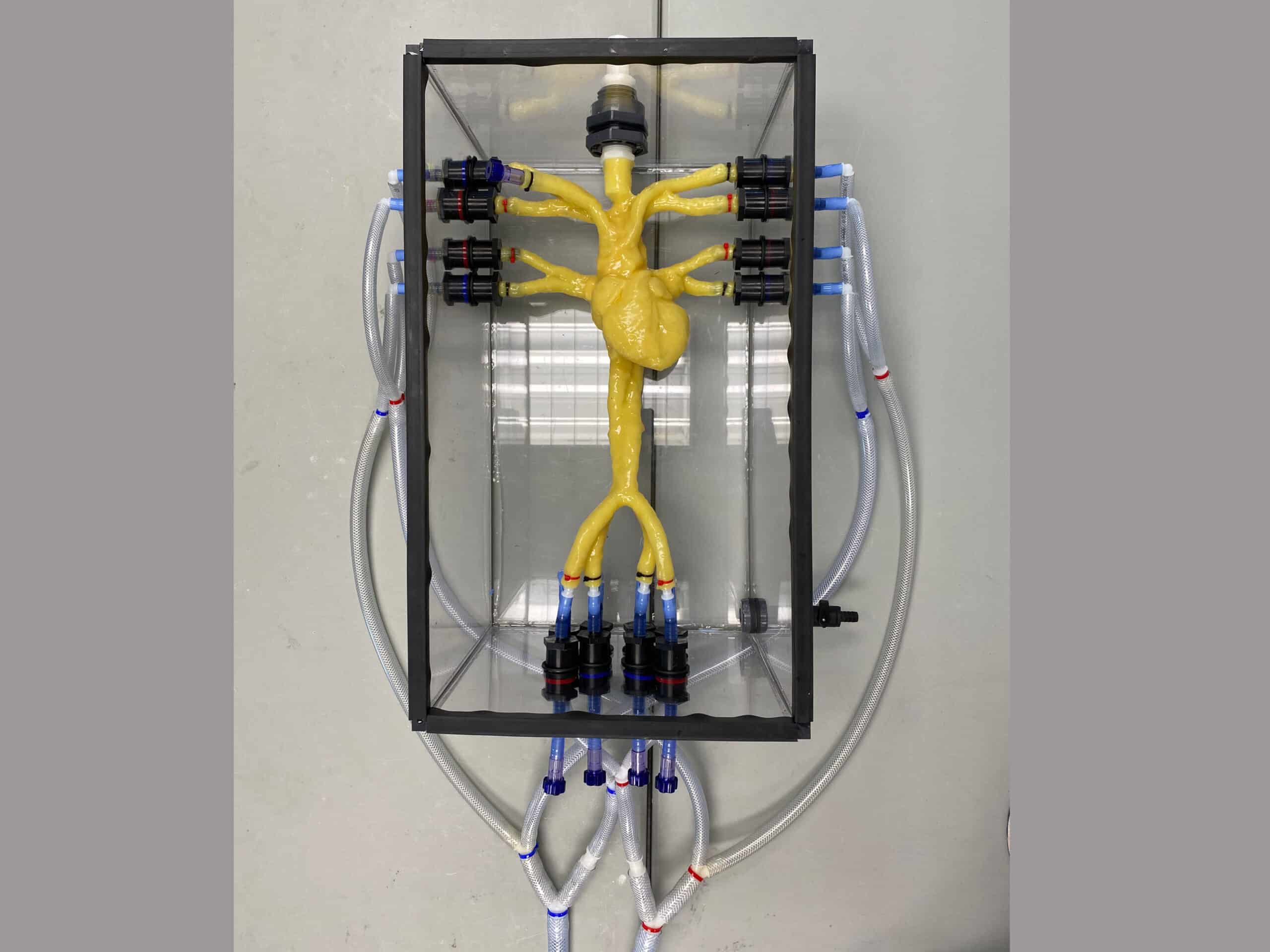

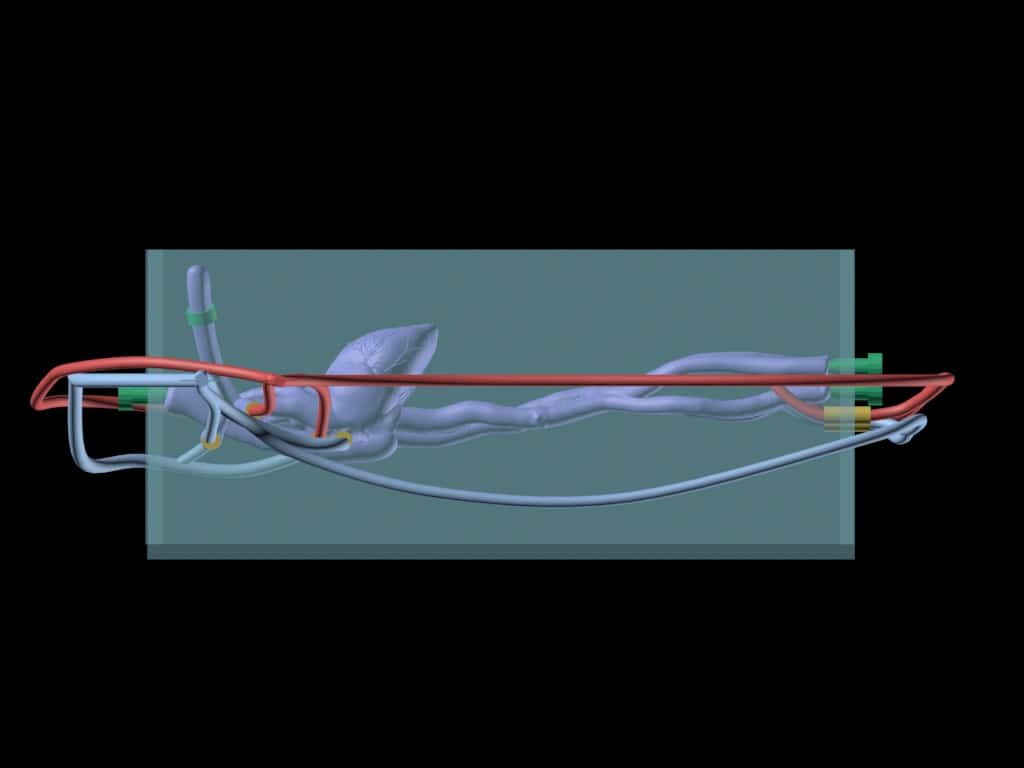

Water Tank Installation:
X-Ray Scans:

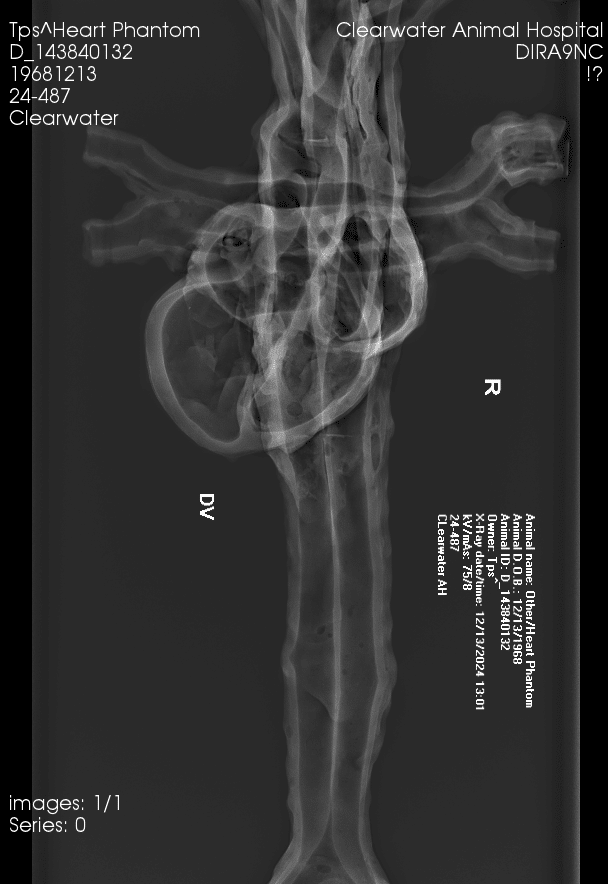

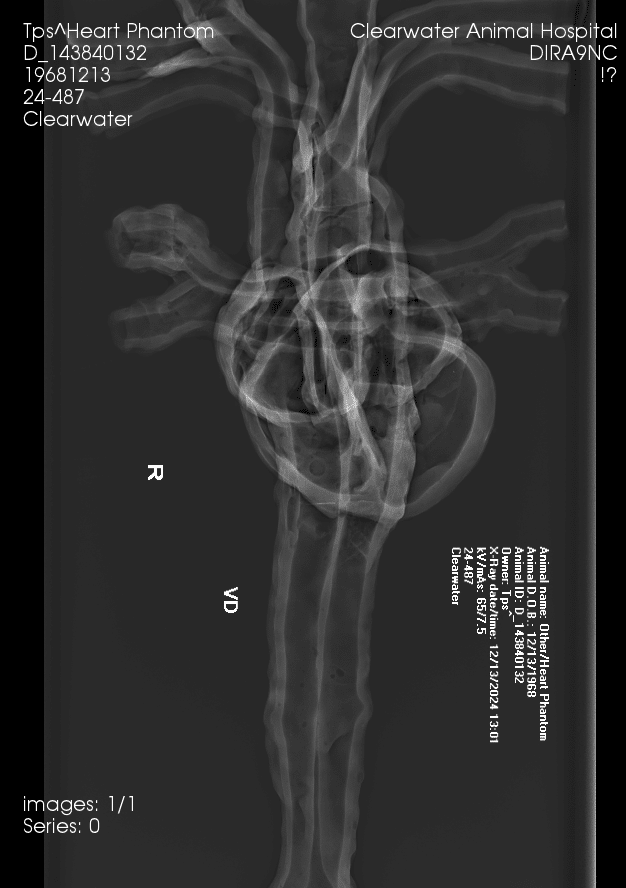

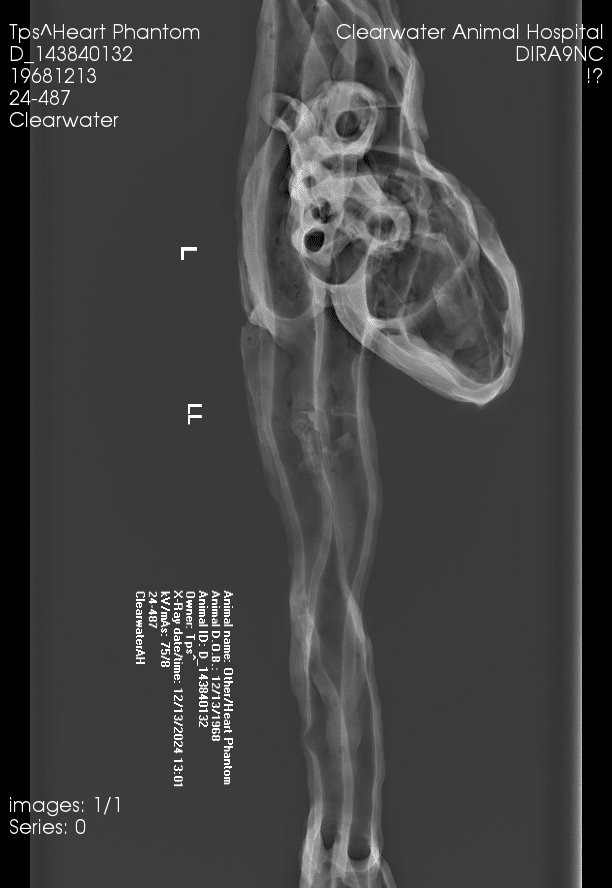

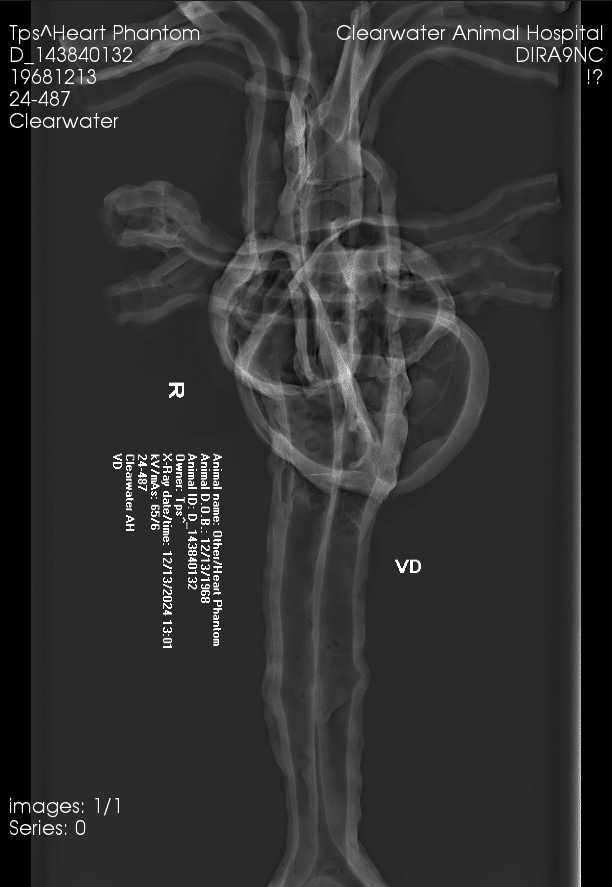

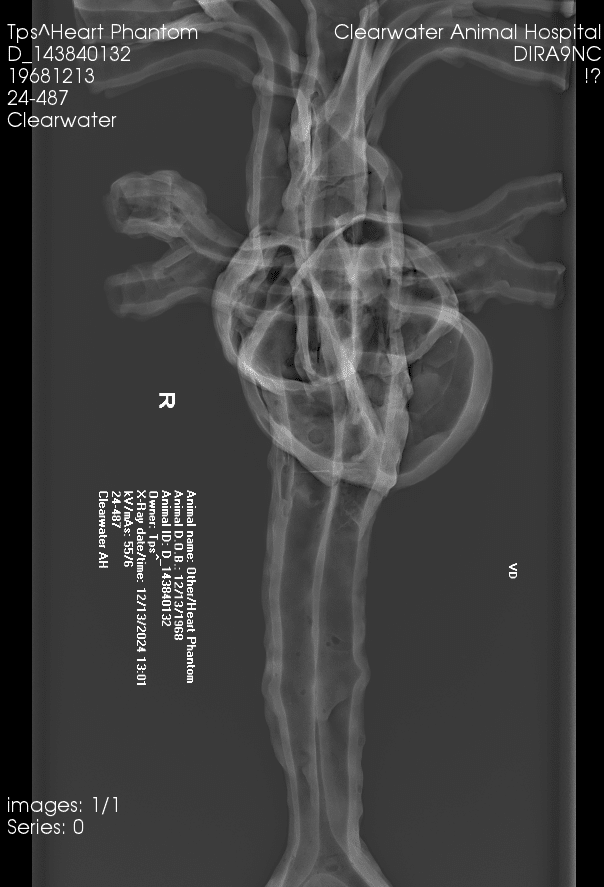

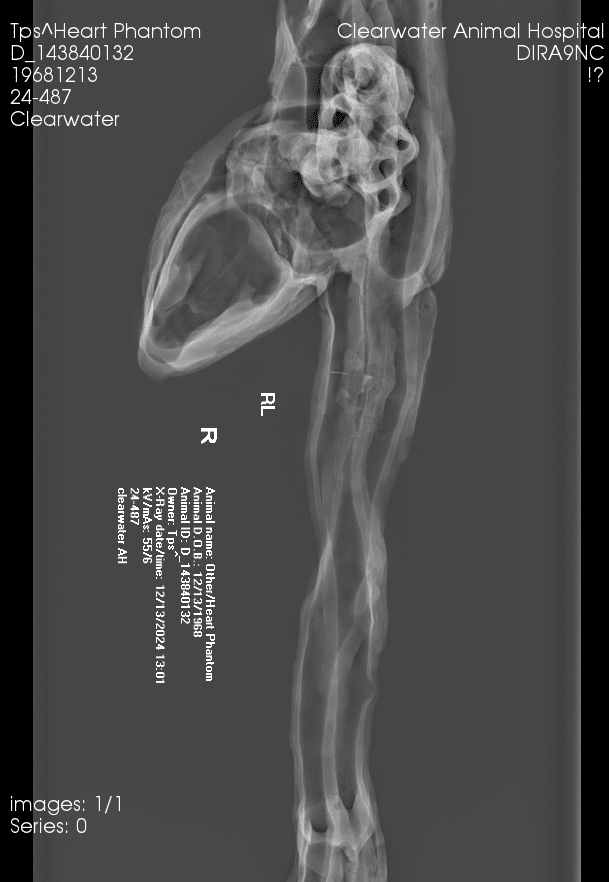

These X-Ray scans were taken from a Raymax DR machine. For more details regarding these images, please feel free to contact us at [email protected]
MRI Scans:
Ultrasound Scans:

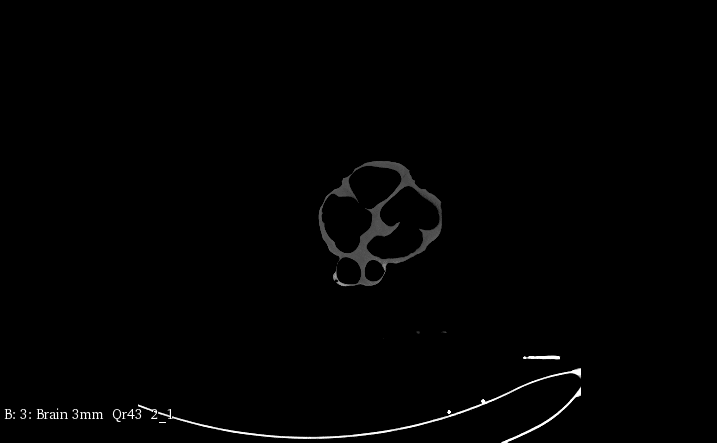

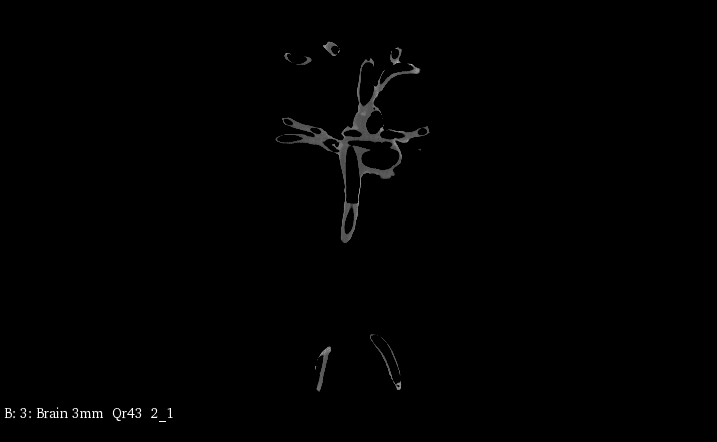

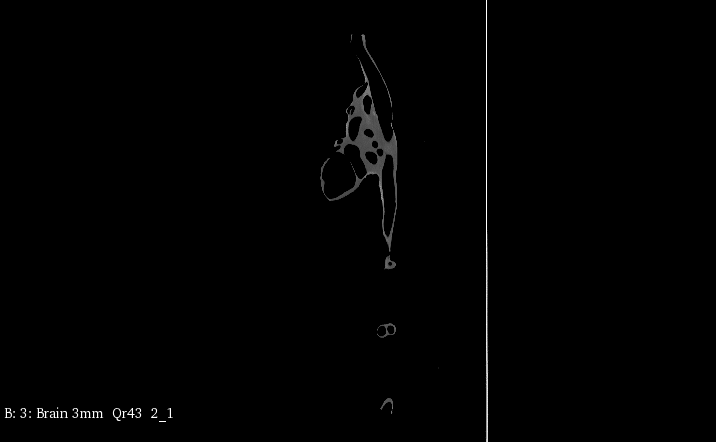

CT Scans:

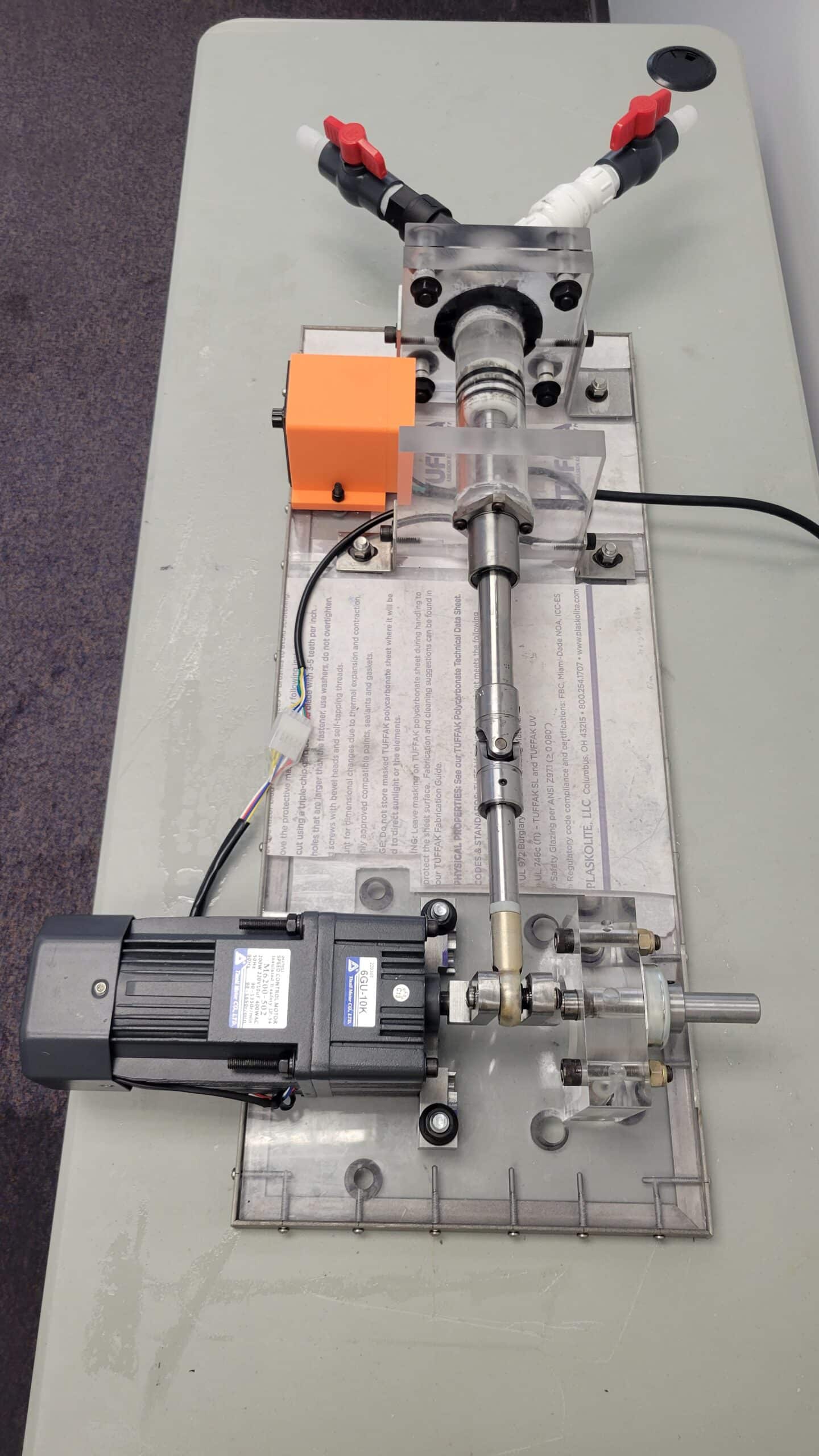

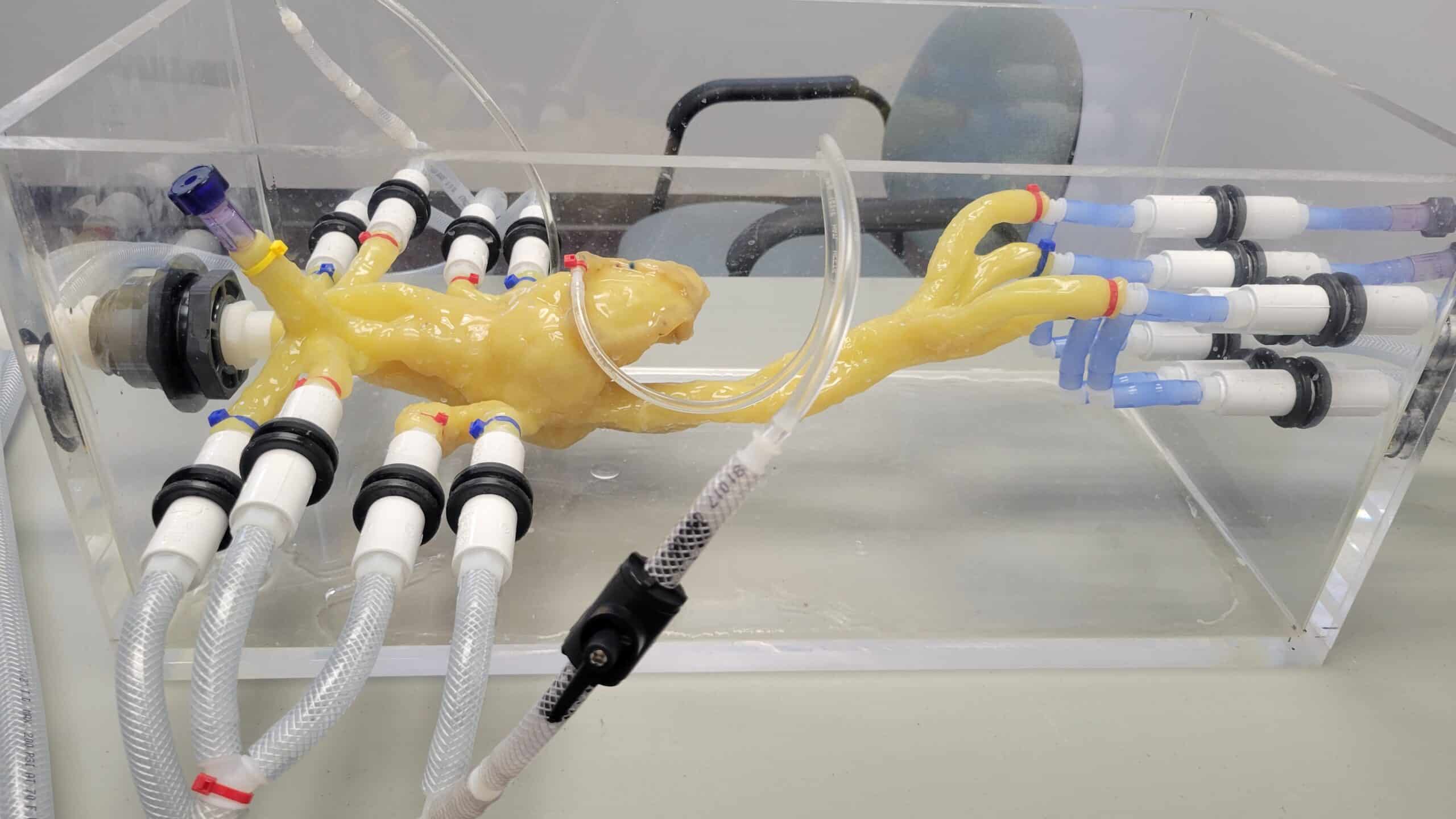

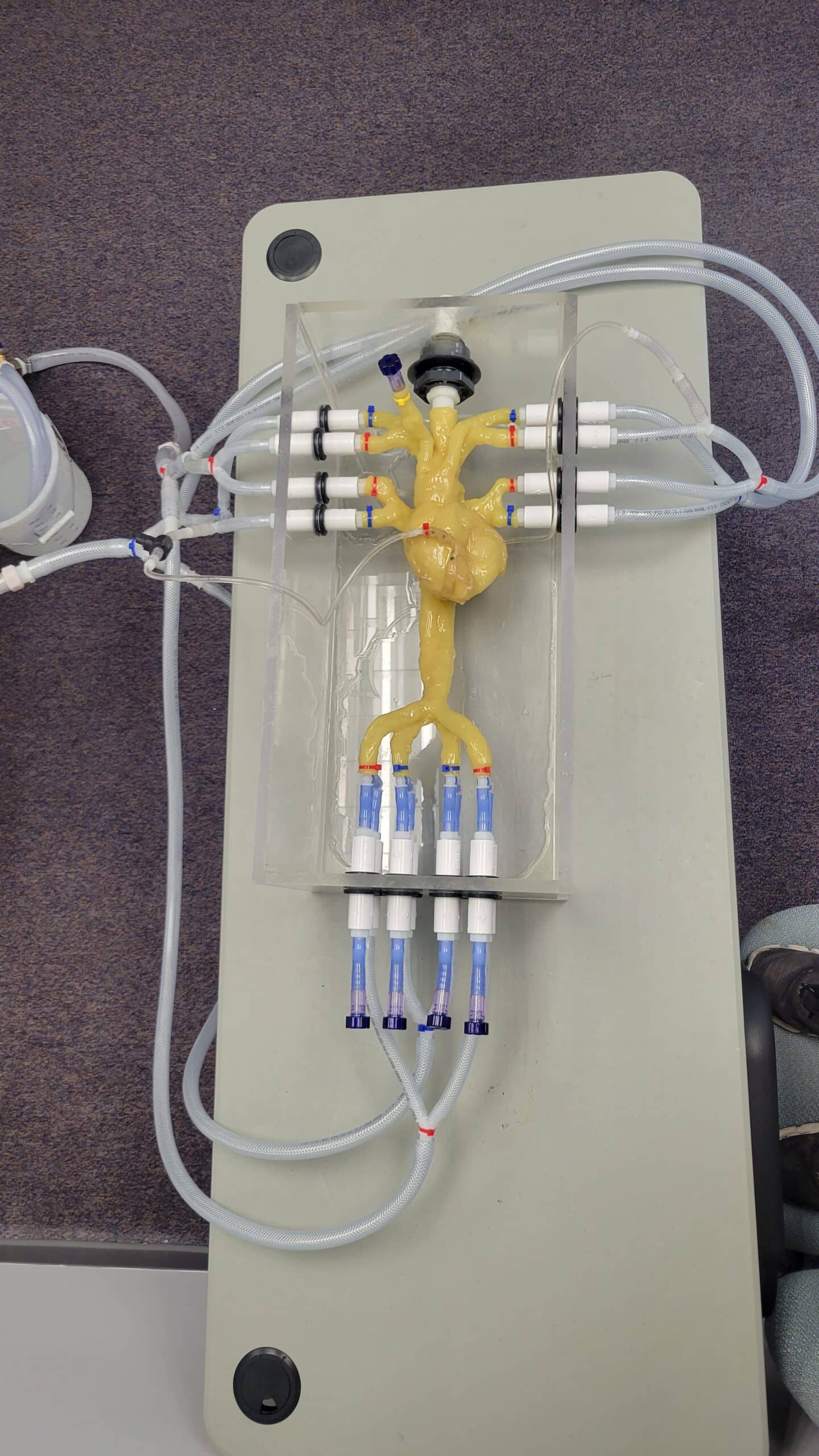

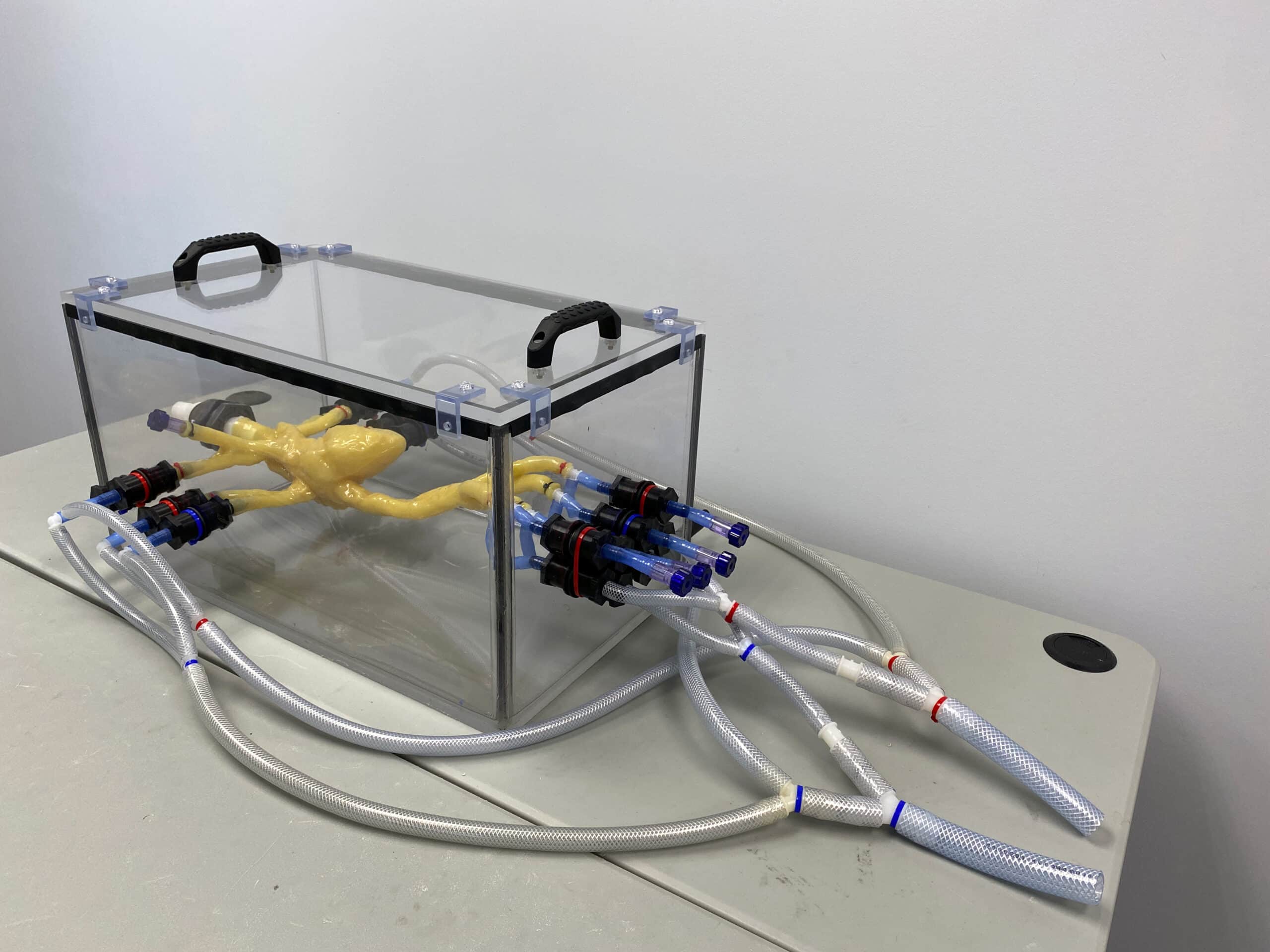

Water Tank and Heart Pump Set-Up:

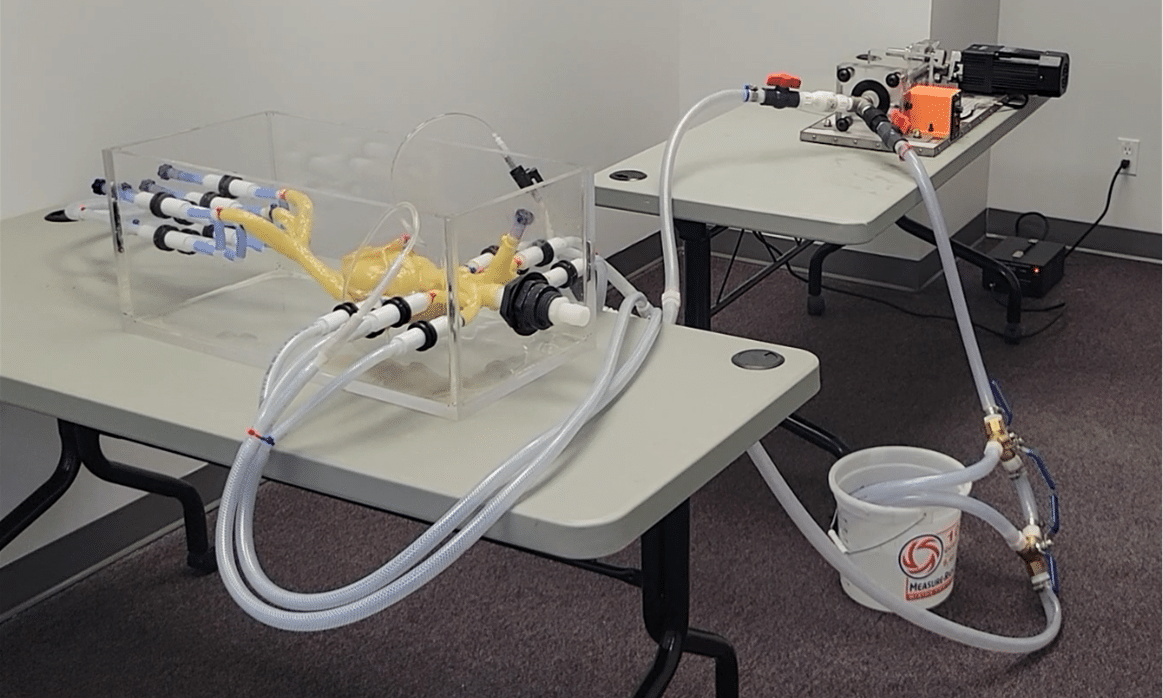

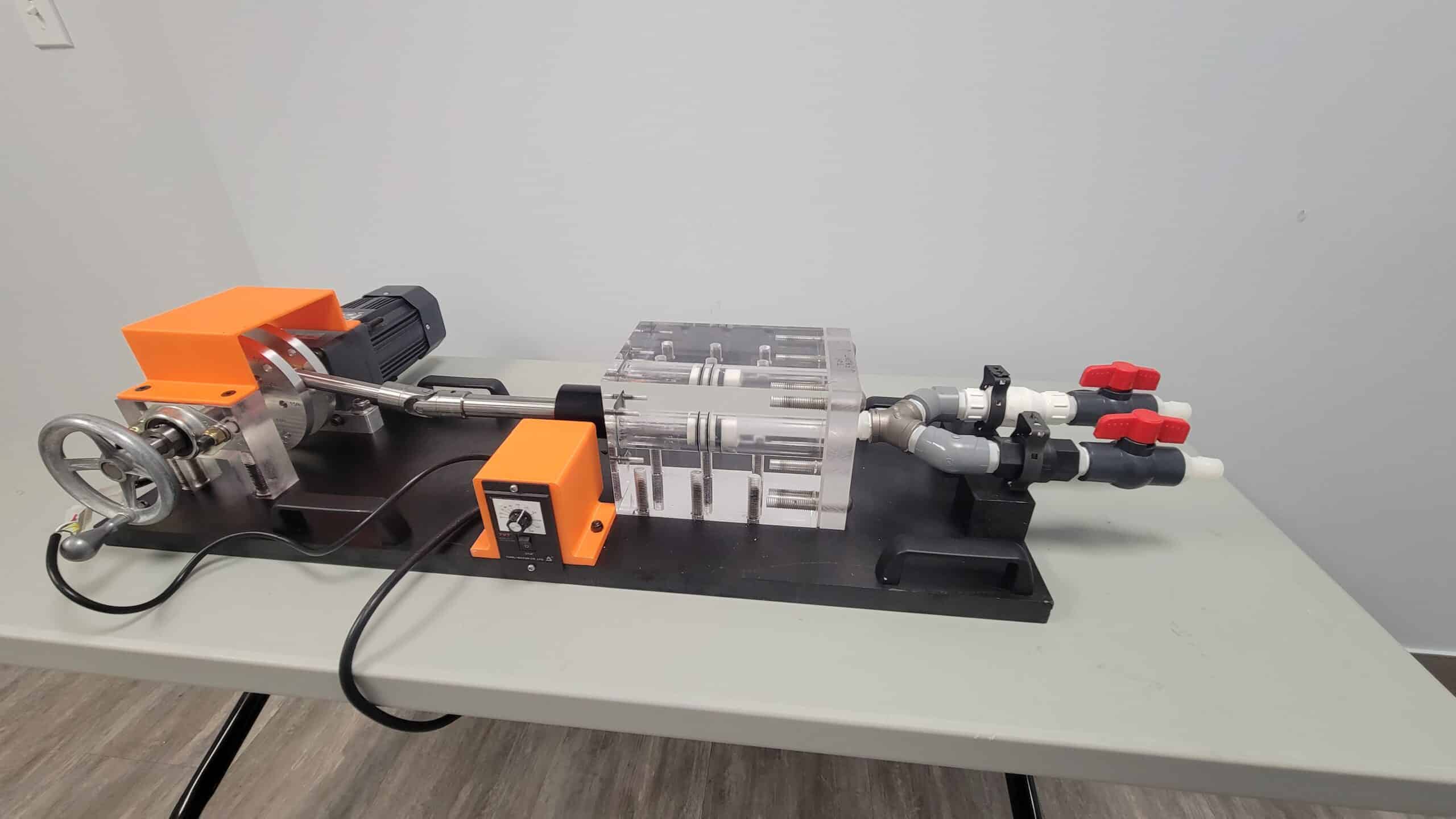

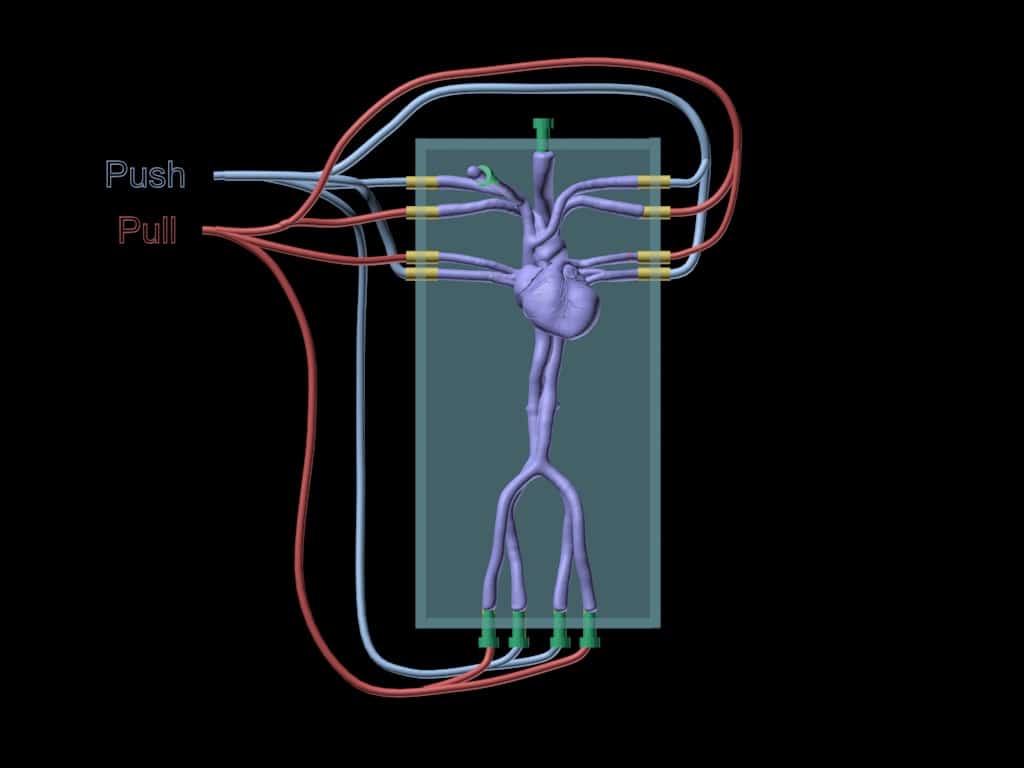

The above images show the Adult Heart Phantom set up with our TPS Heart Pump. These products are compatible and can be used to demonstrate beating heart motion. Please note that the above images are for reference only, and the heart pump must be purchased separately.
Torso Installation:

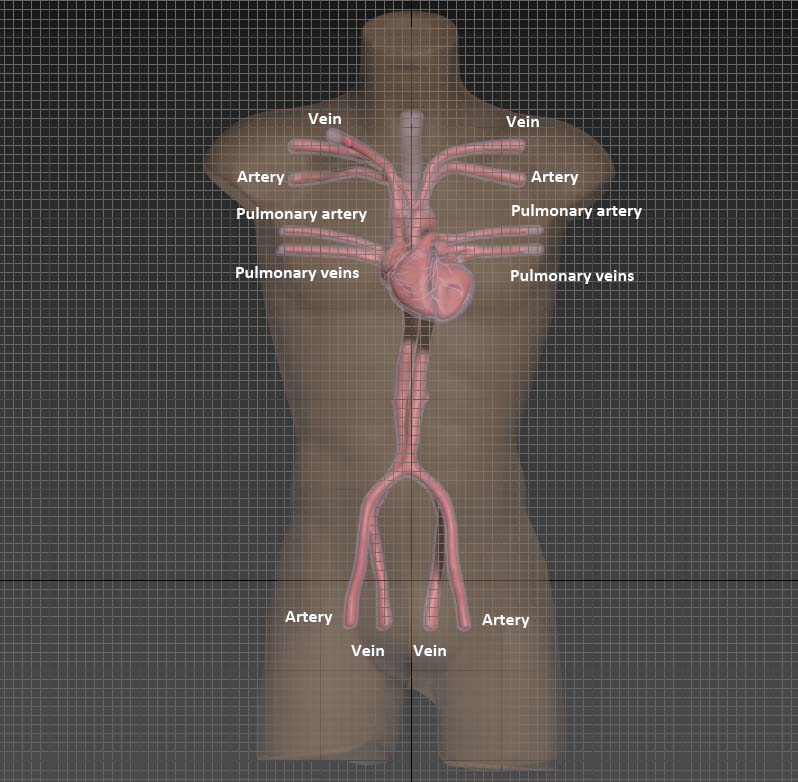

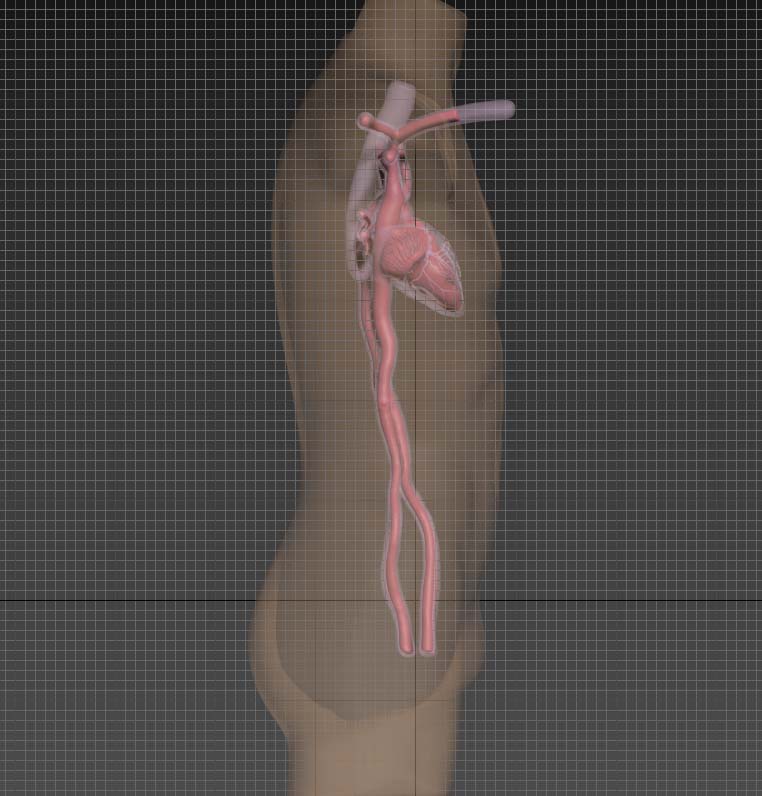

The above images show the Adult Heart Phantom installed into our TPS Advanced Adult Torso Phantom. Please note that the Torso must be purchased separately.
Technical Properties:

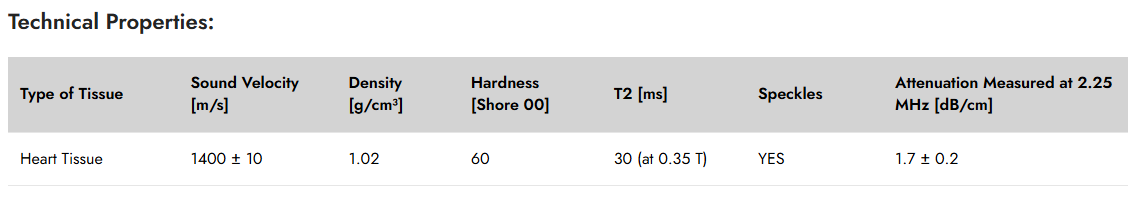

| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Heart Tissue | 1400 ± 10 | 1.02 | 60 | 30 (at 0.35 T) | YES | 1.7 ± 0.2 |
Included In Order:
Adult Heart Phantom
Water Tank for Heart Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 23 x 7 x 12 Inches, Weight: 3 Lbs (approx.).
Shipment:
Size: 36 x 24 x 12 Inches, Weight: 22 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
FAQ:
Please refer to our FAQ page.
