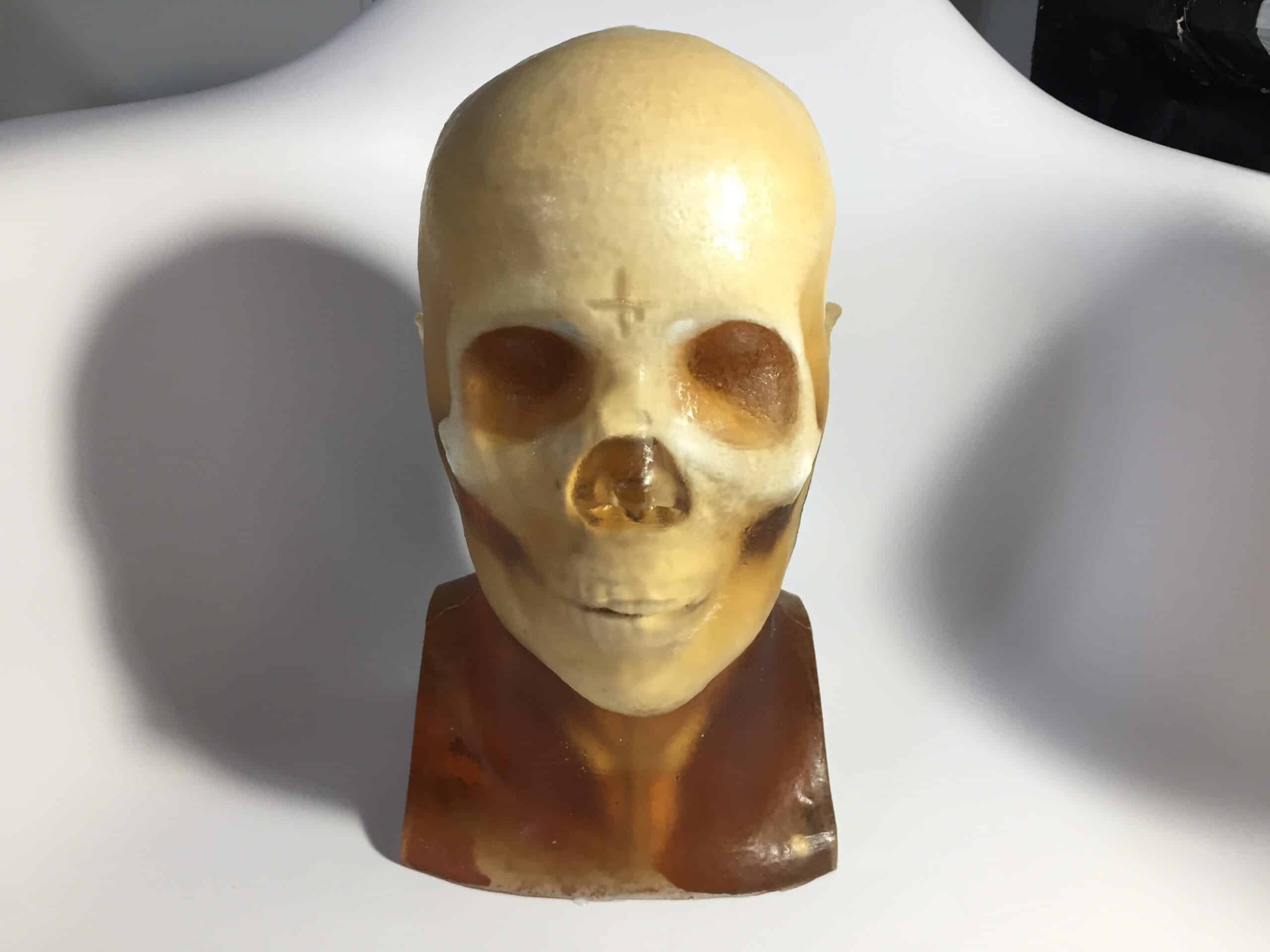

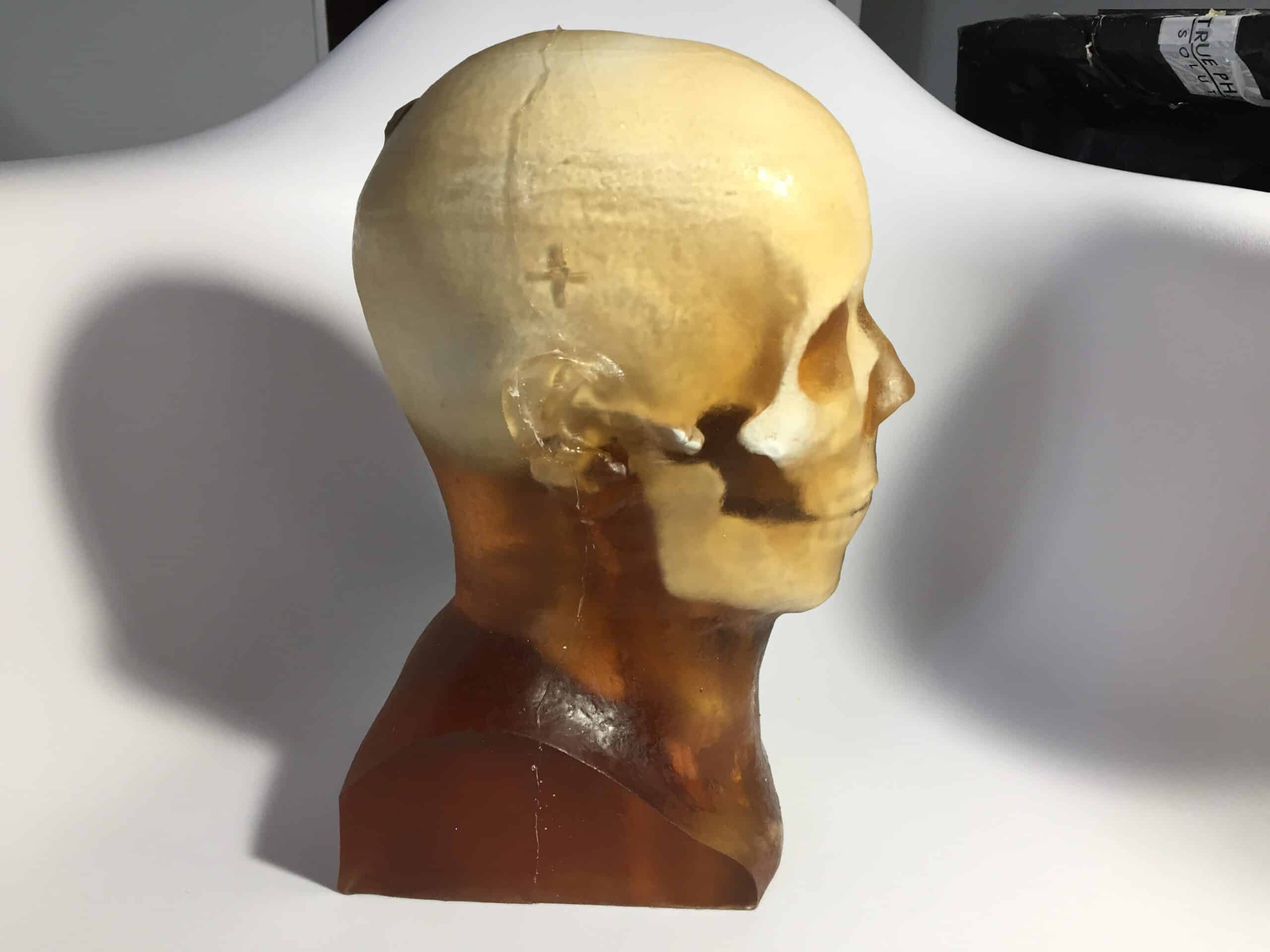

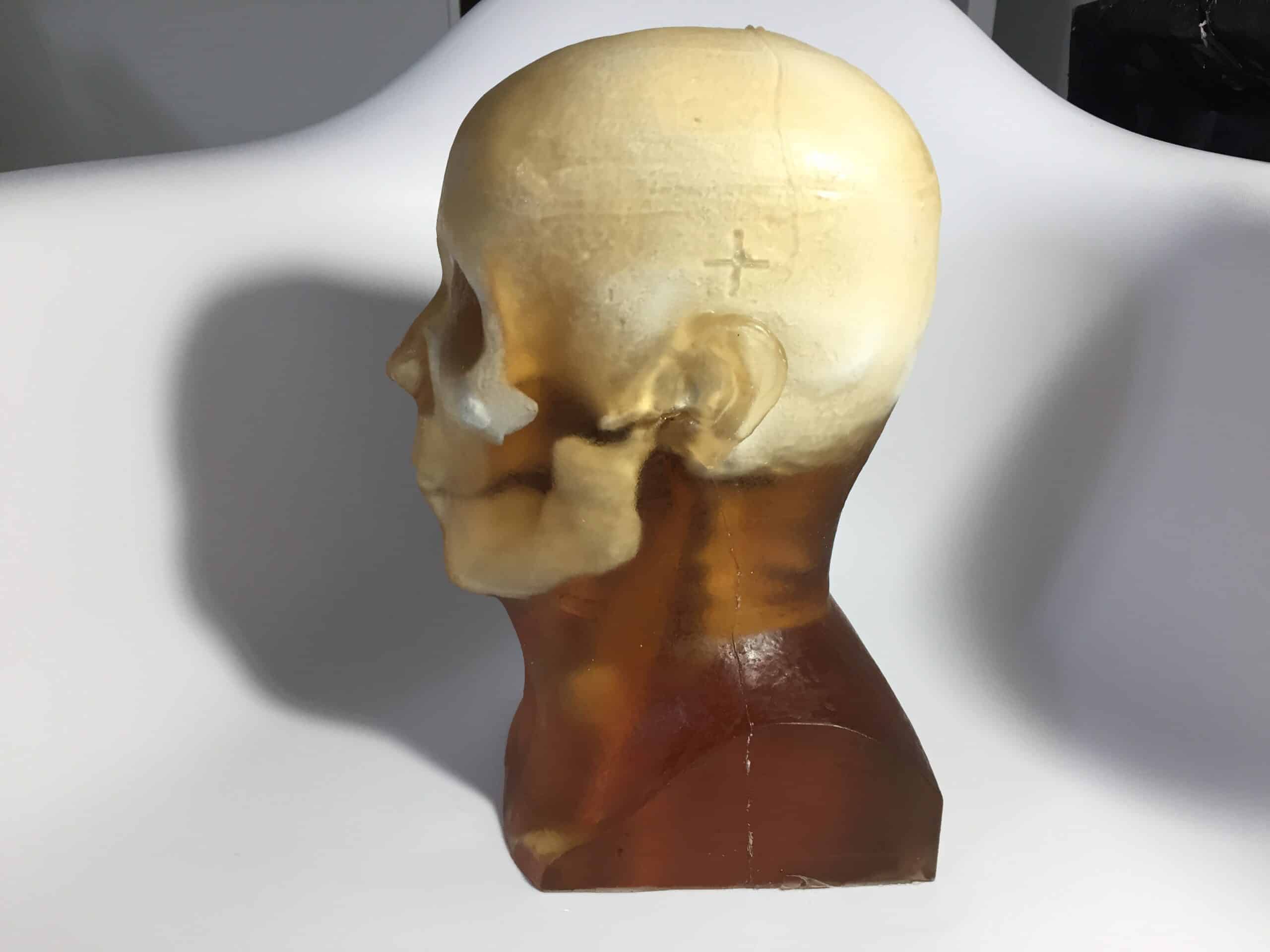

The Adult Head (Training, V1) is an X-ray/CT, MRI, and ultrasound-compatible training phantom used by radiology schools, medical schools & teaching hospitals for training their students & medical professionals in various scanning techniques. The skull bone has a realistic three-layered structure with an inner diploe layer. This
phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble,
and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

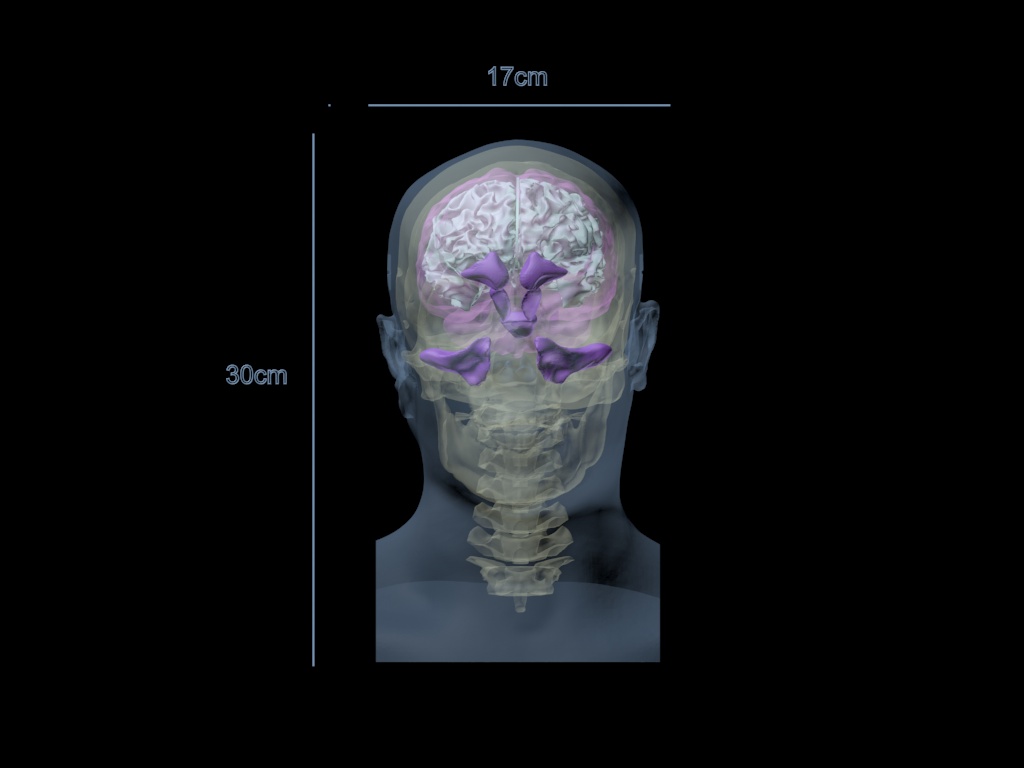

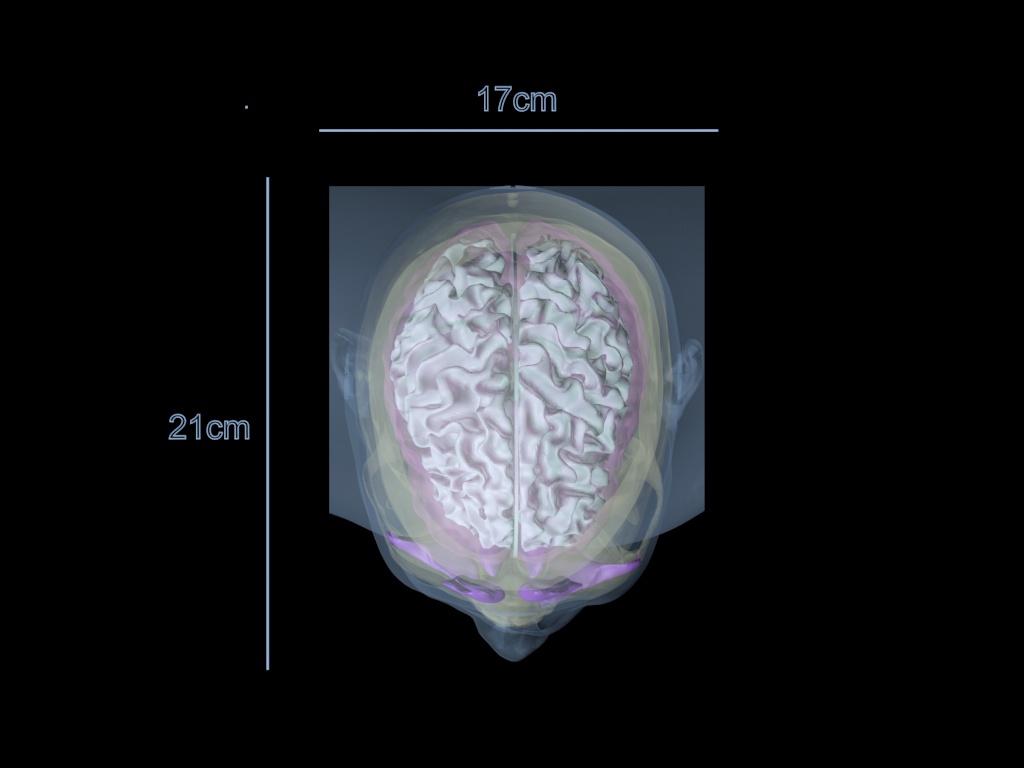

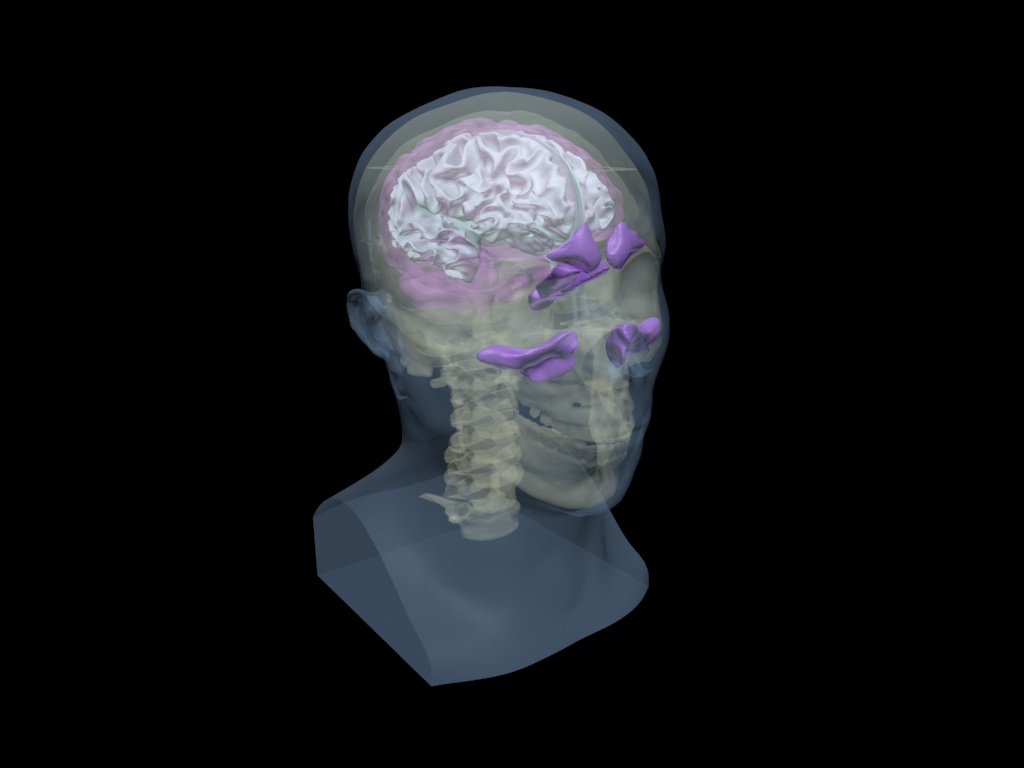

Anatomy:
Skull Phantom
Realistic Brain Phantom:
– Realistic Brain Tissue
– Gray Matter (contrast x)
– White Matter (contrast x’)
– Brain Ventricles
– Falx Cerebri
Realistic Air Cavities
Skin-Mimicking Material
Cervical Spine
Alignment Markings
Frontal Sinus with Air Gaps
Scan Results:
Coming Soon...
In the meantime, please refer to our Radiographs page for imaging quality of our phantoms.

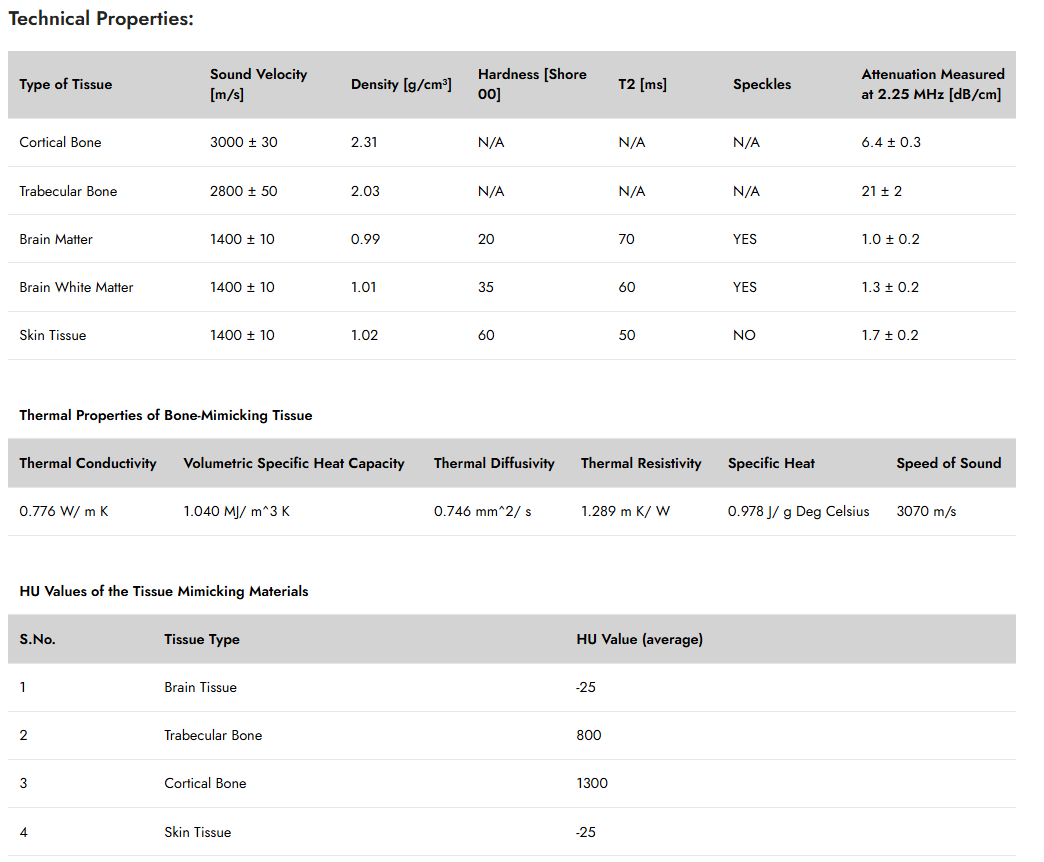

Technical Properties:
Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
Brain White Matter | 1400 ± 10 | 1.01 | 35 | 60 | YES | 1.3 ± 0.2 |
Skin Tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Tissue | |||||
Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking Materials | ||
S.No. | Tissue Type | HU Value (average) |
1 | Brain Tissue | -25 |
2 | Trabecular Bone | 800 |
3 | Cortical Bone | 1300 |
4 | Skin Tissue | -25 |
Add-ons (Optional):
Tumor
$349.00Temporal Bone
$950.00Stenosis
$690.00Simple Blood Vessel

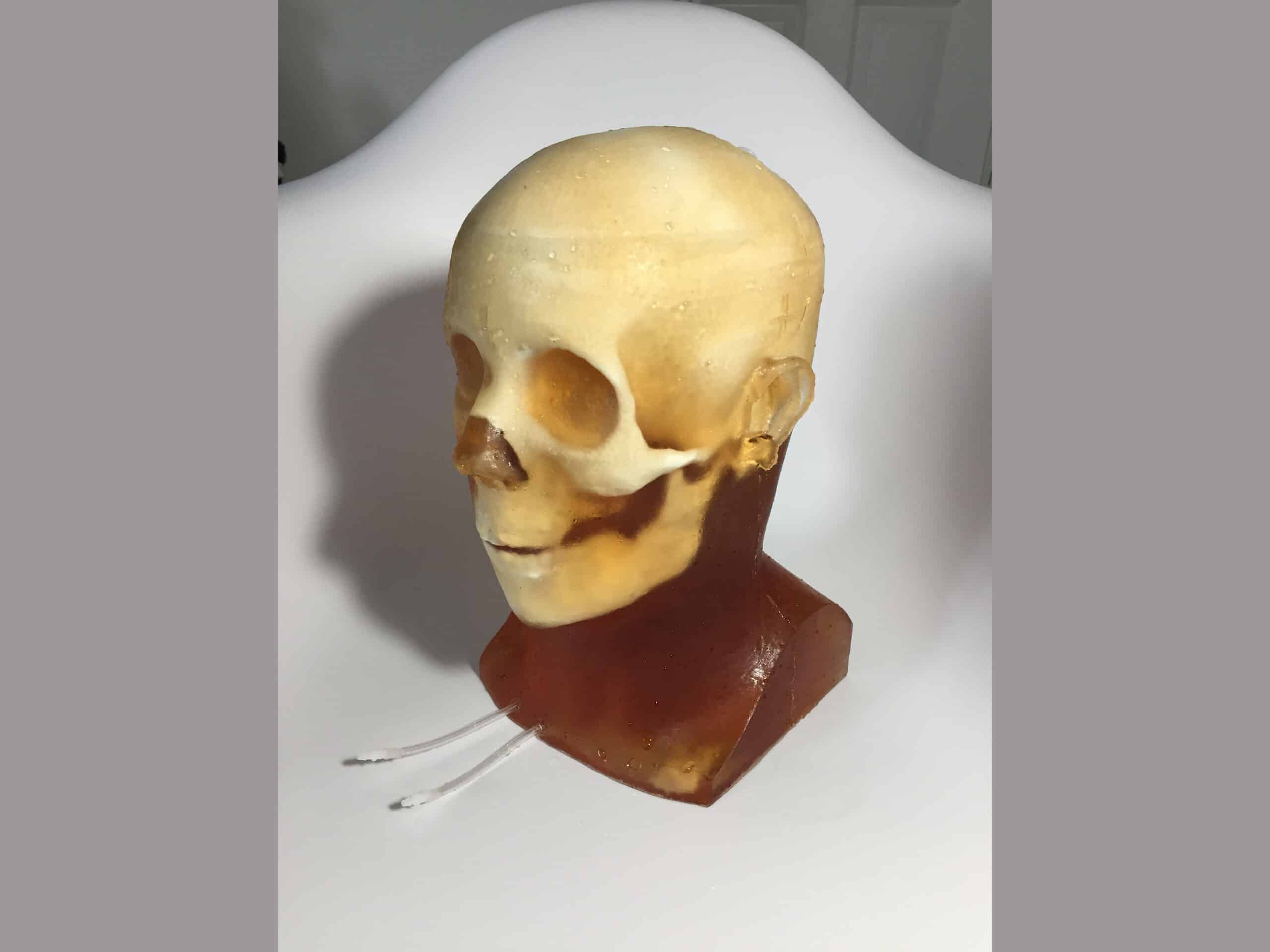

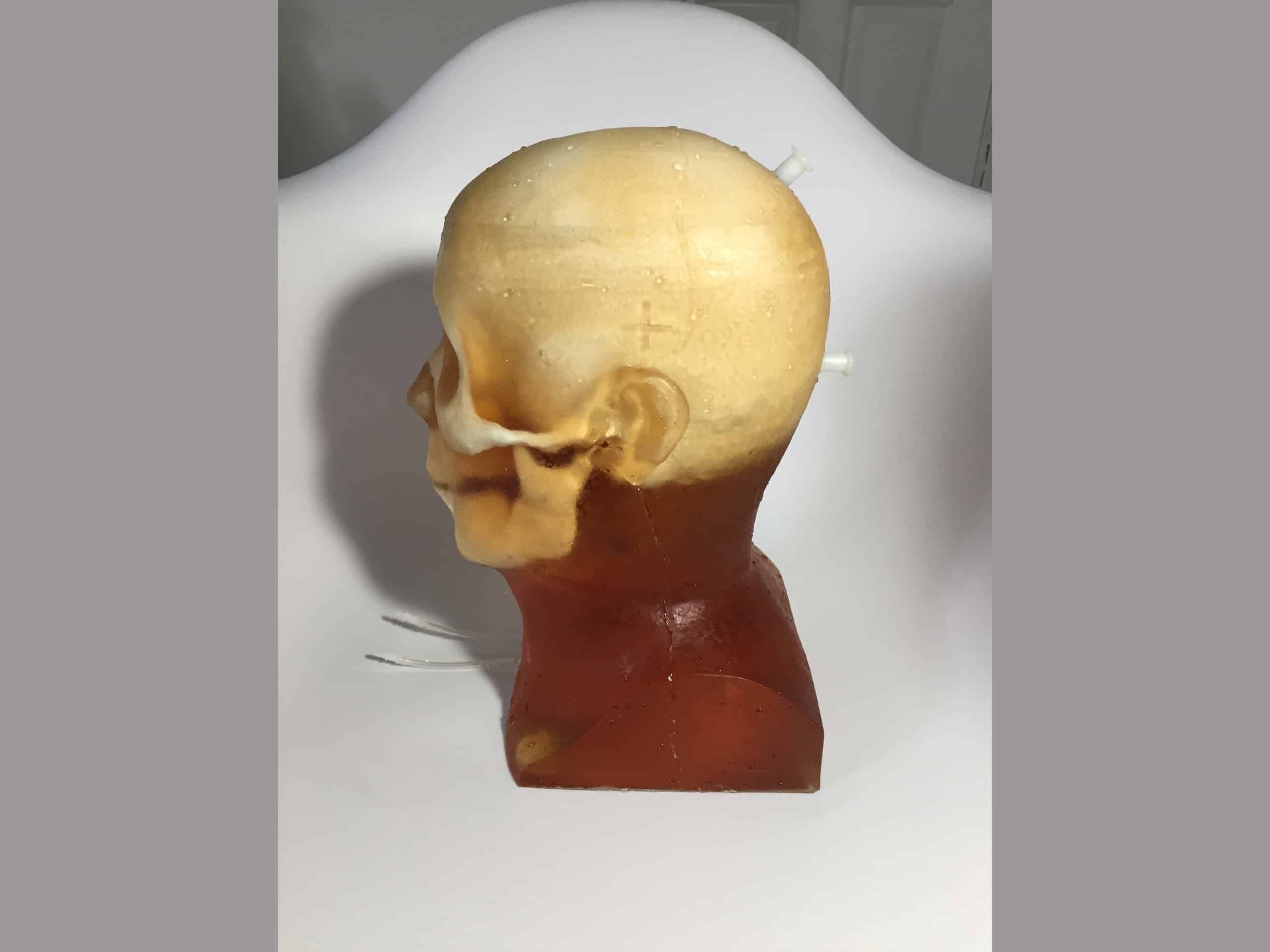

$249.00Hematoma
$759.00Foreign Objects
$599.00Complex Blood Vessel
$699.00Calvaria
$1,860.00Brain Vessels
$3,241.00Bifurcation
$599.00Aneurysm
$690.00Included In Order:
Adult Head (Training, V1) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case

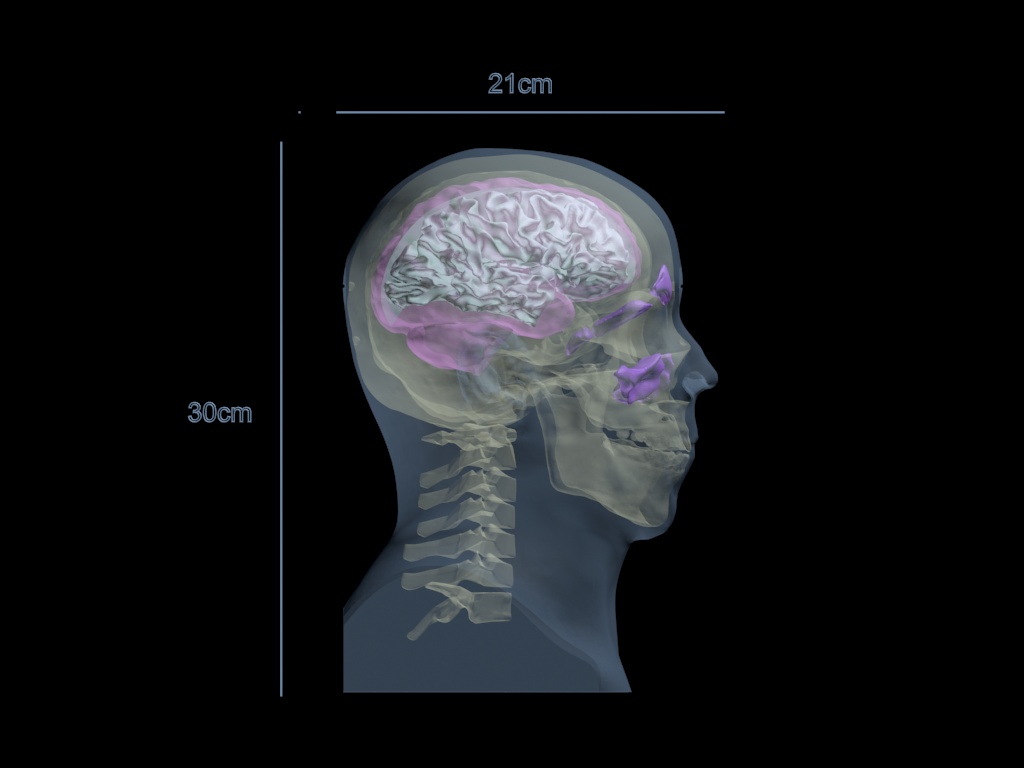

Size & Weight:
Phantom:
Size: 12 x 9 x 7 Inches, Weight: 17 Lbs (approx.).
Shipment:
Size: 23 x 14 x 10 Inches, Weight: 22 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
