Adult Head (Standard) phantom is designed based on an average human male head and is made of realistic tissue mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. This head phantom can also be used for angiography purposes. The brain parenchyma inside of the skull phantom is made of an ultra-soft polyurethane-based material that mimics soft tissue, and its anatomical shape was created based on the optical scan of an average human brain model used in the anatomy class for medical students. The materials used to build the phantom are stable over time, and they do not dry out. The skull bone has a realistic three-layered structure with an inner diploe layer. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The phantom comprises the entire ventricular system (lateral, third, and fourth ventricles), which can be used to generate pressure inside the brain and more closely approximate real cerebral anatomy. The ventricles are inflatable and can be filled with any liquid.
Anatomy:
Realistic Skull Phantom Realistic Brain Phantom
– Water-Fillable Brain Ventricles
– Brain Tumor
– Falx Cerebri Blood Vessels with One Bifurcation Acoustically Correct Skin Mimicking Material
Design:
-

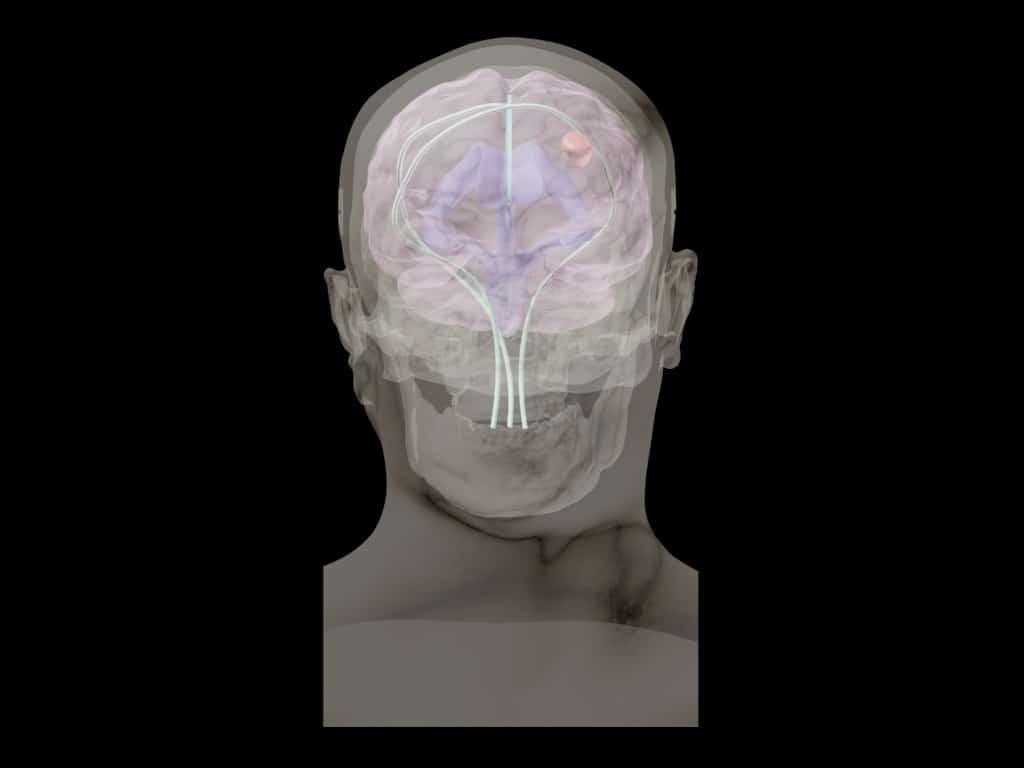

- Front View
-
- Lateral View
-

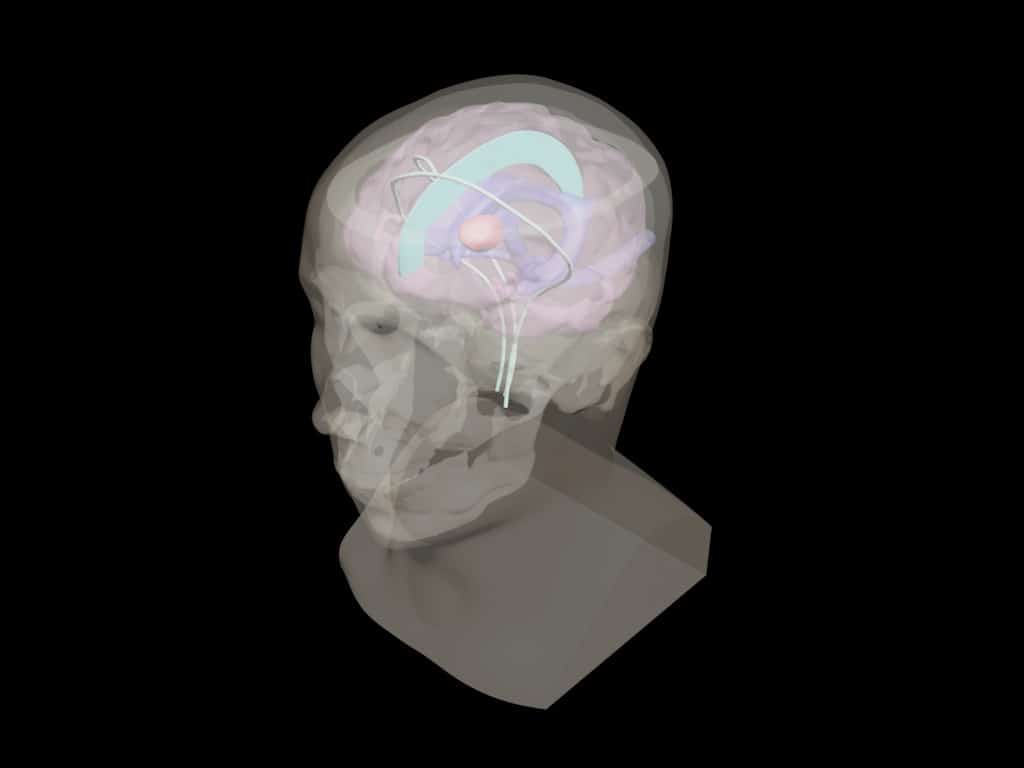

- Perspective View
-

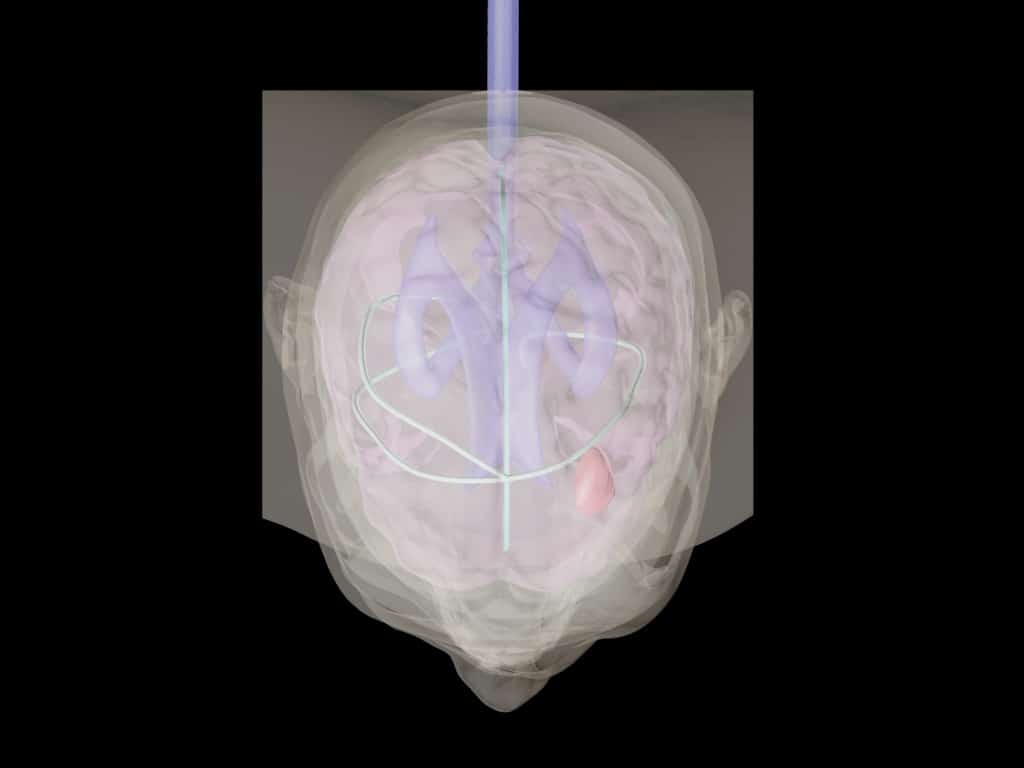

- Top View

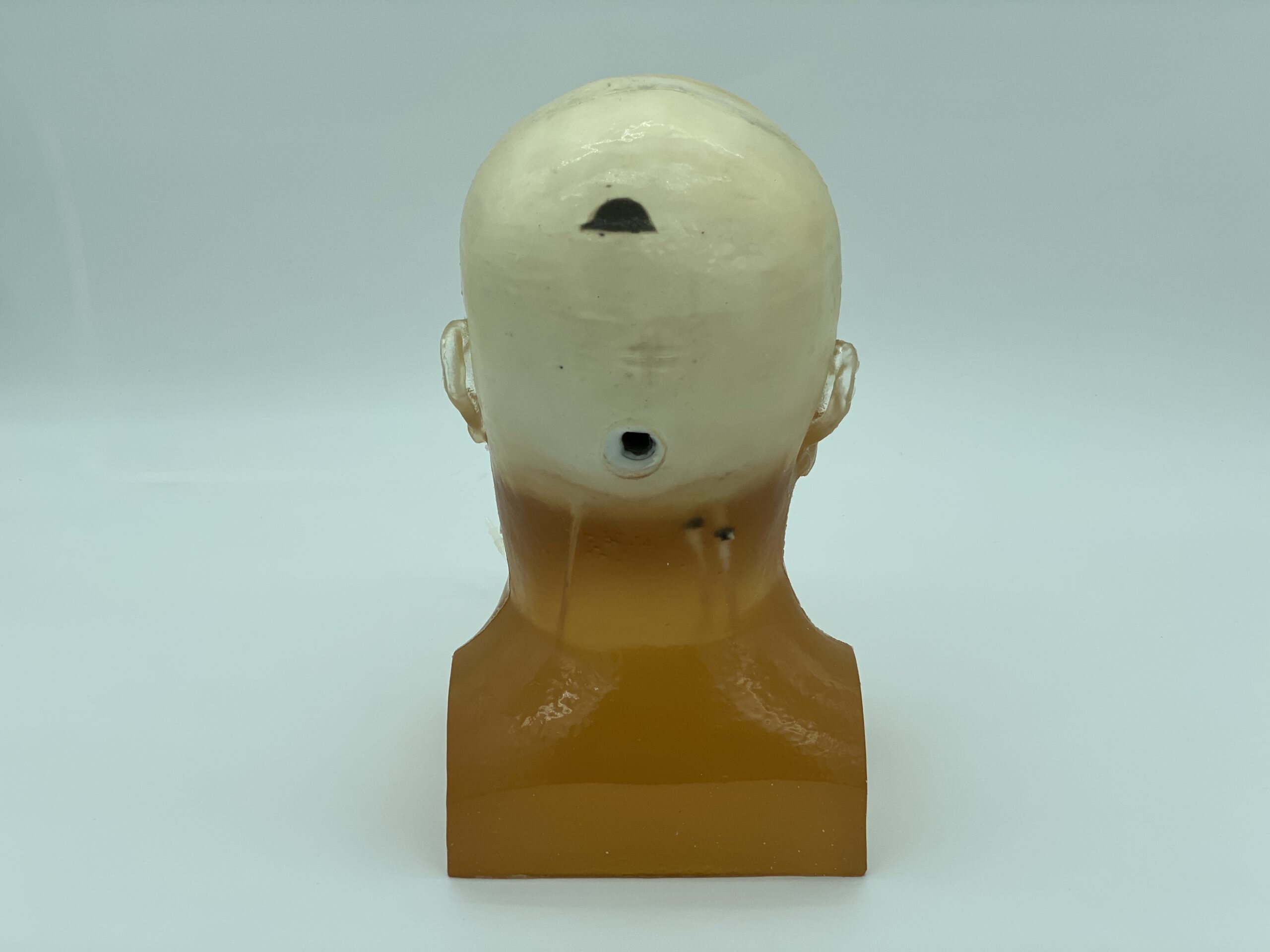

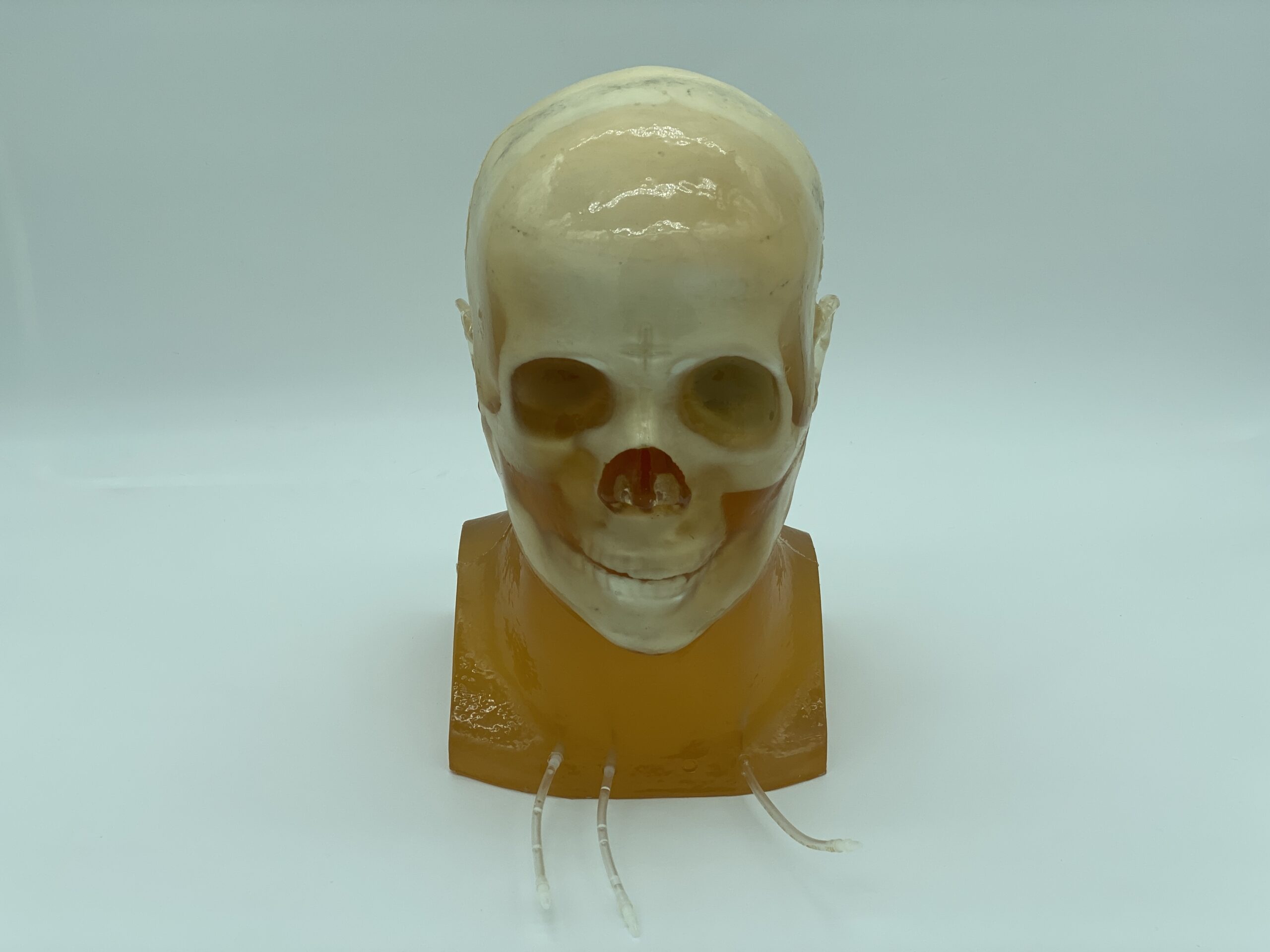

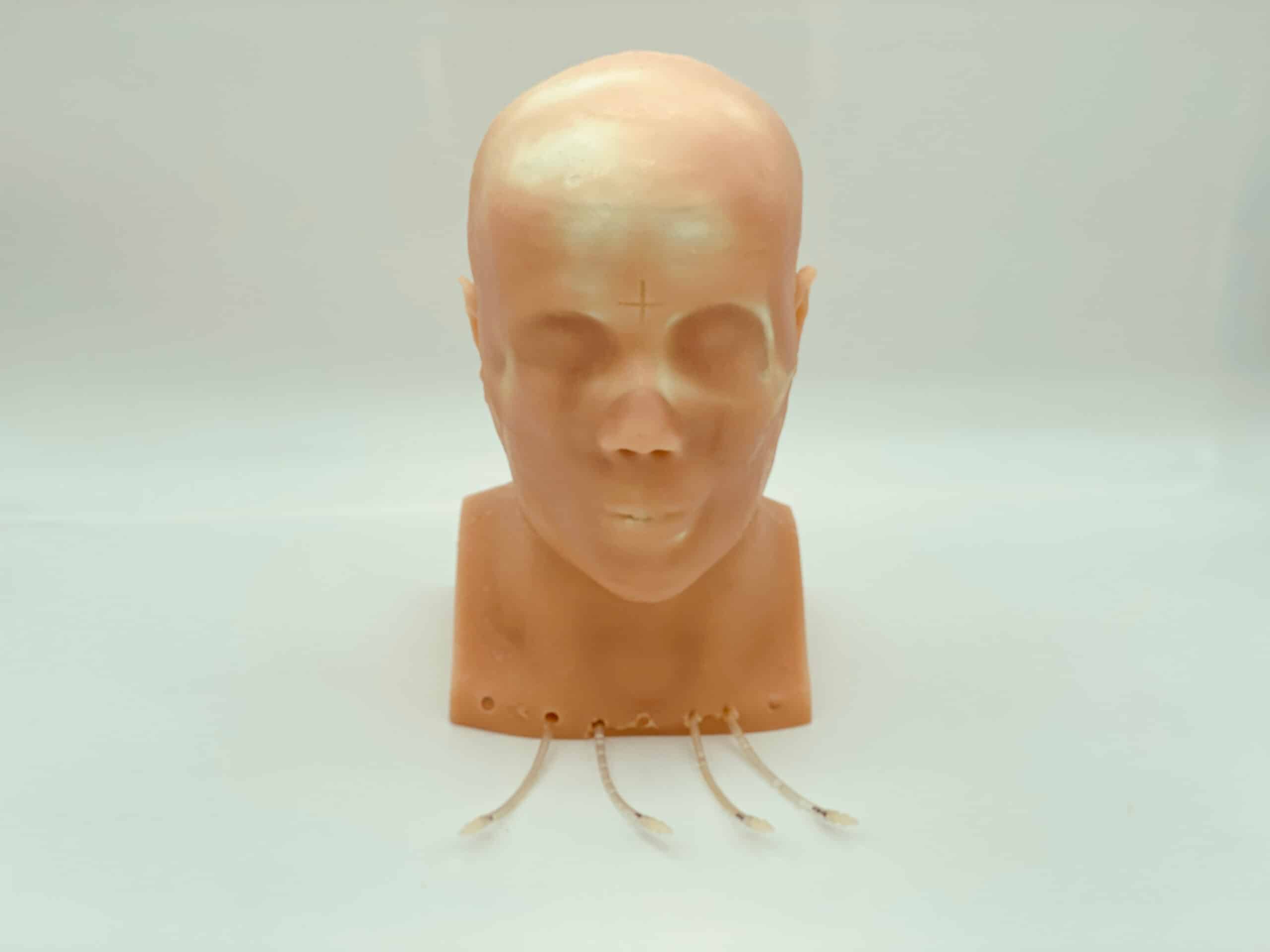

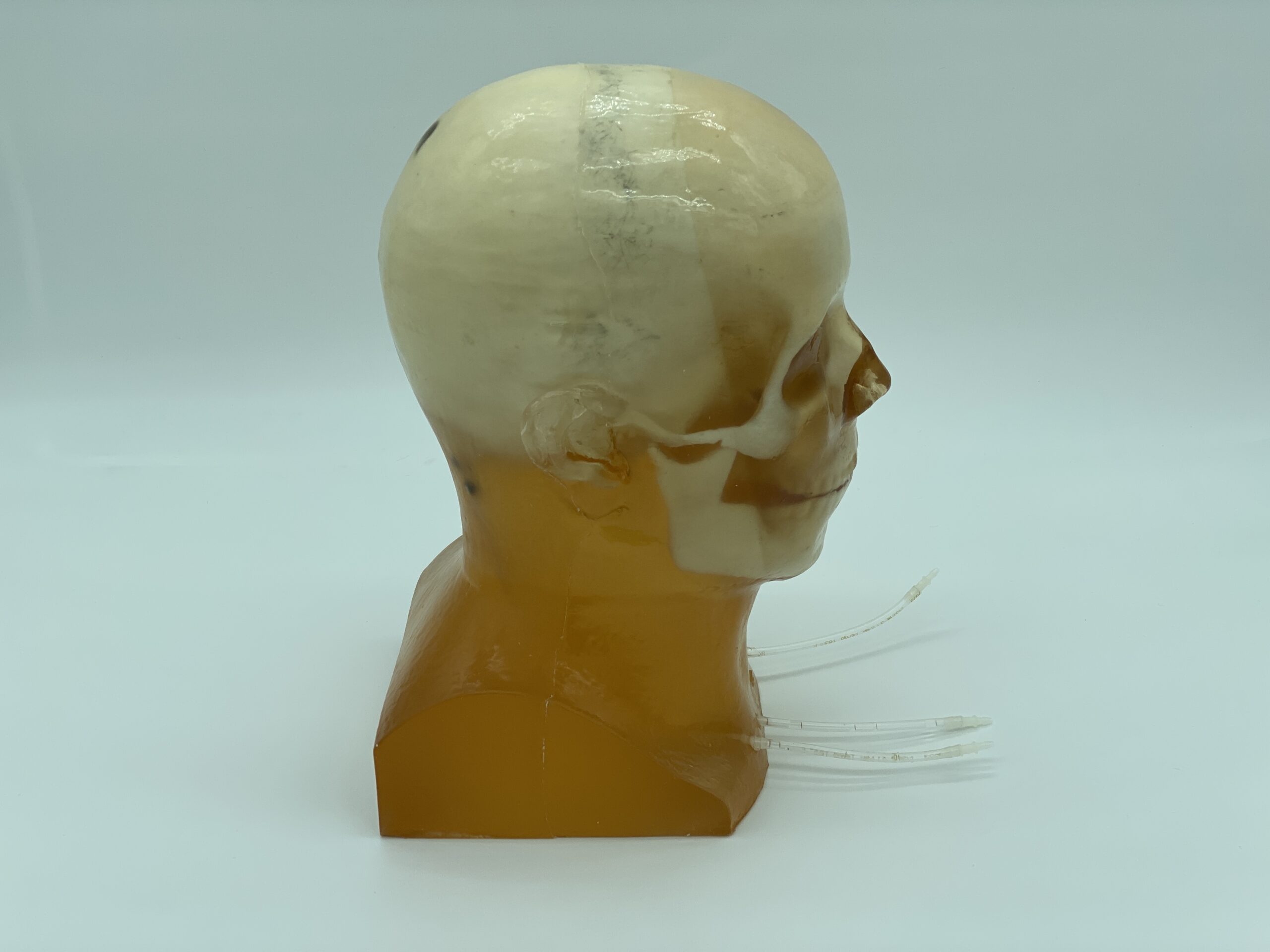

Product Images:
-

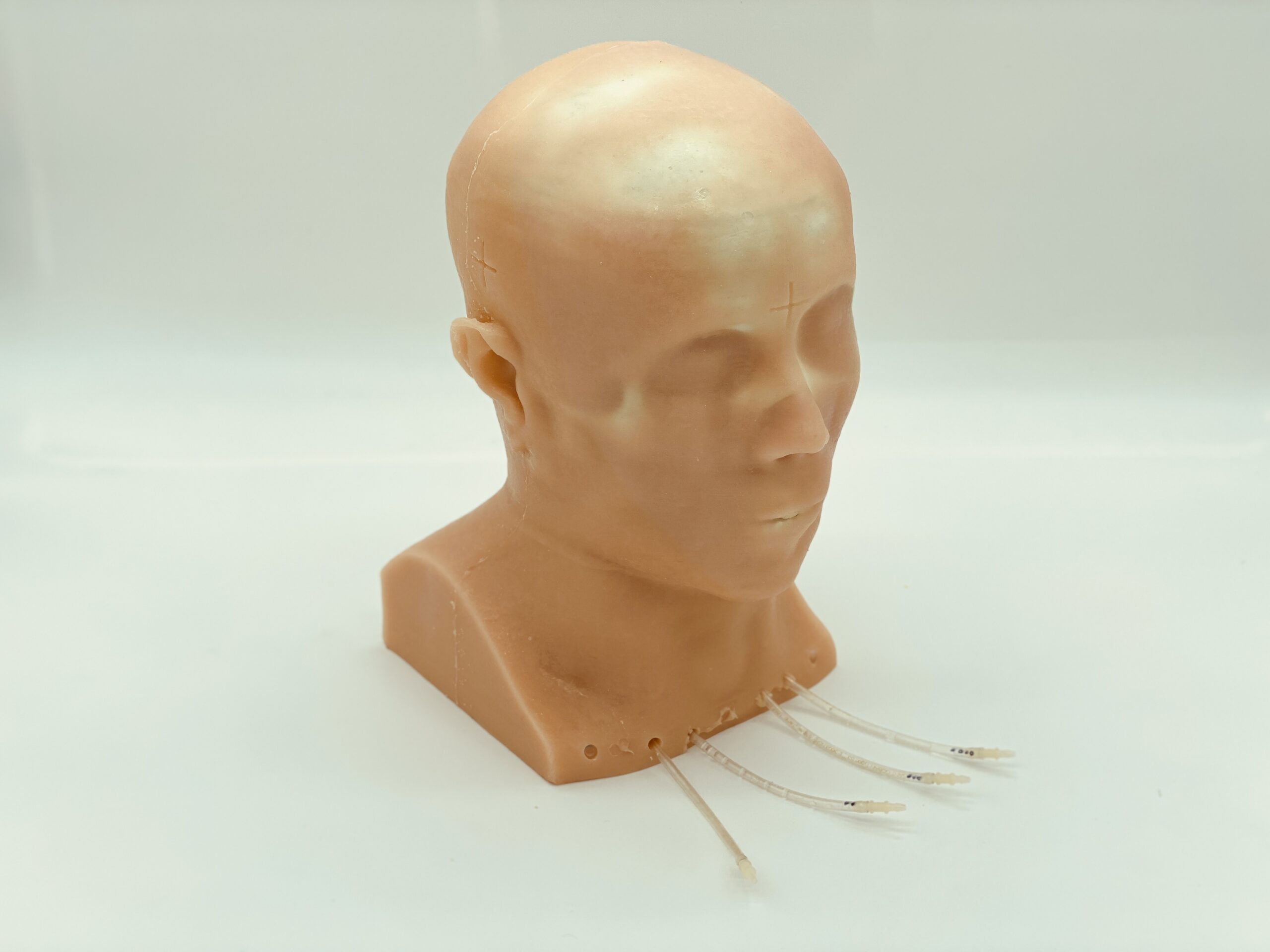

- custom skin feature added
-
- custom skin feature added
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
X-Ray Scans:
-
- LR View – Right
-
- AP View
*/ These X-Ray scans were obtained from our Adult Human Head Phantom (Dynamic). However, the skull used in this phantom is our standard adult skull– SKU:SL-A01. If you have any questions related to these, please write us at [email protected] /*
For more imaging quality reference, please see our Radiographs page.

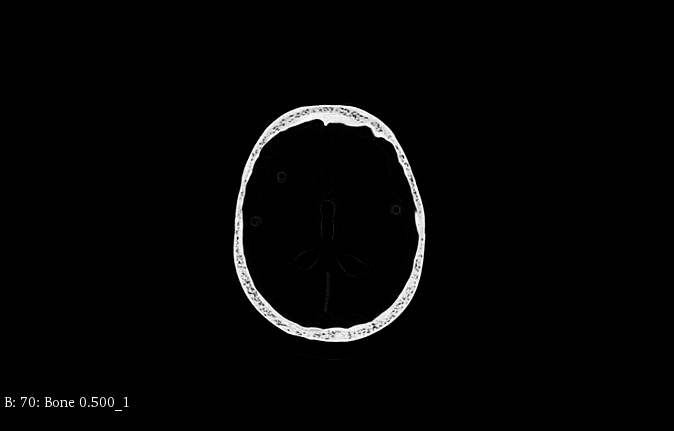

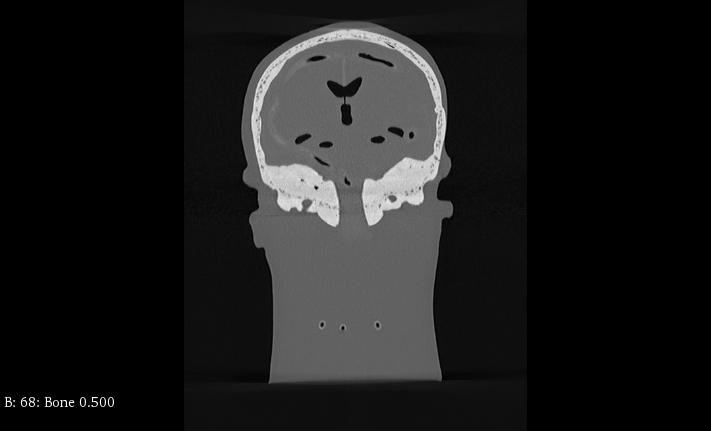

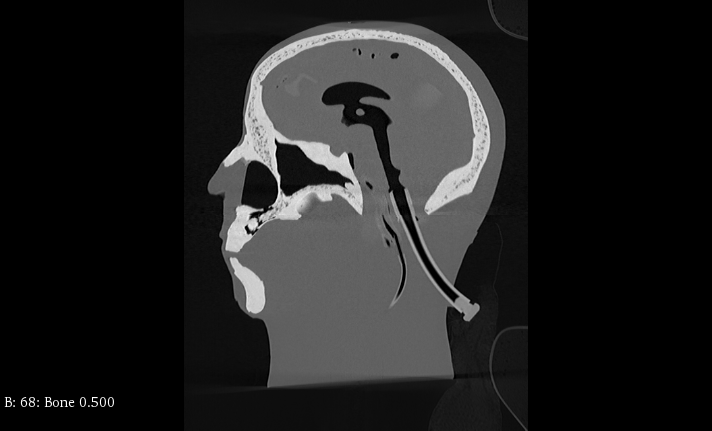

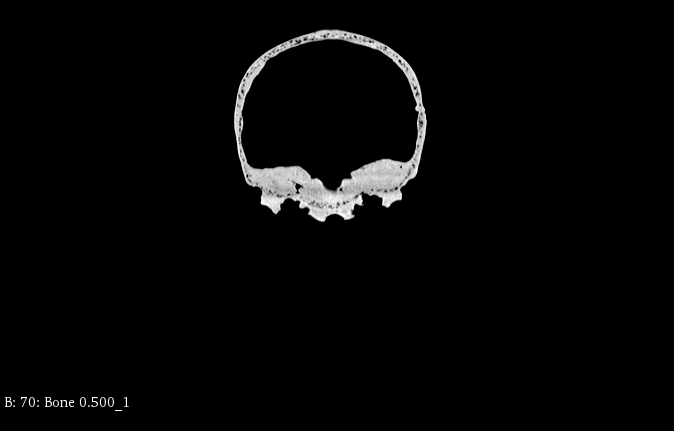

CT Scans:
These scans were taken using a Canon CT scanner Aquilion ONE (Model TSX-305A). The DICOM files are available upon request, please contact us at [email protected] for more information.

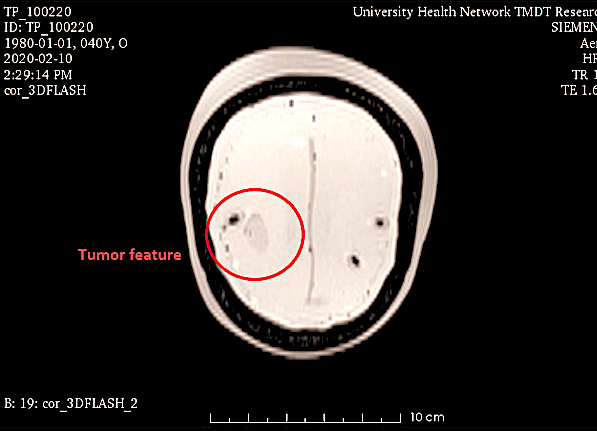

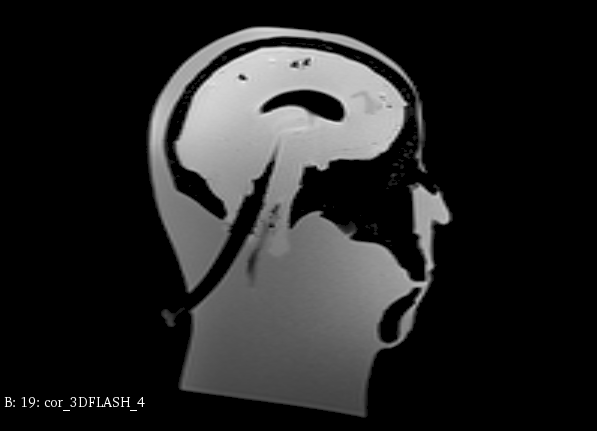

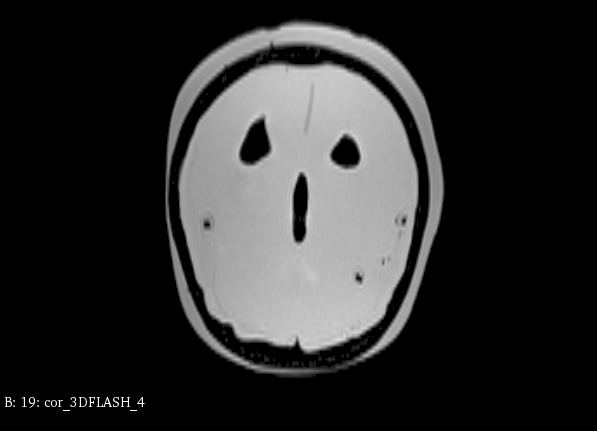

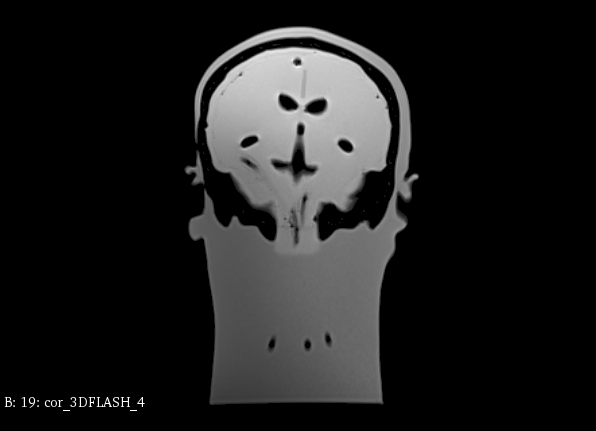

MRI Scans:
The DICOM files are available upon request, please contact us at [email protected] for more information.

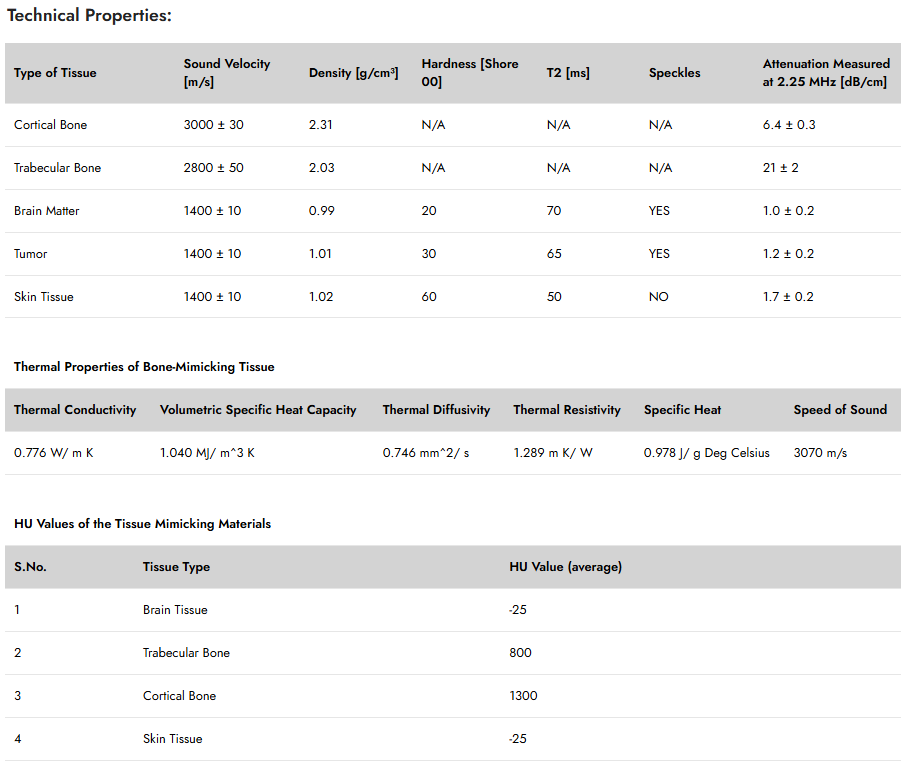

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Tumor | 1400 ± 10 | 1.01 | 30 | 65 | YES | 1.2 ± 0.2 |
| Skin Tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
Add-ons (Optional):
Included In Order:
Adult Head (Standard) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 12 x 9 x 7 Inches, Weight: 17 Lbs (approx.).
Shipment:
Size: 23 x 14 x 10 Inches, Weight: 22 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
