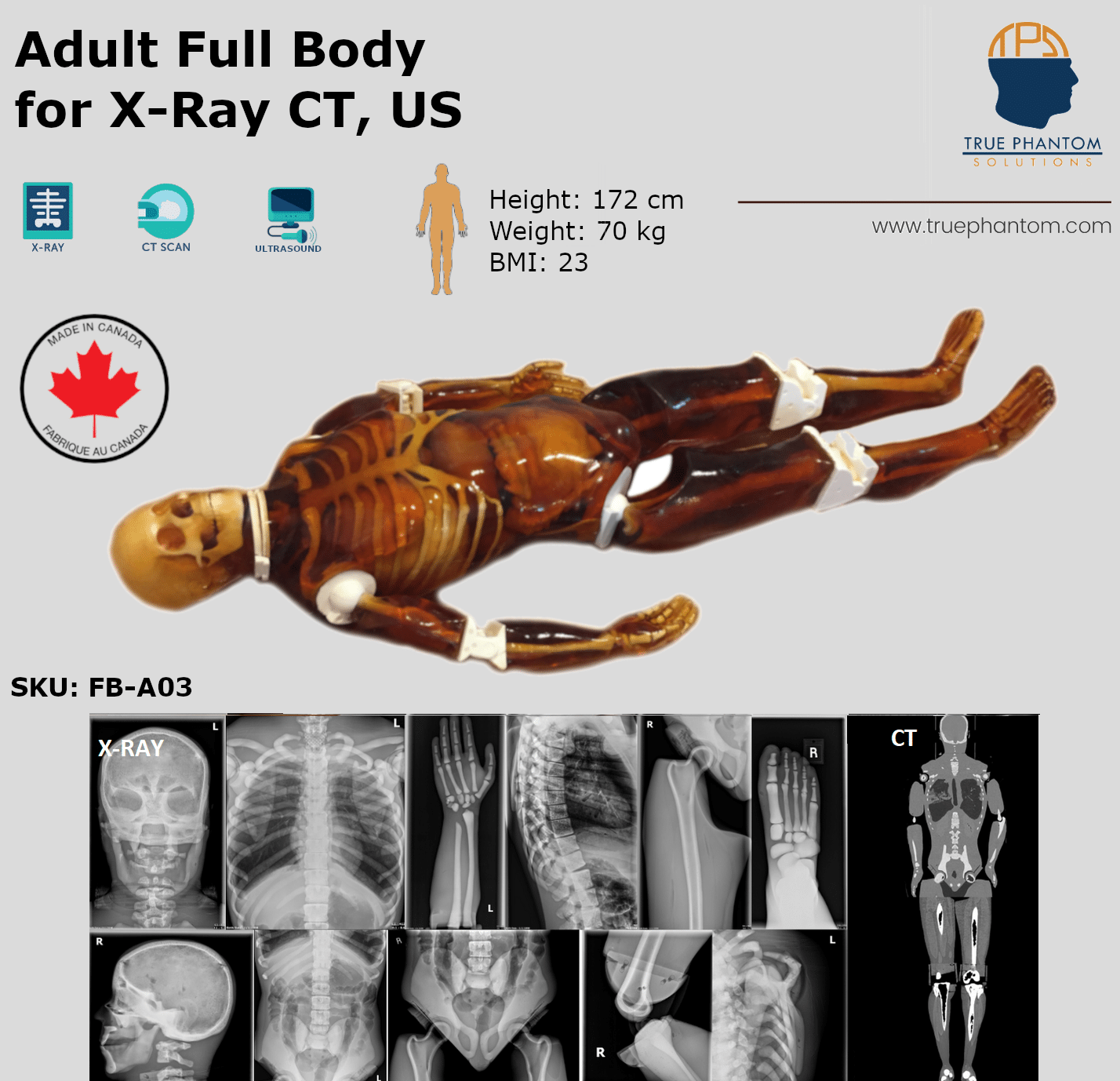

This Adult Full Body Phantom is an X-Ray/CT and US-compatible training product. The primary application of this phantom is hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.
The model of this phantom is based on an adult male body that weighs about 70 kg (154 lb) and measures 172 cm (69 in) in height.
The bones have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request. This positioning phantom can be ordered in a translucent or skin-colored version.
Anatomy:
The following anatomical features are included in the standard version of this phantom. Should you require additional organs or components, please reach out to us and we can customize the model to suit your specific needs.
Full Human Body (10 Parts) Realistic Body Tissue-Mimicking Material Rotatable Shoulders (360° Around and 180° Sideways) Movable Hip, Knee, and Elbow Joints Detachable Head, Torso, and Limbs Adult Head
– Skull
– Brain
– Brain Tissue
– Grey and White Matter
– Air Cavities
– Frontal Sinus with Air Gaps Adult Torso
– Spine
– Ribcage
– Shoulders
– Clavicles
– Pelvis
– Trachea
– Heart
– Lungs
– Diaphragm
– Liver
– Gallbladder
– Stomach
– Kidneys
– Spleen
– Pancreas
– Large and Small Intestines
– Bladder
– Prostate Adult Arms
– Humerus
– Elbow Joints
– Radius
– Ulna
– Wrist
– Fingers Adult Legs
– Femur
– Knee Joints
– Tibia
– Fibula
– Foot
– Toes Transparent or Skin-Mimicking Appearance
Design:
-
- Front View
-
- Lateral View
-
- Perspective View
-

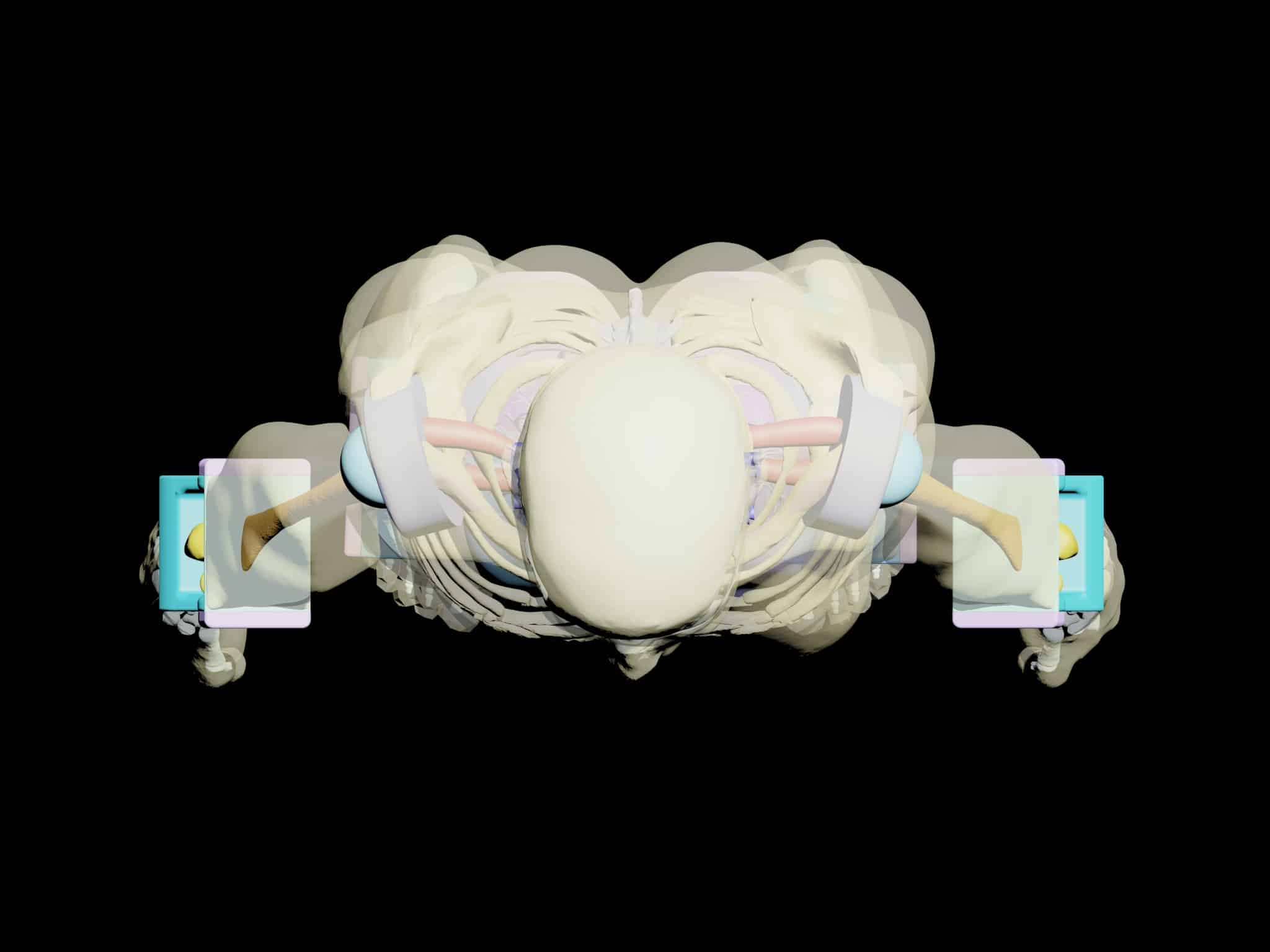

- Top View
-

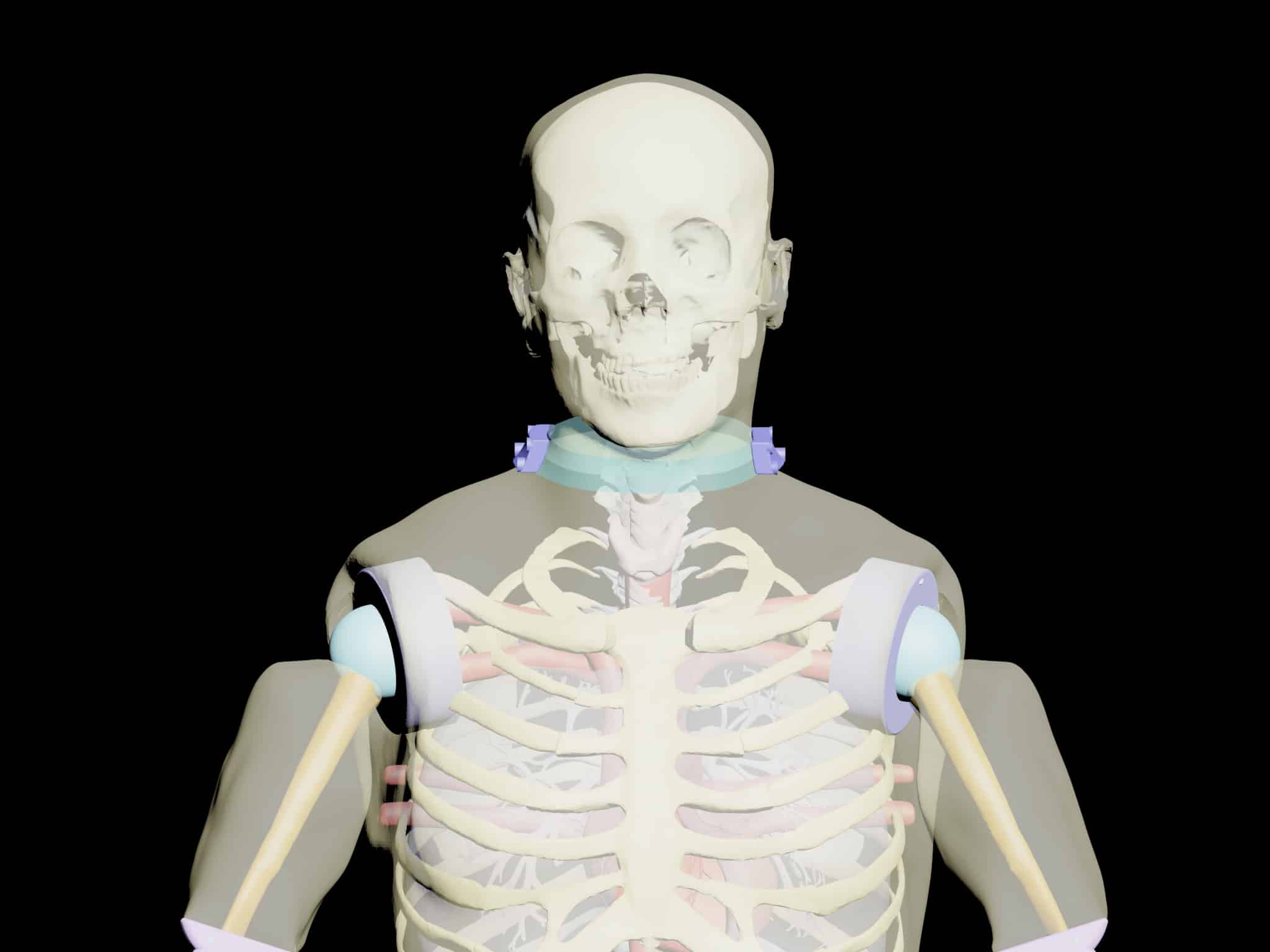

- Front View – Upper
-

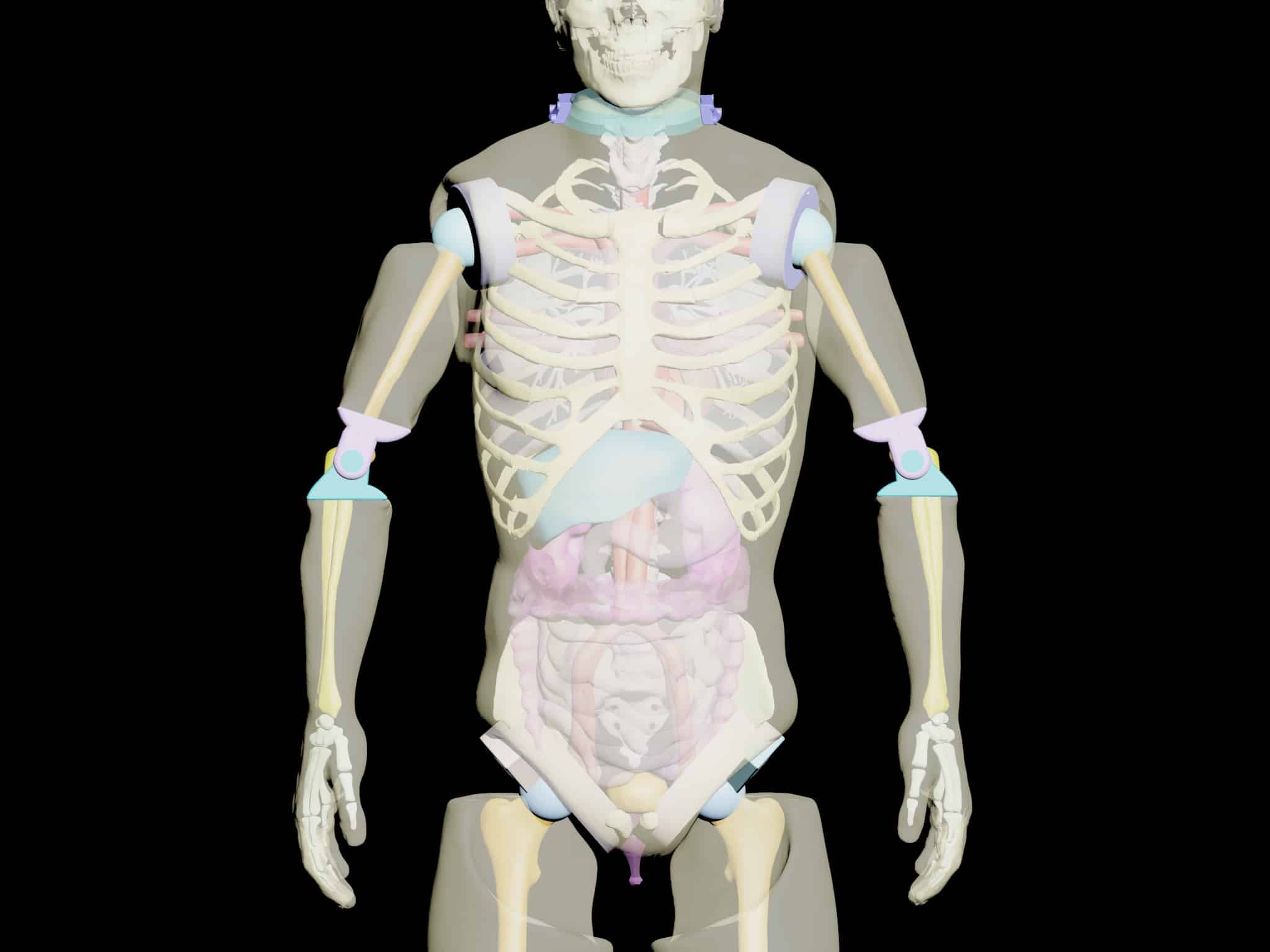

- Front View – Mid
-
- Front View – legs
Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of an adult male for medical imaging, it is not meant to replace a live person and may have certain limitations in its capabilities.
Unlike an actual human however, the phantom will not be harmed or deteriorated due to repeated radiation. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents a safe alternative to using cadavers or volunteers. This makes it a sustainable, ethical choice for the early stages of research and education.
Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, please refer to our Warranty Policy and Return Policy. For any specific questions or concerns, please contact our technical team here.

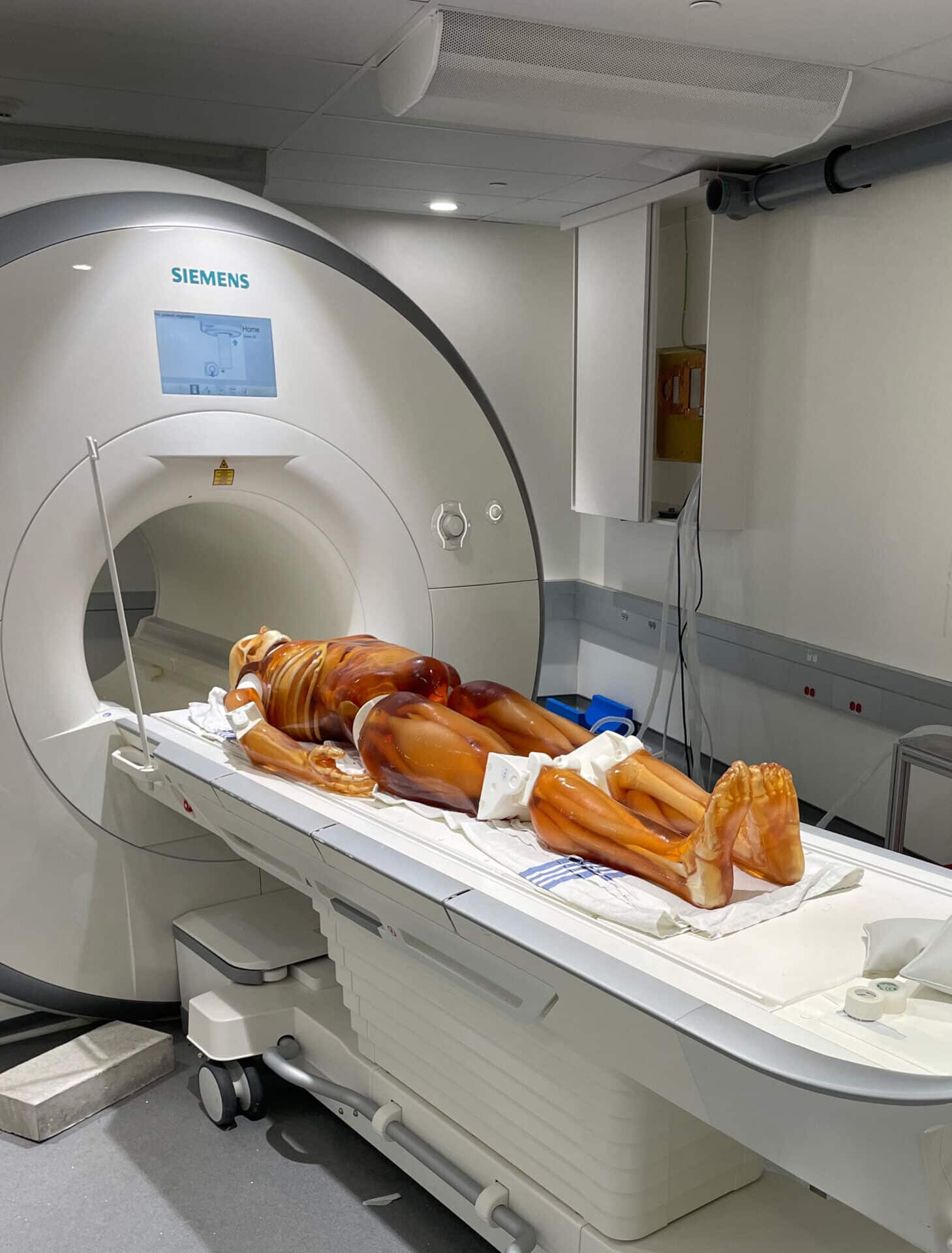

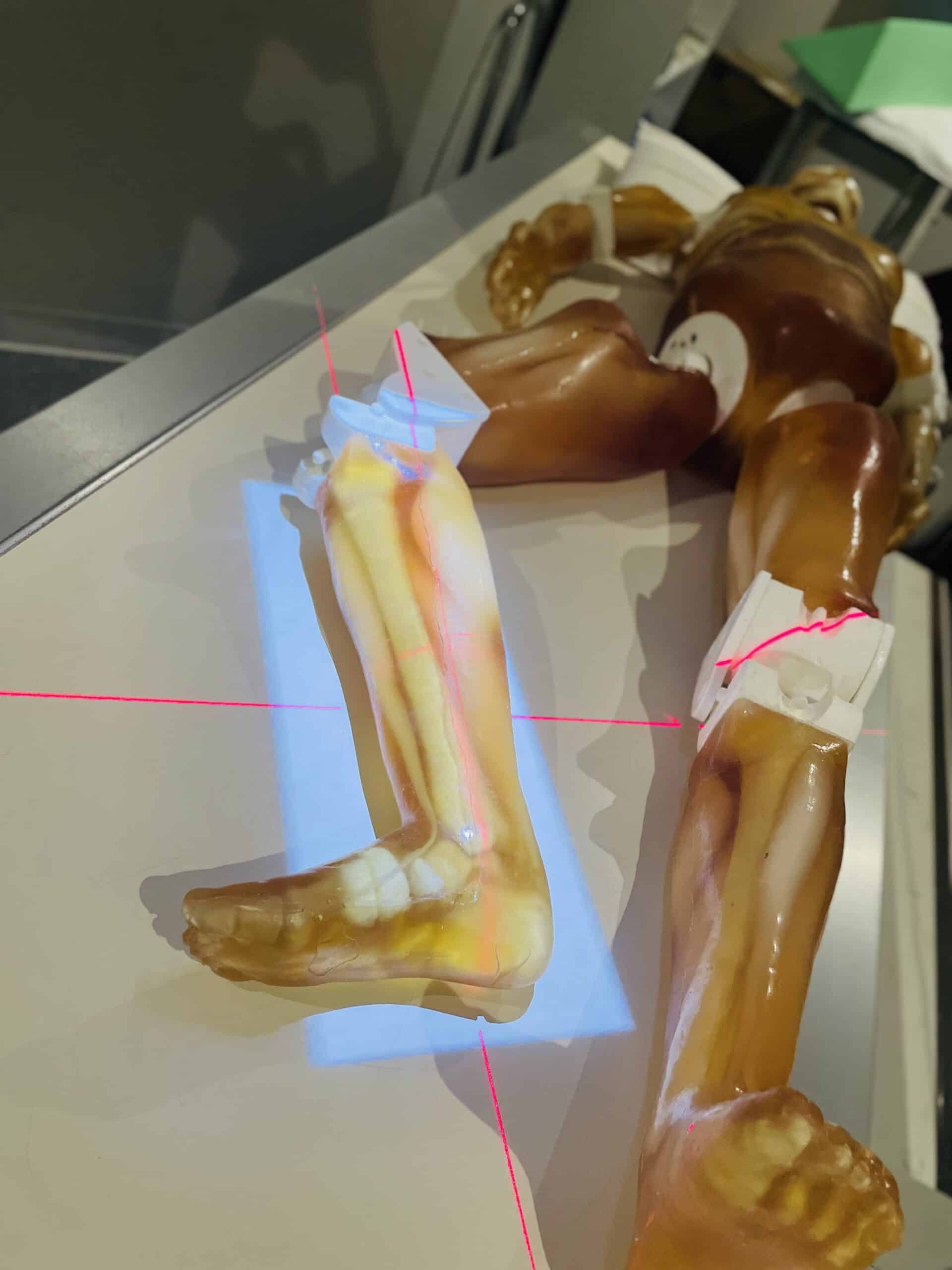

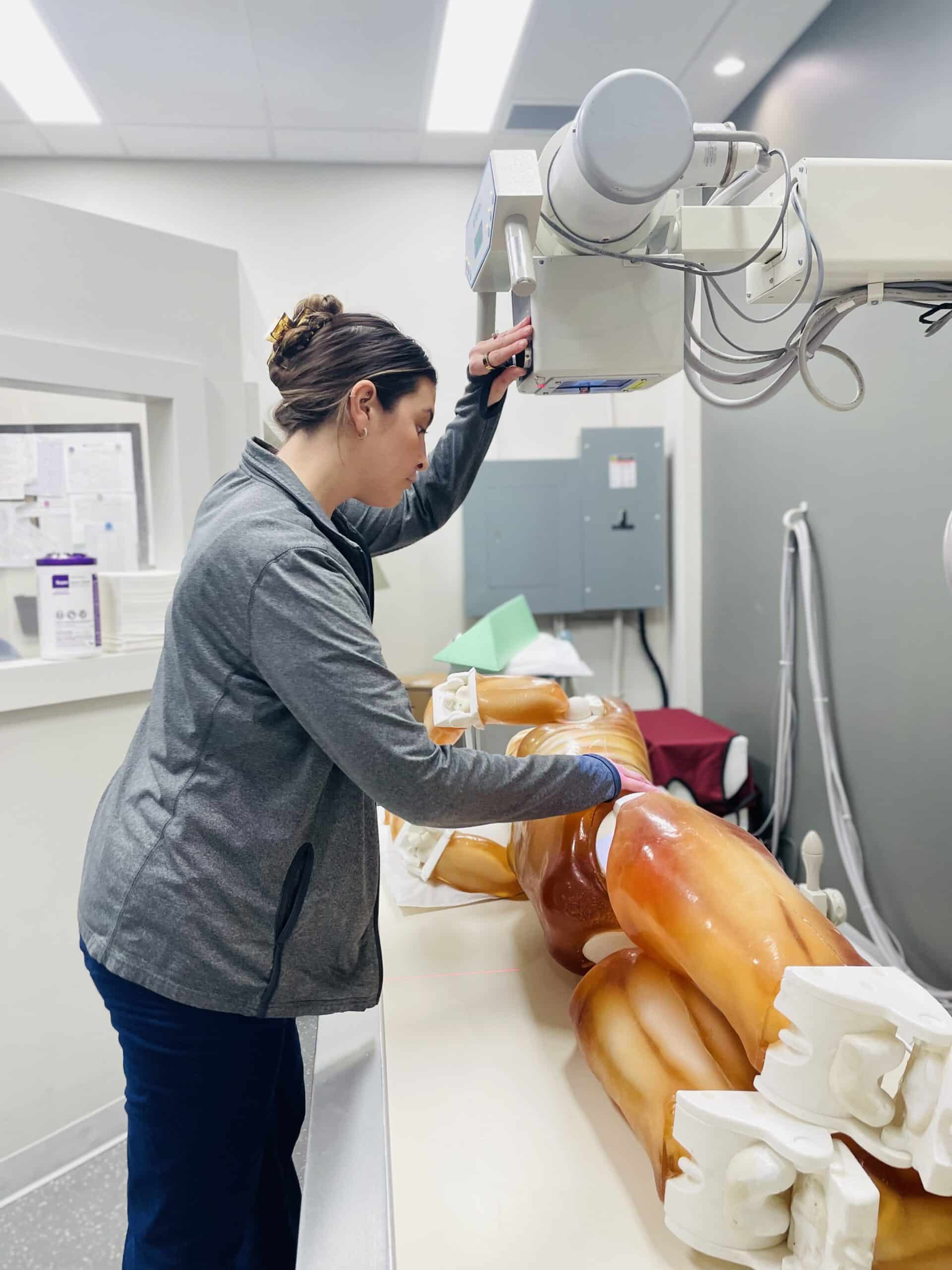

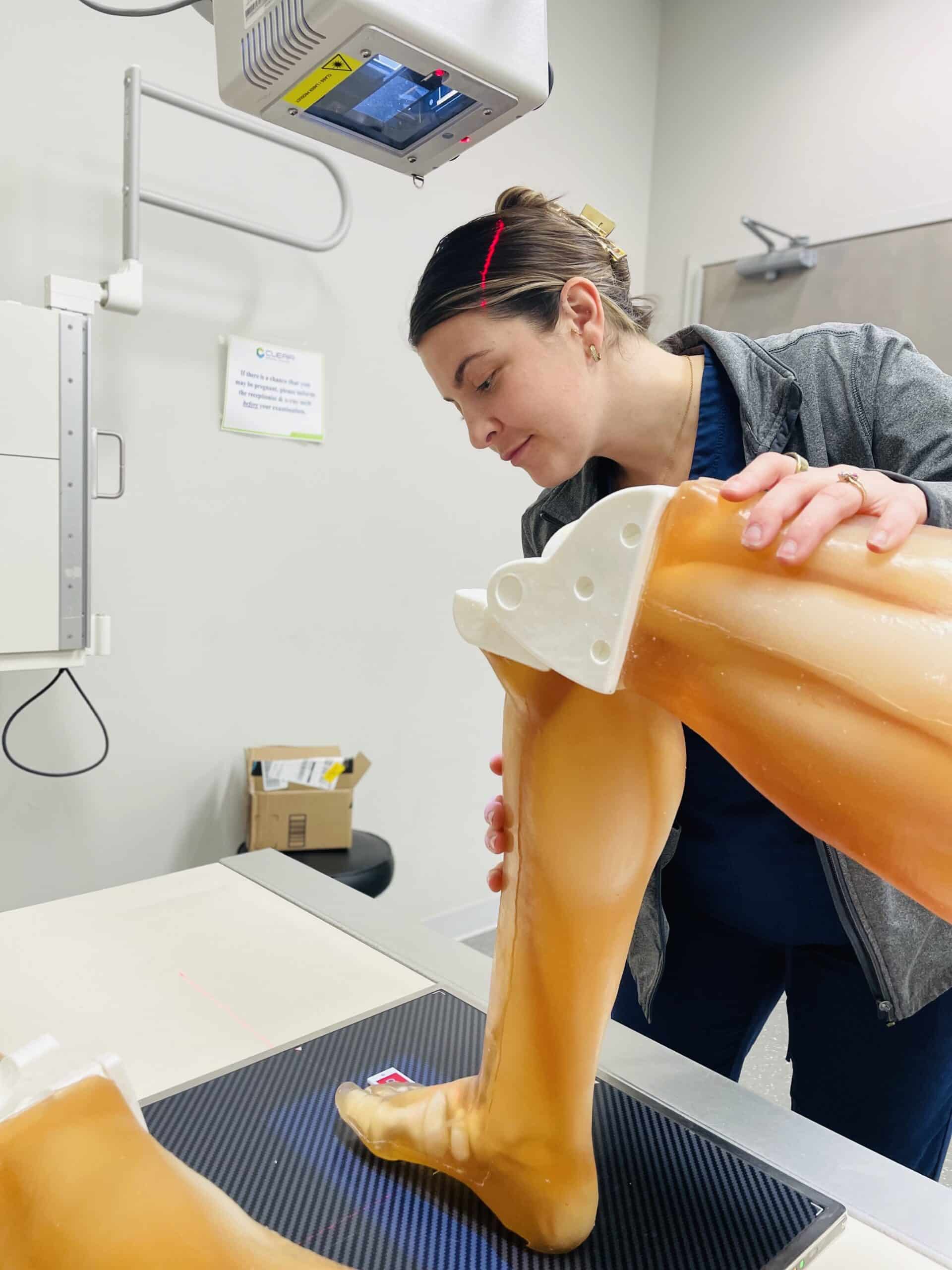

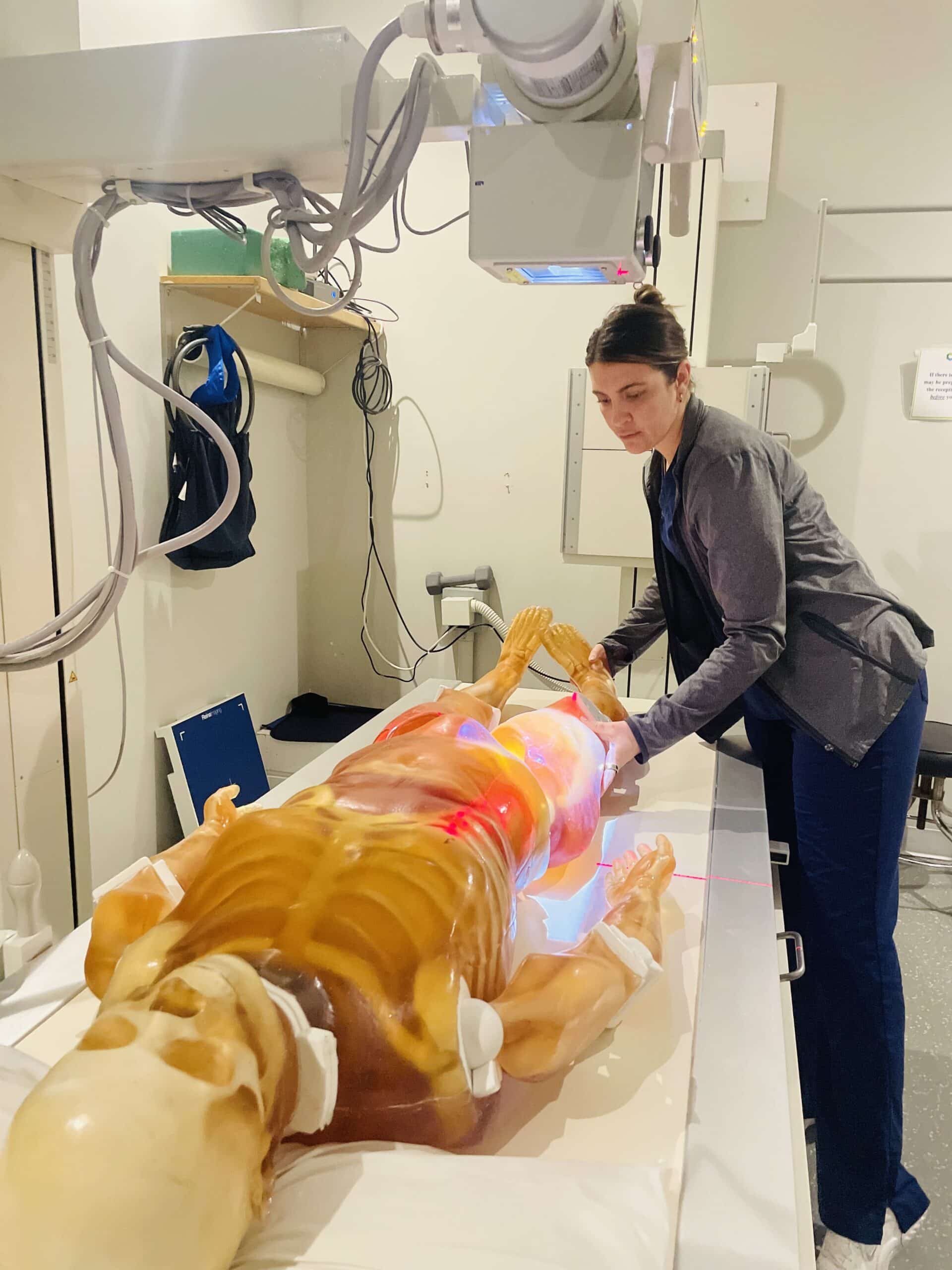

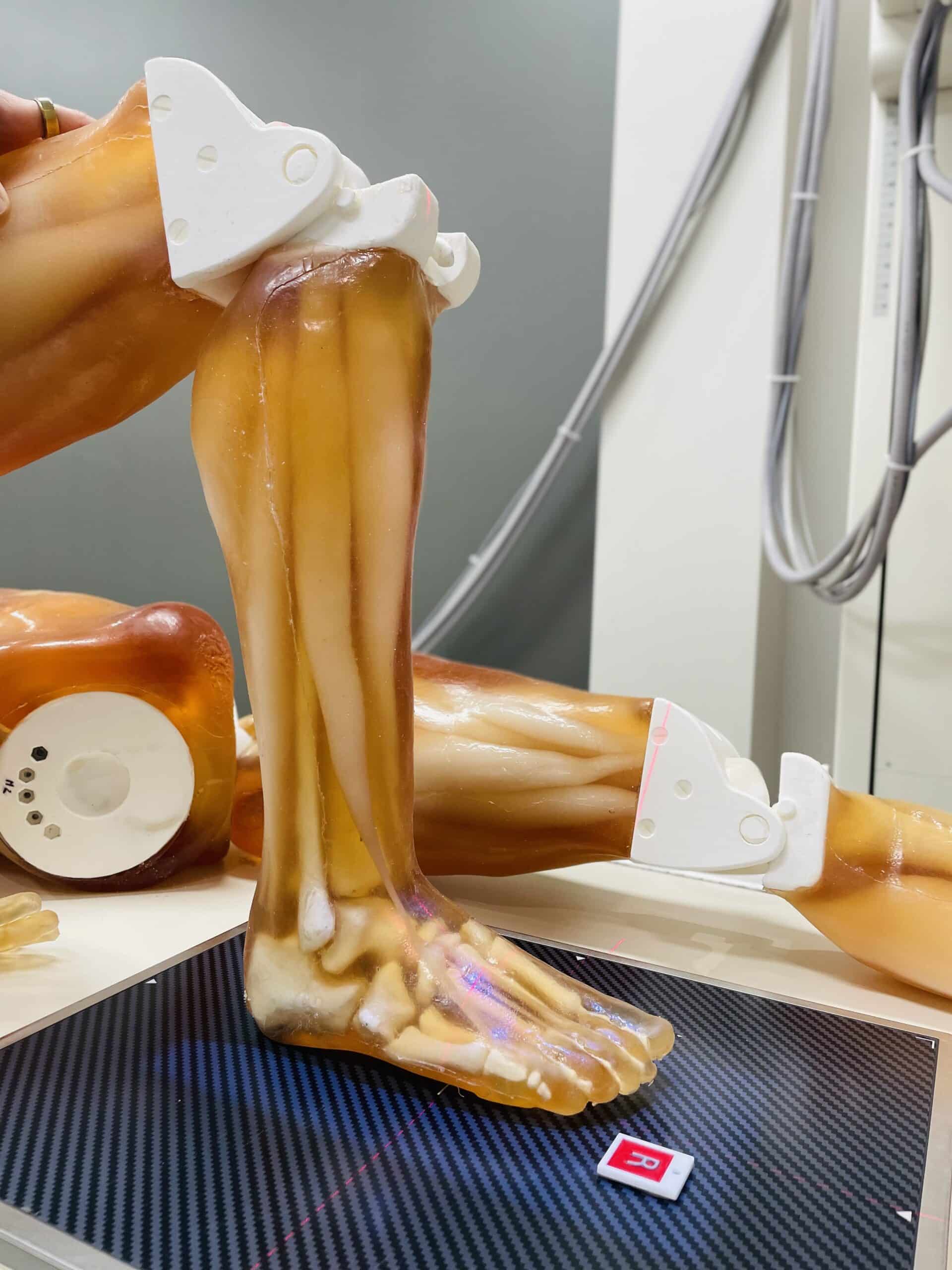

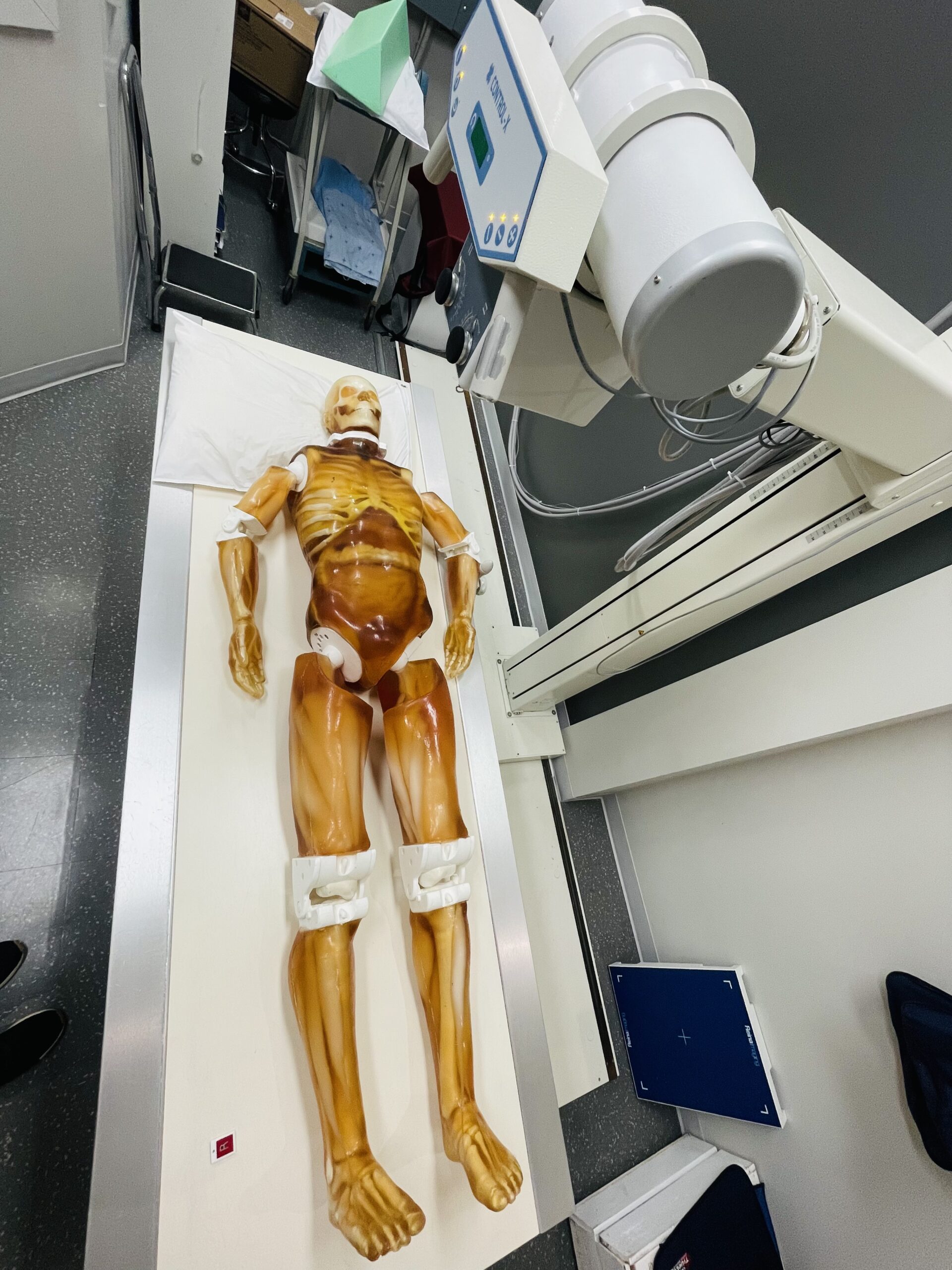

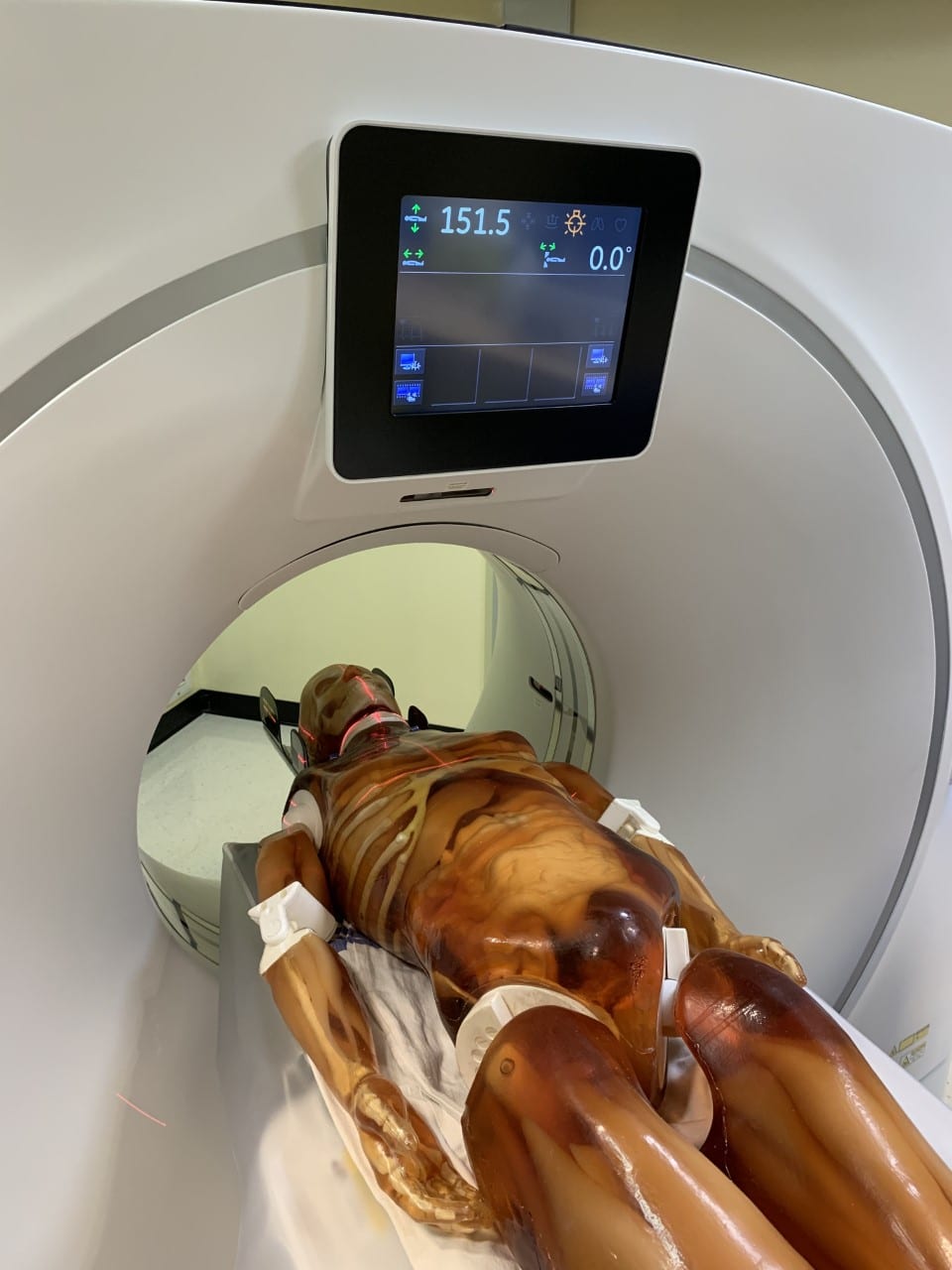

Phantom Positioning Images:
Note: For the purpose of showing the positioning techniques, the phantom with muscles has been used. This product does NOT include muscles. By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

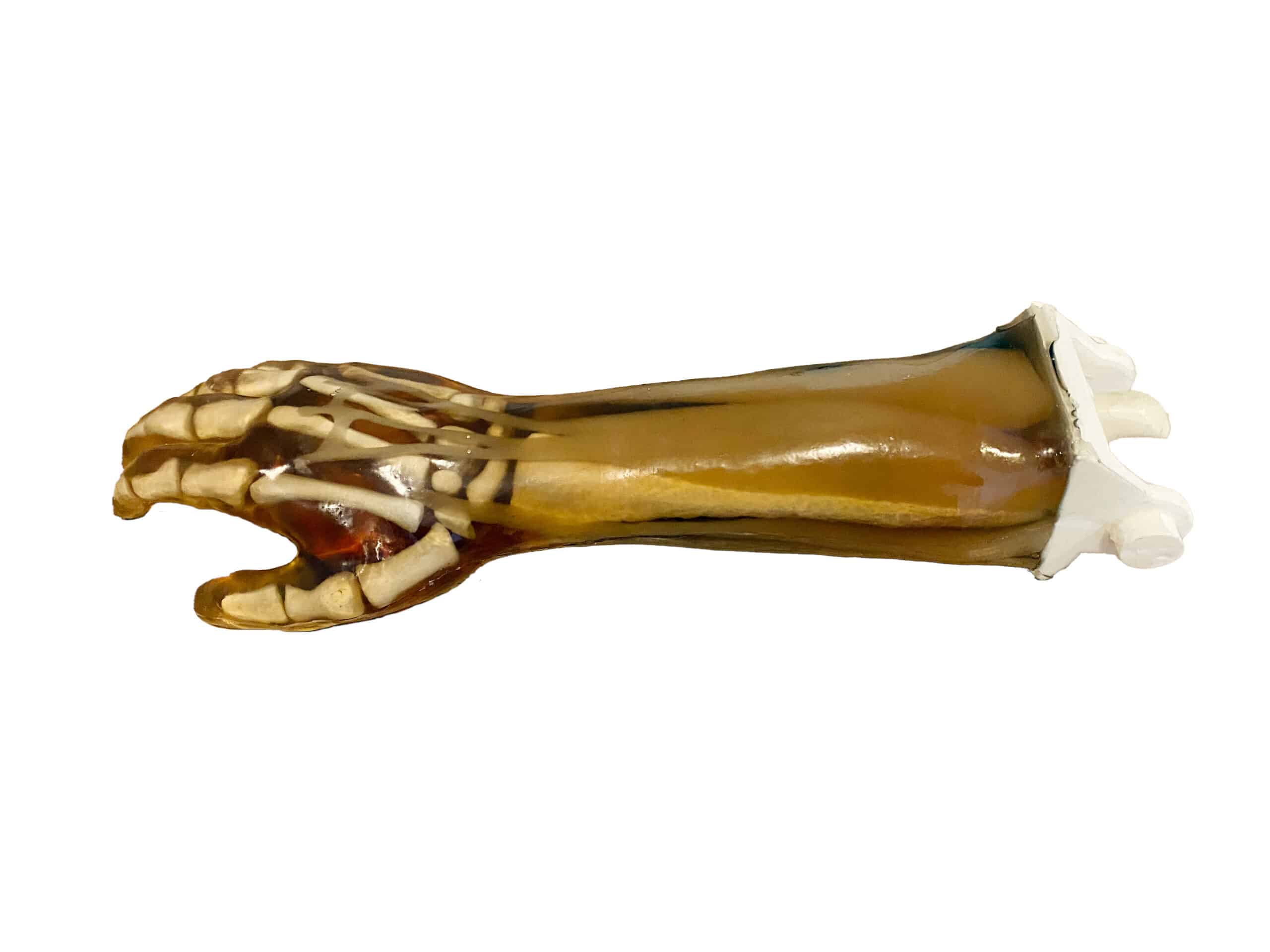

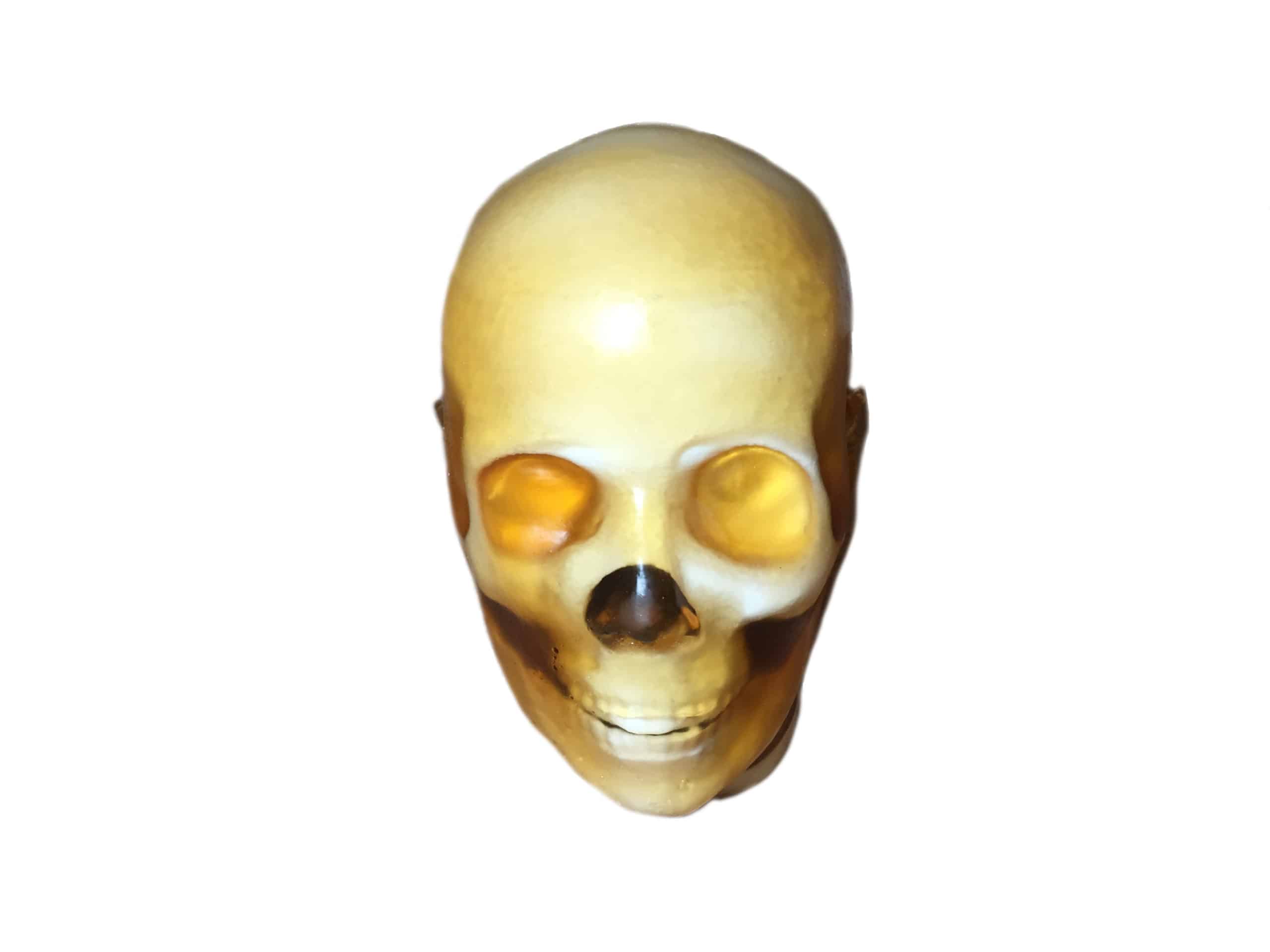

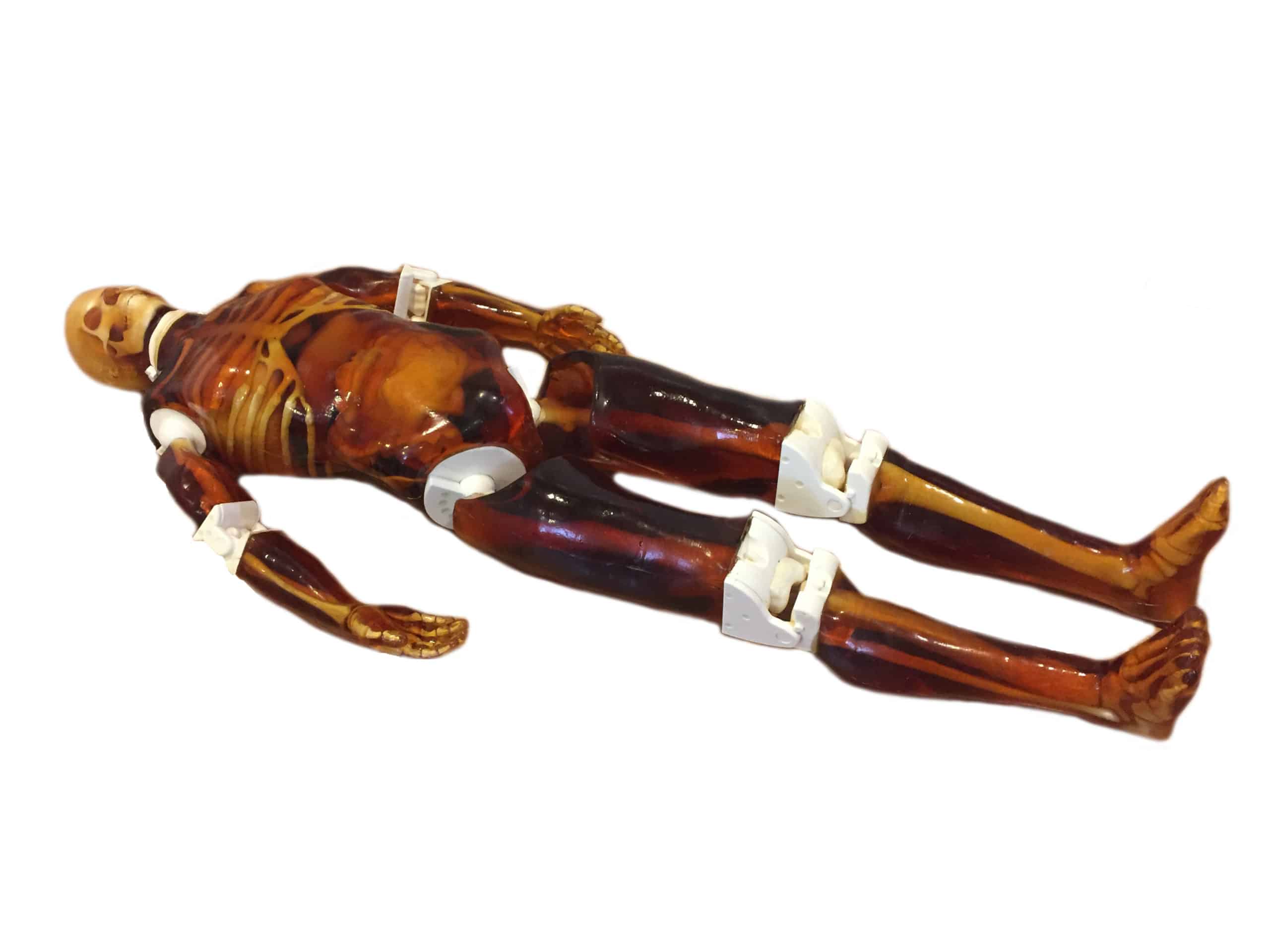

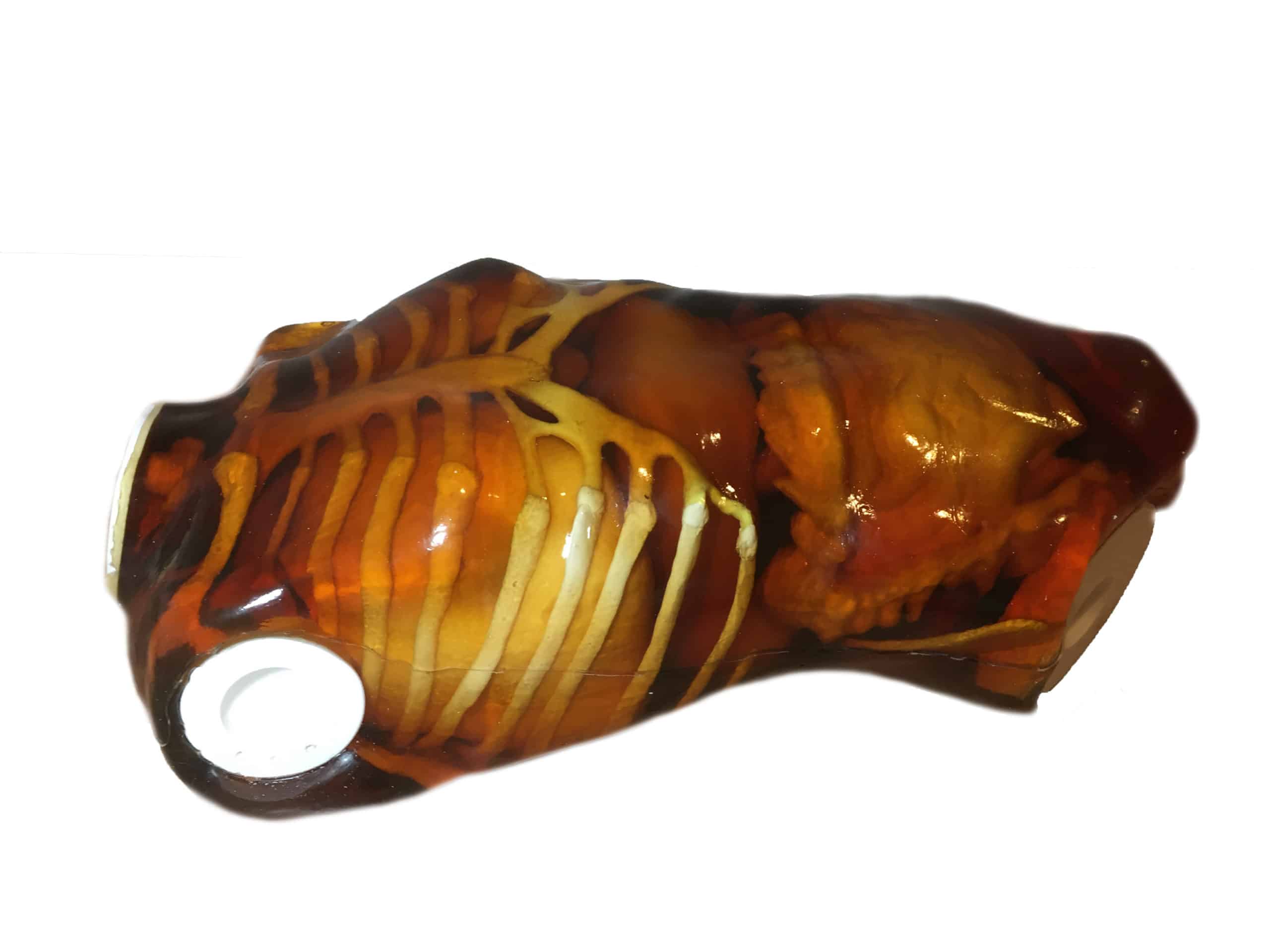

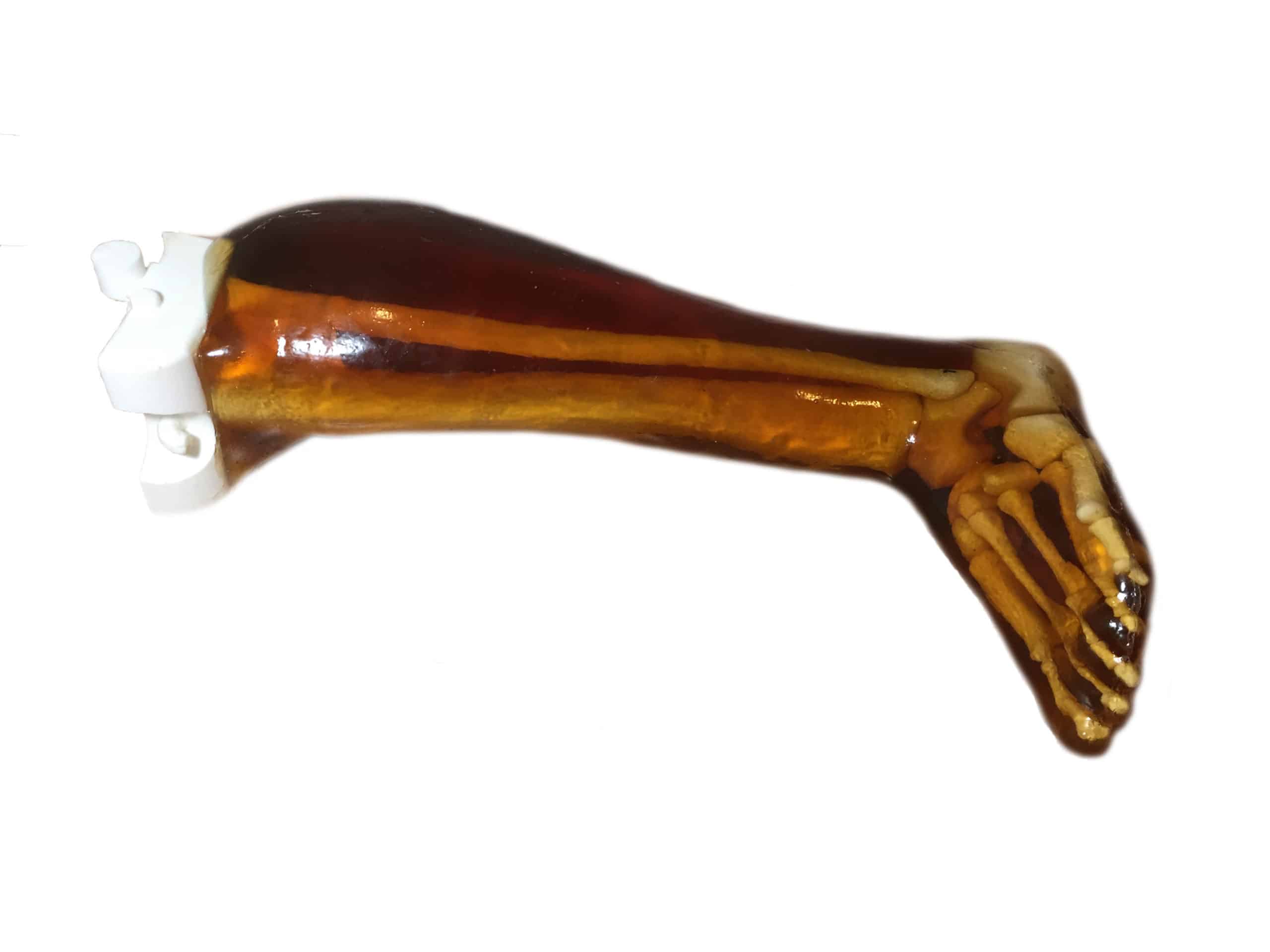

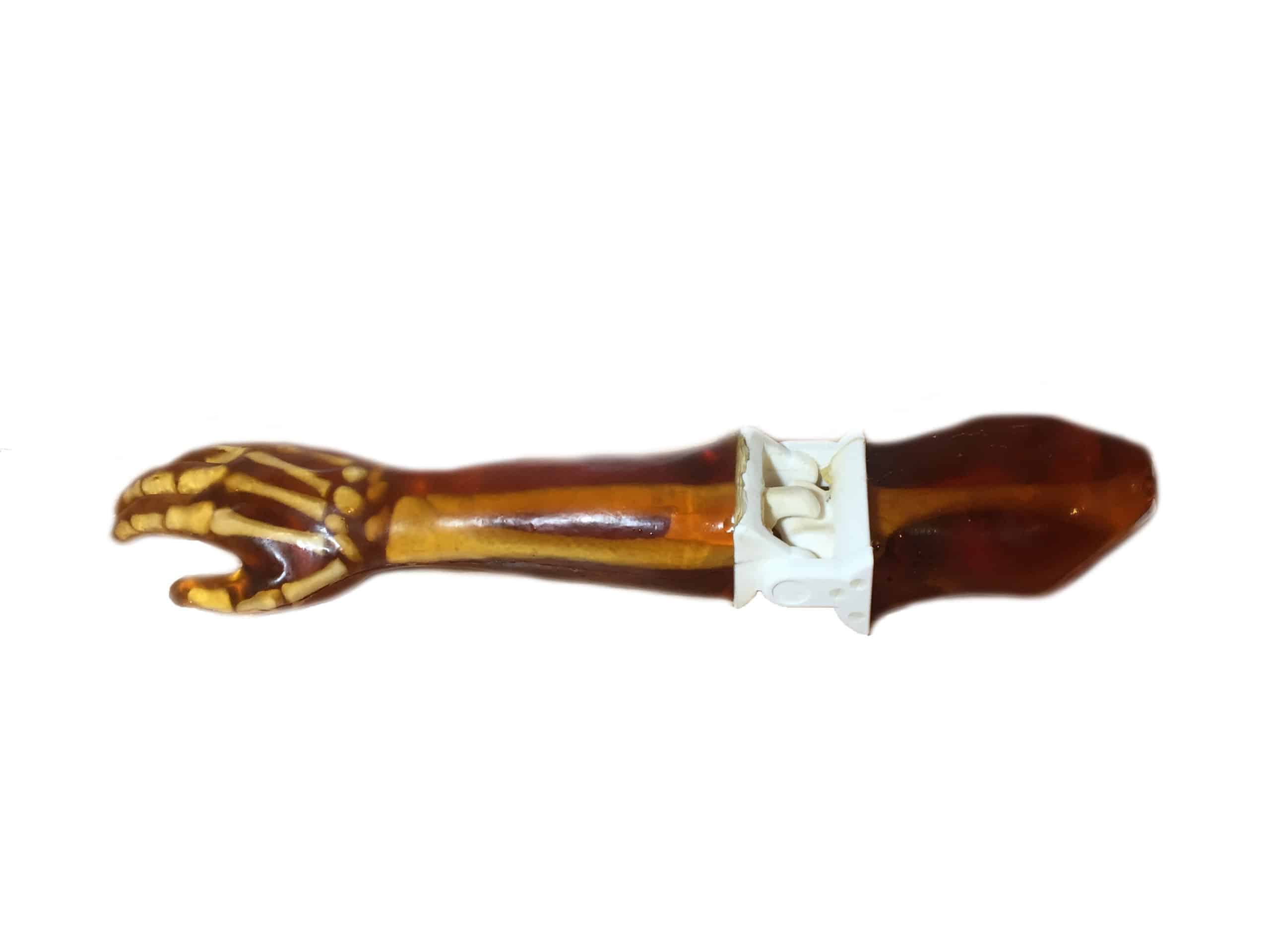

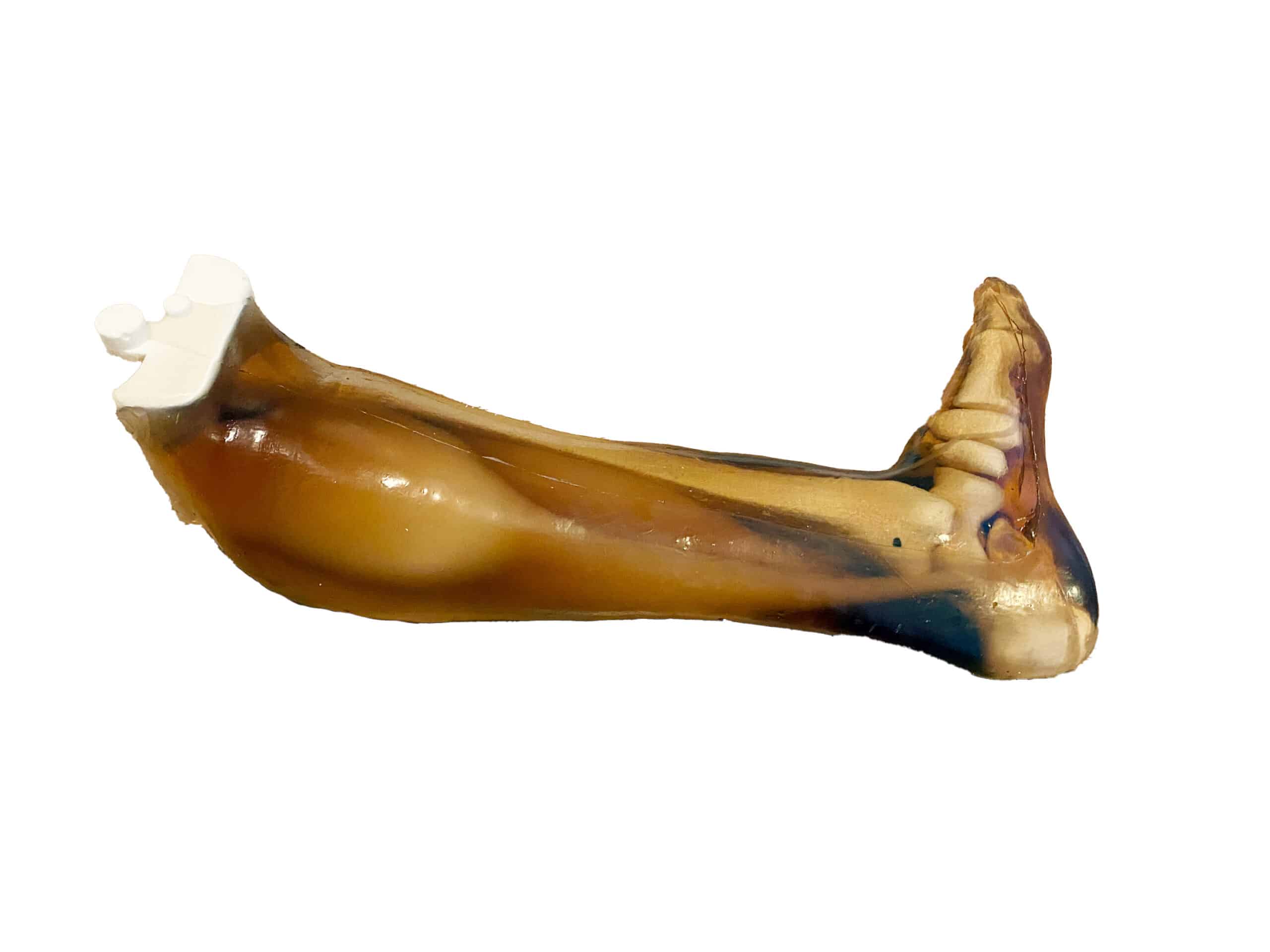

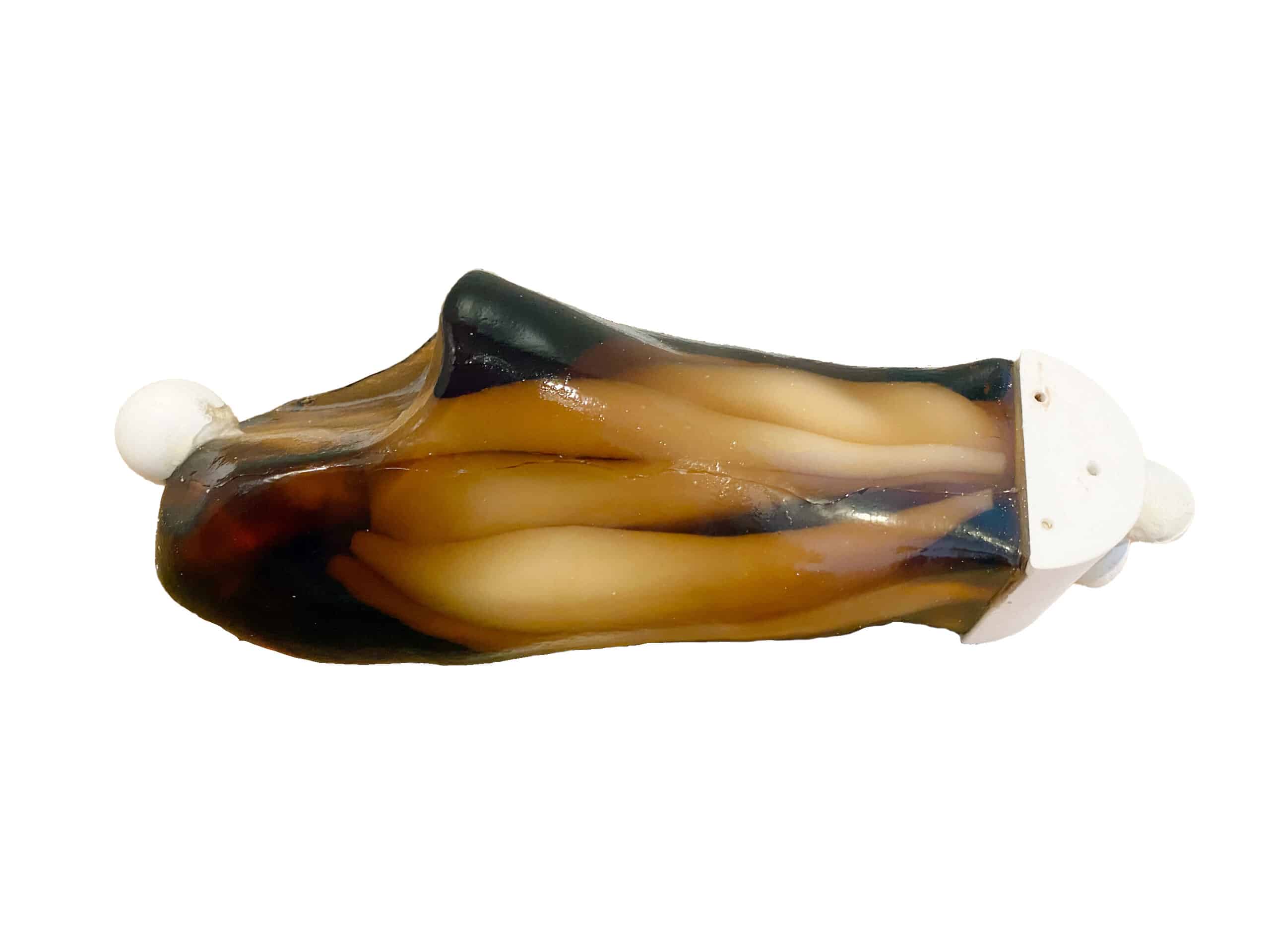

Product Parts:

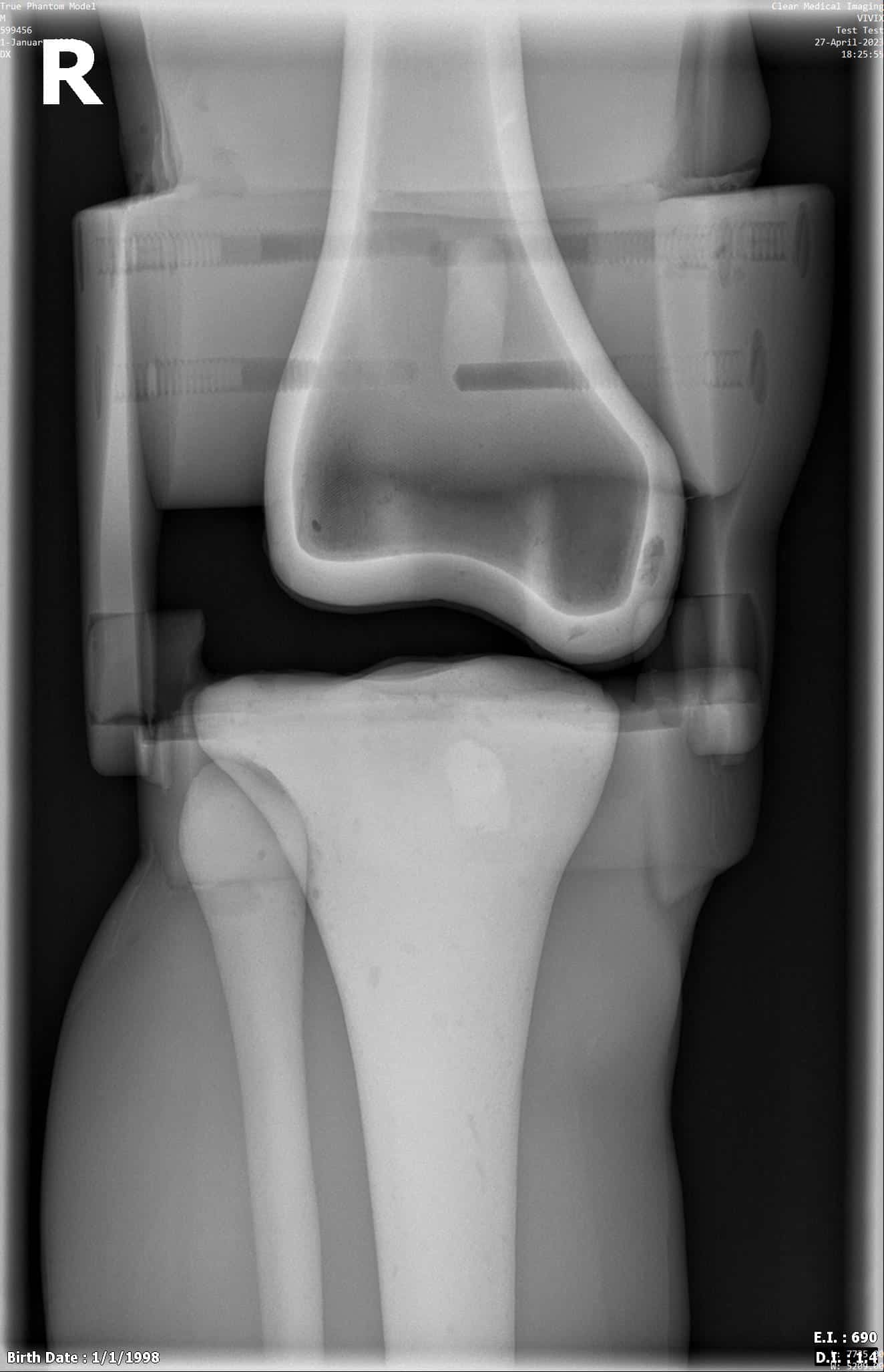

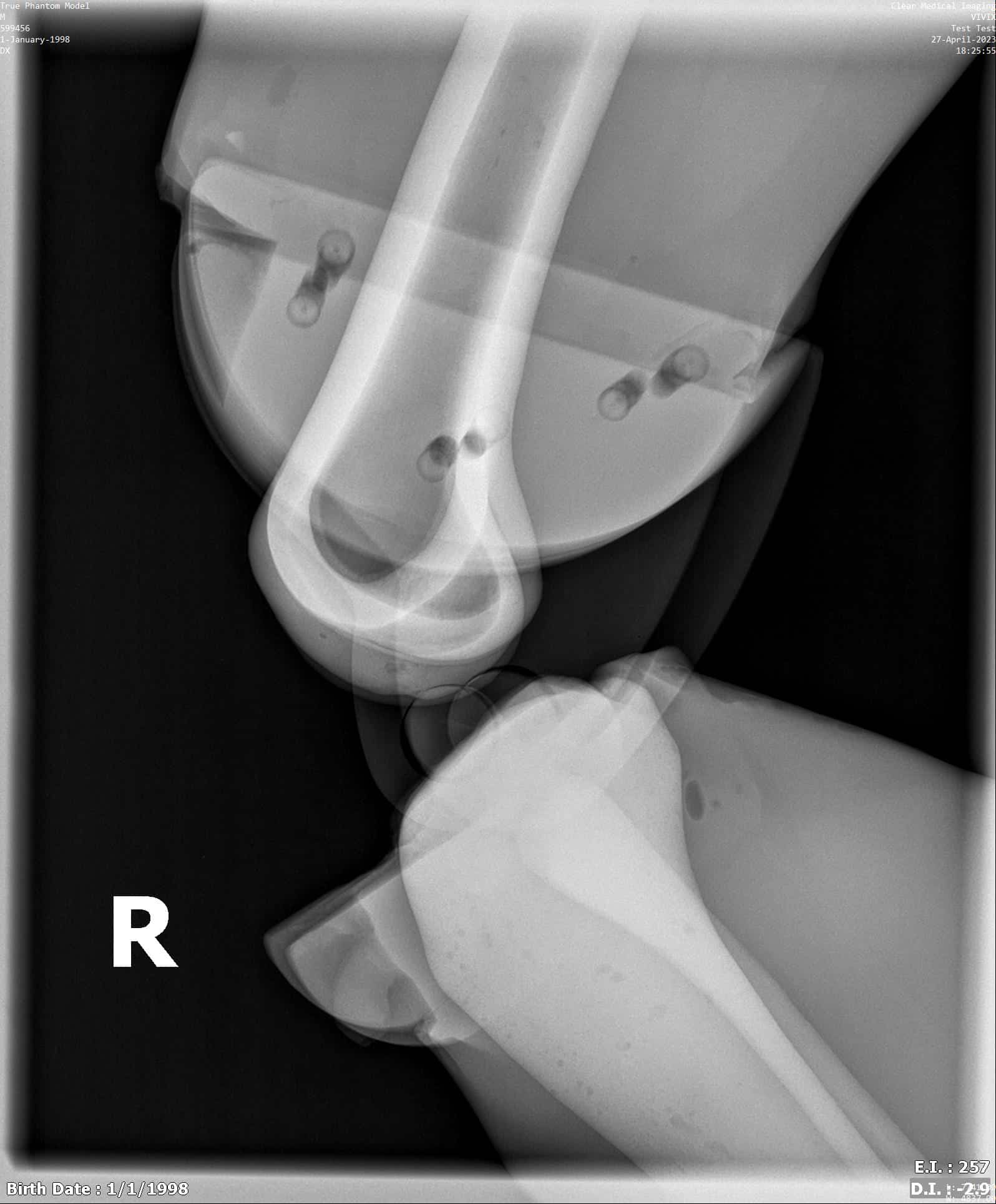

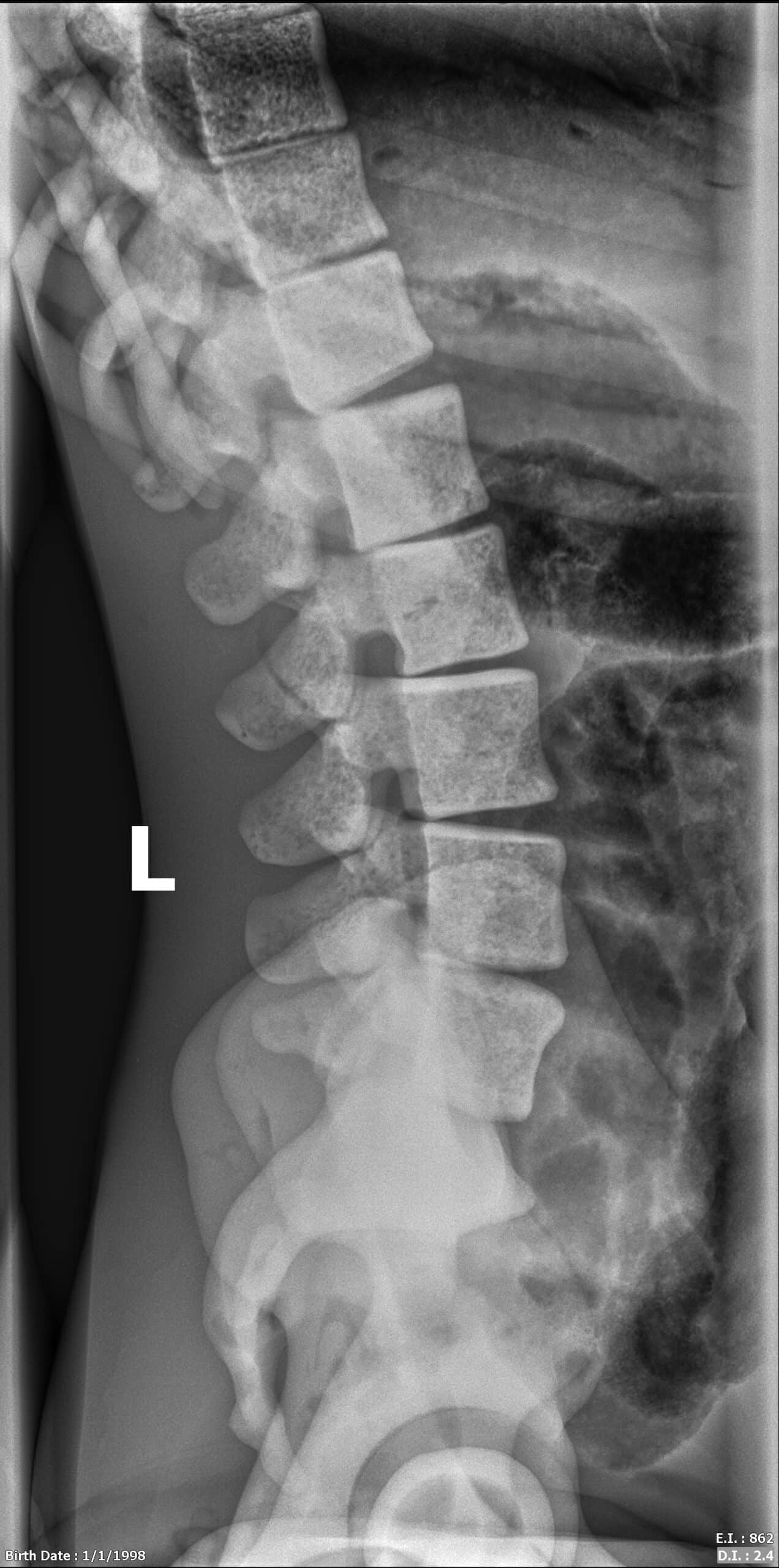

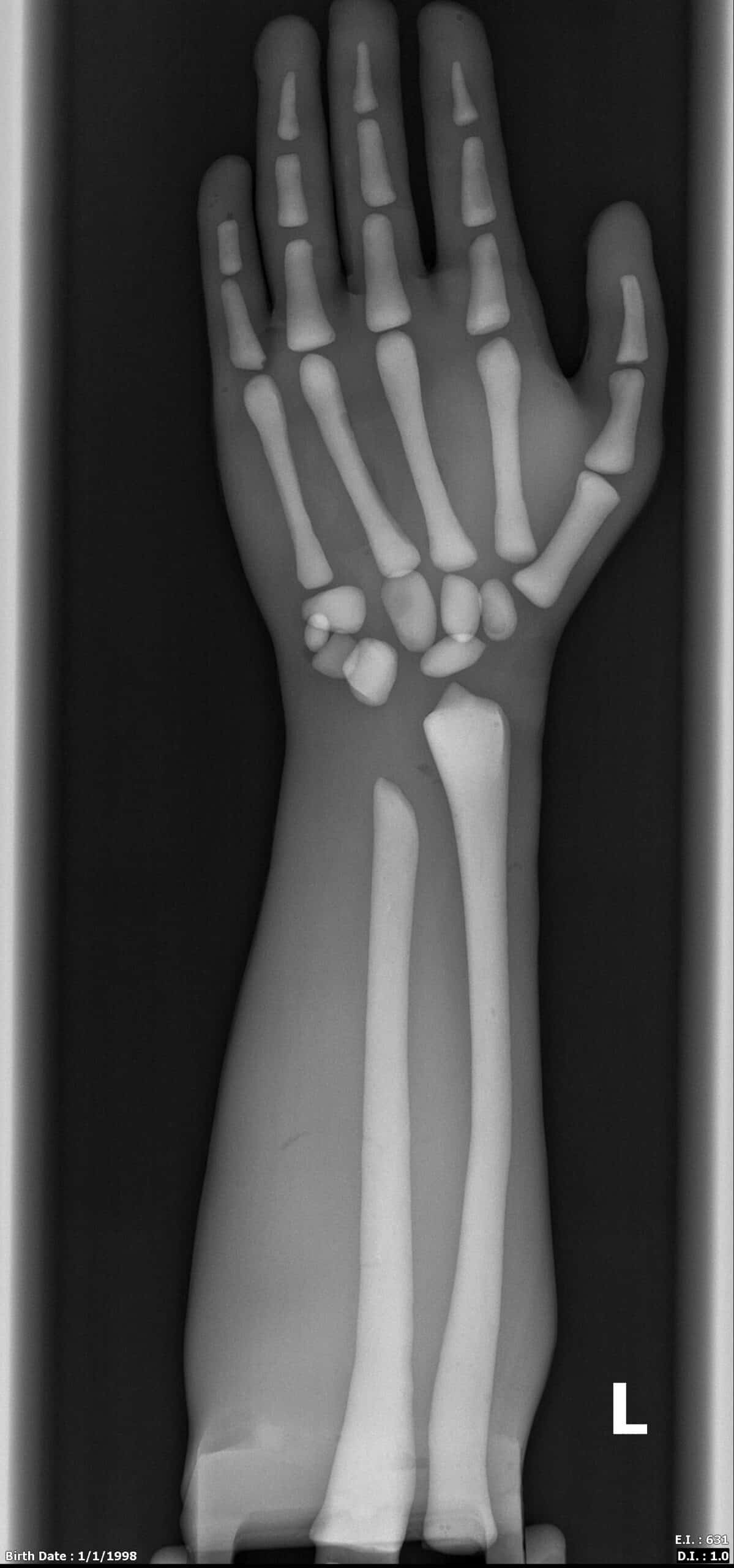

X-Ray Scans:
*/ These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate) from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (FB-A03) will not have muscles in the arms and legs. If you have any questions related to these, please write us at [email protected] /*
X-ray Settings:
| Anatomy | Skull | Ribs/ Chest | T Spine | C spine | L Spine | Abdomen | Pelvis | Femur | Tib/Fib | Knee | Foot | Scap Y | Humerus | Hand/ Wrist | ||||||
| Projection | AP | LAT | AP/ PA | AP | LAT | AP | AP | LAT | LAT | AP | AP | LAT | AP | LAT | AP | AP | PA/ Oblique | LAT | AP/ Oblique | LAT |
| E.I. | 375 | 286 | 412 | 412 | 782 | 165 | 448 | 862 | 862 | 650 | 584 | 892 | 551 | 342 | 690 | 293 | 631 | 257 | 556 | 155 |
| D.I. | -0.2 | -1.4 | 0.6 | 0.6 | 2.6 | -3.8 | 1 | 2.4 | 2.4 | 1.8 | 1.7 | 3.6 | 0.4 | -1.6 | 1.4 | -2.3 | 1 | -2.9 | 0.5 | -3.6 |
| kVp | 85 | 75 | 80 | 80 | 85 | 75 | 88 | 90 | 85 | 85 | 80 | 80 | 74 | 74 | 75 | 80 | 58 | 80 | 64 | 84 |
| mAs | 20 | 8 | 5 | 20 | 56 | 6.3 | 45 | 63 | 25 | 25 | 16 | 14 | 2.5 | 2.5 | 5.6 | 8 | 2 | 5.6 | 2 | 10 |

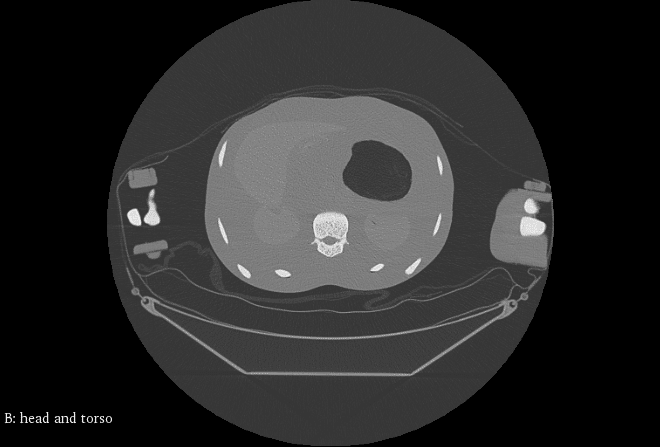

CT Scans:
*/ These CT scans were obtained with a GE Revolution Spectral CT Frontier ES from our product, Adult Full Body (with Muscles) for X-Ray CT, MRI SKU: FB-A02. These are served as an example to refer to the imaging quality of this phantom; the standard Full body phantom (FB-A03) will not have muscles in the arms and legs. If you have any questions related to these, please write us at [email protected] /*
Ultrasound Scans:
*/ These scans were obtained from the Adult Torso for X-Ray CT, US SKU: US-A02 and were taken using a GE device. These images are used only for reference. The abdominal probe of 3.0 MHz -5.0 MHz. If you have any questions related to these, please write us at [email protected] /*
Technical Properties:
Tissue Properties
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Muscle Tissue (Optional) | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials (scanned at 120kV and 99-154mA)
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Brain Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part),-1000 (Air Filled Part) |
| Pancreas | 110 |
| Tissue Type | HU Value (Average) |
| Spleen | 110 |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
Included In Order:
Adult Full Body Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 69 Inches, Weight: 155 Lbs (approx.).
Shipment:
Size: 46 x 36 x 17 Inches, Weight: 199 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
