This Adult Full Body Phantom is an advanced X-ray positioning and imaging training tool, with no assembly required, designed to enhance the learning experience for both students and professionals in the field of radiology. Its lightweight construction, weighing only 20 kg, facilitates easy transport and repositioning, allowing users to adjust the X-Ray phantom into a variety of positions required for different X-ray techniques.
Crafted from durable synthetic materials, this X-Ray phantom can withstand repeated use, making it an ideal tool for continuous practice without the risk of radiation exposure to patients or the practitioners themselves. The model is equipped with articulating joints, providing a realistic range of motion to mimic human movement, thereby enabling users to practice and perfect their positioning skills under varied conditions.
A synthetic jumpsuit is also included to protect the phantom from dust and dirt. It is easily removable, washable, and can be put back on the phantom as needed.
The bones have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request.Â
Note: Radiographic results may differ from clinical results due to the primary focus on positioning.
Anatomy:
The following anatomical features are included in the standard version of this phantom. Should you require additional organs or components, please reach out to us and we can customize the model to suit your specific needs.

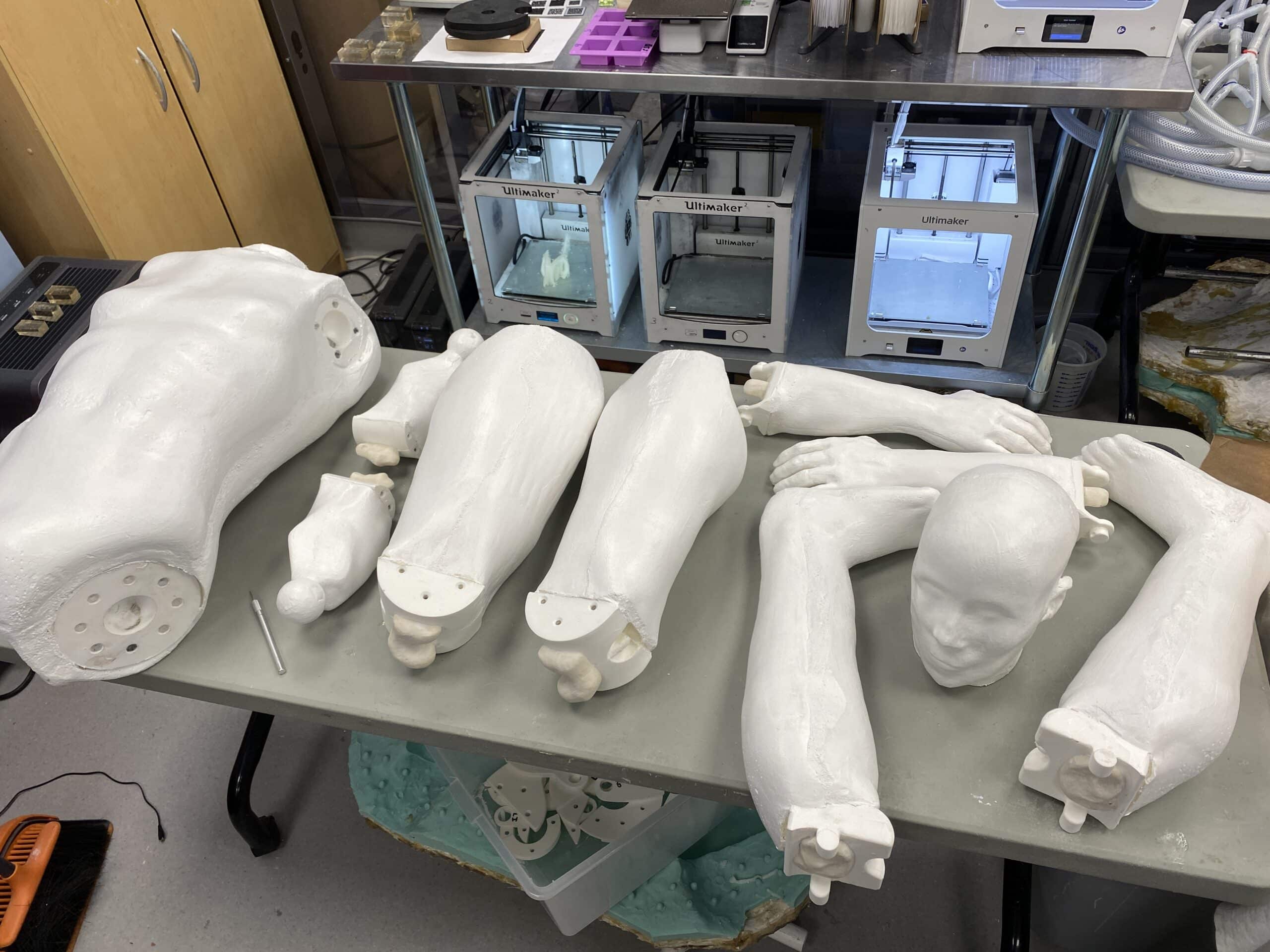

Full Human Body (10 Parts) Foam Body Tissue Rotatable Shoulders (360° Around and 180° Sideways) Movable Hip, Knee, and Elbow Joints Detachable Head, Torso, and Limbs Adult Head
  – Skull
  – Air Cavities
  – Frontal Sinus with Air Gaps Adult Torso
  – Spine
  – Ribcage
  – Shoulders
  – Clavicles
  – Pelvis
  – Trachea
  – Heart
  – Lungs
  – Diaphragm
  – Liver
  – Gallbladder
  – Stomach
  – Kidneys
  – Spleen
  – Pancreas
  – Large and Small Intestines
  – Bladder
  – Prostate Adult Arms
  – Humerus
  – Elbow Joints
  – Radius
  – Ulna
  – Wrist
  – Fingers Adult Legs
  – Femur
  – Knee Joints
  – Tibia
  – Fibula
  – Foot
  – Toes
Design:
-

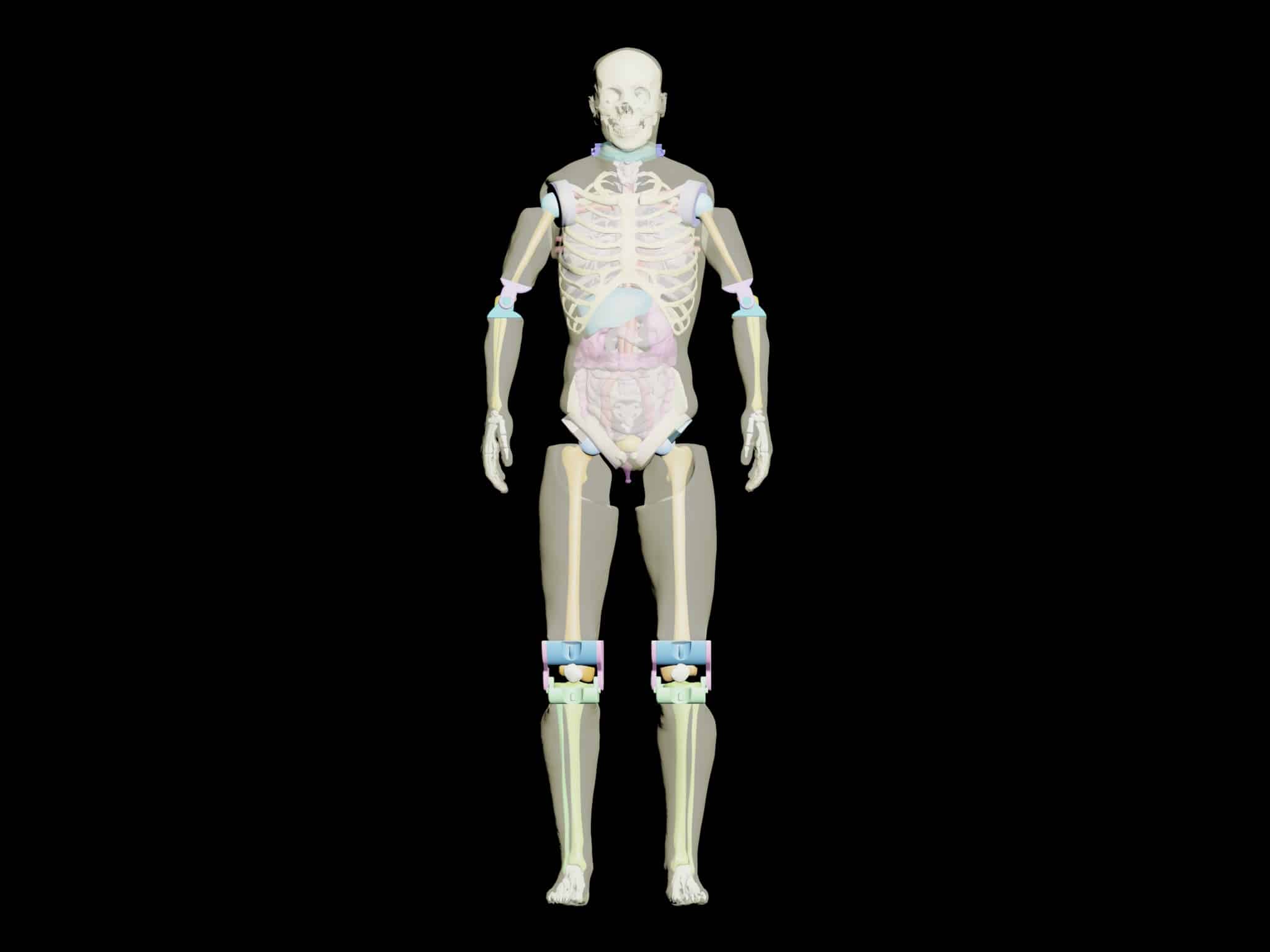

- Front View
-

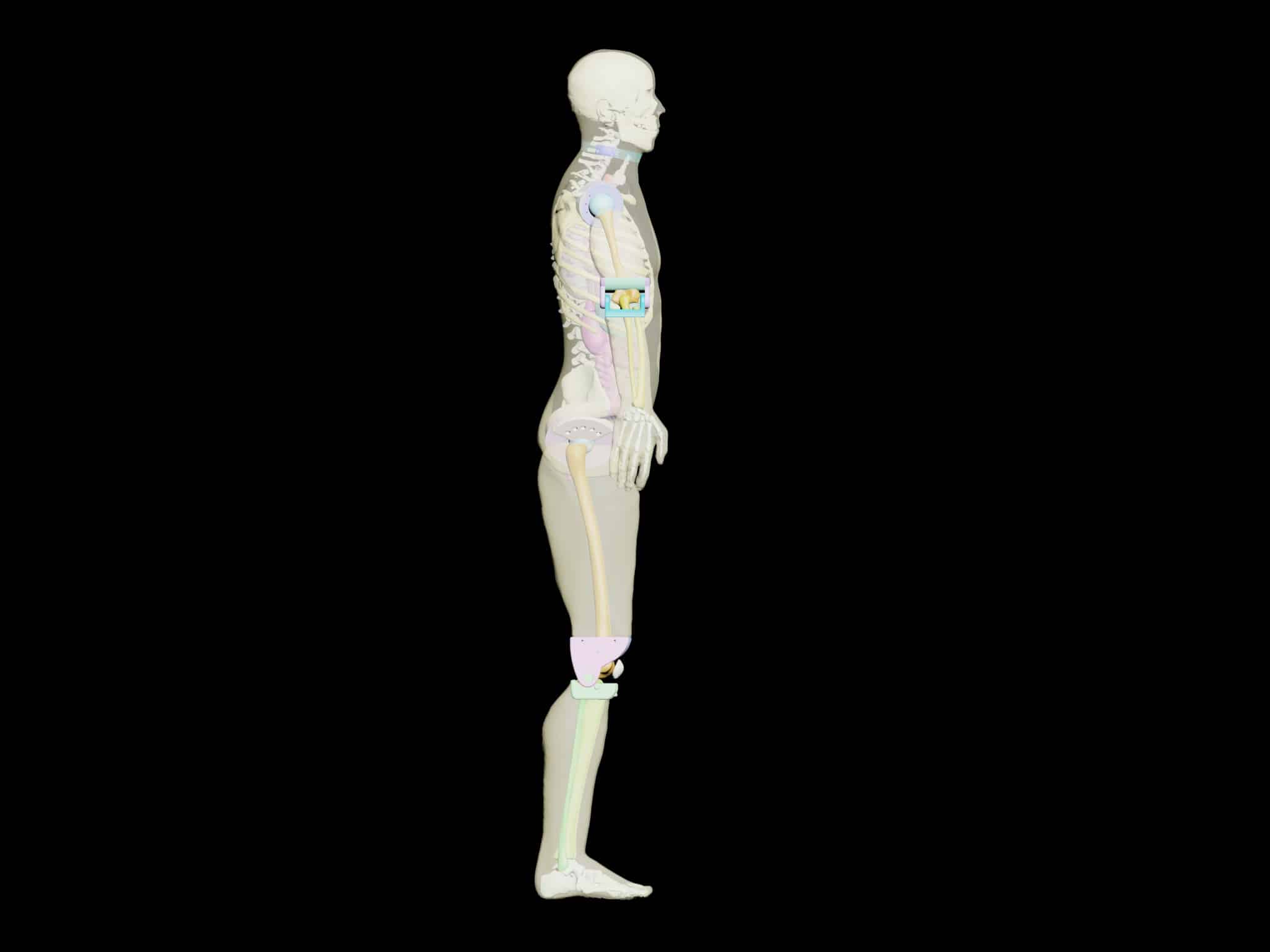

- Lateral View
-

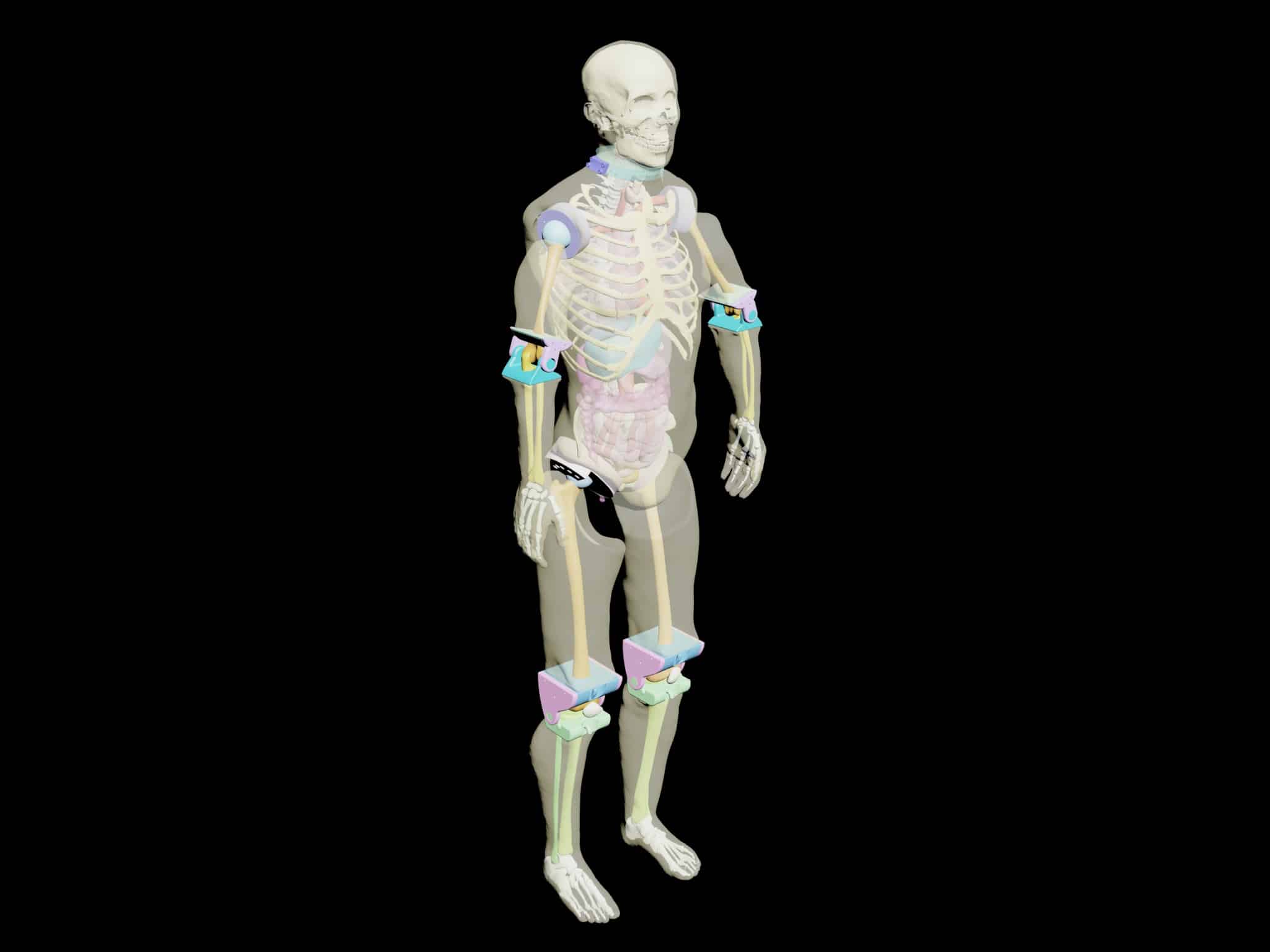

- Perspective View
-

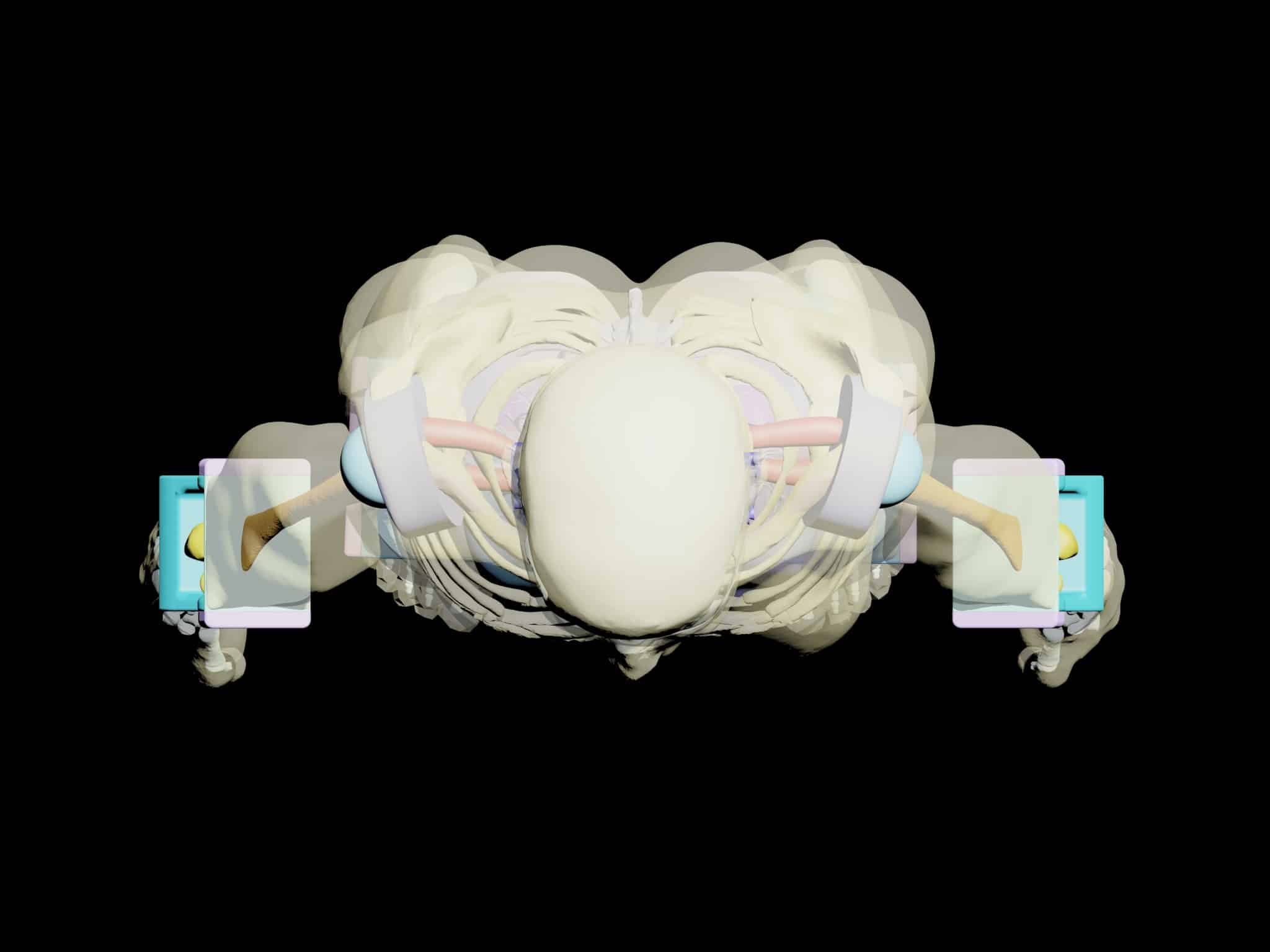

- Top View
-

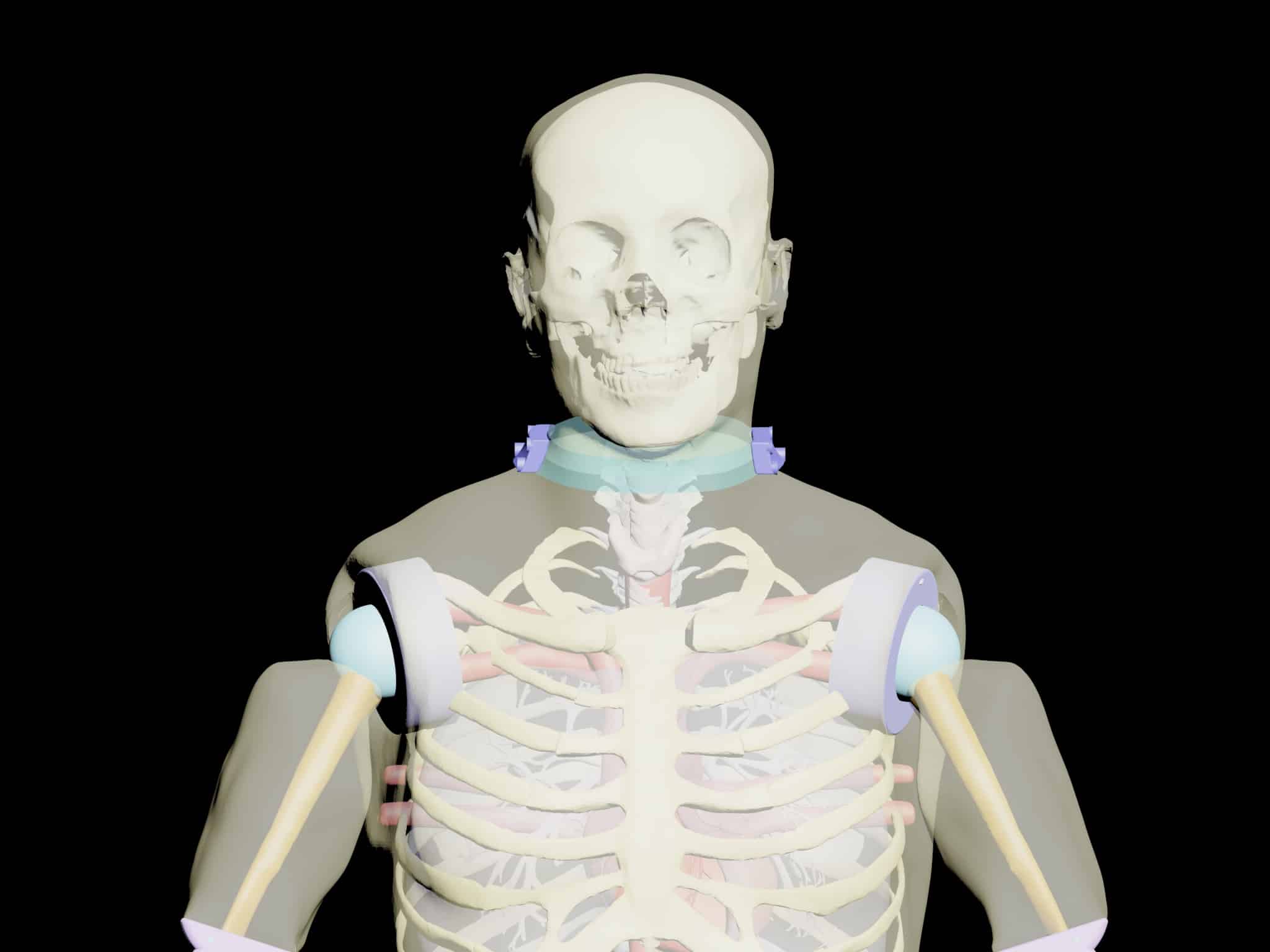

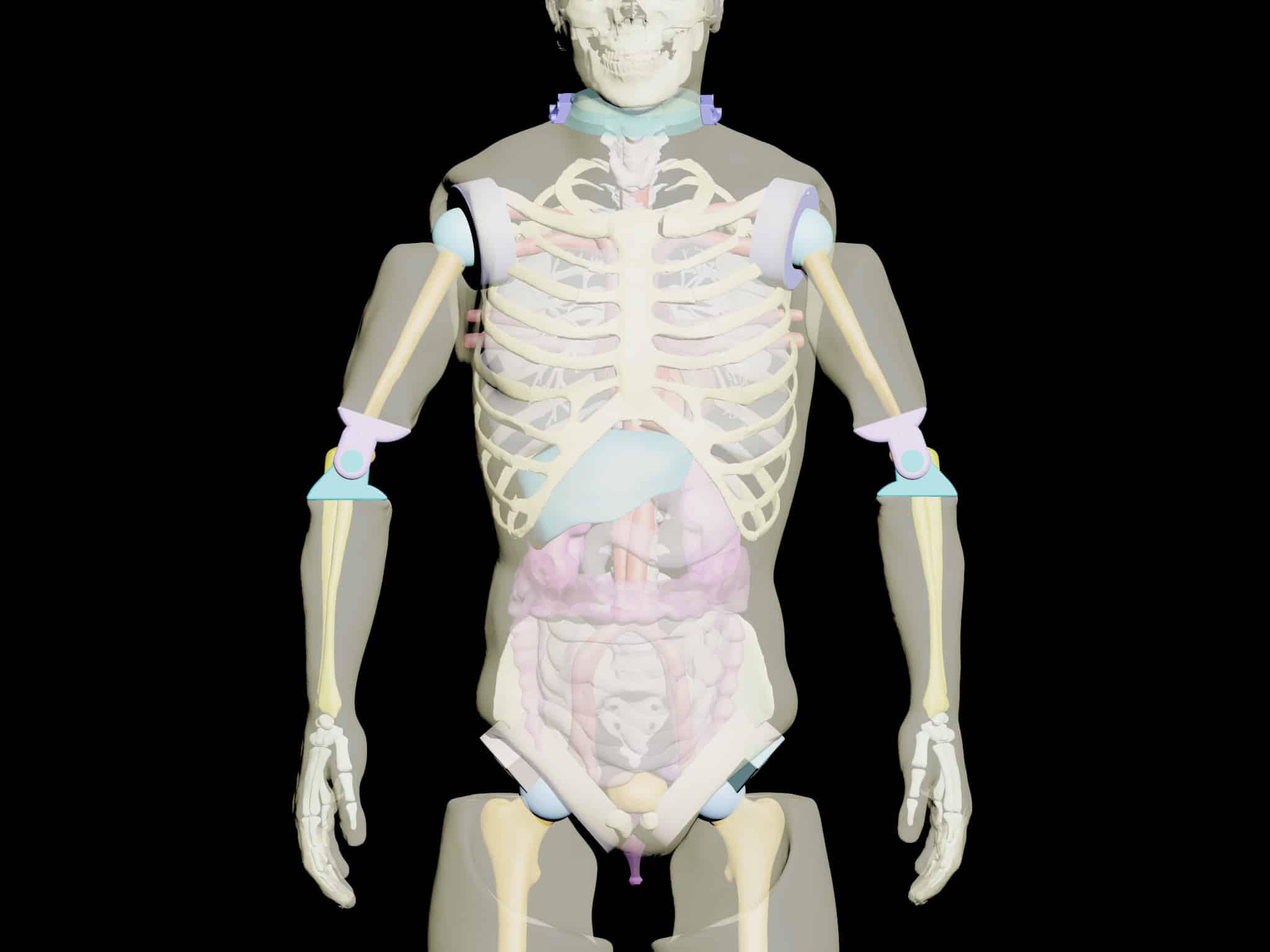

- Front View – Upper
-
- Front View – Mid
-

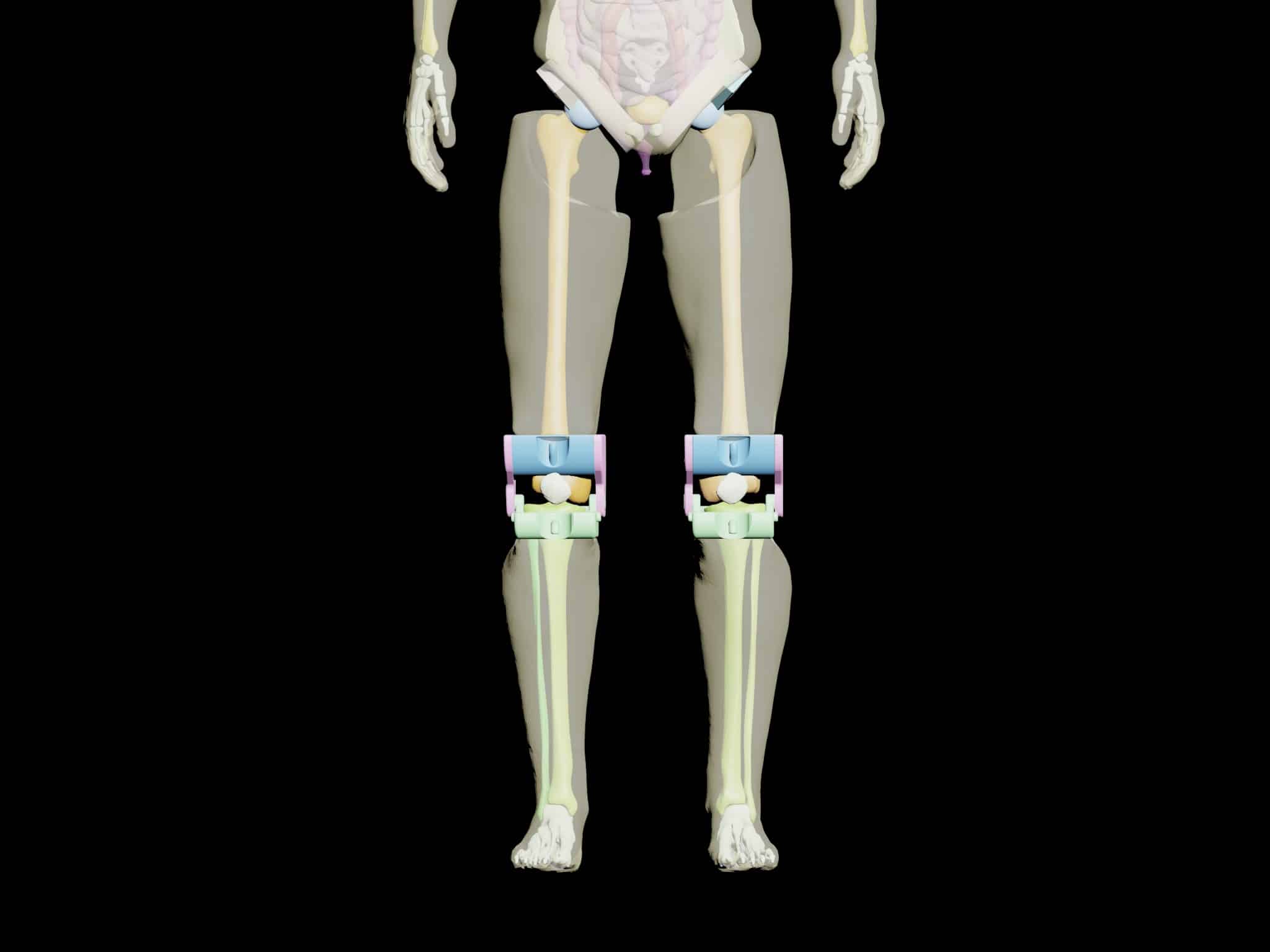

- Front View – legs
Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of an adult male for medical imaging, it is not meant to replace a live person and may have certain limitations in its capabilities.
Unlike an actual human however, the phantom will not be harmed or deteriorated due to repeated radiation. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents a safe alternative to using cadavers or volunteers. This makes it a sustainable, ethical choice for the early stages of research and education.
Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, please refer to our Warranty Policy and Return Policy. For any specific questions or concerns, please contact our technical team here.

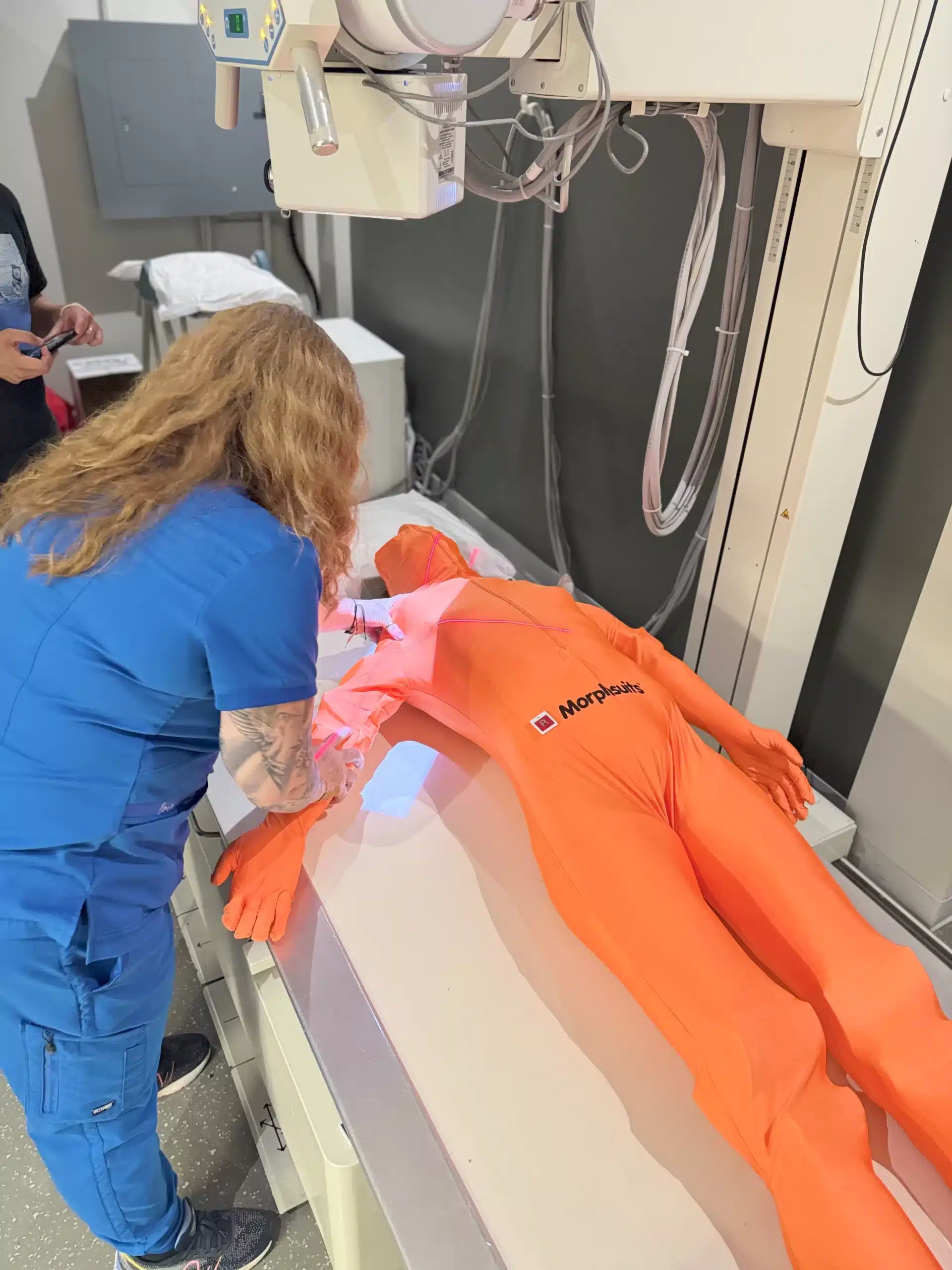

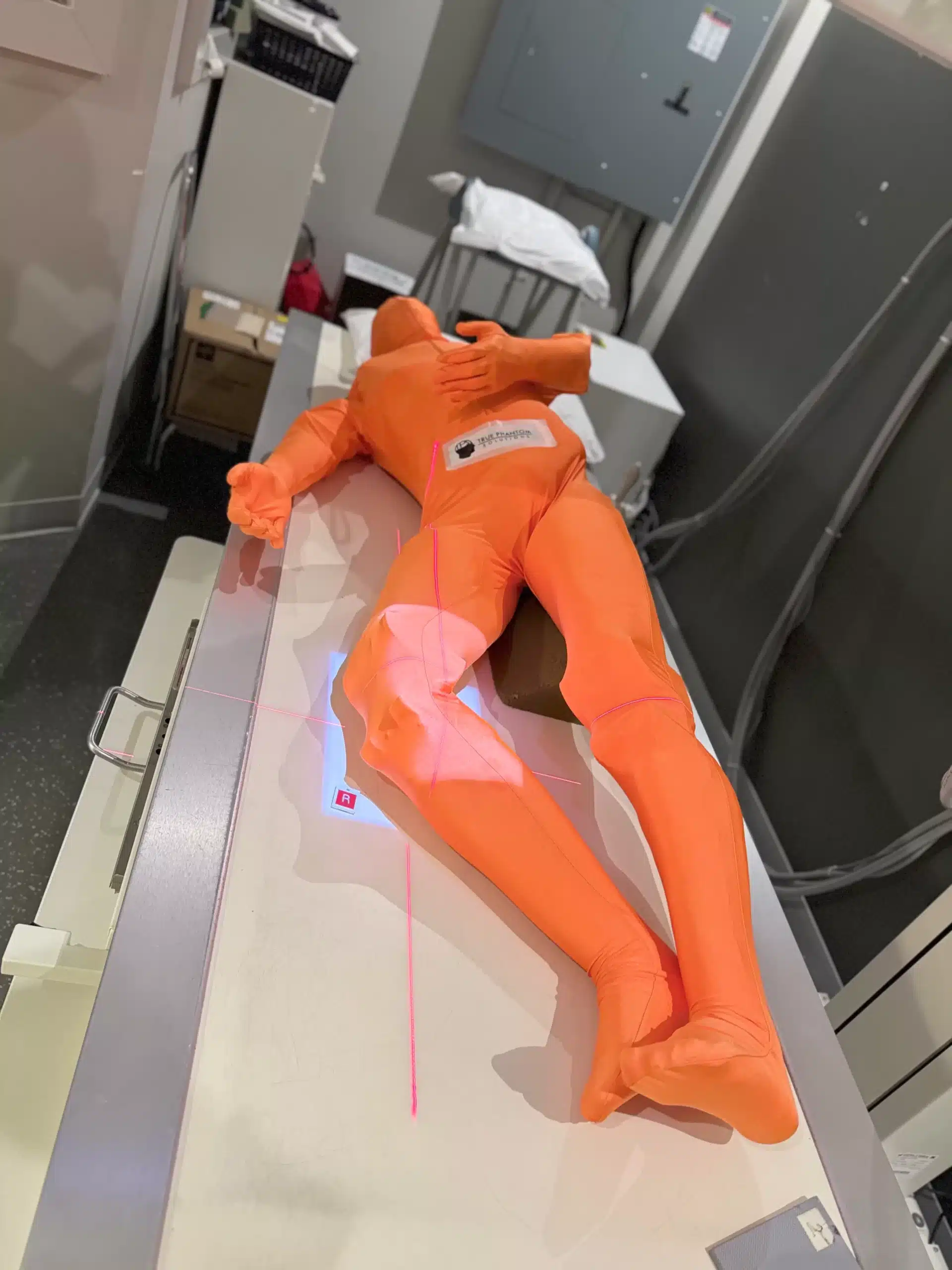

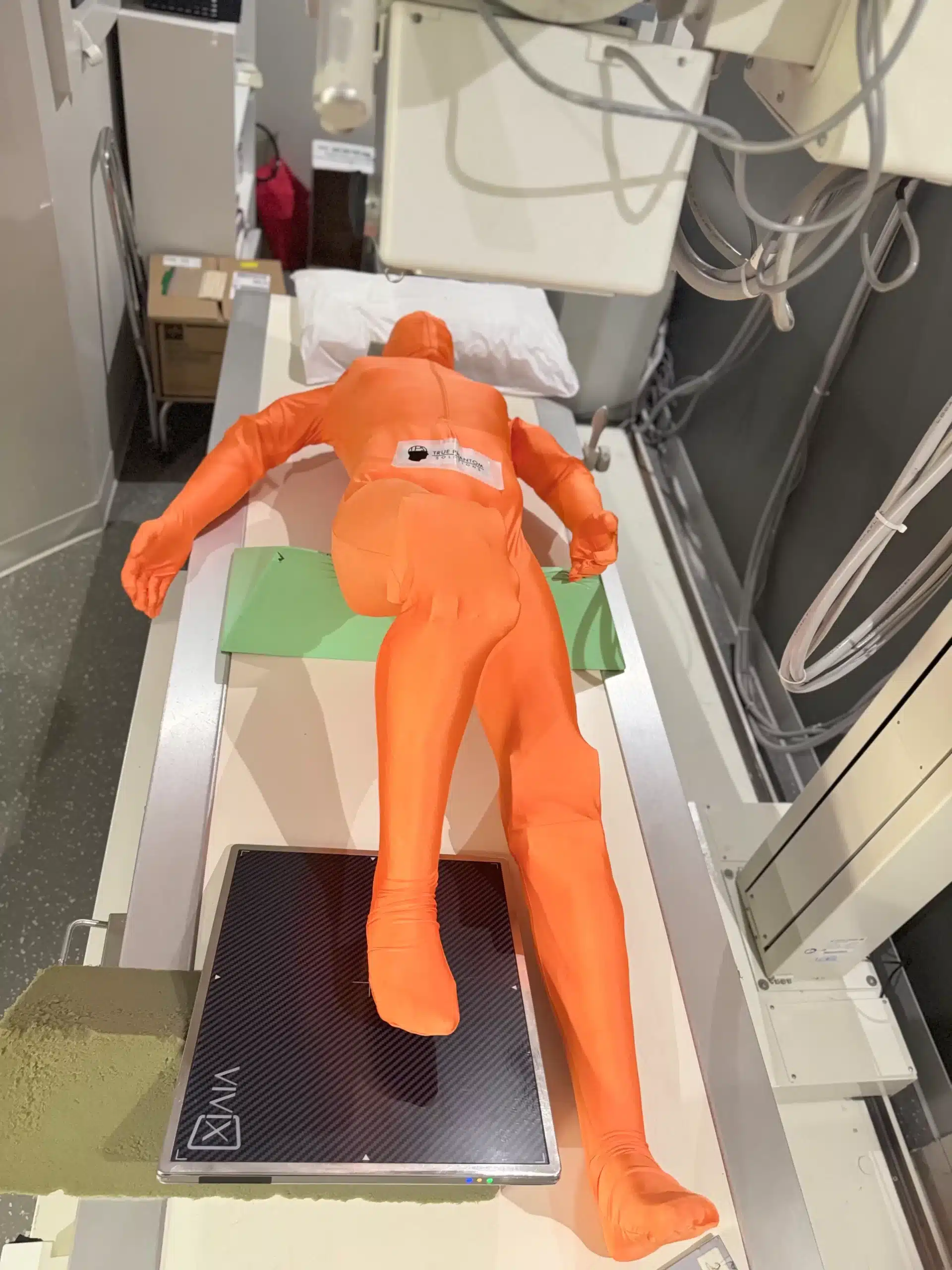

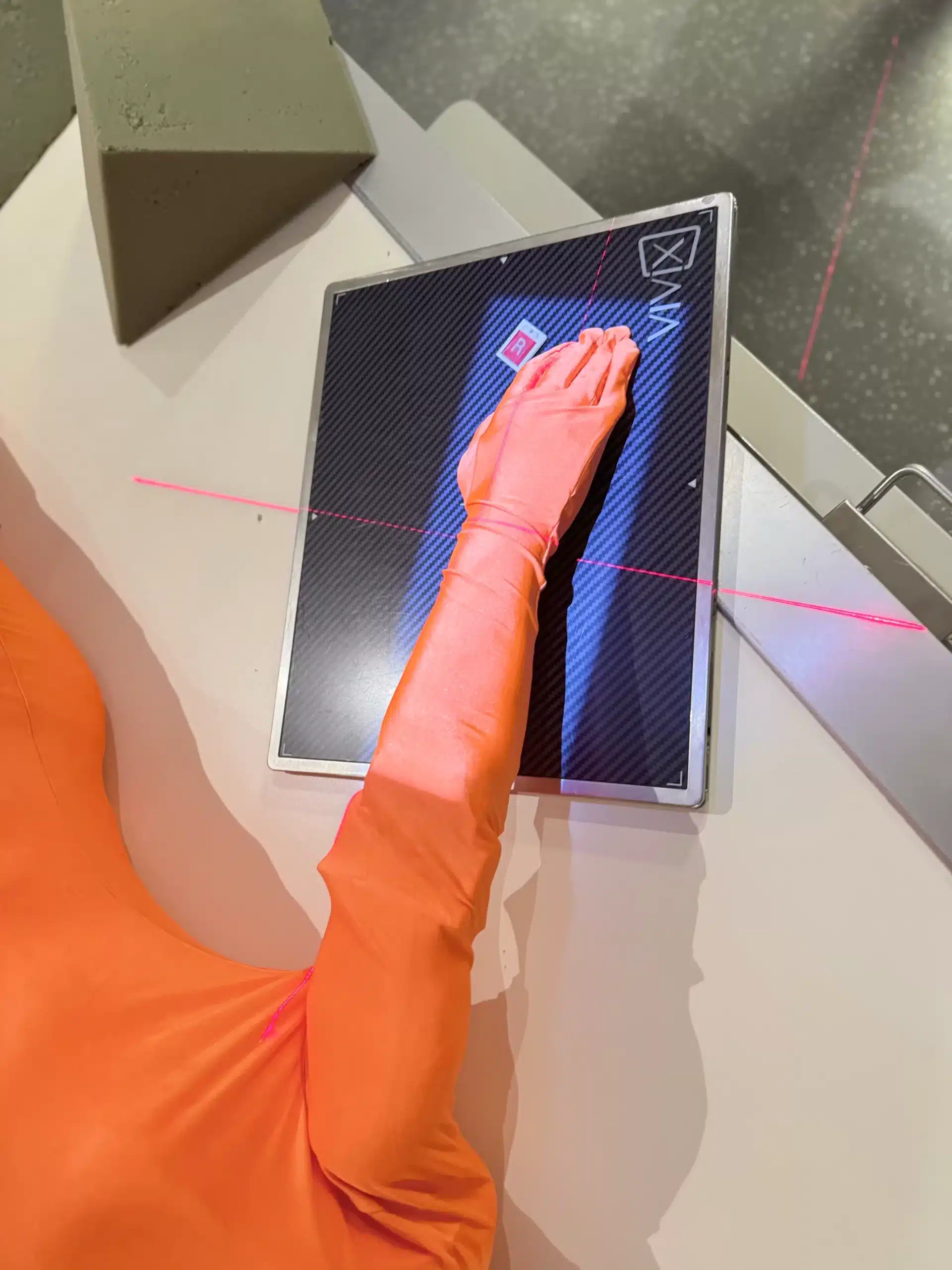

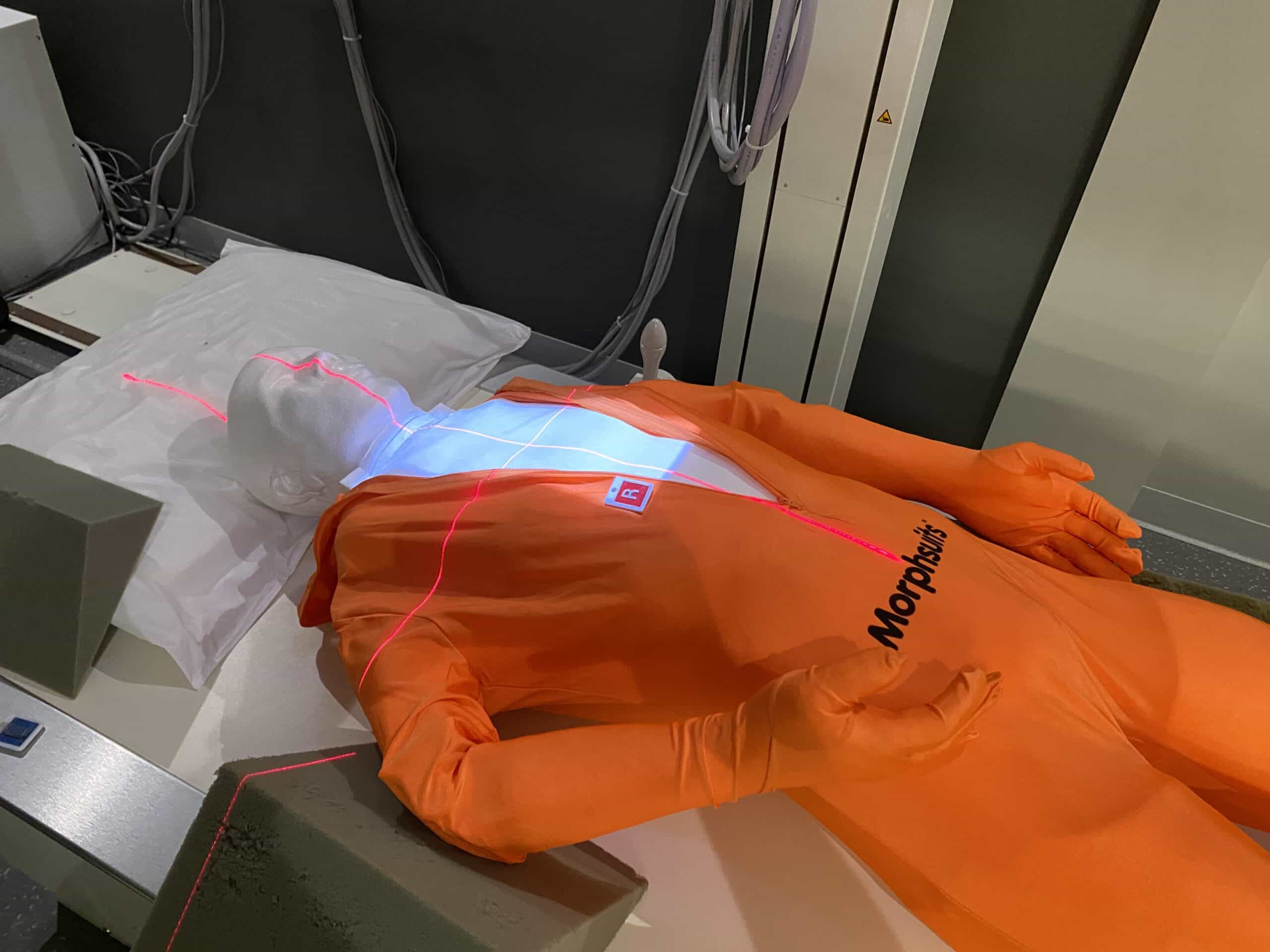

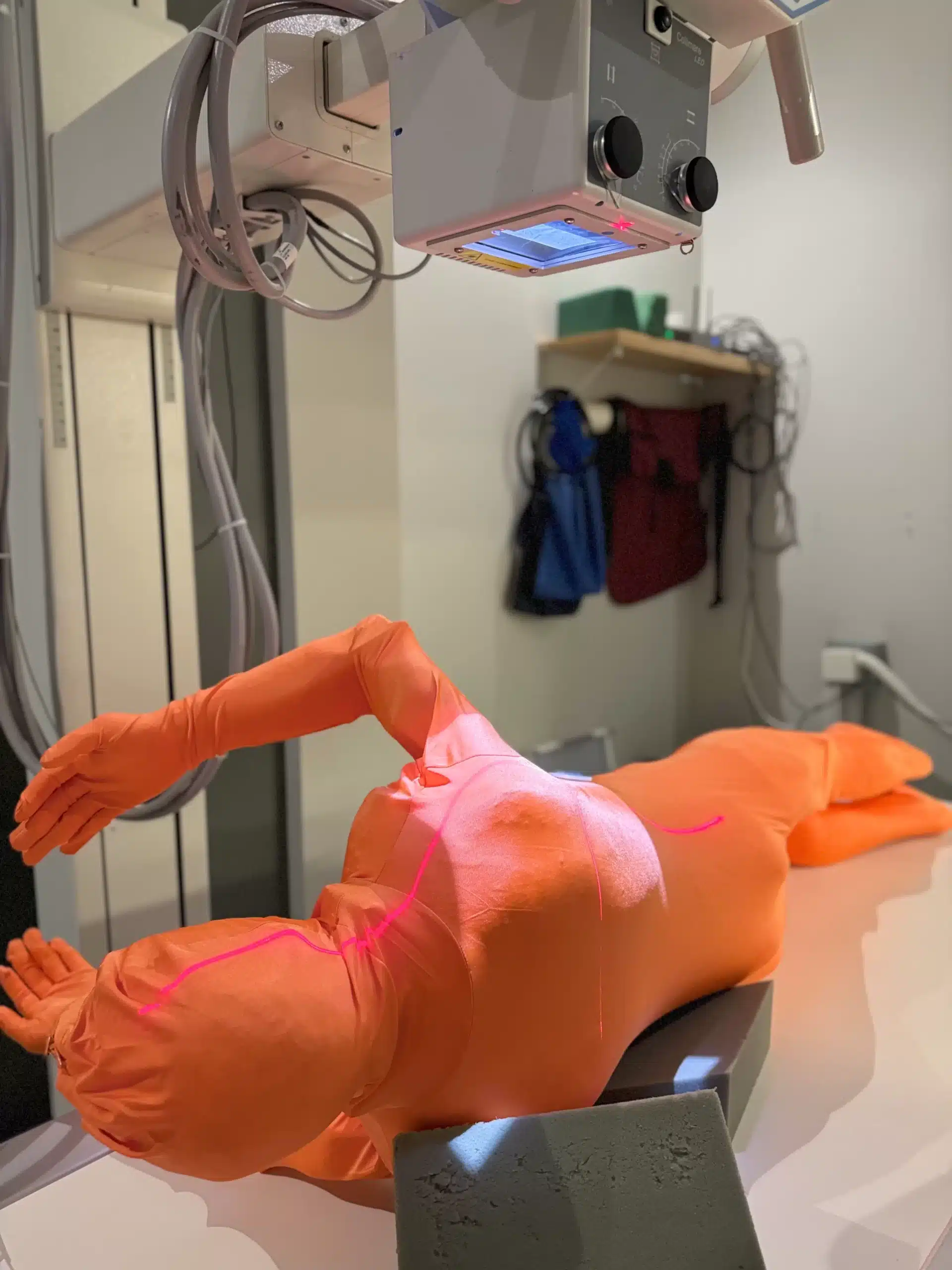

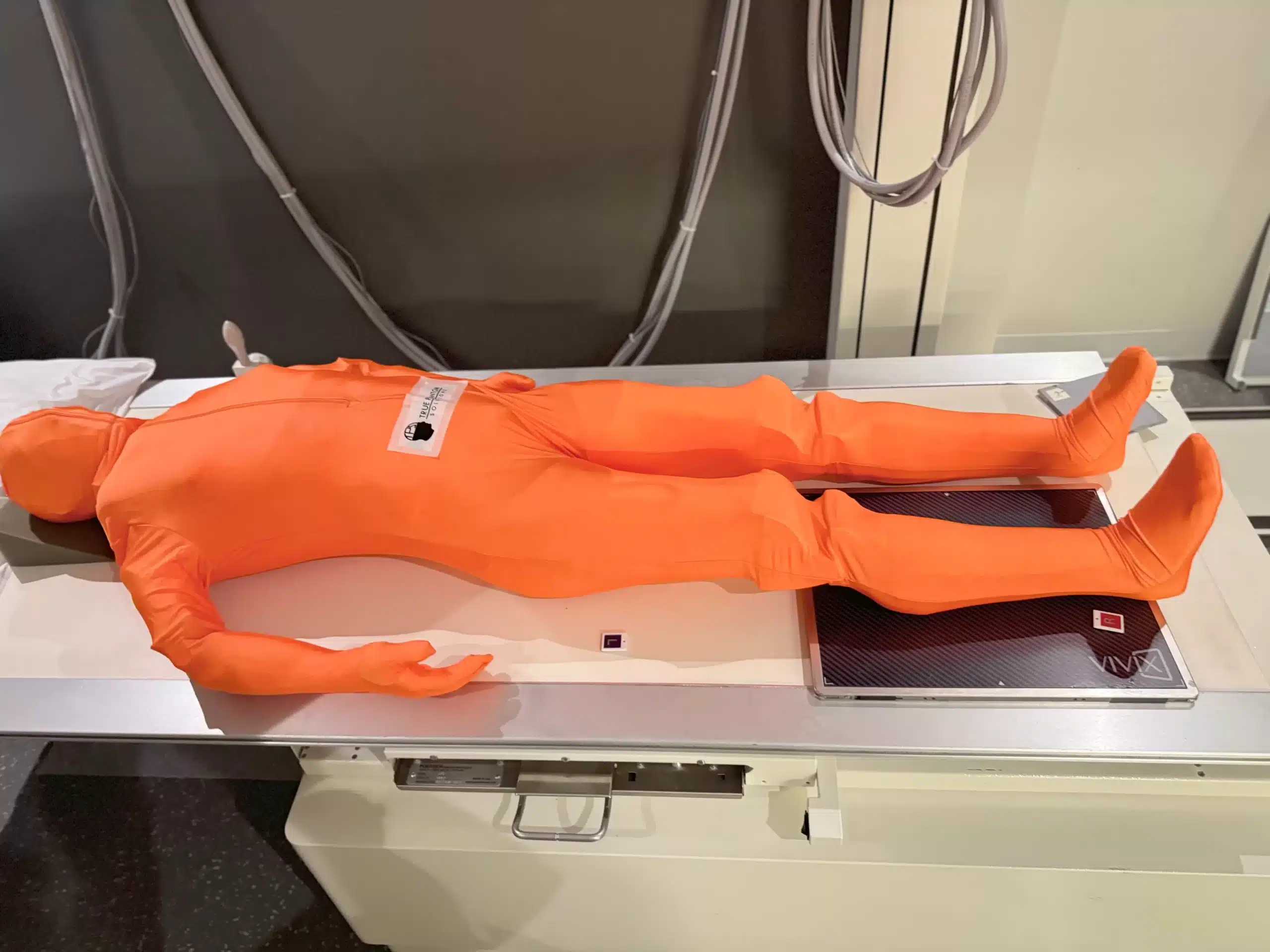

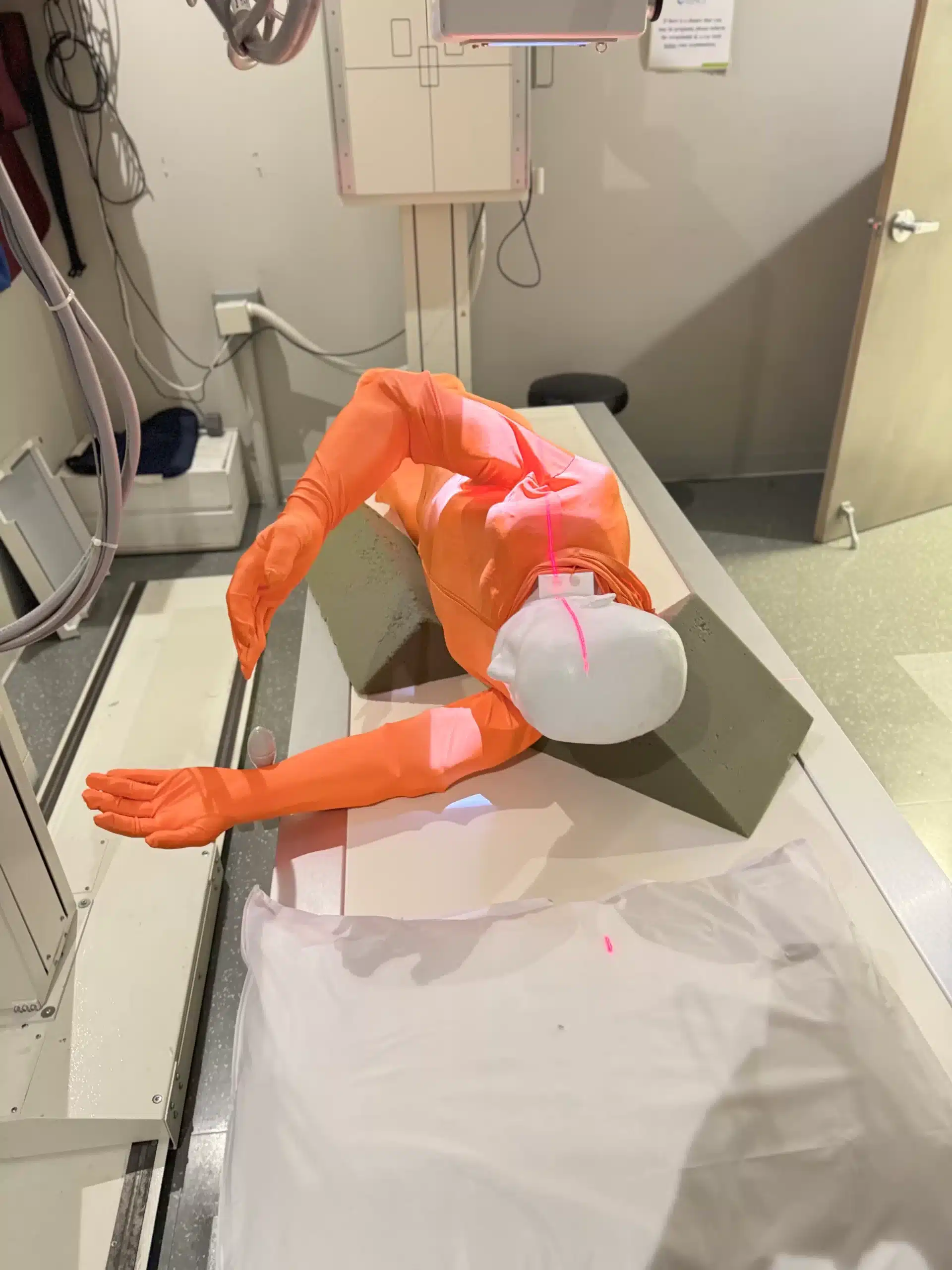

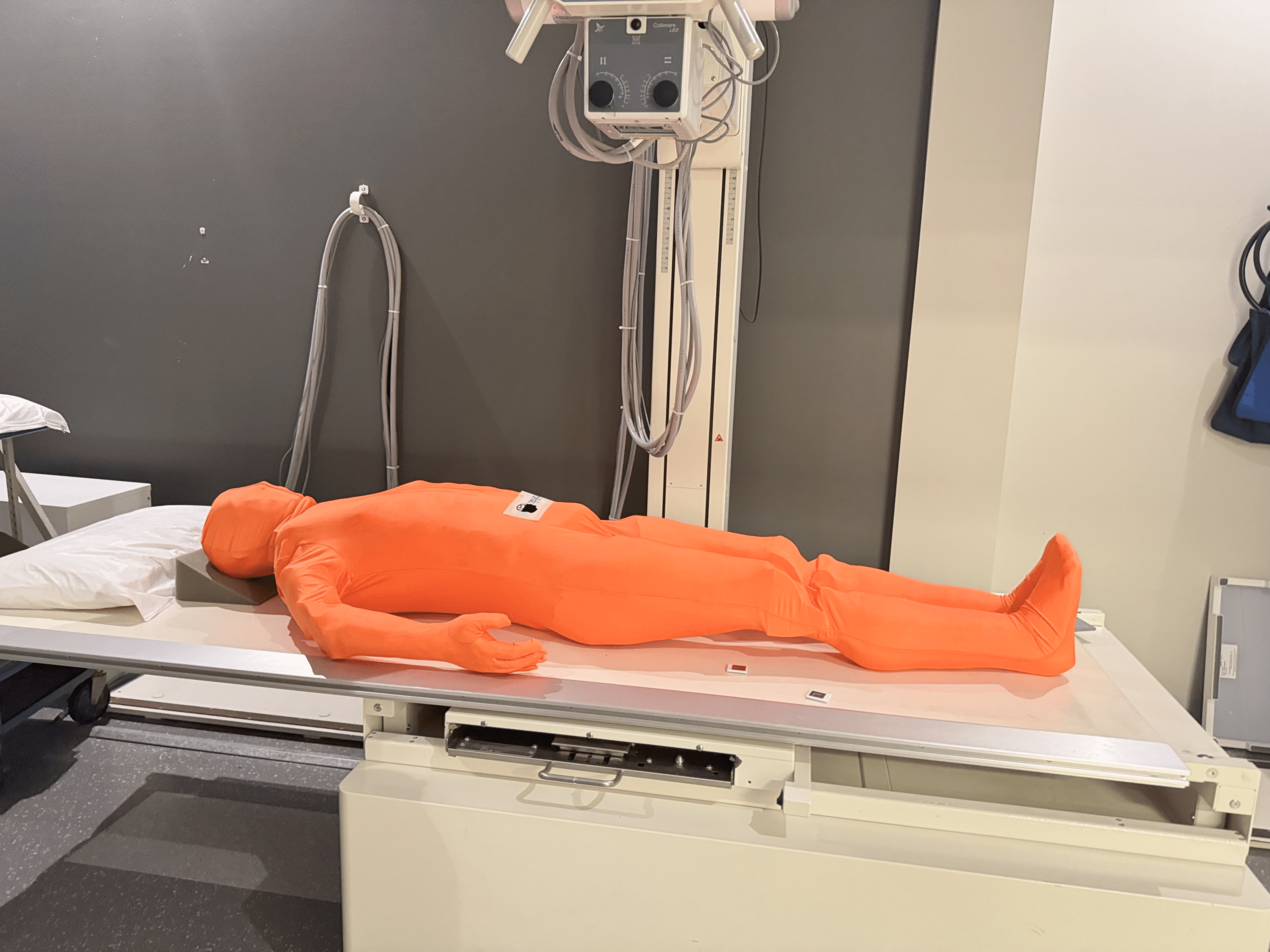

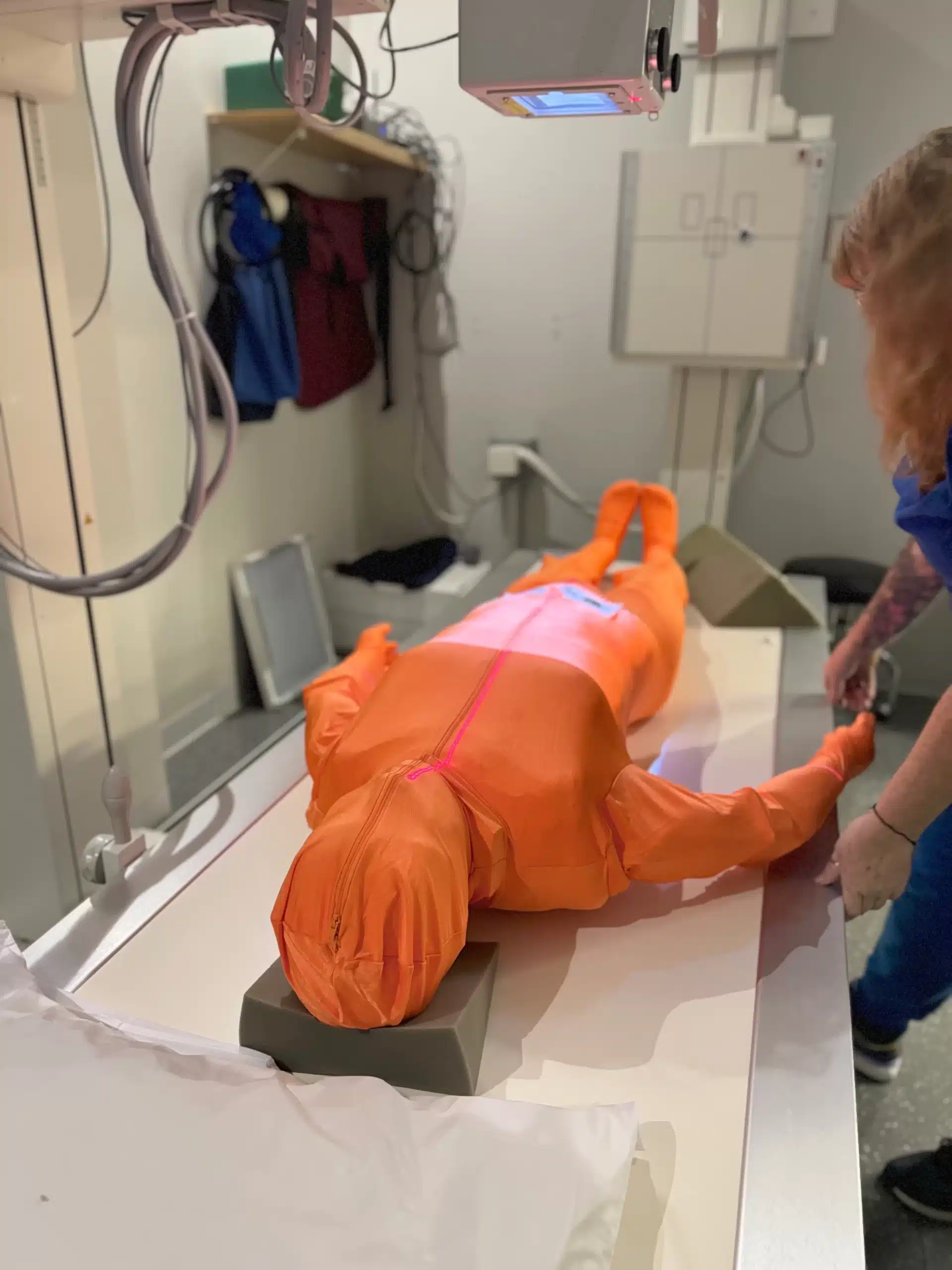

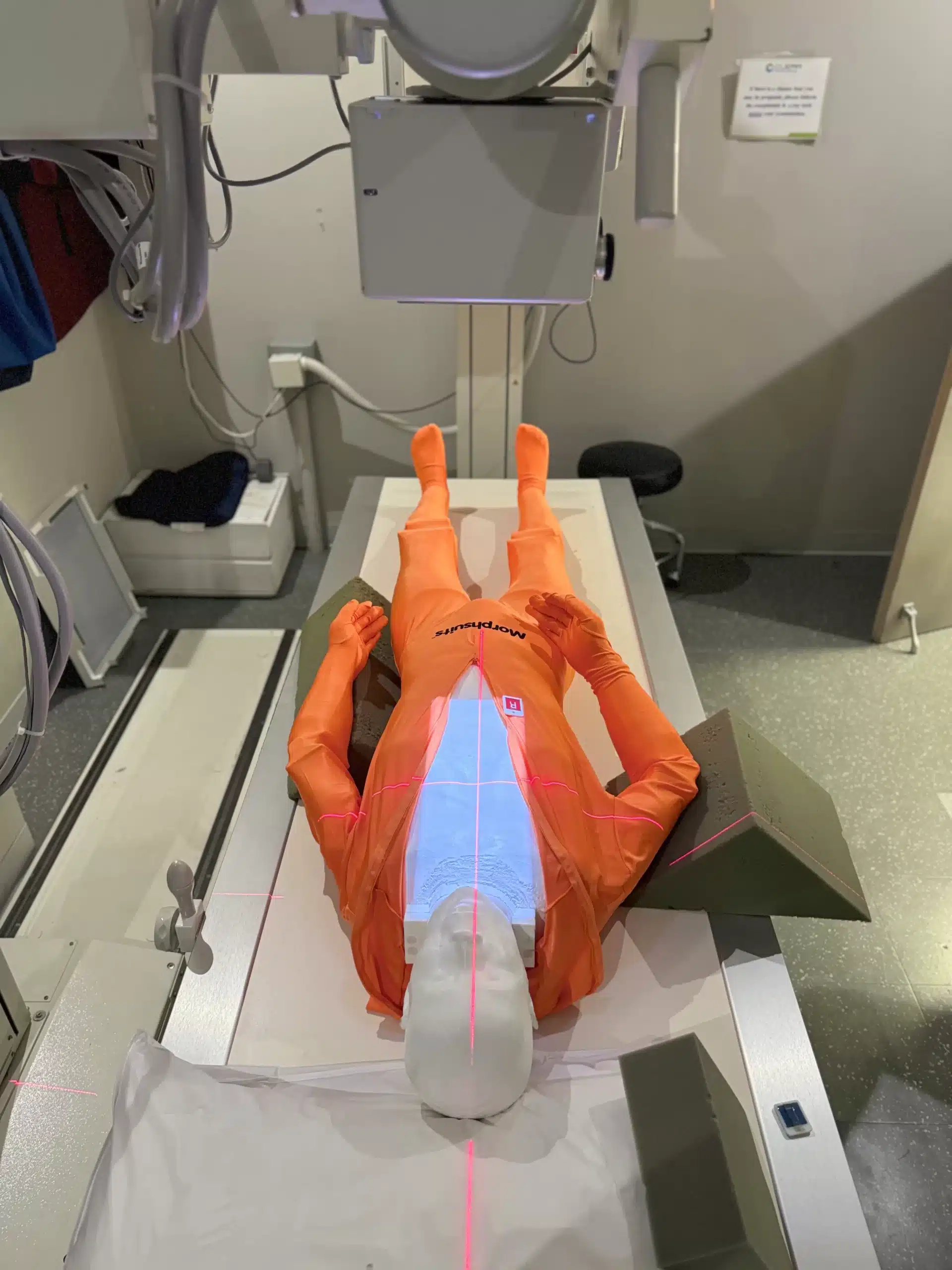

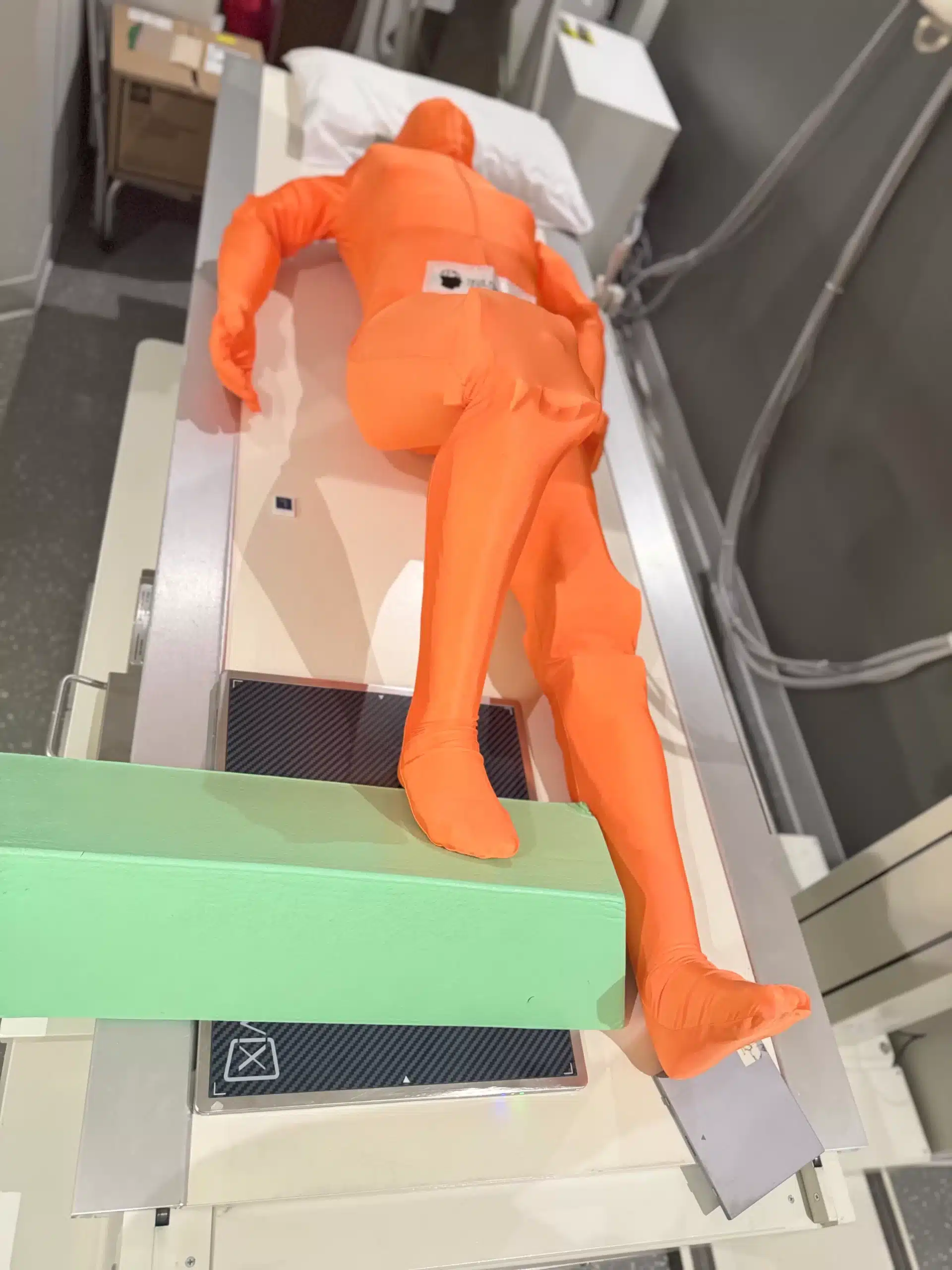

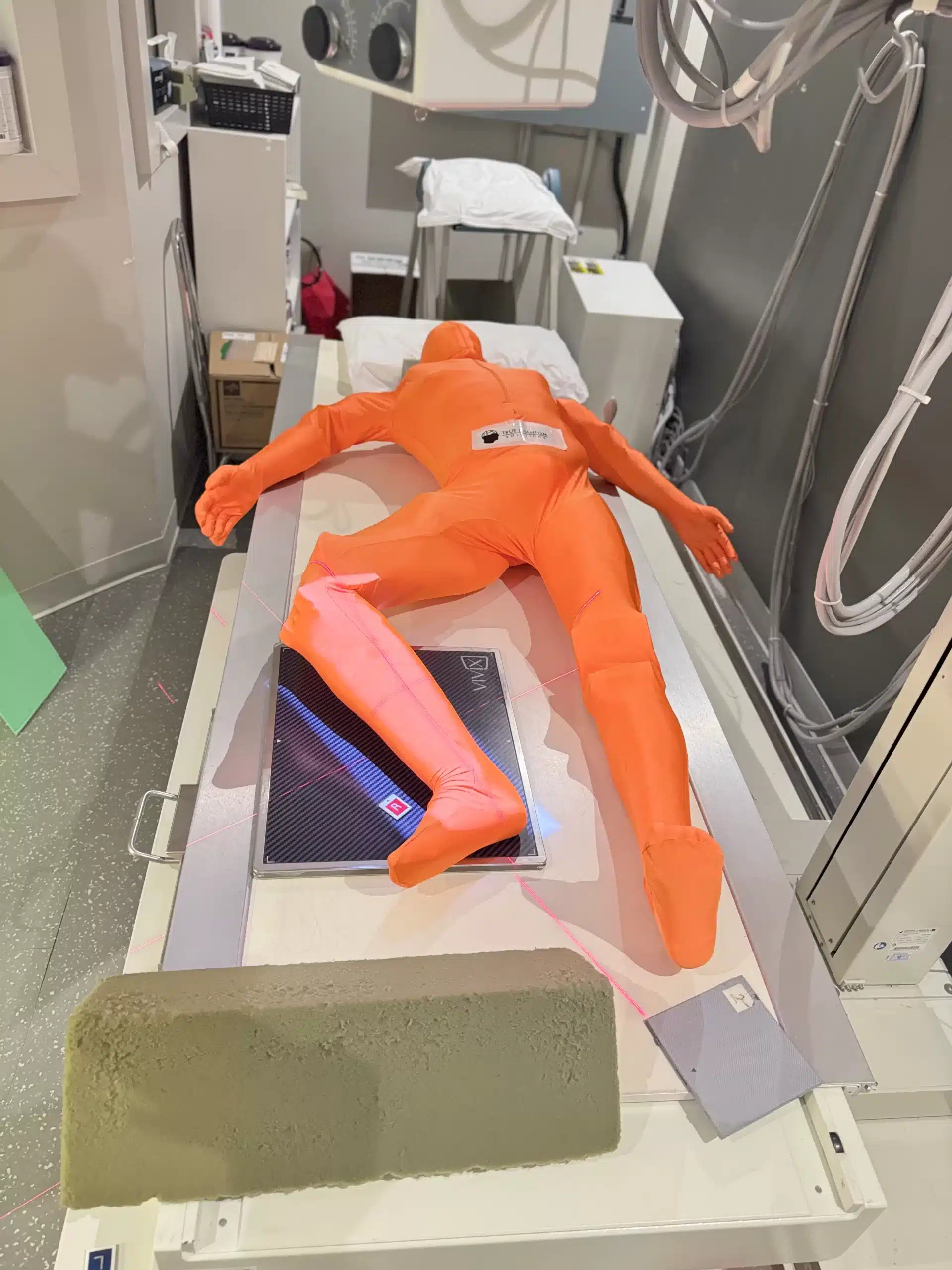

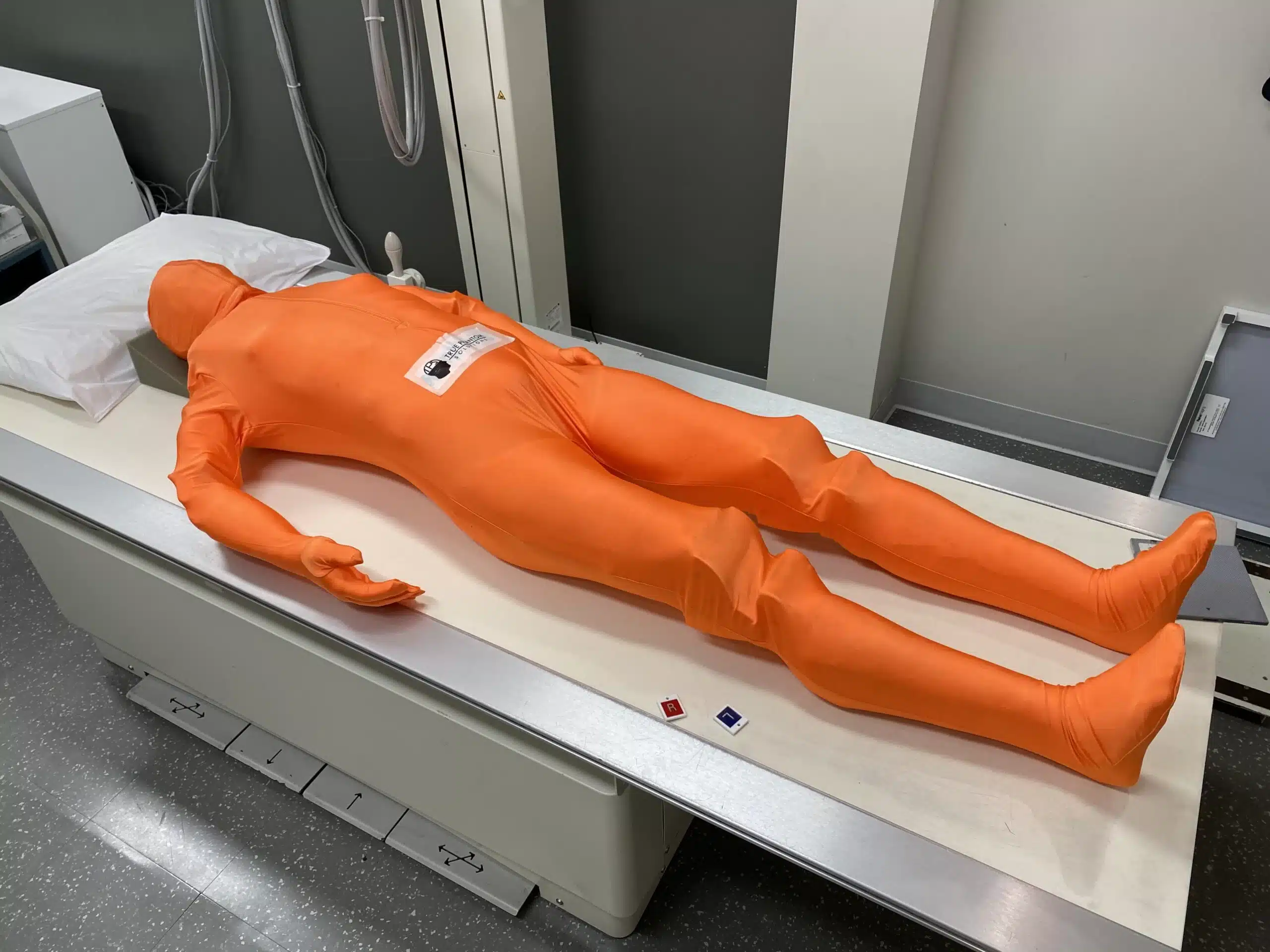

Phantom Positioning Images:

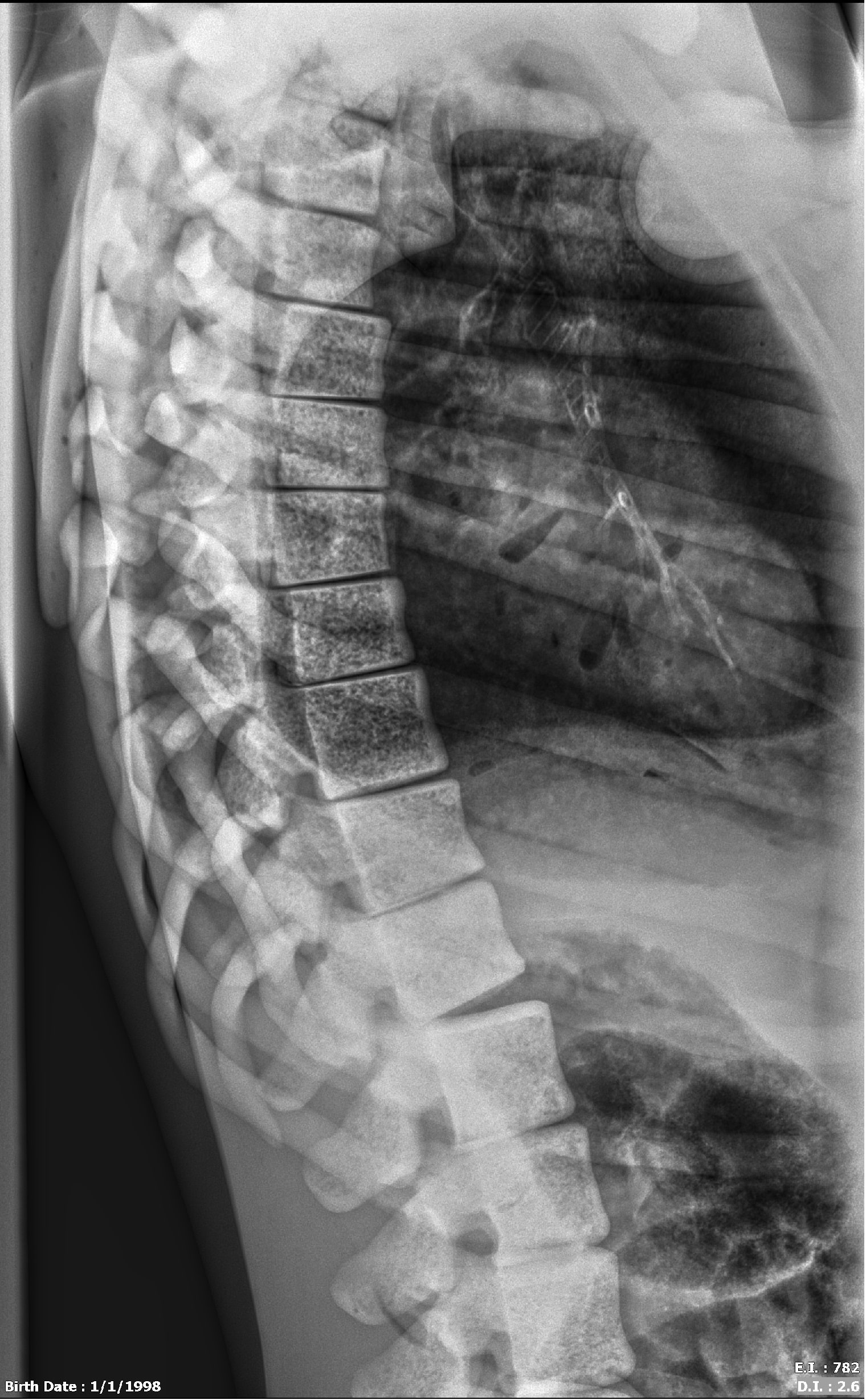

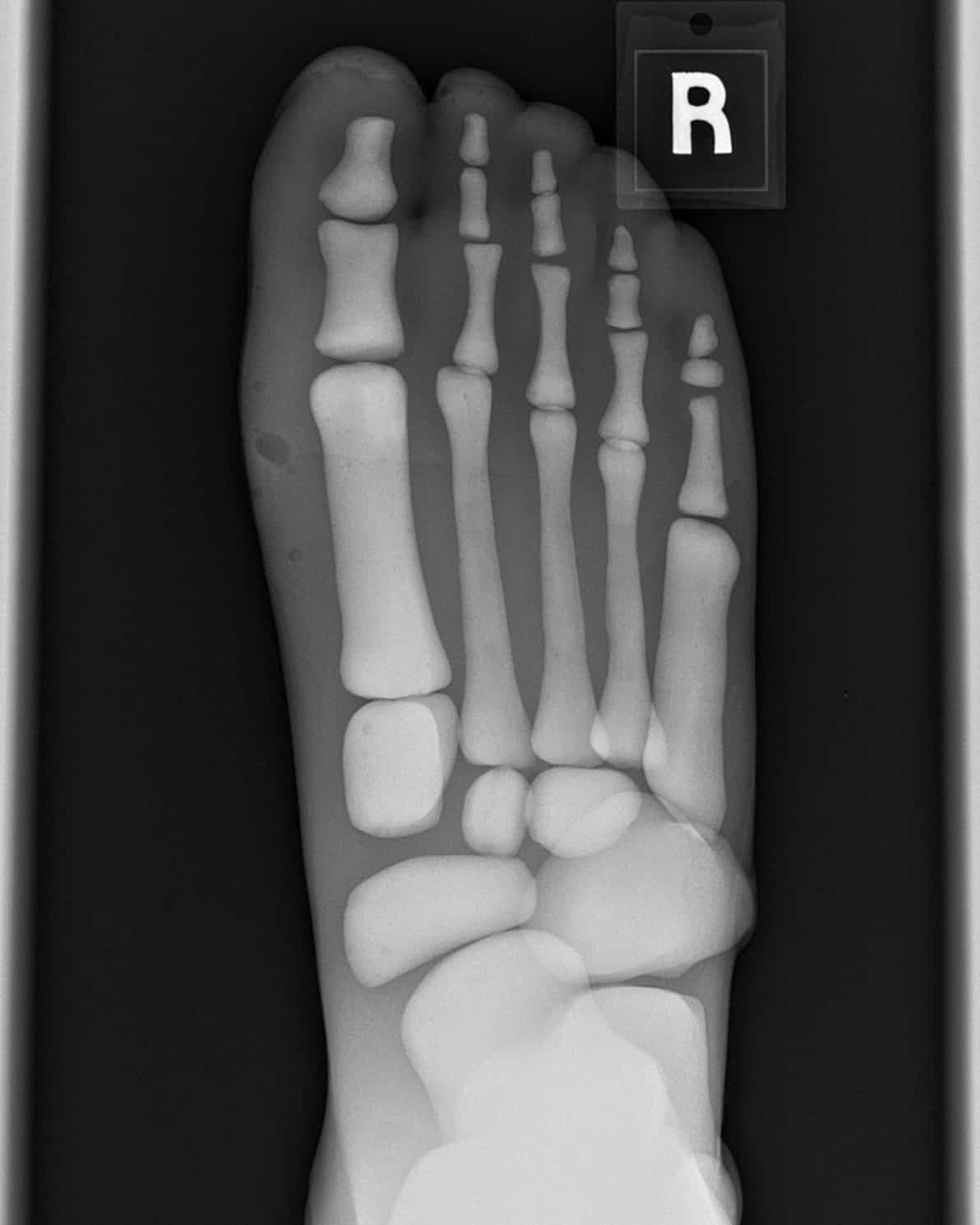

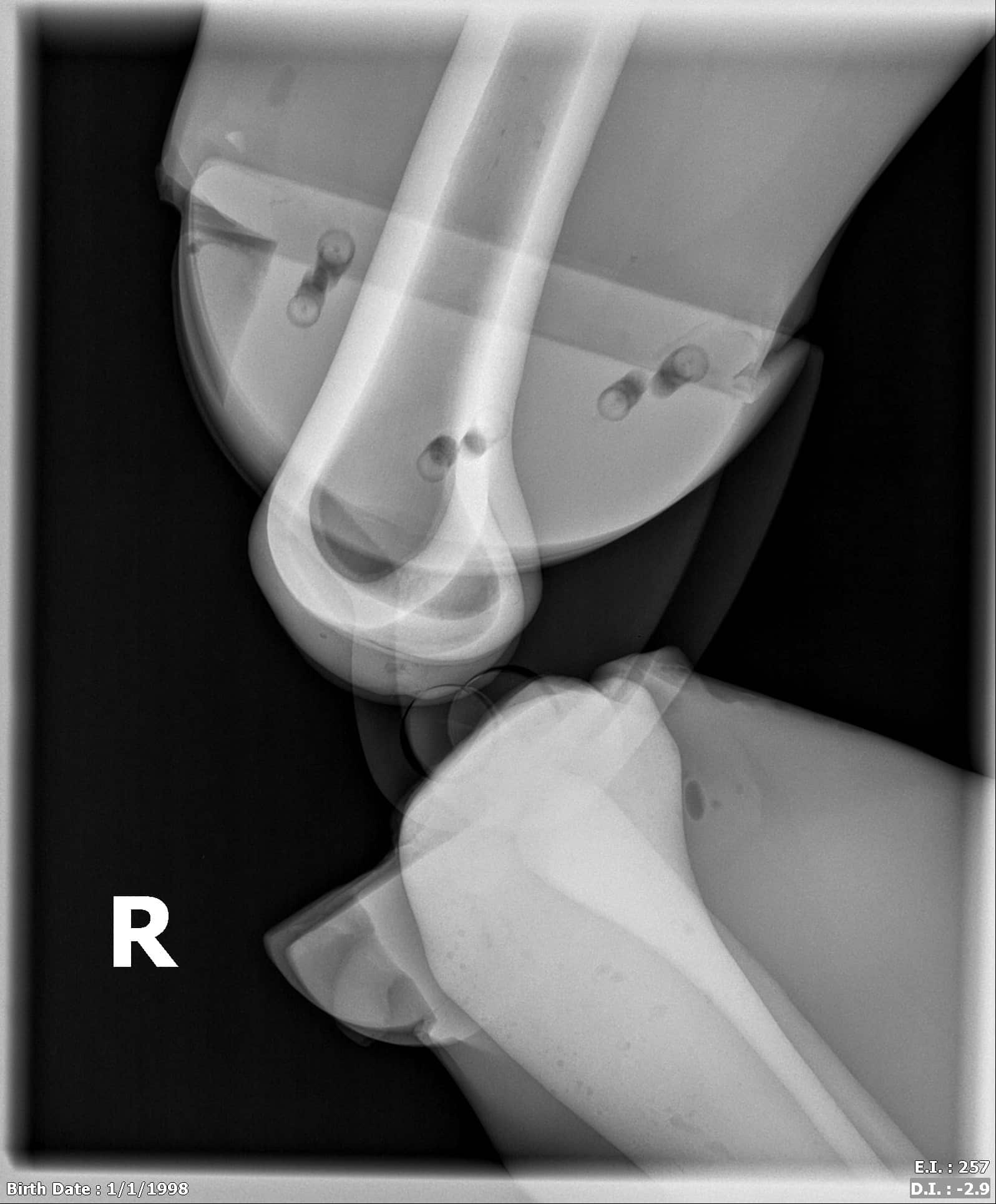

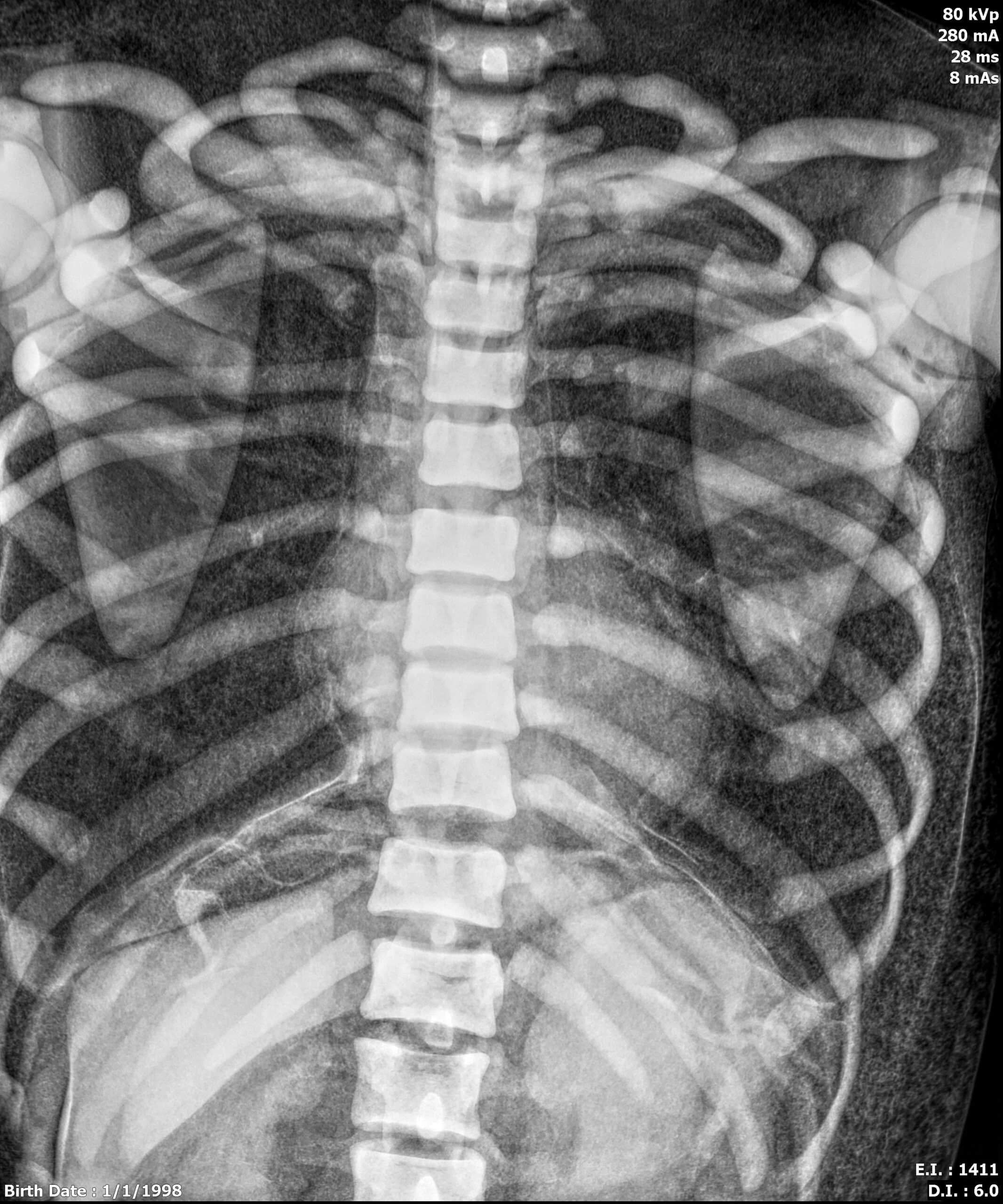

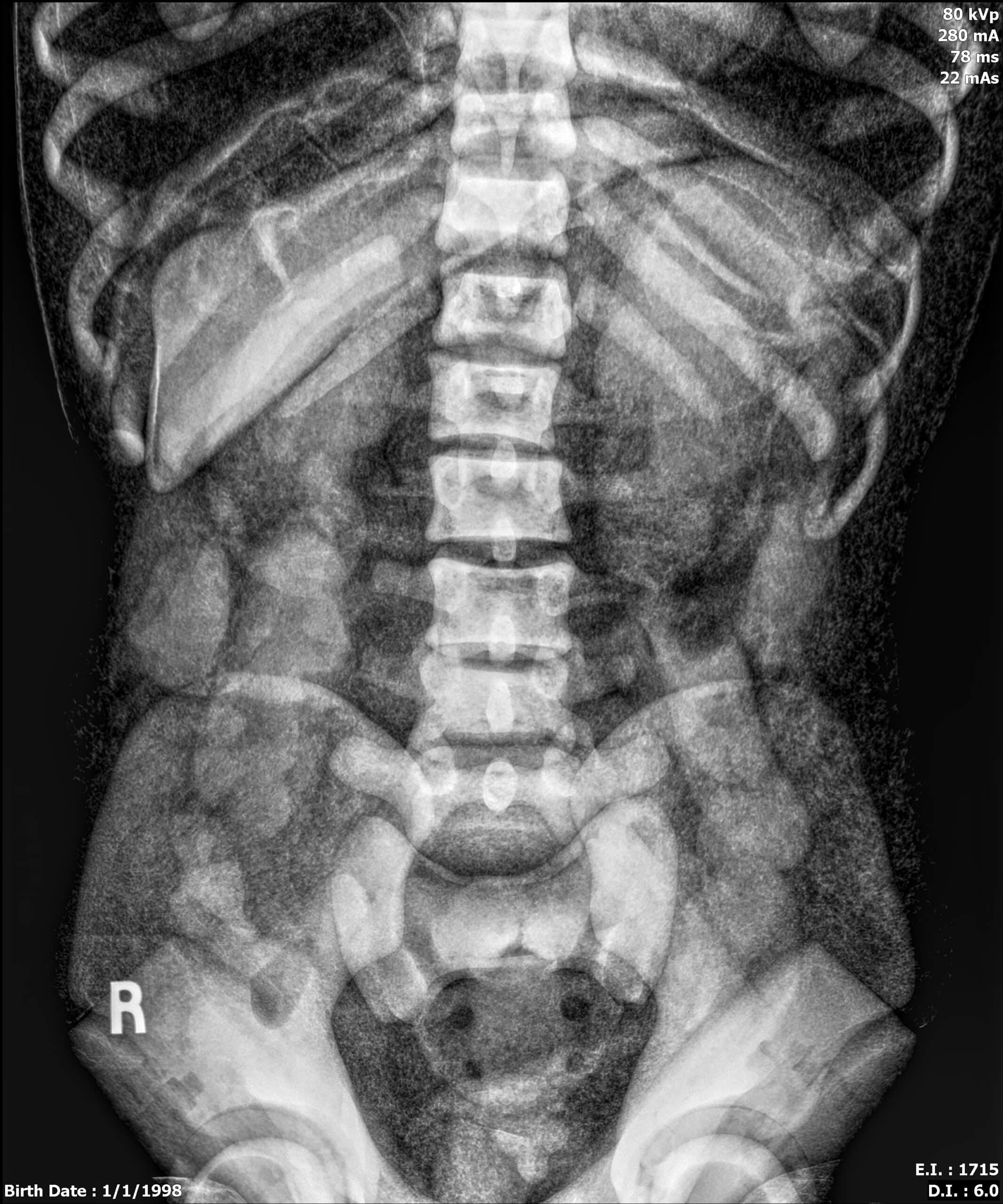

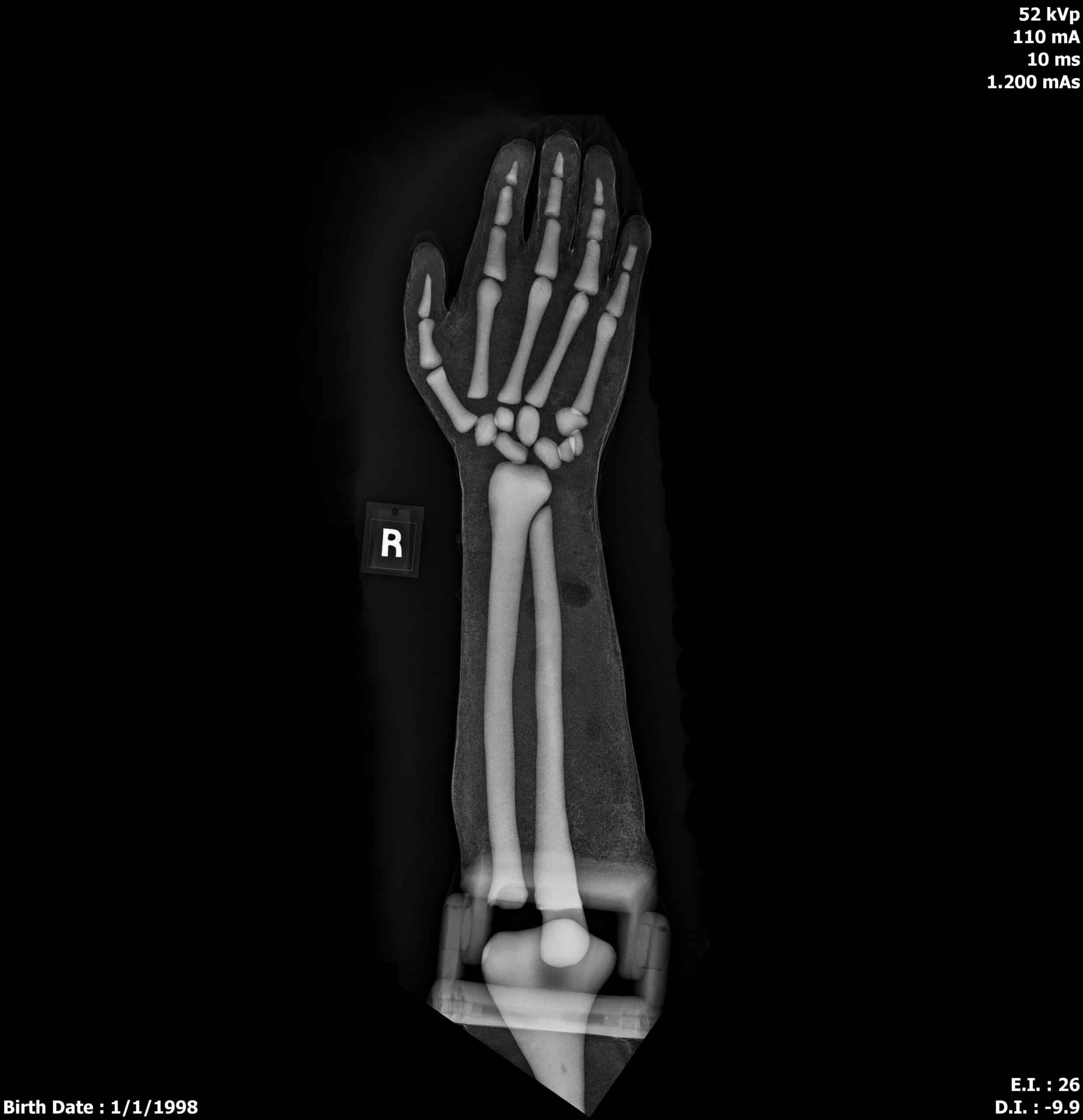

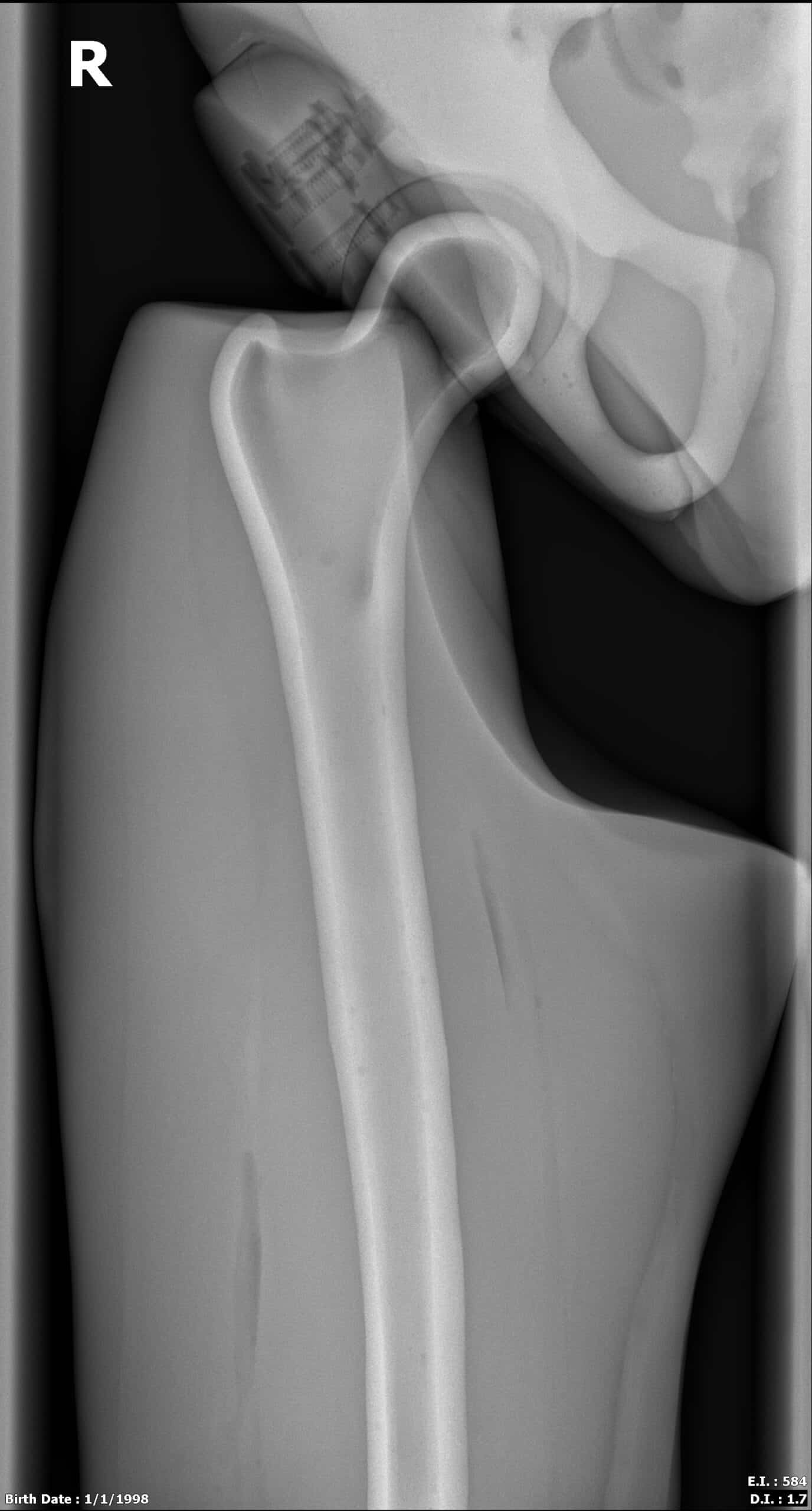

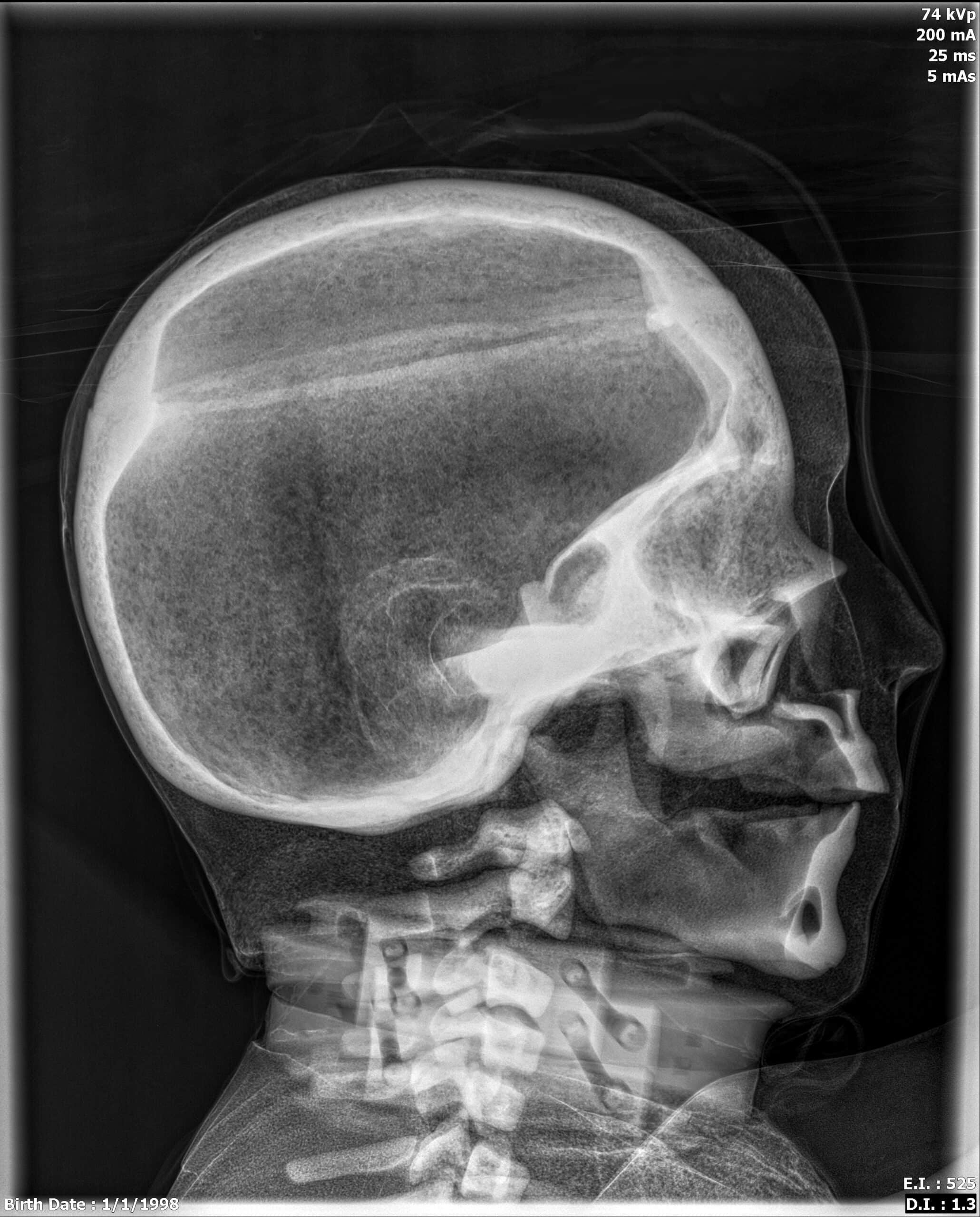

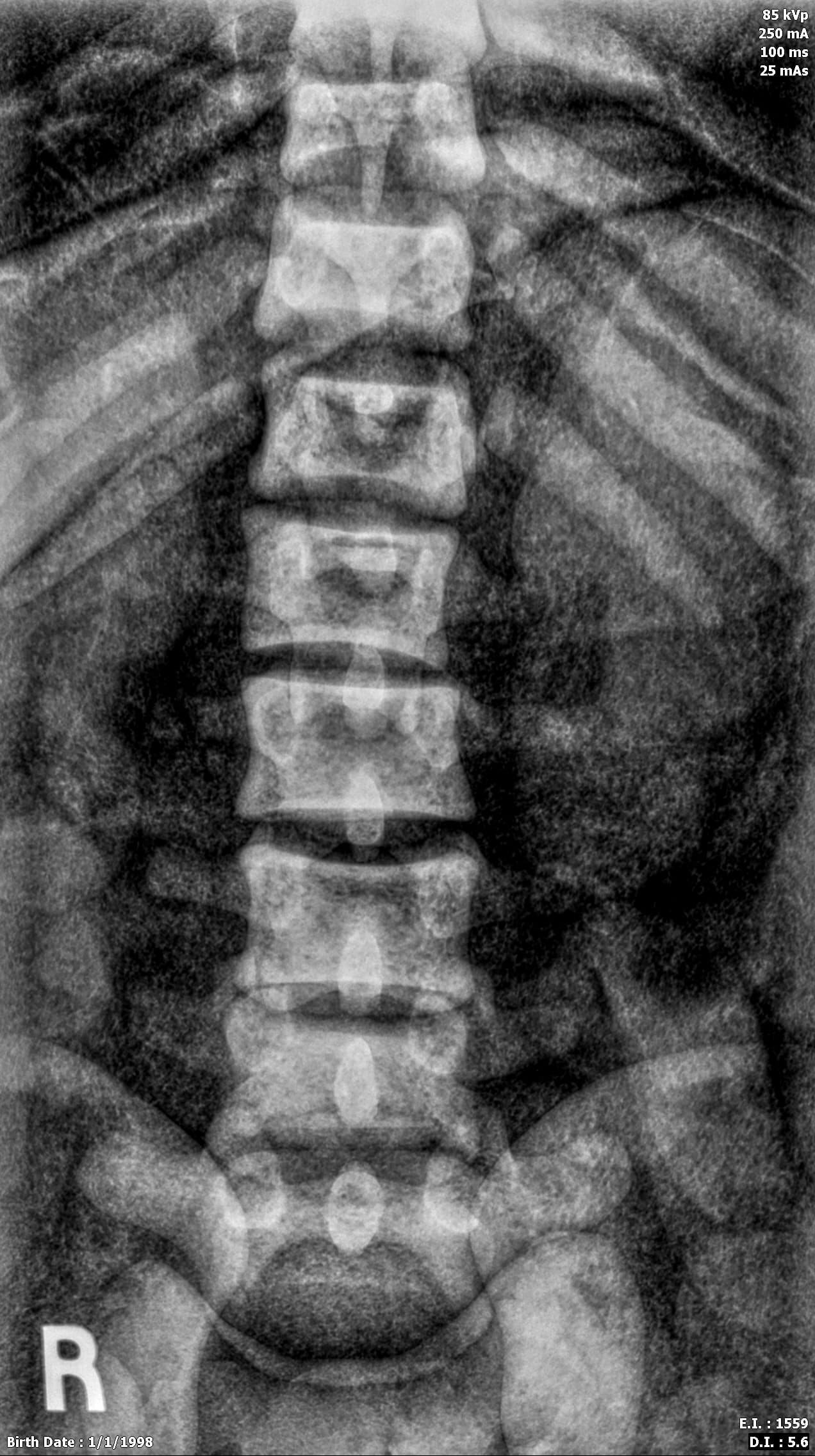

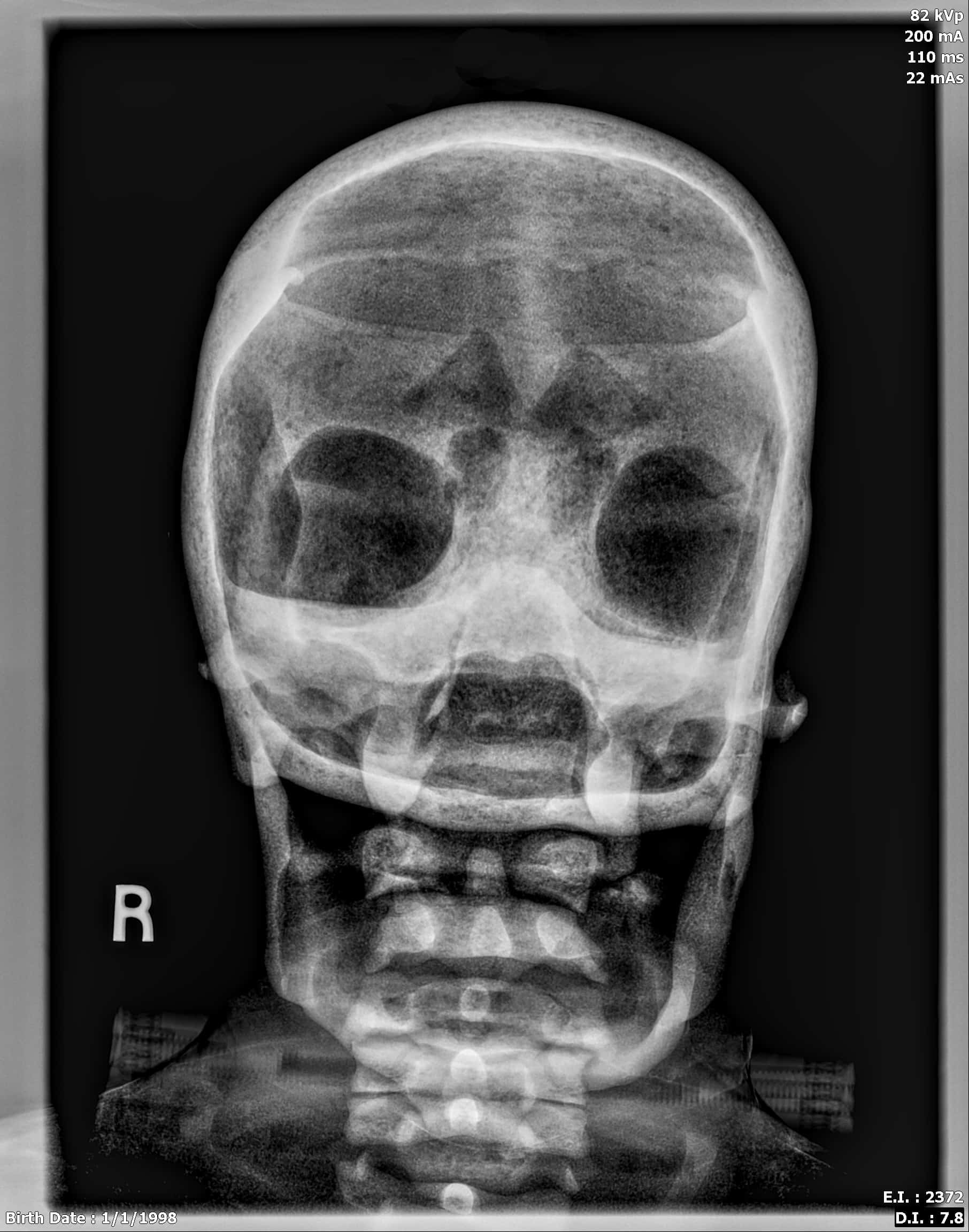

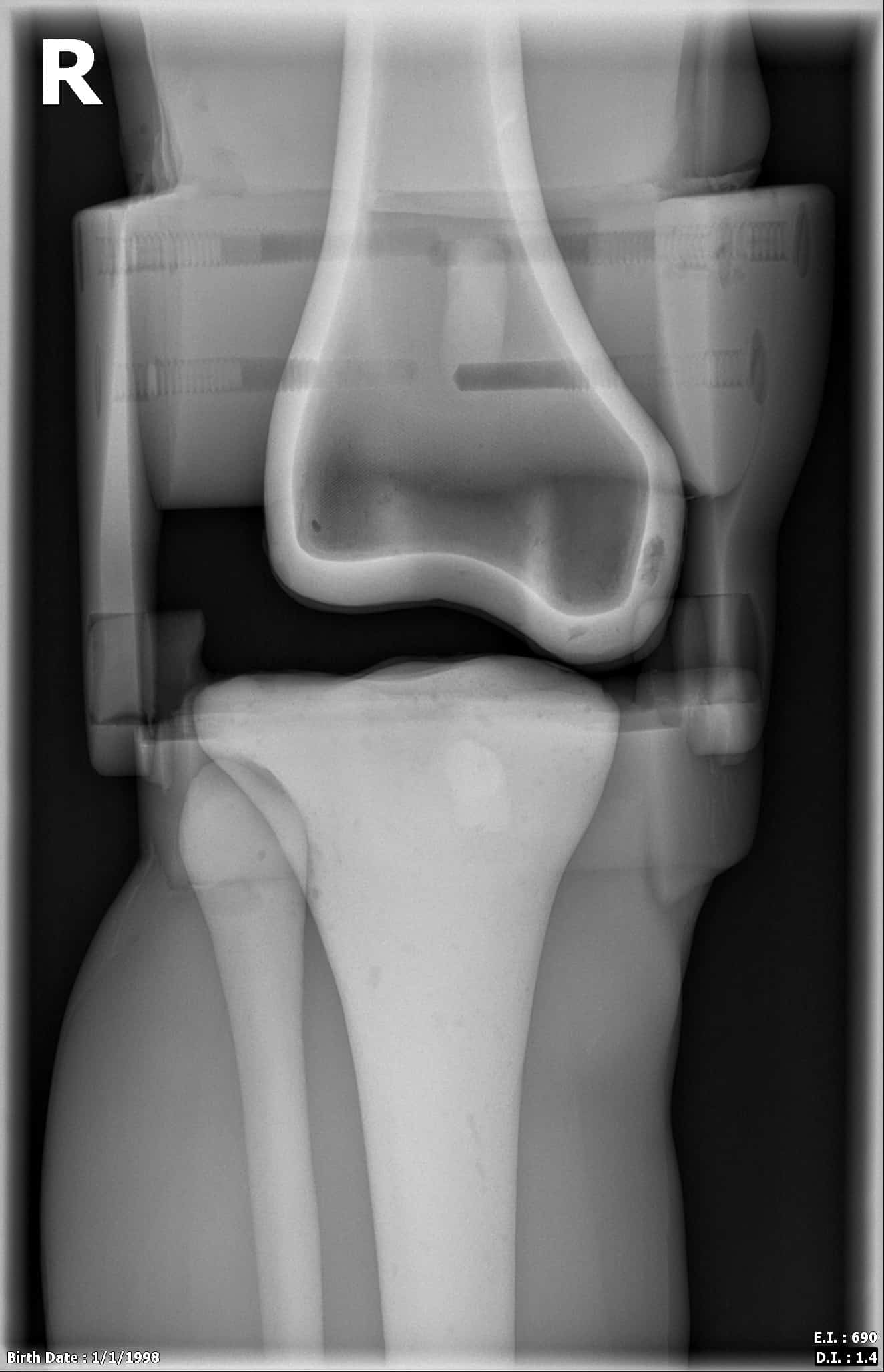

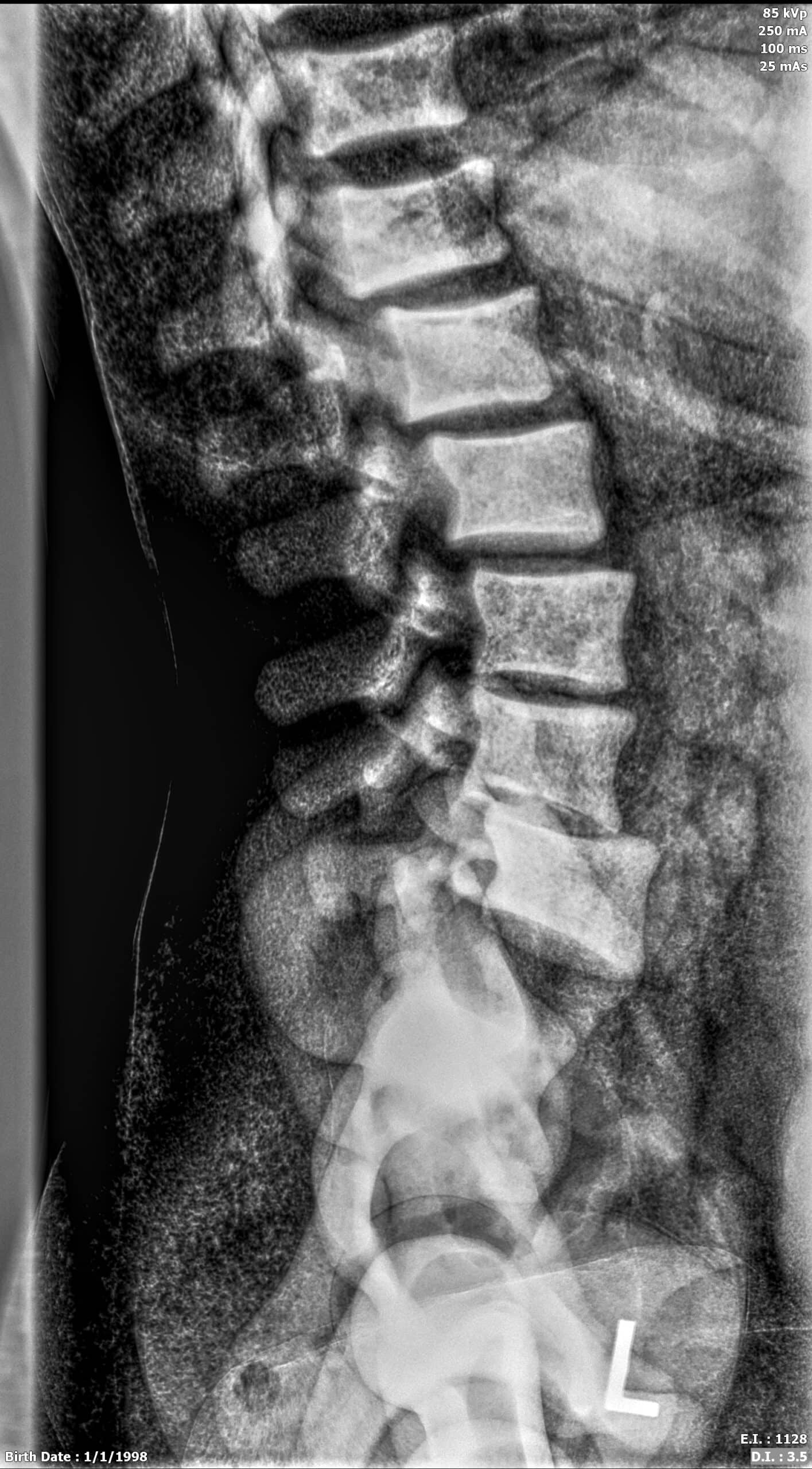

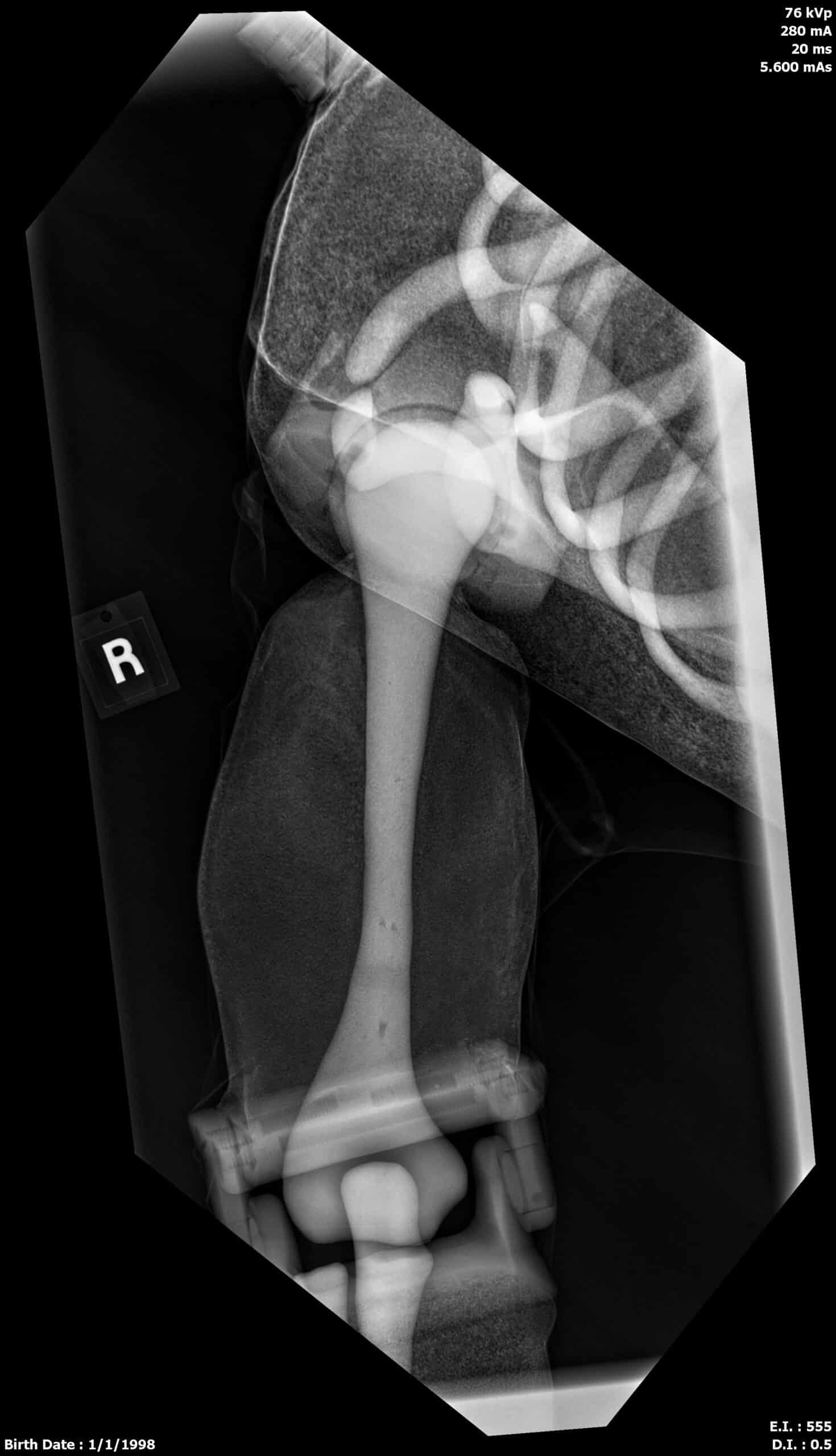

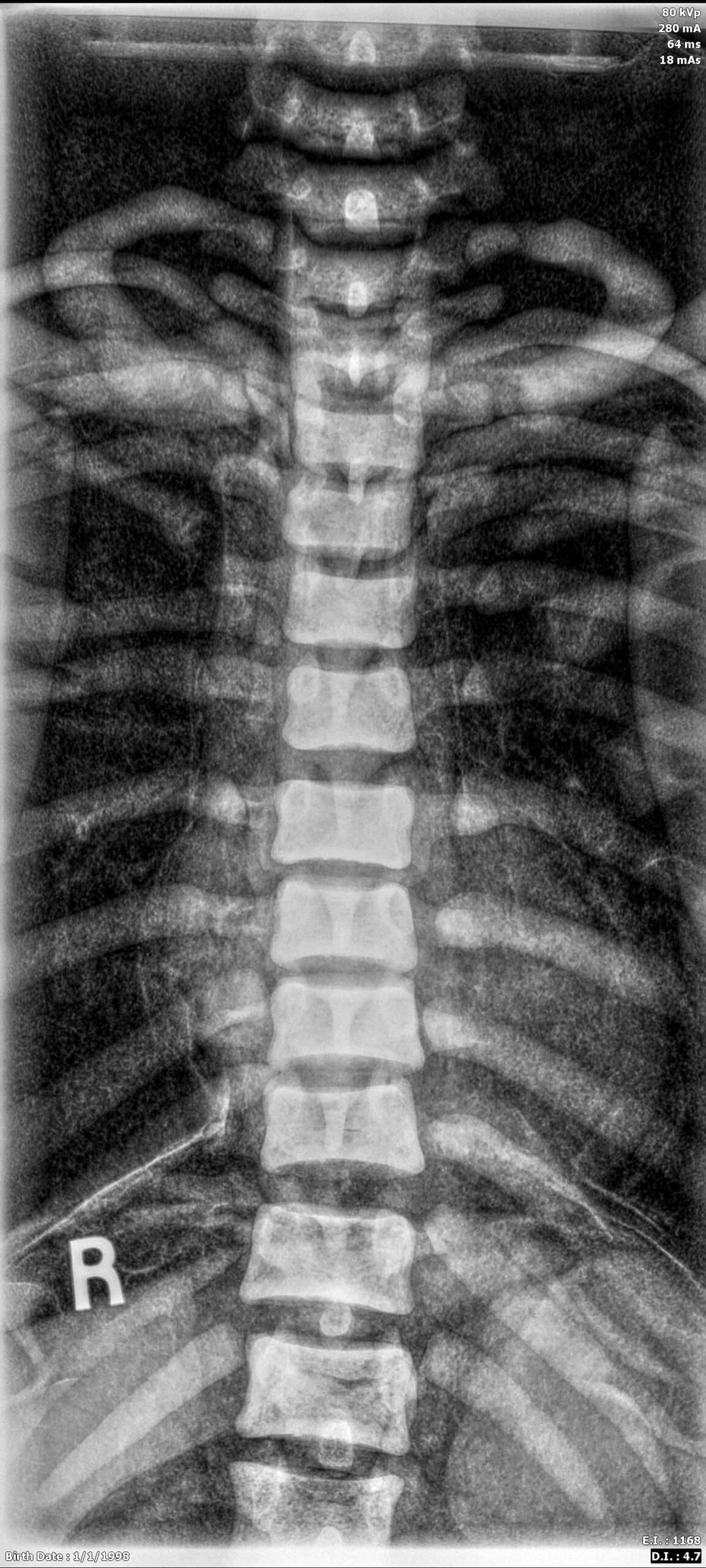

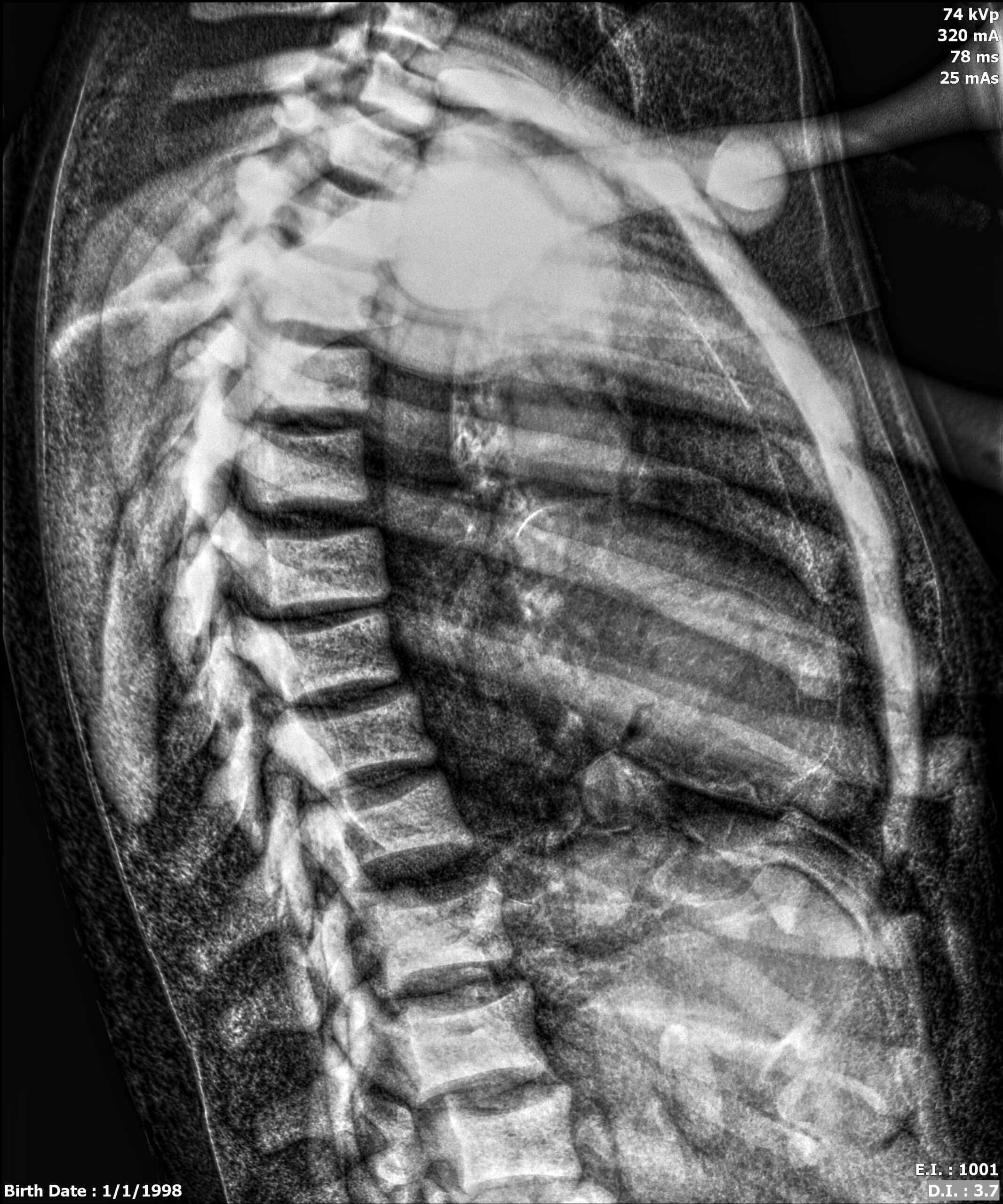

X-Ray Scans:
*/ These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate). If you have any questions related to these, please write us at [email protected] /*

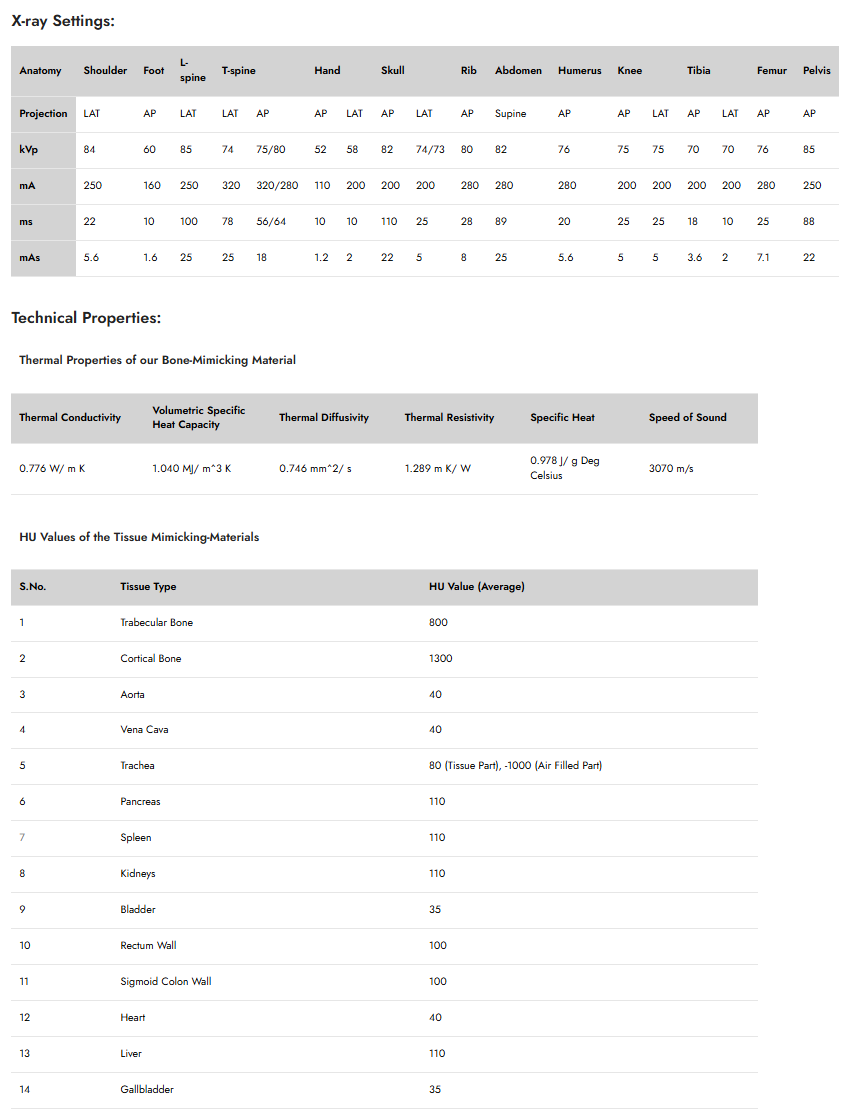

X-ray Settings:
| Anatomy | Shoulder | Foot | L-spine | T-spine | Hand | Skull | Rib | Abdomen | Humerus | Knee | Tibia | Femur | Pelvis | |||||
| Projection | LAT | AP | LAT | LAT | AP | AP | LAT | AP | LAT | AP | Supine | AP | AP | LAT | AP | LAT | AP | AP |
| kVp | 84 | 60 | 85 | 74 | 75/80 | 52 | 58 | 82 | 74/73 | 80 | 82 | 76 | 75 | 75 | 70 | 70 | 76 | 85 |
| mA | 250 | 160 | 250 | 320 | 320/280 | 110 | 200 | 200 | 200 | 280 | 280 | 280 | 200 | 200 | 200 | 200 | 280 | 250 |
| ms | 22 | 10 | 100 | 78 | 56/64 | 10 | 10 | 110 | 25 | 28 | 89 | 20 | 25 | 25 | 18 | 10 | 25 | 88 |
| mAs | 5.6 | 1.6 | 25 | 25 | 18 | 1.2 | 2 | 22 | 5 | 8 | 25 | 5.6 | 5 | 5 | 3.6 | 2 | 7.1 | 22 |
Technical Properties:
Thermal Properties of our Bone-Mimicking Material |
|||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking-Materials |
||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
| 3 | Aorta | 40 |
| 4 | Vena Cava | 40 |
| 5 | Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| 6 | Pancreas | 110 |
| 7 | Spleen | 110 |
| 8 | Kidneys | 110 |
| 9 | Bladder | 35 |
| 10 | Rectum Wall | 100 |
| 11 | Sigmoid Colon Wall | 100 |
| 12 | Heart | 40 |
| 13 | Liver | 110 |
| 14 | Gallbladder | 35 |
Included In Order:
Adult Full Body Phantom
 User Manual/Assembly Instructions
 2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 69 Inches, Weight: 44 Lbs (approx.).
Shipment:
Size: 63 x 34 x 42 Inches, Weight: 90 Lbs (approx.)
Materials Used:
Soft tissue and organs: Foam body tissue, composition of urethane-based soft resin organs
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
