The Adult Ear Phantom is a product with the complex anatomy of a human ear, and it can be used for research and development of noise reduction equipment. The phantom can be customized to match various projects involving Ultrasound, X-Ray/CT, and MRI imaging methods. The ear phantom could be your ideal tool to test and do calibration-related work on any hearing aid equipment.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Excellent results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic and within the range of about 100 ms.
It can be fabricated as a stand-alone product or implemented into the complete skull and/or head phantom.
Read more about our Ear Phantom in this Research Paper published by ELSEVIER.
Anatomy:
Ear Cartilage Tissue Bone with Ear Canal Acoustically Accurate Skin Mimicking-Tissue
Design:
-
- Front View
-

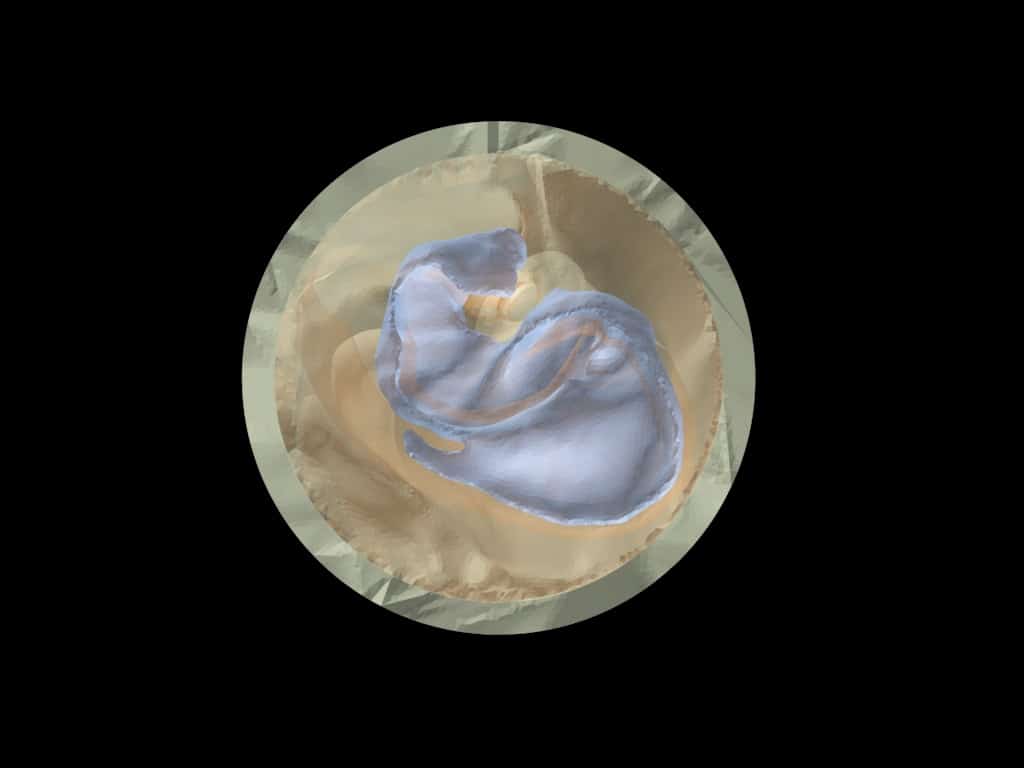

- Lateral View
-

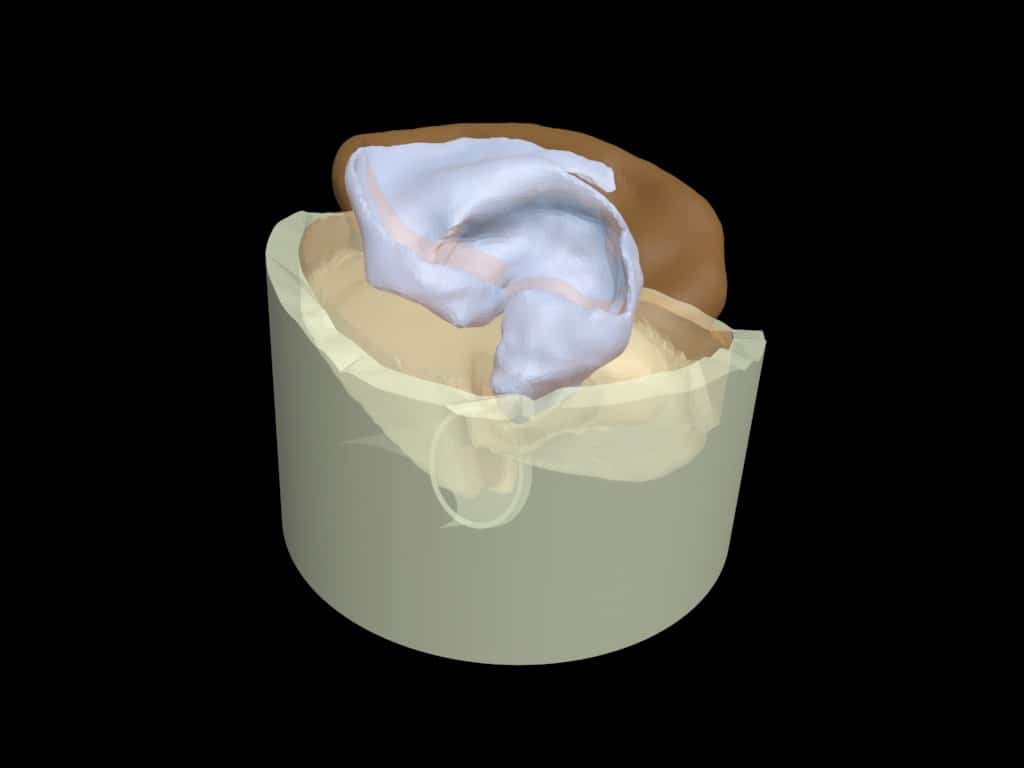

- Perspective View
-

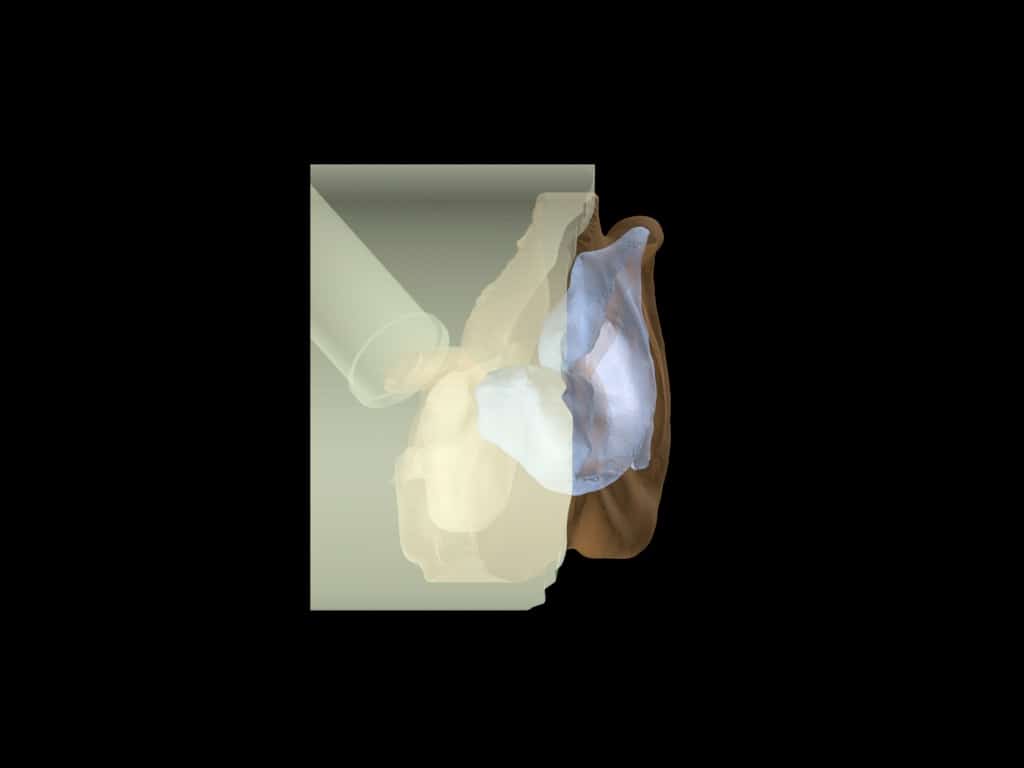

- Top View

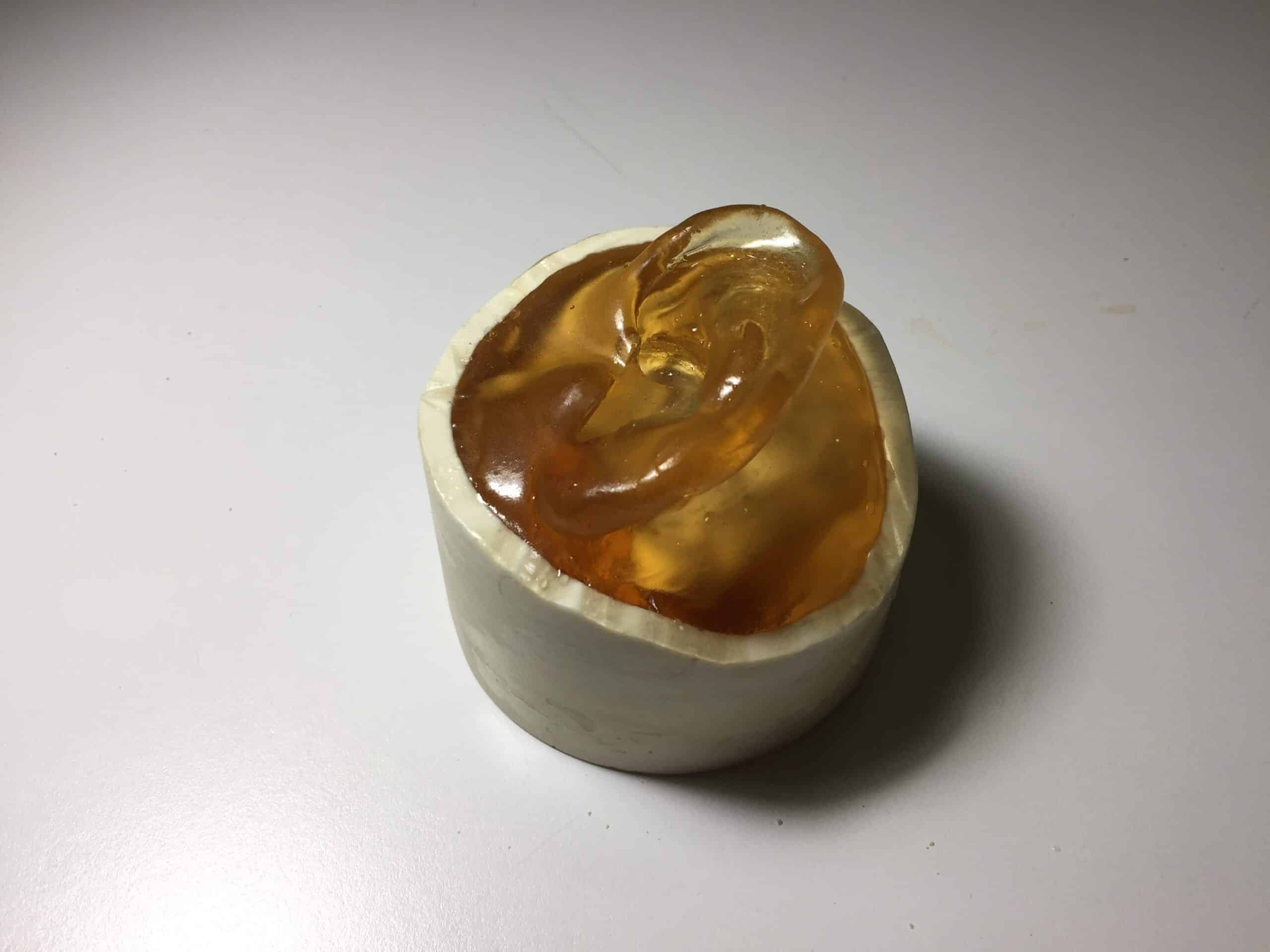

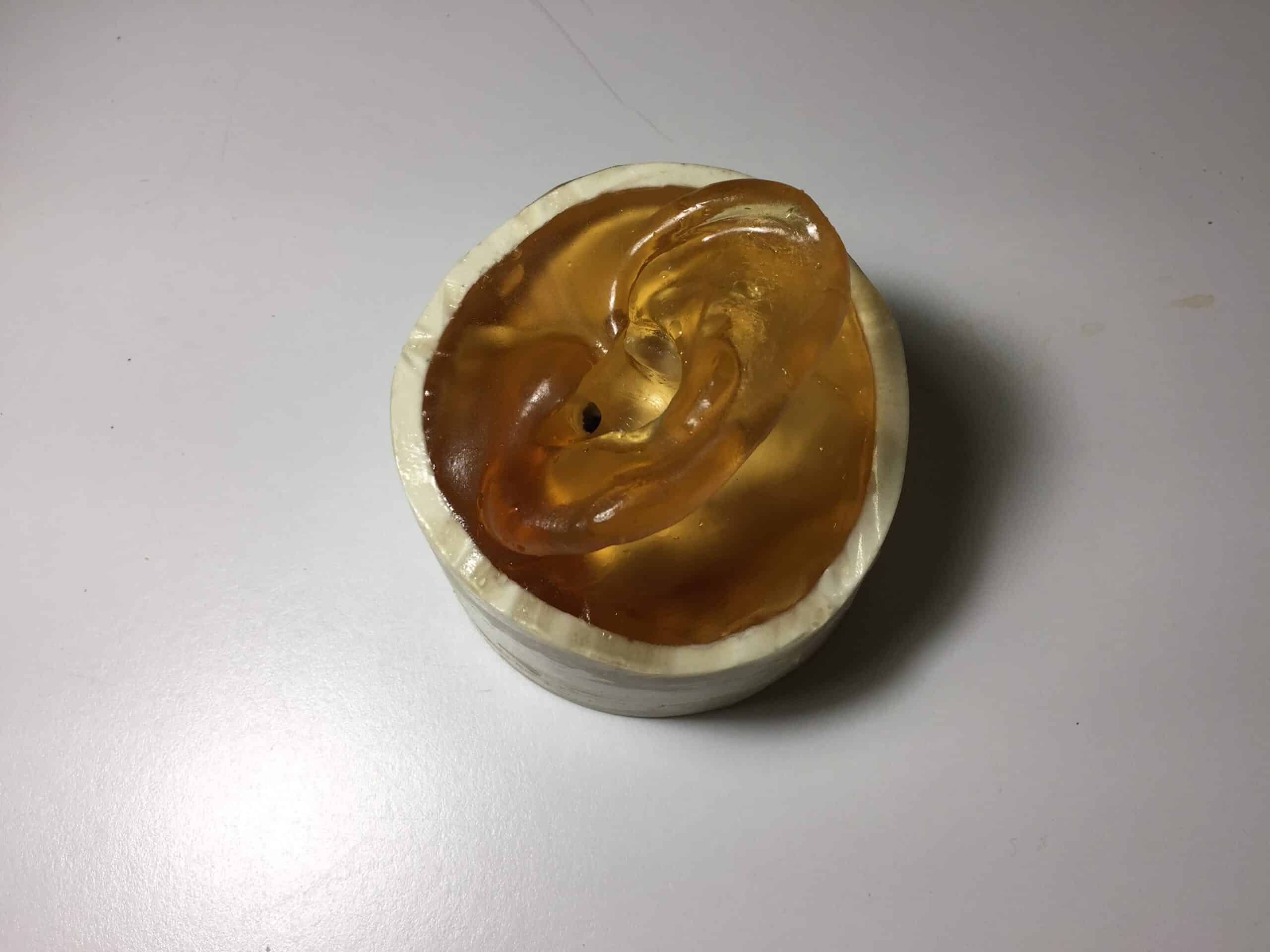

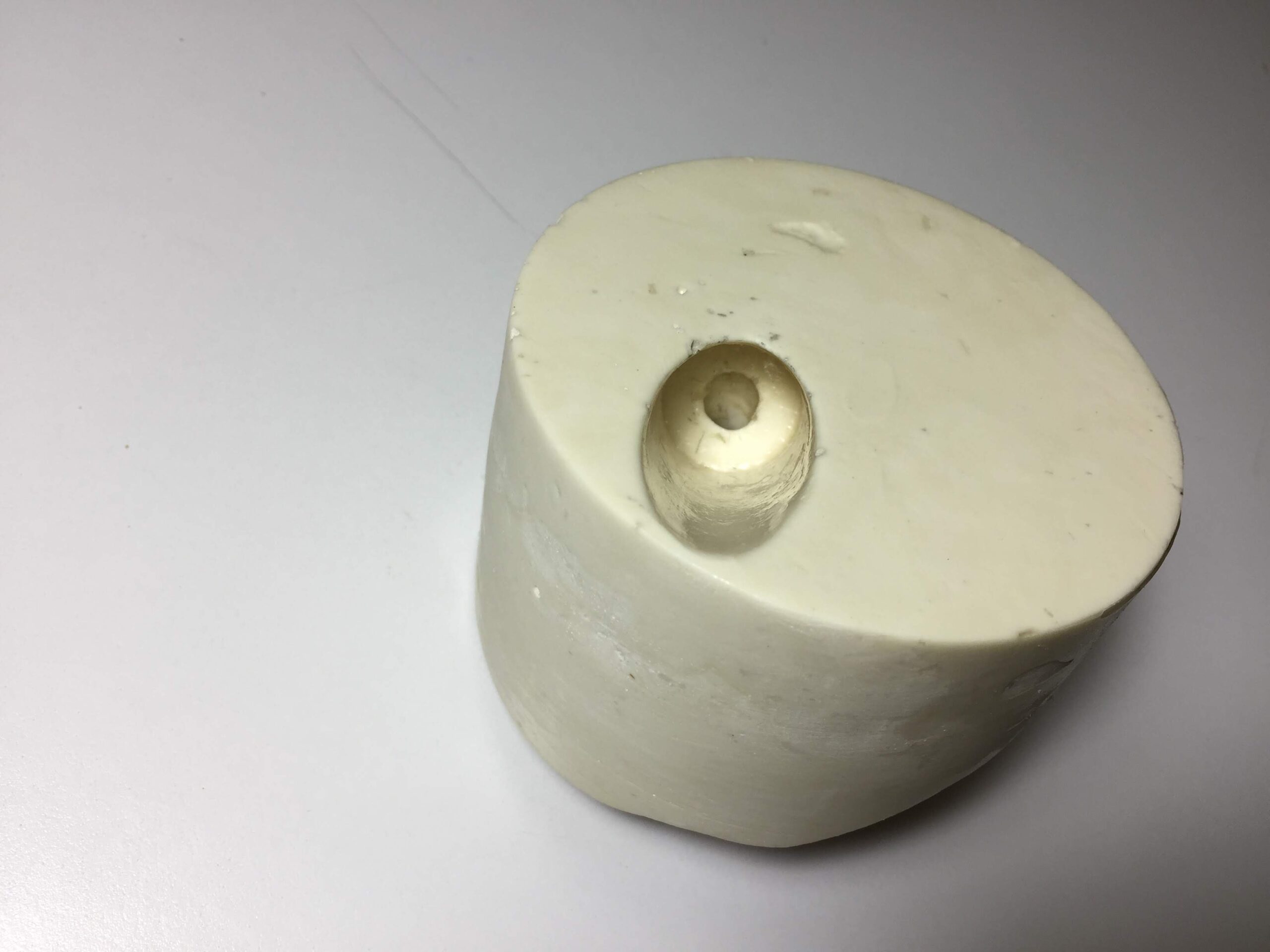

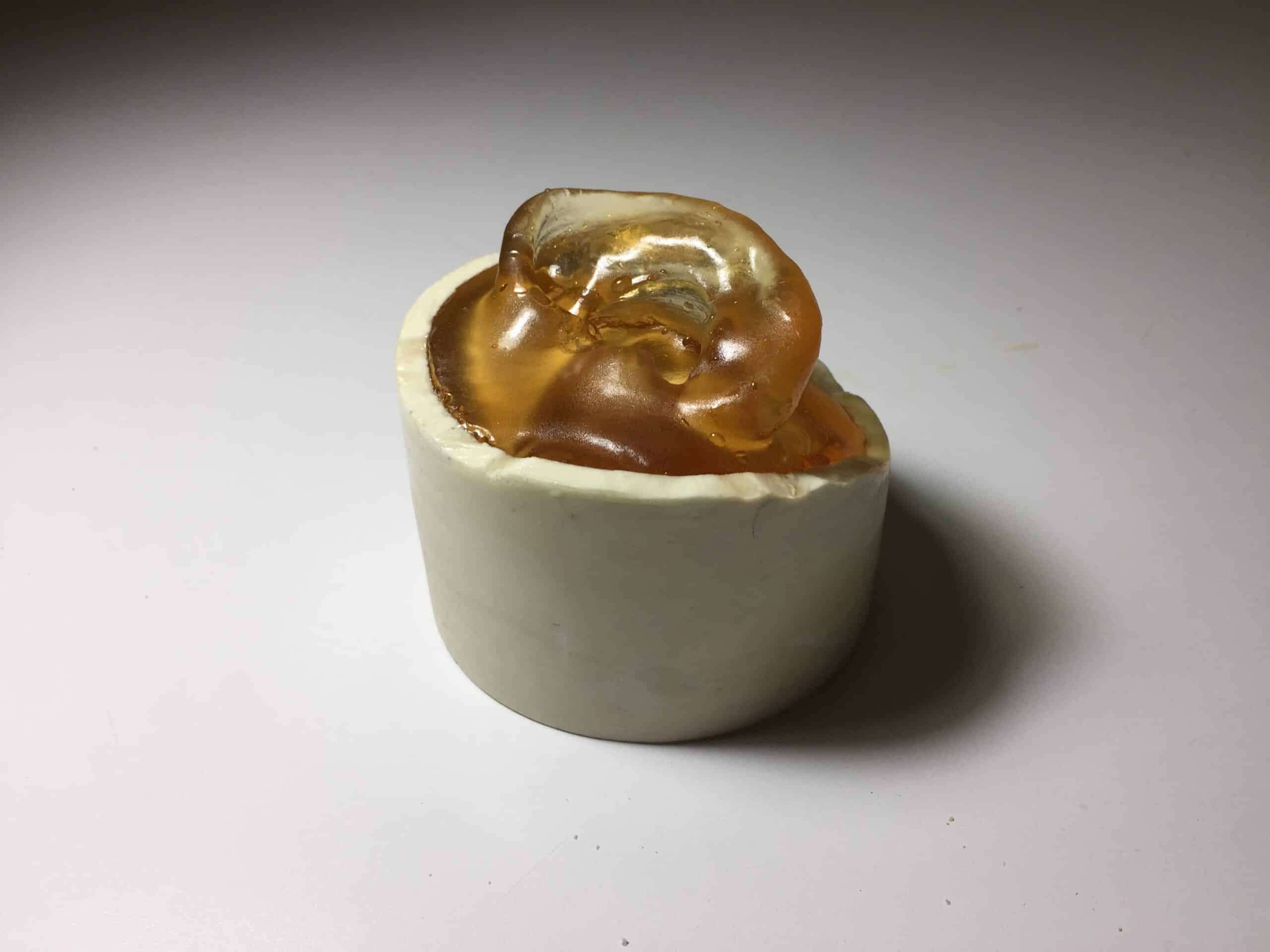

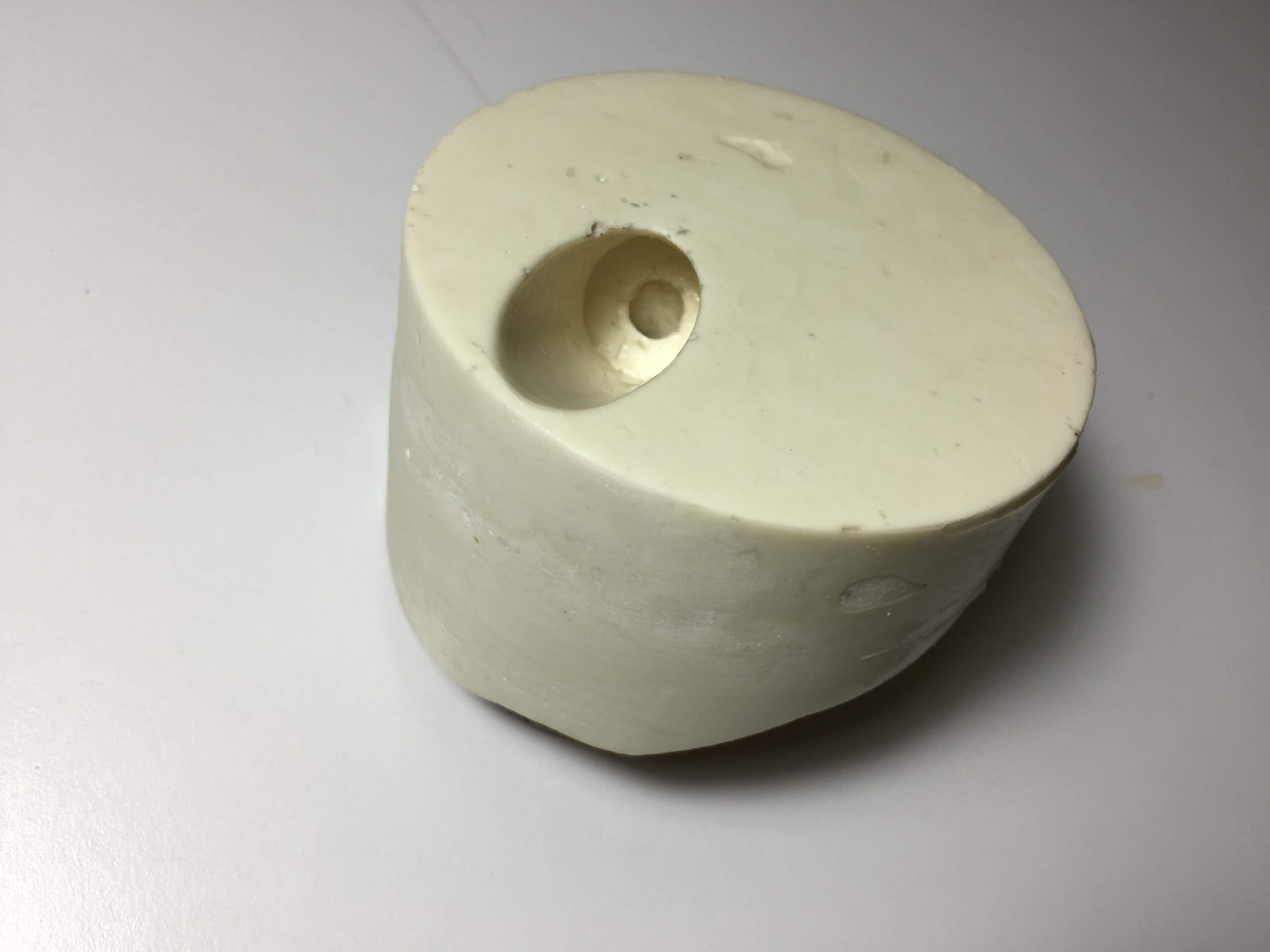

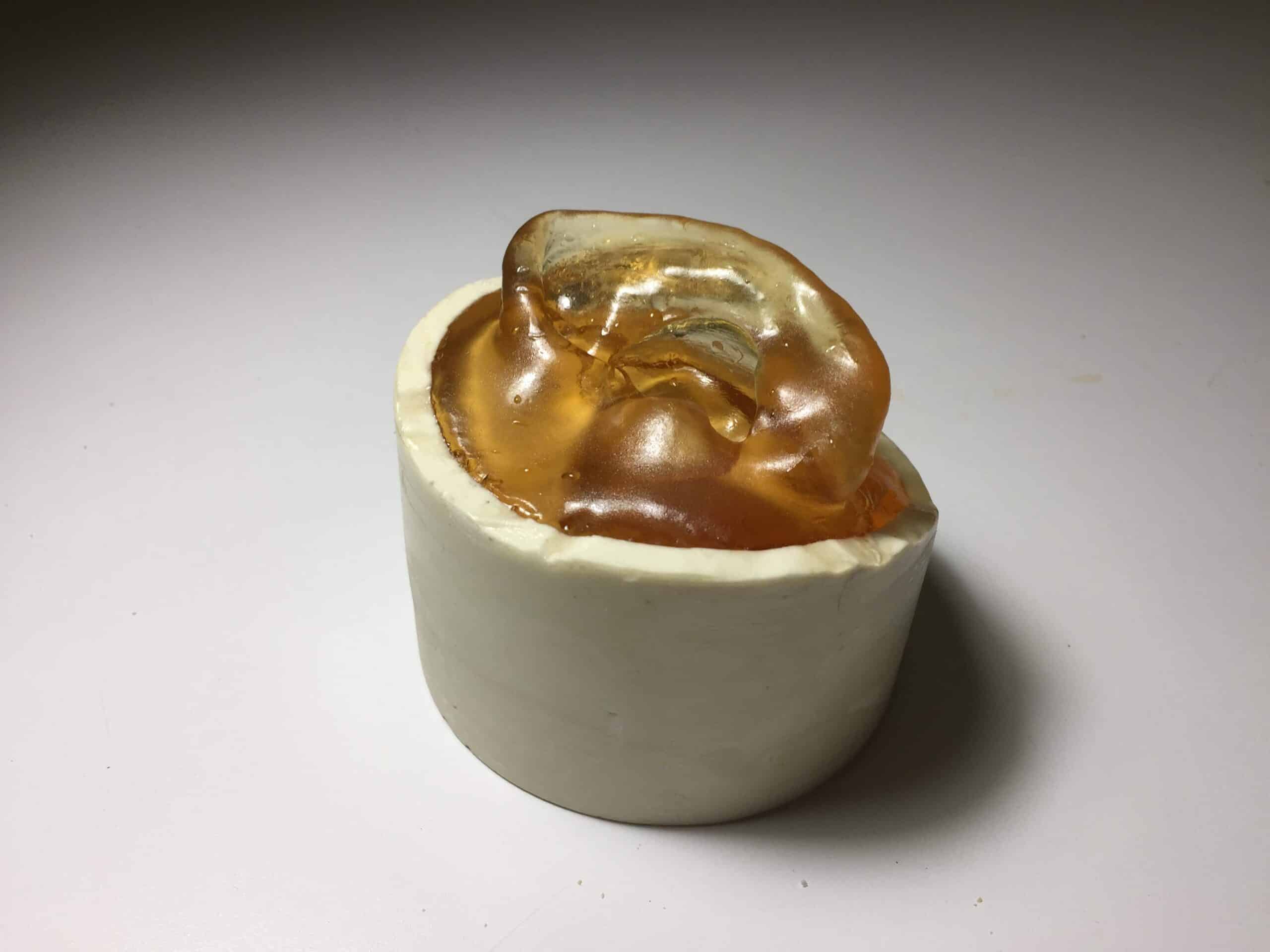

Product Images:

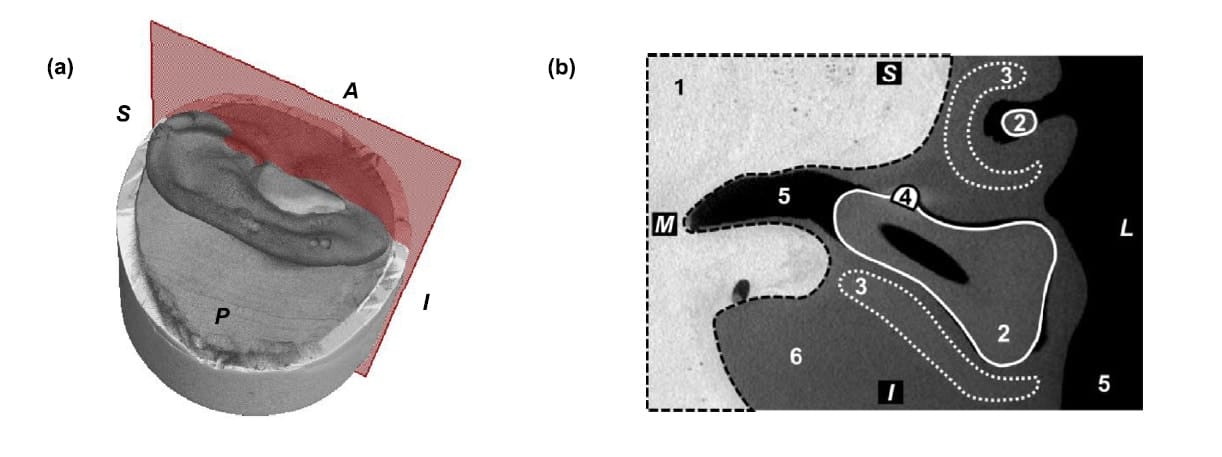

CT Scans:

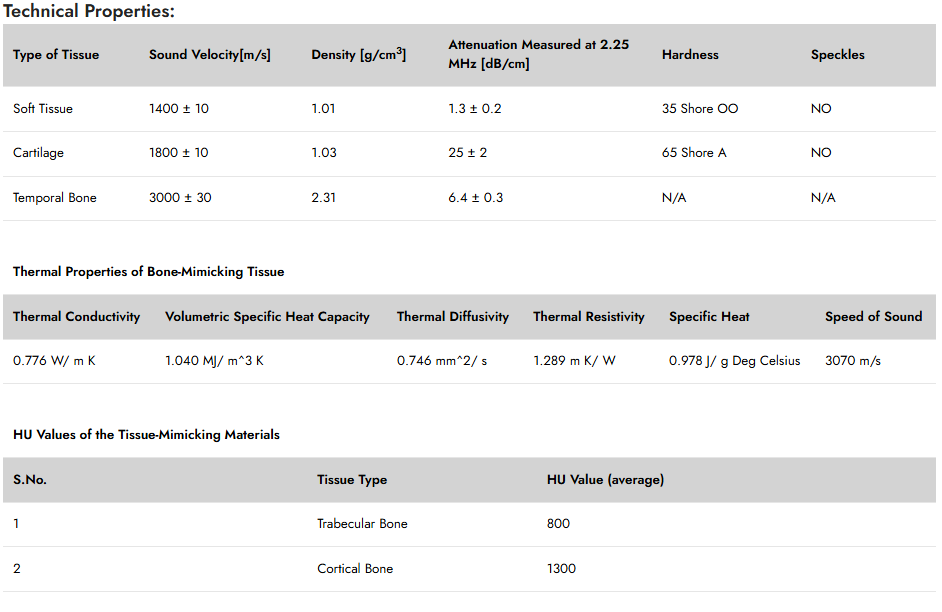

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness | Speckles |
| Soft Tissue | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 Shore OO | NO |
| Cartilage | 1800 ± 10 | 1.03 | 25 ± 2 | 65 Shore A | NO |
| Temporal Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Ear Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 3 x 3 x 3 Inches, Weight: 1 Lbs (approx.).
Shipment:
Size: 12 x 10 x 10 Inches, Weight: 3 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Please refer to our FAQ page.
