The Adult Breast for X-Ray CT, US is a realistic phantom that is designed around the average anatomy of a female breast, and it has all the essential bones and organs. This phantom is compatible with X-Ray/CT and US imaging, making it an ideal tool to study, research, test, and train on sonography and mammography techniques.
This phantom is a life-size female breast phantom with all bony and major organ structures. BT-A02 can be used to study several diagnostic procedures under X-Ray/CT & US in different orientation and positioning techniques.
Upon request, this product can be customized with different pathologies and for specific training applications.
Anatomy:
Partial Ribs and Cartilage One Lung Major Fat Tissues Major Muscles Axillary Lymph Nodes Subcutaneous Adipose Retromammary Adipose Mammary Glands Two Spherical Tumors
Design:
-
- Front View
-
- Lateral View
-
- Perspective View
-
- Top View
Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
Ultrasound Scans:
-

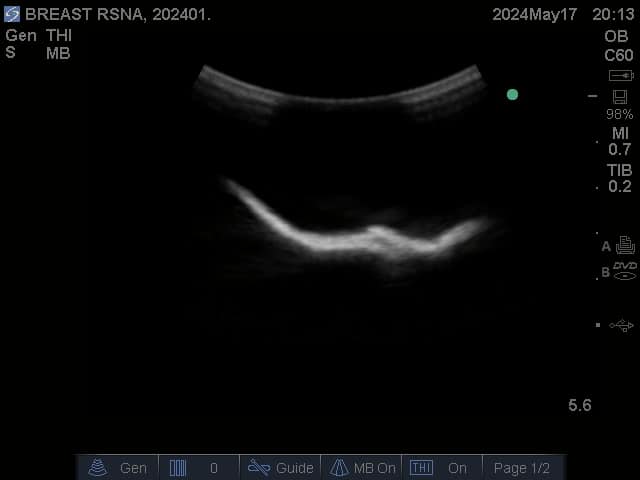

- Lung View
-

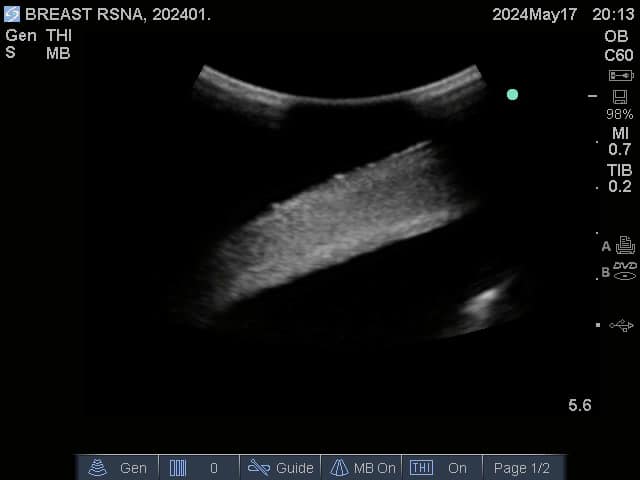

- Delt View
-

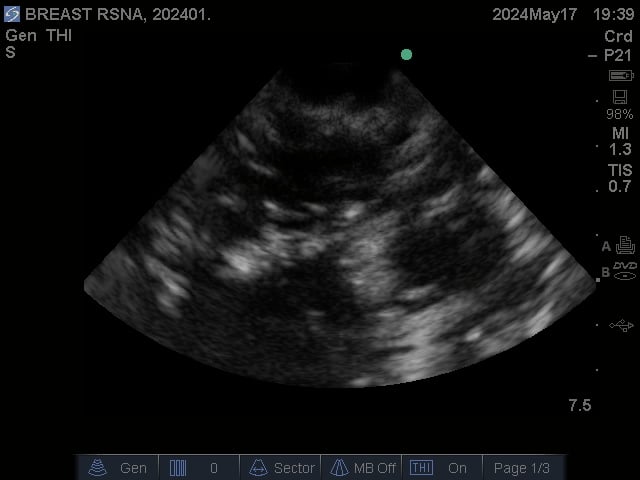

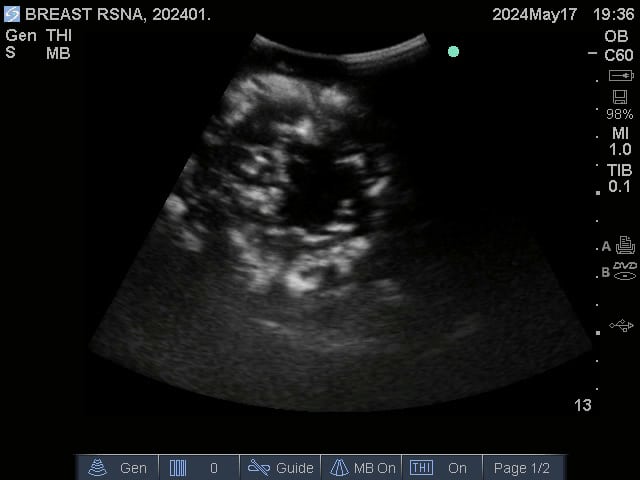

- Lymph Nodes/Lobules View 1
-
- Lymph Nodes/Lobules View 2
-

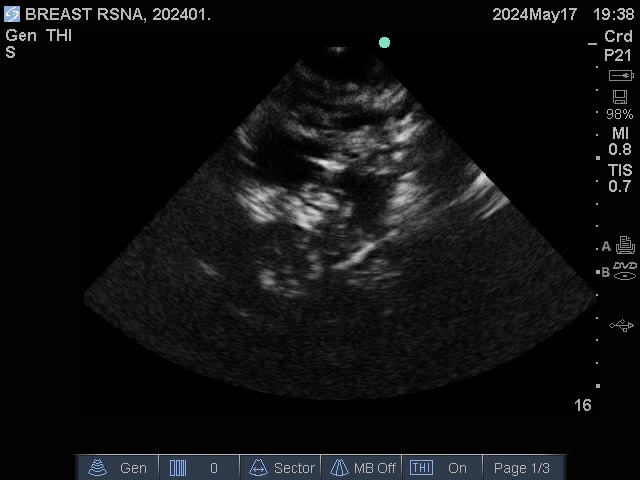

- Lymph Nodes/Lobules View 3
-

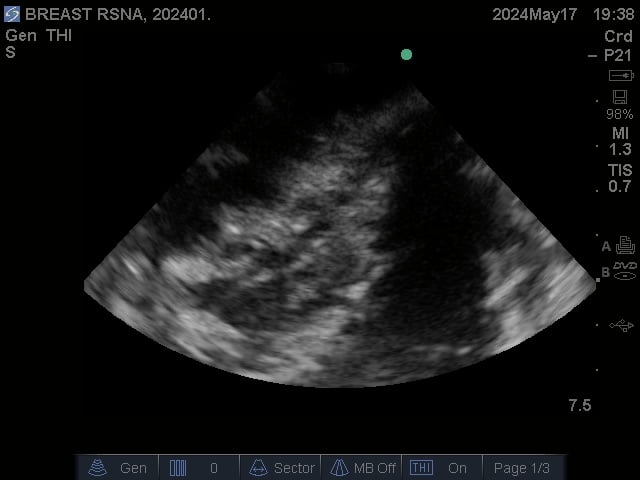

- Lymph Nodes/Lobules View 4
-
- Oblique View
-

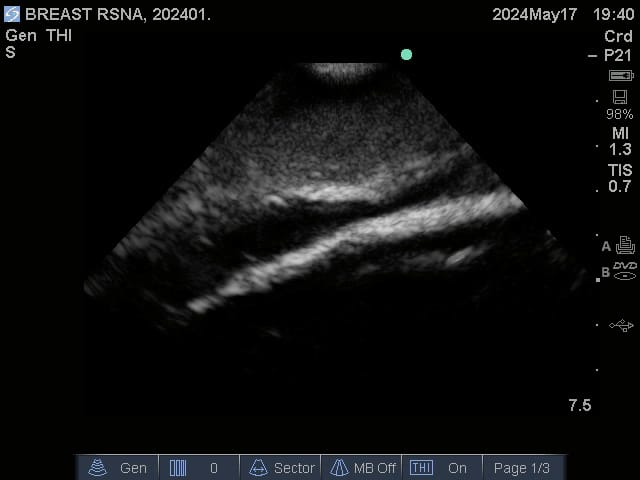

- Pectoralis Major View 1
-

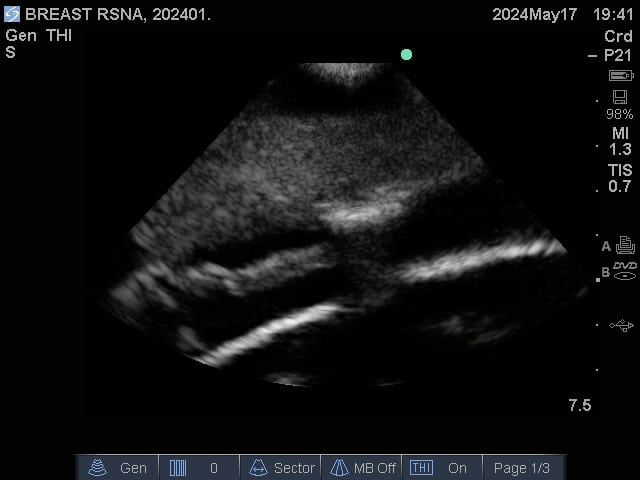

- Pectoralis Major View 2
-

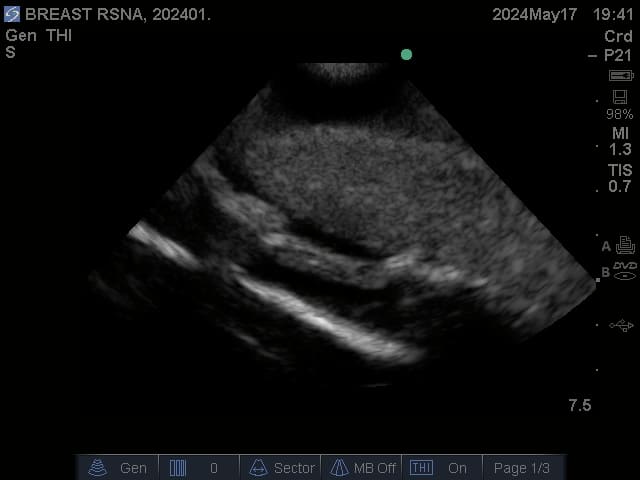

- Pectoralis Major View 3
-

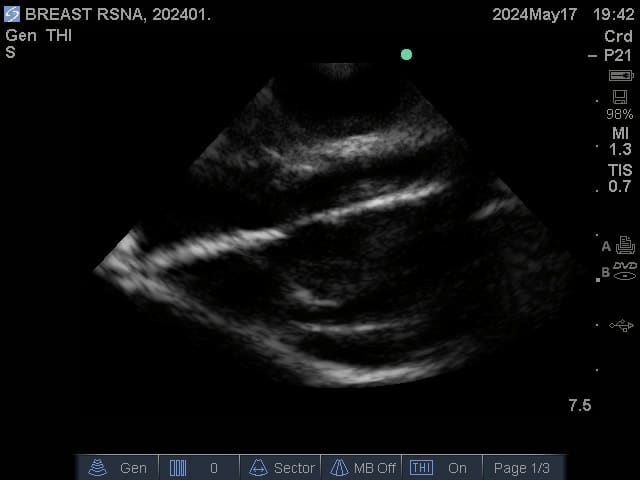

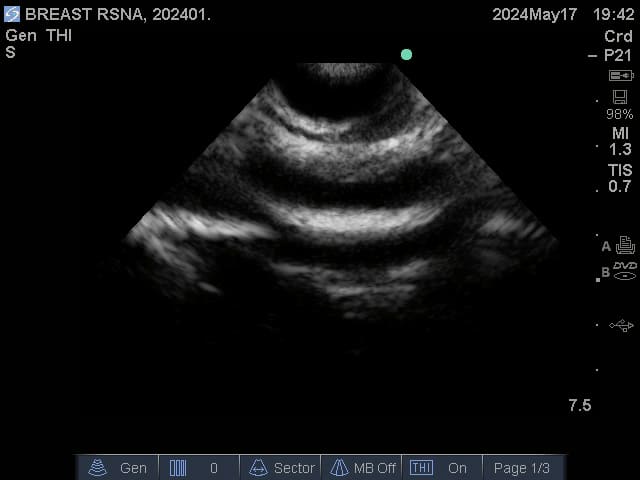

- Searratus Anterior View 1
-
- Searratus Anterior View 2
-

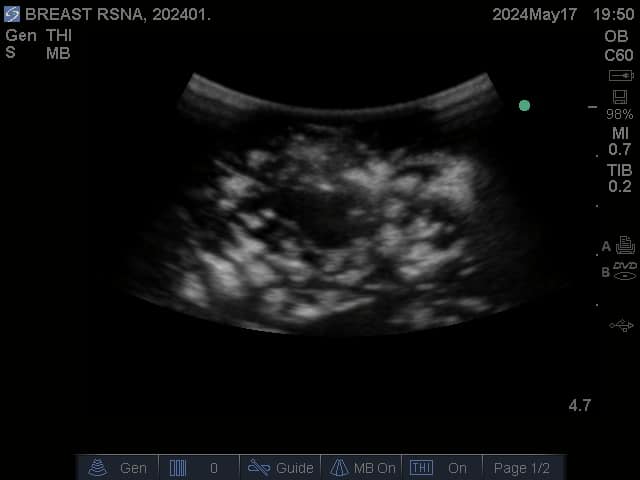

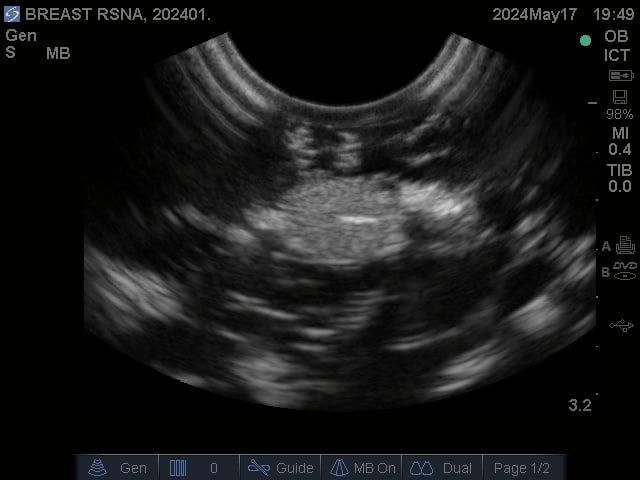

- Tumor View 1
-
- Tumor View 2
-

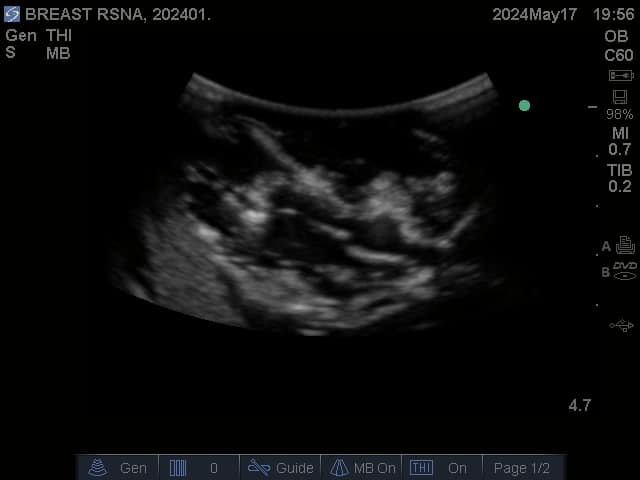

- Tumor View 3

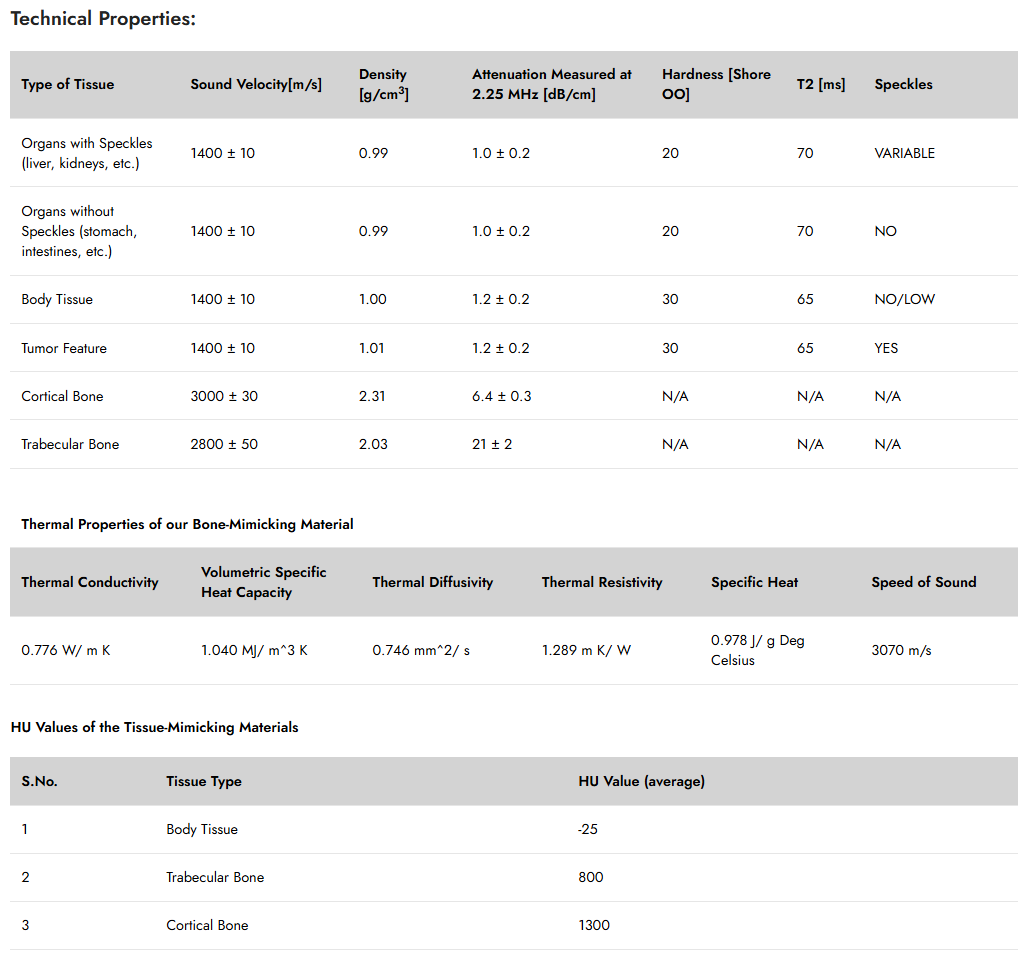

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
X-Ray Scans:
CT Scans:
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
Included In Order:
Adult Breast Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Size & Weight:
Phantom:
Size: 10 x 9 x 10 Inches, Weight: 11 Lbs (approx.).
Shipment:
Size: 32 x 23 x 13 Inches, Weight: 45 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
