The Adult Arm (Advanced) is a realistic, life-size phantom that is designed based on an average anatomy of a human arm with all the essential bones and tissue features. All major ligaments/tendons structures are present inside. This phantom is compatible with X-Ray/CT and Ultrasound, which makes it an ideal tool to study, research, and test medical imaging devices.
The phantom can be used to study several diagnostic X-Ray/CT & Ultrasound procedures in different orientation and positioning techniques. The blood vessels come pre-filled with a blood mimicking fluid with realistic contrast.
Upon request, this product can be customized with different pathologies as well for specific training applications.
Anatomy:
Radius Ulna Carpals Scaphoid Phalanxes Major Muscles Major Tendons Static Blood Vessels
Design:
-

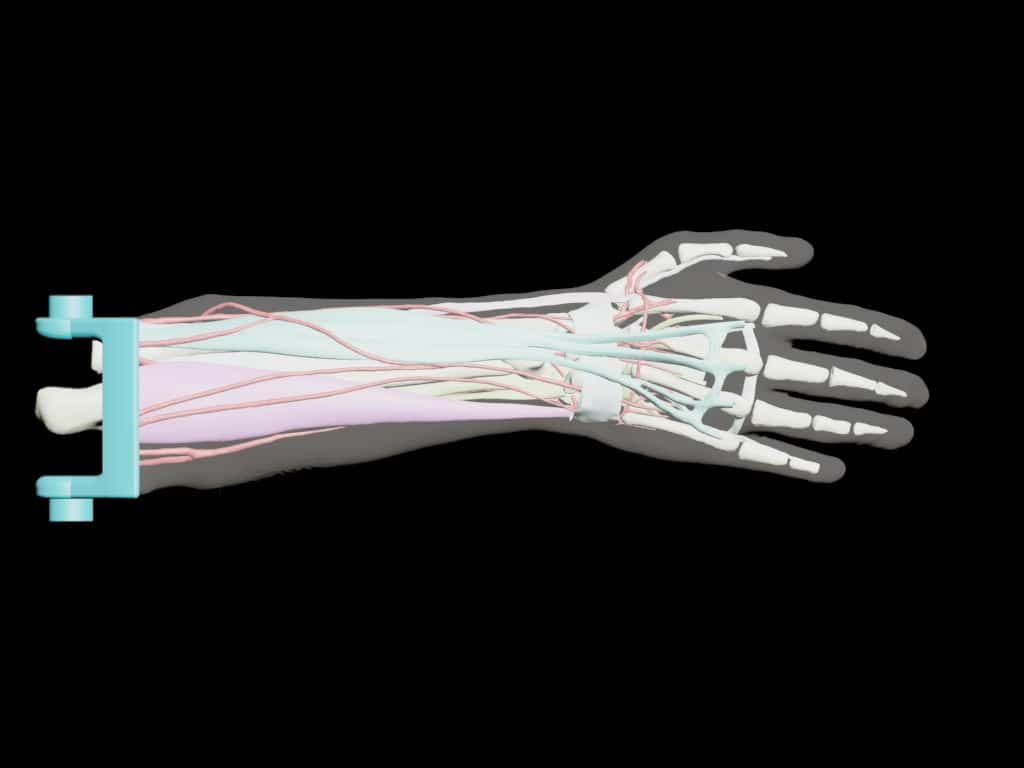

- Dorsal View
-

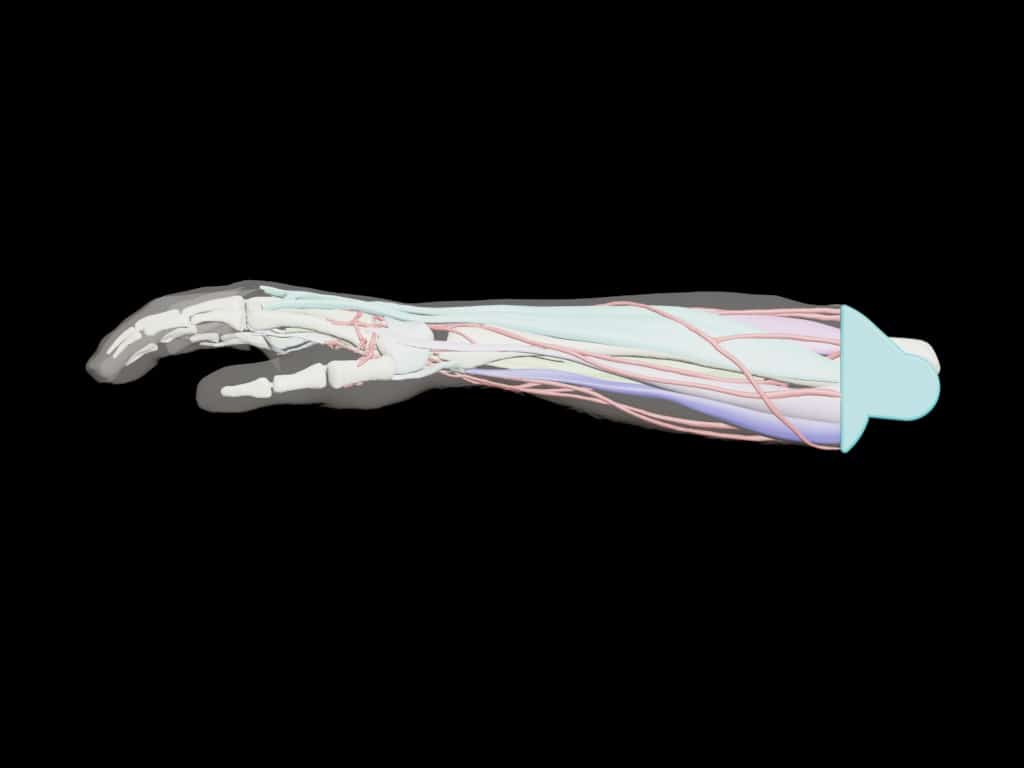

- Lateral View
-

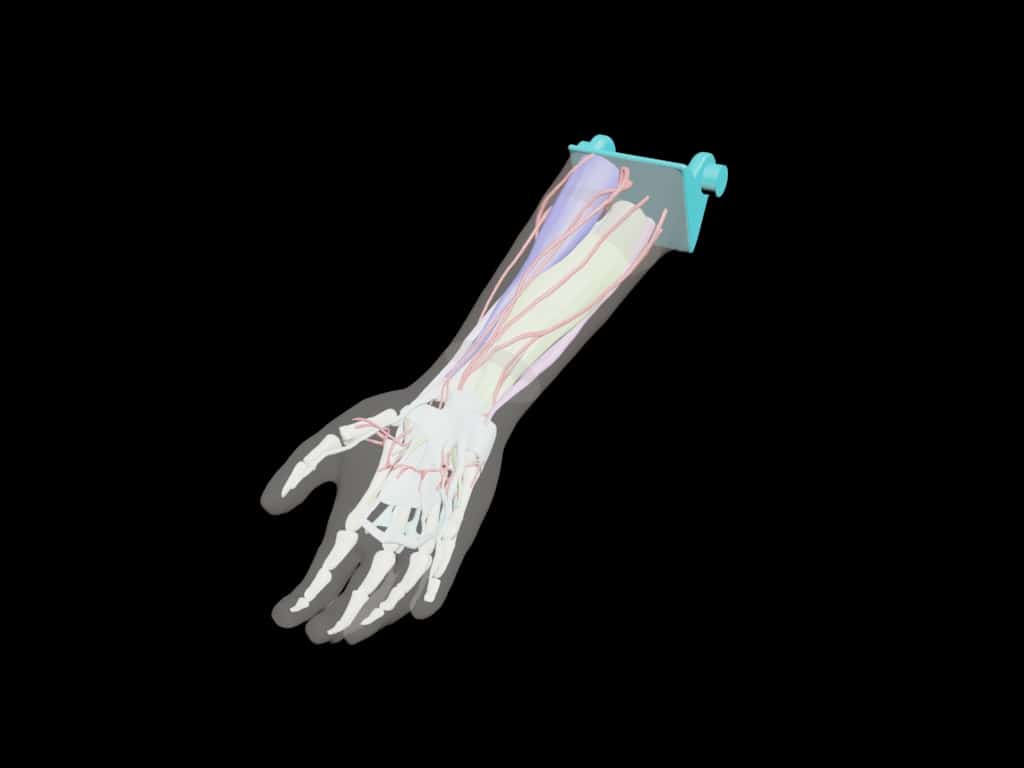

- Perspective View
-

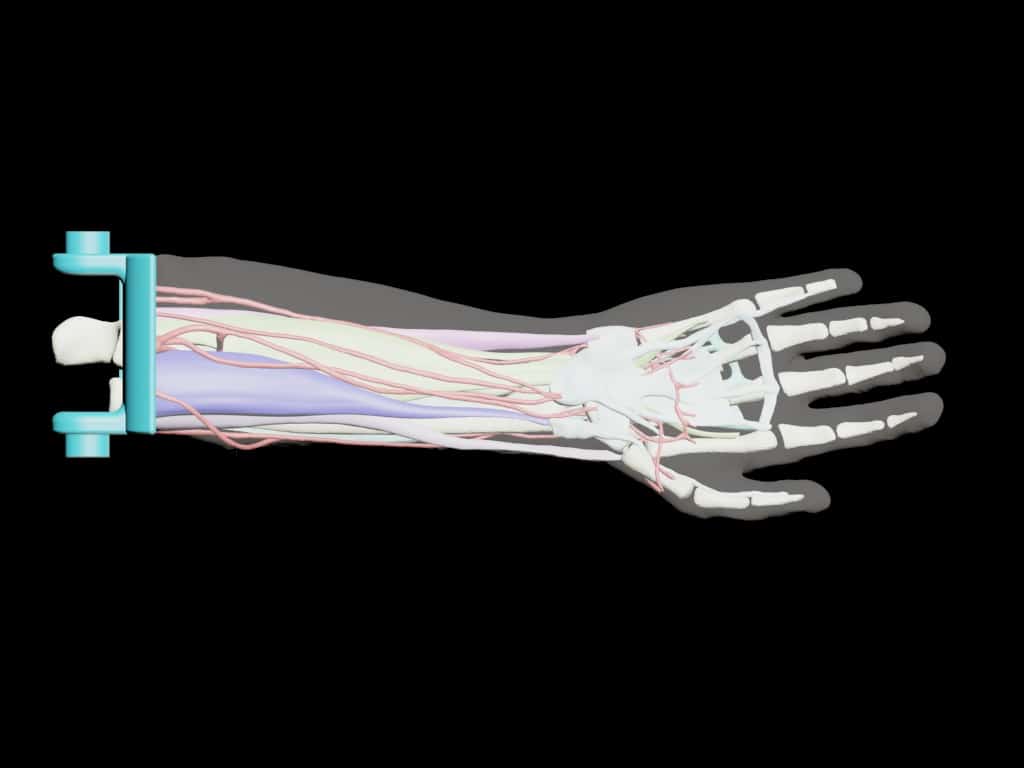

- Ventral View

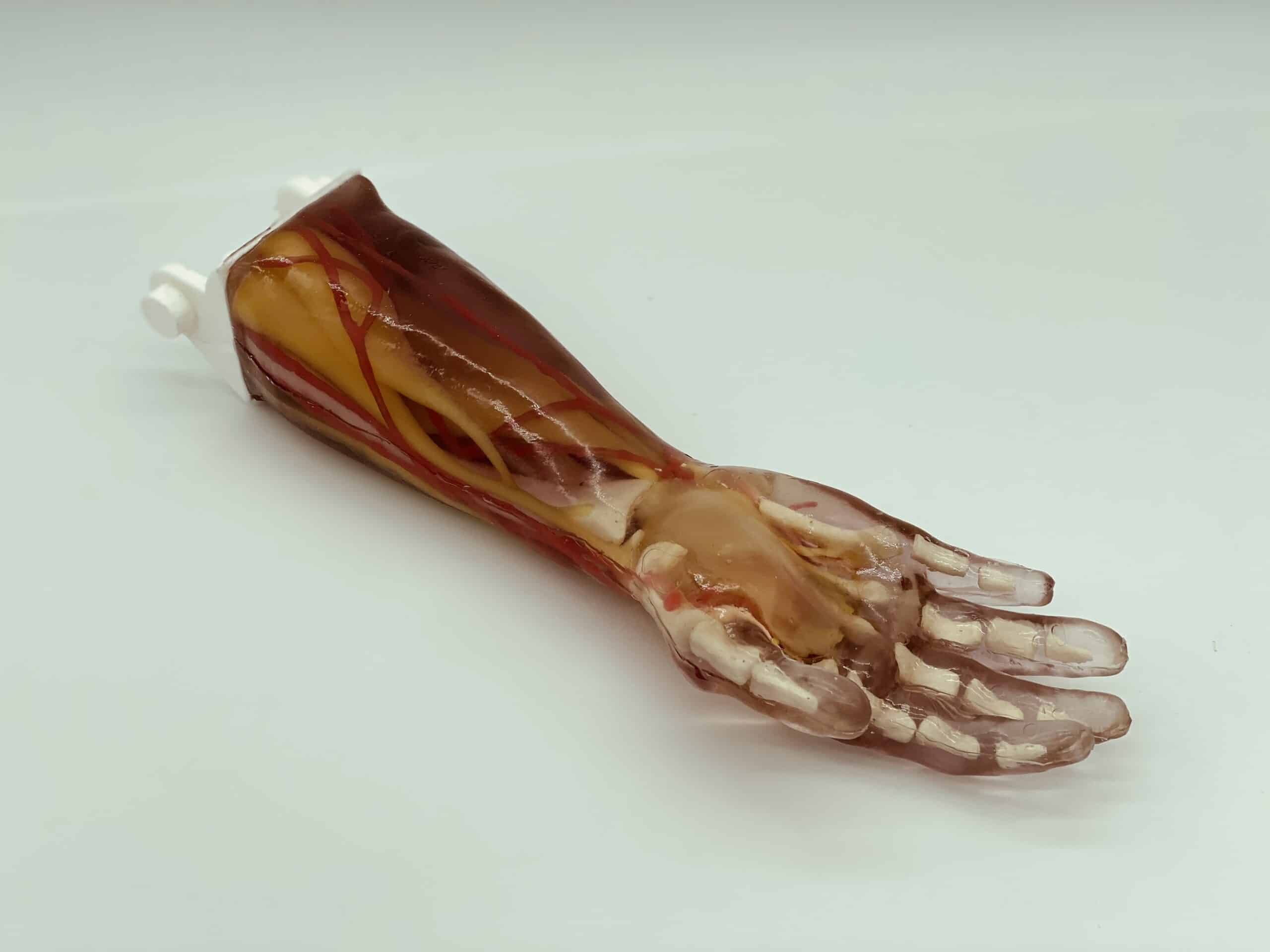

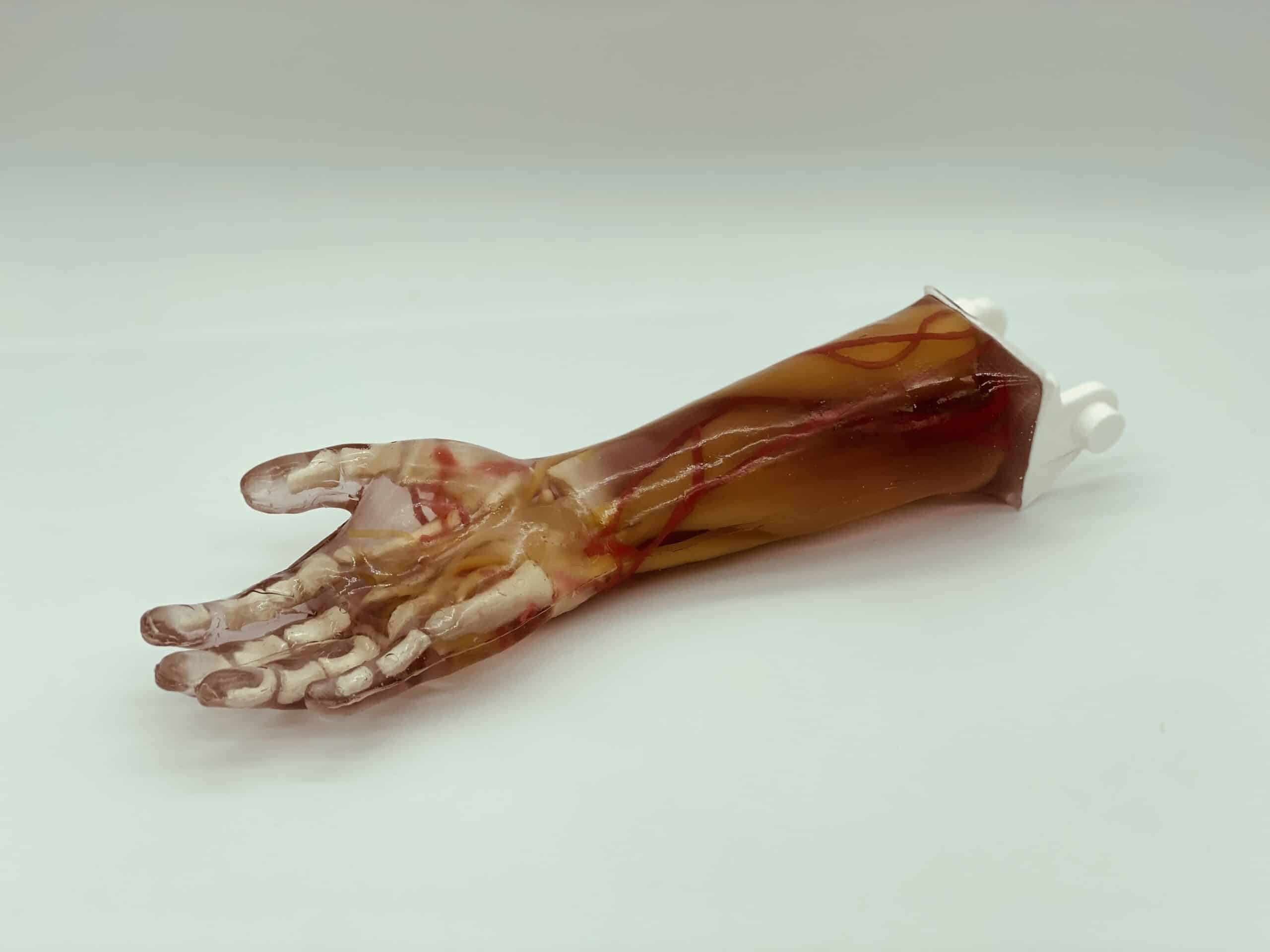

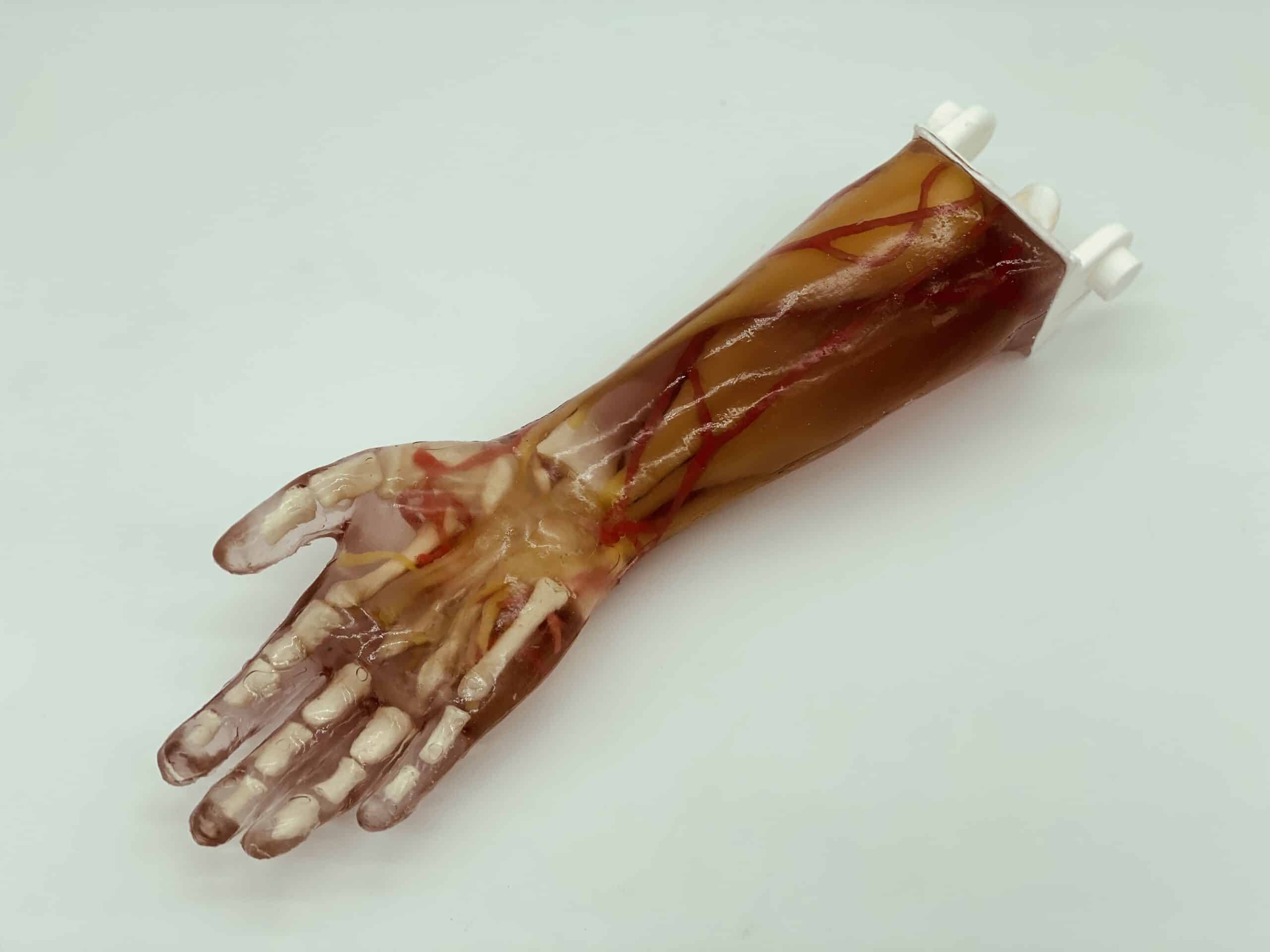

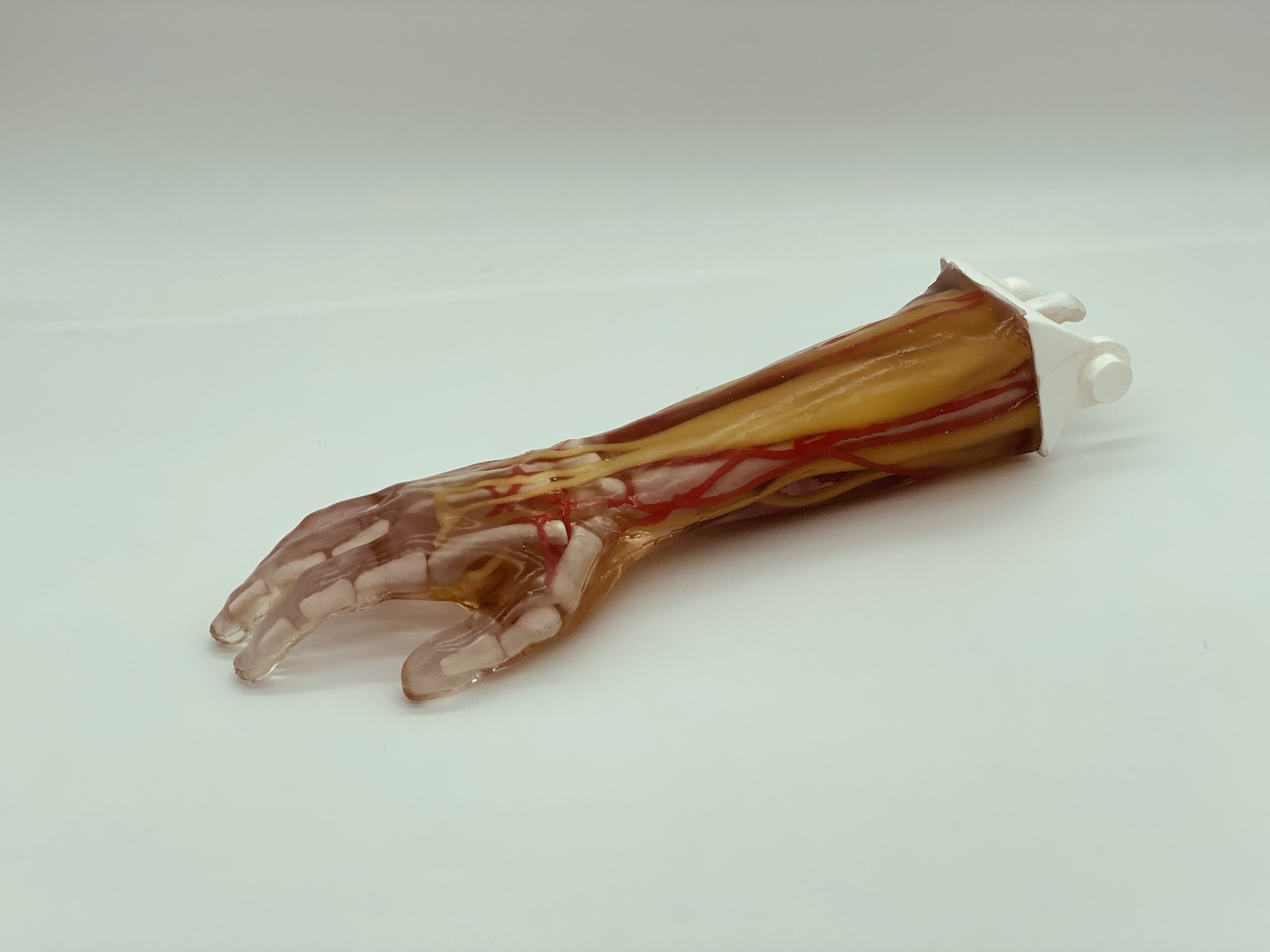

Product Images:
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
Ultrasound Scans of the Arm:
-

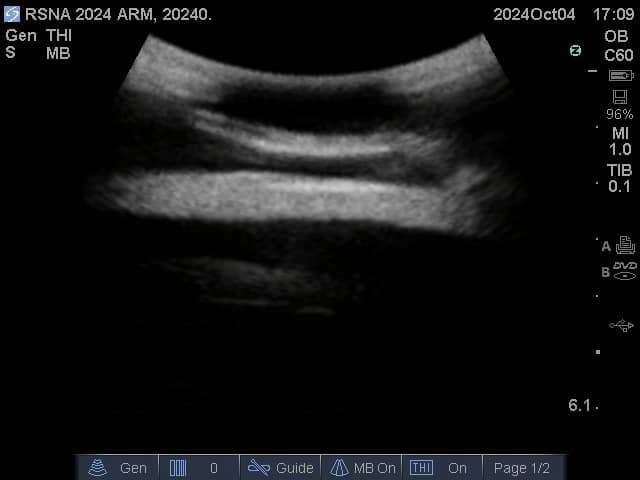

- Coronal Muscles
-

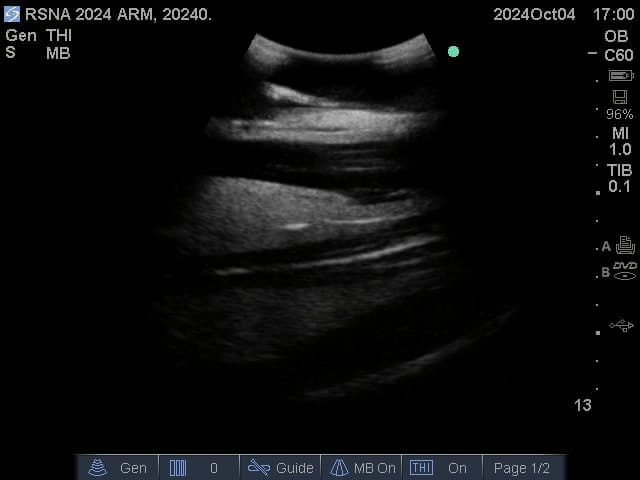

- Muscles and Bones Saggital
-
- Muscles and Vessels Horizontal
-
- Muscles, Vessels and Tendons Horizontal
-
- Muscles, Vessels, Tendons and Bones Horizontal

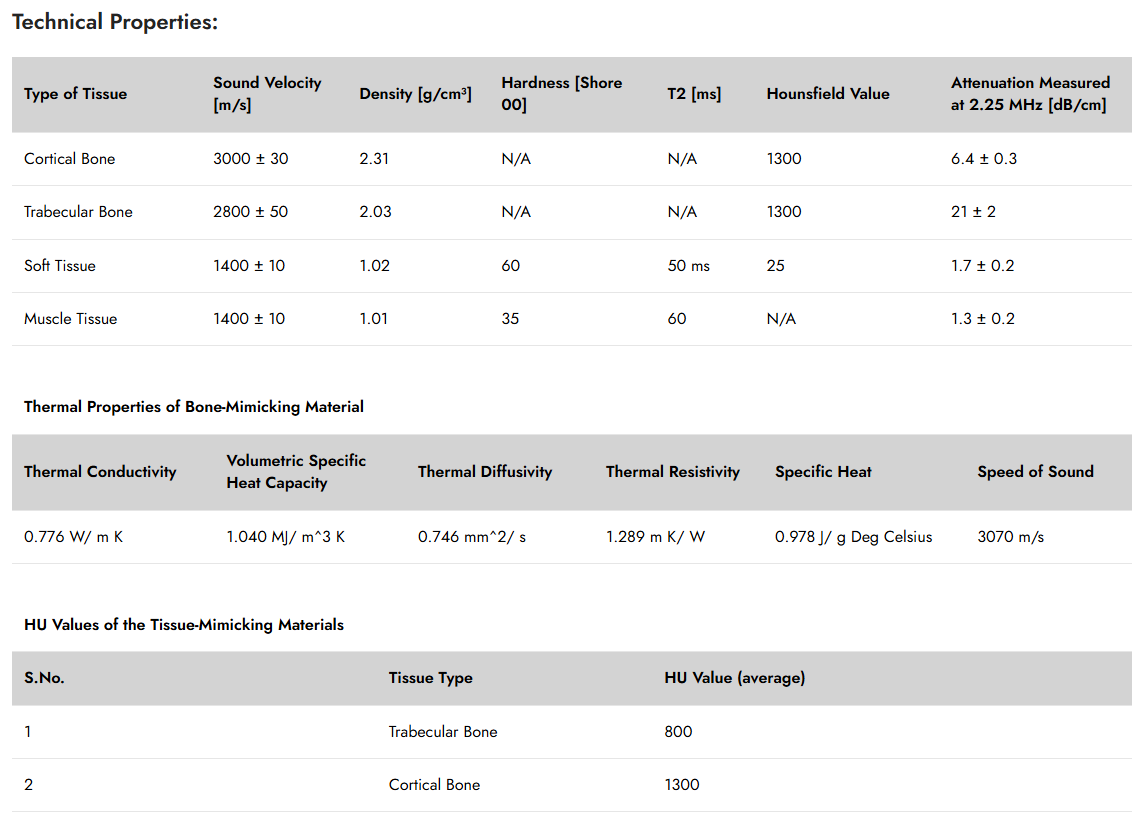

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1400 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Muscle Tissue | 1400 ± 10 | 1.01 | 35 | 60 | N/A | 1.3 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included In Order:
Adult Arm (Advanced) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Size & Weight:
Phantom:
Size: 7 x 7 x 24 Inches, Weight: 8 Lbs (approx.).
Shipment:
Size: 16 x 12 x 7 Inches, Weight: 13 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
